Sayfa 6-07 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP ▶

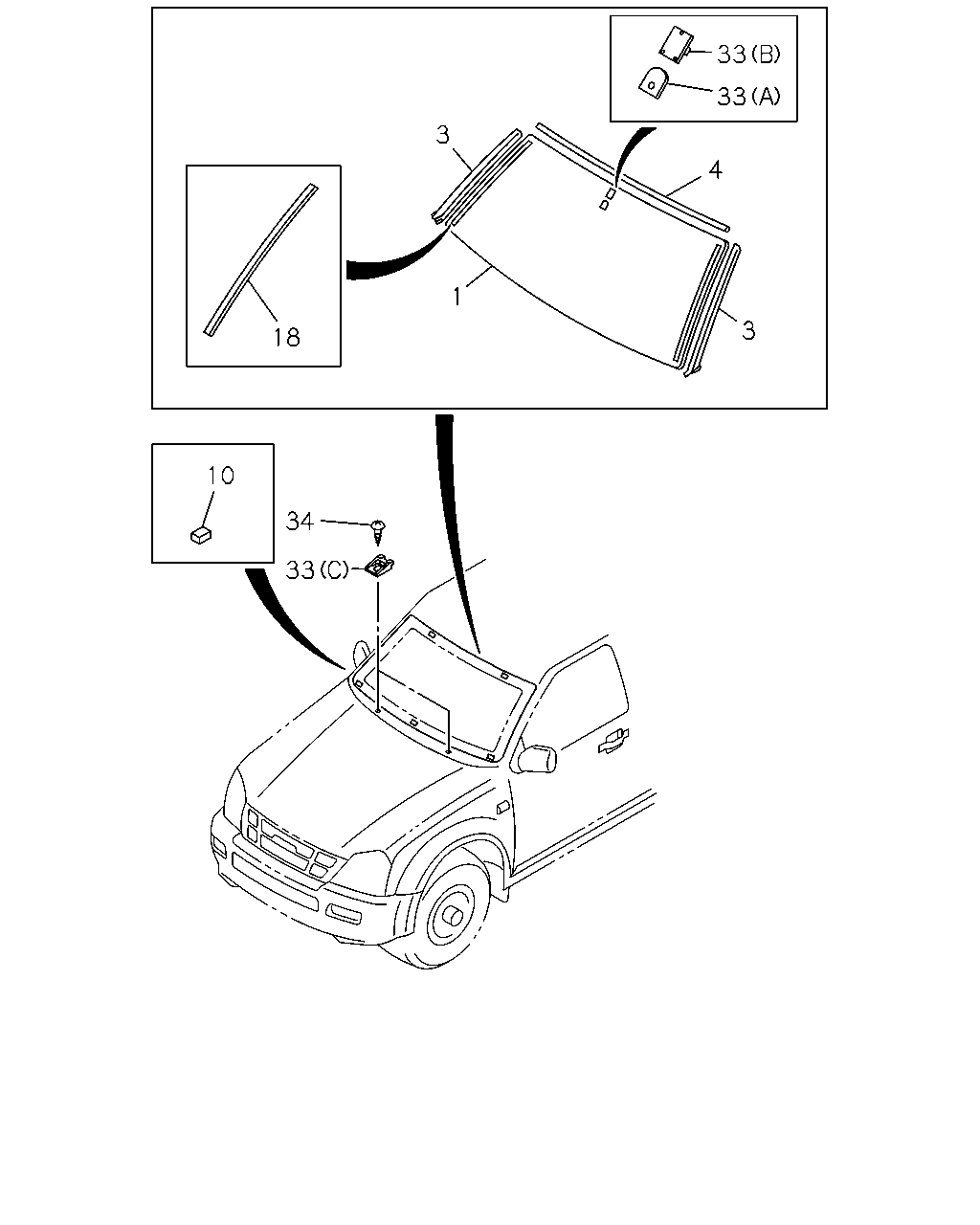

6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#72903) — 69 parça

33 33 3 4 1 3 18 10 34 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	GLASS; WINDSHIELD GLASS-TINTED WIND SHIELD<A02> RR VIEW MIRROR DAY & NIGHT<D43> THA	8-97359-575-0	01	1	0308-0408	●	●	●
1	GLASS; WINDSHIELD THA	8-97359-575-0	01	1	0308-0408				●
1	GLASS; WINDSHIELD GLASS-TINTED WIND SHIELD<A02> RR VIEW MIRROR DAY & NIGHT<D31> THA	8-97359-575-0	01	1	0409-0808	●	●	●
1	GLASS; WINDSHIELD THA	8-97359-575-0	01	1	0409-0808				●
1	GLASS; WINDSHIELD GLASS-TINTED WIND SHIELD<A02> RR VIEW MIRROR DAY & NIGHT<D31> THA	8-98134-280-0	01	1	0809-	●	●	●
1	GLASS; WINDSHIELD THA	8-98134-280-0	01	1	0809-				●
1	GLASS; WINDSHIELD RR VIEW MIRROR DAY & NIGHT<D43> THA	8-97331-593-1	01	1	0204-0207	●		●
1	GLASS; WINDSHIELD RR VIEW MIRROR DAY & NIGHT<D43> THA	8-97331-593-1	01	1	0208-0307	●	●	●
1	GLASS; WINDSHIELD THA	8-97331-593-1	01	1	0208-0307				●
1	GLASS; WINDSHIELD RR VIEW MIRROR DAY & NIGHT<D43> EXC. GLASS-TINTED WIND SHIELD<A02> THA	8-97331-593-1	01	1	0308-0408	●	●	●
1	GLASS; WINDSHIELD RR VIEW MIRROR DAY & NIGHT<D31> EXC. GLASS-TINTED WIND SHIELD<A02> THA	8-97331-593-1	01	1	0409-0708	●	●	●
1	GLASS; WINDSHIELD EXC. RR VIEW MIRROR DAY & NIGHT<D43> THA	8-97331-594-1	01	1	0204-0207	●		●
1	GLASS; WINDSHIELD THA	8-97331-594-1	01	1	0204-0207					●
1	GLASS; WINDSHIELD EXC. RR VIEW MIRROR DAY & NIGHT<D43> THA	8-97331-594-1	01	1	0208-0307	●	●	●
1	GLASS; WINDSHIELD THA	8-97331-594-1	01	1	0208-0307					●
1	GLASS; WINDSHIELD EXC. GLASS-TINTED WIND SHIELD<A02>,RR VIEW MIRROR DAY & NIGHT<D43> THA	8-97331-594-1	01	1	0308-0408	●	●	●
1	GLASS; WINDSHIELD THA	8-97331-594-1	01	1	0308-0408					●
1	GLASS; WINDSHIELD EXC. GLASS-TINTED WIND SHIELD<A02>,RR VIEW MIRROR DAY & NIGHT<D31> THA	8-97331-594-1	01	1	0409-0808	●	●	●
1	GLASS; WINDSHIELD THA	8-97331-594-1	01	1	0409-0808					●
1	GLASS; WINDSHIELD EXC. GLASS-TINTED WIND SHIELD<A02>,RR VIEW MIRROR DAY & NIGHT<D31> THA	8-98134-277-0	01	1	0809-	●	●	●
1	GLASS; WINDSHIELD THA	8-98134-277-0	01	1	0809-					●
3	MOLDING; WINDSHIELD THA	8-97234-878-1	01	1	0204-0207	●		●		●
3	MOLDING; WINDSHIELD THA	8-97234-878-1	01	1	0208-0511	●	●	●	●	●
3	MOLDING; WINDSHIELD THA	8-98030-884-0	01	1	0512-	●	●	●	●	●
3	MOLDING; WINDSHIELD THA	8-97234-877-1	01	1	0204-0207	●		●		●
3	MOLDING; WINDSHIELD THA	8-97234-877-1	01	1	0208-0510	●	●	●	●	●
3	MOLDING; WINDSHIELD THA	8-98030-883-0	01	1	0511-	●	●	●	●	●
4	MOLDING; WINDSHIELD,UPR THA	8-97239-342-0	01	1	0204-0207	●		●		●
4	MOLDING; WINDSHIELD,UPR THA	8-97239-342-0	01	1	0208-0606	●	●	●	●	●
4	MOLDING; WINDSHIELD,UPR GLASS-TINTED WIND SHIELD<A02> RR VIEW MIRROR DAY & NIGHT<D31> THA	8-97239-342-0	01	1	0607-0708	●	●	●
4	MOLDING; WINDSHIELD,UPR EXC. GLASS-TINTED WIND SHIELD<A02> THA	8-97239-342-0	01	1	0607-0708	●	●	●
4	MOLDING; WINDSHIELD,UPR THA	8-97239-342-0	01	1	0607-0708				●	●
4	MOLDING; WINDSHIELD,UPR EXC. GLASS-TINTED WIND SHIELD<A02>,RR VIEW MIRROR DAY & NIGHT<D31> THA	8-97239-342-0	01	1	0709-	●	●	●
4	MOLDING; WINDSHIELD,UPR GLASS-TINTED WIND SHIELD<A02> RR VIEW MIRROR DAY & NIGHT<D31> THA	8-97239-342-0	01	1	0709-	●	●	●
4	MOLDING; WINDSHIELD,UPR THA	8-97239-342-0	01	1	0709-				●	●
10	SPACER; WINDSHIELD GLASS THA	8-94434-770-0	07	1	0204-0207	●		●		●
10	SPACER; WINDSHIELD GLASS THA	8-94434-770-0	07	1	0208-0212	●	●	●	●	●
10	SPACER; WINDSHIELD GLASS THA	8-94434-770-0	05	1	0301-	●	●	●	●	●
18	SEAL; WINDSHIELD THA	8-97241-403-0	02	1	0204-0207	●		●		●
18	SEAL; WINDSHIELD THA	8-97241-403-0	02	1	0208-0212	●	●	●	●	●
18	SEAL; WINDSHIELD THA	8-97362-794-0	02	1	0301-0305	●	●	●	●	●
18	SEAL; WINDSHIELD THA	8-97367-390-0	02	1	0306-0606	●	●	●	●	●
18	SEAL; WINDSHIELD GLASS-TINTED WIND SHIELD<A02> RR VIEW MIRROR DAY & NIGHT<D31> THA	8-97367-390-0	02	1	0607-0708	●	●	●
18	SEAL; WINDSHIELD EXC. GLASS-TINTED WIND SHIELD<A02> THA	8-97367-390-0	02	1	0607-0708	●	●	●
18	SEAL; WINDSHIELD THA	8-97367-390-0	02	1	0607-0708				●	●
18	SEAL; WINDSHIELD EXC. GLASS-TINTED WIND SHIELD<A02>,RR VIEW MIRROR DAY & NIGHT<D31> THA	8-97367-390-0	02	1	0709-	●	●	●
18	SEAL; WINDSHIELD GLASS-TINTED WIND SHIELD<A02> RR VIEW MIRROR DAY & NIGHT<D31> THA	8-97367-390-0	02	1	0709-	●	●	●
18	SEAL; WINDSHIELD THA	8-97367-390-0	02	1	0709-				●	●
33	SUPPORT; WINDSHIELD,LWR (C) THA	8-94434-771-0	02	1	0204-0207	●		●		●
33	SUPPORT; WINDSHIELD,LWR (C) THA	8-94434-771-0	02	1	0208-	●	●	●	●	●
33	SUPPORT; WINDSHIELD,LWR RR VIEW MIRROR DAY & NIGHT<D43> (A) THA	8-15954-649-0	01	1	0204-0207	●		●
33	SUPPORT; WINDSHIELD,LWR RR VIEW MIRROR DAY & NIGHT<D43> (A) THA	8-15954-649-0	01	1	0208-0408	●	●	●
33	SUPPORT; WINDSHIELD,LWR (A) THA	8-15954-649-0	01	1	0208-0408				●
33	SUPPORT; WINDSHIELD,LWR RR VIEW MIRROR DAY & NIGHT<D31> (A) THA	8-15954-649-0	01	1	0409-0708	●	●	●
33	SUPPORT; WINDSHIELD,LWR (A) THA	8-15954-649-0	01	1	0409-0708				●
33	SUPPORT; WINDSHIELD,LWR GLASS-TINTED WIND SHIELD<A02> RR VIEW MIRROR DAY & NIGHT<D31> (A) THA	8-15954-649-0	01	1	0709-	●	●	●
33	SUPPORT; WINDSHIELD,LWR (A) THA	8-15954-649-0	01	1	0709-				●
33	SUPPORT; WINDSHIELD,LWR EXC. RR VIEW MIRROR DAY & NIGHT<D43> (B) THA	8-97331-592-0	01	1	0204-0207	●		●
33	SUPPORT; WINDSHIELD,LWR (B) THA	8-97331-592-0	01	1	0204-0207					●
33	SUPPORT; WINDSHIELD,LWR EXC. RR VIEW MIRROR DAY & NIGHT<D43> (B) THA	8-97331-592-0	01	1	0208-0307	●	●	●
33	SUPPORT; WINDSHIELD,LWR (B) THA	8-97331-592-0	01	1	0208-0307					●
33	SUPPORT; WINDSHIELD,LWR EXC. GLASS-TINTED WIND SHIELD<A02>,RR VIEW MIRROR DAY & NIGHT<D43> (B) THA	8-97331-592-0	01	1	0308-0408	●	●	●
33	SUPPORT; WINDSHIELD,LWR (B) THA	8-97331-592-0	01	1	0308-0408					●
33	SUPPORT; WINDSHIELD,LWR EXC. GLASS-TINTED WIND SHIELD<A02>,RR VIEW MIRROR DAY & NIGHT<D31> (B) THA	8-97331-592-0	01	1	0409-	●	●	●
33	SUPPORT; WINDSHIELD,LWR (B) THA	8-97331-592-0	01	1	0409-					●
34	SCREW; SUPPORT TO BRKT M6X10 THA	9-09829-194-0	02	1	0204-0207	●		●		●
34	SCREW; SUPPORT TO BRKT M6X10 THA	9-09829-194-0	02	1	0208-0701	●	●	●	●	●
34	SCREW; SUPPORT TO BRKT M6X10 THA	8-98062-143-0	02	1	0702-1005	●	●	●	●	●
34	SCREW; SUPPORT TO BRKT M6X10 THA	8-98167-450-0	02	1	1006-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
