◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10806 - EXZ RHD FUEL TANK 400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-30 - FRONT DOOR AND HINGE ▶
6-30 — FRONT DOOR AND HINGE (#7290) — 33 parça

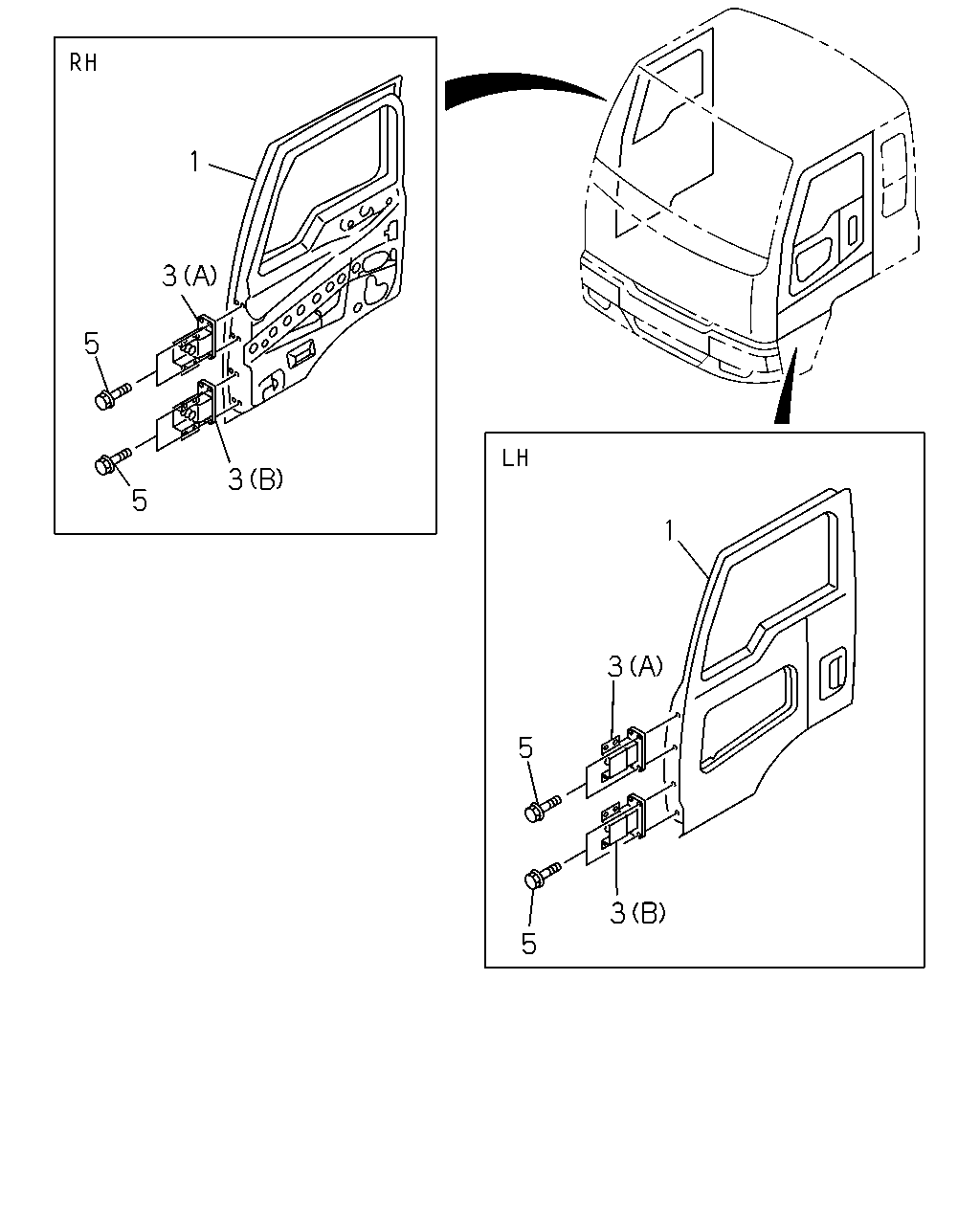

çizim 8065
1 3 5 3 5 1 3 5 3 5
BalonParca AdiParca NoAdetTipApplied Date
1 DOOR ASM; FRT,WO/TRIM 1-64080-390-0 01 1 9906-9912
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW LONG ARM<DH2> 		1-64080-390-1 01 1 0001-
1 DOOR ASM; FRT,WO/TRIM
DOOR WITH UNDER VIEW WINDOW<YD8> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-64080-389-1 01 1 9906-
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-391-1 01 1 9906-
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-392-1 01 1 9906-
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW LONG ARM<DH2> 		1-64080-388-1 01 1 0001-
3 HINGE; DOOR FRT
(A) 		1-64780-088-2 01 1 9906-9912
3 HINGE; DOOR FRT
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-64780-088-2 01 1 9906-9912
3 HINGE; DOOR FRT
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) 		1-64780-088-2 01 1 9906-9912
3 HINGE; DOOR FRT
EXC. MIR O/S RR VIEW LONG ARM<DH2> (A) 		1-64780-088-2 01 1 0001-0004
3 HINGE; DOOR FRT
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-64780-088-2 01 1 0001-0004
3 HINGE; DOOR FRT
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) 		1-64780-088-2 01 1 0001-0004
3 HINGE; DOOR FRT
EXC. MIR O/S RR VIEW LONG ARM<DH2> (A) 		1-64780-088-2 01 1 0005-
3 HINGE; DOOR FRT
DOOR WITH UNDER VIEW WINDOW<YD8> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) 		1-64780-088-2 01 1 0005-
3 HINGE; DOOR FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-64780-088-2 01 1 0005-
3 HINGE; DOOR FRT
(B) 		1-64780-089-2 01 1 9906-9912
3 HINGE; DOOR FRT
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-64780-089-2 01 1 9906-9912
3 HINGE; DOOR FRT
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) 		1-64780-089-2 01 1 9906-9912
3 HINGE; DOOR FRT
EXC. MIR O/S RR VIEW LONG ARM<DH2> (B) 		1-64780-089-2 01 1 0001-0004
3 HINGE; DOOR FRT
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-64780-089-2 01 1 0001-0004
3 HINGE; DOOR FRT
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) 		1-64780-089-2 01 1 0001-0004
3 HINGE; DOOR FRT
EXC. MIR O/S RR VIEW LONG ARM<DH2> (B) 		1-64780-089-2 01 1 0005-
3 HINGE; DOOR FRT
DOOR WITH UNDER VIEW WINDOW<YD8> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) 		1-64780-089-2 01 1 0005-
3 HINGE; DOOR FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-64780-089-2 01 1 0005-
3 HINGE; DOOR FRT
MIR O/S RR VIEW LONG ARM<DH2> (B) 		1-64780-090-2 01 1 0001-
3 HINGE; DOOR FRT
MIR O/S RR VIEW LONG ARM<DH2> (A) 		1-64780-091-2 01 1 0001-
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9906-0004
5 BOLT; HINGE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9906-0004
5 BOLT; HINGE
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9906-0004
5 BOLT; HINGE
DOOR WITH UNDER VIEW WINDOW<YD8> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0005-
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0005-
5 BOLT; HINGE
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0005-
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 9906-
