5-40 — ENGINE ROOM INSULATOR (#72899) — 74 parça

1 6 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E

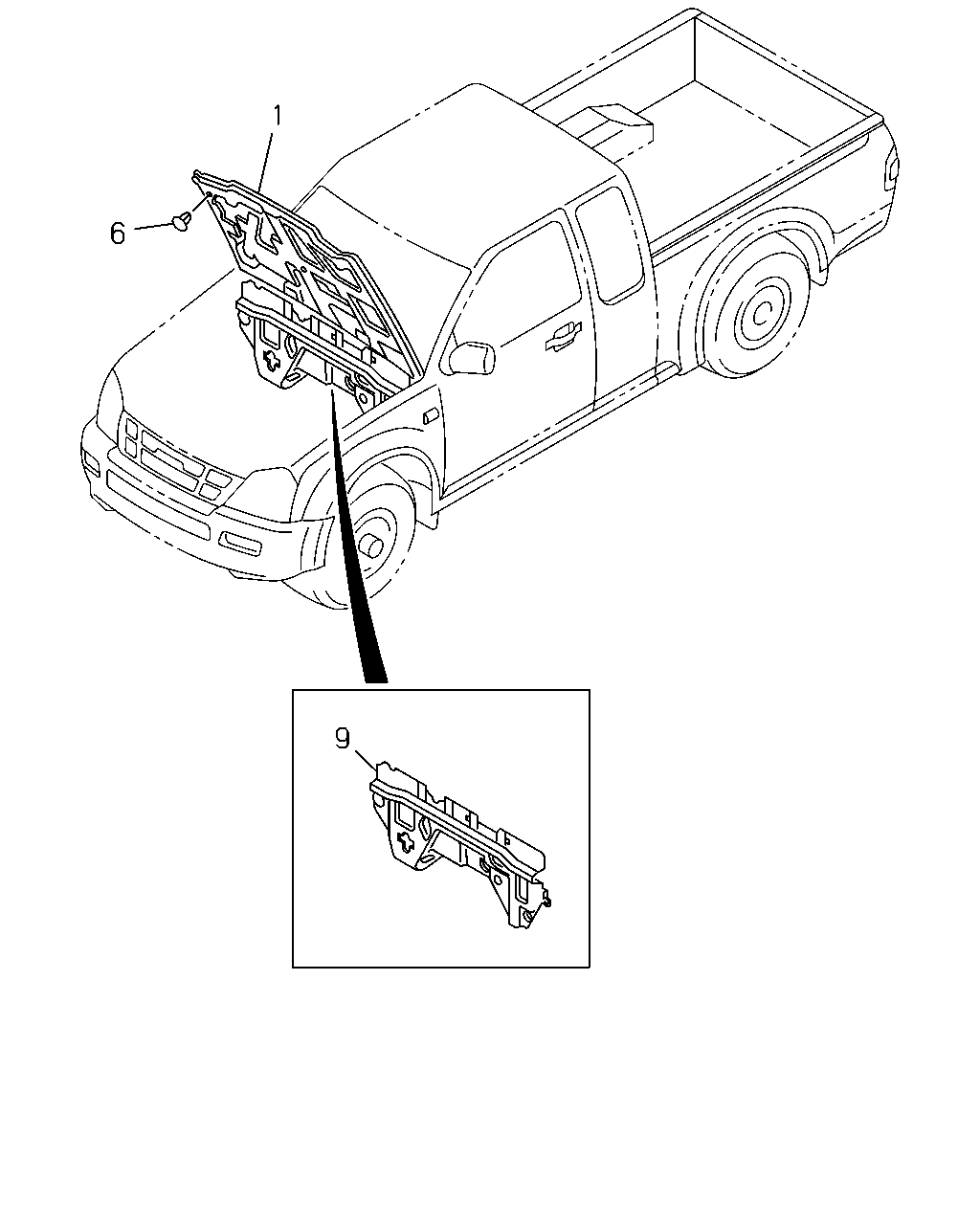

1	INSULATION; ENG HOOD 4JH1 ENG<RJX>,4JA1 ENG<RLE> THA	8-97235-431-3	01	1	0204-0207	●	●
1	INSULATION; ENG HOOD THA	8-97235-431-3	01	1	0204-0207			●
1	INSULATION; ENG HOOD 4JH1 ENG<RJX>,4JA1 ENG<RLE> THA	8-97235-431-3	01	1	0208-0301	●	●		●
1	INSULATION; ENG HOOD THA	8-97235-431-3	01	1	0208-0301			●		●
1	INSULATION; ENG HOOD THA	8-97361-321-0	01	1	0302-0606	●	●	●	●	●
1	INSULATION; ENG HOOD 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA	8-98007-122-3	01	1	0607-	●	●	●	●	●
1	INSULATION; ENG HOOD 4JJ1-TCX ENG<LS0> THA	8-98007-123-3	01	1	0710-0802				●	●
1	INSULATION; ENG HOOD 4JJ1-TCX ENG<LS0> THA	8-98007-123-3	01	1	0803-	●		●	●	●
1	INSULATION; ENG HOOD 4JJ1-TCX ENG<LS0> THA	8-98007-123-3	01	1	0609-0708					●
6	CLIP; ENG HOOD INSULATION 4JH1 ENG<RJX>,4JA1 ENG<RLE> ID=6.2 L=11.4 THA	8-97808-623-0	12	1	0204-0207	●	●
6	CLIP; ENG HOOD INSULATION ID=6.2 L=11.4 THA	8-97808-623-0	12	1	0204-0207			●
6	CLIP; ENG HOOD INSULATION ID=6.2 L=11.4 THA	8-97808-623-0	12	1	0208-0606	●	●	●	●	●
6	CLIP; ENG HOOD INSULATION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> ID=6.2 L=11.4 THA	8-97808-623-0	13	1	0607-	●	●	●	●	●
6	CLIP; ENG HOOD INSULATION 4JJ1-TCX ENG<LS0> ID=6.2 L=11.4 THA	8-97808-623-0	14	1	0710-0802				●	●
6	CLIP; ENG HOOD INSULATION 4JJ1-TCX ENG<LS0> ID=6.2 L=11.4 THA	8-97808-623-0	14	1	0803-	●		●	●	●
6	CLIP; ENG HOOD INSULATION 4JJ1-TCX ENG<LS0> ID=6.2 L=11.4 THA	8-97808-623-0	14	1	0609-0708					●
9	INSULATION; DASH ENG ROOM 4JH1 ENG<RJX>,4JA1 ENG<RLE> THA	8-97238-109-3	01	1	0204-0207	●	●
9	INSULATION; DASH ENG ROOM THA	8-97238-109-3	01	1	0204-0207			●
9	INSULATION; DASH ENG ROOM 4JH1 ENG<RJX>,4JA1 ENG<RLE> THA	8-97238-109-3	01	1	0208-0209	●	●		●
9	INSULATION; DASH ENG ROOM THA	8-97238-109-3	01	1	0208-0209			●		●
9	INSULATION; DASH ENG ROOM 4JH1 ENG<RJX>,4JA1 ENG<RLE> THA	8-97357-839-0	01	1	0210-0306	●	●		●
9	INSULATION; DASH ENG ROOM THA	8-97357-839-0	01	1	0210-0306			●		●
9	INSULATION; DASH ENG ROOM THA	8-97368-041-0	01	1	0307-0509	●	●	●	●	●
9	INSULATION; DASH ENG ROOM THA	8-98021-496-0	01	1	0510-	●	●	●	●	●

4 25 25 4 25 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E

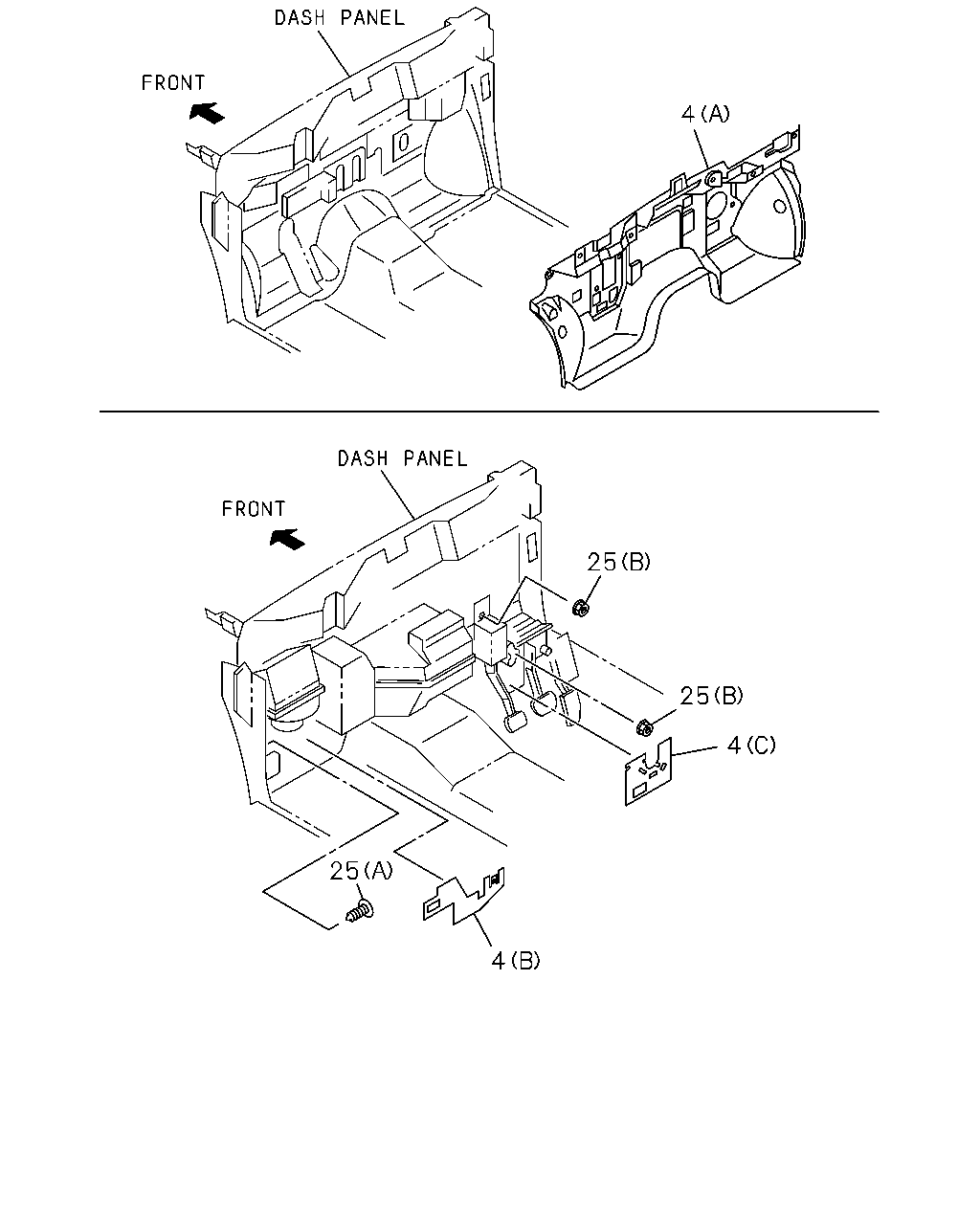

4	INSULATION; DASH PNL,INNER 4JJ1-TCS ENG<LFB> (A) THA	8-98036-138-0	01	1	0709-				●	●
4	INSULATION; DASH PNL,INNER 4JK1 ENG<LKZ> (A) THA	8-98036-139-0	01	1	0709-				●
4	INSULATION; DASH PNL,INNER 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (B) THA	8-97378-553-1	01	1	0709-0709				●
4	INSULATION; DASH PNL,INNER 4JJ1-TCS ENG<LFB> (B) THA	8-97378-553-1	01	1	0709-0709					●
4	INSULATION; DASH PNL,INNER 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> (B) THA	8-97378-553-1	01	1	0710-				●
4	INSULATION; DASH PNL,INNER 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> (B) THA	8-97378-553-1	01	1	0710-					●
4	INSULATION; DASH PNL,INNER 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (C) THA	8-98013-156-0	01	1	0709-0709				●
4	INSULATION; DASH PNL,INNER 4JJ1-TCS ENG<LFB> (C) THA	8-98013-156-0	01	1	0709-0709					●
4	INSULATION; DASH PNL,INNER 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> (C) THA	8-98013-156-0	01	1	0710-				●
4	INSULATION; DASH PNL,INNER 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> (C) THA	8-98013-156-0	01	1	0710-					●
4	INSULATION; DASH PNL,INNER 4JJ1-TCX ENG<LS0> (A) THA	8-98013-149-0	01	1	0803-	●		●
4	INSULATION; DASH PNL,INNER (A) THA	8-97238-108-3	01	1	0204-0207	●	●	●
4	INSULATION; DASH PNL,INNER (A) THA	8-97238-108-3	01	1	0208-0307	●	●	●	●	●
4	INSULATION; DASH PNL,INNER (A) THA	8-97369-012-0	01	1	0308-0408	●	●	●	●	●
4	INSULATION; DASH PNL,INNER 4JA1-T ENG<LP0> (A) THA	8-97369-012-0	01	1	0409-0411	●	●		●
4	INSULATION; DASH PNL,INNER 4JA1-T ENG<LP0> (A) THA	8-98003-294-0	01	1	0412-0412	●	●		●
4	INSULATION; DASH PNL,INNER 4JK1 ENG<LKZ> (A) THA	8-98003-294-0	01	1	0501-0503	●	●		●
4	INSULATION; DASH PNL,INNER 4JK1 ENG<LKZ> (A) THA	8-98012-634-0	01	1	0504-0606	●	●		●
4	INSULATION; DASH PNL,INNER 4JK1 ENG<LKZ> (A) THA	8-98012-634-0	01	1	0607-	●	●	●
4	INSULATION; DASH PNL,INNER 4JJ1-TCS ENG<LFB> (A) THA	8-97370-965-0	01	1	0409-0409	●		●	●	●
4	INSULATION; DASH PNL,INNER 4JJ1-TCS ENG<LFB> (A) THA	8-98002-801-0	01	1	0410-0606	●		●	●	●
4	INSULATION; DASH PNL,INNER 4JJ1-TCS ENG<LFB> (A) THA	8-98002-801-0	01	1	0607-	●		●
4	INSULATION; DASH PNL,INNER 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (B) THA	8-97378-553-1	01	1	0607-0608				●
4	INSULATION; DASH PNL,INNER 4JJ1-TCS ENG<LFB> (B) THA	8-97378-553-1	01	1	0607-0608					●
4	INSULATION; DASH PNL,INNER 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (B) THA	8-97378-553-1	01	1	0609-0708				●
4	INSULATION; DASH PNL,INNER 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> (B) THA	8-97378-553-1	01	1	0609-0708					●
4	INSULATION; DASH PNL,INNER 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (C) THA	8-98013-156-0	01	1	0607-0608				●
4	INSULATION; DASH PNL,INNER 4JJ1-TCS ENG<LFB> (C) THA	8-98013-156-0	01	1	0607-0608					●
4	INSULATION; DASH PNL,INNER 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (C) THA	8-98013-156-0	01	1	0609-0708				●
4	INSULATION; DASH PNL,INNER 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> (C) THA	8-98013-156-0	01	1	0609-0708					●
4	INSULATION; DASH PNL,INNER 4JK1 ENG<LKZ> (A) THA	8-98036-139-0	01	1	0607-0708				●
4	INSULATION; DASH PNL,INNER 4JJ1-TCS ENG<LFB> (A) THA	8-98036-138-0	01	1	0607-0708				●	●
4	INSULATION; DASH PNL,INNER 4JJ1-TCX ENG<LS0> (A) THA	8-98036-140-0	01	1	0710-				●	●
4	INSULATION; DASH PNL,INNER 4JJ1-TCX ENG<LS0> (A) THA	8-98036-140-0	01	1	0609-0708					●
25	CLIP; DASH INSULATION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (A) OD=25 THA	8-94279-810-0	01	1	0607-0608				●
25	CLIP; DASH INSULATION 4JJ1-TCS ENG<LFB> (A) OD=25 THA	8-94279-810-0	01	1	0607-0608					●
25	CLIP; DASH INSULATION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (A) OD=25 THA	8-94279-810-0	01	1	0609-0708				●
25	CLIP; DASH INSULATION 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> (A) OD=25 THA	8-94279-810-0	01	1	0609-0708					●
25	CLIP; DASH INSULATION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (A) OD=25 THA	8-94279-810-0	01	1	0709-0709				●
25	CLIP; DASH INSULATION 4JJ1-TCS ENG<LFB> (A) OD=25 THA	8-94279-810-0	01	1	0709-0709					●
25	CLIP; DASH INSULATION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> (A) OD=25 THA	8-94279-810-0	01	1	0710-				●
25	CLIP; DASH INSULATION 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> (A) OD=25 THA	8-94279-810-0	01	1	0710-					●
25	CLIP; DASH INSULATION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (B) THA	8-97379-175-0	03	1	0607-0608				●
25	CLIP; DASH INSULATION 4JJ1-TCS ENG<LFB> (B) THA	8-97379-175-0	03	1	0607-0608					●
25	CLIP; DASH INSULATION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (B) THA	8-97379-175-0	03	1	0609-0708				●
25	CLIP; DASH INSULATION 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> (B) THA	8-97379-175-0	03	1	0609-0708					●
25	CLIP; DASH INSULATION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (B) THA	8-97379-175-0	03	1	0709-0709				●
25	CLIP; DASH INSULATION 4JJ1-TCS ENG<LFB> (B) THA	8-97379-175-0	03	1	0709-0709					●
25	CLIP; DASH INSULATION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> (B) THA	8-97379-175-0	03	1	0710-				●
25	CLIP; DASH INSULATION 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> (B) THA	8-97379-175-0	03	1	0710-					●
