Sayfa 5-30 - Isuzu EPC

5-30 — SPARE TIRE CARRIER AND COVER (#72898) — 118 parça

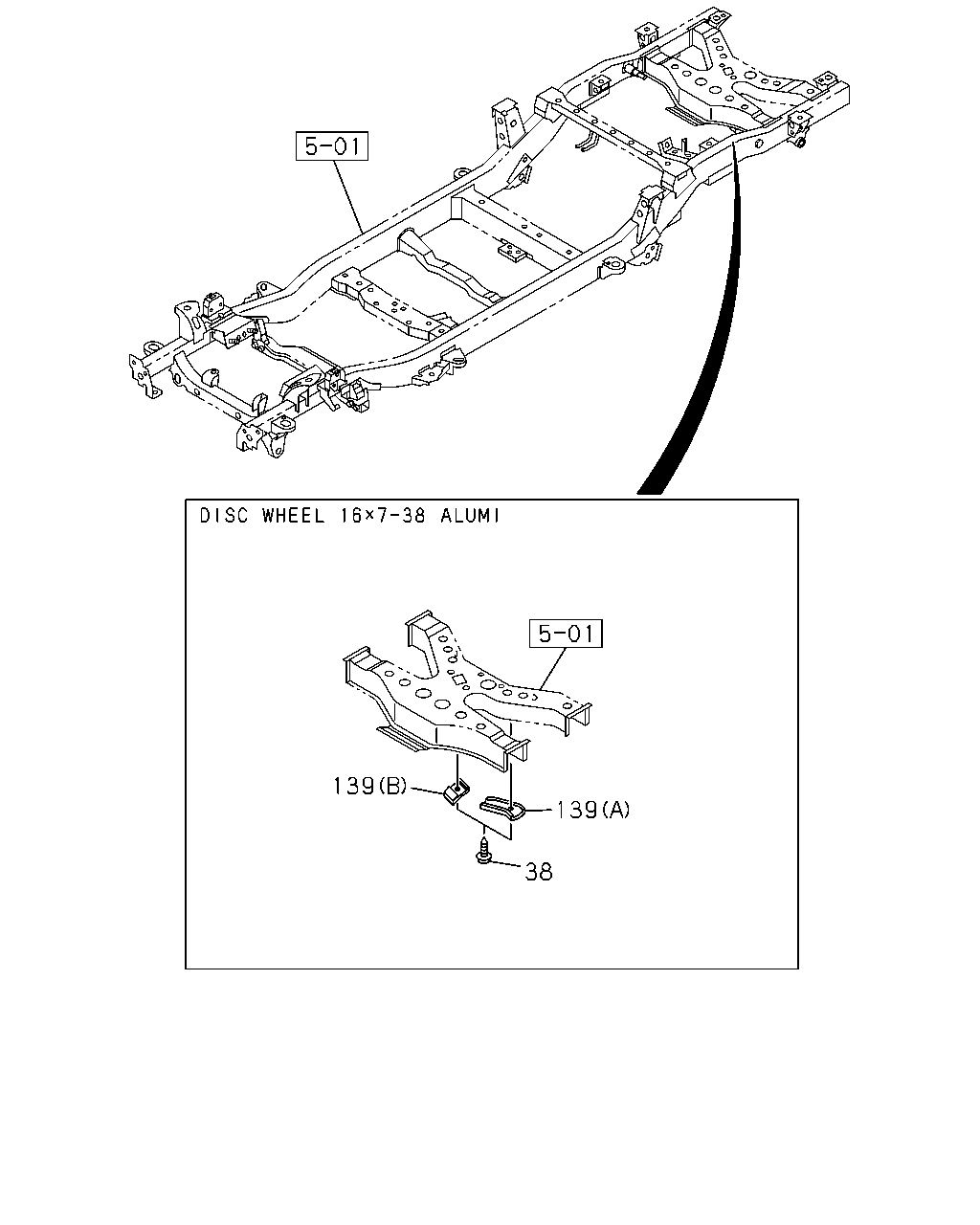

139 139 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
38	BOLT; STOPPER DISC WHEEL 16X7-38 ALUMI<PX0> M6X20 TAPPING THA	8-98048-999-0	02	1	0809-0908	●	●	●	●
38	BOLT; STOPPER DISC WHEEL 16X7-38 ALUMI<PX0>,DISC WHEEL 16X7-38 ALUMI CHROME<PX2> M6X20 TAPPING THA	8-98048-999-0	02	1	0909-1009	●	●	●	●
38	BOLT; STOPPER DISC WHEEL 16X7-38 ALUMI DARK GRAY<CWC>,DISC WHEEL 16X7-38 ALUMI<PX0>,DISC WHEEL 16X7-38 ALUMICHROME<PX2> M6X20 TAPPING THA	8-98048-999-0	02	1	1010-	●	●	●	●
139	STOPPER; SPARE TIRE DISC WHEEL 16X7-38 ALUMI<PX0> (A) THA	8-98118-491-1	01	1	0809-0908	●	●	●	●
139	STOPPER; SPARE TIRE DISC WHEEL 16X7-38 ALUMI<PX0>,DISC WHEEL 16X7-38 ALUMI CHROME<PX2> (A) THA	8-98118-491-1	01	1	0909-1009	●	●	●	●
139	STOPPER; SPARE TIRE DISC WHEEL 16X7-38 ALUMI DARK GRAY<CWC>,DISC WHEEL 16X7-38 ALUMI<PX0>,DISC WHEEL 16X7-38 ALUMICHROME<PX2> (A) THA	8-98118-491-1	01	1	1010-	●	●	●	●
139	STOPPER; SPARE TIRE DISC WHEEL 16X7-38 ALUMI<PX0> (B) THA	8-98118-492-1	01	1	0809-0908	●	●	●	●
139	STOPPER; SPARE TIRE DISC WHEEL 16X7-38 ALUMI<PX0>,DISC WHEEL 16X7-38 ALUMI CHROME<PX2> (B) THA	8-98118-492-1	01	1	0909-1009	●	●	●	●
139	STOPPER; SPARE TIRE DISC WHEEL 16X7-38 ALUMI DARK GRAY<CWC>,DISC WHEEL 16X7-38 ALUMI<PX0>,DISC WHEEL 16X7-38 ALUMICHROME<PX2> (B) THA	8-98118-492-1	01	1	1010-	●	●	●	●

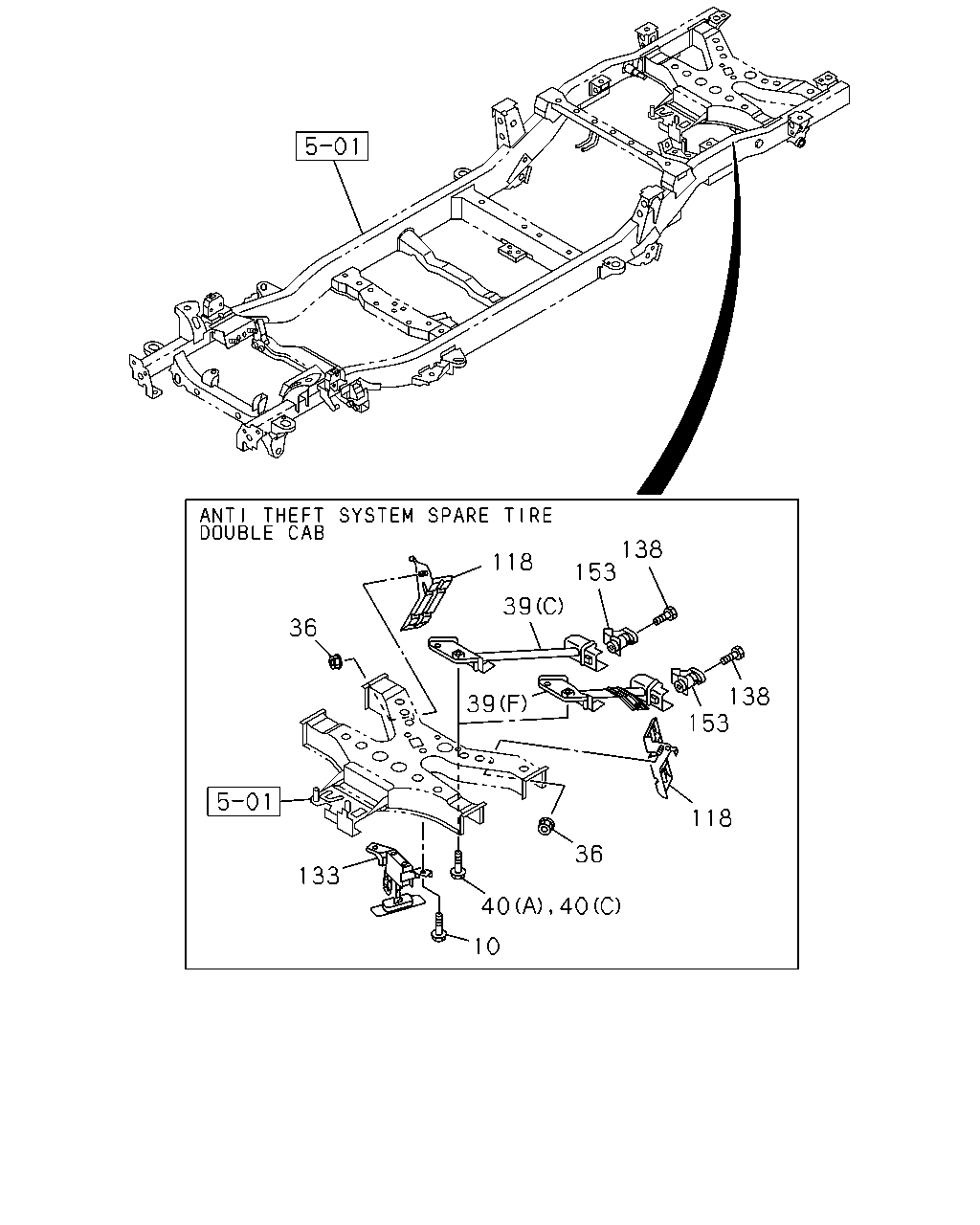

138 153 118 39 36 138 153 39 118 36 133 40 40 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
10	BOLT; TIRE HANGER M8X20 FLANGE THA	0-28650-820-0	02	1	0204-0207	●		●		●
10	BOLT; TIRE HANGER M8X20 FLANGE THA	0-28650-820-0	02	1	0208-0507	●	●	●	●	●
10	BOLT; TIRE HANGER M8X16 FLANGE THA	0-28050-816-0	02	1	0508-	●	●	●	●	●
36	NUT; SPARE TIRE M8 FLANGE THA	0-91180-108-0	02	1	0208-0307				●
36	NUT; SPARE TIRE FRT&RR 245/70R16<BSW> M8 FLANGE THA	0-91180-108-0	02	1	0308-0408		●
36	NUT; SPARE TIRE M8 FLANGE THA	0-91180-108-0	02	1	0308-0408				●
36	NUT; SPARE TIRE FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> M8 FLANGE THA	0-91180-108-0	02	1	0409-0606		●
36	NUT; SPARE TIRE M8 FLANGE THA	0-91180-108-0	02	1	0409-0606				●
36	NUT; SPARE TIRE FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>,FRT&RR 245/70R16 MICHELIN TIRE<QFE> M8 FLANGE THA	0-91180-108-0	02	1	0607-0708		●
36	NUT; SPARE TIRE M8 FLANGE THA	0-91180-108-0	02	1	0607-0708				●
36	NUT; SPARE TIRE FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>,FRT&RR 245/70R16 MICHELIN TIRE<QFE> M8 FLANGE THA	0-91180-108-0	02	1	0709-		●
36	NUT; SPARE TIRE FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> M8 FLANGE THA	0-91180-108-0	02	1	0709-				●
39	GUIDE; SPARE TIRE HANGER ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) THA	8-97236-023-1	01	1	0204-0208	●		●		●
39	GUIDE; SPARE TIRE HANGER ANTI THEFT SYSTEM SPARE TIRE<8CF> (E) THA	8-97357-096-0	01	1	0209-0211	●		●		●
39	GUIDE; SPARE TIRE HANGER ANTI THEFT SYSTEM SPARE TIRE<8CF> (E) THA	8-97360-831-0	01	1	0212-0507	●		●		●
39	GUIDE; SPARE TIRE HANGER ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER CHROME<V42> (E) THA	8-97360-831-0	01	1	0508-0606	●		●
39	GUIDE; SPARE TIRE HANGER ANTI THEFT SYSTEM SPARE TIRE<8CF> (E) THA	8-97360-831-0	01	1	0508-0606					●
39	GUIDE; SPARE TIRE HANGER EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF> (B) THA	8-97259-524-1	01	1	0204-0207	●		●		●
39	GUIDE; SPARE TIRE HANGER EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF> (B) THA	8-97259-524-1	01	1	0208-0303	●	●	●	●	●
39	GUIDE; SPARE TIRE HANGER EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF> (D) THA	8-97943-469-0	01	1	0304-0507	●		●		●
39	GUIDE; SPARE TIRE HANGER REAR STEP BUMPER CHROME<V42> (D) THA	8-97943-469-0	01	1	0508-0606	●		●
39	GUIDE; SPARE TIRE HANGER EXC. REAR STEP BUMPER CHROME<V42>,ANTI THEFT SYSTEM SPARE TIRE<8CF> (D) THA	8-97943-469-0	01	1	0508-0606	●		●
39	GUIDE; SPARE TIRE HANGER EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF> (D) THA	8-97943-469-0	01	1	0508-0606					●
39	GUIDE; SPARE TIRE HANGER (D) THA	8-97945-303-0	01	1	0607-	●		●		●
39	GUIDE; SPARE TIRE HANGER ANTI THEFT SYSTEM SPARE TIRE<8CF> (C) THA	8-97236-025-1	01	1	0208-0208		●		●
39	GUIDE; SPARE TIRE HANGER ANTI THEFT SYSTEM SPARE TIRE<8CF> (F) THA	8-97357-098-0	01	1	0209-0211		●		●
39	GUIDE; SPARE TIRE HANGER ANTI THEFT SYSTEM SPARE TIRE<8CF> (F) THA	8-97360-832-0	01	1	0212-0507		●		●
39	GUIDE; SPARE TIRE HANGER ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER CHROME<V42> (F) THA	8-97360-832-0	01	1	0508-0606		●
39	GUIDE; SPARE TIRE HANGER EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF> (D) THA	8-97943-470-0	01	1	0304-0507		●		●
39	GUIDE; SPARE TIRE HANGER REAR STEP BUMPER CHROME<V42> (D) THA	8-97943-470-0	01	1	0508-0606		●
39	GUIDE; SPARE TIRE HANGER EXC. REAR STEP BUMPER CHROME<V42>,ANTI THEFT SYSTEM SPARE TIRE<8CF> (D) THA	8-97943-470-0	01	1	0508-0606		●
39	GUIDE; SPARE TIRE HANGER (D) THA	8-97943-470-0	01	1	0508-0606				●
39	GUIDE; SPARE TIRE HANGER (D) THA	8-97945-304-0	01	1	0607-		●		●
40	BOLT; GUIDE TO FRAME ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) M8X20 FLANGE THA	0-28650-820-0	01	1	0204-0207	●		●		●
40	BOLT; GUIDE TO FRAME ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) M8X20 FLANGE THA	0-28650-820-0	01	1	0208-0208	●	●	●	●	●
40	BOLT; GUIDE TO FRAME (C) M8X20 FLANGE THA	0-28650-820-0	02	1	0209-0507	●	●	●	●	●
40	BOLT; GUIDE TO FRAME (C) M8X16 FLANGE THA	0-28050-816-0	02	1	0508-	●	●	●	●	●
40	BOLT; GUIDE TO FRAME EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF> (B) M8X20 FLANGE THA	0-28650-820-0	02	1	0204-0207	●		●		●
40	BOLT; GUIDE TO FRAME EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF> (B) M8X20 FLANGE THA	0-28650-820-0	02	1	0208-0208	●	●	●	●	●
118	SUPPORT ASM; SPARE TIRE THA	8-97259-558-1	01	1	0208-0307				●
118	SUPPORT ASM; SPARE TIRE FRT&RR 245/70R16<BSW> THA	8-97259-558-1	01	1	0308-0408		●
118	SUPPORT ASM; SPARE TIRE THA	8-97259-558-1	01	1	0308-0408				●
118	SUPPORT ASM; SPARE TIRE FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> THA	8-97259-558-1	01	1	0409-0606		●
118	SUPPORT ASM; SPARE TIRE THA	8-97259-558-1	01	1	0409-0606				●
118	SUPPORT ASM; SPARE TIRE FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>,FRT&RR 245/70R16 MICHELIN TIRE<QFE> THA	8-97259-558-1	01	1	0607-0708		●
118	SUPPORT ASM; SPARE TIRE THA	8-97259-558-1	01	1	0607-0708				●
118	SUPPORT ASM; SPARE TIRE FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>,FRT&RR 245/70R16 MICHELIN TIRE<QFE> THA	8-97259-558-1	01	1	0709-		●
118	SUPPORT ASM; SPARE TIRE FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> THA	8-97259-558-1	01	1	0709-				●
118	SUPPORT ASM; SPARE TIRE THA	8-97259-559-1	01	1	0208-0307				●
118	SUPPORT ASM; SPARE TIRE FRT&RR 245/70R16<BSW> THA	8-97259-559-1	01	1	0308-0408		●
118	SUPPORT ASM; SPARE TIRE THA	8-97259-559-1	01	1	0308-0408				●
118	SUPPORT ASM; SPARE TIRE FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> THA	8-97259-559-1	01	1	0409-0606		●
118	SUPPORT ASM; SPARE TIRE THA	8-97259-559-1	01	1	0409-0606				●
118	SUPPORT ASM; SPARE TIRE FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>,FRT&RR 245/70R16 MICHELIN TIRE<QFE> THA	8-97259-559-1	01	1	0607-0708		●
118	SUPPORT ASM; SPARE TIRE THA	8-97259-559-1	01	1	0607-0708				●
118	SUPPORT ASM; SPARE TIRE FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>,FRT&RR 245/70R16 MICHELIN TIRE<QFE> THA	8-97259-559-1	01	1	0709-		●
118	SUPPORT ASM; SPARE TIRE FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> THA	8-97259-559-1	01	1	0709-				●
133	HANGER; SPARE TIRE THA	8-97262-020-1	01	1	0204-0207	●		●		●
133	HANGER; SPARE TIRE THA	8-97262-020-1	01	1	0208-0606	●	●	●	●	●
133	HANGER; SPARE TIRE THA	8-98036-809-0	01	1	0607-	●	●	●	●	●
138	BOLT; COVER ANTI THEFT SYSTEM SPARE TIRE<8CF> M8X29.5 W/LK+PL WASHER THA	8-94279-218-0	01	1	0204-0207	●		●		●
138	BOLT; COVER ANTI THEFT SYSTEM SPARE TIRE<8CF> M8X29.5 W/LK+PL WASHER THA	8-94279-218-0	01	1	0208-0507	●	●	●	●	●
138	BOLT; COVER ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER CHROME<V42> M8X29.5 W/LK+PL WASHER THA	8-94279-218-0	01	1	0508-0606	●	●	●
138	BOLT; COVER ANTI THEFT SYSTEM SPARE TIRE<8CF> M8X29.5 W/LK+PL WASHER THA	8-94279-218-0	01	1	0508-0606					●
153	CASE; LOCK CYL ANTI THEFT SYSTEM SPARE TIRE<8CF> THA	8-97259-729-1	01	1	0204-0207	●		●		●
153	CASE; LOCK CYL ANTI THEFT SYSTEM SPARE TIRE<8CF> THA	8-97259-729-1	01	1	0208-0507	●	●	●	●	●
153	CASE; LOCK CYL ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER CHROME<V42> THA	8-97259-729-1	01	1	0508-0606	●	●	●
153	CASE; LOCK CYL ANTI THEFT SYSTEM SPARE TIRE<8CF> THA	8-97259-729-1	01	1	0508-0606					●

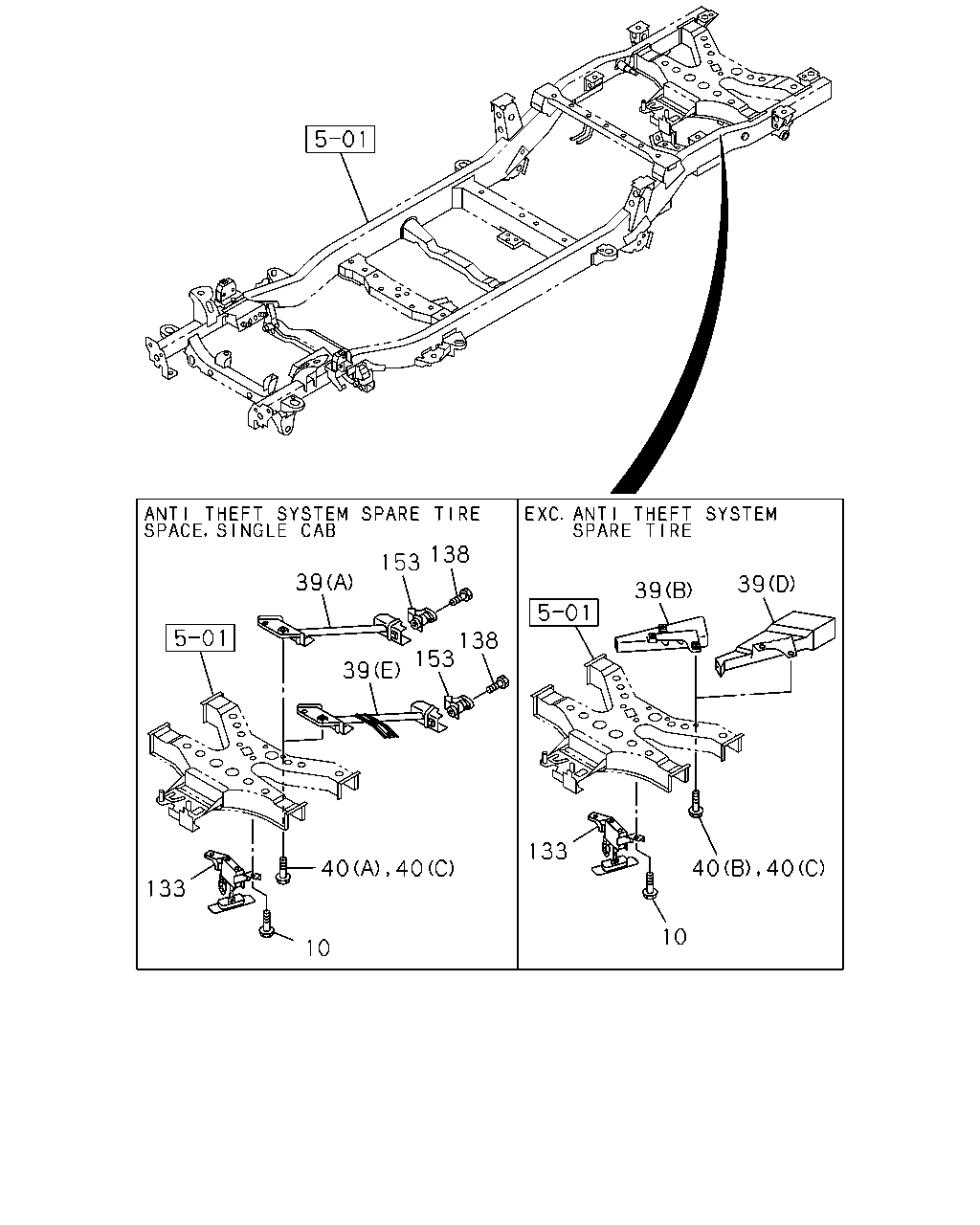

138 153 39 39 39 138 153 39 133 40 40 133 10 10 40 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
10	BOLT; TIRE HANGER M8X20 FLANGE THA	0-28650-820-0	02	1	0204-0207	●		●		●
10	BOLT; TIRE HANGER M8X20 FLANGE THA	0-28650-820-0	02	1	0208-0507	●	●	●	●	●
10	BOLT; TIRE HANGER M8X16 FLANGE THA	0-28050-816-0	02	1	0508-	●	●	●	●	●
39	GUIDE; SPARE TIRE HANGER ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) THA	8-97236-023-1	01	1	0204-0208	●		●		●
39	GUIDE; SPARE TIRE HANGER ANTI THEFT SYSTEM SPARE TIRE<8CF> (E) THA	8-97357-096-0	01	1	0209-0211	●		●		●
39	GUIDE; SPARE TIRE HANGER ANTI THEFT SYSTEM SPARE TIRE<8CF> (E) THA	8-97360-831-0	01	1	0212-0507	●		●		●
39	GUIDE; SPARE TIRE HANGER ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER CHROME<V42> (E) THA	8-97360-831-0	01	1	0508-0606	●		●
39	GUIDE; SPARE TIRE HANGER ANTI THEFT SYSTEM SPARE TIRE<8CF> (E) THA	8-97360-831-0	01	1	0508-0606					●
39	GUIDE; SPARE TIRE HANGER EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF> (B) THA	8-97259-524-1	01	1	0204-0207	●		●		●
39	GUIDE; SPARE TIRE HANGER EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF> (B) THA	8-97259-524-1	01	1	0208-0303	●	●	●	●	●
39	GUIDE; SPARE TIRE HANGER EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF> (D) THA	8-97943-469-0	01	1	0304-0507	●		●		●
39	GUIDE; SPARE TIRE HANGER REAR STEP BUMPER CHROME<V42> (D) THA	8-97943-469-0	01	1	0508-0606	●		●
39	GUIDE; SPARE TIRE HANGER EXC. REAR STEP BUMPER CHROME<V42>,ANTI THEFT SYSTEM SPARE TIRE<8CF> (D) THA	8-97943-469-0	01	1	0508-0606	●		●
39	GUIDE; SPARE TIRE HANGER EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF> (D) THA	8-97943-469-0	01	1	0508-0606					●
39	GUIDE; SPARE TIRE HANGER (D) THA	8-97945-303-0	01	1	0607-	●		●		●
39	GUIDE; SPARE TIRE HANGER ANTI THEFT SYSTEM SPARE TIRE<8CF> (C) THA	8-97236-025-1	01	1	0208-0208		●		●
39	GUIDE; SPARE TIRE HANGER ANTI THEFT SYSTEM SPARE TIRE<8CF> (F) THA	8-97357-098-0	01	1	0209-0211		●		●
39	GUIDE; SPARE TIRE HANGER ANTI THEFT SYSTEM SPARE TIRE<8CF> (F) THA	8-97360-832-0	01	1	0212-0507		●		●
39	GUIDE; SPARE TIRE HANGER ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER CHROME<V42> (F) THA	8-97360-832-0	01	1	0508-0606		●
39	GUIDE; SPARE TIRE HANGER EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF> (D) THA	8-97943-470-0	01	1	0304-0507		●		●
39	GUIDE; SPARE TIRE HANGER REAR STEP BUMPER CHROME<V42> (D) THA	8-97943-470-0	01	1	0508-0606		●
39	GUIDE; SPARE TIRE HANGER EXC. REAR STEP BUMPER CHROME<V42>,ANTI THEFT SYSTEM SPARE TIRE<8CF> (D) THA	8-97943-470-0	01	1	0508-0606		●
39	GUIDE; SPARE TIRE HANGER (D) THA	8-97943-470-0	01	1	0508-0606				●
39	GUIDE; SPARE TIRE HANGER (D) THA	8-97945-304-0	01	1	0607-		●		●
40	BOLT; GUIDE TO FRAME ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) M8X20 FLANGE THA	0-28650-820-0	01	1	0204-0207	●		●		●
40	BOLT; GUIDE TO FRAME ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) M8X20 FLANGE THA	0-28650-820-0	01	1	0208-0208	●	●	●	●	●
40	BOLT; GUIDE TO FRAME (C) M8X20 FLANGE THA	0-28650-820-0	02	1	0209-0507	●	●	●	●	●
40	BOLT; GUIDE TO FRAME (C) M8X16 FLANGE THA	0-28050-816-0	02	1	0508-	●	●	●	●	●
40	BOLT; GUIDE TO FRAME EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF> (B) M8X20 FLANGE THA	0-28650-820-0	02	1	0204-0207	●		●		●
40	BOLT; GUIDE TO FRAME EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF> (B) M8X20 FLANGE THA	0-28650-820-0	02	1	0208-0208	●	●	●	●	●
133	HANGER; SPARE TIRE THA	8-97262-020-1	01	1	0204-0207	●		●		●
133	HANGER; SPARE TIRE THA	8-97262-020-1	01	1	0208-0606	●	●	●	●	●
133	HANGER; SPARE TIRE THA	8-98036-809-0	01	1	0607-	●	●	●	●	●
138	BOLT; COVER ANTI THEFT SYSTEM SPARE TIRE<8CF> M8X29.5 W/LK+PL WASHER THA	8-94279-218-0	01	1	0204-0207	●		●		●
138	BOLT; COVER ANTI THEFT SYSTEM SPARE TIRE<8CF> M8X29.5 W/LK+PL WASHER THA	8-94279-218-0	01	1	0208-0507	●	●	●	●	●
138	BOLT; COVER ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER CHROME<V42> M8X29.5 W/LK+PL WASHER THA	8-94279-218-0	01	1	0508-0606	●	●	●
138	BOLT; COVER ANTI THEFT SYSTEM SPARE TIRE<8CF> M8X29.5 W/LK+PL WASHER THA	8-94279-218-0	01	1	0508-0606					●
153	CASE; LOCK CYL ANTI THEFT SYSTEM SPARE TIRE<8CF> THA	8-97259-729-1	01	1	0204-0207	●		●		●
153	CASE; LOCK CYL ANTI THEFT SYSTEM SPARE TIRE<8CF> THA	8-97259-729-1	01	1	0208-0507	●	●	●	●	●
153	CASE; LOCK CYL ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER CHROME<V42> THA	8-97259-729-1	01	1	0508-0606	●	●	●
153	CASE; LOCK CYL ANTI THEFT SYSTEM SPARE TIRE<8CF> THA	8-97259-729-1	01	1	0508-0606					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
