◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 5 - Frame, Cab Mounting ▶ 5-20 - BATTERY CARRIER ▶
5-20 — BATTERY CARRIER (#72897) — 31 parça

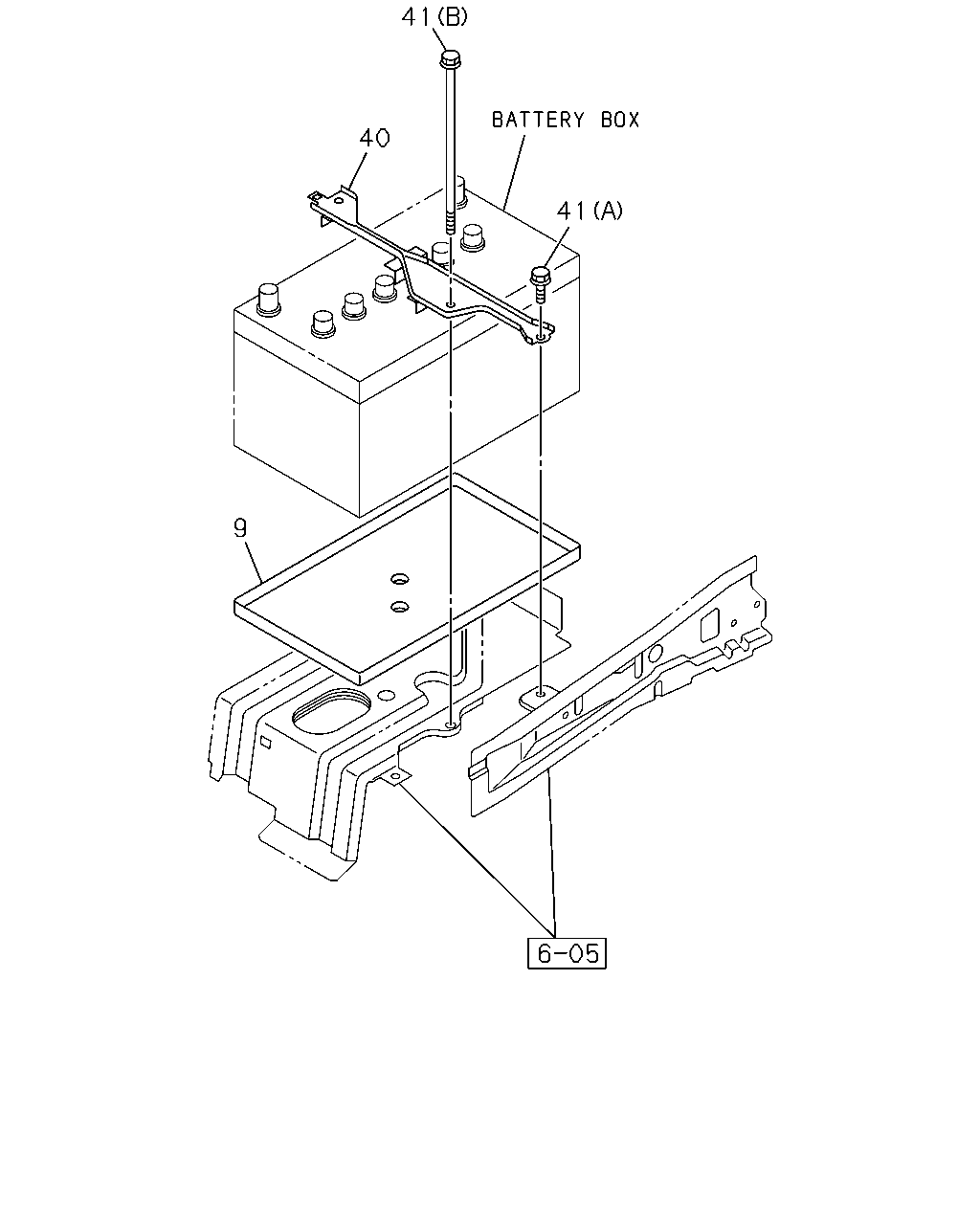

çizim 116486
41 40 41 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E
9 SEAT; BATTERY
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97318-865-1 01 1 0204-0207 ● ●
9 SEAT; BATTERY
THA 		8-97318-865-1 01 1 0204-0207 ●
9 SEAT; BATTERY
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97318-865-1 01 1 0208-0408 ● ● ●
9 SEAT; BATTERY
THA 		8-97318-865-1 01 1 0208-0408 ● ●
9 SEAT; BATTERY
BATTERY 65D31L<TQ4> THA 		8-97318-865-1 01 1 0409-0507 ● ● ● ●
9 SEAT; BATTERY
THA 		8-97318-865-1 01 1 0409-0507 ●
9 SEAT; BATTERY
BATTERY 65D31L<TQ4> THA 		8-97318-865-1 01 1 0508-0606 ● ● ●
9 SEAT; BATTERY
THA 		8-97318-865-1 01 1 0508-0606 ●
9 SEAT; BATTERY
BATTERY 65D31L<TQ4> THA 		8-97318-865-1 01 1 0607-0808 ● ● ● ●
9 SEAT; BATTERY
THA 		8-97318-865-1 01 1 0607-0808 ●
9 SEAT; BATTERY
BATTERY 80D26L<TM1> THA 		8-97328-060-0 01 1 0809- ● ● ● ●
9 SEAT; BATTERY
THA 		8-97328-060-0 01 1 0809- ●
9 SEAT; BATTERY
BATTERY 80D26L<TM1> THA 		8-97328-060-0 01 1 0508-0606 ● ●
40 CLAMP; BATTERY
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97241-139-0 01 1 0204-0207 ● ●
40 CLAMP; BATTERY
THA 		8-97241-139-0 01 1 0204-0207 ●
40 CLAMP; BATTERY
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97241-139-0 01 1 0208-0208 ● ● ●
40 CLAMP; BATTERY
THA 		8-97241-139-0 01 1 0208-0208 ● ●
40 CLAMP; BATTERY
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97357-407-0 01 1 0208-0408 ● ● ●
40 CLAMP; BATTERY
THA 		8-97357-407-0 01 1 0208-0408 ● ●
40 CLAMP; BATTERY
BATTERY 65D31L<TQ4> THA 		8-97357-407-0 01 1 0409-0507 ● ● ● ●
40 CLAMP; BATTERY
THA 		8-97357-407-0 01 1 0409-0507 ●
40 CLAMP; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D31L<TQ4> THA 		8-97357-407-0 01 1 0508-0606 ● ● ● ● ●
40 CLAMP; BATTERY
BATTERY 65D31L<TQ4> THA 		8-97357-407-0 01 1 0607-0808 ● ● ● ●
40 CLAMP; BATTERY
THA 		8-97357-407-0 01 1 0607-0808 ●
40 CLAMP; BATTERY
BATTERY 80D26L<TM1> THA 		8-97357-407-0 01 1 0809- ● ● ● ●
40 CLAMP; BATTERY
THA 		8-97357-407-0 01 1 0809- ●
41 BOLT; CLAMP,BATTERY
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 0204-0207 ● ● ●
41 BOLT; CLAMP,BATTERY
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 0208- ● ● ● ● ●
41 BOLT; CLAMP,BATTERY
(B) M8X222 FLANGE THA 		8-97308-979-0 02 1 0204-0207 ● ● ●
41 BOLT; CLAMP,BATTERY
(B) M8X222 FLANGE THA 		8-97308-979-0 02 1 0208-0411 ● ● ● ● ●
41 BOLT; CLAMP,BATTERY
(B) M8X222 FLANGE THA 		8-97378-041-0 02 1 0412- ● ● ● ● ●
