◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#72896) — 44 parça

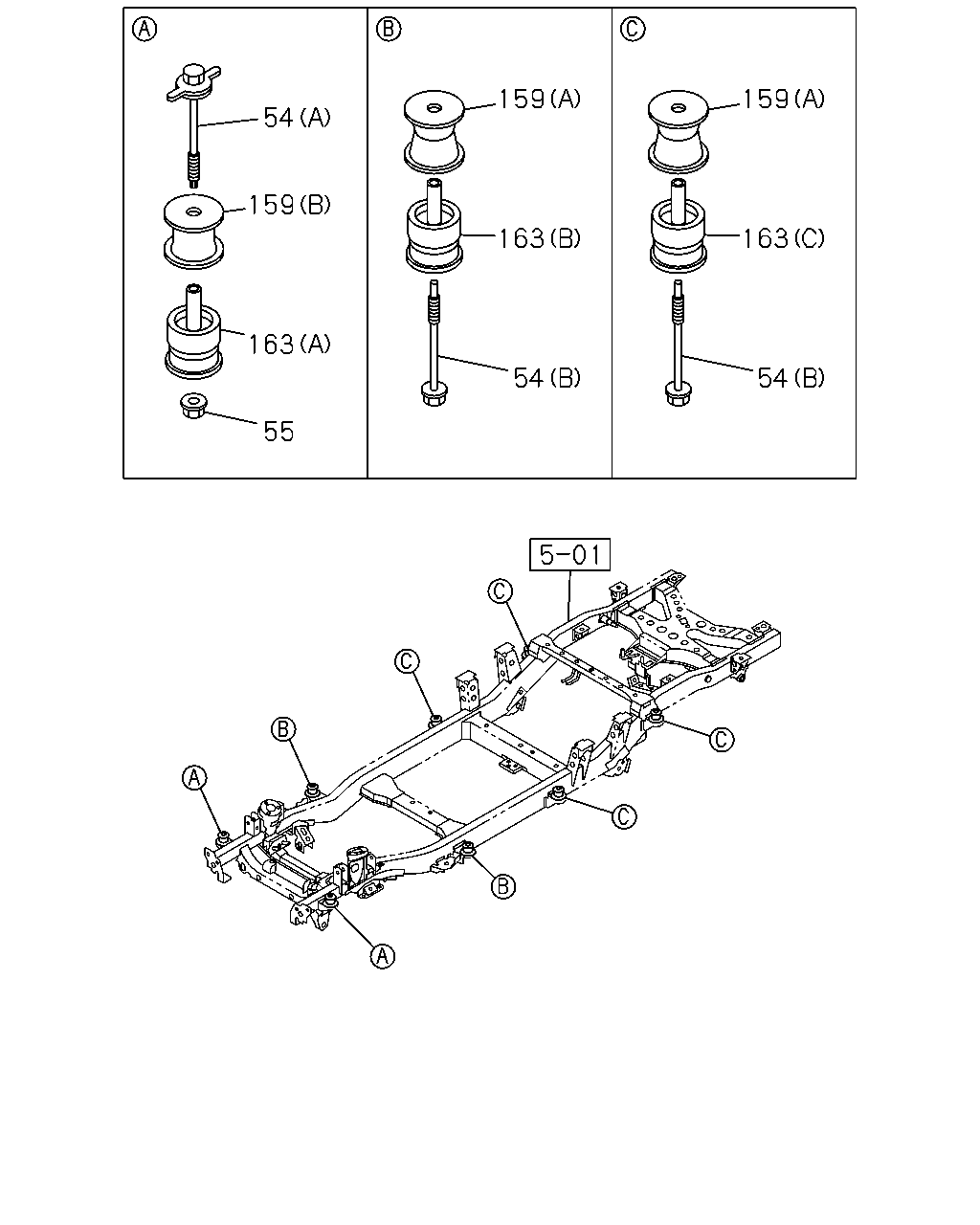

çizim 116630
159 159 54 159 163 163 163 54 54 55
BalonParca AdiParca NoAdetTipApplied Date A B C D E
54 BOLT; RUBBER
(A) NO.1 MTG THA 		8-97245-653-0 02 1 0204-0207 ● ● ●
54 BOLT; RUBBER
(A) NO.1 MTG THA 		8-97245-653-0 02 1 0208-0305 ● ● ● ● ●
54 BOLT; RUBBER
(A) NO.1 MTG M10X117.3 FLANGE THA 		8-97365-219-0 02 1 0306- ● ● ● ● ●
54 BOLT; RUBBER
(B) NO.2,NO.3 MTG THA 		8-97245-657-1 04 1 0204-0207 ● ● ●
54 BOLT; RUBBER
(B) NO.2,NO.3 MTG THA 		8-97245-657-1 04 1 0208-0305 ● ● ● ● ●
54 BOLT; RUBBER
(B) NO.2,NO.3 MTG THA 		8-97365-220-0 04 1 0306-1009 ● ● ● ● ●
54 BOLT; RUBBER
(B) NO.2,NO.3 MTG THA 		8-98178-536-0 04 1 1010- ● ● ● ● ●
54 BOLT; RUBBER
(B) NO.4 MTG THA 		8-97245-657-1 02 1 0208-0305 ● ●
54 BOLT; RUBBER
(B) NO.4 MTG THA 		8-97365-220-0 02 1 0306-1009 ● ●
54 BOLT; RUBBER
(B) NO.4 MTG THA 		8-98178-536-0 02 1 1010- ● ●
55 NUT; RUBBER
M10 FLANGE THA 		0-91250-210-0 02 1 0204-0207 ● ● ●
55 NUT; RUBBER
M10 FLANGE THA 		0-91250-210-0 02 1 0208-0603 ● ● ● ● ●
55 NUT; RUBBER
M10 FLANGE THA 		0-91280-210-0 02 1 0604- ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(B) NO.1 MTG THA 		8-97256-674-1 02 1 0204-0207 ● ● ●
159 RUBBER; CUSHION,CAB MTG
(B) NO.1 MTG THA 		8-97256-674-1 02 1 0208-0303 ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(B) NO.1 MTG THA 		8-97367-285-0 02 1 0304- ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(A) NO.2,NO.3,NO.4 MTG THA 		8-97301-825-2 02 1 0204-0207 ● ● ●
159 RUBBER; CUSHION,CAB MTG
(A) NO.2,NO.3,NO.4 MTG THA 		8-97301-825-2 02 1 0204-0207 ●
159 RUBBER; CUSHION,CAB MTG
(A) NO.2,NO.3,NO.4 MTG THA 		8-97301-825-2 02 1 0208-0303 ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(A) NO.2,NO.3,NO.4 MTG THA 		8-97301-825-2 02 1 0208-0303 ● ● ●
159 RUBBER; CUSHION,CAB MTG
(A) NO.2,NO.3,NO.4 MTG THA 		8-97301-825-2 02 1 0208-0303 ● ●
159 RUBBER; CUSHION,CAB MTG
(A) NO.2,NO.3,NO.4 MTG THA 		8-97367-286-0 02 1 0304- ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(A) NO.2,NO.3,NO.4 MTG THA 		8-97367-286-0 02 1 0304- ● ● ●
159 RUBBER; CUSHION,CAB MTG
(A) NO.2,NO.3,NO.4 MTG THA 		8-97367-286-0 02 1 0304- ● ●
159 RUBBER; CUSHION,CAB MTG
(A) NO.3 MTG THA 		8-97301-839-2 02 1 0204-0303 ● ●
159 RUBBER; CUSHION,CAB MTG
(A) NO.3 MTG THA 		8-97367-287-0 02 1 0304- ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1 MTG THA 		8-97256-676-0 02 1 0204-0207 ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1 MTG THA 		8-97256-676-0 02 1 0208-0303 ● ● ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1 MTG THA 		8-97367-288-0 02 1 0304-0609 ● ● ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1 MTG THA 		8-98051-326-0 02 1 0610- ● ● ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(B) NO.2 MTG THA 		8-97256-677-1 02 1 0204-0207 ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(B) NO.2 MTG THA 		8-97256-677-1 02 1 0208-0303 ● ● ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(B) NO.2 MTG THA 		8-97367-289-0 02 1 0304-0609 ● ● ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(B) NO.2 MTG THA 		8-98051-327-0 02 1 0610- ● ● ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) NO.3 MTG THA 		8-97256-678-1 02 1 0204-0303 ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) NO.3 MTG THA 		8-97367-291-0 02 1 0304-0609 ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) NO.3 MTG THA 		8-98051-329-0 02 1 0610- ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) NO.3 MTG THA 		8-97301-826-1 02 1 0204-0207 ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) NO.3,NO.4 MTG THA 		8-97301-826-1 02 1 0208-0303 ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) NO.3,NO.4 MTG THA 		8-97301-826-1 02 1 0208-0303 ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) NO.3,NO.4 MTG THA 		8-97367-290-0 02 1 0304-0609 ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) NO.3,NO.4 MTG THA 		8-97367-290-0 02 1 0304-0609 ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) NO.3,NO.4 MTG THA 		8-98051-328-0 02 1 0610- ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) NO.3,NO.4 MTG THA 		8-98051-328-0 02 1 0610- ● ●
