1 |

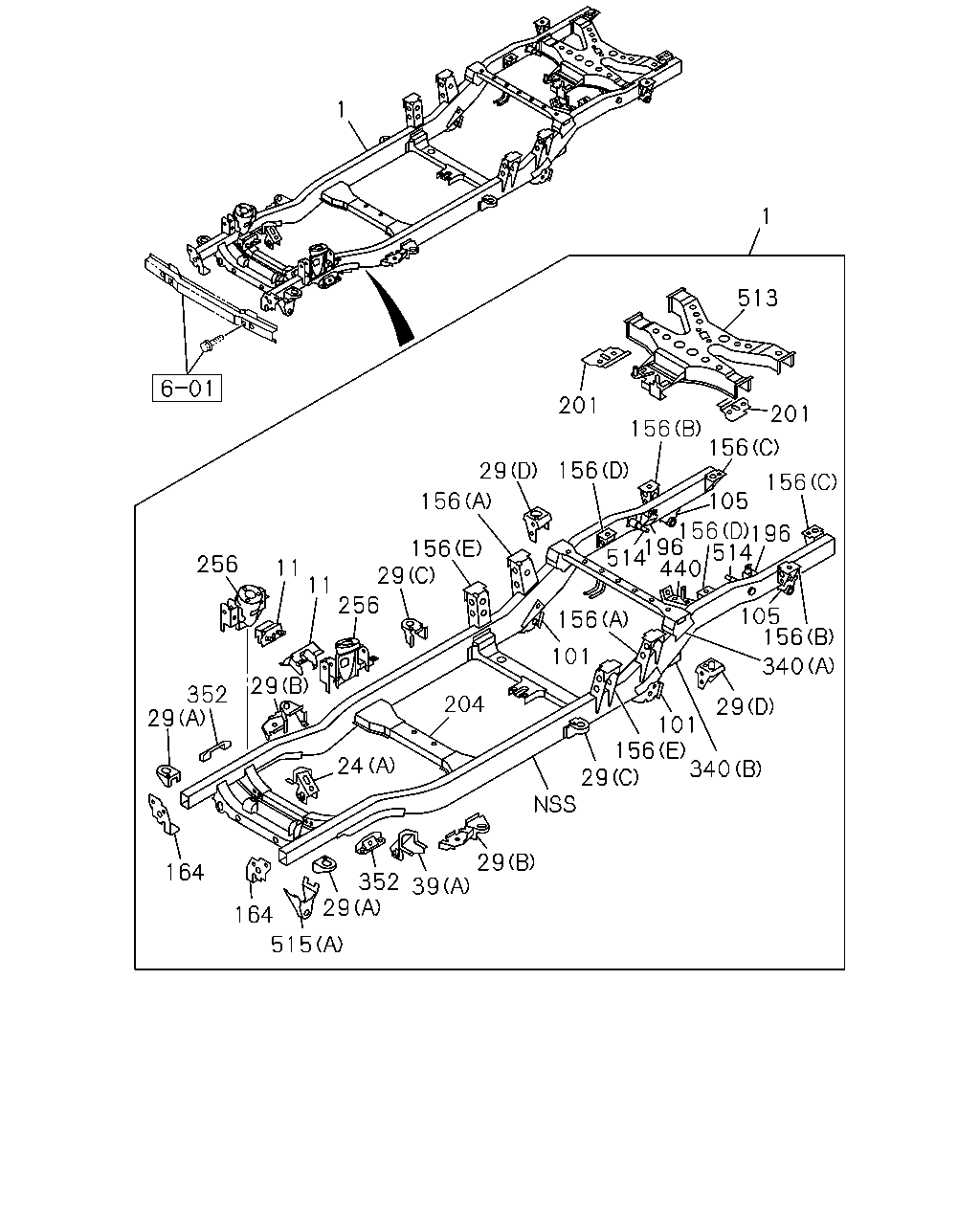

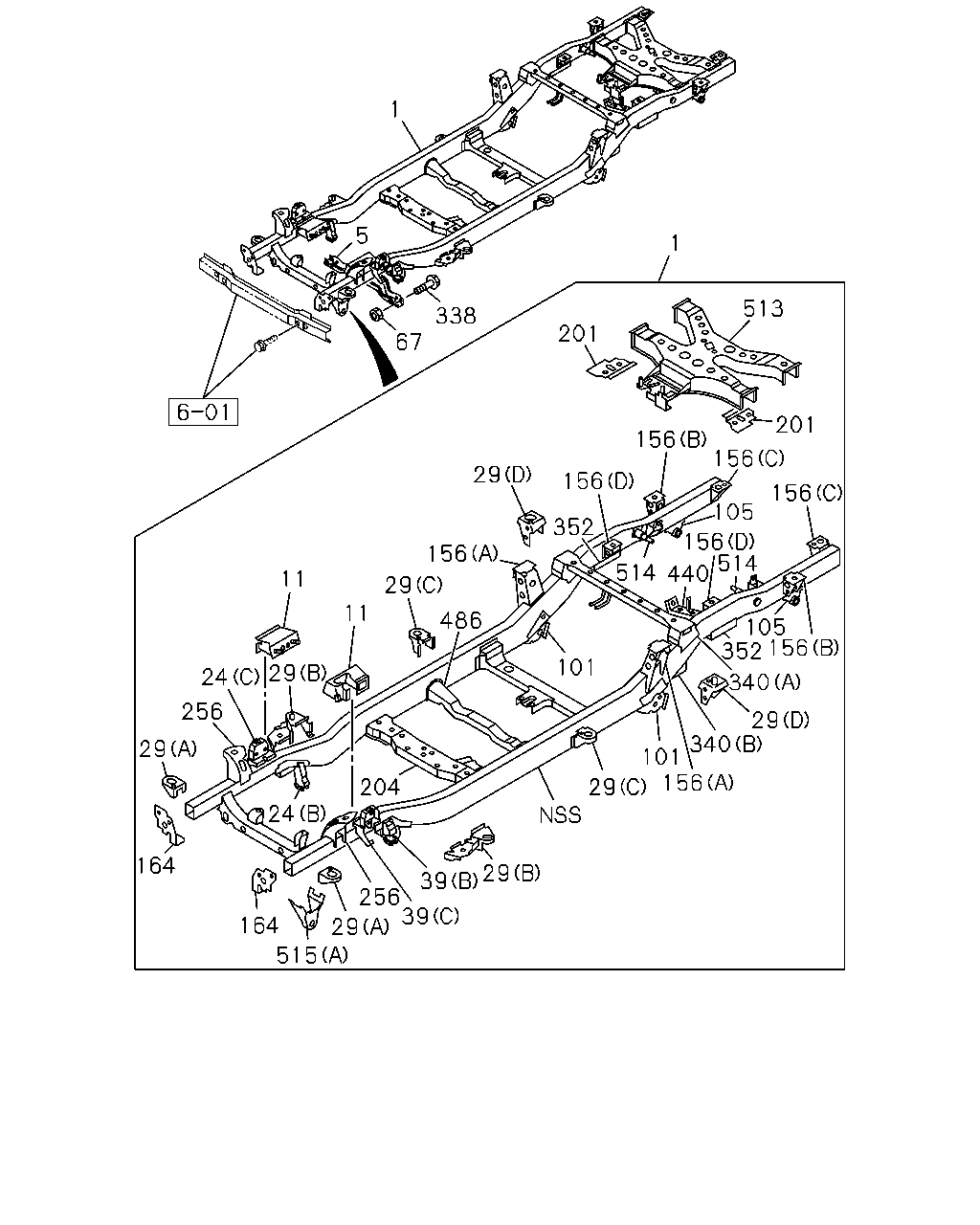

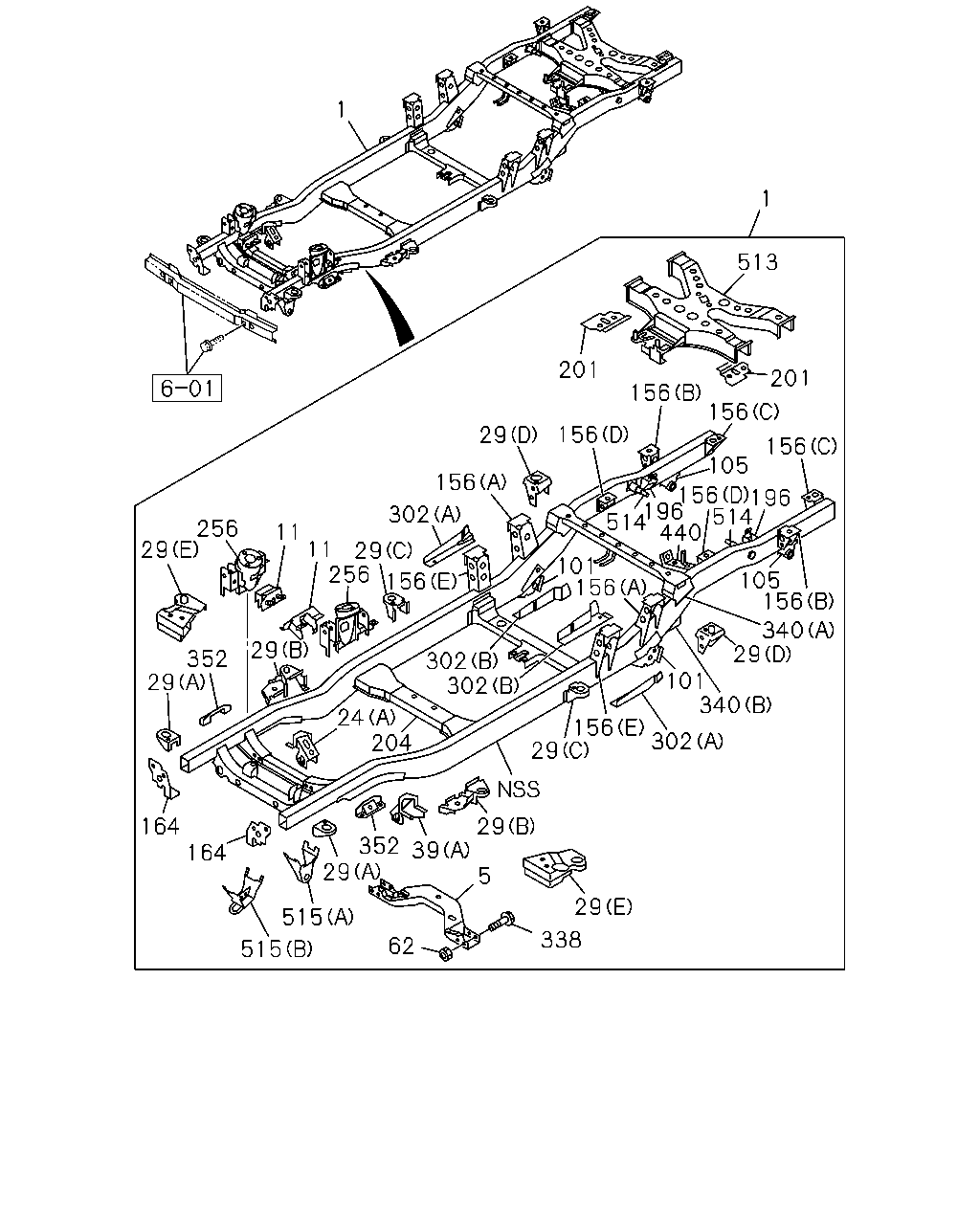

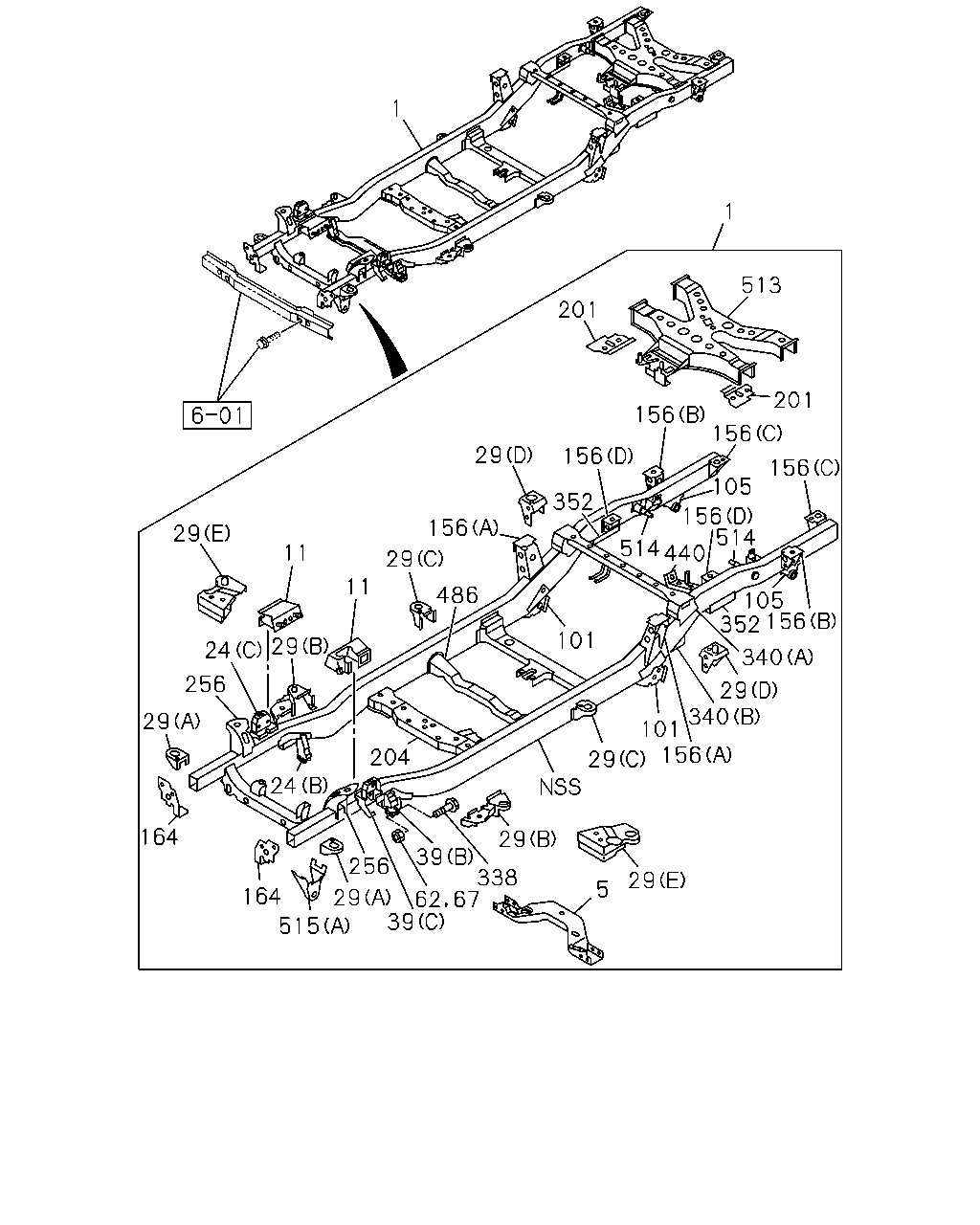

FRAME ASM
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
COUNTRY SUSPENSION<V5W>
THA
|
8-98101-546-0 |
01 |
1 |
0803-0806 |
● |
|
|
|
|
| |
1 |
FRAME ASM
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
COUNTRY SUSPENSION<V5W>
THA
|
8-98116-481-0 |
01 |
1 |
0807-0808 |
● |
|
|
|
|
| |
1 |
FRAME ASM
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
COUNTRY SUSPENSION<V5W>
THA
|
8-98123-652-0 |
01 |
1 |
0809-0909 |
● |
|
|
|
|
| |
1 |
FRAME ASM
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
COUNTRY SUSPENSION<V5W>
THA
|
8-98149-886-0 |
01 |
1 |
0910- |
● |
|
|
|
|
| |
1 |
FRAME ASM
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-98101-545-0 |
01 |
1 |
0803-0808 |
● |
|
|
|
|
| |
1 |
FRAME ASM
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-98123-651-0 |
01 |
1 |
0809-0909 |
● |
|
|
|
|
| |
1 |
FRAME ASM
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-98149-876-0 |
01 |
1 |
0910- |
● |
|
|
|
|
| |
1 |
FRAME ASM
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97942-329-0 |
01 |
1 |
0204-0211 |
● |
|
|
|
|
| |
1 |
FRAME ASM
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97943-252-0 |
01 |
1 |
0212-0304 |
● |
|
|
|
|
| |
1 |
FRAME ASM
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97943-693-0 |
01 |
1 |
0305-0307 |
● |
|
|
|
|
| |
1 |
FRAME ASM
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97943-812-0 |
01 |
1 |
0308-0408 |
● |
|
|
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>
A/T 4 SPEED-JATCO<RMK>
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97943-836-0 |
01 |
1 |
0409-0412 |
● |
|
|
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>
A/T 4 SPEED-JATCO<RMK>
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97944-486-0 |
01 |
1 |
0501-0507 |
● |
|
|
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-97944-993-1 |
01 |
1 |
0508-0606 |
● |
|
|
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>
A/T 4 SPEED-JATCO<RMK>
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97945-358-0 |
01 |
1 |
0607-0708 |
● |
|
|
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
A/T 4 SPEED-JATCO<RMK>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-97945-358-0 |
01 |
1 |
0709-0808 |
● |
|
|
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
A/T 4 SPEED-JATCO<RMK>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-98123-636-0 |
01 |
1 |
0809-0909 |
● |
|
|
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
A/T 4 SPEED-JATCO<RMK>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-98149-877-0 |
01 |
1 |
0910- |
● |
|
|
|
|
| |
1 |
FRAME ASM
M/T MUA 5 SPEED<RMN>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97943-818-0 |
01 |
1 |
0308-0408 |
● |
|
|
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5G<RSP>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97943-842-0 |
01 |
1 |
0409-0412 |
● |
|
|
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97944-492-0 |
01 |
1 |
0501-0507 |
● |
|
|
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97944-207-1 |
01 |
1 |
0508-0606 |
● |
|
|
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97945-633-0 |
01 |
1 |
0607-0705 |
● |
|
|
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97946-284-0 |
01 |
1 |
0706-0806 |
● |
|
|
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-98116-476-0 |
01 |
1 |
0807-0808 |
● |
|
|
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-98123-642-0 |
01 |
1 |
0809-0909 |
● |
|
|
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-98149-883-0 |
01 |
1 |
0910- |
● |
|
|
|
|
| |
1 |
FRAME ASM
4JH1 ENG<RJX>,4JA1 ENG<RLE>
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN>
THA
|
8-97942-333-0 |
01 |
1 |
0204-0211 |
● |
|
|
|
|
| |
1 |
FRAME ASM
4JH1 ENG<RJX>,4JA1 ENG<RLE>
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN>
THA
|
8-97943-256-0 |
01 |
1 |
0212-0304 |
● |
|
|
|
|
| |
1 |
FRAME ASM
4JH1 ENG<RJX>,4JA1 ENG<RLE>
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN>
THA
|
8-97943-696-0 |
01 |
1 |
0305-0307 |
● |
|
|
|
|
| |
1 |
FRAME ASM
4JH1 ENG<RJX>,4JA1 ENG<RLE>
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN>
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97943-816-0 |
01 |
1 |
0308-0408 |
● |
|
|
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0>
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP>
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97943-840-0 |
01 |
1 |
0409-0412 |
● |
|
|
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP>
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97944-490-0 |
01 |
1 |
0501-0507 |
● |
|
|
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
A/T 4 SPEED-JATCO<RMK>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-97944-989-1 |
01 |
1 |
0508-0606 |
● |
|
|
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97945-362-0 |
01 |
1 |
0607-0708 |
● |
|
|
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-97945-362-0 |
01 |
1 |
0709-0808 |
● |
|
|
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-98123-640-0 |
01 |
1 |
0809-0909 |
● |
|
|
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-98149-881-0 |
01 |
1 |
0910- |
● |
|
|
|
|
| |
1 |
FRAME ASM
STABILIZER REAR<GN1>
THA
|
8-97942-332-0 |
01 |
1 |
0204-0211 |
|
● |
|
|
|
| |
1 |
FRAME ASM
STABILIZER REAR<GN1>
THA
|
8-97943-255-0 |
01 |
1 |
0212-0304 |
|
● |
|
|
|
| |
1 |
FRAME ASM
STABILIZER REAR<GN1>
THA
|
8-97943-695-0 |
01 |
1 |
0305-0307 |
|
● |
|
|
|
| |
1 |
FRAME ASM
4JH1 ENG<RJX>,4JA1 ENG<RLE>
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN>
STABILIZER REAR<GN1>
THA
|
8-97943-815-0 |
01 |
1 |
0308-0408 |
|
● |
|
|
|
| |
1 |
FRAME ASM
4JA1-T ENG<LP0>
STABILIZER REAR<GN1>
THA
|
8-97943-839-0 |
01 |
1 |
0409-0412 |
|
● |
|
|
|
| |
1 |
FRAME ASM
4JK1 ENG<LKZ>
STABILIZER REAR<GN1>
THA
|
8-97944-489-1 |
01 |
1 |
0501-0507 |
|
● |
|
|
|
| |
1 |
FRAME ASM
4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
STABILIZER REAR<GN1>
THA
|
8-97944-992-1 |
01 |
1 |
0508-0606 |
|
● |
|
|
|
| |
1 |
FRAME ASM
4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
STABILIZER REAR<GN1>
THA
|
8-97945-361-0 |
01 |
1 |
0607-0808 |
|
● |
|
|
|
| |
1 |
FRAME ASM
4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
STABILIZER REAR<GN1>
THA
|
8-98123-639-0 |
01 |
1 |
0809-0909 |
|
● |
|
|
|
| |
1 |
FRAME ASM
4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
STABILIZER REAR<GN1>
THA
|
8-98149-880-0 |
01 |
1 |
0910- |
|
● |
|
|
|
| |
1 |
FRAME ASM
EXC. STABILIZER REAR<GN1>
THA
|
8-97942-331-0 |
01 |
1 |
0204-0211 |
|
● |
|
|
|
| |
1 |
FRAME ASM
EXC. STABILIZER REAR<GN1>
THA
|
8-97943-254-0 |
01 |
1 |
0212-0304 |
|
● |
|
|
|
| |
1 |
FRAME ASM
EXC. STABILIZER REAR<GN1>
THA
|
8-97943-694-0 |
01 |
1 |
0305-0307 |
|
● |
|
|
|
| |
1 |
FRAME ASM
4JH1 ENG<RJX>,4JA1 ENG<RLE>
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN>
EXC. STABILIZER REAR<GN1>
THA
|
8-97943-814-0 |
01 |
1 |
0308-0408 |
|
● |
|
|
|
| |
1 |
FRAME ASM
4JA1-T ENG<LP0>
EXC. STABILIZER REAR<GN1>
THA
|
8-97943-838-0 |
01 |
1 |
0409-0412 |
|
● |
|
|
|
| |
1 |
FRAME ASM
4JK1 ENG<LKZ>
EXC. STABILIZER REAR<GN1>
THA
|
8-97944-488-1 |
01 |
1 |
0501-0507 |
|
● |
|
|
|
| |
1 |
FRAME ASM
4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
EXC. STABILIZER REAR<GN1>
THA
|
8-97944-991-1 |
01 |
1 |
0508-0606 |
|
● |
|
|
|
| |
1 |
FRAME ASM
4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
EXC. STABILIZER REAR<GN1>
THA
|
8-97945-360-0 |
01 |
1 |
0607-0808 |
|
● |
|
|
|
| |
1 |
FRAME ASM
4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
EXC. STABILIZER REAR<GN1>
THA
|
8-98123-638-0 |
01 |
1 |
0809-0909 |
|
● |
|
|
|
| |
1 |
FRAME ASM
4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
EXC. STABILIZER REAR<GN1>
THA
|
8-98149-879-0 |
01 |
1 |
0910- |
|
● |
|
|
|
| |
1 |
FRAME ASM
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97942-330-0 |
01 |
1 |
0208-0211 |
|
|
● |
|
|
| |
1 |
FRAME ASM
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97943-253-0 |
01 |
1 |
0212-0304 |
|
|
● |
|
|
| |
1 |
FRAME ASM
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97943-333-0 |
01 |
1 |
0305-0307 |
|
|
● |
|
|
| |
1 |
FRAME ASM
A/T 4 SPEED-JATCO<RMK>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97943-820-0 |
01 |
1 |
0308-0408 |
|
|
● |
|
|
| |
1 |
FRAME ASM
A/T 4 SPEED-JATCO<RMK>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97943-844-0 |
01 |
1 |
0409-0412 |
|
|
● |
|
|
| |
1 |
FRAME ASM
A/T 4 SPEED-JATCO<RMK>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97944-494-0 |
01 |
1 |
0501-0507 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-97944-994-1 |
01 |
1 |
0508-0606 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>
A/T 4 SPEED-JATCO<RMK>
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97945-359-0 |
01 |
1 |
0607-0708 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
A/T 4 SPEED-JATCO<RMK>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-97945-359-0 |
01 |
1 |
0709-0808 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
A/T 4 SPEED-JATCO<RMK>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-98123-637-0 |
01 |
1 |
0809-0909 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
A/T 4 SPEED-JATCO<RMK>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-98149-878-0 |
01 |
1 |
0910- |
|
|
● |
|
|
| |
1 |
FRAME ASM
A/T 4 SPEED-JATCO<RMK>
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97943-813-0 |
01 |
1 |
0308-0408 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>
A/T 4 SPEED-JATCO<RMK>
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97943-837-0 |
01 |
1 |
0409-0412 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>
A/T 4 SPEED-JATCO<RMK>
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97944-487-0 |
01 |
1 |
0501-0507 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
A/T 4 SPEED-JATCO<RMK>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97944-209-1 |
01 |
1 |
0508-0606 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
A/T 4 SPEED-JATCO<RMK>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97945-635-1 |
01 |
1 |
0607-0705 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
A/T 4 SPEED-JATCO<RMK>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97946-286-0 |
01 |
1 |
0706-0806 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
A/T 4 SPEED-JATCO<RMK>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-98116-478-0 |
01 |
1 |
0807-0808 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
A/T 4 SPEED-JATCO<RMK>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-98123-644-0 |
01 |
1 |
0809-0909 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
A/T 4 SPEED-JATCO<RMK>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-98149-885-0 |
01 |
1 |
0910- |
|
|
● |
|
|
| |
1 |
FRAME ASM
M/T MUA 5 SPEED<RMN>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97943-819-0 |
01 |
1 |
0308-0408 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5G<RSP>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97943-843-0 |
01 |
1 |
0409-0412 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97944-493-0 |
01 |
1 |
0501-0507 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97944-208-1 |
01 |
1 |
0508-0606 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97945-634-0 |
01 |
1 |
0607-0705 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97946-285-0 |
01 |
1 |
0706-0806 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-98116-477-0 |
01 |
1 |
0807-0808 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-98123-643-0 |
01 |
1 |
0809-0909 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-98149-884-0 |
01 |
1 |
0910- |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JH1 ENG<RJX>,4JA1 ENG<RLE>
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN>
THA
|
8-97942-334-0 |
01 |
1 |
0208-0211 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JH1 ENG<RJX>,4JA1 ENG<RLE>
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN>
THA
|
8-97943-257-0 |
01 |
1 |
0212-0304 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JH1 ENG<RJX>,4JA1 ENG<RLE>
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN>
THA
|
8-97943-337-0 |
01 |
1 |
0305-0307 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JH1 ENG<RJX>,4JA1 ENG<RLE>
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN>
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97943-817-0 |
01 |
1 |
0308-0408 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0>
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP>
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97943-841-0 |
01 |
1 |
0409-0412 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP>
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97944-491-0 |
01 |
1 |
0501-0507 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
A/T 4 SPEED-JATCO<RMK>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-97944-990-1 |
01 |
1 |
0508-0606 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97945-363-0 |
01 |
1 |
0607-0708 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-97945-363-0 |
01 |
1 |
0709-0808 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-98123-641-0 |
01 |
1 |
0809-0909 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-98149-882-0 |
01 |
1 |
0910- |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCX ENG<LS0>
A/T AISIN<RMD>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97946-538-0 |
01 |
1 |
0710-0806 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCX ENG<LS0>
A/T AISIN<RMD>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-98116-480-0 |
01 |
1 |
0807-0808 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCX ENG<LS0>
A/T AISIN<RMD>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-98123-646-0 |
01 |
1 |
0809-0909 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCX ENG<LS0>
A/T AISIN<RMD>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-98149-888-0 |
01 |
1 |
0910- |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97946-537-0 |
01 |
1 |
0710-0806 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-98116-479-0 |
01 |
1 |
0807-0808 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-98123-645-0 |
01 |
1 |
0809-0909 |
|
|
● |
|
|
| |
1 |
FRAME ASM
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-98149-887-0 |
01 |
1 |
0910- |
|
|
● |
|
|
| |
1 |
FRAME ASM
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97942-335-0 |
01 |
1 |
0204-0211 |
|
|
|
● |
|
| |
1 |
FRAME ASM
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97943-258-0 |
01 |
1 |
0212-0304 |
|
|
|
● |
|
| |
1 |
FRAME ASM
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97943-697-0 |
01 |
1 |
0305-0307 |
|
|
|
● |
|
| |
1 |
FRAME ASM
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97943-821-0 |
01 |
1 |
0308-0408 |
|
|
|
● |
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97943-845-0 |
01 |
1 |
0409-0412 |
|
|
|
● |
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97944-495-0 |
01 |
1 |
0501-0507 |
|
|
|
● |
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97944-210-1 |
01 |
1 |
0508-0606 |
|
|
|
● |
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97945-636-0 |
01 |
1 |
0607-0802 |
|
|
|
● |
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0>
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97945-636-0 |
01 |
1 |
0803-0806 |
|
|
|
● |
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0>
A/T 4 SPEED-JATCO<RMK>
THA
|
8-98116-472-0 |
01 |
1 |
0807-0808 |
|
|
|
● |
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0>
A/T 4 SPEED-JATCO<RMK>
THA
|
8-98123-647-0 |
01 |
1 |
0809-0909 |
|
|
|
● |
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0>
A/T 4 SPEED-JATCO<RMK>
THA
|
8-98149-889-0 |
01 |
1 |
0910- |
|
|
|
● |
|
| |
1 |
FRAME ASM
M/T MUA 5 SPEED<RMN>
THA
|
8-97942-337-0 |
01 |
1 |
0204-0211 |
|
|
|
● |
|
| |
1 |
FRAME ASM
M/T MUA 5 SPEED<RMN>
THA
|
8-97943-260-0 |
01 |
1 |
0212-0304 |
|
|
|
● |
|
| |
1 |
FRAME ASM
M/T MUA 5 SPEED<RMN>
THA
|
8-97943-698-0 |
01 |
1 |
0305-0307 |
|
|
|
● |
|
| |
1 |
FRAME ASM
M/T MUA 5 SPEED<RMN>
THA
|
8-97943-823-0 |
01 |
1 |
0308-0408 |
|
|
|
● |
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5G<RSP>
THA
|
8-97943-847-0 |
01 |
1 |
0409-0412 |
|
|
|
● |
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5G<RSP>
THA
|
8-97944-497-0 |
01 |
1 |
0501-0507 |
|
|
|
● |
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5G<RSP>
THA
|
8-97944-212-1 |
01 |
1 |
0508-0606 |
|
|
|
● |
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-97945-638-0 |
01 |
1 |
0607-0802 |
|
|
|
● |
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
THA
|
8-97945-638-0 |
01 |
1 |
0803-0806 |
|
|
|
● |
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
THA
|
8-98116-474-0 |
01 |
1 |
0807-0808 |
|
|
|
● |
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
THA
|
8-98123-649-0 |
01 |
1 |
0809-0909 |
|
|
|
● |
|
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
THA
|
8-98149-891-0 |
01 |
1 |
0910- |
|
|
|
● |
|
| |
1 |
FRAME ASM
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97942-336-0 |
01 |
1 |
0208-0211 |
|
|
|
|
● |
| |
1 |
FRAME ASM
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97943-259-0 |
01 |
1 |
0212-0304 |
|
|
|
|
● |
| |
1 |
FRAME ASM
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97943-733-0 |
01 |
1 |
0305-0307 |
|
|
|
|
● |
| |
1 |
FRAME ASM
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97943-822-0 |
01 |
1 |
0308-0408 |
|
|
|
|
● |
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97943-846-0 |
01 |
1 |
0409-0412 |
|
|
|
|
● |
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97944-496-0 |
01 |
1 |
0501-0507 |
|
|
|
|
● |
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97944-211-1 |
01 |
1 |
0508-0606 |
|
|
|
|
● |
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97945-637-0 |
01 |
1 |
0607-0608 |
|
|
|
|
● |
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0>
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK>
COUNTRY SUSPENSION<V5W>
THA
|
8-97945-637-0 |
01 |
1 |
0609-0708 |
|
|
|
|
● |
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>
A/T 4 SPEED-JATCO<RMK>
COUNTRY SUSPENSION<V5W>
THA
|
8-97945-637-0 |
01 |
1 |
0709-0709 |
|
|
|
|
● |
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0>
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK>
THA
|
8-97945-637-0 |
01 |
1 |
0710-0806 |
|
|
|
|
● |
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0>
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK>
THA
|
8-98116-473-0 |
01 |
1 |
0807-0808 |
|
|
|
|
● |
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0>
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK>
THA
|
8-98123-648-0 |
01 |
1 |
0809-0909 |
|
|
|
|
● |
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0>
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK>
THA
|
8-98149-890-0 |
01 |
1 |
0910- |
|
|
|
|
● |
| |
1 |
FRAME ASM
M/T MUA 5 SPEED<RMN>
THA
|
8-97942-338-0 |
01 |
1 |
0208-0211 |
|
|
|
|
● |
| |
1 |
FRAME ASM
M/T MUA 5 SPEED<RMN>
THA
|
8-97943-261-0 |
01 |
1 |
0212-0304 |
|
|
|
|
● |
| |
1 |
FRAME ASM
M/T MUA 5 SPEED<RMN>
THA
|
8-97943-734-0 |
01 |
1 |
0305-0307 |
|
|
|
|
● |
| |
1 |
FRAME ASM
M/T MUA 5 SPEED<RMN>
THA
|
8-97943-824-0 |
01 |
1 |
0308-0408 |
|
|
|
|
● |
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5G<RSP>
THA
|
8-97943-848-0 |
01 |
1 |
0409-0412 |
|
|
|
|
● |
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5G<RSP>
THA
|
8-97944-498-0 |
01 |
1 |
0501-0507 |
|
|
|
|
● |
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5G<RSP>
THA
|
8-97944-213-1 |
01 |
1 |
0508-0606 |
|
|
|
|
● |
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-97945-639-0 |
01 |
1 |
0607-0608 |
|
|
|
|
● |
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
COUNTRY SUSPENSION<V5W>
THA
|
8-97945-639-0 |
01 |
1 |
0609-0708 |
|
|
|
|
● |
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
COUNTRY SUSPENSION<V5W>
THA
|
8-97945-639-0 |
01 |
1 |
0709-0709 |
|
|
|
|
● |
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
THA
|
8-97945-639-0 |
01 |
1 |
0710-0806 |
|
|
|
|
● |
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
THA
|
8-98116-475-0 |
01 |
1 |
0807-0808 |
|
|
|
|
● |
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
THA
|
8-98123-650-0 |
01 |
1 |
0809-0909 |
|
|
|
|
● |
| |
1 |
FRAME ASM
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
THA
|
8-98149-892-0 |
01 |
1 |
0910- |
|
|
|
|
● |
| |
5 |
MEMBER; CROSS,SUSPENSION
THA
|
8-98116-196-0 |
01 |
1 |
0807- |
|
|
|
● |
● |
| |
5 |
MEMBER; CROSS,SUSPENSION
THA
|
8-97942-423-2 |
01 |
1 |
0204-0207 |
|
|
|
● |
|
| |
5 |
MEMBER; CROSS,SUSPENSION
THA
|
8-97942-423-2 |
01 |
1 |
0208-0304 |
|
|
|
● |
● |
| |
5 |
MEMBER; CROSS,SUSPENSION
THA
|
8-97942-423-2 |
01 |
1 |
0305-0307 |
● |
● |
|
● |
● |
| |
5 |
MEMBER; CROSS,SUSPENSION
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97942-423-3 |
01 |
1 |
0308-0802 |
● |
|
● |
|
|
| |
5 |
MEMBER; CROSS,SUSPENSION
THA
|
8-97942-423-3 |
01 |
1 |
0308-0802 |
|
|
|
● |
● |
| |
5 |
MEMBER; CROSS,SUSPENSION
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97942-423-3 |
01 |
1 |
0803-0806 |
● |
|
● |
|
|
| |
5 |
MEMBER; CROSS,SUSPENSION
THA
|
8-97942-423-3 |
01 |
1 |
0803-0806 |
|
|
|
● |
● |
| |
5 |
MEMBER; CROSS,SUSPENSION
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97942-423-3 |
01 |
1 |
0807- |
● |
|
● |
|
|
| |
11 |
BRACKET; ENG MTG
THA
|
8-97942-346-2 |
01 |
1 |
0204-0207 |
● |
● |
|
|
|
| |
11 |
BRACKET; ENG MTG
THA
|
8-97942-346-3 |
01 |
1 |
0208-0211 |
● |
● |
● |
|
|
| |
11 |
BRACKET; ENG MTG
THA
|
8-97942-715-2 |
01 |
1 |
0212-0307 |
● |
● |
● |
|
|
| |
11 |
BRACKET; ENG MTG
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97942-715-2 |
01 |
1 |
0308-0708 |
● |
|
● |
|
|
| |
11 |
BRACKET; ENG MTG
THA
|
8-97942-715-2 |
01 |
1 |
0308-0708 |
|
● |
|
|
|
| |
11 |
BRACKET; ENG MTG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-97942-715-2 |
01 |
1 |
0709-0802 |
● |
|
● |
|
|
| |
11 |
BRACKET; ENG MTG
4JK1 ENG<LKZ>
THA
|
8-97942-715-2 |
01 |
1 |
0709-0802 |
|
● |
|
|
|
| |
11 |
BRACKET; ENG MTG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-97942-715-2 |
01 |
1 |
0803- |
● |
|
● |
|
|
| |
11 |
BRACKET; ENG MTG
4JK1 ENG<LKZ>
THA
|
8-97942-715-2 |
01 |
1 |
0803- |
|
● |
|
|
|
| |
11 |
BRACKET; ENG MTG
THA
|
8-97942-344-4 |
01 |
1 |
0204-0207 |
● |
● |
|
|
|
| |
11 |
BRACKET; ENG MTG
THA
|
8-97942-344-6 |
01 |
1 |
0208-0307 |
● |
● |
● |
|
|
| |
11 |
BRACKET; ENG MTG
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97942-344-6 |
01 |
1 |
0308-0507 |
● |
|
● |
|
|
| |
11 |
BRACKET; ENG MTG
THA
|
8-97942-344-6 |
01 |
1 |
0308-0507 |
|
● |
|
|
|
| |
11 |
BRACKET; ENG MTG
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97942-714-2 |
01 |
1 |
0508-0708 |
● |
|
● |
|
|
| |
11 |
BRACKET; ENG MTG
THA
|
8-97942-714-2 |
01 |
1 |
0508-0708 |
|
● |
|
|
|
| |
11 |
BRACKET; ENG MTG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-97942-714-2 |
01 |
1 |
0709-0802 |
● |
|
● |
|
|
| |
11 |
BRACKET; ENG MTG
4JK1 ENG<LKZ>
THA
|
8-97942-714-2 |
01 |
1 |
0709-0802 |
|
● |
|
|
|
| |
11 |
BRACKET; ENG MTG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-97942-714-2 |
01 |
1 |
0803- |
● |
|
● |
|
|
| |
11 |
BRACKET; ENG MTG
4JK1 ENG<LKZ>
THA
|
8-97942-714-2 |
01 |
1 |
0803- |
|
● |
|
|
|
| |
11 |
BRACKET; ENG MTG
THA
|
8-97942-347-4 |
01 |
1 |
0204-0207 |
|
|
|
● |
|
| |
11 |
BRACKET; ENG MTG
THA
|
8-97942-347-5 |
01 |
1 |
0208-0211 |
|
|
|
● |
● |
| |
11 |
BRACKET; ENG MTG
THA
|
8-97942-716-0 |
01 |
1 |
0212-0307 |
|
|
|
● |
● |
| |
11 |
BRACKET; ENG MTG
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97942-716-0 |
01 |
1 |
0308-0401 |
● |
|
● |
|
|
| |
11 |
BRACKET; ENG MTG
THA
|
8-97942-716-0 |
01 |
1 |
0308-0401 |
|
|
|
● |
● |
| |
11 |
BRACKET; ENG MTG
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97943-947-0 |
01 |
1 |
0402-0802 |
● |
|
● |
|
|
| |
11 |
BRACKET; ENG MTG
THA
|
8-97943-947-0 |
01 |
1 |
0402-0802 |
|
|
|
● |
● |
| |
11 |
BRACKET; ENG MTG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97943-947-0 |
01 |
1 |
0803- |
● |
|
● |
|
|
| |
11 |
BRACKET; ENG MTG
THA
|
8-97943-947-0 |
01 |
1 |
0803- |
|
|
|
● |
● |
| |
11 |
BRACKET; ENG MTG
THA
|
8-97942-345-3 |
01 |
1 |
0204-0207 |
|
|
|
● |
|
| |
11 |
BRACKET; ENG MTG
THA
|
8-97942-345-4 |
01 |
1 |
0208-0307 |
|
|
|
● |
● |
| |
11 |
BRACKET; ENG MTG
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97942-345-4 |
01 |
1 |
0308-0802 |
● |
|
● |
|
|
| |
11 |
BRACKET; ENG MTG
THA
|
8-97942-345-4 |
01 |
1 |
0308-0802 |
|
|
|
● |
● |
| |
11 |
BRACKET; ENG MTG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97942-345-4 |
01 |
1 |
0803- |
● |
|
● |
|
|
| |
11 |
BRACKET; ENG MTG
THA
|
8-97942-345-4 |
01 |
1 |
0803- |
|
|
|
● |
● |
| |
24 |
BRACKET; FRT SPR,FRT
(A)
THA
|
8-97942-354-4 |
01 |
1 |
0204-0207 |
● |
● |
|
|
|
| |
24 |
BRACKET; FRT SPR,FRT
(A)
THA
|
8-97942-354-4 |
01 |
1 |
0208-0307 |
● |
● |
● |
|
|
| |
24 |
BRACKET; FRT SPR,FRT
EXC. HIGH RIDE SUSPENSION<7YC>
(A)
THA
|
8-97942-354-4 |
01 |
1 |
0308-0708 |
● |
|
● |
|
|
| |
24 |
BRACKET; FRT SPR,FRT
(A)
THA
|
8-97942-354-4 |
01 |
1 |
0308-0708 |
|
● |
|
|
|
| |
24 |
BRACKET; FRT SPR,FRT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
(A)
THA
|
8-97942-354-4 |
01 |
1 |
0709-0802 |
● |
|
● |
|
|
| |
24 |
BRACKET; FRT SPR,FRT
4JK1 ENG<LKZ>
(A)
THA
|
8-97942-354-4 |
01 |
1 |
0709-0802 |
|
● |
|
|
|
| |
24 |
BRACKET; FRT SPR,FRT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
(A)
THA
|
8-97942-354-4 |
01 |
1 |
0803- |
● |
|
● |
|
|
| |
24 |
BRACKET; FRT SPR,FRT
4JK1 ENG<LKZ>
(A)
THA
|
8-97942-354-4 |
01 |
1 |
0803- |
|
● |
|
|
|
| |
24 |
BRACKET; FRT SPR,FRT
HIGH RIDE SUSPENSION<7YC>
(B)
THA
|
8-97946-328-0 |
01 |
1 |
0706-0802 |
● |
|
● |
|
|
| |
24 |
BRACKET; FRT SPR,FRT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
(B)
THA
|
8-97946-328-0 |
01 |
1 |
0803- |
● |
|
● |
|
|
| |
24 |
BRACKET; FRT SPR,FRT
(B)
THA
|
8-97942-352-1 |
01 |
1 |
0204-0207 |
|
|
|
● |
|
| |
24 |
BRACKET; FRT SPR,FRT
(B)
THA
|
8-97942-352-1 |
01 |
1 |
0208-0307 |
|
|
|
● |
● |
| |
24 |
BRACKET; FRT SPR,FRT
HIGH RIDE SUSPENSION<7YC>
(B)
THA
|
8-97942-352-2 |
01 |
1 |
0308-0705 |
● |
|
● |
|
|
| |
24 |
BRACKET; FRT SPR,FRT
(B)
THA
|
8-97942-352-2 |
01 |
1 |
0308-0705 |
|
|
|
● |
● |
| |
24 |
BRACKET; FRT SPR,FRT
(B)
THA
|
8-97942-352-2 |
01 |
1 |
0706- |
|
|
|
● |
● |
| |
24 |
BRACKET; FRT SPR,FRT
(C)
THA
|
8-97942-356-3 |
01 |
1 |
0204-0207 |
|
|
|
● |
|
| |
24 |
BRACKET; FRT SPR,FRT
(C)
THA
|
8-97942-356-3 |
01 |
1 |
0208-0307 |
|
|
|
● |
● |
| |
24 |
BRACKET; FRT SPR,FRT
HIGH RIDE SUSPENSION<7YC>
(C)
THA
|
8-97942-356-3 |
01 |
1 |
0308-0802 |
● |
|
● |
|
|
| |
24 |
BRACKET; FRT SPR,FRT
(C)
THA
|
8-97942-356-3 |
01 |
1 |
0308-0802 |
|
|
|
● |
● |
| |
24 |
BRACKET; FRT SPR,FRT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
(C)
THA
|
8-97942-356-3 |
01 |
1 |
0803- |
● |
|
● |
|
|
| |
24 |
BRACKET; FRT SPR,FRT
(C)
THA
|
8-97942-356-3 |
01 |
1 |
0803- |
|
|
|
● |
● |
| |
29 |
BRACKET; CAB MTG
(A)
THA
|
8-97942-341-3 |
02 |
1 |
0204-0207 |
● |
● |
|
● |
|
| |
29 |
BRACKET; CAB MTG
(A)
THA
|
8-97942-341-3 |
02 |
1 |
0208- |
● |
● |
● |
● |
● |
| |
29 |
BRACKET; CAB MTG
(B)
THA
|
8-97942-603-2 |
01 |
1 |
0204-0207 |
● |
● |
|
● |
|
| |
29 |
BRACKET; CAB MTG
(B)
THA
|
8-97942-603-2 |
01 |
1 |
0208-0909 |
● |
● |
● |
● |
● |
| |
29 |
BRACKET; CAB MTG
(E)
THA
|
8-97941-773-2 |
01 |
1 |
0910- |
● |
● |
● |
● |
● |
| |
29 |
BRACKET; CAB MTG
(B)
THA
|
8-97942-602-2 |
01 |
1 |
0204-0207 |
● |
● |
|
● |
|
| |
29 |
BRACKET; CAB MTG
(B)
THA
|
8-97942-602-2 |
01 |
1 |
0208-0909 |
● |
● |
● |
● |
● |
| |
29 |
BRACKET; CAB MTG
(E)
THA
|
8-97941-772-2 |
01 |
1 |
0910- |
● |
● |
● |
● |
● |
| |
29 |
BRACKET; CAB MTG
(C)
THA
|
8-97942-373-3 |
02 |
1 |
0204-0507 |
● |
|
|
● |
|
| |
29 |
BRACKET; CAB MTG
(C)
THA
|
8-97944-955-0 |
02 |
1 |
0508- |
● |
|
|
● |
|
| |
29 |
BRACKET; CAB MTG
(C)
THA
|
8-97942-372-3 |
02 |
1 |
0204-0207 |
|
● |
|
|
|
| |
29 |
BRACKET; CAB MTG
(C)
THA
|
8-97942-372-3 |
02 |
1 |
0208-0507 |
|
● |
● |
|
● |
| |
29 |
BRACKET; CAB MTG
(C)
THA
|
8-97944-956-0 |
02 |
1 |
0508- |
|
● |
● |
|
● |
| |
29 |
BRACKET; CAB MTG
(D)
THA
|
8-97942-383-3 |
01 |
1 |
0208- |
|
|
● |
|
● |
| |
29 |
BRACKET; CAB MTG
(D)
THA
|
8-97942-382-4 |
01 |
1 |
0208- |
|
|
● |
|
● |
| |
39 |
BRACKET; FRT SPR,RR
(A)
THA
|
8-97942-355-4 |
01 |
1 |
0204-0207 |
● |
● |
|
|
|
| |
39 |
BRACKET; FRT SPR,RR
(A)
THA
|
8-97942-355-4 |
01 |
1 |
0208-0307 |
● |
● |
● |
|
|
| |
39 |
BRACKET; FRT SPR,RR
EXC. HIGH RIDE SUSPENSION<7YC>
(A)
THA
|
8-97942-355-4 |
01 |
1 |
0308-0708 |
● |
|
● |
|
|
| |
39 |
BRACKET; FRT SPR,RR
(A)
THA
|
8-97942-355-4 |
01 |
1 |
0308-0708 |
|
● |
|
|
|
| |
39 |
BRACKET; FRT SPR,RR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
(A)
THA
|
8-97942-355-4 |
01 |
1 |
0709-0802 |
● |
|
● |
|
|
| |
39 |
BRACKET; FRT SPR,RR
4JK1 ENG<LKZ>
(A)
THA
|
8-97942-355-4 |
01 |
1 |
0709-0802 |
|
● |
|
|
|
| |
39 |
BRACKET; FRT SPR,RR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
(A)
THA
|
8-97942-355-4 |
01 |
1 |
0803- |
● |
|
● |
|
|
| |
39 |
BRACKET; FRT SPR,RR
4JK1 ENG<LKZ>
(A)
THA
|
8-97942-355-4 |
01 |
1 |
0803- |
|
● |
|
|
|
| |
39 |
BRACKET; FRT SPR,RR
HIGH RIDE SUSPENSION<7YC>
(B)
THA
|
8-97946-329-0 |
01 |
1 |
0706-0802 |
● |
|
● |
|
|
| |
39 |
BRACKET; FRT SPR,RR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
(B)
THA
|
8-97946-329-0 |
01 |
1 |
0803- |
● |
|
● |
|
|
| |
39 |
BRACKET; FRT SPR,RR
(B)
THA
|
8-97942-353-1 |
01 |
1 |
0204-0207 |
|
|
|
● |
|
| |
39 |
BRACKET; FRT SPR,RR
(B)
THA
|
8-97942-353-1 |
01 |
1 |
0208-0307 |
|
|
|
● |
● |
| |
39 |
BRACKET; FRT SPR,RR
HIGH RIDE SUSPENSION<7YC>
(B)
THA
|
8-97942-353-2 |
01 |
1 |
0308-0705 |
● |
|
● |
|
|
| |
39 |
BRACKET; FRT SPR,RR
(B)
THA
|
8-97942-353-2 |
01 |
1 |
0308-0705 |
|
|
|
● |
● |
| |
39 |
BRACKET; FRT SPR,RR
(B)
THA
|
8-97942-353-2 |
01 |
1 |
0706- |
|
|
|
● |
● |
| |
39 |
BRACKET; FRT SPR,RR
(C)
THA
|
8-97942-357-3 |
01 |
1 |
0204-0207 |
|
|
|
● |
|
| |
39 |
BRACKET; FRT SPR,RR
(C)
THA
|
8-97942-357-3 |
01 |
1 |
0208-0307 |
|
|
|
● |
● |
| |
39 |
BRACKET; FRT SPR,RR
HIGH RIDE SUSPENSION<7YC>
(C)
THA
|
8-97942-357-3 |
01 |
1 |
0308-0802 |
● |
|
● |
|
|
| |
39 |
BRACKET; FRT SPR,RR
(C)
THA
|
8-97942-357-3 |
01 |
1 |
0308-0802 |
|
|
|
● |
● |
| |
39 |
BRACKET; FRT SPR,RR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
(C)
THA
|
8-97942-357-3 |
01 |
1 |
0803- |
● |
|
● |
|
|
| |
39 |
BRACKET; FRT SPR,RR
(C)
THA
|
8-97942-357-3 |
01 |
1 |
0803- |
|
|
|
● |
● |
| |
62 |
NUT; MBR
THA
|
8-97943-021-0 |
04 |
1 |
0305-0307 |
● |
● |
|
● |
● |
| |
62 |
NUT; MBR
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97943-021-0 |
04 |
1 |
0308-0310 |
● |
|
● |
|
|
| |
62 |
NUT; MBR
THA
|
8-97943-021-0 |
04 |
1 |
0308-0310 |
|
|
|
● |
● |
| |
62 |
NUT; MBR
HIGH RIDE SUSPENSION<7YC>
M10 FLANGE
THA
|
0-91180-210-0 |
04 |
1 |
0311-0802 |
● |
|
● |
|
|
| |
62 |
NUT; MBR
M10 FLANGE
THA
|
0-91180-210-0 |
04 |
1 |
0311-0802 |
|
|
|
● |
● |
| |
62 |
NUT; MBR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
M10 FLANGE
THA
|
0-91180-210-0 |
04 |
1 |
0803- |
● |
|
● |
|
|
| |
62 |
NUT; MBR
M10 FLANGE
THA
|
0-91180-210-0 |
04 |
1 |
0803- |
|
|
|
● |
● |
| |
101 |
BRACKET; RR SPR,FRT
THA
|
8-97942-394-3 |
01 |
1 |
0204-0207 |
● |
● |
|
|
|
| |
101 |
BRACKET; RR SPR,FRT
THA
|
8-97942-394-4 |
01 |
1 |
0208-0307 |
● |
● |
● |
|
|
| |
101 |
BRACKET; RR SPR,FRT
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97942-394-5 |
01 |
1 |
0308-0708 |
● |
|
● |
|
|
| |
101 |
BRACKET; RR SPR,FRT
THA
|
8-97942-394-5 |
01 |
1 |
0308-0708 |
|
● |
|
|
|
| |
101 |
BRACKET; RR SPR,FRT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-97942-394-5 |
01 |
1 |
0709-0802 |
● |
|
● |
|
|
| |
101 |
BRACKET; RR SPR,FRT
4JK1 ENG<LKZ>
THA
|
8-97942-394-5 |
01 |
1 |
0709-0802 |
|
● |
|
|
|
| |
101 |
BRACKET; RR SPR,FRT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-97942-394-5 |
01 |
1 |
0803- |
● |
|
● |
|
|
| |
101 |
BRACKET; RR SPR,FRT
4JK1 ENG<LKZ>
THA
|
8-97942-394-5 |
01 |
1 |
0803- |
|
● |
|
|
|
| |
101 |
BRACKET; RR SPR,FRT
THA
|
8-97942-393-3 |
01 |
1 |
0204-0207 |
● |
● |
|
|
|
| |
101 |
BRACKET; RR SPR,FRT
THA
|
8-97942-393-4 |
01 |
1 |
0208-0307 |
● |
● |
● |
|
|
| |
101 |
BRACKET; RR SPR,FRT
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97942-393-5 |
01 |
1 |
0308-0708 |
● |
|
● |
|
|
| |
101 |
BRACKET; RR SPR,FRT
THA
|
8-97942-393-5 |
01 |
1 |
0308-0708 |
|
● |
|
|
|
| |
101 |
BRACKET; RR SPR,FRT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-97942-393-5 |
01 |
1 |
0709-0802 |
● |
|
● |
|
|
| |
101 |
BRACKET; RR SPR,FRT
4JK1 ENG<LKZ>
THA
|
8-97942-393-5 |
01 |
1 |
0709-0802 |
|
● |
|
|
|
| |
101 |
BRACKET; RR SPR,FRT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-97942-393-5 |
01 |
1 |
0803- |
● |
|
● |
|
|
| |
101 |
BRACKET; RR SPR,FRT
4JK1 ENG<LKZ>
THA
|
8-97942-393-5 |
01 |
1 |
0803- |
|
● |
|
|
|
| |
101 |
BRACKET; RR SPR,FRT
THA
|
8-97942-392-3 |
01 |
1 |
0204-0207 |
|
|
|
● |
|
| |
101 |
BRACKET; RR SPR,FRT
THA
|
8-97942-392-3 |
01 |
1 |
0208-0307 |
|
|
|
● |
● |
| |
101 |
BRACKET; RR SPR,FRT
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97942-392-6 |
01 |
1 |
0308-0802 |
● |
|
● |
|
|
| |
101 |
BRACKET; RR SPR,FRT
THA
|
8-97942-392-6 |
01 |
1 |
0308-0802 |
|
|
|
● |
● |
| |
101 |
BRACKET; RR SPR,FRT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97942-392-6 |
01 |
1 |
0803- |
● |
|
● |
|
|
| |
101 |
BRACKET; RR SPR,FRT
THA
|
8-97942-392-6 |
01 |
1 |
0803- |
|
|
|
● |
● |
| |
101 |
BRACKET; RR SPR,FRT
THA
|
8-97942-391-3 |
01 |
1 |
0204-0207 |
|
|
|
● |
|
| |
101 |
BRACKET; RR SPR,FRT
THA
|
8-97942-391-3 |
01 |
1 |
0208-0307 |
|
|
|
● |
● |
| |
101 |
BRACKET; RR SPR,FRT
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97942-391-6 |
01 |
1 |
0308-0802 |
● |
|
● |
|
|
| |
101 |
BRACKET; RR SPR,FRT
THA
|
8-97942-391-6 |
01 |
1 |
0308-0802 |
|
|
|
● |
● |
| |
101 |
BRACKET; RR SPR,FRT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97942-391-6 |
01 |
1 |
0803- |
● |
|
● |
|
|
| |
101 |
BRACKET; RR SPR,FRT
THA
|
8-97942-391-6 |
01 |
1 |
0803- |
|
|
|
● |
● |
| |
105 |
BRACKET; RR SPR,RR
THA
|
8-97942-294-0 |
02 |
1 |
0204-0207 |
● |
● |
|
● |
|
| |
105 |
BRACKET; RR SPR,RR
THA
|
8-97942-294-0 |
02 |
1 |
0208- |
● |
● |
● |
● |
● |
| |
156 |
BRACKET; RR BODY MTG
(B)
THA
|
8-97942-388-5 |
02 |
1 |
0204-0207 |
● |
● |
|
● |
|
| |
156 |
BRACKET; RR BODY MTG
(B)
THA
|
8-97942-388-5 |
02 |
1 |
0208- |
● |
● |
● |
● |
● |
| |
156 |
BRACKET; RR BODY MTG
(C)
THA
|
8-97942-389-5 |
02 |
1 |
0204- |
● |
● |
|
● |
|
| |
156 |
BRACKET; RR BODY MTG
(D)
THA
|
8-97942-390-5 |
02 |
1 |
0204-0207 |
● |
● |
|
● |
|
| |
156 |
BRACKET; RR BODY MTG
(D)
THA
|
8-97942-390-6 |
02 |
1 |
0208- |
● |
● |
● |
● |
● |
| |
156 |
BRACKET; RR BODY MTG
(A)
THA
|
8-97942-385-4 |
01 |
1 |
0204- |
● |
● |
|
● |
|
| |
156 |
BRACKET; RR BODY MTG
(A)
THA
|
8-97942-384-4 |
01 |
1 |
0204- |
● |
● |
|
● |
|
| |
156 |
BRACKET; RR BODY MTG
(E)
THA
|
8-97942-375-4 |
01 |
1 |
0204- |
|
● |
|
|
|
| |
156 |
BRACKET; RR BODY MTG
(E)
THA
|
8-97942-374-3 |
01 |
1 |
0204- |
|
● |
|
|
|
| |
164 |
PLATE; FRT
THA
|
8-97942-361-1 |
01 |
1 |
0204-0207 |
● |
● |
|
● |
|
| |
164 |
PLATE; FRT
THA
|
8-97942-361-1 |
01 |
1 |
0208-0209 |
● |
● |
● |
● |
● |
| |
164 |
PLATE; FRT
THA
|
8-97942-827-1 |
01 |
1 |
0210-0307 |
● |
● |
● |
● |
● |
| |
164 |
PLATE; FRT
THA
|
8-97942-361-1 |
01 |
1 |
0308-0407 |
● |
● |
● |
● |
● |
| |
164 |
PLATE; FRT
THA
|
8-97942-827-1 |
01 |
1 |
0408-0808 |
● |
● |
● |
● |
● |
| |
164 |
PLATE; FRT
THA
|
8-98123-935-0 |
01 |
1 |
0809- |
● |
● |
● |
● |
● |
| |
164 |
PLATE; FRT
THA
|
8-97942-360-1 |
01 |
1 |
0204-0207 |
● |
● |
|
● |
|
| |
164 |
PLATE; FRT
THA
|
8-97942-360-1 |
01 |
1 |
0208-0209 |
● |
● |
● |
● |
● |
| |
164 |
PLATE; FRT
THA
|
8-97942-826-1 |
01 |
1 |
0210-0307 |
● |
● |
● |
● |
● |
| |
164 |
PLATE; FRT
THA
|
8-97942-360-1 |
01 |
1 |
0308-0407 |
● |
● |
● |
● |
● |
| |
164 |
PLATE; FRT
THA
|
8-97942-826-1 |
01 |
1 |
0408-0808 |
● |
● |
● |
● |
● |
| |
164 |
PLATE; FRT
THA
|
8-98123-934-0 |
01 |
1 |
0809- |
● |
● |
● |
● |
● |
| |
196 |
BRACKET; STAB TO FRAME
STABILIZER REAR<GN1>
THA
|
8-97942-396-0 |
02 |
1 |
0204-0408 |
|
● |
|
|
|
| |
196 |
BRACKET; STAB TO FRAME
4JA1-T ENG<LP0>
STABILIZER REAR<GN1>
THA
|
8-97942-396-0 |
02 |
1 |
0409-0412 |
|
● |
|
|
|
| |
196 |
BRACKET; STAB TO FRAME
4JK1 ENG<LKZ>
STABILIZER REAR<GN1>
THA
|
8-97942-396-0 |
02 |
1 |
0501-0507 |
|
● |
|
|
|
| |
196 |
BRACKET; STAB TO FRAME
4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
STABILIZER REAR<GN1>
THA
|
8-97942-396-0 |
02 |
1 |
0508- |
|
● |
|
|
|
| |
201 |
GUSSET; C/MBR
THA
|
8-97942-406-1 |
01 |
1 |
0204-0207 |
● |
● |
|
● |
|
| |
201 |
GUSSET; C/MBR
THA
|
8-97942-406-1 |
01 |
1 |
0208- |
● |
● |
● |
● |
● |
| |
201 |
GUSSET; C/MBR
THA
|
8-97942-405-1 |
01 |
1 |
0204-0207 |
● |
● |
|
● |
|
| |
201 |
GUSSET; C/MBR
THA
|
8-97942-405-1 |
01 |
1 |
0208- |
● |
● |
● |
● |
● |
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-97944-119-0 |
01 |
1 |
0803- |
● |
|
|
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97942-367-6 |
01 |
1 |
0204-0207 |
● |
|
|
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JH1 ENG<RJX>
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97942-367-7 |
01 |
1 |
0208-0307 |
● |
|
● |
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JH1 ENG<RJX>
A/T 4 SPEED-JATCO<RMK>
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97942-367-7 |
01 |
1 |
0308-0408 |
● |
|
● |
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>
A/T 4 SPEED-JATCO<RMK>
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97943-828-0 |
01 |
1 |
0409-0507 |
● |
|
● |
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
A/T 4 SPEED-JATCO<RMK>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-97943-828-0 |
01 |
1 |
0508-0606 |
● |
|
● |
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>
A/T 4 SPEED-JATCO<RMK>
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97943-828-0 |
01 |
1 |
0607-0708 |
● |
|
● |
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
A/T 4 SPEED-JATCO<RMK>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-97943-828-0 |
01 |
1 |
0709- |
● |
|
● |
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JH1 ENG<RJX>,4JA1 ENG<RLE>
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN>
THA
|
8-97942-368-5 |
01 |
1 |
0204-0207 |
● |
● |
|
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JH1 ENG<RJX>,4JA1 ENG<RLE>
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN>
THA
|
8-97942-368-5 |
01 |
1 |
0208-0307 |
● |
● |
● |
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JH1 ENG<RJX>,4JA1 ENG<RLE>
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN>
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97942-368-5 |
01 |
1 |
0308-0408 |
● |
|
● |
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JH1 ENG<RJX>,4JA1 ENG<RLE>
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN>
THA
|
8-97942-368-5 |
01 |
1 |
0308-0408 |
|
● |
|
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0>
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP>
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97943-829-0 |
01 |
1 |
0409-0412 |
● |
|
● |
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JA1-T ENG<LP0>
THA
|
8-97943-829-0 |
01 |
1 |
0409-0412 |
|
● |
|
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP>
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97943-829-0 |
01 |
1 |
0501-0507 |
● |
|
● |
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JK1 ENG<LKZ>
THA
|
8-97943-829-0 |
01 |
1 |
0501-0507 |
|
● |
|
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-97943-829-0 |
01 |
1 |
0508-0606 |
● |
|
● |
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-97943-829-0 |
01 |
1 |
0508-0606 |
|
● |
|
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97943-829-0 |
01 |
1 |
0607-0708 |
● |
|
● |
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-97943-829-0 |
01 |
1 |
0607-0708 |
|
● |
|
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-97943-829-0 |
01 |
1 |
0709- |
● |
|
● |
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-97943-829-0 |
01 |
1 |
0709- |
|
● |
|
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JH1 ENG<RJX>
M/T MUA 5 SPEED<RMN>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97942-653-3 |
01 |
1 |
0308-0408 |
● |
|
● |
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5G<RSP>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97943-832-0 |
01 |
1 |
0409-0412 |
● |
|
● |
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97943-832-0 |
01 |
1 |
0501-0507 |
● |
|
● |
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97943-832-0 |
01 |
1 |
0508-0606 |
● |
|
● |
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97943-832-0 |
01 |
1 |
0607- |
● |
|
● |
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
A/T 4 SPEED-JATCO<RMK>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97942-713-2 |
01 |
1 |
0308-0408 |
|
|
● |
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
A/T 4 SPEED-JATCO<RMK>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97943-833-0 |
01 |
1 |
0409-0507 |
|
|
● |
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
A/T 4 SPEED-JATCO<RMK>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97943-833-2 |
01 |
1 |
0508- |
|
|
● |
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCX ENG<LS0>
A/T AISIN<RMD>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97944-123-2 |
01 |
1 |
0710- |
|
|
● |
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97944-122-2 |
01 |
1 |
0710-0802 |
|
|
● |
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97944-122-2 |
01 |
1 |
0803- |
● |
|
● |
|
|
| |
204 |
MEMBER; CROSS,TRANS MTG
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97942-369-5 |
01 |
1 |
0204-0207 |
|
|
|
● |
|
| |
204 |
MEMBER; CROSS,TRANS MTG
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97942-369-5 |
01 |
1 |
0208-0408 |
|
|
|
● |
● |
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97943-830-0 |
01 |
1 |
0409-0608 |
|
|
|
● |
● |
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97943-830-0 |
01 |
1 |
0609-0708 |
|
|
|
● |
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0>
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK>
COUNTRY SUSPENSION<V5W>
THA
|
8-97943-830-0 |
01 |
1 |
0609-0708 |
|
|
|
|
● |
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97943-830-0 |
01 |
1 |
0709-0709 |
|
|
|
● |
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>
A/T 4 SPEED-JATCO<RMK>
COUNTRY SUSPENSION<V5W>
THA
|
8-97943-830-0 |
01 |
1 |
0709-0709 |
|
|
|
|
● |
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97943-830-0 |
01 |
1 |
0710-0802 |
|
|
|
● |
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0>
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK>
THA
|
8-97943-830-0 |
01 |
1 |
0710-0802 |
|
|
|
|
● |
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0>
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97943-830-0 |
01 |
1 |
0803- |
|
|
|
● |
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0>
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK>
THA
|
8-97943-830-0 |
01 |
1 |
0803- |
|
|
|
|
● |
| |
204 |
MEMBER; CROSS,TRANS MTG
M/T MUA 5 SPEED<RMN>
THA
|
8-97942-370-4 |
01 |
1 |
0204-0207 |
|
|
|
● |
|
| |
204 |
MEMBER; CROSS,TRANS MTG
M/T MUA 5 SPEED<RMN>
TRANSFER CONTROL SW TYPE HIGH-LOW<8CE>
THA
|
8-97942-370-4 |
01 |
1 |
0208-0408 |
|
|
|
● |
|
| |
204 |
MEMBER; CROSS,TRANS MTG
M/T MUA 5 SPEED<RMN>
THA
|
8-97942-370-4 |
01 |
1 |
0208-0408 |
|
|
|
|
● |
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5G<RSP>
THA
|
8-97943-831-1 |
01 |
1 |
0409-0606 |
|
|
|
● |
● |
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-97943-831-1 |
01 |
1 |
0607-0608 |
|
|
|
● |
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-97943-831-1 |
01 |
1 |
0607-0608 |
|
|
|
|
● |
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-97943-831-1 |
01 |
1 |
0609-0708 |
|
|
|
● |
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
COUNTRY SUSPENSION<V5W>
THA
|
8-97943-831-1 |
01 |
1 |
0609-0708 |
|
|
|
|
● |
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-97943-831-1 |
01 |
1 |
0709-0709 |
|
|
|
● |
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
COUNTRY SUSPENSION<V5W>
THA
|
8-97943-831-1 |
01 |
1 |
0709-0709 |
|
|
|
|
● |
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-97943-831-1 |
01 |
1 |
0710-0802 |
|
|
|
● |
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
THA
|
8-97943-831-1 |
01 |
1 |
0710-0802 |
|
|
|
|
● |
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
THA
|
8-97943-831-1 |
01 |
1 |
0803- |
|
|
|
● |
|
| |
204 |
MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
THA
|
8-97943-831-1 |
01 |
1 |
0803- |
|
|
|
|
● |
| |
256 |
BRACKET; S/ABS
THA
|
8-97942-351-1 |
01 |
1 |
0204-0207 |
● |
● |
|
|
|
| |
256 |
BRACKET; S/ABS
THA
|
8-97942-351-3 |
01 |
1 |
0208-0307 |
● |
● |
● |
|
|
| |
256 |
BRACKET; S/ABS
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97942-351-3 |
01 |
1 |
0308-0708 |
● |
|
● |
|
|
| |
256 |
BRACKET; S/ABS
THA
|
8-97942-351-3 |
01 |
1 |
0308-0708 |
|
● |
|
|
|
| |
256 |
BRACKET; S/ABS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-97942-351-3 |
01 |
1 |
0709-0802 |
● |
|
● |
|
|
| |
256 |
BRACKET; S/ABS
4JK1 ENG<LKZ>
THA
|
8-97942-351-3 |
01 |
1 |
0709-0802 |
|
● |
|
|
|
| |
256 |
BRACKET; S/ABS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-97942-351-3 |
01 |
1 |
0803- |
● |
|
● |
|
|
| |
256 |
BRACKET; S/ABS
4JK1 ENG<LKZ>
THA
|
8-97942-351-3 |
01 |
1 |
0803- |
|
● |
|
|
|
| |
256 |
BRACKET; S/ABS
THA
|
8-97942-350-1 |
01 |
1 |
0204-0207 |
● |
● |
|
|
|
| |
256 |
BRACKET; S/ABS
THA
|
8-97942-350-2 |
01 |
1 |
0208-0307 |
● |
● |
● |
|
|
| |
256 |
BRACKET; S/ABS
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97942-350-2 |
01 |
1 |
0308-0708 |
● |
|
● |
|
|
| |
256 |
BRACKET; S/ABS
THA
|
8-97942-350-2 |
01 |
1 |
0308-0708 |
|
● |
|
|
|
| |
256 |
BRACKET; S/ABS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-97942-350-2 |
01 |
1 |
0709-0802 |
● |
|
● |
|
|
| |
256 |
BRACKET; S/ABS
4JK1 ENG<LKZ>
THA
|
8-97942-350-2 |
01 |
1 |
0709-0802 |
|
● |
|
|
|
| |
256 |
BRACKET; S/ABS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-97942-350-2 |
01 |
1 |
0803- |
● |
|
● |
|
|
| |
256 |
BRACKET; S/ABS
4JK1 ENG<LKZ>
THA
|
8-97942-350-2 |
01 |
1 |
0803- |
|
● |
|
|
|
| |
256 |
BRACKET; S/ABS
THA
|
8-97942-349-1 |
01 |
1 |
0204-0207 |
|
|
|
● |
|
| |
256 |
BRACKET; S/ABS
THA
|
8-97942-349-1 |
01 |
1 |
0208-0307 |
|
|
|
● |
● |
| |
256 |
BRACKET; S/ABS
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97942-349-1 |
01 |
1 |
0308-0504 |
● |
|
● |
|
|
| |
256 |
BRACKET; S/ABS
THA
|
8-97942-349-1 |
01 |
1 |
0308-0504 |
|
|
|
● |
● |
| |
256 |
BRACKET; S/ABS
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97944-314-0 |
01 |
1 |
0505-0507 |
● |
|
● |
|
|
| |
256 |
BRACKET; S/ABS
THA
|
8-97944-314-0 |
01 |
1 |
0505-0507 |
|
|
|
● |
● |
| |
256 |
BRACKET; S/ABS
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97944-232-0 |
01 |
1 |
0508-0802 |
● |
|
● |
|
|
| |
256 |
BRACKET; S/ABS
THA
|
8-97944-232-0 |
01 |
1 |
0508-0802 |
|
|
|
● |
● |
| |
256 |
BRACKET; S/ABS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97944-232-0 |
01 |
1 |
0803- |
● |
|
● |
|
|
| |
256 |
BRACKET; S/ABS
THA
|
8-97944-232-0 |
01 |
1 |
0803- |
|
|
|
● |
● |
| |
256 |
BRACKET; S/ABS
THA
|
8-97942-348-1 |
01 |
1 |
0204-0207 |
|
|
|
● |
|
| |
256 |
BRACKET; S/ABS
THA
|
8-97942-348-1 |
01 |
1 |
0208-0307 |
|
|
|
● |
● |
| |
256 |
BRACKET; S/ABS
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97942-348-1 |
01 |
1 |
0308-0504 |
● |
|
● |
|
|
| |
256 |
BRACKET; S/ABS
THA
|
8-97942-348-1 |
01 |
1 |
0308-0504 |
|
|
|
● |
● |
| |
256 |
BRACKET; S/ABS
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97944-313-0 |
01 |
1 |
0505-0507 |
● |
|
● |
|
|
| |
256 |
BRACKET; S/ABS
THA
|
8-97944-313-0 |
01 |
1 |
0505-0507 |
|
|
|
● |
● |
| |
256 |
BRACKET; S/ABS
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97944-231-0 |
01 |
1 |
0508-0802 |
● |
|
● |
|
|
| |
256 |
BRACKET; S/ABS
THA
|
8-97944-231-0 |
01 |
1 |
0508-0802 |
|
|
|
● |
● |
| |
256 |
BRACKET; S/ABS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97944-231-0 |
01 |
1 |
0803- |
● |
|
● |
|
|
| |
256 |
BRACKET; S/ABS
THA
|
8-97944-231-0 |
01 |
1 |
0803- |
|
|
|
● |
● |
| |
302 |
REINFORCEMENT; S/MBR
(A) OUTER
THA
|
8-97944-467-1 |
01 |
1 |
0501-0507 |
|
● |
|
|
|
| |
302 |
REINFORCEMENT; S/MBR
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
(A) OUTER
THA
|
8-97944-467-1 |
01 |
1 |
0508-0606 |
● |
|
|
|
|
| |
302 |
REINFORCEMENT; S/MBR
(A) OUTER
THA
|
8-97944-467-1 |
01 |
1 |
0508-0606 |
|
● |
|
|
|
| |
302 |
REINFORCEMENT; S/MBR
EXC. HIGH RIDE SUSPENSION<7YC>
(A) OUTER
THA
|
8-97944-467-1 |
01 |
1 |
0607- |
● |
|
|
|
|
| |
302 |
REINFORCEMENT; S/MBR
(A) OUTER
THA
|
8-97944-467-1 |
01 |
1 |
0607- |
|
● |
|
|
|
| |
302 |
REINFORCEMENT; S/MBR
(B) INNER
THA
|
8-97944-468-0 |
01 |
1 |
0501-0507 |
|
● |
|
|
|
| |
302 |
REINFORCEMENT; S/MBR
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
(B) INNER
THA
|
8-97944-468-0 |
01 |
1 |
0508-0606 |
● |
|
|
|
|
| |
302 |
REINFORCEMENT; S/MBR
(B) INNER
THA
|
8-97944-468-0 |
01 |
1 |
0508-0606 |
|
● |
|
|
|
| |
302 |
REINFORCEMENT; S/MBR
EXC. HIGH RIDE SUSPENSION<7YC>
(B) INNER
THA
|
8-97944-468-0 |
01 |
1 |
0607- |
● |
|
|
|
|
| |
302 |
REINFORCEMENT; S/MBR
(B) INNER
THA
|
8-97944-468-0 |
01 |
1 |
0607- |
|
● |
|
|
|
| |
302 |
REINFORCEMENT; S/MBR
(A) OUTER
THA
|
8-97944-465-1 |
01 |
1 |
0501-0507 |
|
● |
|
|
|
| |
302 |
REINFORCEMENT; S/MBR
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
(A) OUTER
THA
|
8-97944-465-1 |
01 |
1 |
0508-0606 |
● |
|
|
|
|
| |
302 |
REINFORCEMENT; S/MBR
(A) OUTER
THA
|
8-97944-465-1 |
01 |
1 |
0508-0606 |
|
● |
|
|
|
| |
302 |
REINFORCEMENT; S/MBR
EXC. HIGH RIDE SUSPENSION<7YC>
(A) OUTER
THA
|
8-97944-465-1 |
01 |
1 |
0607- |
● |
|
|
|
|
| |
302 |
REINFORCEMENT; S/MBR
(A) OUTER
THA
|
8-97944-465-1 |
01 |
1 |
0607- |
|
● |
|
|
|
| |
302 |
REINFORCEMENT; S/MBR
(B) INNER
THA
|
8-97944-466-0 |
01 |
1 |
0501-0507 |
|
● |
|
|
|
| |
302 |
REINFORCEMENT; S/MBR
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
(B) INNER
THA
|
8-97944-466-0 |
01 |
1 |
0508-0606 |
● |
|
|
|
|
| |
302 |
REINFORCEMENT; S/MBR
(B) INNER
THA
|
8-97944-466-0 |
01 |
1 |
0508-0606 |
|
● |
|
|
|
| |
302 |
REINFORCEMENT; S/MBR
EXC. HIGH RIDE SUSPENSION<7YC>
(B) INNER
THA
|
8-97944-466-0 |
01 |
1 |
0607- |
● |
|
|
|
|
| |
302 |
REINFORCEMENT; S/MBR
(B) INNER
THA
|
8-97944-466-0 |
01 |
1 |
0607- |
|
● |
|
|
|
| |
338 |
BOLT; C/MBR,SUSPENSION
M10X80 FLANGE
THA
|
0-28061-080-0 |
04 |
1 |
0204-0207 |
|
|
|
● |
|
| |
338 |
BOLT; C/MBR,SUSPENSION
M10X80 FLANGE
THA
|
0-28061-080-0 |
04 |
1 |
0208-0304 |
|
|
|
● |
● |
| |
338 |
BOLT; C/MBR,SUSPENSION
M10X80 FLANGE
THA
|
0-28061-080-0 |
04 |
1 |
0305-0307 |
● |
● |
|
● |
● |
| |
338 |
BOLT; C/MBR,SUSPENSION
HIGH RIDE SUSPENSION<7YC>
M10X80 FLANGE
THA
|
0-28061-080-0 |
04 |
1 |
0308-0310 |
● |
|
● |
|
|
| |
338 |
BOLT; C/MBR,SUSPENSION
M10X80 FLANGE
THA
|
0-28061-080-0 |
04 |
1 |
0308-0310 |
|
|
|
● |
● |
| |
338 |
BOLT; C/MBR,SUSPENSION
HIGH RIDE SUSPENSION<7YC>
M10X80 FLANGE
THA
|
8-97943-909-0 |
04 |
1 |
0311-0802 |
● |
|
● |
|
|
| |
338 |
BOLT; C/MBR,SUSPENSION
M10X80 FLANGE
THA
|
8-97943-909-0 |
04 |
1 |
0311-0802 |
|
|
|
● |
● |
| |
338 |
BOLT; C/MBR,SUSPENSION
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
M10X80 FLANGE
THA
|
8-97943-909-0 |
04 |
1 |
0803- |
● |
|
● |
|
|
| |
338 |
BOLT; C/MBR,SUSPENSION
M10X80 FLANGE
THA
|
8-97943-909-0 |
04 |
1 |
0803- |
|
|
|
● |
● |
| |
340 |
BRACKET; FUEL TANK
(A)
THA
|
8-97942-278-3 |
01 |
1 |
0204-0207 |
● |
● |
|
● |
|
| |
340 |
BRACKET; FUEL TANK
(A)
THA
|
8-97942-278-3 |
01 |
1 |
0208- |
● |
● |
● |
● |
● |
| |
340 |
BRACKET; FUEL TANK
(B)
THA
|
8-97942-397-3 |
01 |
1 |
0204-0207 |
● |
● |
|
● |
|
| |
340 |
BRACKET; FUEL TANK
(B)
THA
|
8-97942-397-3 |
01 |
1 |
0208- |
● |
● |
● |
● |
● |
| |
352 |
BRACKET; BUMPER RUBBER
THA
|
8-97942-362-2 |
02 |
1 |
0204-0207 |
● |
● |
|
|
|
| |
352 |
BRACKET; BUMPER RUBBER
THA
|
8-97942-362-2 |
02 |
1 |
0208-0307 |
● |
● |
● |
|
|
| |
352 |
BRACKET; BUMPER RUBBER
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97942-362-2 |
02 |
1 |
0308-0708 |
● |
|
● |
|
|
| |
352 |
BRACKET; BUMPER RUBBER
THA
|
8-97942-362-2 |
02 |
1 |
0308-0708 |
|
● |
|
|
|
| |
352 |
BRACKET; BUMPER RUBBER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-97942-362-2 |
02 |
1 |
0709-0802 |
● |
|
● |
|
|
| |
352 |
BRACKET; BUMPER RUBBER
4JK1 ENG<LKZ>
THA
|
8-97942-362-2 |
02 |
1 |
0709-0802 |
|
● |
|
|
|
| |
352 |
BRACKET; BUMPER RUBBER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-97942-362-2 |
02 |
1 |
0803- |
● |
|
● |
|
|
| |
352 |
BRACKET; BUMPER RUBBER
4JK1 ENG<LKZ>
THA
|
8-97942-362-2 |
02 |
1 |
0803- |
|
● |
|
|
|
| |
352 |
BRACKET; BUMPER RUBBER
THA
|
8-97942-398-3 |
02 |
1 |
0204-0207 |
|
|
|
● |
|
| |
352 |
BRACKET; BUMPER RUBBER
THA
|
8-97942-398-3 |
02 |
1 |
0208-0307 |
|
|
|
● |
● |
| |
352 |
BRACKET; BUMPER RUBBER
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97942-398-3 |
02 |
1 |
0308-0802 |
● |
|
● |
|
|
| |
352 |
BRACKET; BUMPER RUBBER
THA
|
8-97942-398-3 |
02 |
1 |
0308-0802 |
|
|
|
● |
● |
| |
352 |
BRACKET; BUMPER RUBBER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97942-398-3 |
02 |
1 |
0803- |
● |
|
● |
|
|
| |
352 |
BRACKET; BUMPER RUBBER
THA
|
8-97942-398-3 |
02 |
1 |
0803- |
|
|
|
● |
● |
| |
440 |
BRACKET; HOSE
THA
|
8-97942-401-3 |
01 |
1 |
0204-0207 |
● |
● |
|
|
|
| |
440 |
BRACKET; HOSE
THA
|
8-97942-401-3 |
01 |
1 |
0208-0307 |
● |
● |
● |
|
|
| |
440 |
BRACKET; HOSE
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97942-401-3 |
01 |
1 |
0308-0311 |
● |
|
● |
|
|
| |
440 |
BRACKET; HOSE
THA
|
8-97942-401-3 |
01 |
1 |
0308-0311 |
|
● |
|
|
|
| |
440 |
BRACKET; HOSE
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97943-404-0 |
01 |
1 |
0312-0708 |
● |
|
● |
|
|
| |
440 |
BRACKET; HOSE
THA
|
8-97943-404-0 |
01 |
1 |
0312-0708 |
|
● |
|
|
|
| |
440 |
BRACKET; HOSE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-97943-404-0 |
01 |
1 |
0709-0802 |
● |
|
● |
|
|
| |
440 |
BRACKET; HOSE
4JK1 ENG<LKZ>
THA
|
8-97943-404-0 |
01 |
1 |
0709-0802 |
|
● |
|
|
|
| |
440 |
BRACKET; HOSE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
THA
|
8-97943-404-0 |
01 |
1 |
0803- |
● |
|
● |
|
|
| |
440 |
BRACKET; HOSE
4JK1 ENG<LKZ>
THA
|
8-97943-404-0 |
01 |
1 |
0803- |
|
● |
|
|
|
| |
440 |
BRACKET; HOSE
THA
|
8-97942-400-3 |
01 |
1 |
0204-0207 |
|
|
|
● |
|
| |
440 |
BRACKET; HOSE
THA
|
8-97942-400-3 |
01 |
1 |
0208-0307 |
|
|
|
● |
● |
| |
440 |
BRACKET; HOSE
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97942-400-3 |
01 |
1 |
0308-0311 |
● |
|
● |
|
|
| |
440 |
BRACKET; HOSE
THA
|
8-97942-400-3 |
01 |
1 |
0308-0311 |
|
|
|
● |
● |
| |
440 |
BRACKET; HOSE
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97943-403-0 |
01 |
1 |
0312-0802 |
● |
|
● |
|
|
| |
440 |
BRACKET; HOSE
THA
|
8-97943-403-0 |
01 |
1 |
0312-0802 |
|
|
|
● |
● |
| |
440 |
BRACKET; HOSE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97943-403-0 |
01 |
1 |
0803- |
● |
|
● |
|
|
| |
440 |
BRACKET; HOSE
THA
|
8-97943-403-0 |
01 |
1 |
0803- |
|
|
|
● |
● |
| |
513 |
MEMBER; CROSS,SPEAR TIRE
THA
|
8-97942-404-5 |
01 |
1 |
0204-0207 |
● |
● |
|
● |
|
| |
513 |
MEMBER; CROSS,SPEAR TIRE
THA
|
8-97942-404-9 |
01 |
1 |
0208- |
● |
● |
● |
● |
● |
| |
514 |
PIN; S/ABS
THA
|
8-97942-395-1 |
02 |
1 |
0204-0207 |
● |
● |
|
● |
|
| |
514 |
PIN; S/ABS
THA
|
8-97942-395-1 |
02 |
1 |
0208- |
● |
● |
● |
● |
● |
| |
515 |
HOOK
(A)
THA
|
8-97942-363-1 |
01 |
1 |
0204-0207 |
● |
● |
|
● |
|
| |
515 |
HOOK
(A)
THA
|
8-97942-363-1 |
01 |
1 |
0208-0507 |
● |
● |
● |
● |
● |
| |
515 |
HOOK
HIGH RIDE SUSPENSION<7YC>
(A)
THA
|
8-97942-363-1 |
01 |
1 |
0508-0802 |
● |
|
● |
|
|
| |
515 |
HOOK
(A)
THA
|
8-97942-363-1 |
01 |
1 |
0508-0802 |
|
|
|
● |
● |
| |
515 |
HOOK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
(A)
THA
|
8-97942-363-1 |
01 |
1 |
0803- |
● |
|
● |
|
|
| |
515 |
HOOK
(A)
THA
|
8-97942-363-1 |
01 |
1 |
0803- |
|
|
|
● |
● |
| |
515 |
HOOK
EXC. HIGH RIDE SUSPENSION<7YC>
(B)
THA
|
8-97945-024-0 |
01 |
1 |
0508-0606 |
● |
|
● |
|
|
| |
515 |
HOOK
(B)
THA
|
8-97945-024-0 |
01 |
1 |
0508-0606 |
|
● |
|
|
|
| |
515 |
HOOK
EXC. HIGH RIDE SUSPENSION<7YC>
(B)
THA
|
8-97945-308-0 |
01 |
1 |
0607-0708 |
● |
|
● |
|
|
| |
515 |
HOOK
(B)
THA
|
8-97945-308-0 |
01 |
1 |
0607-0708 |
|
● |
|
|
|
| |
515 |
HOOK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
(B)
THA
|
8-97945-308-0 |
01 |
1 |
0709-0802 |
● |
|
● |
|
|
| |
515 |
HOOK
4JK1 ENG<LKZ>
(B)
THA
|
8-97945-308-0 |
01 |
1 |
0709-0802 |
|
● |
|
|
|
| |
515 |
HOOK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
EXC. COUNTRY SUSPENSION<V5W>,HIGH RIDE
SUSPENSION<7YC>
(B)
THA
|
8-97945-308-0 |
01 |
1 |
0803- |
● |
|
● |
|
|
| |
515 |
HOOK
4JK1 ENG<LKZ>
(B)
THA
|
8-97945-308-0 |
01 |
1 |
0803- |
|
● |
|
|
|
