Sayfa 4-65C - Isuzu EPC

4-65C — REAR LEAF SPRING (#72893) — 242 parça

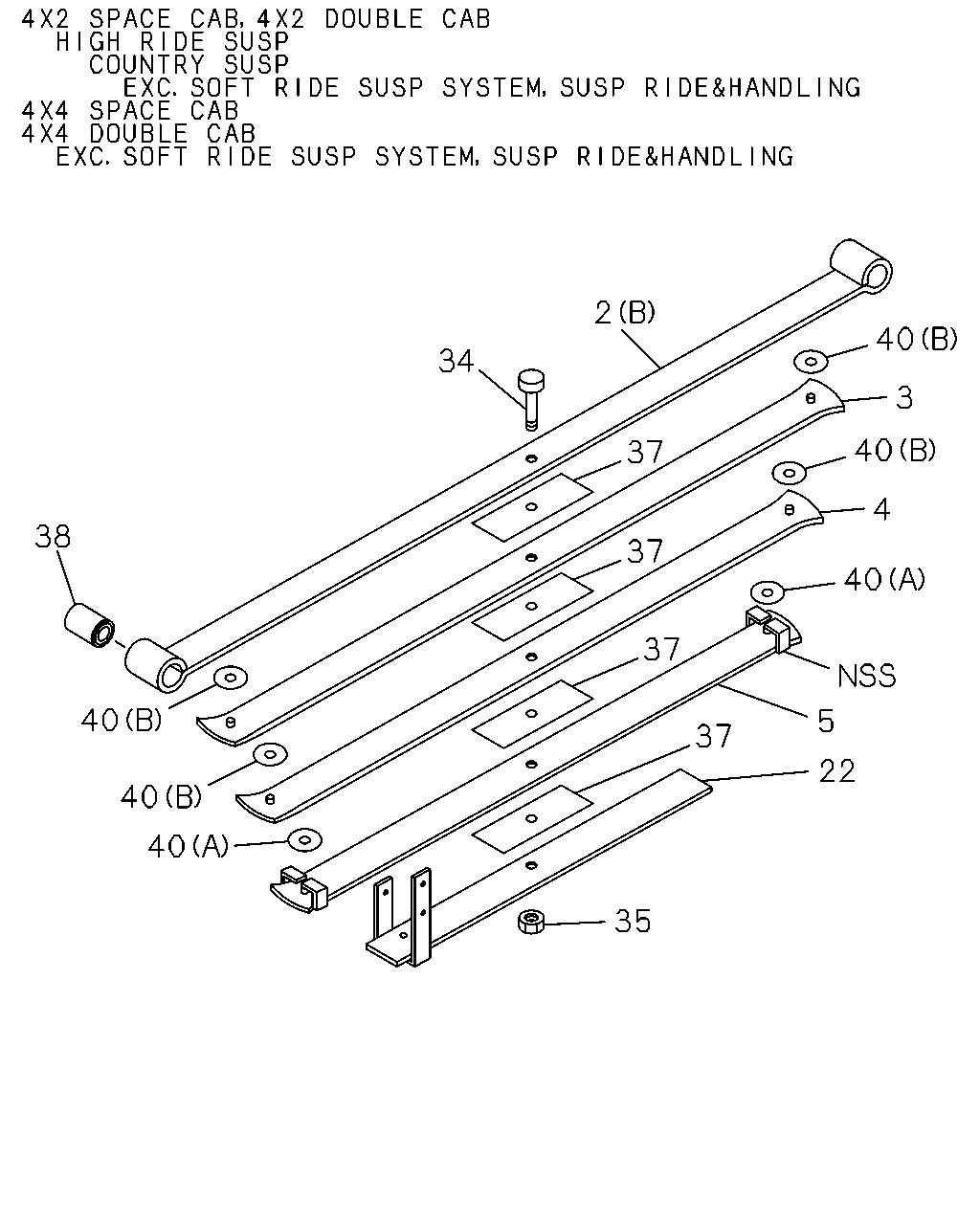

2 40 34 3 40 37 4 38 37 40 37 40 5 22 40 40 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN (A), THA ASM PART: B = 8-97946-809-0	8-97246-604-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B), THA ASM PART: E = 8-97946-823-0	8-97384-165-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (E), THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97384-170-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (C), THA ASM PART: H = 8-97946-826-0	8-97384-175-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (D), THA ASM PART: D = 8-97946-814-0	8-97385-864-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A), THA ASM PART: C = 8-97946-812-0	8-97389-235-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: B = 8-97946-809-0	8-97246-608-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: E = 8-97946-823-0	8-97384-166-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: F = 8-97946-824-0	8-97384-171-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: H = 8-97946-826-0	8-97384-176-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: D = 8-97946-814-0	8-97385-865-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: C = 8-97946-812-0	8-97389-236-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: A = 8-97945-334-1, G = 8-97946-825-0	8-97945-328-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: B = 8-97946-809-0	8-97246-614-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: E = 8-97946-823-0	8-97384-167-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97384-172-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: H = 8-97946-826-0	8-97384-177-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: D = 8-97946-814-0	8-97385-866-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: C = 8-97946-812-0	8-97389-237-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: E = 8-97946-823-0	8-97384-168-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97384-173-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: D = 8-97946-814-0	8-97385-867-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: B = 8-97946-809-0	8-97368-641-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: E = 8-97946-823-0	8-97384-169-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97384-174-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: H = 8-97946-826-0	8-97384-178-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: D = 8-97946-814-0	8-97385-868-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: C = 8-97946-812-0	8-97389-238-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X56, THA ASM PART: B = 8-97946-809-0, H = 8-97946-826-0	8-94468-050-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: A = 8-97945-334-1, D = 8-97946-814-0, F = 8-97946-824-0, G = 8-97946-825-0	8-97049-849-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: C = 8-97946-812-0, E = 8-97946-823-0	8-97304-262-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: A = 8-97945-334-1, B = 8-97946-809-0, C = 8-97946-812-0, D = 8-97946-814-0, E = 8-97946-823-0, F = 8-97946-824-0, G = 8-97946-825-0, H = 8-97946-826-0	8-97945-821-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR THA ASM PART: B = 8-97946-809-0, C = 8-97946-812-0, E = 8-97946-823-0	8-94468-305-0	04	1	-
37	SPACER; CENTER,LEAF SPR,RR THA ASM PART: A = 8-97945-334-1, D = 8-97946-814-0, F = 8-97946-824-0, G = 8-97946-825-0, H = 8-97946-826-0	8-94468-305-0	03	1	-
38	BUSHING; LEAF SPR,RR THA ASM PART: A = 8-97945-334-1, B = 8-97946-809-0, C = 8-97946-812-0, D = 8-97946-814-0, E = 8-97946-823-0, F = 8-97946-824-0, G = 8-97946-825-0, H = 8-97946-826-0	8-97332-642-0	01	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97360-245-0	03	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: B = 8-97946-809-0, C = 8-97946-812-0	8-97360-245-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: D = 8-97946-814-0, E = 8-97946-823-0, H = 8-97946-826-0	8-97360-245-0	04	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: B = 8-97946-809-0, C = 8-97946-812-0, D = 8-97946-814-0, E = 8-97946-823-0	8-97360-246-0	02	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97360-246-0	03	1	-

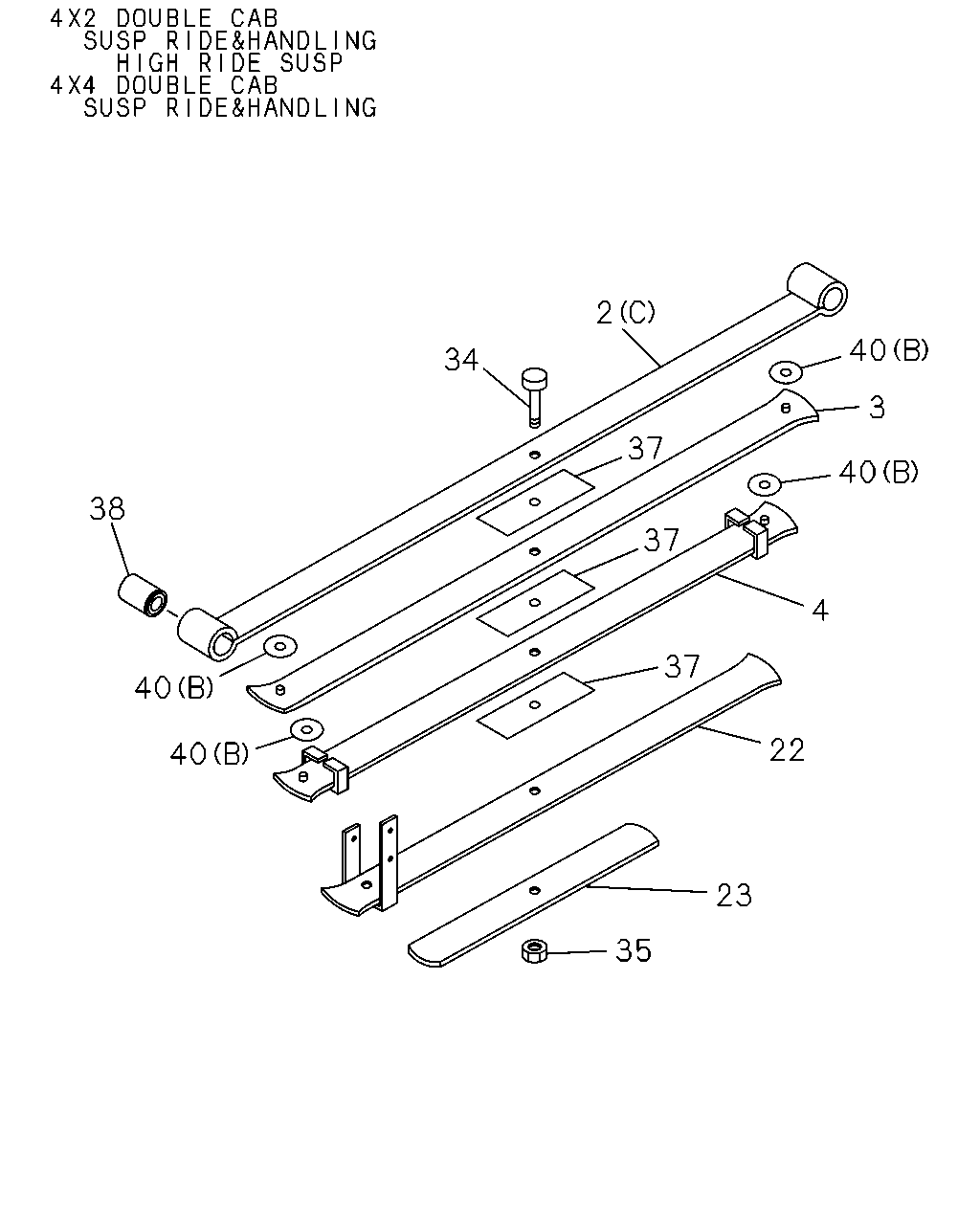

2 40 34 3 37 40 38 37 4 37 40 22 40 23 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN (A), THA ASM PART: B = 8-97946-809-0	8-97246-604-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B), THA ASM PART: E = 8-97946-823-0	8-97384-165-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (E), THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97384-170-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (C), THA ASM PART: H = 8-97946-826-0	8-97384-175-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (D), THA ASM PART: D = 8-97946-814-0	8-97385-864-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A), THA ASM PART: C = 8-97946-812-0	8-97389-235-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: B = 8-97946-809-0	8-97246-608-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: E = 8-97946-823-0	8-97384-166-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: F = 8-97946-824-0	8-97384-171-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: H = 8-97946-826-0	8-97384-176-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: D = 8-97946-814-0	8-97385-865-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: C = 8-97946-812-0	8-97389-236-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: A = 8-97945-334-1, G = 8-97946-825-0	8-97945-328-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: B = 8-97946-809-0	8-97246-614-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: E = 8-97946-823-0	8-97384-167-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97384-172-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: H = 8-97946-826-0	8-97384-177-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: D = 8-97946-814-0	8-97385-866-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: C = 8-97946-812-0	8-97389-237-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: B = 8-97946-809-0	8-97368-641-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: E = 8-97946-823-0	8-97384-169-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97384-174-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: H = 8-97946-826-0	8-97384-178-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: D = 8-97946-814-0	8-97385-868-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: C = 8-97946-812-0	8-97389-238-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: B = 8-97946-809-0	8-97368-642-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: H = 8-97946-826-0	8-97384-179-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: C = 8-97946-812-0	8-97389-239-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X56, THA ASM PART: B = 8-97946-809-0, H = 8-97946-826-0	8-94468-050-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: A = 8-97945-334-1, D = 8-97946-814-0, F = 8-97946-824-0, G = 8-97946-825-0	8-97049-849-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: C = 8-97946-812-0, E = 8-97946-823-0	8-97304-262-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: A = 8-97945-334-1, B = 8-97946-809-0, C = 8-97946-812-0, D = 8-97946-814-0, E = 8-97946-823-0, F = 8-97946-824-0, G = 8-97946-825-0, H = 8-97946-826-0	8-97945-821-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR THA ASM PART: B = 8-97946-809-0, C = 8-97946-812-0, E = 8-97946-823-0	8-94468-305-0	04	1	-
37	SPACER; CENTER,LEAF SPR,RR THA ASM PART: A = 8-97945-334-1, D = 8-97946-814-0, F = 8-97946-824-0, G = 8-97946-825-0, H = 8-97946-826-0	8-94468-305-0	03	1	-
38	BUSHING; LEAF SPR,RR THA ASM PART: A = 8-97945-334-1, B = 8-97946-809-0, C = 8-97946-812-0, D = 8-97946-814-0, E = 8-97946-823-0, F = 8-97946-824-0, G = 8-97946-825-0, H = 8-97946-826-0	8-97332-642-0	01	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97360-245-0	03	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: B = 8-97946-809-0, C = 8-97946-812-0	8-97360-245-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: D = 8-97946-814-0, E = 8-97946-823-0, H = 8-97946-826-0	8-97360-245-0	04	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: B = 8-97946-809-0, C = 8-97946-812-0, D = 8-97946-814-0, E = 8-97946-823-0	8-97360-246-0	02	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97360-246-0	03	1	-

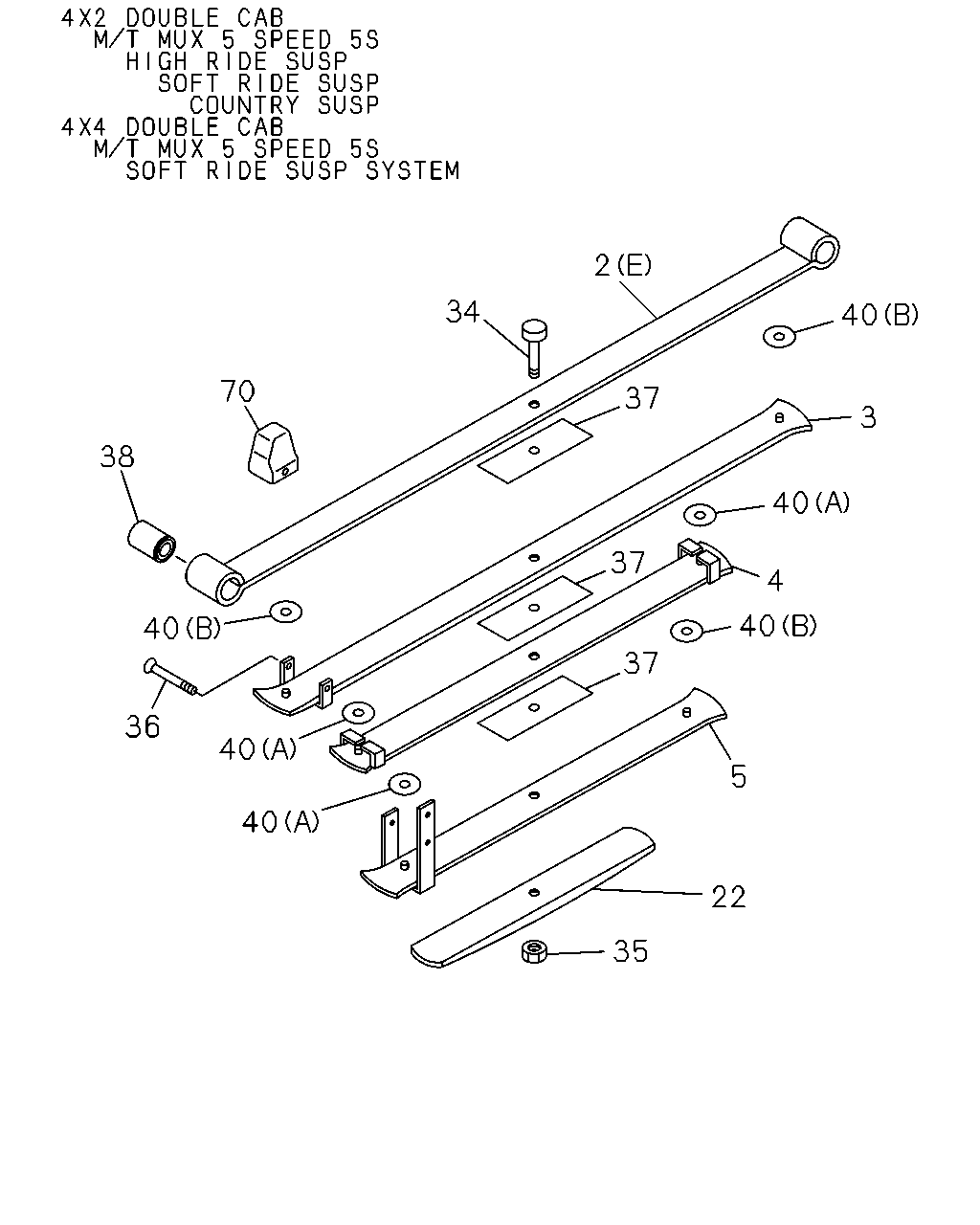

2 34 40 70 37 3 38 40 37 4 40 40 37 36 40 5 40 22 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN (A), THA ASM PART: B = 8-97946-809-0	8-97246-604-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B), THA ASM PART: E = 8-97946-823-0	8-97384-165-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (E), THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97384-170-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (C), THA ASM PART: H = 8-97946-826-0	8-97384-175-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (D), THA ASM PART: D = 8-97946-814-0	8-97385-864-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A), THA ASM PART: C = 8-97946-812-0	8-97389-235-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: B = 8-97946-809-0	8-97246-608-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: E = 8-97946-823-0	8-97384-166-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: F = 8-97946-824-0	8-97384-171-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: H = 8-97946-826-0	8-97384-176-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: D = 8-97946-814-0	8-97385-865-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: C = 8-97946-812-0	8-97389-236-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: A = 8-97945-334-1, G = 8-97946-825-0	8-97945-328-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: B = 8-97946-809-0	8-97246-614-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: E = 8-97946-823-0	8-97384-167-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97384-172-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: H = 8-97946-826-0	8-97384-177-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: D = 8-97946-814-0	8-97385-866-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: C = 8-97946-812-0	8-97389-237-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: E = 8-97946-823-0	8-97384-168-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97384-173-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: D = 8-97946-814-0	8-97385-867-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: B = 8-97946-809-0	8-97368-641-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: E = 8-97946-823-0	8-97384-169-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97384-174-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: H = 8-97946-826-0	8-97384-178-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: D = 8-97946-814-0	8-97385-868-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: C = 8-97946-812-0	8-97389-238-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X56, THA ASM PART: B = 8-97946-809-0, H = 8-97946-826-0	8-94468-050-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: A = 8-97945-334-1, D = 8-97946-814-0, F = 8-97946-824-0, G = 8-97946-825-0	8-97049-849-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: C = 8-97946-812-0, E = 8-97946-823-0	8-97304-262-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: A = 8-97945-334-1, B = 8-97946-809-0, C = 8-97946-812-0, D = 8-97946-814-0, E = 8-97946-823-0, F = 8-97946-824-0, G = 8-97946-825-0, H = 8-97946-826-0	8-97945-821-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR THA ASM PART: A = 8-97945-334-1, G = 8-97946-825-0	8-94468-262-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR THA ASM PART: B = 8-97946-809-0, C = 8-97946-812-0, E = 8-97946-823-0	8-94468-305-0	04	1	-
37	SPACER; CENTER,LEAF SPR,RR THA ASM PART: A = 8-97945-334-1, D = 8-97946-814-0, F = 8-97946-824-0, G = 8-97946-825-0, H = 8-97946-826-0	8-94468-305-0	03	1	-
38	BUSHING; LEAF SPR,RR THA ASM PART: A = 8-97945-334-1, B = 8-97946-809-0, C = 8-97946-812-0, D = 8-97946-814-0, E = 8-97946-823-0, F = 8-97946-824-0, G = 8-97946-825-0, H = 8-97946-826-0	8-97332-642-0	01	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97360-245-0	03	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: B = 8-97946-809-0, C = 8-97946-812-0	8-97360-245-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: D = 8-97946-814-0, E = 8-97946-823-0, H = 8-97946-826-0	8-97360-245-0	04	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: B = 8-97946-809-0, C = 8-97946-812-0, D = 8-97946-814-0, E = 8-97946-823-0	8-97360-246-0	02	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97360-246-0	03	1	-
70	RUBBER; LEAF SPR,RR THA ASM PART: A = 8-97945-334-1, G = 8-97946-825-0	8-97374-306-0	01	1	-

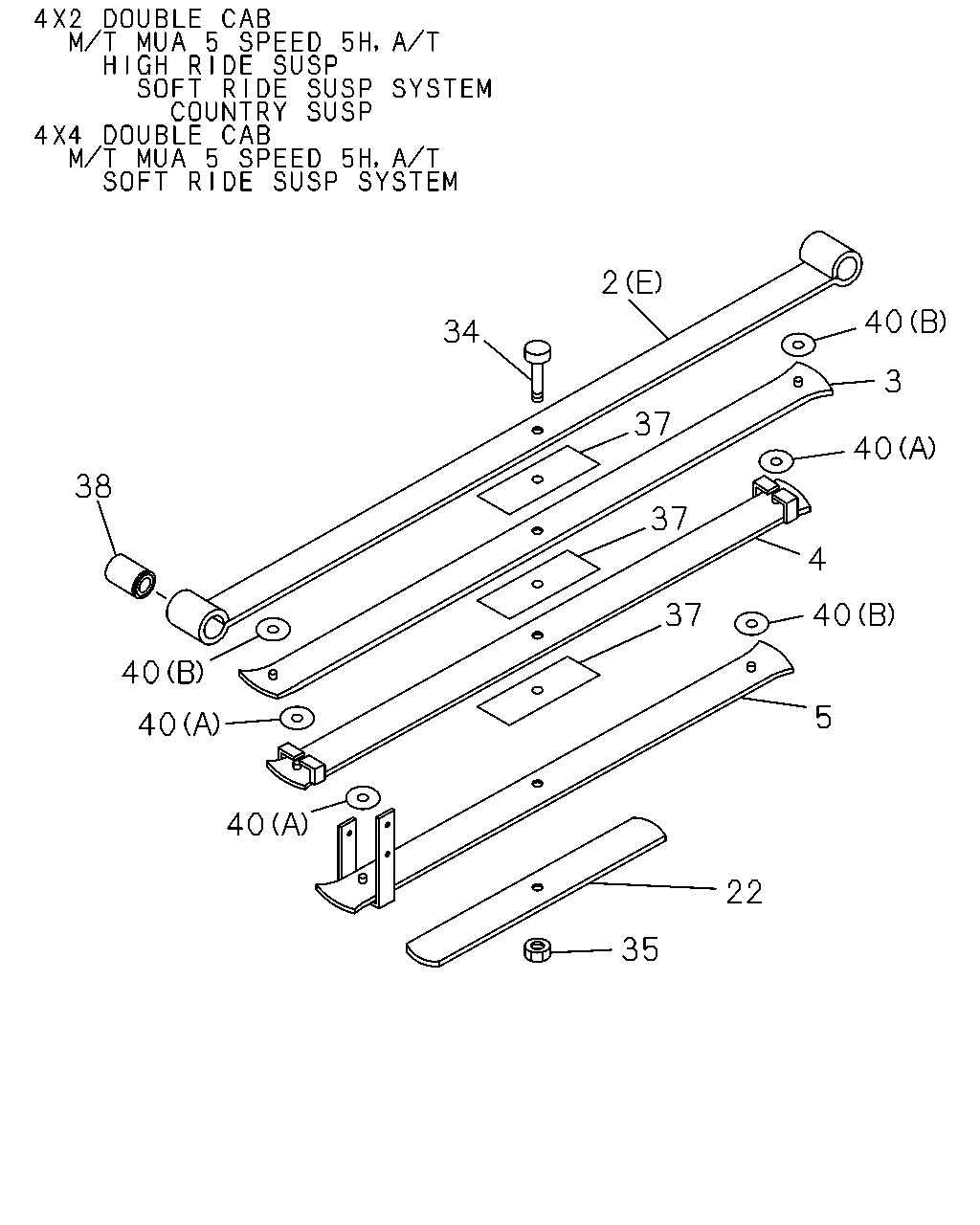

2 40 34 3 37 40 38 37 4 37 40 40 5 40 40 22 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN (A), THA ASM PART: B = 8-97946-809-0	8-97246-604-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B), THA ASM PART: E = 8-97946-823-0	8-97384-165-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (E), THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97384-170-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (C), THA ASM PART: H = 8-97946-826-0	8-97384-175-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (D), THA ASM PART: D = 8-97946-814-0	8-97385-864-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A), THA ASM PART: C = 8-97946-812-0	8-97389-235-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: B = 8-97946-809-0	8-97246-608-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: E = 8-97946-823-0	8-97384-166-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: F = 8-97946-824-0	8-97384-171-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: H = 8-97946-826-0	8-97384-176-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: D = 8-97946-814-0	8-97385-865-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: C = 8-97946-812-0	8-97389-236-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: A = 8-97945-334-1, G = 8-97946-825-0	8-97945-328-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: B = 8-97946-809-0	8-97246-614-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: E = 8-97946-823-0	8-97384-167-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97384-172-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: H = 8-97946-826-0	8-97384-177-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: D = 8-97946-814-0	8-97385-866-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: C = 8-97946-812-0	8-97389-237-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: E = 8-97946-823-0	8-97384-168-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97384-173-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: D = 8-97946-814-0	8-97385-867-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: B = 8-97946-809-0	8-97368-641-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: E = 8-97946-823-0	8-97384-169-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97384-174-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: H = 8-97946-826-0	8-97384-178-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: D = 8-97946-814-0	8-97385-868-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: C = 8-97946-812-0	8-97389-238-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X56, THA ASM PART: B = 8-97946-809-0, H = 8-97946-826-0	8-94468-050-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: A = 8-97945-334-1, D = 8-97946-814-0, F = 8-97946-824-0, G = 8-97946-825-0	8-97049-849-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: C = 8-97946-812-0, E = 8-97946-823-0	8-97304-262-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: A = 8-97945-334-1, B = 8-97946-809-0, C = 8-97946-812-0, D = 8-97946-814-0, E = 8-97946-823-0, F = 8-97946-824-0, G = 8-97946-825-0, H = 8-97946-826-0	8-97945-821-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR THA ASM PART: B = 8-97946-809-0, C = 8-97946-812-0, E = 8-97946-823-0	8-94468-305-0	04	1	-
37	SPACER; CENTER,LEAF SPR,RR THA ASM PART: A = 8-97945-334-1, D = 8-97946-814-0, F = 8-97946-824-0, G = 8-97946-825-0, H = 8-97946-826-0	8-94468-305-0	03	1	-
38	BUSHING; LEAF SPR,RR THA ASM PART: A = 8-97945-334-1, B = 8-97946-809-0, C = 8-97946-812-0, D = 8-97946-814-0, E = 8-97946-823-0, F = 8-97946-824-0, G = 8-97946-825-0, H = 8-97946-826-0	8-97332-642-0	01	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97360-245-0	03	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: B = 8-97946-809-0, C = 8-97946-812-0	8-97360-245-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: D = 8-97946-814-0, E = 8-97946-823-0, H = 8-97946-826-0	8-97360-245-0	04	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: B = 8-97946-809-0, C = 8-97946-812-0, D = 8-97946-814-0, E = 8-97946-823-0	8-97360-246-0	02	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97360-246-0	03	1	-

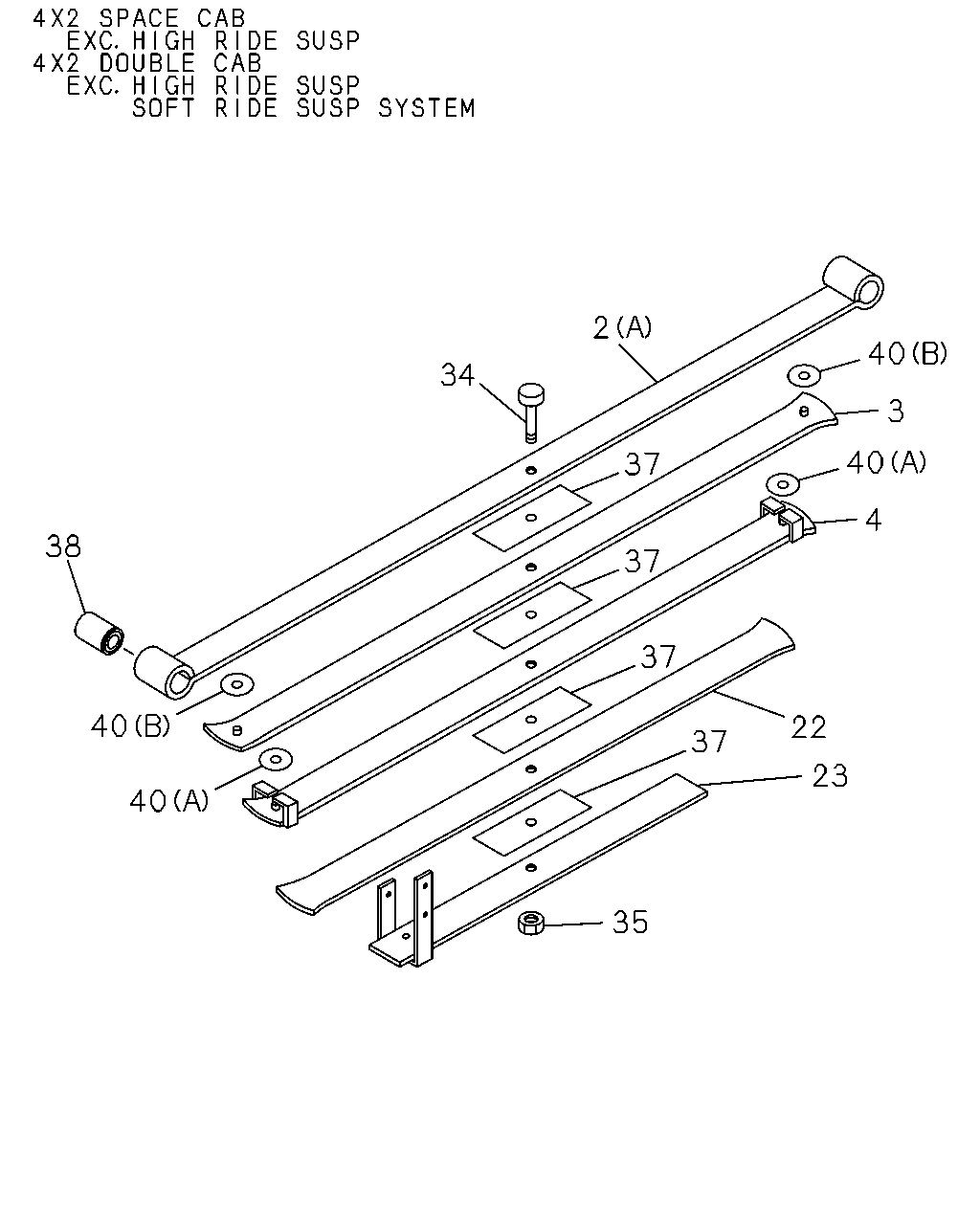

2 40 34 3 40 37 4 38 37 37 40 22 37 23 40 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN (A), THA ASM PART: B = 8-97946-809-0	8-97246-604-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B), THA ASM PART: E = 8-97946-823-0	8-97384-165-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (E), THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97384-170-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (C), THA ASM PART: H = 8-97946-826-0	8-97384-175-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (D), THA ASM PART: D = 8-97946-814-0	8-97385-864-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A), THA ASM PART: C = 8-97946-812-0	8-97389-235-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: B = 8-97946-809-0	8-97246-608-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: E = 8-97946-823-0	8-97384-166-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: F = 8-97946-824-0	8-97384-171-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: H = 8-97946-826-0	8-97384-176-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: D = 8-97946-814-0	8-97385-865-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: C = 8-97946-812-0	8-97389-236-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: A = 8-97945-334-1, G = 8-97946-825-0	8-97945-328-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: B = 8-97946-809-0	8-97246-614-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: E = 8-97946-823-0	8-97384-167-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97384-172-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: H = 8-97946-826-0	8-97384-177-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: D = 8-97946-814-0	8-97385-866-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: C = 8-97946-812-0	8-97389-237-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: B = 8-97946-809-0	8-97368-641-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: E = 8-97946-823-0	8-97384-169-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97384-174-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: H = 8-97946-826-0	8-97384-178-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: D = 8-97946-814-0	8-97385-868-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: C = 8-97946-812-0	8-97389-238-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: B = 8-97946-809-0	8-97368-642-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: H = 8-97946-826-0	8-97384-179-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: C = 8-97946-812-0	8-97389-239-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X56, THA ASM PART: B = 8-97946-809-0, H = 8-97946-826-0	8-94468-050-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: A = 8-97945-334-1, D = 8-97946-814-0, F = 8-97946-824-0, G = 8-97946-825-0	8-97049-849-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: C = 8-97946-812-0, E = 8-97946-823-0	8-97304-262-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: A = 8-97945-334-1, B = 8-97946-809-0, C = 8-97946-812-0, D = 8-97946-814-0, E = 8-97946-823-0, F = 8-97946-824-0, G = 8-97946-825-0, H = 8-97946-826-0	8-97945-821-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR THA ASM PART: B = 8-97946-809-0, C = 8-97946-812-0, E = 8-97946-823-0	8-94468-305-0	04	1	-
37	SPACER; CENTER,LEAF SPR,RR THA ASM PART: A = 8-97945-334-1, D = 8-97946-814-0, F = 8-97946-824-0, G = 8-97946-825-0, H = 8-97946-826-0	8-94468-305-0	03	1	-
38	BUSHING; LEAF SPR,RR THA ASM PART: A = 8-97945-334-1, B = 8-97946-809-0, C = 8-97946-812-0, D = 8-97946-814-0, E = 8-97946-823-0, F = 8-97946-824-0, G = 8-97946-825-0, H = 8-97946-826-0	8-97332-642-0	01	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97360-245-0	03	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: B = 8-97946-809-0, C = 8-97946-812-0	8-97360-245-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: D = 8-97946-814-0, E = 8-97946-823-0, H = 8-97946-826-0	8-97360-245-0	04	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: B = 8-97946-809-0, C = 8-97946-812-0, D = 8-97946-814-0, E = 8-97946-823-0	8-97360-246-0	02	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97360-246-0	03	1	-

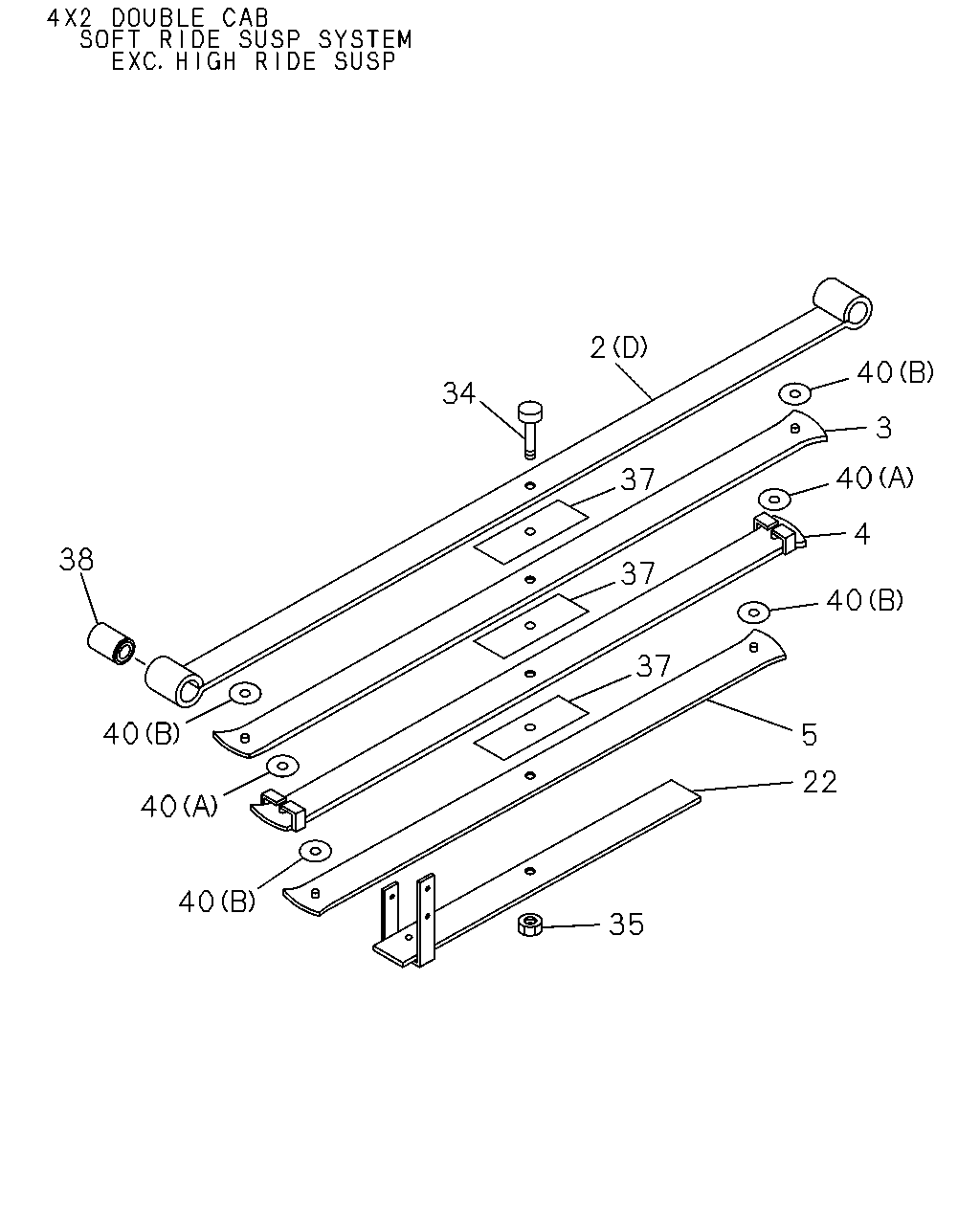

2 40 34 3 40 37 4 38 37 40 37 40 5 37 22 40 40 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN (A), THA ASM PART: B = 8-97946-809-0	8-97246-604-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B), THA ASM PART: E = 8-97946-823-0	8-97384-165-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (E), THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97384-170-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (C), THA ASM PART: H = 8-97946-826-0	8-97384-175-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (D), THA ASM PART: D = 8-97946-814-0	8-97385-864-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A), THA ASM PART: C = 8-97946-812-0	8-97389-235-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: B = 8-97946-809-0	8-97246-608-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: E = 8-97946-823-0	8-97384-166-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: F = 8-97946-824-0	8-97384-171-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: H = 8-97946-826-0	8-97384-176-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: D = 8-97946-814-0	8-97385-865-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: C = 8-97946-812-0	8-97389-236-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: A = 8-97945-334-1, G = 8-97946-825-0	8-97945-328-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: B = 8-97946-809-0	8-97246-614-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: E = 8-97946-823-0	8-97384-167-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97384-172-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: H = 8-97946-826-0	8-97384-177-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: D = 8-97946-814-0	8-97385-866-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: C = 8-97946-812-0	8-97389-237-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: E = 8-97946-823-0	8-97384-168-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97384-173-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: D = 8-97946-814-0	8-97385-867-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: B = 8-97946-809-0	8-97368-641-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: E = 8-97946-823-0	8-97384-169-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97384-174-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: H = 8-97946-826-0	8-97384-178-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: D = 8-97946-814-0	8-97385-868-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: C = 8-97946-812-0	8-97389-238-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X56, THA ASM PART: B = 8-97946-809-0, H = 8-97946-826-0	8-94468-050-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: A = 8-97945-334-1, D = 8-97946-814-0, F = 8-97946-824-0, G = 8-97946-825-0	8-97049-849-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: C = 8-97946-812-0, E = 8-97946-823-0	8-97304-262-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: A = 8-97945-334-1, B = 8-97946-809-0, C = 8-97946-812-0, D = 8-97946-814-0, E = 8-97946-823-0, F = 8-97946-824-0, G = 8-97946-825-0, H = 8-97946-826-0	8-97945-821-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR THA ASM PART: B = 8-97946-809-0, C = 8-97946-812-0, E = 8-97946-823-0	8-94468-305-0	04	1	-
37	SPACER; CENTER,LEAF SPR,RR THA ASM PART: A = 8-97945-334-1, D = 8-97946-814-0, F = 8-97946-824-0, G = 8-97946-825-0, H = 8-97946-826-0	8-94468-305-0	03	1	-
38	BUSHING; LEAF SPR,RR THA ASM PART: A = 8-97945-334-1, B = 8-97946-809-0, C = 8-97946-812-0, D = 8-97946-814-0, E = 8-97946-823-0, F = 8-97946-824-0, G = 8-97946-825-0, H = 8-97946-826-0	8-97332-642-0	01	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97360-245-0	03	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: B = 8-97946-809-0, C = 8-97946-812-0	8-97360-245-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: D = 8-97946-814-0, E = 8-97946-823-0, H = 8-97946-826-0	8-97360-245-0	04	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: B = 8-97946-809-0, C = 8-97946-812-0, D = 8-97946-814-0, E = 8-97946-823-0	8-97360-246-0	02	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: A = 8-97945-334-1, F = 8-97946-824-0, G = 8-97946-825-0	8-97360-246-0	03	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
