Sayfa 4-65B - Isuzu EPC

4-65B — REAR LEAF SPRING (#72892) — 464 parça

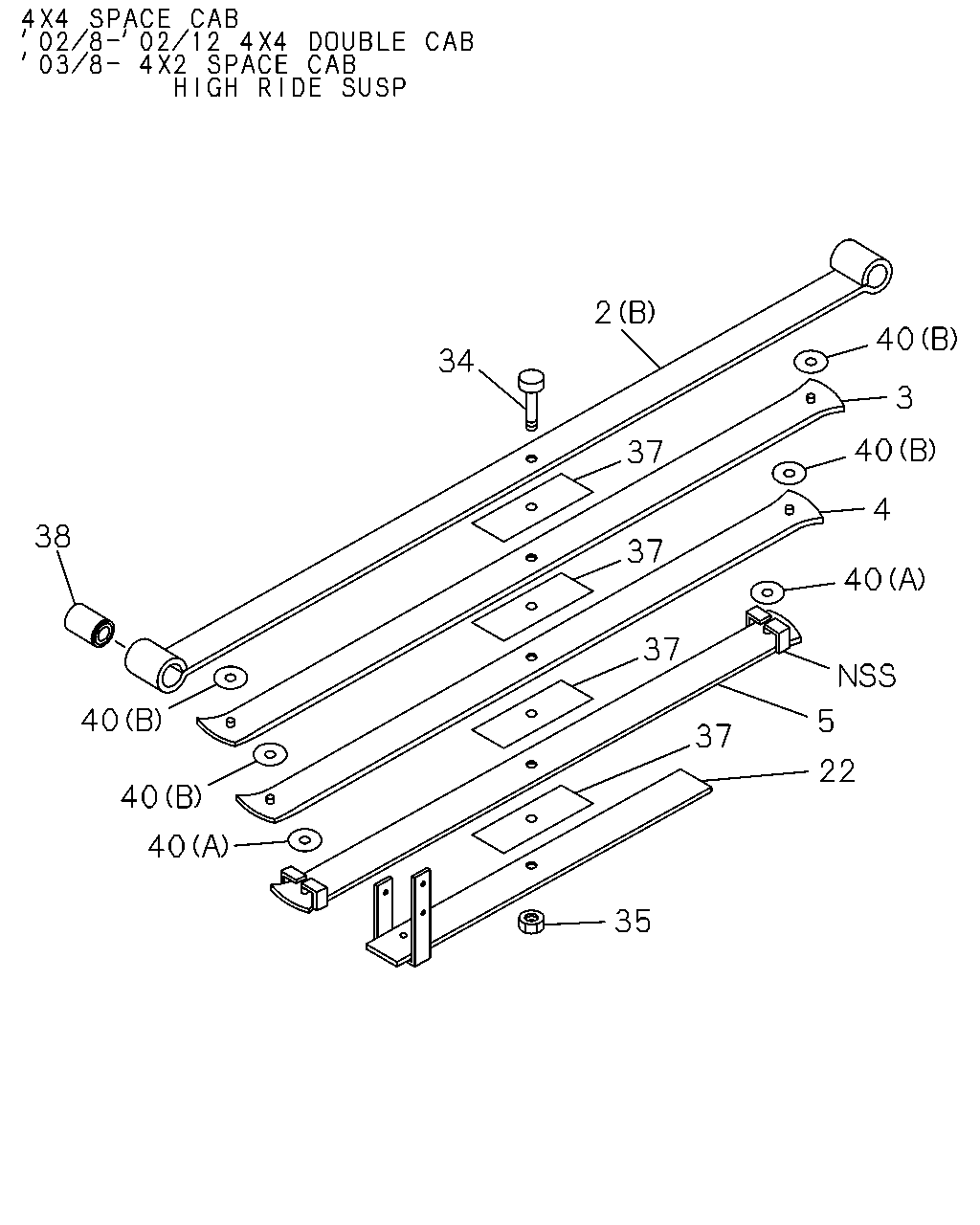

2 40 34 3 40 37 4 38 37 40 37 40 5 22 40 40 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN (B), THA ASM PART: B = 8-97356-161-0, D = 8-97359-755-1, P = 8-97940-840-3	8-97246-603-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A), THA ASM PART: A = 8-97356-160-0, C = 8-97359-753-1, Q = 8-97940-841-3	8-97246-604-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A), THA ASM PART: E = 8-97361-181-1	8-97361-166-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (C), THA ASM PART: F = 8-97361-182-1	8-97361-171-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (D), THA ASM PART: G = 8-97371-610-0	8-97372-111-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (E), THA ASM PART: H = 8-97371-611-0	8-97372-116-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B), THA ASM PART: I = 8-97384-622-0	8-97384-165-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (E), THA ASM PART: J = 8-97384-623-0	8-97384-170-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (C), THA ASM PART: K = 8-97384-624-0	8-97384-175-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (D), THA ASM PART: L = 8-97385-889-0	8-97385-864-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B), THA ASM PART: M = 8-97385-891-0	8-97385-876-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (E), THA ASM PART: N = 8-97385-892-0	8-97385-881-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A), THA ASM PART: O = 8-97389-270-0	8-97389-235-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: B = 8-97356-161-0, D = 8-97359-755-1, P = 8-97940-840-3	8-97246-607-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: A = 8-97356-160-0, C = 8-97359-753-1, Q = 8-97940-841-3	8-97246-608-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: E = 8-97361-181-1	8-97361-167-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: F = 8-97361-182-1	8-97361-172-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: G = 8-97371-610-0	8-97372-112-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: H = 8-97371-611-0	8-97372-117-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: I = 8-97384-622-0	8-97384-166-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: J = 8-97384-623-0	8-97384-171-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: K = 8-97384-624-0	8-97384-176-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: L = 8-97385-889-0	8-97385-865-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: M = 8-97385-891-0	8-97385-877-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: N = 8-97385-892-0	8-97385-882-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: O = 8-97389-270-0	8-97389-236-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: B = 8-97356-161-0, D = 8-97359-755-1, P = 8-97940-840-3	8-97246-612-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: A = 8-97356-160-0, C = 8-97359-753-1, Q = 8-97940-841-3	8-97246-614-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: E = 8-97361-181-1	8-97361-168-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: F = 8-97361-182-1	8-97361-173-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: G = 8-97371-610-0	8-97372-113-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: H = 8-97371-611-0	8-97372-118-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: I = 8-97384-622-0	8-97384-167-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: J = 8-97384-623-0	8-97384-172-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: K = 8-97384-624-0	8-97384-177-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: L = 8-97385-889-0	8-97385-866-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: M = 8-97385-891-0	8-97385-878-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: N = 8-97385-892-0	8-97385-883-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: O = 8-97389-270-0	8-97389-237-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: B = 8-97356-161-0, D = 8-97359-755-1, P = 8-97940-840-3	8-97304-269-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: G = 8-97371-610-0	8-97372-114-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: H = 8-97371-611-0	8-97372-119-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: I = 8-97384-622-0	8-97384-168-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: J = 8-97384-623-0	8-97384-173-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: L = 8-97385-889-0	8-97385-867-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: M = 8-97385-891-0	8-97385-879-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: N = 8-97385-892-0	8-97385-884-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: B = 8-97356-161-0, P = 8-97940-840-3	8-97246-620-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: A = 8-97356-160-0, Q = 8-97940-841-3	8-97246-621-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: C = 8-97359-753-1	8-97368-641-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: D = 8-97359-755-1	8-97368-645-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: E = 8-97361-181-1	8-97368-648-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: F = 8-97361-182-1	8-97368-650-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: G = 8-97371-610-0	8-97372-115-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: H = 8-97371-611-0	8-97372-120-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: I = 8-97384-622-0	8-97384-169-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: J = 8-97384-623-0	8-97384-174-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: K = 8-97384-624-0	8-97384-178-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: L = 8-97385-889-0	8-97385-868-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: M = 8-97385-891-0	8-97385-880-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: N = 8-97385-892-0	8-97385-885-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: O = 8-97389-270-0	8-97389-238-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X56, THA ASM PART: A = 8-97356-160-0, C = 8-97359-753-1, F = 8-97361-182-1, K = 8-97384-624-0, Q = 8-97940-841-3	8-94468-050-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: G = 8-97371-610-0, H = 8-97371-611-0, J = 8-97384-623-0, L = 8-97385-889-0, N = 8-97385-892-0	8-97049-849-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: B = 8-97356-161-0, D = 8-97359-755-1, E = 8-97361-181-1, I = 8-97384-622-0, M = 8-97385-891-0, O = 8-97389-270-0, P = 8-97940-840-3	8-97304-262-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: C = 8-97359-753-1, F = 8-97361-182-1, G = 8-97371-610-0, H = 8-97371-611-0, I = 8-97384-622-0, J = 8-97384-623-0, K = 8-97384-624-0, L = 8-97385-889-0, M = 8-97385-891-0, N = 8-97385-892-0, O = 8-97389-270-0	8-97945-821-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: A = 8-97356-160-0, B = 8-97356-161-0, D = 8-97359-755-1, E = 8-97361-181-1, P = 8-97940-840-3, Q = 8-97940-841-3	9-09110-508-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR THA ASM PART: F = 8-97361-182-1, G = 8-97371-610-0, H = 8-97371-611-0, J = 8-97384-623-0, K = 8-97384-624-0, L = 8-97385-889-0, N = 8-97385-892-0	8-94468-305-0	03	1	-
37	SPACER; CENTER,LEAF SPR,RR THA ASM PART: A = 8-97356-160-0, B = 8-97356-161-0, C = 8-97359-753-1, D = 8-97359-755-1, E = 8-97361-181-1, I = 8-97384-622-0, M = 8-97385-891-0, O = 8-97389-270-0, P = 8-97940-840-3, Q = 8-97940-841-3	8-94468-305-0	04	1	-
38	BUSHING; LEAF SPR,RR THA ASM PART: A = 8-97356-160-0, B = 8-97356-161-0, C = 8-97359-753-1, D = 8-97359-755-1, E = 8-97361-181-1, F = 8-97361-182-1, G = 8-97371-610-0, H = 8-97371-611-0, I = 8-97384-622-0, J = 8-97384-623-0, K = 8-97384-624-0, L = 8-97385-889-0, M = 8-97385-891-0, N = 8-97385-892-0, O = 8-97389-270-0, P = 8-97940-840-3, Q = 8-97940-841-3	8-97332-642-0	01	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: A = 8-97356-160-0, B = 8-97356-161-0, P = 8-97940-840-3, Q = 8-97940-841-3	8-94406-909-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: A = 8-97356-160-0, Q = 8-97940-841-3	8-94479-181-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: B = 8-97356-161-0, P = 8-97940-840-3	8-94479-181-0	04	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: H = 8-97371-611-0, J = 8-97384-623-0, N = 8-97385-892-0	8-97360-245-0	03	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: C = 8-97359-753-1, E = 8-97361-181-1, O = 8-97389-270-0	8-97360-245-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: D = 8-97359-755-1, F = 8-97361-182-1, G = 8-97371-610-0, I = 8-97384-622-0, K = 8-97384-624-0, L = 8-97385-889-0, M = 8-97385-891-0	8-97360-245-0	04	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: H = 8-97371-611-0, J = 8-97384-623-0, N = 8-97385-892-0	8-97360-246-0	03	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: C = 8-97359-753-1, D = 8-97359-755-1, E = 8-97361-181-1, G = 8-97371-610-0, I = 8-97384-622-0, L = 8-97385-889-0, M = 8-97385-891-0, O = 8-97389-270-0	8-97360-246-0	02	1	-

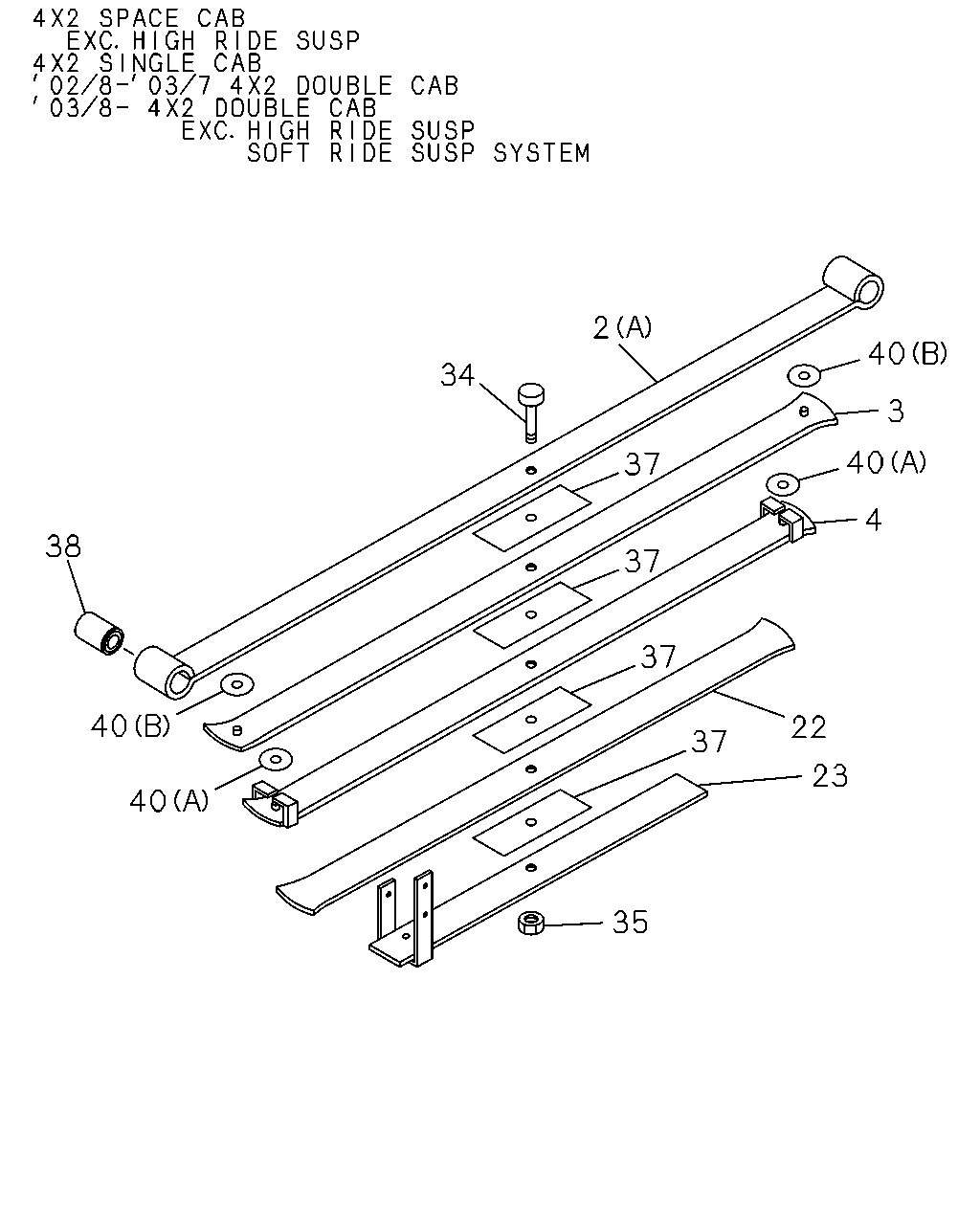

2 40 34 3 37 40 38 37 4 37 40 22 40 23 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN (B), THA ASM PART: B = 8-97356-161-0, D = 8-97359-755-1, P = 8-97940-840-3	8-97246-603-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A), THA ASM PART: A = 8-97356-160-0, C = 8-97359-753-1, Q = 8-97940-841-3	8-97246-604-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A), THA ASM PART: E = 8-97361-181-1	8-97361-166-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (C), THA ASM PART: F = 8-97361-182-1	8-97361-171-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (D), THA ASM PART: G = 8-97371-610-0	8-97372-111-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (E), THA ASM PART: H = 8-97371-611-0	8-97372-116-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B), THA ASM PART: I = 8-97384-622-0	8-97384-165-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (E), THA ASM PART: J = 8-97384-623-0	8-97384-170-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (C), THA ASM PART: K = 8-97384-624-0	8-97384-175-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (D), THA ASM PART: L = 8-97385-889-0	8-97385-864-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B), THA ASM PART: M = 8-97385-891-0	8-97385-876-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (E), THA ASM PART: N = 8-97385-892-0	8-97385-881-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A), THA ASM PART: O = 8-97389-270-0	8-97389-235-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: B = 8-97356-161-0, D = 8-97359-755-1, P = 8-97940-840-3	8-97246-607-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: A = 8-97356-160-0, C = 8-97359-753-1, Q = 8-97940-841-3	8-97246-608-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: E = 8-97361-181-1	8-97361-167-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: F = 8-97361-182-1	8-97361-172-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: G = 8-97371-610-0	8-97372-112-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: H = 8-97371-611-0	8-97372-117-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: I = 8-97384-622-0	8-97384-166-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: J = 8-97384-623-0	8-97384-171-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: K = 8-97384-624-0	8-97384-176-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: L = 8-97385-889-0	8-97385-865-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: M = 8-97385-891-0	8-97385-877-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: N = 8-97385-892-0	8-97385-882-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: O = 8-97389-270-0	8-97389-236-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: B = 8-97356-161-0, D = 8-97359-755-1, P = 8-97940-840-3	8-97246-612-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: A = 8-97356-160-0, C = 8-97359-753-1, Q = 8-97940-841-3	8-97246-614-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: E = 8-97361-181-1	8-97361-168-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: F = 8-97361-182-1	8-97361-173-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: G = 8-97371-610-0	8-97372-113-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: H = 8-97371-611-0	8-97372-118-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: I = 8-97384-622-0	8-97384-167-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: J = 8-97384-623-0	8-97384-172-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: K = 8-97384-624-0	8-97384-177-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: L = 8-97385-889-0	8-97385-866-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: M = 8-97385-891-0	8-97385-878-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: N = 8-97385-892-0	8-97385-883-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: O = 8-97389-270-0	8-97389-237-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: B = 8-97356-161-0, P = 8-97940-840-3	8-97246-620-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: A = 8-97356-160-0, Q = 8-97940-841-3	8-97246-621-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: C = 8-97359-753-1	8-97368-641-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: D = 8-97359-755-1	8-97368-645-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: E = 8-97361-181-1	8-97368-648-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: F = 8-97361-182-1	8-97368-650-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: G = 8-97371-610-0	8-97372-115-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: H = 8-97371-611-0	8-97372-120-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: I = 8-97384-622-0	8-97384-169-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: J = 8-97384-623-0	8-97384-174-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: K = 8-97384-624-0	8-97384-178-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: L = 8-97385-889-0	8-97385-868-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: M = 8-97385-891-0	8-97385-880-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: N = 8-97385-892-0	8-97385-885-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: O = 8-97389-270-0	8-97389-238-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: A = 8-97356-160-0, Q = 8-97940-841-3	8-97246-626-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: C = 8-97359-753-1	8-97368-642-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: E = 8-97361-181-1	8-97368-649-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: F = 8-97361-182-1	8-97368-651-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: K = 8-97384-624-0	8-97384-179-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: O = 8-97389-270-0	8-97389-239-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X56, THA ASM PART: A = 8-97356-160-0, C = 8-97359-753-1, F = 8-97361-182-1, K = 8-97384-624-0, Q = 8-97940-841-3	8-94468-050-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: G = 8-97371-610-0, H = 8-97371-611-0, J = 8-97384-623-0, L = 8-97385-889-0, N = 8-97385-892-0	8-97049-849-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: B = 8-97356-161-0, D = 8-97359-755-1, E = 8-97361-181-1, I = 8-97384-622-0, M = 8-97385-891-0, O = 8-97389-270-0, P = 8-97940-840-3	8-97304-262-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: C = 8-97359-753-1, F = 8-97361-182-1, G = 8-97371-610-0, H = 8-97371-611-0, I = 8-97384-622-0, J = 8-97384-623-0, K = 8-97384-624-0, L = 8-97385-889-0, M = 8-97385-891-0, N = 8-97385-892-0, O = 8-97389-270-0	8-97945-821-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: A = 8-97356-160-0, B = 8-97356-161-0, D = 8-97359-755-1, E = 8-97361-181-1, P = 8-97940-840-3, Q = 8-97940-841-3	9-09110-508-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR THA ASM PART: F = 8-97361-182-1, G = 8-97371-610-0, H = 8-97371-611-0, J = 8-97384-623-0, K = 8-97384-624-0, L = 8-97385-889-0, N = 8-97385-892-0	8-94468-305-0	03	1	-
37	SPACER; CENTER,LEAF SPR,RR THA ASM PART: A = 8-97356-160-0, B = 8-97356-161-0, C = 8-97359-753-1, D = 8-97359-755-1, E = 8-97361-181-1, I = 8-97384-622-0, M = 8-97385-891-0, O = 8-97389-270-0, P = 8-97940-840-3, Q = 8-97940-841-3	8-94468-305-0	04	1	-
38	BUSHING; LEAF SPR,RR THA ASM PART: A = 8-97356-160-0, B = 8-97356-161-0, C = 8-97359-753-1, D = 8-97359-755-1, E = 8-97361-181-1, F = 8-97361-182-1, G = 8-97371-610-0, H = 8-97371-611-0, I = 8-97384-622-0, J = 8-97384-623-0, K = 8-97384-624-0, L = 8-97385-889-0, M = 8-97385-891-0, N = 8-97385-892-0, O = 8-97389-270-0, P = 8-97940-840-3, Q = 8-97940-841-3	8-97332-642-0	01	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: A = 8-97356-160-0, B = 8-97356-161-0, P = 8-97940-840-3, Q = 8-97940-841-3	8-94406-909-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: A = 8-97356-160-0, Q = 8-97940-841-3	8-94479-181-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: B = 8-97356-161-0, P = 8-97940-840-3	8-94479-181-0	04	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: H = 8-97371-611-0, J = 8-97384-623-0, N = 8-97385-892-0	8-97360-245-0	03	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: C = 8-97359-753-1, E = 8-97361-181-1, O = 8-97389-270-0	8-97360-245-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: D = 8-97359-755-1, F = 8-97361-182-1, G = 8-97371-610-0, I = 8-97384-622-0, K = 8-97384-624-0, L = 8-97385-889-0, M = 8-97385-891-0	8-97360-245-0	04	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: H = 8-97371-611-0, J = 8-97384-623-0, N = 8-97385-892-0	8-97360-246-0	03	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: C = 8-97359-753-1, D = 8-97359-755-1, E = 8-97361-181-1, G = 8-97371-610-0, I = 8-97384-622-0, L = 8-97385-889-0, M = 8-97385-891-0, O = 8-97389-270-0	8-97360-246-0	02	1	-

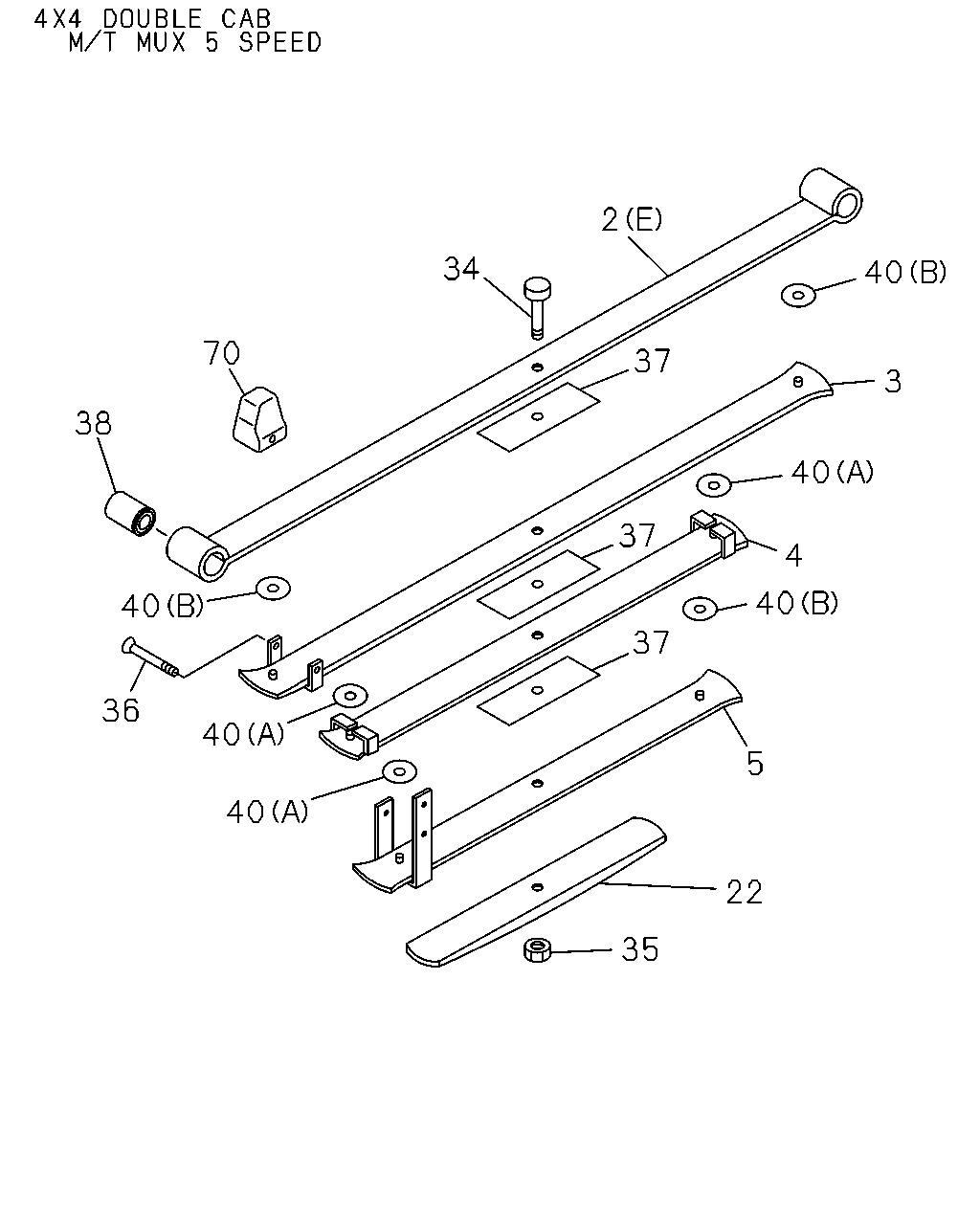

2 34 40 70 37 3 38 40 37 4 40 40 37 36 40 5 40 22 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN (B), THA ASM PART: B = 8-97356-161-0, D = 8-97359-755-1, P = 8-97940-840-3	8-97246-603-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A), THA ASM PART: A = 8-97356-160-0, C = 8-97359-753-1, Q = 8-97940-841-3	8-97246-604-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A), THA ASM PART: E = 8-97361-181-1	8-97361-166-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (C), THA ASM PART: F = 8-97361-182-1	8-97361-171-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (D), THA ASM PART: G = 8-97371-610-0	8-97372-111-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (E), THA ASM PART: H = 8-97371-611-0	8-97372-116-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B), THA ASM PART: I = 8-97384-622-0	8-97384-165-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (E), THA ASM PART: J = 8-97384-623-0	8-97384-170-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (C), THA ASM PART: K = 8-97384-624-0	8-97384-175-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (D), THA ASM PART: L = 8-97385-889-0	8-97385-864-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B), THA ASM PART: M = 8-97385-891-0	8-97385-876-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (E), THA ASM PART: N = 8-97385-892-0	8-97385-881-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A), THA ASM PART: O = 8-97389-270-0	8-97389-235-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: B = 8-97356-161-0, D = 8-97359-755-1, P = 8-97940-840-3	8-97246-607-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: A = 8-97356-160-0, C = 8-97359-753-1, Q = 8-97940-841-3	8-97246-608-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: E = 8-97361-181-1	8-97361-167-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: F = 8-97361-182-1	8-97361-172-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: G = 8-97371-610-0	8-97372-112-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: H = 8-97371-611-0	8-97372-117-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: I = 8-97384-622-0	8-97384-166-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: J = 8-97384-623-0	8-97384-171-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: K = 8-97384-624-0	8-97384-176-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: L = 8-97385-889-0	8-97385-865-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: M = 8-97385-891-0	8-97385-877-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: N = 8-97385-892-0	8-97385-882-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: O = 8-97389-270-0	8-97389-236-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: B = 8-97356-161-0, D = 8-97359-755-1, P = 8-97940-840-3	8-97246-612-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: A = 8-97356-160-0, C = 8-97359-753-1, Q = 8-97940-841-3	8-97246-614-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: E = 8-97361-181-1	8-97361-168-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: F = 8-97361-182-1	8-97361-173-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: G = 8-97371-610-0	8-97372-113-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: H = 8-97371-611-0	8-97372-118-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: I = 8-97384-622-0	8-97384-167-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: J = 8-97384-623-0	8-97384-172-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: K = 8-97384-624-0	8-97384-177-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: L = 8-97385-889-0	8-97385-866-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: M = 8-97385-891-0	8-97385-878-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: N = 8-97385-892-0	8-97385-883-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: O = 8-97389-270-0	8-97389-237-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: B = 8-97356-161-0, D = 8-97359-755-1, P = 8-97940-840-3	8-97304-269-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: G = 8-97371-610-0	8-97372-114-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: H = 8-97371-611-0	8-97372-119-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: I = 8-97384-622-0	8-97384-168-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: J = 8-97384-623-0	8-97384-173-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: L = 8-97385-889-0	8-97385-867-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: M = 8-97385-891-0	8-97385-879-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: N = 8-97385-892-0	8-97385-884-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: B = 8-97356-161-0, P = 8-97940-840-3	8-97246-620-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: A = 8-97356-160-0, Q = 8-97940-841-3	8-97246-621-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: C = 8-97359-753-1	8-97368-641-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: D = 8-97359-755-1	8-97368-645-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: E = 8-97361-181-1	8-97368-648-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: F = 8-97361-182-1	8-97368-650-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: G = 8-97371-610-0	8-97372-115-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: H = 8-97371-611-0	8-97372-120-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: I = 8-97384-622-0	8-97384-169-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: J = 8-97384-623-0	8-97384-174-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: K = 8-97384-624-0	8-97384-178-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: L = 8-97385-889-0	8-97385-868-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: M = 8-97385-891-0	8-97385-880-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: N = 8-97385-892-0	8-97385-885-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: O = 8-97389-270-0	8-97389-238-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X56, THA ASM PART: A = 8-97356-160-0, C = 8-97359-753-1, F = 8-97361-182-1, K = 8-97384-624-0, Q = 8-97940-841-3	8-94468-050-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: G = 8-97371-610-0, H = 8-97371-611-0, J = 8-97384-623-0, L = 8-97385-889-0, N = 8-97385-892-0	8-97049-849-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: B = 8-97356-161-0, D = 8-97359-755-1, E = 8-97361-181-1, I = 8-97384-622-0, M = 8-97385-891-0, O = 8-97389-270-0, P = 8-97940-840-3	8-97304-262-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: C = 8-97359-753-1, F = 8-97361-182-1, G = 8-97371-610-0, H = 8-97371-611-0, I = 8-97384-622-0, J = 8-97384-623-0, K = 8-97384-624-0, L = 8-97385-889-0, M = 8-97385-891-0, N = 8-97385-892-0, O = 8-97389-270-0	8-97945-821-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: A = 8-97356-160-0, B = 8-97356-161-0, D = 8-97359-755-1, E = 8-97361-181-1, P = 8-97940-840-3, Q = 8-97940-841-3	9-09110-508-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR THA ASM PART: F = 8-97361-182-1, G = 8-97371-610-0, H = 8-97371-611-0, J = 8-97384-623-0, K = 8-97384-624-0, L = 8-97385-889-0, N = 8-97385-892-0	8-94468-305-0	03	1	-
37	SPACER; CENTER,LEAF SPR,RR THA ASM PART: A = 8-97356-160-0, B = 8-97356-161-0, C = 8-97359-753-1, D = 8-97359-755-1, E = 8-97361-181-1, I = 8-97384-622-0, M = 8-97385-891-0, O = 8-97389-270-0, P = 8-97940-840-3, Q = 8-97940-841-3	8-94468-305-0	04	1	-
38	BUSHING; LEAF SPR,RR THA ASM PART: A = 8-97356-160-0, B = 8-97356-161-0, C = 8-97359-753-1, D = 8-97359-755-1, E = 8-97361-181-1, F = 8-97361-182-1, G = 8-97371-610-0, H = 8-97371-611-0, I = 8-97384-622-0, J = 8-97384-623-0, K = 8-97384-624-0, L = 8-97385-889-0, M = 8-97385-891-0, N = 8-97385-892-0, O = 8-97389-270-0, P = 8-97940-840-3, Q = 8-97940-841-3	8-97332-642-0	01	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: A = 8-97356-160-0, B = 8-97356-161-0, P = 8-97940-840-3, Q = 8-97940-841-3	8-94406-909-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: A = 8-97356-160-0, Q = 8-97940-841-3	8-94479-181-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: B = 8-97356-161-0, P = 8-97940-840-3	8-94479-181-0	04	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: H = 8-97371-611-0, J = 8-97384-623-0, N = 8-97385-892-0	8-97360-245-0	03	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: C = 8-97359-753-1, E = 8-97361-181-1, O = 8-97389-270-0	8-97360-245-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: D = 8-97359-755-1, F = 8-97361-182-1, G = 8-97371-610-0, I = 8-97384-622-0, K = 8-97384-624-0, L = 8-97385-889-0, M = 8-97385-891-0	8-97360-245-0	04	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: H = 8-97371-611-0, J = 8-97384-623-0, N = 8-97385-892-0	8-97360-246-0	03	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: C = 8-97359-753-1, D = 8-97359-755-1, E = 8-97361-181-1, G = 8-97371-610-0, I = 8-97384-622-0, L = 8-97385-889-0, M = 8-97385-891-0, O = 8-97389-270-0	8-97360-246-0	02	1	-

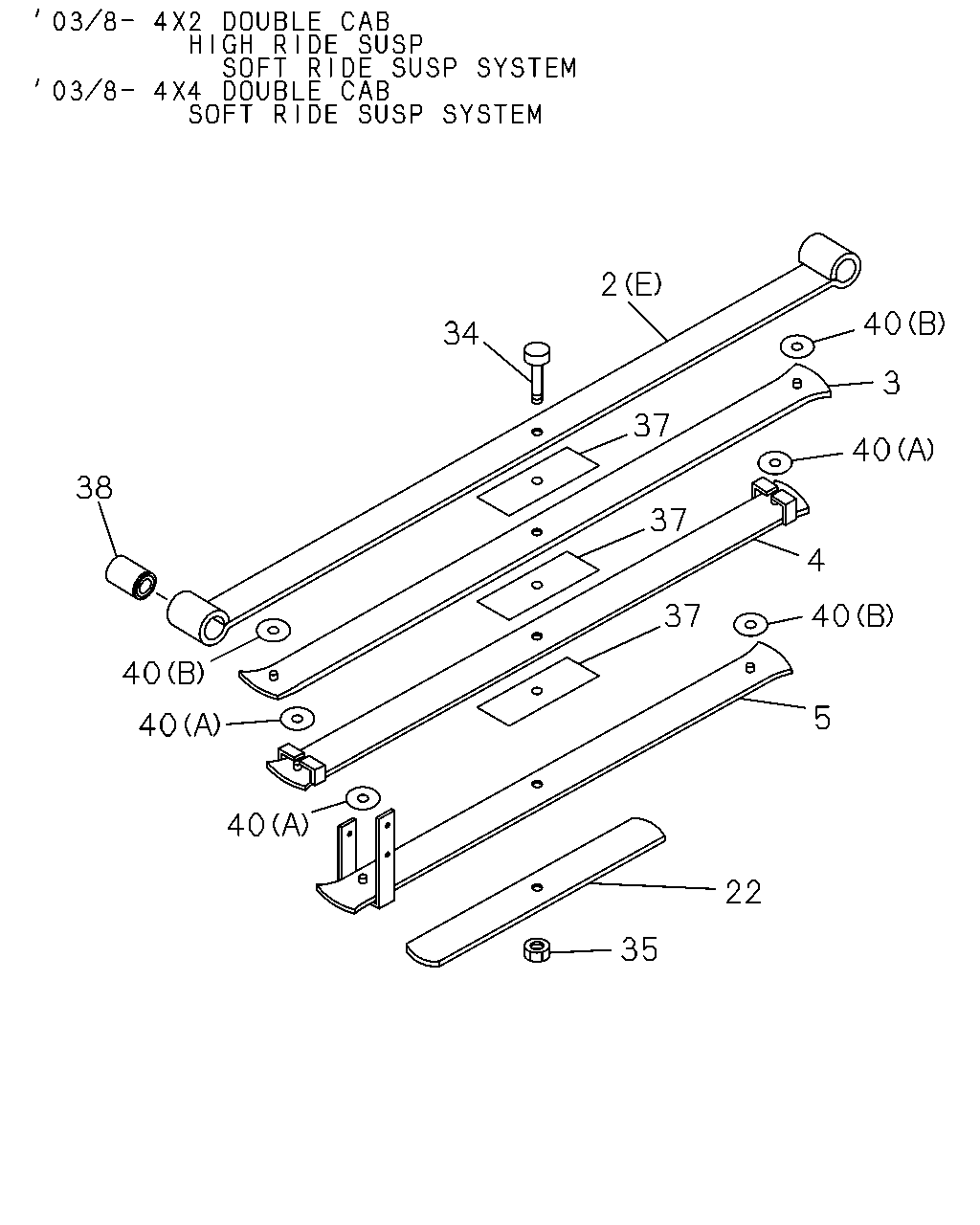

2 40 34 3 40 37 4 38 37 40 37 40 5 37 22 40 40 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN (B), THA ASM PART: B = 8-97356-161-0, D = 8-97359-755-1, P = 8-97940-840-3	8-97246-603-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A), THA ASM PART: A = 8-97356-160-0, C = 8-97359-753-1, Q = 8-97940-841-3	8-97246-604-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A), THA ASM PART: E = 8-97361-181-1	8-97361-166-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (C), THA ASM PART: F = 8-97361-182-1	8-97361-171-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (D), THA ASM PART: G = 8-97371-610-0	8-97372-111-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (E), THA ASM PART: H = 8-97371-611-0	8-97372-116-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B), THA ASM PART: I = 8-97384-622-0	8-97384-165-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (E), THA ASM PART: J = 8-97384-623-0	8-97384-170-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (C), THA ASM PART: K = 8-97384-624-0	8-97384-175-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (D), THA ASM PART: L = 8-97385-889-0	8-97385-864-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B), THA ASM PART: M = 8-97385-891-0	8-97385-876-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (E), THA ASM PART: N = 8-97385-892-0	8-97385-881-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A), THA ASM PART: O = 8-97389-270-0	8-97389-235-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: B = 8-97356-161-0, D = 8-97359-755-1, P = 8-97940-840-3	8-97246-607-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: A = 8-97356-160-0, C = 8-97359-753-1, Q = 8-97940-841-3	8-97246-608-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: E = 8-97361-181-1	8-97361-167-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: F = 8-97361-182-1	8-97361-172-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: G = 8-97371-610-0	8-97372-112-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: H = 8-97371-611-0	8-97372-117-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: I = 8-97384-622-0	8-97384-166-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: J = 8-97384-623-0	8-97384-171-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: K = 8-97384-624-0	8-97384-176-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: L = 8-97385-889-0	8-97385-865-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: M = 8-97385-891-0	8-97385-877-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: N = 8-97385-892-0	8-97385-882-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: O = 8-97389-270-0	8-97389-236-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: B = 8-97356-161-0, D = 8-97359-755-1, P = 8-97940-840-3	8-97246-612-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: A = 8-97356-160-0, C = 8-97359-753-1, Q = 8-97940-841-3	8-97246-614-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: E = 8-97361-181-1	8-97361-168-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: F = 8-97361-182-1	8-97361-173-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: G = 8-97371-610-0	8-97372-113-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: H = 8-97371-611-0	8-97372-118-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: I = 8-97384-622-0	8-97384-167-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: J = 8-97384-623-0	8-97384-172-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: K = 8-97384-624-0	8-97384-177-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: L = 8-97385-889-0	8-97385-866-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: M = 8-97385-891-0	8-97385-878-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: N = 8-97385-892-0	8-97385-883-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: O = 8-97389-270-0	8-97389-237-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: B = 8-97356-161-0, D = 8-97359-755-1, P = 8-97940-840-3	8-97304-269-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: G = 8-97371-610-0	8-97372-114-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: H = 8-97371-611-0	8-97372-119-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: I = 8-97384-622-0	8-97384-168-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: J = 8-97384-623-0	8-97384-173-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: L = 8-97385-889-0	8-97385-867-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: M = 8-97385-891-0	8-97385-879-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: N = 8-97385-892-0	8-97385-884-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: B = 8-97356-161-0, P = 8-97940-840-3	8-97246-620-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: A = 8-97356-160-0, Q = 8-97940-841-3	8-97246-621-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: C = 8-97359-753-1	8-97368-641-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: D = 8-97359-755-1	8-97368-645-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: E = 8-97361-181-1	8-97368-648-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: F = 8-97361-182-1	8-97368-650-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: G = 8-97371-610-0	8-97372-115-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: H = 8-97371-611-0	8-97372-120-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: I = 8-97384-622-0	8-97384-169-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: J = 8-97384-623-0	8-97384-174-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: K = 8-97384-624-0	8-97384-178-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: L = 8-97385-889-0	8-97385-868-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: M = 8-97385-891-0	8-97385-880-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: N = 8-97385-892-0	8-97385-885-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: O = 8-97389-270-0	8-97389-238-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X56, THA ASM PART: A = 8-97356-160-0, C = 8-97359-753-1, F = 8-97361-182-1, K = 8-97384-624-0, Q = 8-97940-841-3	8-94468-050-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: G = 8-97371-610-0, H = 8-97371-611-0, J = 8-97384-623-0, L = 8-97385-889-0, N = 8-97385-892-0	8-97049-849-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: B = 8-97356-161-0, D = 8-97359-755-1, E = 8-97361-181-1, I = 8-97384-622-0, M = 8-97385-891-0, O = 8-97389-270-0, P = 8-97940-840-3	8-97304-262-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: C = 8-97359-753-1, F = 8-97361-182-1, G = 8-97371-610-0, H = 8-97371-611-0, I = 8-97384-622-0, J = 8-97384-623-0, K = 8-97384-624-0, L = 8-97385-889-0, M = 8-97385-891-0, N = 8-97385-892-0, O = 8-97389-270-0	8-97945-821-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: A = 8-97356-160-0, B = 8-97356-161-0, D = 8-97359-755-1, E = 8-97361-181-1, P = 8-97940-840-3, Q = 8-97940-841-3	9-09110-508-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR THA ASM PART: F = 8-97361-182-1, G = 8-97371-610-0, H = 8-97371-611-0, J = 8-97384-623-0, K = 8-97384-624-0, L = 8-97385-889-0, N = 8-97385-892-0	8-94468-305-0	03	1	-
37	SPACER; CENTER,LEAF SPR,RR THA ASM PART: A = 8-97356-160-0, B = 8-97356-161-0, C = 8-97359-753-1, D = 8-97359-755-1, E = 8-97361-181-1, I = 8-97384-622-0, M = 8-97385-891-0, O = 8-97389-270-0, P = 8-97940-840-3, Q = 8-97940-841-3	8-94468-305-0	04	1	-
38	BUSHING; LEAF SPR,RR THA ASM PART: A = 8-97356-160-0, B = 8-97356-161-0, C = 8-97359-753-1, D = 8-97359-755-1, E = 8-97361-181-1, F = 8-97361-182-1, G = 8-97371-610-0, H = 8-97371-611-0, I = 8-97384-622-0, J = 8-97384-623-0, K = 8-97384-624-0, L = 8-97385-889-0, M = 8-97385-891-0, N = 8-97385-892-0, O = 8-97389-270-0, P = 8-97940-840-3, Q = 8-97940-841-3	8-97332-642-0	01	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: A = 8-97356-160-0, B = 8-97356-161-0, P = 8-97940-840-3, Q = 8-97940-841-3	8-94406-909-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: A = 8-97356-160-0, Q = 8-97940-841-3	8-94479-181-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: B = 8-97356-161-0, P = 8-97940-840-3	8-94479-181-0	04	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: H = 8-97371-611-0, J = 8-97384-623-0, N = 8-97385-892-0	8-97360-245-0	03	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: C = 8-97359-753-1, E = 8-97361-181-1, O = 8-97389-270-0	8-97360-245-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: D = 8-97359-755-1, F = 8-97361-182-1, G = 8-97371-610-0, I = 8-97384-622-0, K = 8-97384-624-0, L = 8-97385-889-0, M = 8-97385-891-0	8-97360-245-0	04	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: H = 8-97371-611-0, J = 8-97384-623-0, N = 8-97385-892-0	8-97360-246-0	03	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: C = 8-97359-753-1, D = 8-97359-755-1, E = 8-97361-181-1, G = 8-97371-610-0, I = 8-97384-622-0, L = 8-97385-889-0, M = 8-97385-891-0, O = 8-97389-270-0	8-97360-246-0	02	1	-

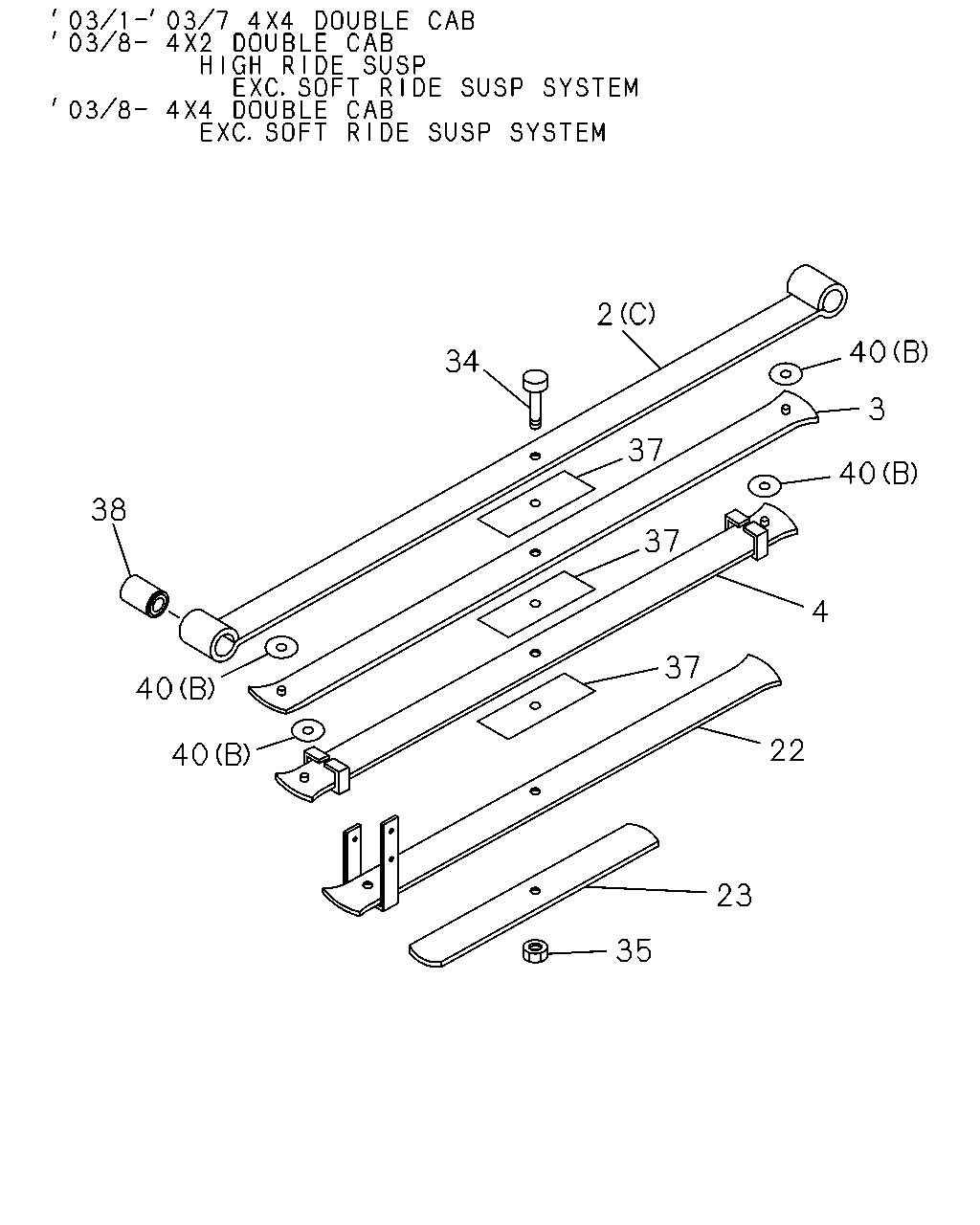

2 40 34 3 40 37 4 38 37 37 40 22 37 23 40 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN (B), THA ASM PART: B = 8-97356-161-0, D = 8-97359-755-1, P = 8-97940-840-3	8-97246-603-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A), THA ASM PART: A = 8-97356-160-0, C = 8-97359-753-1, Q = 8-97940-841-3	8-97246-604-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A), THA ASM PART: E = 8-97361-181-1	8-97361-166-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (C), THA ASM PART: F = 8-97361-182-1	8-97361-171-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (D), THA ASM PART: G = 8-97371-610-0	8-97372-111-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (E), THA ASM PART: H = 8-97371-611-0	8-97372-116-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B), THA ASM PART: I = 8-97384-622-0	8-97384-165-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (E), THA ASM PART: J = 8-97384-623-0	8-97384-170-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (C), THA ASM PART: K = 8-97384-624-0	8-97384-175-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (D), THA ASM PART: L = 8-97385-889-0	8-97385-864-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B), THA ASM PART: M = 8-97385-891-0	8-97385-876-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (E), THA ASM PART: N = 8-97385-892-0	8-97385-881-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A), THA ASM PART: O = 8-97389-270-0	8-97389-235-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: B = 8-97356-161-0, D = 8-97359-755-1, P = 8-97940-840-3	8-97246-607-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: A = 8-97356-160-0, C = 8-97359-753-1, Q = 8-97940-841-3	8-97246-608-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: E = 8-97361-181-1	8-97361-167-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: F = 8-97361-182-1	8-97361-172-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: G = 8-97371-610-0	8-97372-112-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: H = 8-97371-611-0	8-97372-117-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: I = 8-97384-622-0	8-97384-166-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: J = 8-97384-623-0	8-97384-171-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: K = 8-97384-624-0	8-97384-176-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: L = 8-97385-889-0	8-97385-865-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: M = 8-97385-891-0	8-97385-877-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: N = 8-97385-892-0	8-97385-882-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: O = 8-97389-270-0	8-97389-236-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: B = 8-97356-161-0, D = 8-97359-755-1, P = 8-97940-840-3	8-97246-612-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: A = 8-97356-160-0, C = 8-97359-753-1, Q = 8-97940-841-3	8-97246-614-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: E = 8-97361-181-1	8-97361-168-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: F = 8-97361-182-1	8-97361-173-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: G = 8-97371-610-0	8-97372-113-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: H = 8-97371-611-0	8-97372-118-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: I = 8-97384-622-0	8-97384-167-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: J = 8-97384-623-0	8-97384-172-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: K = 8-97384-624-0	8-97384-177-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: L = 8-97385-889-0	8-97385-866-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: M = 8-97385-891-0	8-97385-878-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: N = 8-97385-892-0	8-97385-883-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: O = 8-97389-270-0	8-97389-237-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: B = 8-97356-161-0, P = 8-97940-840-3	8-97246-620-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: A = 8-97356-160-0, Q = 8-97940-841-3	8-97246-621-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: C = 8-97359-753-1	8-97368-641-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: D = 8-97359-755-1	8-97368-645-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: E = 8-97361-181-1	8-97368-648-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: F = 8-97361-182-1	8-97368-650-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: G = 8-97371-610-0	8-97372-115-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: H = 8-97371-611-0	8-97372-120-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: I = 8-97384-622-0	8-97384-169-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: J = 8-97384-623-0	8-97384-174-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: K = 8-97384-624-0	8-97384-178-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: L = 8-97385-889-0	8-97385-868-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: M = 8-97385-891-0	8-97385-880-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: N = 8-97385-892-0	8-97385-885-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: O = 8-97389-270-0	8-97389-238-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: A = 8-97356-160-0, Q = 8-97940-841-3	8-97246-626-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: C = 8-97359-753-1	8-97368-642-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: E = 8-97361-181-1	8-97368-649-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: F = 8-97361-182-1	8-97368-651-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: K = 8-97384-624-0	8-97384-179-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: O = 8-97389-270-0	8-97389-239-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X56, THA ASM PART: A = 8-97356-160-0, C = 8-97359-753-1, F = 8-97361-182-1, K = 8-97384-624-0, Q = 8-97940-841-3	8-94468-050-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: G = 8-97371-610-0, H = 8-97371-611-0, J = 8-97384-623-0, L = 8-97385-889-0, N = 8-97385-892-0	8-97049-849-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: B = 8-97356-161-0, D = 8-97359-755-1, E = 8-97361-181-1, I = 8-97384-622-0, M = 8-97385-891-0, O = 8-97389-270-0, P = 8-97940-840-3	8-97304-262-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: C = 8-97359-753-1, F = 8-97361-182-1, G = 8-97371-610-0, H = 8-97371-611-0, I = 8-97384-622-0, J = 8-97384-623-0, K = 8-97384-624-0, L = 8-97385-889-0, M = 8-97385-891-0, N = 8-97385-892-0, O = 8-97389-270-0	8-97945-821-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: A = 8-97356-160-0, B = 8-97356-161-0, D = 8-97359-755-1, E = 8-97361-181-1, P = 8-97940-840-3, Q = 8-97940-841-3	9-09110-508-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR THA ASM PART: F = 8-97361-182-1, G = 8-97371-610-0, H = 8-97371-611-0, J = 8-97384-623-0, K = 8-97384-624-0, L = 8-97385-889-0, N = 8-97385-892-0	8-94468-305-0	03	1	-
37	SPACER; CENTER,LEAF SPR,RR THA ASM PART: A = 8-97356-160-0, B = 8-97356-161-0, C = 8-97359-753-1, D = 8-97359-755-1, E = 8-97361-181-1, I = 8-97384-622-0, M = 8-97385-891-0, O = 8-97389-270-0, P = 8-97940-840-3, Q = 8-97940-841-3	8-94468-305-0	04	1	-
38	BUSHING; LEAF SPR,RR THA ASM PART: A = 8-97356-160-0, B = 8-97356-161-0, C = 8-97359-753-1, D = 8-97359-755-1, E = 8-97361-181-1, F = 8-97361-182-1, G = 8-97371-610-0, H = 8-97371-611-0, I = 8-97384-622-0, J = 8-97384-623-0, K = 8-97384-624-0, L = 8-97385-889-0, M = 8-97385-891-0, N = 8-97385-892-0, O = 8-97389-270-0, P = 8-97940-840-3, Q = 8-97940-841-3	8-97332-642-0	01	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: A = 8-97356-160-0, B = 8-97356-161-0, P = 8-97940-840-3, Q = 8-97940-841-3	8-94406-909-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: A = 8-97356-160-0, Q = 8-97940-841-3	8-94479-181-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: B = 8-97356-161-0, P = 8-97940-840-3	8-94479-181-0	04	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: H = 8-97371-611-0, J = 8-97384-623-0, N = 8-97385-892-0	8-97360-245-0	03	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: C = 8-97359-753-1, E = 8-97361-181-1, O = 8-97389-270-0	8-97360-245-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: D = 8-97359-755-1, F = 8-97361-182-1, G = 8-97371-610-0, I = 8-97384-622-0, K = 8-97384-624-0, L = 8-97385-889-0, M = 8-97385-891-0	8-97360-245-0	04	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: H = 8-97371-611-0, J = 8-97384-623-0, N = 8-97385-892-0	8-97360-246-0	03	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: C = 8-97359-753-1, D = 8-97359-755-1, E = 8-97361-181-1, G = 8-97371-610-0, I = 8-97384-622-0, L = 8-97385-889-0, M = 8-97385-891-0, O = 8-97389-270-0	8-97360-246-0	02	1	-

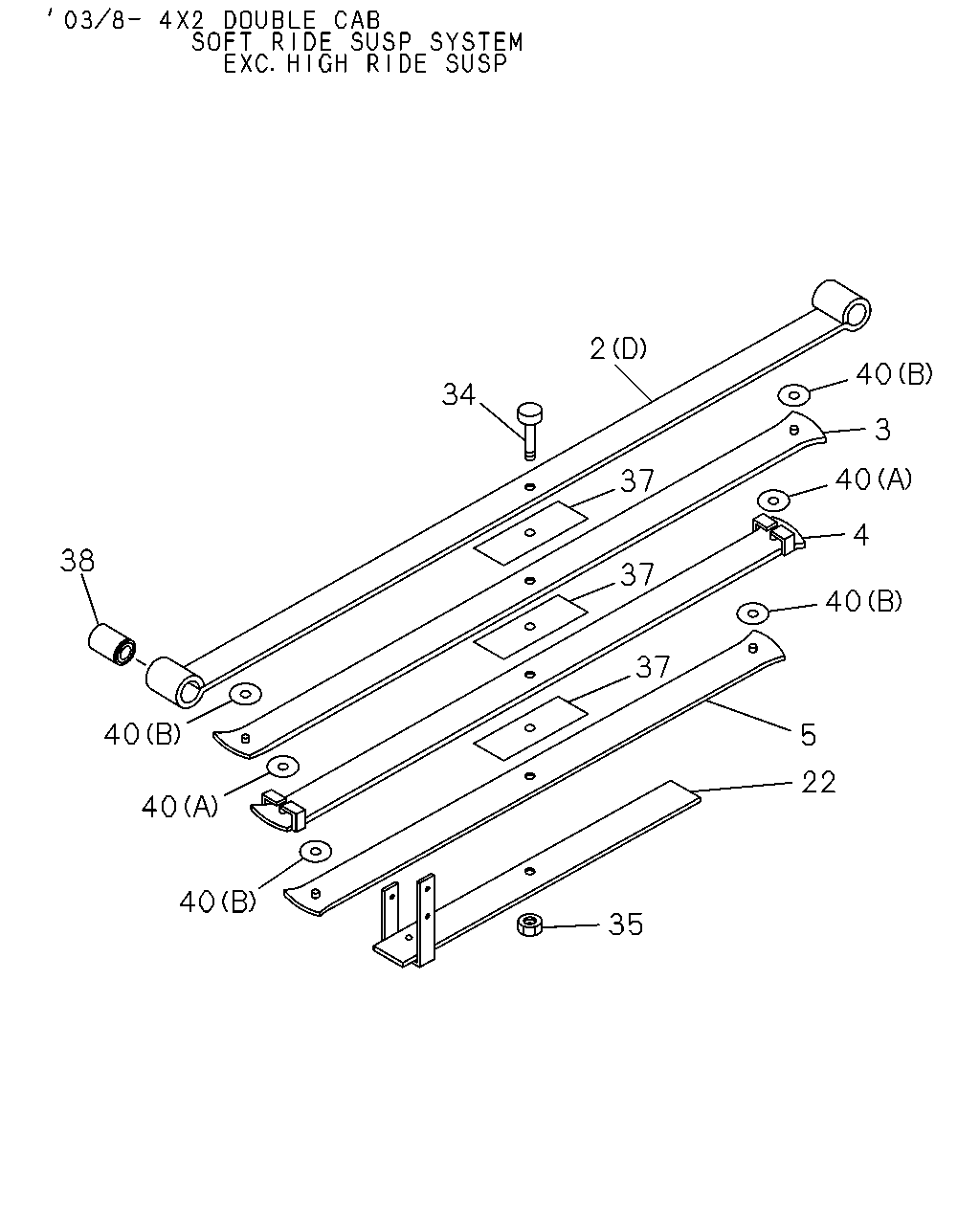

2 40 34 3 37 40 38 37 4 37 40 40 5 40 40 22 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN (B), THA ASM PART: B = 8-97356-161-0, D = 8-97359-755-1, P = 8-97940-840-3	8-97246-603-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A), THA ASM PART: A = 8-97356-160-0, C = 8-97359-753-1, Q = 8-97940-841-3	8-97246-604-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A), THA ASM PART: E = 8-97361-181-1	8-97361-166-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (C), THA ASM PART: F = 8-97361-182-1	8-97361-171-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (D), THA ASM PART: G = 8-97371-610-0	8-97372-111-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (E), THA ASM PART: H = 8-97371-611-0	8-97372-116-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B), THA ASM PART: I = 8-97384-622-0	8-97384-165-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (E), THA ASM PART: J = 8-97384-623-0	8-97384-170-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (C), THA ASM PART: K = 8-97384-624-0	8-97384-175-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (D), THA ASM PART: L = 8-97385-889-0	8-97385-864-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B), THA ASM PART: M = 8-97385-891-0	8-97385-876-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (E), THA ASM PART: N = 8-97385-892-0	8-97385-881-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A), THA ASM PART: O = 8-97389-270-0	8-97389-235-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: B = 8-97356-161-0, D = 8-97359-755-1, P = 8-97940-840-3	8-97246-607-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: A = 8-97356-160-0, C = 8-97359-753-1, Q = 8-97940-841-3	8-97246-608-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: E = 8-97361-181-1	8-97361-167-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: F = 8-97361-182-1	8-97361-172-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: G = 8-97371-610-0	8-97372-112-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: H = 8-97371-611-0	8-97372-117-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: I = 8-97384-622-0	8-97384-166-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: J = 8-97384-623-0	8-97384-171-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: K = 8-97384-624-0	8-97384-176-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: L = 8-97385-889-0	8-97385-865-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: M = 8-97385-891-0	8-97385-877-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: N = 8-97385-892-0	8-97385-882-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: O = 8-97389-270-0	8-97389-236-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: B = 8-97356-161-0, D = 8-97359-755-1, P = 8-97940-840-3	8-97246-612-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: A = 8-97356-160-0, C = 8-97359-753-1, Q = 8-97940-841-3	8-97246-614-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: E = 8-97361-181-1	8-97361-168-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: F = 8-97361-182-1	8-97361-173-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: G = 8-97371-610-0	8-97372-113-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: H = 8-97371-611-0	8-97372-118-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: I = 8-97384-622-0	8-97384-167-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: J = 8-97384-623-0	8-97384-172-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: K = 8-97384-624-0	8-97384-177-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: L = 8-97385-889-0	8-97385-866-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: M = 8-97385-891-0	8-97385-878-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: N = 8-97385-892-0	8-97385-883-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: O = 8-97389-270-0	8-97389-237-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: B = 8-97356-161-0, D = 8-97359-755-1, P = 8-97940-840-3	8-97304-269-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: G = 8-97371-610-0	8-97372-114-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: H = 8-97371-611-0	8-97372-119-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: I = 8-97384-622-0	8-97384-168-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: J = 8-97384-623-0	8-97384-173-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: L = 8-97385-889-0	8-97385-867-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: M = 8-97385-891-0	8-97385-879-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: N = 8-97385-892-0	8-97385-884-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: B = 8-97356-161-0, P = 8-97940-840-3	8-97246-620-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: A = 8-97356-160-0, Q = 8-97940-841-3	8-97246-621-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: C = 8-97359-753-1	8-97368-641-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: D = 8-97359-755-1	8-97368-645-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: E = 8-97361-181-1	8-97368-648-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: F = 8-97361-182-1	8-97368-650-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: G = 8-97371-610-0	8-97372-115-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: H = 8-97371-611-0	8-97372-120-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: I = 8-97384-622-0	8-97384-169-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: J = 8-97384-623-0	8-97384-174-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: K = 8-97384-624-0	8-97384-178-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: L = 8-97385-889-0	8-97385-868-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: M = 8-97385-891-0	8-97385-880-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: N = 8-97385-892-0	8-97385-885-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: O = 8-97389-270-0	8-97389-238-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X56, THA ASM PART: A = 8-97356-160-0, C = 8-97359-753-1, F = 8-97361-182-1, K = 8-97384-624-0, Q = 8-97940-841-3	8-94468-050-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: G = 8-97371-610-0, H = 8-97371-611-0, J = 8-97384-623-0, L = 8-97385-889-0, N = 8-97385-892-0	8-97049-849-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: B = 8-97356-161-0, D = 8-97359-755-1, E = 8-97361-181-1, I = 8-97384-622-0, M = 8-97385-891-0, O = 8-97389-270-0, P = 8-97940-840-3	8-97304-262-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: C = 8-97359-753-1, F = 8-97361-182-1, G = 8-97371-610-0, H = 8-97371-611-0, I = 8-97384-622-0, J = 8-97384-623-0, K = 8-97384-624-0, L = 8-97385-889-0, M = 8-97385-891-0, N = 8-97385-892-0, O = 8-97389-270-0	8-97945-821-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: A = 8-97356-160-0, B = 8-97356-161-0, D = 8-97359-755-1, E = 8-97361-181-1, P = 8-97940-840-3, Q = 8-97940-841-3	9-09110-508-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR THA ASM PART: F = 8-97361-182-1, G = 8-97371-610-0, H = 8-97371-611-0, J = 8-97384-623-0, K = 8-97384-624-0, L = 8-97385-889-0, N = 8-97385-892-0	8-94468-305-0	03	1	-
37	SPACER; CENTER,LEAF SPR,RR THA ASM PART: A = 8-97356-160-0, B = 8-97356-161-0, C = 8-97359-753-1, D = 8-97359-755-1, E = 8-97361-181-1, I = 8-97384-622-0, M = 8-97385-891-0, O = 8-97389-270-0, P = 8-97940-840-3, Q = 8-97940-841-3	8-94468-305-0	04	1	-
38	BUSHING; LEAF SPR,RR THA ASM PART: A = 8-97356-160-0, B = 8-97356-161-0, C = 8-97359-753-1, D = 8-97359-755-1, E = 8-97361-181-1, F = 8-97361-182-1, G = 8-97371-610-0, H = 8-97371-611-0, I = 8-97384-622-0, J = 8-97384-623-0, K = 8-97384-624-0, L = 8-97385-889-0, M = 8-97385-891-0, N = 8-97385-892-0, O = 8-97389-270-0, P = 8-97940-840-3, Q = 8-97940-841-3	8-97332-642-0	01	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: A = 8-97356-160-0, B = 8-97356-161-0, P = 8-97940-840-3, Q = 8-97940-841-3	8-94406-909-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: A = 8-97356-160-0, Q = 8-97940-841-3	8-94479-181-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: B = 8-97356-161-0, P = 8-97940-840-3	8-94479-181-0	04	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: H = 8-97371-611-0, J = 8-97384-623-0, N = 8-97385-892-0	8-97360-245-0	03	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: C = 8-97359-753-1, E = 8-97361-181-1, O = 8-97389-270-0	8-97360-245-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: D = 8-97359-755-1, F = 8-97361-182-1, G = 8-97371-610-0, I = 8-97384-622-0, K = 8-97384-624-0, L = 8-97385-889-0, M = 8-97385-891-0	8-97360-245-0	04	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: H = 8-97371-611-0, J = 8-97384-623-0, N = 8-97385-892-0	8-97360-246-0	03	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: C = 8-97359-753-1, D = 8-97359-755-1, E = 8-97361-181-1, G = 8-97371-610-0, I = 8-97384-622-0, L = 8-97385-889-0, M = 8-97385-891-0, O = 8-97389-270-0	8-97360-246-0	02	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
