◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#72890) — 87 parça

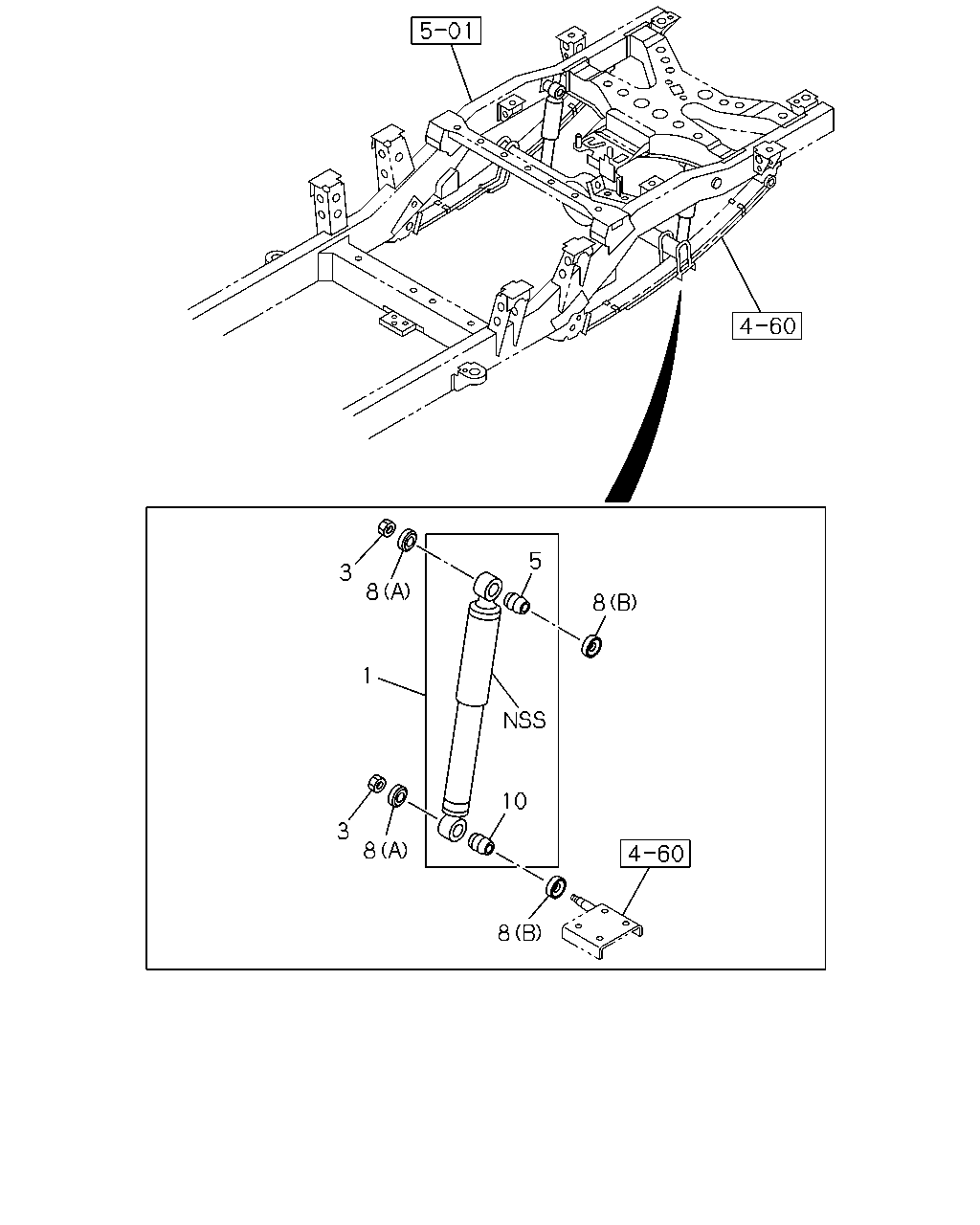

çizim 116612
5 3 8 8 1 10 3 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 ABSORBER ASM; SHOCK,RR
THA 		8-97940-845-4 02 1 0204-0207 ●
1 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY<G50> THA 		8-97940-845-4 02 1 0204-0207 ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-97940-845-4 02 1 0208-0212 ● ●
1 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY<G50> THA 		8-97940-845-4 02 1 0208-0212 ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-97940-845-4 02 1 0301-0306 ●
1 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY<G50> THA 		8-97940-845-4 02 1 0301-0306 ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-97368-598-0 02 1 0307-0307 ●
1 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY<G50> THA 		8-97368-598-0 02 1 0307-0307 ●
1 ABSORBER ASM; SHOCK,RR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97368-598-0 02 1 0308-0408 ●
1 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY<G50> THA 		8-97368-598-0 02 1 0308-0408 ●
1 ABSORBER ASM; SHOCK,RR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97368-598-0 02 1 0409-0507 ●
1 ABSORBER ASM; SHOCK,RR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97368-598-0 02 1 0508-0705 ●
1 ABSORBER ASM; SHOCK,RR
EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2>,HIGH RIDE SUSPENSION<7YC> THA 		8-97368-598-0 02 1 0508-0705 ●
1 ABSORBER ASM; SHOCK,RR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98056-031-0 02 1 0706-0706 ●
1 ABSORBER ASM; SHOCK,RR
EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2>,HIGH RIDE SUSPENSION<7YC> THA 		8-98056-031-0 02 1 0706-0706 ●
1 ABSORBER ASM; SHOCK,RR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97946-649-0 02 1 0707-0910 ●
1 ABSORBER ASM; SHOCK,RR
EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2>,HIGH RIDE SUSPENSION<7YC> THA 		8-97946-649-0 02 1 0707-0910 ●
1 ABSORBER ASM; SHOCK,RR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98152-221-0 02 1 0911- ●
1 ABSORBER ASM; SHOCK,RR
EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2>,HIGH RIDE SUSPENSION<7YC> THA 		8-98152-221-0 02 1 0911- ●
1 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY<G50> THA 		8-97301-843-4 02 1 0204-0306 ●
1 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY<G50> THA 		8-97368-600-0 02 1 0307-0408 ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-97368-600-0 02 1 0409-0705 ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-98056-033-0 02 1 0706-0706 ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-97946-668-0 02 1 0707-0808 ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-98101-071-0 02 1 0809-0910 ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-98152-223-0 02 1 0911- ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-97361-710-0 02 1 0301-0306 ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-97368-602-0 02 1 0307-0307 ●
1 ABSORBER ASM; SHOCK,RR
EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>,HIGH RIDESUSPENSION<7YC> THA 		8-97368-602-0 02 1 0308-0507 ●
1 ABSORBER ASM; SHOCK,RR
SUSPENSION RIDE&HANDLING<FE2> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97368-602-0 02 1 0508-0705 ●
1 ABSORBER ASM; SHOCK,RR
SUSPENSION RIDE&HANDLING<FE2> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98056-036-0 02 1 0706-0706 ●
1 ABSORBER ASM; SHOCK,RR
SUSPENSION RIDE&HANDLING<FE2> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97946-671-0 02 1 0707-0910 ●
1 ABSORBER ASM; SHOCK,RR
SUSPENSION RIDE&HANDLING<FE2> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98152-220-0 02 1 0911- ●
1 ABSORBER ASM; SHOCK,RR
SOFT RIDE SUSPENSION SYSTEM<FE1> HIGH RIDE SUSPENSION<7YC> THA 		8-97371-613-0 02 1 0308-0408 ●
1 ABSORBER ASM; SHOCK,RR
SOFT RIDE SUSPENSION SYSTEM<FE1> THA 		8-97371-613-0 02 1 0308-0408 ●
1 ABSORBER ASM; SHOCK,RR
SOFT RIDE SUSPENSION SYSTEM<FE1> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97371-612-0 02 1 0308-0705 ●
1 ABSORBER ASM; SHOCK,RR
SOFT RIDE SUSPENSION SYSTEM<FE1> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98056-040-0 02 1 0706-0706 ●
1 ABSORBER ASM; SHOCK,RR
SOFT RIDE SUSPENSION SYSTEM<FE1> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97946-675-0 02 1 0707-0910 ●
1 ABSORBER ASM; SHOCK,RR
SOFT RIDE SUSPENSION SYSTEM<FE1> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98152-219-0 02 1 0911- ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-97940-844-4 02 1 0204-0207 ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-97940-844-4 02 1 0208-0212 ● ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-97940-844-4 02 1 0301-0306 ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-97368-599-0 02 1 0307-0307 ●
1 ABSORBER ASM; SHOCK,RR
HIGH RIDE SUSPENSION<7YC> THA 		8-97368-599-0 02 1 0308-0507 ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-97368-599-0 02 1 0308-0507 ●
1 ABSORBER ASM; SHOCK,RR
HIGH RIDE SUSPENSION<7YC> THA 		8-97368-599-0 02 1 0508-0705 ●
1 ABSORBER ASM; SHOCK,RR
HIGH RIDE SUSPENSION<7YC> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2> THA 		8-97368-599-0 02 1 0508-0705 ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-97368-599-0 02 1 0508-0705 ●
1 ABSORBER ASM; SHOCK,RR
EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2> THA 		8-97368-599-0 02 1 0508-0705 ●
1 ABSORBER ASM; SHOCK,RR
HIGH RIDE SUSPENSION<7YC> THA 		8-98056-032-0 02 1 0706-0706 ●
1 ABSORBER ASM; SHOCK,RR
HIGH RIDE SUSPENSION<7YC> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2> THA 		8-98056-032-0 02 1 0706-0706 ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-98056-032-0 02 1 0706-0706 ●
1 ABSORBER ASM; SHOCK,RR
EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2> THA 		8-98056-032-0 02 1 0706-0706 ●
1 ABSORBER ASM; SHOCK,RR
HIGH RIDE SUSPENSION<7YC> THA 		8-97946-665-0 02 1 0707-0910 ●
1 ABSORBER ASM; SHOCK,RR
HIGH RIDE SUSPENSION<7YC> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2> THA 		8-97946-665-0 02 1 0707-0910 ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-97946-665-0 02 1 0707-0910 ●
1 ABSORBER ASM; SHOCK,RR
EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2> THA 		8-97946-665-0 02 1 0707-0910 ●
1 ABSORBER ASM; SHOCK,RR
HIGH RIDE SUSPENSION<7YC> THA 		8-98152-227-0 02 1 0911- ●
1 ABSORBER ASM; SHOCK,RR
HIGH RIDE SUSPENSION<7YC> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2> THA 		8-98152-227-0 02 1 0911- ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-98152-227-0 02 1 0911- ●
1 ABSORBER ASM; SHOCK,RR
EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2> THA 		8-98152-227-0 02 1 0911- ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-97361-711-0 02 1 0301-0306 ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-97368-603-0 02 1 0307-0307 ●
1 ABSORBER ASM; SHOCK,RR
HIGH RIDE SUSPENSION<7YC> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> THA 		8-97368-603-0 02 1 0308-0408 ●
1 ABSORBER ASM; SHOCK,RR
EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> THA 		8-97368-603-0 02 1 0308-0408 ●
1 ABSORBER ASM; SHOCK,RR
HIGH RIDE SUSPENSION<7YC> THA 		8-97368-603-0 02 1 0409-0507 ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-97368-603-0 02 1 0409-0507 ●
1 ABSORBER ASM; SHOCK,RR
SOFT RIDE SUSPENSION SYSTEM<FE1>,SUSPENSION RIDE&HANDLING<FE2> HIGH RIDE SUSPENSION<7YC> THA 		8-97368-603-0 02 1 0508-0705 ●
1 ABSORBER ASM; SHOCK,RR
SOFT RIDE SUSPENSION SYSTEM<FE1>,SUSPENSION RIDE&HANDLING<FE2> THA 		8-97368-603-0 02 1 0508-0705 ●
1 ABSORBER ASM; SHOCK,RR
SOFT RIDE SUSPENSION SYSTEM<FE1>,SUSPENSION RIDE&HANDLING<FE2> HIGH RIDE SUSPENSION<7YC> THA 		8-98056-038-0 02 1 0706-0706 ●
1 ABSORBER ASM; SHOCK,RR
SOFT RIDE SUSPENSION SYSTEM<FE1>,SUSPENSION RIDE&HANDLING<FE2> THA 		8-98056-038-0 02 1 0706-0706 ●
1 ABSORBER ASM; SHOCK,RR
SOFT RIDE SUSPENSION SYSTEM<FE1>,SUSPENSION RIDE&HANDLING<FE2> HIGH RIDE SUSPENSION<7YC> THA 		8-97946-673-0 02 1 0707-0910 ●
1 ABSORBER ASM; SHOCK,RR
SOFT RIDE SUSPENSION SYSTEM<FE1>,SUSPENSION RIDE&HANDLING<FE2> THA 		8-97946-673-0 02 1 0707-0910 ●
1 ABSORBER ASM; SHOCK,RR
SOFT RIDE SUSPENSION SYSTEM<FE1>,SUSPENSION RIDE&HANDLING<FE2> HIGH RIDE SUSPENSION<7YC> THA 		8-98152-225-0 02 1 0911- ●
1 ABSORBER ASM; SHOCK,RR
SOFT RIDE SUSPENSION SYSTEM<FE1>,SUSPENSION RIDE&HANDLING<FE2> THA 		8-98152-225-0 02 1 0911- ●
3 NUT; S/ABS
M12 FLANGE THA 		8-97256-670-0 04 1 0204-0207 ● ● ●
3 NUT; S/ABS
M12 FLANGE THA 		8-97256-670-0 04 1 0208- ● ● ● ● ●
5 BUSHING; RUBBER,S/ABS,UPR
THA 		8-97302-810-0 02 1 0204-0207 ● ● ●
5 BUSHING; RUBBER,S/ABS,UPR
THA 		8-97302-810-0 02 1 0208- ● ● ● ● ●
8 WASHER; S/ABS
(A) ID=16.5 THA 		8-94445-688-0 04 1 0204-0207 ● ● ●
8 WASHER; S/ABS
(A) ID=16.5 THA 		8-94445-688-0 04 1 0208-0606 ● ● ● ● ●
8 WASHER; S/ABS
(A) ID=16.5 THA 		8-98005-970-0 04 1 0607- ● ● ● ● ●
8 WASHER; S/ABS
(B) ID=12.5 IMA 		9-51679-022-0 04 1 0204-0207 ● ● ●
8 WASHER; S/ABS
(B) ID=12.5 IMA 		9-51679-022-0 04 1 0208-0606 ● ● ● ● ●
8 WASHER; S/ABS
(B) ID=12.5 THA 		8-98005-969-0 04 1 0607- ● ● ● ● ●
10 BUSHING; RUBBER,S/ABS
THA 		8-97302-810-0 02 1 0204-0207 ● ● ●
10 BUSHING; RUBBER,S/ABS
THA 		8-97302-810-0 02 1 0208- ● ● ● ● ●
