◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10806 - EXZ RHD FUEL TANK 400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#7289) — 161 parça

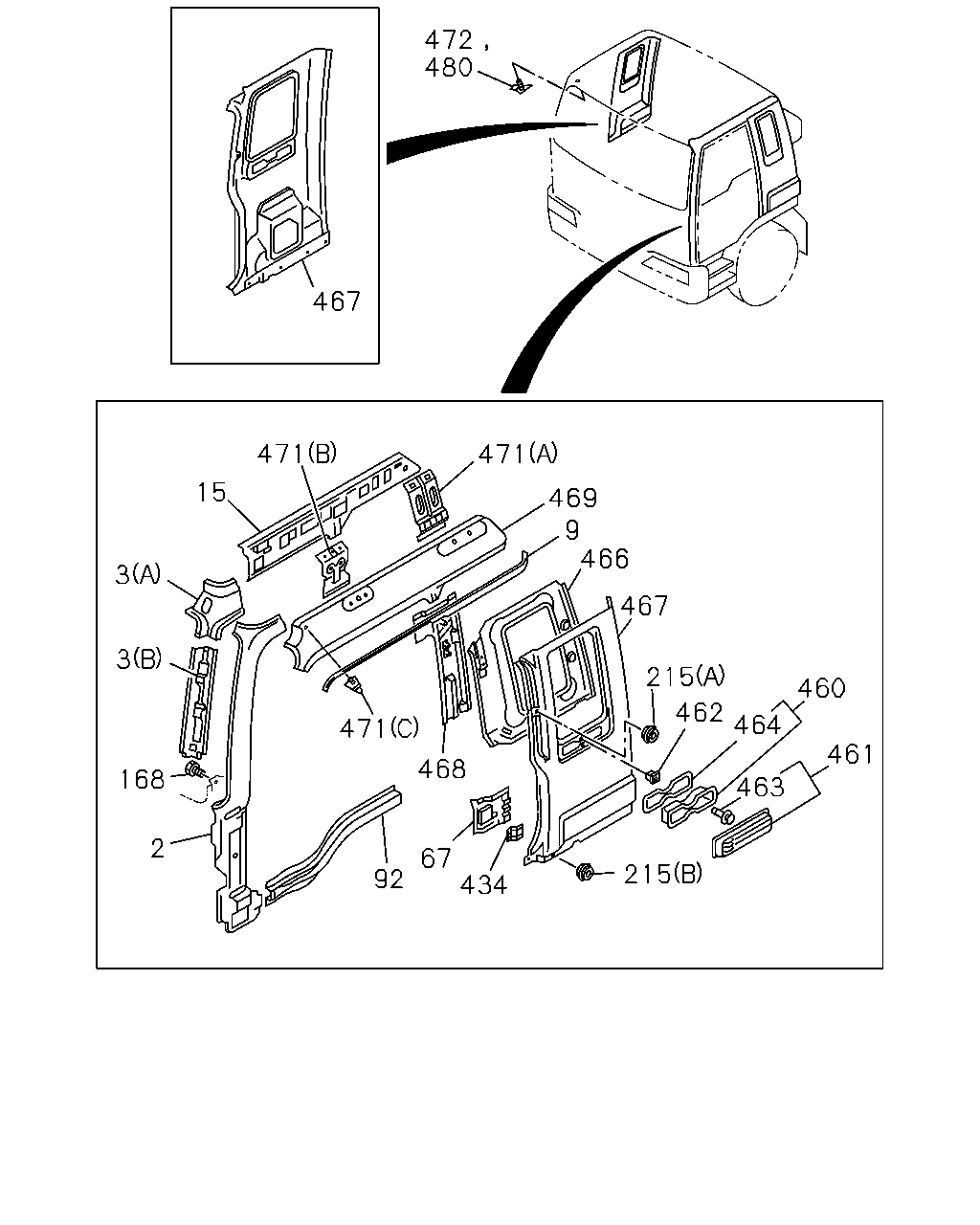

çizim 43021
472 480 467 471 471 15 469 9 466 3 467 3 215 460 462 464 471 461 468 168 463 2 67 434 215 92
BalonParca AdiParca NoAdetTipApplied Date
2 PILLAR; FRT 1-61281-155-4 01 1 9906-
2 PILLAR; FRT
HIGH ROOF<S2F> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-61281-156-4 01 1 9906-0002
2 PILLAR; FRT
EXC. HIGH ROOF<S2F> 		1-61281-156-4 01 1 9906-0002
2 PILLAR; FRT 1-61281-156-4 01 1 0003-
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-169-5 01 1 9906-
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-343-5 01 1 9906-
3 PANEL; CLOSING,FRT PILLAR
HIGH ROOF<S2F> EXC. BAGGAGE BOX CAB RR SIDE<TBM> (A) 		1-61281-170-5 01 1 9906-0002
3 PANEL; CLOSING,FRT PILLAR
EXC. HIGH ROOF<S2F> (A) 		1-61281-170-5 01 1 9906-0002
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-170-5 01 1 0003-
3 PANEL; CLOSING,FRT PILLAR
HIGH ROOF<S2F> EXC. BAGGAGE BOX CAB RR SIDE<TBM> (B) 		1-61281-344-5 01 1 9906-0002
3 PANEL; CLOSING,FRT PILLAR
EXC. HIGH ROOF<S2F> (B) 		1-61281-344-5 01 1 9906-0002
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-344-5 01 1 0003-
9 MOLDING; DRIP,CAB SIDE
HIGH ROOF<S2F> 		1-61270-791-2 01 1 9906-
9 MOLDING; DRIP,CAB SIDE
HIGH ROOF<S2F> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-61270-792-2 01 1 9906-0002
9 MOLDING; DRIP,CAB SIDE
HIGH ROOF<S2F> 		1-61270-792-2 01 1 0003-
9 MOLDING; DRIP,CAB SIDE
EXC. HIGH ROOF<S2F> 		1-61281-281-4 01 1 9906-
9 MOLDING; DRIP,CAB SIDE
EXC. HIGH ROOF<S2F> 		1-61281-280-4 01 1 9906-
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 9906-
15 PANEL; CANT RAIL SIDE
HIGH ROOF<S2F> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-61281-178-8 01 1 9906-0002
15 PANEL; CANT RAIL SIDE
EXC. HIGH ROOF<S2F> 		1-61281-178-8 01 1 9906-0002
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 0003-
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 9906-
67 PANEL; INNER,RR PILLAR LWR
HIGH ROOF<S2F> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-61281-195-5 01 1 9906-0002
67 PANEL; INNER,RR PILLAR LWR
EXC. HIGH ROOF<S2F> 		1-61281-195-5 01 1 9906-0002
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 0003-
92 PANEL; SIDE SILL,CAB
HIGH ROOF<S2F> 		1-61281-211-8 01 1 9906-9906
92 PANEL; SIDE SILL,CAB 1-61281-211-8 01 1 9907-
92 PANEL; SIDE SILL,CAB
HIGH ROOF<S2F> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-61281-212-7 01 1 9906-0002
92 PANEL; SIDE SILL,CAB
EXC. HIGH ROOF<S2F> 		1-61281-212-7 01 1 9906-0002
92 PANEL; SIDE SILL,CAB 1-61281-212-7 01 1 0003-
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 9906-
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 9906-
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 9906-
434 PATCH; ASSIST GRIP
HIGH ROOF<S2F> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-61270-763-1 01 1 9906-0002
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 9906-0002
434 PATCH; ASSIST GRIP
EXC. HIGH ROOF<S2F> 		1-61270-763-1 01 1 9906-0002
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 0003-
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 0003-
460 VENTILATOR; BODY SIDE 1-76378-292-3 02 1 9906-
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 9906-
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 9906-
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 9906-
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 9906-
464 SEAL; VENTILATOR 1-76378-299-0 02 1 9906-
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 9906-
466 PANEL; INNER,BACK CORNER
HIGH ROOF<S2F> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-61281-416-1 01 1 9906-0002
466 PANEL; INNER,BACK CORNER
EXC. HIGH ROOF<S2F> 		1-61281-416-1 01 1 9906-0002
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 0003-
467 PANEL; OUTER,BACK CORNER 1-61281-203-2 01 1 9906-
467 PANEL; OUTER,BACK CORNER
BAGGAGE BOX CAB RR SIDE<TBM> EXC. HIGH ROOF<S2F> 		1-61270-773-1 01 1 9906-0002
467 PANEL; OUTER,BACK CORNER
BAGGAGE BOX CAB RR SIDE<TBM> 		1-61270-773-1 01 1 0003-
467 PANEL; OUTER,BACK CORNER
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-61281-204-2 01 1 9906-
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 9906-
468 REINFORCEMENT; SEAT BELT ANCHOR
HIGH ROOF<S2F> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-61281-418-2 01 1 9906-0002
468 REINFORCEMENT; SEAT BELT ANCHOR
EXC. HIGH ROOF<S2F> 		1-61281-418-2 01 1 9906-0002
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-418-2 01 1 0003-
469 ROOF; SIDE 1-61281-198-6 01 1 9906-
469 ROOF; SIDE
HIGH ROOF<S2F> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-61281-199-5 01 1 9906-0002
469 ROOF; SIDE
EXC. HIGH ROOF<S2F> 		1-61281-199-5 01 1 9906-0002
469 ROOF; SIDE 1-61281-199-6 01 1 0003-
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-200-3 01 1 9906-
471 PATCH; AIR DEFLECTOR
EXC. BAGGAGE BOX CAB RR SIDE<TBM> (C) 		1-61281-233-4 01 1 9906-
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> EXC. BAGGAGE BOX CAB RR SIDE<TBM> (A) 		1-61281-202-3 01 1 9906-0002
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-202-3 01 1 9906-0002
471 PATCH; AIR DEFLECTOR
EXC. HIGH ROOF<S2F> (A) 		1-61281-202-3 01 1 9906-0002
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-202-3 01 1 0003-
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-202-3 01 1 0003-
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> EXC. BAGGAGE BOX CAB RR SIDE<TBM> (B) 		1-61281-201-3 01 1 9906-0002
471 PATCH; AIR DEFLECTOR
EXC. HIGH ROOF<S2F> (B) 		1-61281-201-3 01 1 9906-0002
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-201-3 01 1 0003-
472 PATCH; STAY,ROOF 1-61281-232-3 01 1 9906-9907
472 PATCH; STAY,ROOF 1-61270-943-1 01 1 9908-
480 REINFORCEMENT ASM; STAY ROOF
BAGGAGE BOX CAB RR SIDE<TBM> EXC. HIGH ROOF<S2F> 		1-61281-233-3 01 1 9906-0002
480 REINFORCEMENT ASM; STAY ROOF
BAGGAGE BOX CAB RR SIDE<TBM> 		1-61281-233-4 01 1 0003-

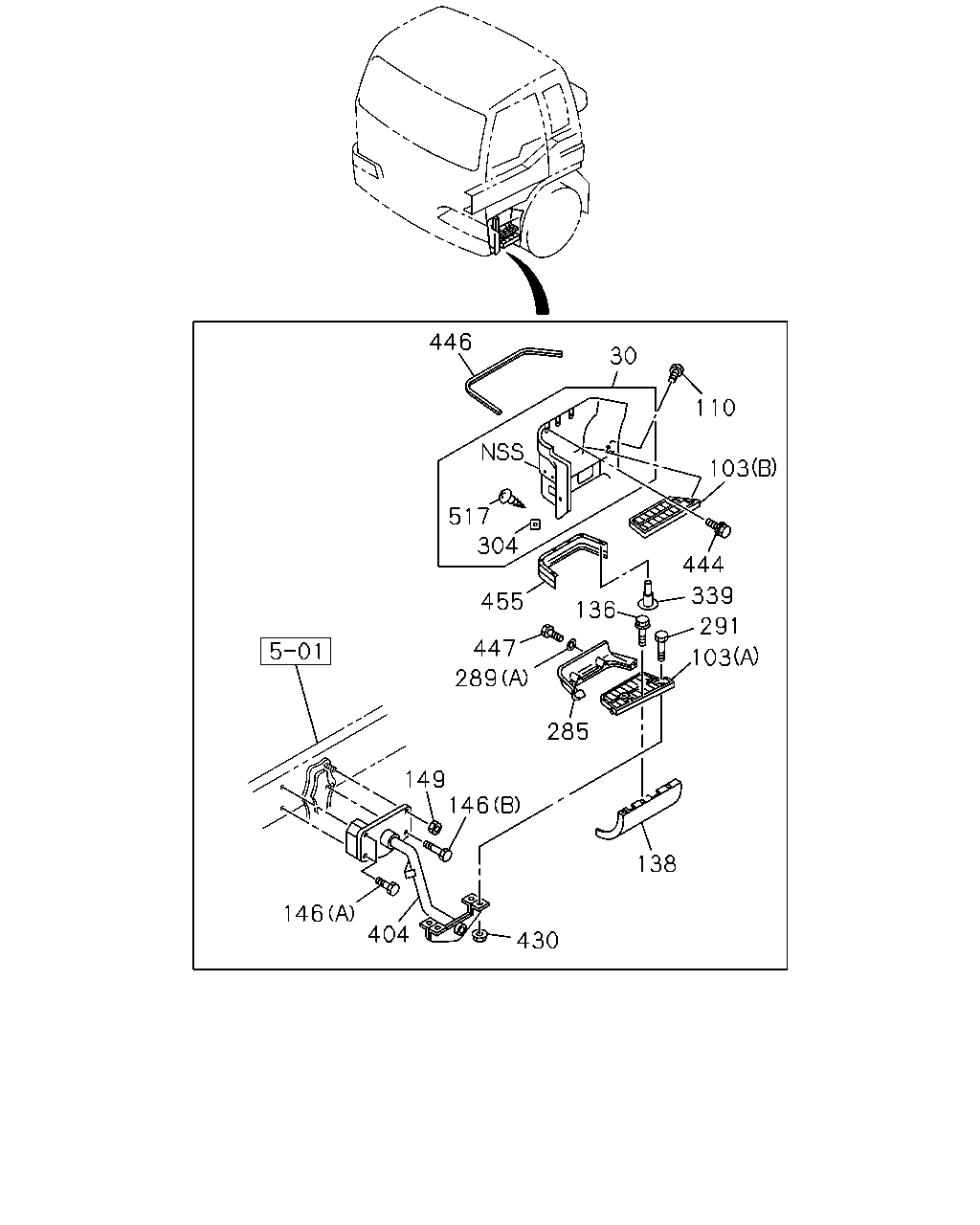

çizim 43145
446 30 110 103 517 304 444 339 455 136 291 447 103 289 285 149 146 138 146 404 430
BalonParca AdiParca NoAdetTipApplied Date
30 CLOSING; SIDE STEP 1-71907-465-0 01 1 9906-
30 CLOSING; SIDE STEP 1-71907-464-0 01 1 9906-
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 9906-
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 9906-
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 9906-
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 9906-
110 BOLT; 1ST STEP PLATE
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 9906-
136 BOLT; OVER FENDER
FRONT SPOILER<VP1> M5X22 		8-97029-303-1 06 1 9906-
138 FENDER; OVER
FRONT SPOILER<VP1> 		1-79931-264-0 01 1 9906-
138 FENDER; OVER
FRONT SPOILER<VP1> 		1-79931-263-0 01 1 9906-
146 BOLT; STEP BRKT
(A) M12X70 FLANGE 		0-28081-270-0 04 1 9906-
146 BOLT; STEP BRKT
(B) M12X30 FLANGE 		0-28081-230-0 01 1 9906-
149 NUT; STEP BRKT
M12 FLANGE 		0-91150-212-0 03 1 9906-
285 PLATE; STEP,1ST STEP
FRONT SPOILER<VP1> 		1-53414-182-0 01 1 9906-
285 PLATE; STEP,1ST STEP
FRONT SPOILER<VP1> 		1-53414-047-2 01 1 9906-
285 PLATE; STEP,1ST STEP
EXC. FRONT SPOILER<VP1> 		1-53414-183-0 01 1 9906-
285 PLATE; STEP,1ST STEP
EXC. FRONT SPOILER<VP1> 		1-53414-100-2 01 1 9906-
289 WASHER; PL,STEP
(A) ID=6.4 OD=18 		9-09160-706-0 08 1 9906-
289 WASHER; PL,STEP
(B) ID=15 		9-09651-069-0 01 1 9906-
291 BOLT; STEP PLATE
M8X30 FLANGE 		0-28680-830-0 08 1 9906-
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 9906-
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 9906-
404 BRACKET
CAB UP +110MM<TGG> 		1-53414-172-2 01 1 9906-0104
404 BRACKET
EXC. FRONT SPOILER<VP1> 		1-53414-172-2 01 1 9906-0104
404 BRACKET
CAB UP +110MM<TGG> 		1-53414-226-2 01 1 0105-
404 BRACKET
EXC. FRONT SPOILER<VP1> 		1-53414-226-2 01 1 0105-
404 BRACKET
CAB UP +110MM<TGG> 		1-53414-168-3 01 1 9906-0104
404 BRACKET
EXC. FRONT SPOILER<VP1> 		1-53414-168-3 01 1 9906-0104
404 BRACKET
CAB UP +110MM<TGG> 		1-53414-224-0 01 1 0105-
404 BRACKET
EXC. FRONT SPOILER<VP1> 		1-53414-224-0 01 1 0105-
404 BRACKET
FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> 		1-53414-173-1 01 1 9906-0104
404 BRACKET
FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> 		1-53414-225-2 01 1 0105-
404 BRACKET
FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> 		1-53414-169-2 01 1 9906-0104
404 BRACKET
FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> 		1-53414-223-0 01 1 0105-
430 NUT; PANEL
M8 FLANGE 		0-91150-108-0 08 1 9906-
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9906-
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 9906-
447 BOLT; PANEL
M6X12 FLANGE 		0-28080-612-0 08 1 9906-
455 PROTECTOR; STEP
CAB UP +110MM<TGG> 		1-71907-187-1 01 1 9906-
455 PROTECTOR; STEP
CAB UP +110MM<TGG> 		1-71907-186-1 01 1 9906-
455 PROTECTOR; STEP
EXC. CAB UP +110MM<TGG> 		1-71907-179-1 01 1 9906-
455 PROTECTOR; STEP
EXC. CAB UP +110MM<TGG> 		1-71907-178-1 01 1 9906-
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74100-510-0 04 1 9906-

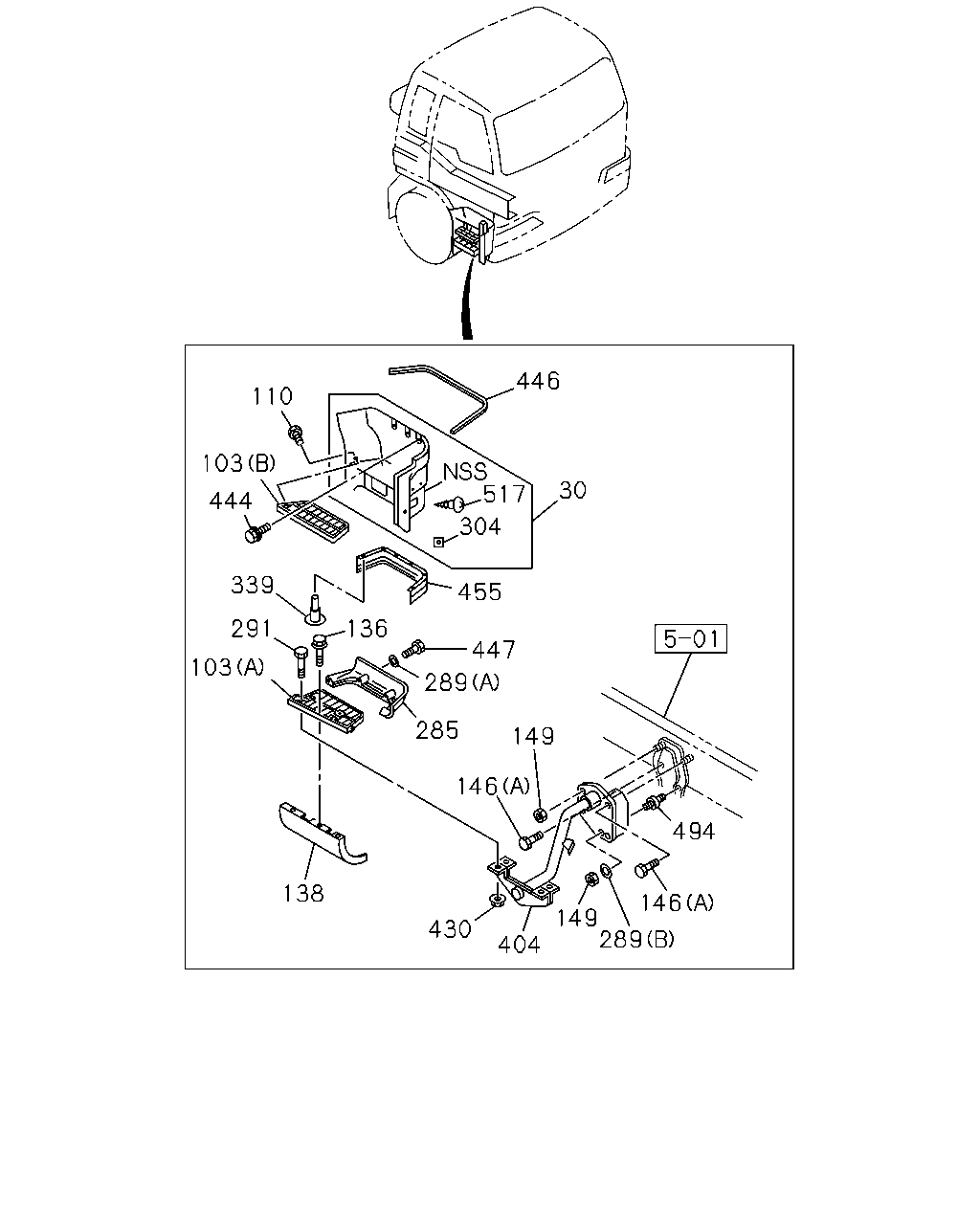

çizim 43547
446 110 103 517 30 444 304 339 455 291 136 447 103 289 285 149 146 494 138 146 149 289 430 404
BalonParca AdiParca NoAdetTipApplied Date
30 CLOSING; SIDE STEP 1-71907-465-0 01 1 9906-
30 CLOSING; SIDE STEP 1-71907-464-0 01 1 9906-
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 9906-
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 9906-
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 9906-
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 9906-
110 BOLT; 1ST STEP PLATE
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 9906-
136 BOLT; OVER FENDER
FRONT SPOILER<VP1> M5X22 		8-97029-303-1 06 1 9906-
138 FENDER; OVER
FRONT SPOILER<VP1> 		1-79931-264-0 01 1 9906-
138 FENDER; OVER
FRONT SPOILER<VP1> 		1-79931-263-0 01 1 9906-
146 BOLT; STEP BRKT
(A) M12X70 FLANGE 		0-28081-270-0 04 1 9906-
146 BOLT; STEP BRKT
(B) M12X30 FLANGE 		0-28081-230-0 01 1 9906-
149 NUT; STEP BRKT
M12 FLANGE 		0-91150-212-0 03 1 9906-
285 PLATE; STEP,1ST STEP
FRONT SPOILER<VP1> 		1-53414-182-0 01 1 9906-
285 PLATE; STEP,1ST STEP
FRONT SPOILER<VP1> 		1-53414-047-2 01 1 9906-
285 PLATE; STEP,1ST STEP
EXC. FRONT SPOILER<VP1> 		1-53414-183-0 01 1 9906-
285 PLATE; STEP,1ST STEP
EXC. FRONT SPOILER<VP1> 		1-53414-100-2 01 1 9906-
289 WASHER; PL,STEP
(A) ID=6.4 OD=18 		9-09160-706-0 08 1 9906-
289 WASHER; PL,STEP
(B) ID=15 		9-09651-069-0 01 1 9906-
291 BOLT; STEP PLATE
M8X30 FLANGE 		0-28680-830-0 08 1 9906-
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 9906-
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 9906-
404 BRACKET
CAB UP +110MM<TGG> 		1-53414-172-2 01 1 9906-0104
404 BRACKET
EXC. FRONT SPOILER<VP1> 		1-53414-172-2 01 1 9906-0104
404 BRACKET
CAB UP +110MM<TGG> 		1-53414-226-2 01 1 0105-
404 BRACKET
EXC. FRONT SPOILER<VP1> 		1-53414-226-2 01 1 0105-
404 BRACKET
CAB UP +110MM<TGG> 		1-53414-168-3 01 1 9906-0104
404 BRACKET
EXC. FRONT SPOILER<VP1> 		1-53414-168-3 01 1 9906-0104
404 BRACKET
CAB UP +110MM<TGG> 		1-53414-224-0 01 1 0105-
404 BRACKET
EXC. FRONT SPOILER<VP1> 		1-53414-224-0 01 1 0105-
404 BRACKET
FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> 		1-53414-173-1 01 1 9906-0104
404 BRACKET
FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> 		1-53414-225-2 01 1 0105-
404 BRACKET
FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> 		1-53414-169-2 01 1 9906-0104
404 BRACKET
FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> 		1-53414-223-0 01 1 0105-
430 NUT; PANEL
M8 FLANGE 		0-91150-108-0 08 1 9906-
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9906-
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 9906-
447 BOLT; PANEL
M6X12 FLANGE 		0-28080-612-0 08 1 9906-
455 PROTECTOR; STEP
CAB UP +110MM<TGG> 		1-71907-187-1 01 1 9906-
455 PROTECTOR; STEP
CAB UP +110MM<TGG> 		1-71907-186-1 01 1 9906-
455 PROTECTOR; STEP
EXC. CAB UP +110MM<TGG> 		1-71907-179-1 01 1 9906-
455 PROTECTOR; STEP
EXC. CAB UP +110MM<TGG> 		1-71907-178-1 01 1 9906-
494 STUD; BRKT
M12X35,M14X45 L=100 		1-09029-075-0 01 1 9906-
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74100-510-0 04 1 9906-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
