4-60 — REAR SUSPENSION (#72889) — 173 parça

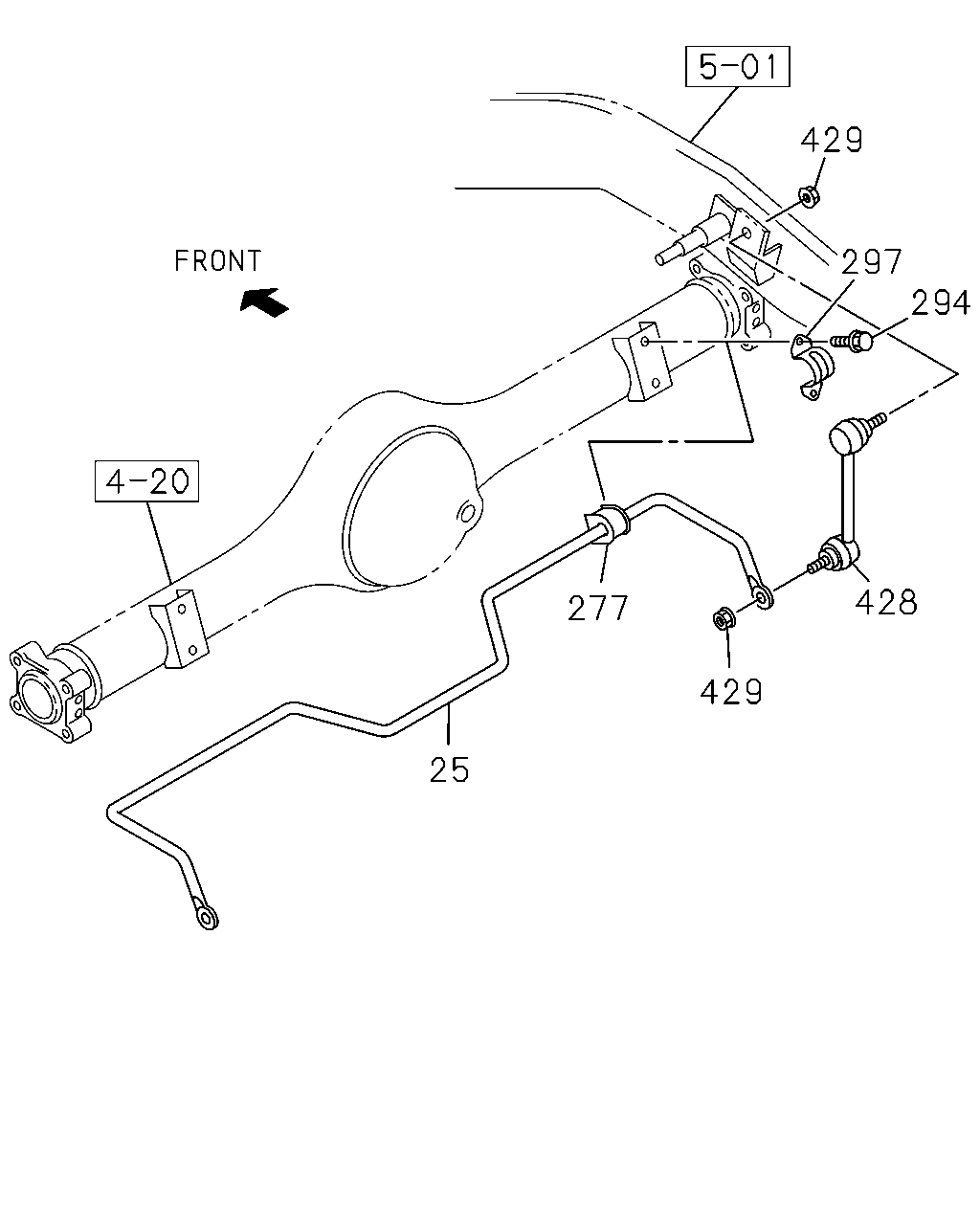

429 297 294 428 277 429 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
25	BAR ASM; STAB,RR SUSP STABILIZER REAR<GN1> THA	8-97235-921-1	01	1	0204-	●
277	BUSHING; STAB,RR UPR STABILIZER REAR<GN1> THA	8-97235-779-0	02	1	0204-	●
294	BOLT; STAB BAR TO RR AXLE STABILIZER REAR<GN1> M8X20 FLANGE THA	0-28450-820-0	04	1	0204-	●
297	CAP; STAB BAR STABILIZER REAR<GN1> THA	8-97235-780-0	02	1	0204-0606	●
297	CAP; STAB BAR STABILIZER REAR<GN1> THA	8-98005-922-0	02	1	0607-	●
428	LINK; RR STABILIZER STABILIZER REAR<GN1> THA	8-97235-922-1	02	1	0204-0607	●
428	LINK; RR STABILIZER STABILIZER REAR<GN1> THA	8-98044-517-0	02	1	0608-	●
429	NUT; LINK STABILIZER REAR<GN1> M10 FLANGE THA	8-97245-646-0	04	1	0204-	●

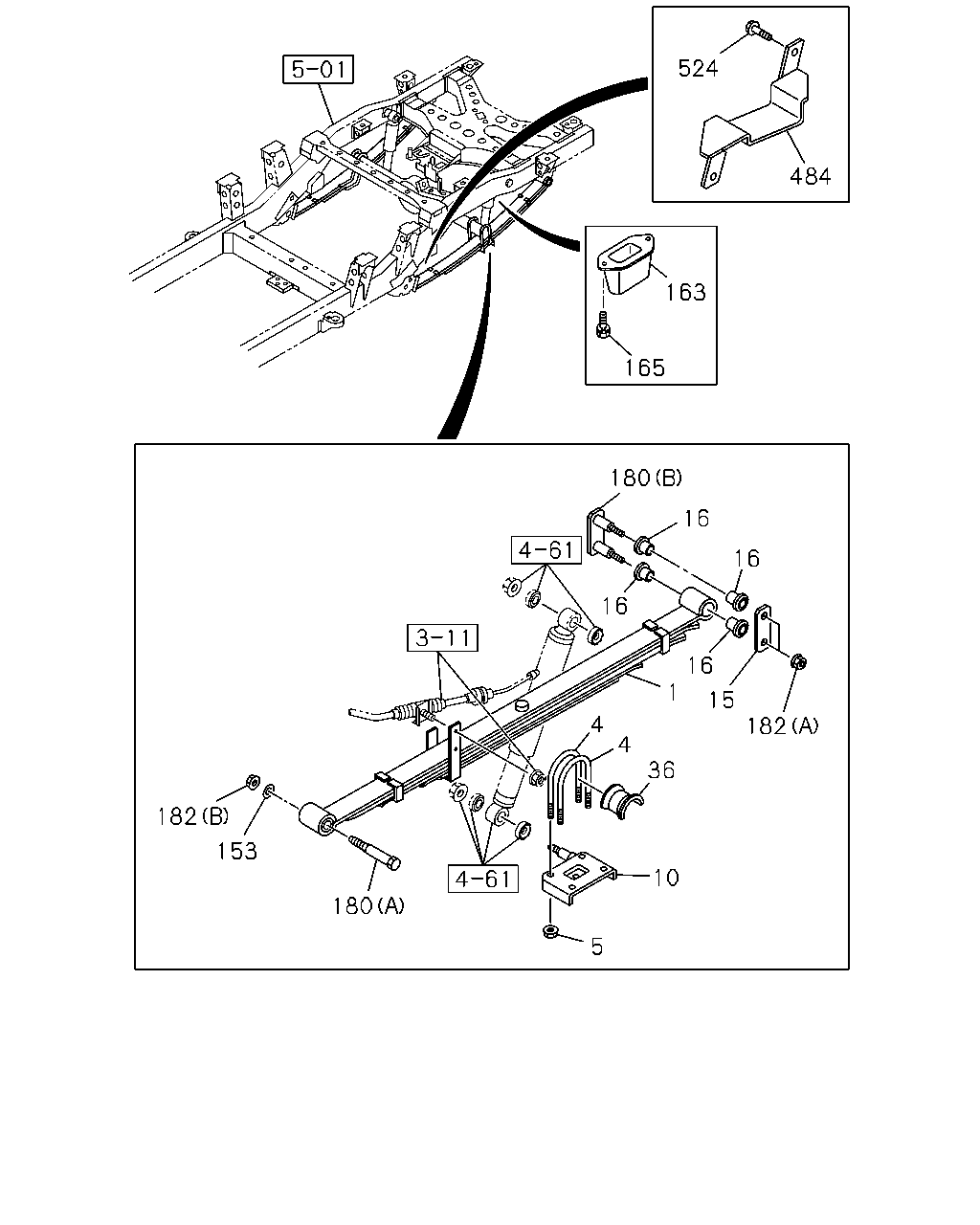

524 484 163 165 180 16 16 16 16 1 15 4 182 4 36 182 153 10 180 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	8-97940-841-3	02	1	0204-0206		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. REAR SPRING HEAVY DUTY<G50> THA	8-97940-841-3	02	1	0204-0206	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	8-97356-160-0	02	1	0207-0207		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. REAR SPRING HEAVY DUTY<G50> THA	8-97356-160-0	02	1	0207-0207	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	8-97356-160-0	02	1	0208-0212		●	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. REAR SPRING HEAVY DUTY<G50> THA	8-97356-160-0	02	1	0208-0212	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	8-97359-753-1	02	1	0301-0307		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. REAR SPRING HEAVY DUTY<G50> THA	8-97359-753-1	02	1	0301-0307	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97359-753-1	02	1	0308-0408		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. REAR SPRING HEAVY DUTY<G50> THA	8-97359-753-1	02	1	0308-0408	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97359-753-1	02	1	0409-0507		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97359-753-1	02	1	0508-0709		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2>,HIGH RIDE SUSPENSION<7YC> THA	8-97359-753-1	02	1	0508-0709			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97946-809-0	02	1	0710-		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2>,HIGH RIDE SUSPENSION<7YC> THA	8-97946-809-0	02	1	0710-			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> EXC. COUNTRY SUSPENSION<V5W> THA	8-97385-891-0	02	1	0607-0708		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY<G50> THA	8-97244-976-3	02	1	0204-0212	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY<G50> THA	8-97359-754-1	02	1	0301-0408	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. THA	8-97385-890-0	02	1	0409-0709	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. THA	8-97946-810-0	02	1	0710-0808	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. THA	8-98101-072-1	02	1	0809-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. THA	8-97361-181-1	02	1	0301-0307			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>,HIGH RIDESUSPENSION<7YC> THA	8-97361-181-1	02	1	0308-0507			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION RIDE&HANDLING<FE2> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97361-181-1	02	1	0508-0508			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION RIDE&HANDLING<FE2> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97389-270-0	02	1	0508-0709			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION RIDE&HANDLING<FE2> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97946-812-0	02	1	0710-			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUX 5 SPEED 5S<MZJ> SOFT RIDE SUSPENSION SYSTEM<FE1> COUNTRY SUSPENSION<V5W> HIGH RIDE SUSPENSION<7YC> THA	8-97945-334-1	02	1	0710-0710			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUX 5 SPEED 5S<MZJ> SOFT RIDE SUSPENSION SYSTEM<FE1> THA	8-97945-334-1	02	1	0710-0710				●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUX 5 SPEED 5S<MZJ> SOFT RIDE SUSPENSION SYSTEM<FE1> COUNTRY SUSPENSION<V5W> HIGH RIDE SUSPENSION<7YC> THA	8-97946-825-0	02	1	0710-			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUX 5 SPEED 5S<MZJ> SOFT RIDE SUSPENSION SYSTEM<FE1> THA	8-97946-825-0	02	1	0710-				●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM<FE1> HIGH RIDE SUSPENSION<7YC> THA	8-97371-611-0	02	1	0308-0408			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM<FE1> THA	8-97371-611-0	02	1	0308-0408				●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM<FE1> HIGH RIDE SUSPENSION<7YC> THA	8-97385-892-0	02	1	0409-0507			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM<FE1> THA	8-97385-892-0	02	1	0409-0507				●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM<FE1> COUNTRY SUSPENSION<V5W> HIGH RIDE SUSPENSION<7YC> THA	8-97384-623-0	02	1	0508-0606			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM<FE1> THA	8-97384-623-0	02	1	0508-0606				●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> SOFT RIDE SUSPENSION SYSTEM<FE1> COUNTRY SUSPENSION<V5W> HIGH RIDE SUSPENSION<7YC> THA	8-97384-623-0	02	1	0607-0608			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> SOFT RIDE SUSPENSION SYSTEM<FE1> THA	8-97384-623-0	02	1	0607-0608				●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> SOFT RIDE SUSPENSION SYSTEM<FE1> COUNTRY SUSPENSION<V5W> HIGH RIDE SUSPENSION<7YC> THA	8-97384-623-0	02	1	0609-0708			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> SOFT RIDE SUSPENSION SYSTEM<FE1> COUNTRY SUSPENSION<V5W> THA	8-97384-623-0	02	1	0609-0708				●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> SOFT RIDE SUSPENSION SYSTEM<FE1> COUNTRY SUSPENSION<V5W> HIGH RIDE SUSPENSION<7YC> THA	8-97384-623-0	02	1	0709-0709			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> SOFT RIDE SUSPENSION SYSTEM<FE1> COUNTRY SUSPENSION<V5W> THA	8-97384-623-0	02	1	0709-0709				●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> SOFT RIDE SUSPENSION SYSTEM<FE1> COUNTRY SUSPENSION<V5W> HIGH RIDE SUSPENSION<7YC> THA	8-97384-623-0	02	1	0710-0710			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> SOFT RIDE SUSPENSION SYSTEM<FE1> THA	8-97384-623-0	02	1	0710-0710				●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> SOFT RIDE SUSPENSION SYSTEM<FE1> COUNTRY SUSPENSION<V5W> HIGH RIDE SUSPENSION<7YC> THA	8-97946-824-0	02	1	0710-			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> SOFT RIDE SUSPENSION SYSTEM<FE1> THA	8-97946-824-0	02	1	0710-				●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM<FE1> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97371-610-0	02	1	0308-0408			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM<FE1> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97385-889-0	02	1	0409-0709			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM<FE1> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97946-814-0	02	1	0710-			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. THA	8-97940-840-3	02	1	0204-0206					●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. THA	8-97356-161-0	02	1	0207-0207					●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. THA	8-97356-161-0	02	1	0208-0212				●	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. THA	8-97359-755-1	02	1	0301-0307					●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> THA	8-97359-755-1	02	1	0308-0408		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. THA	8-97359-755-1	02	1	0308-0408					●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> THA	8-97385-891-0	02	1	0409-0507		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. THA	8-97385-891-0	02	1	0409-0507					●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> THA	8-97385-891-0	02	1	0508-0508		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2> THA	8-97385-891-0	02	1	0508-0508			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	8-97385-891-0	02	1	0508-0508					●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2> THA	8-97385-891-0	02	1	0508-0508				●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. COUNTRY SUSPENSION<V5W> HIGH RIDE SUSPENSION<7YC> THA	8-97384-622-0	02	1	0508-0608		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. COUNTRY SUSPENSION<V5W> HIGH RIDE SUSPENSION<7YC> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2> THA	8-97384-622-0	02	1	0508-0608			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	8-97384-622-0	02	1	0508-0608					●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2> THA	8-97384-622-0	02	1	0508-0608				●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. COUNTRY SUSPENSION<V5W> HIGH RIDE SUSPENSION<7YC> THA	8-97384-622-0	02	1	0609-0709		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. COUNTRY SUSPENSION<V5W> HIGH RIDE SUSPENSION<7YC> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2> THA	8-97384-622-0	02	1	0609-0709			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	8-97384-622-0	02	1	0609-0709					●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. COUNTRY SUSPENSION<V5W> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2> THA	8-97384-622-0	02	1	0609-0709				●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. COUNTRY SUSPENSION<V5W> HIGH RIDE SUSPENSION<7YC> THA	8-97384-622-0	02	1	0710-0710		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. COUNTRY SUSPENSION<V5W> HIGH RIDE SUSPENSION<7YC> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2> THA	8-97384-622-0	02	1	0710-0710			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	8-97384-622-0	02	1	0710-0710					●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2> THA	8-97384-622-0	02	1	0710-0710				●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. COUNTRY SUSPENSION<V5W> HIGH RIDE SUSPENSION<7YC> THA	8-97946-823-0	02	1	0710-		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. COUNTRY SUSPENSION<V5W> HIGH RIDE SUSPENSION<7YC> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2> THA	8-97946-823-0	02	1	0710-			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	8-97946-823-0	02	1	0710-					●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2> THA	8-97946-823-0	02	1	0710-				●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. THA	8-97361-182-1	02	1	0301-0307				●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> THA	8-97361-182-1	02	1	0308-0507			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> THA	8-97361-182-1	02	1	0308-0507				●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION RIDE&HANDLING<FE2> HIGH RIDE SUSPENSION<7YC> THA	8-97361-182-1	02	1	0508-0508			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION RIDE&HANDLING<FE2> THA	8-97361-182-1	02	1	0508-0508				●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION RIDE&HANDLING<FE2> COUNTRY SUSPENSION<V5W> HIGH RIDE SUSPENSION<7YC> THA	8-97384-624-0	02	1	0508-0608			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION RIDE&HANDLING<FE2> THA	8-97384-624-0	02	1	0508-0608				●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION RIDE&HANDLING<FE2> COUNTRY SUSPENSION<V5W> HIGH RIDE SUSPENSION<7YC> THA	8-97384-624-0	02	1	0609-0709			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION RIDE&HANDLING<FE2> COUNTRY SUSPENSION<V5W> THA	8-97384-624-0	02	1	0609-0709				●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION RIDE&HANDLING<FE2> COUNTRY SUSPENSION<V5W> HIGH RIDE SUSPENSION<7YC> THA	8-97384-624-0	02	1	0710-0710			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION RIDE&HANDLING<FE2> THA	8-97384-624-0	02	1	0710-0710				●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION RIDE&HANDLING<FE2> COUNTRY SUSPENSION<V5W> HIGH RIDE SUSPENSION<7YC> THA	8-97946-826-0	02	1	0710-			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION RIDE&HANDLING<FE2> THA	8-97946-826-0	02	1	0710-				●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUX 5 SPEED 5S<MZJ> SOFT RIDE SUSPENSION SYSTEM<FE1> COUNTRY SUSPENSION<V5W> THA	8-97945-334-1	02	1	0609-0708				●
4	U-BOLT; RR SPR THA	8-97248-620-1	04	1	0204-0207		●			●
4	U-BOLT; RR SPR EXC. REAR SPRING HEAVY DUTY<G50> THA	8-97248-620-1	04	1	0204-0207	●
4	U-BOLT; RR SPR THA	8-97248-620-1	04	1	0208-0408		●	●	●	●
4	U-BOLT; RR SPR EXC. REAR SPRING HEAVY DUTY<G50> THA	8-97248-620-1	04	1	0208-0408	●
4	U-BOLT; RR SPR THA	8-97248-620-1	04	1	0409-		●	●	●	●
4	U-BOLT; RR SPR REAR SPRING HEAVY DUTY<G50> L=187 THA	8-97248-621-1	04	1	0204-0408	●
4	U-BOLT; RR SPR L=187 THA	8-97248-621-1	04	1	0409-	●
5	NUT; U-BOLT,RR SPR M14 FLANGE THA	8-97245-635-0	08	1	0204-0207	●	●			●
5	NUT; U-BOLT,RR SPR M14 FLANGE THA	8-97245-635-0	08	1	0208-	●	●	●	●	●
10	CLAMP; LWR,RR SPR THA	8-97220-964-0	01	1	0204-0207	●	●			●
10	CLAMP; LWR,RR SPR THA	8-97220-964-0	01	1	0208-0301	●	●	●	●	●
10	CLAMP; LWR,RR SPR THA	8-97365-393-0	01	1	0302-	●	●	●	●	●
10	CLAMP; LWR,RR SPR THA	8-97312-802-0	01	1	0204-0207	●	●			●
10	CLAMP; LWR,RR SPR THA	8-97312-802-0	01	1	0208-0301	●	●	●	●	●
10	CLAMP; LWR,RR SPR THA	8-97365-391-0	01	1	0302-	●	●	●	●	●
15	SHACKLE; RR SPR THA	8-97245-901-1	02	1	0204-0207	●	●			●
15	SHACKLE; RR SPR THA	8-97245-901-1	02	1	0208-0606	●	●	●	●	●
15	SHACKLE; RR SPR THA	8-98005-815-0	02	1	0607-	●	●	●	●	●
16	BUSHING; SHACKLE,RR SPR THA	8-94234-319-0	08	1	0204-0207	●	●			●
16	BUSHING; SHACKLE,RR SPR THA	8-94234-319-0	08	1	0208-0303	●	●	●	●	●
16	BUSHING; SHACKLE,RR SPR THA	8-97357-492-0	08	1	0304-	●	●	●	●	●
36	SEAT; HELPER RUBBER,RR SPR THA	8-97221-355-0	02	1	0204-0207	●	●			●
36	SEAT; HELPER RUBBER,RR SPR THA	8-97221-355-0	02	1	0208-0507	●	●	●	●	●
36	SEAT; HELPER RUBBER,RR SPR EXC. COUNTRY SUSPENSION<V5W> THA	8-97221-355-0	02	1	0508-0606		●	●
36	SEAT; HELPER RUBBER,RR SPR THA	8-97221-355-0	02	1	0508-0606	●
36	SEAT; HELPER RUBBER,RR SPR EXC. COUNTRY SUSPENSION<V5W> THA	8-98005-878-0	02	1	0607-0608		●	●
36	SEAT; HELPER RUBBER,RR SPR THA	8-98005-878-0	02	1	0607-0608	●
36	SEAT; HELPER RUBBER,RR SPR EXC. COUNTRY SUSPENSION<V5W> THA	8-98005-878-0	02	1	0609-0709		●	●	●
36	SEAT; HELPER RUBBER,RR SPR THA	8-98005-878-0	02	1	0609-0709	●
36	SEAT; HELPER RUBBER,RR SPR EXC. COUNTRY SUSPENSION<V5W> THA	8-98005-878-0	02	1	0710-		●	●
36	SEAT; HELPER RUBBER,RR SPR THA	8-98005-878-0	02	1	0710-	●
36	SEAT; HELPER RUBBER,RR SPR COUNTRY SUSPENSION<V5W> THA	8-97384-147-0	02	1	0508-0608		●	●
36	SEAT; HELPER RUBBER,RR SPR THA	8-97384-147-0	02	1	0508-0608				●	●
36	SEAT; HELPER RUBBER,RR SPR COUNTRY SUSPENSION<V5W> THA	8-97384-147-0	02	1	0609-0709		●	●	●
36	SEAT; HELPER RUBBER,RR SPR THA	8-97384-147-0	02	1	0609-0709					●
36	SEAT; HELPER RUBBER,RR SPR COUNTRY SUSPENSION<V5W> THA	8-97384-147-0	02	1	0710-		●	●
36	SEAT; HELPER RUBBER,RR SPR THA	8-97384-147-0	02	1	0710-				●	●
153	WASHER; PL,SPRING PIN ID=14.5 OD=30 THA	8-94476-635-0	02	1	0204-0207	●	●			●
153	WASHER; PL,SPRING PIN ID=14.5 OD=30 THA	8-94476-635-0	02	1	0208-0606	●	●	●	●	●
153	WASHER; PL,SPRING PIN ID=14.5 OD=30 THA	8-98005-921-0	02	1	0607-	●	●	●	●	●
163	RUBBER; HELPER,RR SPR THA	8-97235-926-0	02	1	0204-0207	●	●
163	RUBBER; HELPER,RR SPR THA	8-97235-926-0	02	1	0208-0307	●	●	●
163	RUBBER; HELPER,RR SPR EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97235-926-0	02	1	0308-		●
163	RUBBER; HELPER,RR SPR THA	8-97235-926-0	02	1	0308-	●
163	RUBBER; HELPER,RR SPR EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>,HIGH RIDESUSPENSION<7YC> THA	8-97235-926-0	02	1	0308-			●
163	RUBBER; HELPER,RR SPR SOFT RIDE SUSPENSION SYSTEM<FE1> HIGH RIDE SUSPENSION<7YC> THA	8-97371-607-0	02	1	0308-			●
163	RUBBER; HELPER,RR SPR SOFT RIDE SUSPENSION SYSTEM<FE1> THA	8-97371-607-0	02	1	0308-				●
163	RUBBER; HELPER,RR SPR SOFT RIDE SUSPENSION SYSTEM<FE1> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97371-606-0	02	1	0308-			●
163	RUBBER; HELPER,RR SPR THA	8-97235-925-1	02	1	0204-0207					●
163	RUBBER; HELPER,RR SPR THA	8-97235-925-1	02	1	0208-0307				●	●
163	RUBBER; HELPER,RR SPR HIGH RIDE SUSPENSION<7YC> THA	8-97235-925-1	02	1	0308-		●
163	RUBBER; HELPER,RR SPR HIGH RIDE SUSPENSION<7YC> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> THA	8-97235-925-1	02	1	0308-			●
163	RUBBER; HELPER,RR SPR THA	8-97235-925-1	02	1	0308-					●
163	RUBBER; HELPER,RR SPR EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> THA	8-97235-925-1	02	1	0308-				●
165	BOLT; HELPER RUBBER M10X30 FLANGE THA	0-28651-030-0	04	1	0204-0207	●	●			●
165	BOLT; HELPER RUBBER M10X30 FLANGE THA	0-28651-030-0	04	1	0208-	●	●	●	●	●
180	PIN; RR SPR (A) M14X106 THA	8-97245-647-0	02	1	0204-0207	●	●			●
180	PIN; RR SPR (A) M14X106 THA	8-97245-647-0	02	1	0208-	●	●	●	●	●
180	PIN; RR SPR (B) THA	8-97245-650-1	02	1	0204-0207	●	●			●
180	PIN; RR SPR (B) THA	8-97245-650-1	02	1	0208-0606	●	●	●	●	●
180	PIN; RR SPR (B) THA	8-98005-814-0	02	1	0607-	●	●	●	●	●
182	NUT; PIN,RR SPR (A) M14 FLANGE THA	0-91180-114-0	04	1	0204-0207	●	●			●
182	NUT; PIN,RR SPR (A) M14 FLANGE THA	0-91180-114-0	04	1	0208-	●	●	●	●	●
182	NUT; PIN,RR SPR (B) M14 FLANGE THA	8-97245-651-0	02	1	0204-0207	●	●			●
182	NUT; PIN,RR SPR (B) M14 FLANGE THA	8-97245-651-0	02	1	0208-	●	●	●	●	●
484	BRACKET; REAR SPRING M/T MUX 5 SPEED 5S<MZJ> SOFT RIDE SUSPENSION SYSTEM<FE1> COUNTRY SUSPENSION<V5W> HIGH RIDE SUSPENSION<7YC> THA	8-97945-343-1	01	1	0710-			●
484	BRACKET; REAR SPRING M/T MUX 5 SPEED 5S<MZJ> SOFT RIDE SUSPENSION SYSTEM<FE1> THA	8-97945-343-1	01	1	0710-				●
484	BRACKET; REAR SPRING M/T MUX 5 SPEED 5S<MZJ> SOFT RIDE SUSPENSION SYSTEM<FE1> COUNTRY SUSPENSION<V5W> HIGH RIDE SUSPENSION<7YC> THA	8-97945-342-1	01	1	0710-			●
484	BRACKET; REAR SPRING M/T MUX 5 SPEED 5S<MZJ> SOFT RIDE SUSPENSION SYSTEM<FE1> THA	8-97945-342-1	01	1	0710-				●
484	BRACKET; REAR SPRING M/T MUX 5 SPEED 5S<MZJ> SOFT RIDE SUSPENSION SYSTEM<FE1> COUNTRY SUSPENSION<V5W> THA	8-97945-343-1	01	1	0609-0708				●
484	BRACKET; REAR SPRING M/T MUX 5 SPEED 5S<MZJ> SOFT RIDE SUSPENSION SYSTEM<FE1> COUNTRY SUSPENSION<V5W> THA	8-97945-342-1	01	1	0609-0708				●
524	BOLT; RR SPR M/T MUX 5 SPEED 5S<MZJ> SOFT RIDE SUSPENSION SYSTEM<FE1> COUNTRY SUSPENSION<V5W> HIGH RIDE SUSPENSION<7YC> THA	8-97945-346-0	04	1	0710-			●
524	BOLT; RR SPR M/T MUX 5 SPEED 5S<MZJ> SOFT RIDE SUSPENSION SYSTEM<FE1> THA	8-97945-346-0	04	1	0710-				●
524	BOLT; RR SPR M/T MUX 5 SPEED 5S<MZJ> SOFT RIDE SUSPENSION SYSTEM<FE1> COUNTRY SUSPENSION<V5W> THA	8-97945-346-0	04	1	0609-0708				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
