◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#72885) — 210 parça

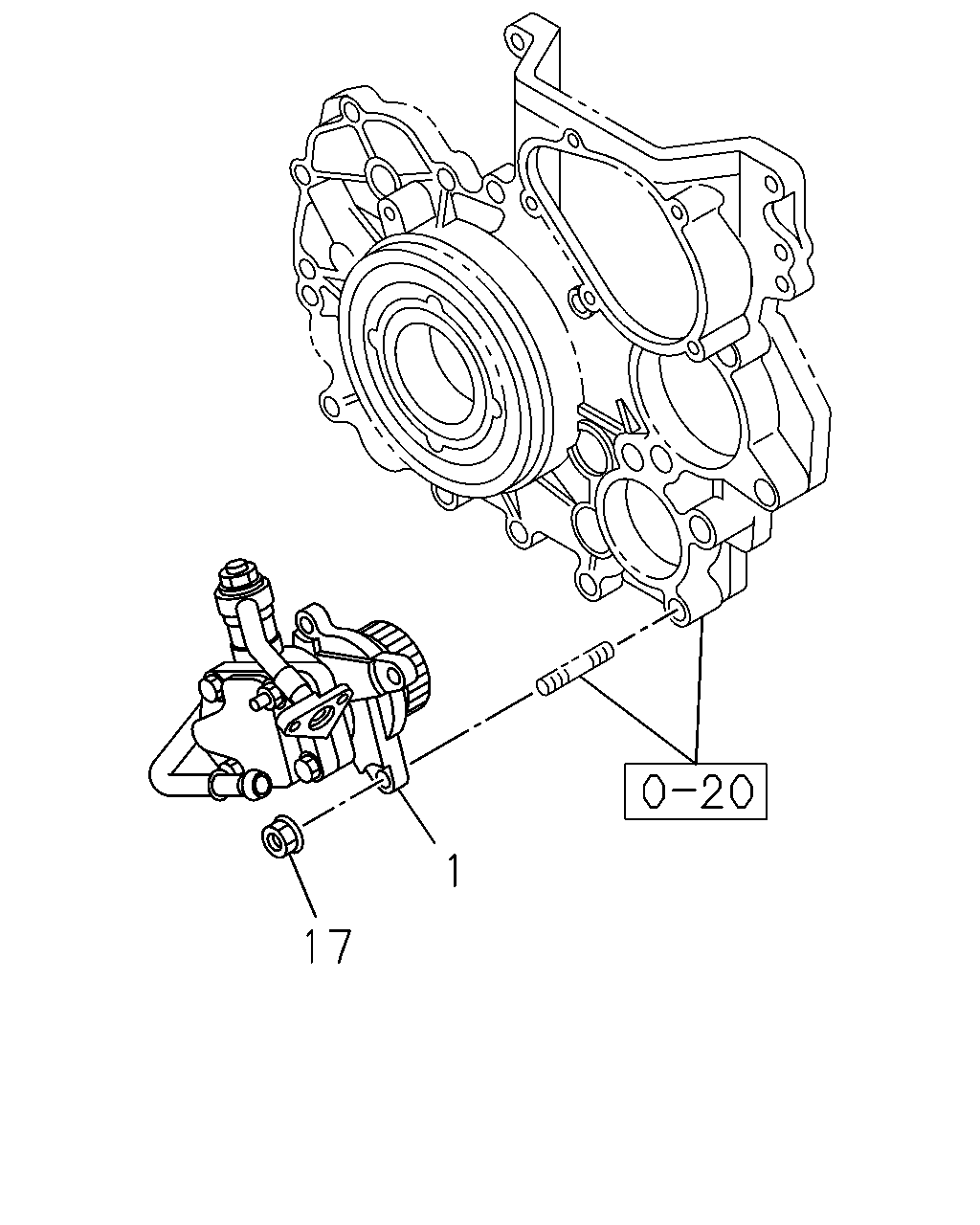

çizim 116611
1 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> THA 		8-97214-995-1 01 1 0204-0207 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. THA 		8-97214-995-1 01 1 0204-0207 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> THA 		8-97214-995-1 01 1 0208-0311 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. THA 		8-97214-995-1 01 1 0208-0311 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> THA 		8-97942-188-0 01 1 0312-0408 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. THA 		8-97942-188-0 01 1 0312-0408 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JA1-T ENG<LP0> POWER STEERING<N40> THA 		8-97942-188-0 01 1 0409-0412 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG<LFB> POWER STEERING<N40> THA 		8-97355-980-3 01 1 0409-0412 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. THA 		8-97355-980-3 01 1 0409-0412 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> THA 		8-97355-980-3 01 1 0501-0507 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. THA 		8-97355-980-3 01 1 0501-0507 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> THA 		8-97355-980-3 01 1 0508-0606 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. THA 		8-97355-980-3 01 1 0508-0606 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> THA 		8-97944-829-0 01 1 0607-0610 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. THA 		8-97944-829-0 01 1 0607-0610 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> THA 		8-98063-153-0 01 1 0611-0705 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. THA 		8-98063-153-0 01 1 0611-0705 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> THA 		8-97946-607-0 01 1 0706-0707 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. THA 		8-97946-607-0 01 1 0706-0707 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> THA 		8-97946-698-0 01 1 0708- ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. THA 		8-97946-698-0 01 1 0708- ● ●
17 NUT; POWER STRG PUMP
POWER STEERING<N40> M8 FLANGE THA 		0-91180-208-0 01 1 0204-0207 ● ●
17 NUT; POWER STRG PUMP
M8 FLANGE THA 		0-91180-208-0 01 1 0204-0207 ●
17 NUT; POWER STRG PUMP
POWER STEERING<N40> M8 FLANGE THA 		0-91180-208-0 01 1 0208-0408 ● ●
17 NUT; POWER STRG PUMP
M8 FLANGE THA 		0-91180-208-0 01 1 0208-0408 ● ● ●
17 NUT; POWER STRG PUMP
4JA1-T ENG<LP0> POWER STEERING<N40> M8 FLANGE THA 		0-91180-208-0 01 1 0409-0412 ● ● ●
17 NUT; POWER STRG PUMP
4JJ1-TCS ENG<LFB> M8 FLANGE THA 		0-91180-208-0 03 1 0409-0412 ● ●
17 NUT; POWER STRG PUMP
M8 FLANGE THA 		0-91180-208-0 03 1 0409-0412 ● ●
17 NUT; POWER STRG PUMP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> EURO3 SPECIFICATION<NT3> M8 FLANGE THA 		0-91180-208-0 03 1 0501-0507 ● ● ● ● ●
17 NUT; POWER STRG PUMP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> M8 FLANGE THA 		0-91180-208-0 03 1 0508-0606 ● ● ● ● ●
17 NUT; POWER STRG PUMP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> M8 FLANGE THA 		0-91180-208-0 03 1 0607-0608 ● ● ● ● ●
17 NUT; POWER STRG PUMP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> M8 FLANGE THA 		0-91180-208-0 03 1 0609-0708 ● ● ● ● ●
17 NUT; POWER STRG PUMP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> M8 FLANGE THA 		0-91180-208-0 03 1 0709-0709 ● ● ● ● ●
17 NUT; POWER STRG PUMP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> M8 FLANGE THA 		0-91180-208-0 03 1 0710- ● ● ● ● ●

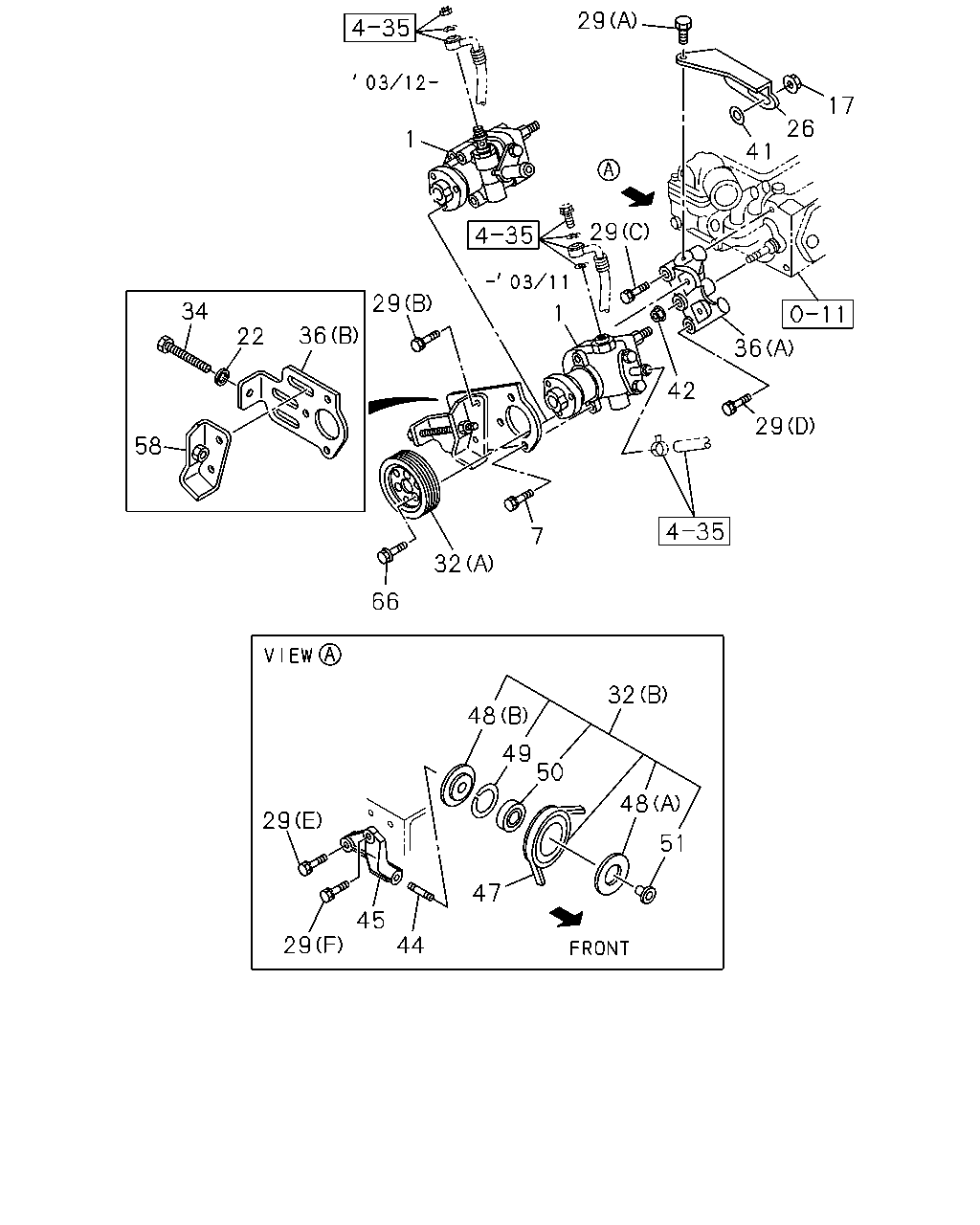

çizim 116635
29 17 26 1 41 29 29 34 1 36 22 36 42 29 58 7 32 66 32 48 49 50 48 29 51 47 45 29 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> THA 		8-97214-995-1 01 1 0204-0207 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. THA 		8-97214-995-1 01 1 0204-0207 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> THA 		8-97214-995-1 01 1 0208-0311 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. THA 		8-97214-995-1 01 1 0208-0311 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> THA 		8-97942-188-0 01 1 0312-0408 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. THA 		8-97942-188-0 01 1 0312-0408 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JA1-T ENG<LP0> POWER STEERING<N40> THA 		8-97942-188-0 01 1 0409-0412 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG<LFB> POWER STEERING<N40> THA 		8-97355-980-3 01 1 0409-0412 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. THA 		8-97355-980-3 01 1 0409-0412 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> THA 		8-97355-980-3 01 1 0501-0507 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. THA 		8-97355-980-3 01 1 0501-0507 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> THA 		8-97355-980-3 01 1 0508-0606 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. THA 		8-97355-980-3 01 1 0508-0606 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> THA 		8-97944-829-0 01 1 0607-0610 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. THA 		8-97944-829-0 01 1 0607-0610 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> THA 		8-98063-153-0 01 1 0611-0705 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. THA 		8-98063-153-0 01 1 0611-0705 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> THA 		8-97946-607-0 01 1 0706-0707 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. THA 		8-97946-607-0 01 1 0706-0707 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> THA 		8-97946-698-0 01 1 0708- ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. THA 		8-97946-698-0 01 1 0708- ● ●
7 BOLT; OIL PUMP,P/S
POWER STEERING<N40> M10X28 W/LK WASHER THA 		8-97200-583-0 03 1 0204-0207 ● ●
7 BOLT; OIL PUMP,P/S
M10X28 W/LK WASHER THA 		8-97200-583-0 03 1 0204-0207 ●
7 BOLT; OIL PUMP,P/S
POWER STEERING<N40> M10X28 W/LK WASHER THA 		8-97200-583-0 03 1 0208-0210 ● ●
7 BOLT; OIL PUMP,P/S
M10X28 W/LK WASHER THA 		8-97200-583-0 03 1 0208-0210 ● ● ●
7 BOLT; OIL PUMP,P/S
POWER STEERING<N40> M10X28 W/LK WASHER THA 		8-97943-080-0 03 1 0211-0408 ● ●
7 BOLT; OIL PUMP,P/S
M10X28 W/LK WASHER THA 		8-97943-080-0 03 1 0211-0408 ● ● ●
7 BOLT; OIL PUMP,P/S
4JA1-T ENG<LP0> POWER STEERING<N40> M10X28 W/LK WASHER THA 		8-97943-080-0 03 1 0409-0412 ● ● ●
17 NUT; POWER STRG PUMP
POWER STEERING<N40> M8 FLANGE THA 		0-91180-208-0 01 1 0204-0207 ● ●
17 NUT; POWER STRG PUMP
M8 FLANGE THA 		0-91180-208-0 01 1 0204-0207 ●
17 NUT; POWER STRG PUMP
POWER STEERING<N40> M8 FLANGE THA 		0-91180-208-0 01 1 0208-0408 ● ●
17 NUT; POWER STRG PUMP
M8 FLANGE THA 		0-91180-208-0 01 1 0208-0408 ● ● ●
17 NUT; POWER STRG PUMP
4JA1-T ENG<LP0> POWER STEERING<N40> M8 FLANGE THA 		0-91180-208-0 01 1 0409-0412 ● ● ●
17 NUT; POWER STRG PUMP
4JJ1-TCS ENG<LFB> M8 FLANGE THA 		0-91180-208-0 03 1 0409-0412 ● ●
17 NUT; POWER STRG PUMP
M8 FLANGE THA 		0-91180-208-0 03 1 0409-0412 ● ●
17 NUT; POWER STRG PUMP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> EURO3 SPECIFICATION<NT3> M8 FLANGE THA 		0-91180-208-0 03 1 0501-0507 ● ● ● ● ●
17 NUT; POWER STRG PUMP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> M8 FLANGE THA 		0-91180-208-0 03 1 0508-0606 ● ● ● ● ●
17 NUT; POWER STRG PUMP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> M8 FLANGE THA 		0-91180-208-0 03 1 0607-0608 ● ● ● ● ●
17 NUT; POWER STRG PUMP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> M8 FLANGE THA 		0-91180-208-0 03 1 0609-0708 ● ● ● ● ●
17 NUT; POWER STRG PUMP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> M8 FLANGE THA 		0-91180-208-0 03 1 0709-0709 ● ● ● ● ●
17 NUT; POWER STRG PUMP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> M8 FLANGE THA 		0-91180-208-0 03 1 0710- ● ● ● ● ●
22 WASHER; LK,OIL PUMP,P/S
POWER STEERING<N40> ID=10.2 IMA 		9-09150-510-0 01 1 0204-0207 ● ●
22 WASHER; LK,OIL PUMP,P/S
ID=10.2 IMA 		9-09150-510-0 01 1 0204-0207 ●
22 WASHER; LK,OIL PUMP,P/S
POWER STEERING<N40> ID=10.2 IMA 		9-09150-510-0 01 1 0208-0408 ● ●
22 WASHER; LK,OIL PUMP,P/S
ID=10.2 IMA 		9-09150-510-0 01 1 0208-0408 ● ● ●
22 WASHER; LK,OIL PUMP,P/S
4JA1-T ENG<LP0> POWER STEERING<N40> ID=10.2 IMA 		9-09150-510-0 01 1 0409-0412 ● ● ●
26 BRACKET; P/S PUMP,RR
POWER STEERING<N40> THA 		8-97941-415-0 01 1 0204-0207 ● ●
26 BRACKET; P/S PUMP,RR
THA 		8-97941-415-0 01 1 0204-0207 ●
26 BRACKET; P/S PUMP,RR
POWER STEERING<N40> THA 		8-97941-415-0 01 1 0208-0408 ● ●
26 BRACKET; P/S PUMP,RR
THA 		8-97941-415-0 01 1 0208-0408 ● ● ●
26 BRACKET; P/S PUMP,RR
4JA1-T ENG<LP0> POWER STEERING<N40> THA 		8-97941-415-0 01 1 0409-0412 ● ● ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0204-0207 ● ●
29 BOLT; BRKT,POWER STRG
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0204-0207 ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0208-0408 ● ●
29 BOLT; BRKT,POWER STRG
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0208-0408 ● ● ●
29 BOLT; BRKT,POWER STRG
4JA1-T ENG<LP0> POWER STEERING<N40> (A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0409-0412 ● ● ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (B) M10X25 FLANGE THA 		0-28051-025-0 02 1 0204-0207 ● ●
29 BOLT; BRKT,POWER STRG
(B) M10X25 FLANGE THA 		0-28051-025-0 02 1 0204-0207 ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (B) M10X25 FLANGE THA 		0-28051-025-0 02 1 0208-0408 ● ●
29 BOLT; BRKT,POWER STRG
(B) M10X25 FLANGE THA 		0-28051-025-0 02 1 0208-0408 ● ● ●
29 BOLT; BRKT,POWER STRG
4JA1-T ENG<LP0> POWER STEERING<N40> (B) M10X25 FLANGE THA 		0-28051-025-0 02 1 0409-0412 ● ● ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (C) M10X60 W/LK WASHER THA 		0-50041-060-0 01 1 0204-0207 ● ●
29 BOLT; BRKT,POWER STRG
(C) M10X60 W/LK WASHER THA 		0-50041-060-0 01 1 0204-0207 ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (C) M10X60 W/LK WASHER THA 		0-50041-060-0 01 1 0208-0408 ● ●
29 BOLT; BRKT,POWER STRG
(C) M10X60 W/LK WASHER THA 		0-50041-060-0 01 1 0208-0408 ● ● ●
29 BOLT; BRKT,POWER STRG
4JA1-T ENG<LP0> POWER STEERING<N40> (C) M10X60 W/LK WASHER THA 		0-50041-060-0 01 1 0409-0412 ● ● ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (D) M8X60 W/LK WASHER THA 		0-50540-860-0 01 1 0204-0207 ● ●
29 BOLT; BRKT,POWER STRG
(D) M8X60 W/LK WASHER THA 		0-50540-860-0 01 1 0204-0207 ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (D) M8X60 W/LK WASHER THA 		0-50540-860-0 01 1 0208-0408 ● ●
29 BOLT; BRKT,POWER STRG
(D) M8X60 W/LK WASHER THA 		0-50540-860-0 01 1 0208-0408 ● ● ●
29 BOLT; BRKT,POWER STRG
4JA1-T ENG<LP0> POWER STEERING<N40> (D) M8X60 W/LK WASHER THA 		0-50540-860-0 01 1 0409-0412 ● ● ●
29 BOLT; BRKT,POWER STRG
EXC. COOLER WO/HEATER<YL1> (E) M8X30 W/LK WASHER THA 		0-50540-830-0 01 1 0204-0210 ●
29 BOLT; BRKT,POWER STRG
4JA1 ENG<RLE> POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> (E) M8X30 W/LK WASHER THA 		0-50540-830-0 01 1 0211-0212 ●
29 BOLT; BRKT,POWER STRG
EXC. COOLER WO/HEATER<YL1> (E) M8X30 W/LK WASHER THA 		0-50540-830-0 01 1 0211-0212 ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> (E) M8X30 W/LK WASHER THA 		0-50540-830-0 01 1 0301-0408 ●
29 BOLT; BRKT,POWER STRG
EXC. COOLER WO/HEATER<YL1> (E) M8X30 W/LK WASHER THA 		0-50540-830-0 01 1 0301-0408 ●
29 BOLT; BRKT,POWER STRG
4JA1-T ENG<LP0> POWER STEERING<N40> VENTILATION RAM AIR<6TN> (E) M8X30 W/LK WASHER THA 		0-50540-830-0 01 1 0409-0412 ●
29 BOLT; BRKT,POWER STRG
EXC. COOLER WO/HEATER<YL1> (F) M10X35 W/LK WASHER THA 		0-50541-035-0 01 1 0204-0210 ●
29 BOLT; BRKT,POWER STRG
4JA1 ENG<RLE> POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> (F) M10X35 W/LK WASHER THA 		0-50541-035-0 01 1 0211-0212 ●
29 BOLT; BRKT,POWER STRG
EXC. COOLER WO/HEATER<YL1> (F) M10X35 W/LK WASHER THA 		0-50541-035-0 01 1 0211-0212 ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> (F) M10X35 W/LK WASHER THA 		0-50541-035-0 01 1 0301-0408 ●
29 BOLT; BRKT,POWER STRG
EXC. COOLER WO/HEATER<YL1> (F) M10X35 W/LK WASHER THA 		0-50541-035-0 01 1 0301-0408 ●
29 BOLT; BRKT,POWER STRG
4JA1-T ENG<LP0> POWER STEERING<N40> VENTILATION RAM AIR<6TN> (F) M10X35 W/LK WASHER THA 		0-50541-035-0 01 1 0409-0412 ●
32 PULLEY; IDLER,P/S
POWER STEERING<N40> (A) THA 		8-97942-187-0 01 1 0204-0207 ● ●
32 PULLEY; IDLER,P/S
(A) THA 		8-97942-187-0 01 1 0204-0207 ●
32 PULLEY; IDLER,P/S
POWER STEERING<N40> (A) THA 		8-97942-187-0 01 1 0208-0408 ● ●
32 PULLEY; IDLER,P/S
(A) THA 		8-97942-187-0 01 1 0208-0408 ● ● ●
32 PULLEY; IDLER,P/S
4JA1-T ENG<LP0> POWER STEERING<N40> (A) THA 		8-97942-187-0 01 1 0409-0412 ● ● ●
32 PULLEY; IDLER,P/S
EXC. COOLER WO/HEATER<YL1> (B) THA 		8-97112-740-0 01 1 0204-0210 ●
32 PULLEY; IDLER,P/S
4JA1 ENG<RLE> POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> (B) THA 		8-97112-740-0 01 1 0211-0212 ●
32 PULLEY; IDLER,P/S
EXC. COOLER WO/HEATER<YL1> (B) THA 		8-97112-740-0 01 1 0211-0212 ●
32 PULLEY; IDLER,P/S
POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> (B) THA 		8-97112-740-0 01 1 0301-0408 ●
32 PULLEY; IDLER,P/S
EXC. COOLER WO/HEATER<YL1> (B) THA 		8-97112-740-0 01 1 0301-0408 ●
32 PULLEY; IDLER,P/S
4JA1-T ENG<LP0> POWER STEERING<N40> VENTILATION RAM AIR<6TN> (B) THA 		8-97112-740-0 01 1 0409-0412 ●
34 BOLT; ADJ PLATE
POWER STEERING<N40> M10X70 THA 		0-20801-070-0 01 1 0204-0207 ● ●
34 BOLT; ADJ PLATE
M10X70 THA 		0-20801-070-0 01 1 0204-0207 ●
34 BOLT; ADJ PLATE
POWER STEERING<N40> M10X70 THA 		0-20801-070-0 01 1 0208-0408 ● ●
34 BOLT; ADJ PLATE
M10X70 THA 		0-20801-070-0 01 1 0208-0408 ● ● ●
34 BOLT; ADJ PLATE
4JA1-T ENG<LP0> POWER STEERING<N40> M10X70 THA 		0-20801-070-0 01 1 0409-0412 ● ● ●
36 BRACKET; PLATE,P/S PUMP
POWER STEERING<N40> (A) THA 		8-97941-414-0 01 1 0204-0207 ● ●
36 BRACKET; PLATE,P/S PUMP
(A) THA 		8-97941-414-0 01 1 0204-0207 ●
36 BRACKET; PLATE,P/S PUMP
POWER STEERING<N40> (A) THA 		8-97941-414-0 01 1 0208-0408 ● ●
36 BRACKET; PLATE,P/S PUMP
(A) THA 		8-97941-414-0 01 1 0208-0408 ● ● ●
36 BRACKET; PLATE,P/S PUMP
4JA1-T ENG<LP0> POWER STEERING<N40> (A) THA 		8-97941-414-0 01 1 0409-0412 ● ● ●
36 BRACKET; PLATE,P/S PUMP
POWER STEERING<N40> (B) THA 		8-97942-483-0 01 1 0204-0207 ● ●
36 BRACKET; PLATE,P/S PUMP
(B) THA 		8-97942-483-0 01 1 0204-0207 ●
36 BRACKET; PLATE,P/S PUMP
POWER STEERING<N40> (B) THA 		8-97942-483-0 01 1 0208-0408 ● ●
36 BRACKET; PLATE,P/S PUMP
(B) THA 		8-97942-483-0 01 1 0208-0408 ● ● ●
36 BRACKET; PLATE,P/S PUMP
4JA1-T ENG<LP0> POWER STEERING<N40> (B) THA 		8-97942-483-0 01 1 0409-0412 ● ● ●
41 WASHER; PL,BRKT
POWER STEERING<N40> ID=8.5 OD=22 T=4 THA 		9-09851-649-0 01 1 0204-0207 ● ●
41 WASHER; PL,BRKT
ID=8.5 OD=22 T=4 THA 		9-09851-649-0 01 1 0204-0207 ●
41 WASHER; PL,BRKT
POWER STEERING<N40> ID=8.5 OD=22 T=4 THA 		9-09851-649-0 01 1 0208-0408 ● ●
41 WASHER; PL,BRKT
ID=8.5 OD=22 T=4 THA 		9-09851-649-0 01 1 0208-0408 ● ● ●
41 WASHER; PL,BRKT
4JA1-T ENG<LP0> POWER STEERING<N40> ID=8.5 OD=22 T=4 THA 		9-09851-649-0 01 1 0409-0412 ● ● ●
42 NUT; ADJ PLATE
POWER STEERING<N40> M8 FLANGE THA 		0-91180-208-0 01 1 0204-0207 ● ●
42 NUT; ADJ PLATE
M8 FLANGE THA 		0-91180-208-0 01 1 0204-0207 ●
42 NUT; ADJ PLATE
POWER STEERING<N40> M8 FLANGE THA 		0-91180-208-0 01 1 0208-0408 ● ●
42 NUT; ADJ PLATE
M8 FLANGE THA 		0-91180-208-0 01 1 0208-0408 ● ● ●
42 NUT; ADJ PLATE
4JA1-T ENG<LP0> POWER STEERING<N40> M8 FLANGE THA 		0-91180-208-0 01 1 0409-0412 ● ● ●
44 STUD; IDLER PULLEY
EXC. COOLER WO/HEATER<YL1> M10X25 L=40 THA 		9-04411-025-0 01 1 0204-0210 ●
44 STUD; IDLER PULLEY
4JA1 ENG<RLE> POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> M10X25 L=40 THA 		9-04411-025-0 01 1 0211-0212 ●
44 STUD; IDLER PULLEY
EXC. COOLER WO/HEATER<YL1> M10X25 L=40 THA 		9-04411-025-0 01 1 0211-0212 ●
44 STUD; IDLER PULLEY
POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> M10X25 L=40 THA 		9-04411-025-0 01 1 0301-0408 ●
44 STUD; IDLER PULLEY
EXC. COOLER WO/HEATER<YL1> M10X25 L=40 THA 		9-04411-025-0 01 1 0301-0408 ●
44 STUD; IDLER PULLEY
4JA1-T ENG<LP0> POWER STEERING<N40> VENTILATION RAM AIR<6TN> M10X25 L=40 THA 		9-04411-025-0 01 1 0409-0412 ●
45 BRACKET; IDLE PULLEY,P/S
EXC. COOLER WO/HEATER<YL1> THA 		8-94449-652-0 01 1 0204-0210 ●
45 BRACKET; IDLE PULLEY,P/S
4JA1 ENG<RLE> POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> THA 		8-94449-652-0 01 1 0211-0212 ●
45 BRACKET; IDLE PULLEY,P/S
EXC. COOLER WO/HEATER<YL1> THA 		8-94449-652-0 01 1 0211-0212 ●
45 BRACKET; IDLE PULLEY,P/S
POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> THA 		8-94449-652-0 01 1 0301-0408 ●
45 BRACKET; IDLE PULLEY,P/S
EXC. COOLER WO/HEATER<YL1> THA 		8-94449-652-0 01 1 0301-0408 ●
45 BRACKET; IDLE PULLEY,P/S
4JA1-T ENG<LP0> POWER STEERING<N40> VENTILATION RAM AIR<6TN> THA 		8-94449-652-0 01 1 0409-0412 ●
47 BELT; P/S PUMP
EXC. COOLER WO/HEATER<YL1> L=1451 MITSUBOSHI THA 		1-13671-301-0 01 1 0204-0212 ●
47 BELT; P/S PUMP
4JH1 ENG<RJX> POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> L=1451 MITSUBOSHI THA 		1-13671-301-0 01 1 0301-0408 ●
47 BELT; P/S PUMP
EXC. COOLER WO/HEATER<YL1> L=1451 MITSUBOSHI THA 		1-13671-301-0 01 1 0301-0408 ●
47 BELT; P/S PUMP
4JA1 ENG<RLE> POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> L=1399 THA 		5-13671-111-0 01 1 0211-0408 ●
47 BELT; P/S PUMP
4JA1-T ENG<LP0> POWER STEERING<N40> VENTILATION RAM AIR<6TN> L=1399 THA 		5-13671-111-0 01 1 0409-0412 ●
48 COVER; IDLER
EXC. COOLER WO/HEATER<YL1> (B) THA 		8-97092-819-0 01 1 0204-0210 ●
48 COVER; IDLER
4JA1 ENG<RLE> POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> (B) THA 		8-97092-819-0 01 1 0211-0212 ●
48 COVER; IDLER
EXC. COOLER WO/HEATER<YL1> (B) THA 		8-97092-819-0 01 1 0211-0212 ●
48 COVER; IDLER
POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> (B) THA 		8-97092-819-0 01 1 0301-0408 ●
48 COVER; IDLER
EXC. COOLER WO/HEATER<YL1> (B) THA 		8-97092-819-0 01 1 0301-0408 ●
48 COVER; IDLER
4JA1-T ENG<LP0> POWER STEERING<N40> VENTILATION RAM AIR<6TN> (B) THA 		8-97092-819-0 01 1 0409-0412 ●
48 COVER; IDLER
EXC. COOLER WO/HEATER<YL1> (A) THA 		9-13669-603-0 01 1 0204-0210 ●
48 COVER; IDLER
4JA1 ENG<RLE> POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> (A) THA 		9-13669-603-0 01 1 0211-0212 ●
48 COVER; IDLER
EXC. COOLER WO/HEATER<YL1> (A) THA 		9-13669-603-0 01 1 0211-0212 ●
48 COVER; IDLER
POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> (A) THA 		9-13669-603-0 01 1 0301-0408 ●
48 COVER; IDLER
EXC. COOLER WO/HEATER<YL1> (A) THA 		9-13669-603-0 01 1 0301-0408 ●
48 COVER; IDLER
4JA1-T ENG<LP0> POWER STEERING<N40> VENTILATION RAM AIR<6TN> (A) THA 		9-13669-603-0 01 1 0409-0412 ●
49 RING; SNAP,IDLER
EXC. COOLER WO/HEATER<YL1> THA 		8-94175-036-0 01 1 0204-0210 ●
49 RING; SNAP,IDLER
4JA1 ENG<RLE> POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> THA 		8-94175-036-0 01 1 0211-0212 ●
49 RING; SNAP,IDLER
EXC. COOLER WO/HEATER<YL1> THA 		8-94175-036-0 01 1 0211-0212 ●
49 RING; SNAP,IDLER
POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> THA 		8-94175-036-0 01 1 0301-0408 ●
49 RING; SNAP,IDLER
EXC. COOLER WO/HEATER<YL1> THA 		8-94175-036-0 01 1 0301-0408 ●
49 RING; SNAP,IDLER
4JA1-T ENG<LP0> POWER STEERING<N40> VENTILATION RAM AIR<6TN> THA 		8-94175-036-0 01 1 0409-0412 ●
50 BEARING; IDLER
EXC. COOLER WO/HEATER<YL1> THA 		8-94251-052-0 01 1 0204-0210 ●
50 BEARING; IDLER
4JA1 ENG<RLE> POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> THA 		8-94251-052-0 01 1 0211-0212 ●
50 BEARING; IDLER
EXC. COOLER WO/HEATER<YL1> THA 		8-94251-052-0 01 1 0211-0212 ●
50 BEARING; IDLER
POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> THA 		8-94251-052-0 01 1 0301-0408 ●
50 BEARING; IDLER
EXC. COOLER WO/HEATER<YL1> THA 		8-94251-052-0 01 1 0301-0408 ●
50 BEARING; IDLER
4JA1-T ENG<LP0> POWER STEERING<N40> VENTILATION RAM AIR<6TN> THA 		8-94251-052-0 01 1 0409-0412 ●
51 NUT; IDLER
EXC. COOLER WO/HEATER<YL1> THA 		8-97092-813-0 01 1 0204-0210 ●
51 NUT; IDLER
4JA1 ENG<RLE> POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> THA 		8-97092-813-0 01 1 0211-0212 ●
51 NUT; IDLER
EXC. COOLER WO/HEATER<YL1> THA 		8-97092-813-0 01 1 0211-0212 ●
51 NUT; IDLER
POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> THA 		8-97092-813-0 01 1 0301-0408 ●
51 NUT; IDLER
EXC. COOLER WO/HEATER<YL1> THA 		8-97092-813-0 01 1 0301-0408 ●
51 NUT; IDLER
4JA1-T ENG<LP0> POWER STEERING<N40> VENTILATION RAM AIR<6TN> THA 		8-97092-813-0 01 1 0409-0412 ●
58 SLIDER; BELT ADJ,P/S OIL PUMP
POWER STEERING<N40> THA 		8-97941-329-0 01 1 0204-0207 ● ●
58 SLIDER; BELT ADJ,P/S OIL PUMP
THA 		8-97941-329-0 01 1 0204-0207 ●
58 SLIDER; BELT ADJ,P/S OIL PUMP
POWER STEERING<N40> THA 		8-97941-329-0 01 1 0208-0408 ● ●
58 SLIDER; BELT ADJ,P/S OIL PUMP
THA 		8-97941-329-0 01 1 0208-0408 ● ● ●
58 SLIDER; BELT ADJ,P/S OIL PUMP
4JA1-T ENG<LP0> POWER STEERING<N40> THA 		8-97941-329-0 01 1 0409-0412 ● ● ●
66 BOLT; PULLEY
POWER STEERING<N40> M8X12 FLANGE THA 		0-28050-812-0 03 1 0204-0207 ● ●
66 BOLT; PULLEY
M8X12 FLANGE THA 		0-28050-812-0 03 1 0204-0207 ●
66 BOLT; PULLEY
POWER STEERING<N40> M8X12 FLANGE THA 		0-28050-812-0 03 1 0208-0408 ● ●
66 BOLT; PULLEY
M8X12 FLANGE THA 		0-28050-812-0 03 1 0208-0408 ● ● ●
66 BOLT; PULLEY
4JA1-T ENG<LP0> POWER STEERING<N40> M8X12 FLANGE THA 		0-28050-812-0 03 1 0409-0412 ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
