Sayfa 4-31 - Isuzu EPC

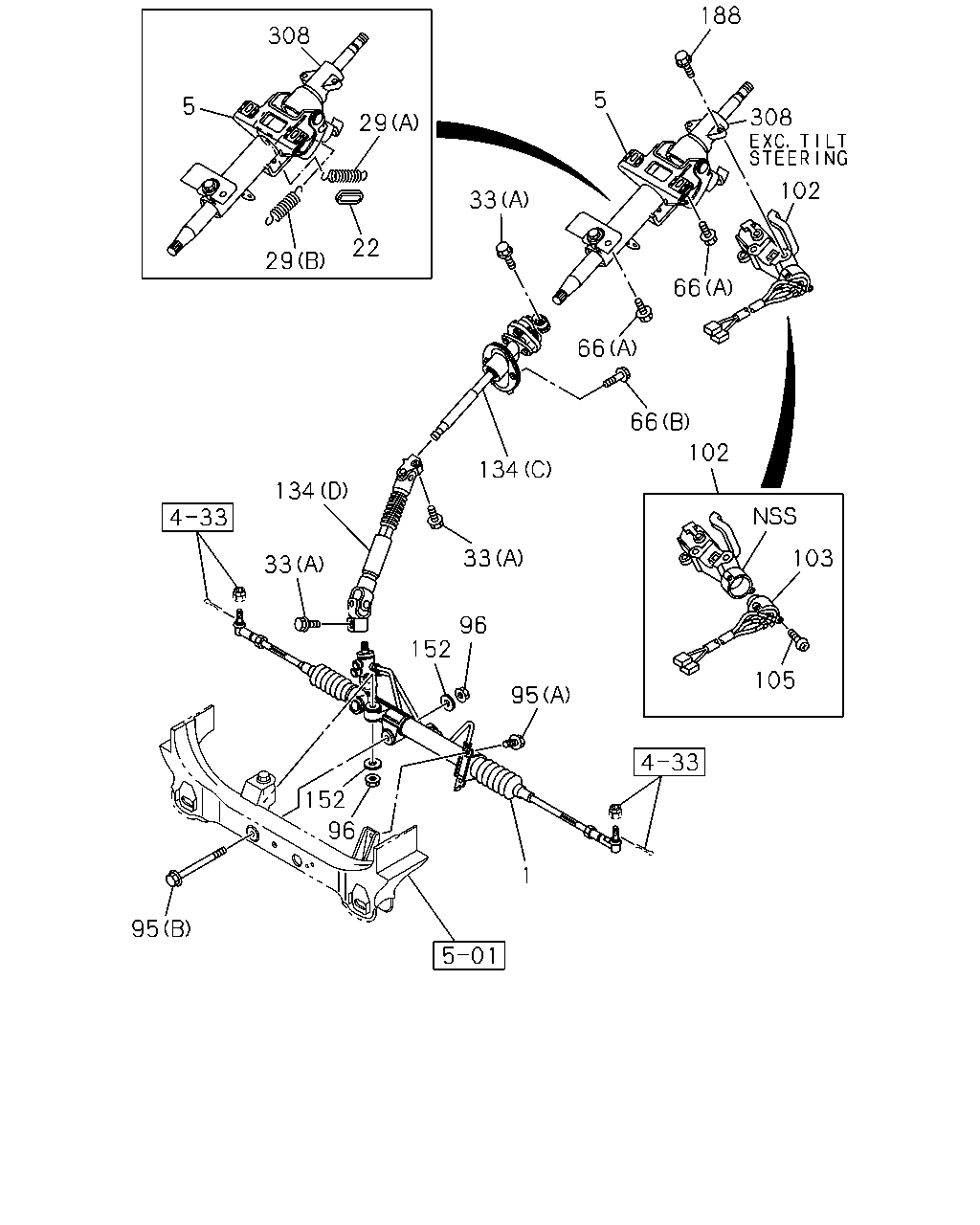

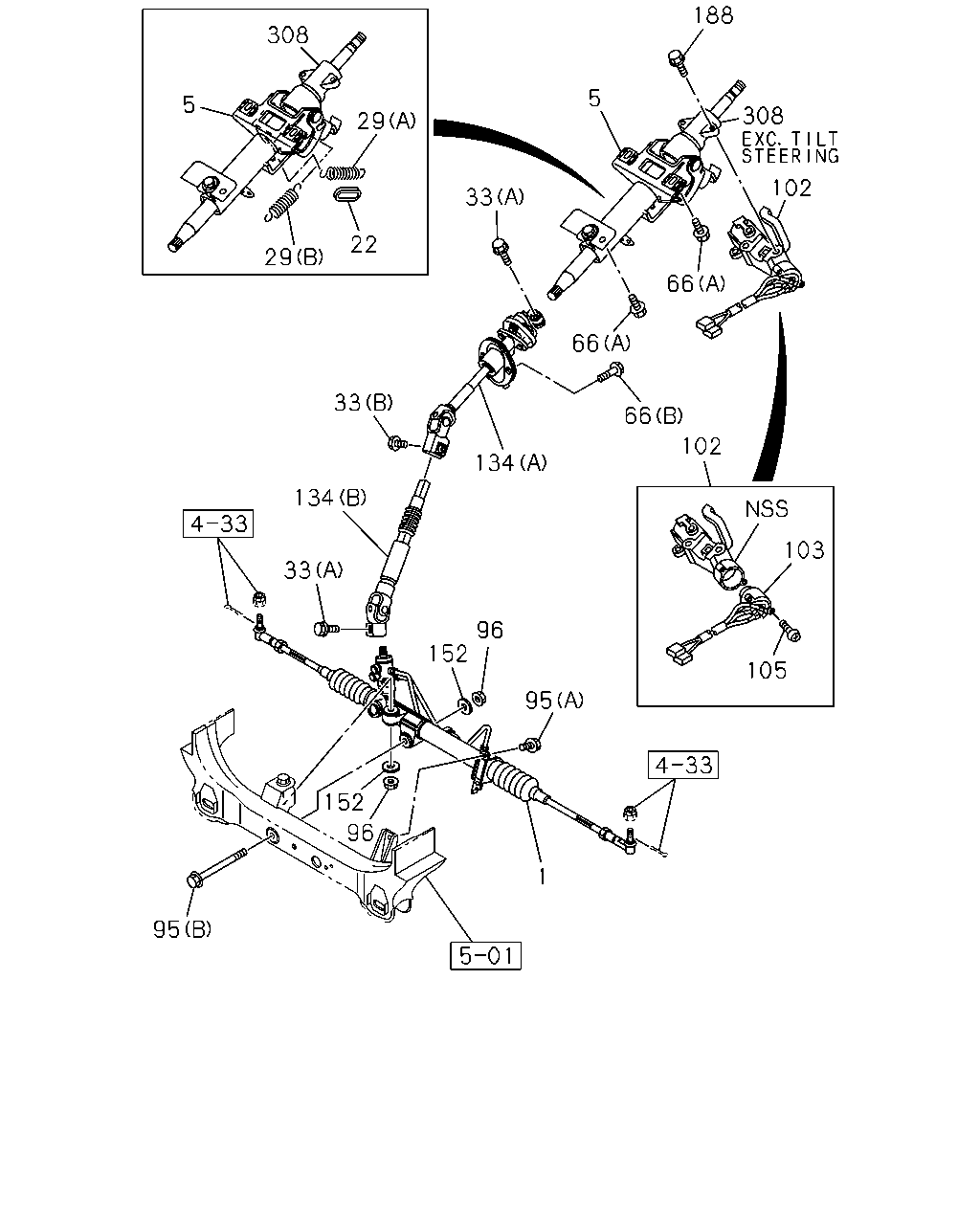

4-31 — STEERING COLUMN AND SHAFT (#72882) — 372 parça

188 308 5 5 308 29 102 33 22 29 66 66 33 66 102 134 134 103 33 96 152 105 95 152 96 1 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> THA	8-97234-440-3	01	1	0204-0207	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> THA	8-97234-440-3	01	1	0208-0305	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97234-440-3	01	1	0208-0305			●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> THA	8-97943-520-0	01	1	0306-0307	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97943-520-0	01	1	0306-0307			●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97943-520-0	01	1	0308-0507	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97943-520-0	01	1	0308-0507			●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97943-520-1	01	1	0508-0606	●		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> THA	8-97943-520-1	01	1	0508-0606		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97944-516-0	01	1	0607-	●		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> THA	8-97944-516-0	01	1	0607-		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40> THA	8-97234-444-2	01	1	0204-0307	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION<7YC> THA	8-97234-444-2	01	1	0308-0507	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION<7YC> THA	8-97234-444-3	01	1	0508-0606	●		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40> THA	8-97234-444-3	01	1	0508-0606		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION<7YC> THA	8-97944-520-0	01	1	0607-	●		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40> THA	8-97944-520-0	01	1	0607-		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97234-441-3	01	1	0204-0207				●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97234-441-3	01	1	0208-0305				●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97943-521-0	01	1	0306-0307				●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> HIGH RIDE SUSPENSION<7YC> THA	8-97943-521-0	01	1	0308-0507	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> THA	8-97943-521-0	01	1	0308-0507			●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97943-521-0	01	1	0308-0507				●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> HIGH RIDE SUSPENSION<7YC> THA	8-97943-521-1	01	1	0508-0606	●		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97943-521-1	01	1	0508-0606				●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> HIGH RIDE SUSPENSION<7YC> THA	8-97944-518-1	01	1	0607-0709	●		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97944-518-1	01	1	0607-0709				●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> HIGH RIDE SUSPENSION<7YC> THA	8-98101-779-0	01	1	0710-	●		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-98101-779-0	01	1	0710-				●	●
5	COLUMN; STRG TILT STEERING<N33> THA	8-97349-946-0	01	1	0204-0207	●			●
5	COLUMN; STRG TILT STEERING<N33> THA	8-97349-946-0	01	1	0208-0606	●		●	●
5	COLUMN; STRG THA	8-97349-946-0	01	1	0208-0606					●
5	COLUMN; STRG M/T MUA 5 SPEED 5H<MWQ> EXC. TILT STEERING<N33>,KEY REMINDER BUZZER<T48> THA	8-97945-770-0	01	1	0607-0708	●	●	●	●
5	COLUMN; STRG M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. TILT STEERING<N33>,KEY REMINDER BUZZER<T48> THA	8-97945-770-0	01	1	0709-	●	●	●	●
5	COLUMN; STRG EXC. TILT STEERING<N33> THA	8-97349-947-0	01	1	0204-0207	●			●
5	COLUMN; STRG THA	8-97349-947-0	01	1	0204-0207		●
5	COLUMN; STRG EXC. TILT STEERING<N33> THA	8-97349-947-0	01	1	0208-0408	●		●	●
5	COLUMN; STRG THA	8-97349-947-0	01	1	0208-0408		●
5	COLUMN; STRG EXC. TILT STEERING<N33>,KEY REMINDER BUZZER<T48> THA	8-97349-947-0	01	1	0409-0507	●		●	●
5	COLUMN; STRG THA	8-97349-947-0	01	1	0409-0507		●
5	COLUMN; STRG EXC. TILT STEERING<N33> THA	8-97349-947-0	01	1	0508-0606	●		●	●
5	COLUMN; STRG THA	8-97349-947-0	01	1	0508-0606		●
5	COLUMN; STRG TILT STEERING<N33> THA	8-97945-772-0	01	1	0607-	●		●	●
5	COLUMN; STRG THA	8-97945-772-0	01	1	0607-					●
22	BUSHING; STRG COLUMN TILT STEERING<N33> THA	8-97349-938-0	01	1	0204-0207	●			●
22	BUSHING; STRG COLUMN TILT STEERING<N33> THA	8-97349-938-0	01	1	0208-	●		●	●
22	BUSHING; STRG COLUMN THA	8-97349-938-0	01	1	0208-					●
29	SPRING; COLUMN TILT STEERING<N33> (A) THA	8-97349-937-0	01	1	0204-0207	●			●
29	SPRING; COLUMN TILT STEERING<N33> (A) THA	8-97349-937-0	01	1	0208-	●		●	●
29	SPRING; COLUMN (A) THA	8-97349-937-0	01	1	0208-					●
29	SPRING; COLUMN TILT STEERING<N33> (B) THA	8-97349-939-0	01	1	0204-0207	●			●
29	SPRING; COLUMN TILT STEERING<N33> (B) THA	8-97349-939-0	01	1	0208-	●		●	●
29	SPRING; COLUMN (B) THA	8-97349-939-0	01	1	0208-					●
33	BOLT; STRG SHAFT TO UNIT (B) THA	8-97322-411-0	01	1	0204-0207	●	●
33	BOLT; STRG SHAFT TO UNIT (B) THA	8-97322-411-0	01	1	0208-0307	●	●	●
33	BOLT; STRG SHAFT TO UNIT EXC. HIGH RIDE SUSPENSION<7YC> (B) THA	8-97322-411-0	01	1	0308-0606	●		●
33	BOLT; STRG SHAFT TO UNIT (B) THA	8-97322-411-0	01	1	0308-0606		●
33	BOLT; STRG SHAFT TO UNIT EXC. HIGH RIDE SUSPENSION<7YC> (B) THA	8-97944-830-0	01	1	0607-1009	●		●
33	BOLT; STRG SHAFT TO UNIT (B) THA	8-97944-830-0	01	1	0607-1009		●
33	BOLT; STRG SHAFT TO UNIT EXC. HIGH RIDE SUSPENSION<7YC> (B) THA	8-98140-802-0	01	1	1010-	●		●
33	BOLT; STRG SHAFT TO UNIT (B) THA	8-98140-802-0	01	1	1010-		●
33	BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE THA	8-97249-320-0	02	1	0204-0207	●	●		●
33	BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE THA	8-97249-320-0	02	1	0208-	●	●	●	●	●
33	BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE THA	8-97249-320-0	01	1	0204-0207				●
33	BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE THA	8-97249-320-0	01	1	0208-0307				●	●
33	BOLT; STRG SHAFT TO UNIT HIGH RIDE SUSPENSION<7YC> (A) M8X35 FLANGE THA	8-97249-320-0	01	1	0308-	●		●
33	BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE THA	8-97249-320-0	01	1	0308-				●	●
66	BOLT; STRG COLUMN (A) M8X30 FLANGE THA	0-28650-830-0	04	1	0204-0207	●	●		●
66	BOLT; STRG COLUMN (A) M8X30 FLANGE THA	0-28650-830-0	04	1	0208-	●	●	●	●	●
66	BOLT; STRG COLUMN (B) THA	8-97249-319-1	02	1	0204-0207	●	●		●
66	BOLT; STRG COLUMN (B) THA	8-97249-319-1	02	1	0208-	●	●	●	●	●
95	BOLT; STRG UNIT (A) M12X30 FLANGE THA	0-28661-230-0	02	1	0204-0207	●	●		●
95	BOLT; STRG UNIT (A) M12X30 FLANGE THA	0-28661-230-0	02	1	0208-	●	●	●	●	●
95	BOLT; STRG UNIT (B) M16X195 W/PL WASHER THA	8-97245-661-0	01	1	0204-0207	●	●		●
95	BOLT; STRG UNIT (B) M16X195 W/PL WASHER THA	8-97245-661-0	01	1	0208-	●	●	●	●	●
96	NUT; STRG UNIT M16 THA	0-91110-516-0	02	1	0204-0207	●	●		●
96	NUT; STRG UNIT M16 THA	0-91110-516-0	02	1	0208-	●	●	●	●	●
102	LOCK ASM; STRG A/T 4 SPEED-JATCO<RMK> TILT STEERING<N33> KEY REMINDER BUZZER<T48> THA	8-97945-767-0	01	1	0607-0608	●		●	●
102	LOCK ASM; STRG A/T 4 SPEED-JATCO<RMK> THA	8-97945-767-0	01	1	0607-0608					●
102	LOCK ASM; STRG A/T 4 SPEED-JATCO<RMK> TILT STEERING<N33> KEY REMINDER BUZZER<T48> THA	8-97945-767-0	01	1	0609-0708	●		●	●
102	LOCK ASM; STRG A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-97945-767-0	01	1	0609-0708					●
102	LOCK ASM; STRG A/T 4 SPEED-JATCO<RMK> TILT STEERING<N33> KEY REMINDER BUZZER<T48> THA	8-97945-767-0	01	1	0709-0709	●		●	●
102	LOCK ASM; STRG A/T 4 SPEED-JATCO<RMK> THA	8-97945-767-0	01	1	0709-0709					●
102	LOCK ASM; STRG A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> TILT STEERING<N33> THA	8-97945-767-0	01	1	0710-	●		●	●
102	LOCK ASM; STRG A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-97945-767-0	01	1	0710-					●
102	LOCK ASM; STRG WARNING SYSTEM KEY REMINDER<8EQ> THA	8-97349-940-0	01	1	0204-0207	●			●
102	LOCK ASM; STRG WARNING SYSTEM KEY REMINDER<8EQ> THA	8-97349-940-0	01	1	0208-0408	●		●	●
102	LOCK ASM; STRG THA	8-97349-940-0	01	1	0208-0408					●
102	LOCK ASM; STRG TILT STEERING<N33> KEY REMINDER BUZZER<T48> THA	8-97349-940-0	01	1	0409-0507	●		●	●
102	LOCK ASM; STRG THA	8-97349-940-0	01	1	0409-0507					●
102	LOCK ASM; STRG KEY REMINDER BUZZER<T48> THA	8-97349-940-0	01	1	0508-0606	●		●	●
102	LOCK ASM; STRG THA	8-97349-940-0	01	1	0508-0606					●
102	LOCK ASM; STRG 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> TILT STEERING<N33> KEY REMINDER BUZZER<T48> THA	8-97349-940-0	01	1	0607-0608	●		●	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> TILT STEERING<N33> KEY REMINDER BUZZER<T48> THA	8-97349-940-0	01	1	0609-0708	●		●	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ> TILT STEERING<N33> KEY REMINDER BUZZER<T48> THA	8-97349-940-0	01	1	0709-0709	●		●	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> TILT STEERING<N33> KEY REMINDER BUZZER<T48> THA	8-97349-940-0	01	1	0710-	●		●	●	●
102	LOCK ASM; STRG EXC. WARNING SYSTEM KEY REMINDER<8EQ> THA	8-97349-942-0	01	1	0204-0207	●			●
102	LOCK ASM; STRG THA	8-97349-942-0	01	1	0204-0207		●
102	LOCK ASM; STRG EXC. WARNING SYSTEM KEY REMINDER<8EQ> THA	8-97349-942-0	01	1	0208-0408	●		●	●
102	LOCK ASM; STRG THA	8-97349-942-0	01	1	0208-0408		●
102	LOCK ASM; STRG EXC. KEY REMINDER BUZZER<T48> THA	8-97349-942-0	01	1	0409-0606	●		●	●
102	LOCK ASM; STRG THA	8-97349-942-0	01	1	0409-0606		●
102	LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ> EXC. TILT STEERING<N33>,KEY REMINDER BUZZER<T48> THA	8-97349-942-0	01	1	0607-0708	●	●	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. TILT STEERING<N33>,KEY REMINDER BUZZER<T48> THA	8-97349-942-0	01	1	0709-	●	●	●	●
103	SWITCH; IGNITION WARNING SYSTEM KEY REMINDER<8EQ> THA	8-97350-071-0	01	1	0204-0207	●			●
103	SWITCH; IGNITION WARNING SYSTEM KEY REMINDER<8EQ> THA	8-97350-071-0	01	1	0208-0408	●		●	●
103	SWITCH; IGNITION THA	8-97350-071-0	01	1	0208-0408					●
103	SWITCH; IGNITION TILT STEERING<N33> KEY REMINDER BUZZER<T48> THA	8-97350-071-0	01	1	0409-0507	●		●	●
103	SWITCH; IGNITION THA	8-97350-071-0	01	1	0409-0507					●
103	SWITCH; IGNITION KEY REMINDER BUZZER<T48> THA	8-97350-071-0	01	1	0508-0606	●		●	●
103	SWITCH; IGNITION THA	8-97350-071-0	01	1	0508-0606					●
103	SWITCH; IGNITION TILT STEERING<N33> THA	8-97350-071-0	01	1	0607-	●		●	●
103	SWITCH; IGNITION THA	8-97350-071-0	01	1	0607-					●
103	SWITCH; IGNITION EXC. WARNING SYSTEM KEY REMINDER<8EQ> THA	8-97350-072-0	01	1	0204-0207	●			●
103	SWITCH; IGNITION THA	8-97350-072-0	01	1	0204-0207		●
103	SWITCH; IGNITION EXC. WARNING SYSTEM KEY REMINDER<8EQ> THA	8-97350-072-0	01	1	0208-0408	●		●	●
103	SWITCH; IGNITION THA	8-97350-072-0	01	1	0208-0408		●
103	SWITCH; IGNITION EXC. KEY REMINDER BUZZER<T48> THA	8-97350-072-0	01	1	0409-0606	●		●	●
103	SWITCH; IGNITION THA	8-97350-072-0	01	1	0409-0606		●
103	SWITCH; IGNITION M/T MUA 5 SPEED 5H<MWQ> EXC. TILT STEERING<N33>,KEY REMINDER BUZZER<T48> THA	8-97350-072-0	01	1	0607-0708	●	●	●	●
103	SWITCH; IGNITION M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. TILT STEERING<N33>,KEY REMINDER BUZZER<T48> THA	8-97350-072-0	01	1	0709-	●	●	●	●
105	SCREW; IGN SW THA	8-97349-945-0	02	1	0204-0207	●	●		●
105	SCREW; IGN SW THA	8-97349-945-0	02	1	0208-	●	●	●	●	●
134	SHAFT; STRG,2ND (A) THA	8-97214-657-3	01	1	0204-0207	●	●
134	SHAFT; STRG,2ND (A) THA	8-97214-657-3	01	1	0208-0302	●	●	●
134	SHAFT; STRG,2ND EXC. POWER STEERING<N40> (A) THA	8-97214-657-3	01	1	0303-0305	●	●
134	SHAFT; STRG,2ND EXC. POWER STEERING<N40> (A) THA	8-97943-551-0	01	1	0306-0306	●	●
134	SHAFT; STRG,2ND EXC. POWER STEERING<N40> (A) THA	8-97943-690-0	01	1	0306-0307	●	●
134	SHAFT; STRG,2ND EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION<7YC> (A) THA	8-97943-690-0	01	1	0308-0502	●	●
134	SHAFT; STRG,2ND EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION<7YC> (A) THA	8-97944-434-0	01	1	0503-0507	●	●
134	SHAFT; STRG,2ND EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION<7YC> (A) THA	8-97944-434-0	01	1	0508-0606	●		●
134	SHAFT; STRG,2ND EXC. POWER STEERING<N40> (A) THA	8-97944-434-0	01	1	0508-0606		●
134	SHAFT; STRG,2ND EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION<7YC> (A) THA	8-97944-594-0	01	1	0607-0804	●		●
134	SHAFT; STRG,2ND EXC. POWER STEERING<N40> (A) THA	8-97944-594-0	01	1	0607-0804		●
134	SHAFT; STRG,2ND EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION<7YC> (A) THA	8-98108-811-0	01	1	0805-	●		●
134	SHAFT; STRG,2ND EXC. POWER STEERING<N40> (A) THA	8-98108-811-0	01	1	0805-		●
134	SHAFT; STRG,2ND (B) THA	8-97256-547-0	01	1	0204-0207	●	●
134	SHAFT; STRG,2ND (B) THA	8-97256-547-0	01	1	0208-0307	●	●	●
134	SHAFT; STRG,2ND EXC. HIGH RIDE SUSPENSION<7YC> (B) THA	8-97256-547-0	01	1	0308-	●		●
134	SHAFT; STRG,2ND (B) THA	8-97256-547-0	01	1	0308-		●
134	SHAFT; STRG,2ND POWER STEERING<N40> (A) THA	8-97358-236-0	01	1	0303-0305	●	●
134	SHAFT; STRG,2ND (A) THA	8-97358-236-0	01	1	0303-0305			●
134	SHAFT; STRG,2ND POWER STEERING<N40> (A) THA	8-97943-548-0	01	1	0306-0306	●	●
134	SHAFT; STRG,2ND (A) THA	8-97943-548-0	01	1	0306-0306			●
134	SHAFT; STRG,2ND POWER STEERING<N40> (A) THA	8-97943-687-0	01	1	0306-0307	●	●
134	SHAFT; STRG,2ND (A) THA	8-97943-687-0	01	1	0306-0307			●
134	SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97943-687-0	01	1	0308-0502	●	●
134	SHAFT; STRG,2ND EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97943-687-0	01	1	0308-0502			●
134	SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97944-431-0	01	1	0503-0507	●	●
134	SHAFT; STRG,2ND EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97944-431-0	01	1	0503-0507			●
134	SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97944-431-0	01	1	0508-0606	●		●
134	SHAFT; STRG,2ND POWER STEERING<N40> (A) THA	8-97944-431-0	01	1	0508-0606		●
134	SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97944-590-0	01	1	0607-0804	●		●
134	SHAFT; STRG,2ND POWER STEERING<N40> (A) THA	8-97944-590-0	01	1	0607-0804		●
134	SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98108-807-0	01	1	0805-	●		●
134	SHAFT; STRG,2ND POWER STEERING<N40> (A) THA	8-98108-807-0	01	1	0805-		●
134	SHAFT; STRG,2ND (C) THA	8-97234-439-1	01	1	0204-0207				●
134	SHAFT; STRG,2ND (C) THA	8-97234-439-1	01	1	0208-0305				●	●
134	SHAFT; STRG,2ND (C) THA	8-97943-553-0	01	1	0306-0306				●	●
134	SHAFT; STRG,2ND (C) THA	8-97943-692-0	01	1	0306-0307				●	●
134	SHAFT; STRG,2ND HIGH RIDE SUSPENSION<7YC> (C) THA	8-97943-692-0	01	1	0308-0502	●		●
134	SHAFT; STRG,2ND (C) THA	8-97943-692-0	01	1	0308-0502				●	●
134	SHAFT; STRG,2ND HIGH RIDE SUSPENSION<7YC> (C) THA	8-97944-436-0	01	1	0503-0606	●		●
134	SHAFT; STRG,2ND (C) THA	8-97944-436-0	01	1	0503-0606				●	●
134	SHAFT; STRG,2ND HIGH RIDE SUSPENSION<7YC> (C) THA	8-97944-592-0	01	1	0607-0804	●		●
134	SHAFT; STRG,2ND (C) THA	8-97944-592-0	01	1	0607-0804				●	●
134	SHAFT; STRG,2ND HIGH RIDE SUSPENSION<7YC> (C) THA	8-98108-809-0	01	1	0805-	●		●
134	SHAFT; STRG,2ND (C) THA	8-98108-809-0	01	1	0805-				●	●
134	SHAFT; STRG,2ND (D) THA	8-97256-548-2	01	1	0204-0207				●
134	SHAFT; STRG,2ND (D) THA	8-97256-548-2	01	1	0208-0302				●	●
134	SHAFT; STRG,2ND (D) THA	8-97358-237-0	01	1	0303-0307				●	●
134	SHAFT; STRG,2ND HIGH RIDE SUSPENSION<7YC> (D) THA	8-97358-237-0	01	1	0308-	●		●
134	SHAFT; STRG,2ND (D) THA	8-97358-237-0	01	1	0308-				●	●
152	WASHER; LK,STRG UNIT ID=16.5 OD=45 THA	8-97249-436-0	02	1	0204-0207	●	●		●
152	WASHER; LK,STRG UNIT ID=16.5 OD=45 THA	8-97249-436-0	02	1	0208-0606	●	●	●	●	●
152	WASHER; LK,STRG UNIT ID=16.5 OD=45 THA	8-97944-809-0	02	1	0607-	●	●	●	●	●
188	BOLT; TORQUE,STEERING TILT STEERING<N33> THA	8-98133-262-0	02	1	0812-	●		●	●
188	BOLT; TORQUE,STEERING THA	8-98133-262-0	02	1	0812-					●
188	BOLT; TORQUE,STEERING THA	8-97349-941-0	02	1	0204-0207	●	●		●
188	BOLT; TORQUE,STEERING THA	8-97349-941-0	02	1	0208-0606	●	●	●	●	●
188	BOLT; TORQUE,STEERING M8X18.5 TWISTED OFF THA	8-97945-749-0	02	1	0607-0811	●	●	●	●	●
188	BOLT; TORQUE,STEERING M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. TILT STEERING<N33>,KEY REMINDER BUZZER<T48> M8X18.5 TWISTED OFF THA	8-97945-749-0	02	1	0812-	●	●	●	●
308	BRACKET; HOLDER,IGN SW,STRG COLUMN EXC. TILT STEERING<N33> THA	8-98047-095-0	01	1	0204-0606	●		●	●
308	BRACKET; HOLDER,IGN SW,STRG COLUMN THA	8-98047-095-0	01	1	0204-0606		●
308	BRACKET; HOLDER,IGN SW,STRG COLUMN M/T MUA 5 SPEED 5H<MWQ> EXC. TILT STEERING<N33>,KEY REMINDER BUZZER<T48> THA	8-98047-095-0	01	1	0607-0708	●	●	●	●
308	BRACKET; HOLDER,IGN SW,STRG COLUMN M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. TILT STEERING<N33>,KEY REMINDER BUZZER<T48> THA	8-98047-095-0	01	1	0709-	●	●	●	●

188 308 5 5 308 29 102 33 22 29 66 66 66 102 134 134 103 33 33 96 152 105 95 152 96 1 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> THA	8-97234-440-3	01	1	0204-0207	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> THA	8-97234-440-3	01	1	0208-0305	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97234-440-3	01	1	0208-0305			●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> THA	8-97943-520-0	01	1	0306-0307	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97943-520-0	01	1	0306-0307			●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97943-520-0	01	1	0308-0507	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97943-520-0	01	1	0308-0507			●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97943-520-1	01	1	0508-0606	●		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> THA	8-97943-520-1	01	1	0508-0606		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97944-516-0	01	1	0607-	●		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> THA	8-97944-516-0	01	1	0607-		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40> THA	8-97234-444-2	01	1	0204-0307	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION<7YC> THA	8-97234-444-2	01	1	0308-0507	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION<7YC> THA	8-97234-444-3	01	1	0508-0606	●		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40> THA	8-97234-444-3	01	1	0508-0606		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION<7YC> THA	8-97944-520-0	01	1	0607-	●		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40> THA	8-97944-520-0	01	1	0607-		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97234-441-3	01	1	0204-0207				●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97234-441-3	01	1	0208-0305				●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97943-521-0	01	1	0306-0307				●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> HIGH RIDE SUSPENSION<7YC> THA	8-97943-521-0	01	1	0308-0507	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> THA	8-97943-521-0	01	1	0308-0507			●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97943-521-0	01	1	0308-0507				●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> HIGH RIDE SUSPENSION<7YC> THA	8-97943-521-1	01	1	0508-0606	●		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97943-521-1	01	1	0508-0606				●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> HIGH RIDE SUSPENSION<7YC> THA	8-97944-518-1	01	1	0607-0709	●		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97944-518-1	01	1	0607-0709				●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> HIGH RIDE SUSPENSION<7YC> THA	8-98101-779-0	01	1	0710-	●		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-98101-779-0	01	1	0710-				●	●
5	COLUMN; STRG TILT STEERING<N33> THA	8-97349-946-0	01	1	0204-0207	●			●
5	COLUMN; STRG TILT STEERING<N33> THA	8-97349-946-0	01	1	0208-0606	●		●	●
5	COLUMN; STRG THA	8-97349-946-0	01	1	0208-0606					●
5	COLUMN; STRG M/T MUA 5 SPEED 5H<MWQ> EXC. TILT STEERING<N33>,KEY REMINDER BUZZER<T48> THA	8-97945-770-0	01	1	0607-0708	●	●	●	●
5	COLUMN; STRG M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. TILT STEERING<N33>,KEY REMINDER BUZZER<T48> THA	8-97945-770-0	01	1	0709-	●	●	●	●
5	COLUMN; STRG EXC. TILT STEERING<N33> THA	8-97349-947-0	01	1	0204-0207	●			●
5	COLUMN; STRG THA	8-97349-947-0	01	1	0204-0207		●
5	COLUMN; STRG EXC. TILT STEERING<N33> THA	8-97349-947-0	01	1	0208-0408	●		●	●
5	COLUMN; STRG THA	8-97349-947-0	01	1	0208-0408		●
5	COLUMN; STRG EXC. TILT STEERING<N33>,KEY REMINDER BUZZER<T48> THA	8-97349-947-0	01	1	0409-0507	●		●	●
5	COLUMN; STRG THA	8-97349-947-0	01	1	0409-0507		●
5	COLUMN; STRG EXC. TILT STEERING<N33> THA	8-97349-947-0	01	1	0508-0606	●		●	●
5	COLUMN; STRG THA	8-97349-947-0	01	1	0508-0606		●
5	COLUMN; STRG TILT STEERING<N33> THA	8-97945-772-0	01	1	0607-	●		●	●
5	COLUMN; STRG THA	8-97945-772-0	01	1	0607-					●
22	BUSHING; STRG COLUMN TILT STEERING<N33> THA	8-97349-938-0	01	1	0204-0207	●			●
22	BUSHING; STRG COLUMN TILT STEERING<N33> THA	8-97349-938-0	01	1	0208-	●		●	●
22	BUSHING; STRG COLUMN THA	8-97349-938-0	01	1	0208-					●
29	SPRING; COLUMN TILT STEERING<N33> (A) THA	8-97349-937-0	01	1	0204-0207	●			●
29	SPRING; COLUMN TILT STEERING<N33> (A) THA	8-97349-937-0	01	1	0208-	●		●	●
29	SPRING; COLUMN (A) THA	8-97349-937-0	01	1	0208-					●
29	SPRING; COLUMN TILT STEERING<N33> (B) THA	8-97349-939-0	01	1	0204-0207	●			●
29	SPRING; COLUMN TILT STEERING<N33> (B) THA	8-97349-939-0	01	1	0208-	●		●	●
29	SPRING; COLUMN (B) THA	8-97349-939-0	01	1	0208-					●
33	BOLT; STRG SHAFT TO UNIT (B) THA	8-97322-411-0	01	1	0204-0207	●	●
33	BOLT; STRG SHAFT TO UNIT (B) THA	8-97322-411-0	01	1	0208-0307	●	●	●
33	BOLT; STRG SHAFT TO UNIT EXC. HIGH RIDE SUSPENSION<7YC> (B) THA	8-97322-411-0	01	1	0308-0606	●		●
33	BOLT; STRG SHAFT TO UNIT (B) THA	8-97322-411-0	01	1	0308-0606		●
33	BOLT; STRG SHAFT TO UNIT EXC. HIGH RIDE SUSPENSION<7YC> (B) THA	8-97944-830-0	01	1	0607-1009	●		●
33	BOLT; STRG SHAFT TO UNIT (B) THA	8-97944-830-0	01	1	0607-1009		●
33	BOLT; STRG SHAFT TO UNIT EXC. HIGH RIDE SUSPENSION<7YC> (B) THA	8-98140-802-0	01	1	1010-	●		●
33	BOLT; STRG SHAFT TO UNIT (B) THA	8-98140-802-0	01	1	1010-		●
33	BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE THA	8-97249-320-0	02	1	0204-0207	●	●		●
33	BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE THA	8-97249-320-0	02	1	0208-	●	●	●	●	●
33	BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE THA	8-97249-320-0	01	1	0204-0207				●
33	BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE THA	8-97249-320-0	01	1	0208-0307				●	●
33	BOLT; STRG SHAFT TO UNIT HIGH RIDE SUSPENSION<7YC> (A) M8X35 FLANGE THA	8-97249-320-0	01	1	0308-	●		●
33	BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE THA	8-97249-320-0	01	1	0308-				●	●
66	BOLT; STRG COLUMN (A) M8X30 FLANGE THA	0-28650-830-0	04	1	0204-0207	●	●		●
66	BOLT; STRG COLUMN (A) M8X30 FLANGE THA	0-28650-830-0	04	1	0208-	●	●	●	●	●
66	BOLT; STRG COLUMN (B) THA	8-97249-319-1	02	1	0204-0207	●	●		●
66	BOLT; STRG COLUMN (B) THA	8-97249-319-1	02	1	0208-	●	●	●	●	●
95	BOLT; STRG UNIT (A) M12X30 FLANGE THA	0-28661-230-0	02	1	0204-0207	●	●		●
95	BOLT; STRG UNIT (A) M12X30 FLANGE THA	0-28661-230-0	02	1	0208-	●	●	●	●	●
95	BOLT; STRG UNIT (B) M16X195 W/PL WASHER THA	8-97245-661-0	01	1	0204-0207	●	●		●
95	BOLT; STRG UNIT (B) M16X195 W/PL WASHER THA	8-97245-661-0	01	1	0208-	●	●	●	●	●
96	NUT; STRG UNIT M16 THA	0-91110-516-0	02	1	0204-0207	●	●		●
96	NUT; STRG UNIT M16 THA	0-91110-516-0	02	1	0208-	●	●	●	●	●
102	LOCK ASM; STRG A/T 4 SPEED-JATCO<RMK> TILT STEERING<N33> KEY REMINDER BUZZER<T48> THA	8-97945-767-0	01	1	0607-0608	●		●	●
102	LOCK ASM; STRG A/T 4 SPEED-JATCO<RMK> THA	8-97945-767-0	01	1	0607-0608					●
102	LOCK ASM; STRG A/T 4 SPEED-JATCO<RMK> TILT STEERING<N33> KEY REMINDER BUZZER<T48> THA	8-97945-767-0	01	1	0609-0708	●		●	●
102	LOCK ASM; STRG A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-97945-767-0	01	1	0609-0708					●
102	LOCK ASM; STRG A/T 4 SPEED-JATCO<RMK> TILT STEERING<N33> KEY REMINDER BUZZER<T48> THA	8-97945-767-0	01	1	0709-0709	●		●	●
102	LOCK ASM; STRG A/T 4 SPEED-JATCO<RMK> THA	8-97945-767-0	01	1	0709-0709					●
102	LOCK ASM; STRG A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> TILT STEERING<N33> THA	8-97945-767-0	01	1	0710-	●		●	●
102	LOCK ASM; STRG A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-97945-767-0	01	1	0710-					●
102	LOCK ASM; STRG WARNING SYSTEM KEY REMINDER<8EQ> THA	8-97349-940-0	01	1	0204-0207	●			●
102	LOCK ASM; STRG WARNING SYSTEM KEY REMINDER<8EQ> THA	8-97349-940-0	01	1	0208-0408	●		●	●
102	LOCK ASM; STRG THA	8-97349-940-0	01	1	0208-0408					●
102	LOCK ASM; STRG TILT STEERING<N33> KEY REMINDER BUZZER<T48> THA	8-97349-940-0	01	1	0409-0507	●		●	●
102	LOCK ASM; STRG THA	8-97349-940-0	01	1	0409-0507					●
102	LOCK ASM; STRG KEY REMINDER BUZZER<T48> THA	8-97349-940-0	01	1	0508-0606	●		●	●
102	LOCK ASM; STRG THA	8-97349-940-0	01	1	0508-0606					●
102	LOCK ASM; STRG 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> TILT STEERING<N33> KEY REMINDER BUZZER<T48> THA	8-97349-940-0	01	1	0607-0608	●		●	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> TILT STEERING<N33> KEY REMINDER BUZZER<T48> THA	8-97349-940-0	01	1	0609-0708	●		●	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ> TILT STEERING<N33> KEY REMINDER BUZZER<T48> THA	8-97349-940-0	01	1	0709-0709	●		●	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> TILT STEERING<N33> KEY REMINDER BUZZER<T48> THA	8-97349-940-0	01	1	0710-	●		●	●	●
102	LOCK ASM; STRG EXC. WARNING SYSTEM KEY REMINDER<8EQ> THA	8-97349-942-0	01	1	0204-0207	●			●
102	LOCK ASM; STRG THA	8-97349-942-0	01	1	0204-0207		●
102	LOCK ASM; STRG EXC. WARNING SYSTEM KEY REMINDER<8EQ> THA	8-97349-942-0	01	1	0208-0408	●		●	●
102	LOCK ASM; STRG THA	8-97349-942-0	01	1	0208-0408		●
102	LOCK ASM; STRG EXC. KEY REMINDER BUZZER<T48> THA	8-97349-942-0	01	1	0409-0606	●		●	●
102	LOCK ASM; STRG THA	8-97349-942-0	01	1	0409-0606		●
102	LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ> EXC. TILT STEERING<N33>,KEY REMINDER BUZZER<T48> THA	8-97349-942-0	01	1	0607-0708	●	●	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. TILT STEERING<N33>,KEY REMINDER BUZZER<T48> THA	8-97349-942-0	01	1	0709-	●	●	●	●
103	SWITCH; IGNITION WARNING SYSTEM KEY REMINDER<8EQ> THA	8-97350-071-0	01	1	0204-0207	●			●
103	SWITCH; IGNITION WARNING SYSTEM KEY REMINDER<8EQ> THA	8-97350-071-0	01	1	0208-0408	●		●	●
103	SWITCH; IGNITION THA	8-97350-071-0	01	1	0208-0408					●
103	SWITCH; IGNITION TILT STEERING<N33> KEY REMINDER BUZZER<T48> THA	8-97350-071-0	01	1	0409-0507	●		●	●
103	SWITCH; IGNITION THA	8-97350-071-0	01	1	0409-0507					●
103	SWITCH; IGNITION KEY REMINDER BUZZER<T48> THA	8-97350-071-0	01	1	0508-0606	●		●	●
103	SWITCH; IGNITION THA	8-97350-071-0	01	1	0508-0606					●
103	SWITCH; IGNITION TILT STEERING<N33> THA	8-97350-071-0	01	1	0607-	●		●	●
103	SWITCH; IGNITION THA	8-97350-071-0	01	1	0607-					●
103	SWITCH; IGNITION EXC. WARNING SYSTEM KEY REMINDER<8EQ> THA	8-97350-072-0	01	1	0204-0207	●			●
103	SWITCH; IGNITION THA	8-97350-072-0	01	1	0204-0207		●
103	SWITCH; IGNITION EXC. WARNING SYSTEM KEY REMINDER<8EQ> THA	8-97350-072-0	01	1	0208-0408	●		●	●
103	SWITCH; IGNITION THA	8-97350-072-0	01	1	0208-0408		●
103	SWITCH; IGNITION EXC. KEY REMINDER BUZZER<T48> THA	8-97350-072-0	01	1	0409-0606	●		●	●
103	SWITCH; IGNITION THA	8-97350-072-0	01	1	0409-0606		●
103	SWITCH; IGNITION M/T MUA 5 SPEED 5H<MWQ> EXC. TILT STEERING<N33>,KEY REMINDER BUZZER<T48> THA	8-97350-072-0	01	1	0607-0708	●	●	●	●
103	SWITCH; IGNITION M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. TILT STEERING<N33>,KEY REMINDER BUZZER<T48> THA	8-97350-072-0	01	1	0709-	●	●	●	●
105	SCREW; IGN SW THA	8-97349-945-0	02	1	0204-0207	●	●		●
105	SCREW; IGN SW THA	8-97349-945-0	02	1	0208-	●	●	●	●	●
134	SHAFT; STRG,2ND (A) THA	8-97214-657-3	01	1	0204-0207	●	●
134	SHAFT; STRG,2ND (A) THA	8-97214-657-3	01	1	0208-0302	●	●	●
134	SHAFT; STRG,2ND EXC. POWER STEERING<N40> (A) THA	8-97214-657-3	01	1	0303-0305	●	●
134	SHAFT; STRG,2ND EXC. POWER STEERING<N40> (A) THA	8-97943-551-0	01	1	0306-0306	●	●
134	SHAFT; STRG,2ND EXC. POWER STEERING<N40> (A) THA	8-97943-690-0	01	1	0306-0307	●	●
134	SHAFT; STRG,2ND EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION<7YC> (A) THA	8-97943-690-0	01	1	0308-0502	●	●
134	SHAFT; STRG,2ND EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION<7YC> (A) THA	8-97944-434-0	01	1	0503-0507	●	●
134	SHAFT; STRG,2ND EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION<7YC> (A) THA	8-97944-434-0	01	1	0508-0606	●		●
134	SHAFT; STRG,2ND EXC. POWER STEERING<N40> (A) THA	8-97944-434-0	01	1	0508-0606		●
134	SHAFT; STRG,2ND EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION<7YC> (A) THA	8-97944-594-0	01	1	0607-0804	●		●
134	SHAFT; STRG,2ND EXC. POWER STEERING<N40> (A) THA	8-97944-594-0	01	1	0607-0804		●
134	SHAFT; STRG,2ND EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION<7YC> (A) THA	8-98108-811-0	01	1	0805-	●		●
134	SHAFT; STRG,2ND EXC. POWER STEERING<N40> (A) THA	8-98108-811-0	01	1	0805-		●
134	SHAFT; STRG,2ND (B) THA	8-97256-547-0	01	1	0204-0207	●	●
134	SHAFT; STRG,2ND (B) THA	8-97256-547-0	01	1	0208-0307	●	●	●
134	SHAFT; STRG,2ND EXC. HIGH RIDE SUSPENSION<7YC> (B) THA	8-97256-547-0	01	1	0308-	●		●
134	SHAFT; STRG,2ND (B) THA	8-97256-547-0	01	1	0308-		●
134	SHAFT; STRG,2ND POWER STEERING<N40> (A) THA	8-97358-236-0	01	1	0303-0305	●	●
134	SHAFT; STRG,2ND (A) THA	8-97358-236-0	01	1	0303-0305			●
134	SHAFT; STRG,2ND POWER STEERING<N40> (A) THA	8-97943-548-0	01	1	0306-0306	●	●
134	SHAFT; STRG,2ND (A) THA	8-97943-548-0	01	1	0306-0306			●
134	SHAFT; STRG,2ND POWER STEERING<N40> (A) THA	8-97943-687-0	01	1	0306-0307	●	●
134	SHAFT; STRG,2ND (A) THA	8-97943-687-0	01	1	0306-0307			●
134	SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97943-687-0	01	1	0308-0502	●	●
134	SHAFT; STRG,2ND EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97943-687-0	01	1	0308-0502			●
134	SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97944-431-0	01	1	0503-0507	●	●
134	SHAFT; STRG,2ND EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97944-431-0	01	1	0503-0507			●
134	SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97944-431-0	01	1	0508-0606	●		●
134	SHAFT; STRG,2ND POWER STEERING<N40> (A) THA	8-97944-431-0	01	1	0508-0606		●
134	SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97944-590-0	01	1	0607-0804	●		●
134	SHAFT; STRG,2ND POWER STEERING<N40> (A) THA	8-97944-590-0	01	1	0607-0804		●
134	SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98108-807-0	01	1	0805-	●		●
134	SHAFT; STRG,2ND POWER STEERING<N40> (A) THA	8-98108-807-0	01	1	0805-		●
134	SHAFT; STRG,2ND (C) THA	8-97234-439-1	01	1	0204-0207				●
134	SHAFT; STRG,2ND (C) THA	8-97234-439-1	01	1	0208-0305				●	●
134	SHAFT; STRG,2ND (C) THA	8-97943-553-0	01	1	0306-0306				●	●
134	SHAFT; STRG,2ND (C) THA	8-97943-692-0	01	1	0306-0307				●	●
134	SHAFT; STRG,2ND HIGH RIDE SUSPENSION<7YC> (C) THA	8-97943-692-0	01	1	0308-0502	●		●
134	SHAFT; STRG,2ND (C) THA	8-97943-692-0	01	1	0308-0502				●	●
134	SHAFT; STRG,2ND HIGH RIDE SUSPENSION<7YC> (C) THA	8-97944-436-0	01	1	0503-0606	●		●
134	SHAFT; STRG,2ND (C) THA	8-97944-436-0	01	1	0503-0606				●	●
134	SHAFT; STRG,2ND HIGH RIDE SUSPENSION<7YC> (C) THA	8-97944-592-0	01	1	0607-0804	●		●
134	SHAFT; STRG,2ND (C) THA	8-97944-592-0	01	1	0607-0804				●	●
134	SHAFT; STRG,2ND HIGH RIDE SUSPENSION<7YC> (C) THA	8-98108-809-0	01	1	0805-	●		●
134	SHAFT; STRG,2ND (C) THA	8-98108-809-0	01	1	0805-				●	●
134	SHAFT; STRG,2ND (D) THA	8-97256-548-2	01	1	0204-0207				●
134	SHAFT; STRG,2ND (D) THA	8-97256-548-2	01	1	0208-0302				●	●
134	SHAFT; STRG,2ND (D) THA	8-97358-237-0	01	1	0303-0307				●	●
134	SHAFT; STRG,2ND HIGH RIDE SUSPENSION<7YC> (D) THA	8-97358-237-0	01	1	0308-	●		●
134	SHAFT; STRG,2ND (D) THA	8-97358-237-0	01	1	0308-				●	●
152	WASHER; LK,STRG UNIT ID=16.5 OD=45 THA	8-97249-436-0	02	1	0204-0207	●	●		●
152	WASHER; LK,STRG UNIT ID=16.5 OD=45 THA	8-97249-436-0	02	1	0208-0606	●	●	●	●	●
152	WASHER; LK,STRG UNIT ID=16.5 OD=45 THA	8-97944-809-0	02	1	0607-	●	●	●	●	●
188	BOLT; TORQUE,STEERING TILT STEERING<N33> THA	8-98133-262-0	02	1	0812-	●		●	●
188	BOLT; TORQUE,STEERING THA	8-98133-262-0	02	1	0812-					●
188	BOLT; TORQUE,STEERING THA	8-97349-941-0	02	1	0204-0207	●	●		●
188	BOLT; TORQUE,STEERING THA	8-97349-941-0	02	1	0208-0606	●	●	●	●	●
188	BOLT; TORQUE,STEERING M8X18.5 TWISTED OFF THA	8-97945-749-0	02	1	0607-0811	●	●	●	●	●
188	BOLT; TORQUE,STEERING M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. TILT STEERING<N33>,KEY REMINDER BUZZER<T48> M8X18.5 TWISTED OFF THA	8-97945-749-0	02	1	0812-	●	●	●	●
308	BRACKET; HOLDER,IGN SW,STRG COLUMN EXC. TILT STEERING<N33> THA	8-98047-095-0	01	1	0204-0606	●		●	●
308	BRACKET; HOLDER,IGN SW,STRG COLUMN THA	8-98047-095-0	01	1	0204-0606		●
308	BRACKET; HOLDER,IGN SW,STRG COLUMN M/T MUA 5 SPEED 5H<MWQ> EXC. TILT STEERING<N33>,KEY REMINDER BUZZER<T48> THA	8-98047-095-0	01	1	0607-0708	●	●	●	●
308	BRACKET; HOLDER,IGN SW,STRG COLUMN M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. TILT STEERING<N33>,KEY REMINDER BUZZER<T48> THA	8-98047-095-0	01	1	0709-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
