◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#72881) — 328 parça

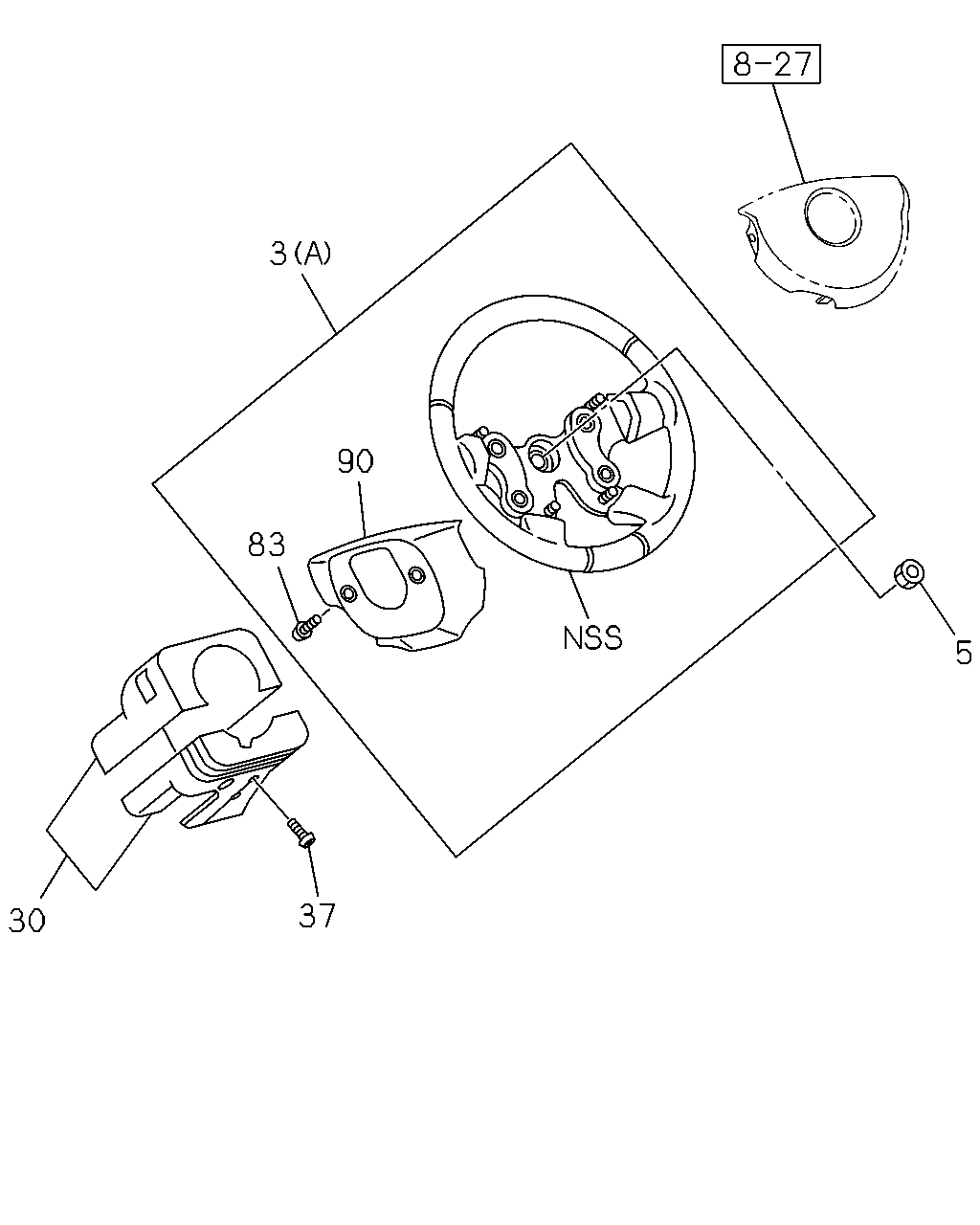

çizim 116588
3 90 83 5 37 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER<AK5> DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY THA 		8-97294-057-1 01 1 0508-0508 ● ● ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER<AK5> DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY THA 		8-97396-454-0 01 1 0509-0606 ● ● ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER<AK5> DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY THA 		8-97403-688-2 01 1 0607-0908 ● ● ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER<AK5> DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY THA 		8-97403-688-2 01 1 0909-1001 ● ●
3 WHEEL; STRG
INTERIOR COLOR VERY DARK GRAY<116> AIR BAG DRIVER & PASSENGER<AK5> DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY THA 		8-97403-688-2 01 1 0909-1001 ●
3 WHEEL; STRG
INTERIOR COLOR VERY DARK GRAY<116> AIR BAG DRIVER & PASSENGER<AK5> DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY THA 		8-97403-688-2 01 1 1002-1009 ● ● ●
3 WHEEL; STRG
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> AIR BAG DRIVER & PASSENGER<AK5> DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY THA 		8-97403-688-2 01 1 1010- ● ● ●
3 WHEEL; STRG
DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY THA 		8-97294-059-1 01 1 0204-0207 ● ●
3 WHEEL; STRG
(B) DARK GRAY THA 		8-97294-059-1 01 1 0204-0207 ●
3 WHEEL; STRG
DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY THA 		8-97294-059-1 01 1 0208-0408 ● ● ●
3 WHEEL; STRG
(B) DARK GRAY THA 		8-97294-059-1 01 1 0208-0408 ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE<AK6> DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY THA 		8-97294-059-1 01 1 0409-0504 ● ● ●
3 WHEEL; STRG
(B) DARK GRAY THA 		8-97294-059-1 01 1 0409-0504 ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE<AK6> DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY THA 		8-97402-858-0 01 1 0505-0606 ● ● ●
3 WHEEL; STRG
(B) DARK GRAY THA 		8-97402-858-0 01 1 0505-0606 ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE<AK6> DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY THA 		8-97403-871-1 01 1 0607-0908 ● ● ●
3 WHEEL; STRG
(B) DARK GRAY THA 		8-97403-871-1 01 1 0607-0908 ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE<AK6> DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY THA 		8-97403-871-1 01 1 0909-1001 ● ●
3 WHEEL; STRG
(B) DARK GRAY THA 		8-97403-871-1 01 1 0909-1001 ●
3 WHEEL; STRG
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY THA 		8-97403-871-1 01 1 0909-1001 ●
3 WHEEL; STRG
INTERIOR COLOR VERY DARK GRAY<116> AIR BAG DRIVER & PASSENGER DELETE<AK6> DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY THA 		8-97403-871-1 01 1 1002-1009 ● ●
3 WHEEL; STRG
(B) DARK GRAY THA 		8-97403-871-1 01 1 1002-1009 ●
3 WHEEL; STRG
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY THA 		8-97403-871-1 01 1 1002-1009 ●
3 WHEEL; STRG
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> AIR BAG DRIVER & PASSENGER DELETE<AK6> DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY THA 		8-97403-871-1 01 1 1010- ● ●
3 WHEEL; STRG
(B) DARK GRAY THA 		8-97403-871-1 01 1 1010- ●
3 WHEEL; STRG
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY THA 		8-97403-871-1 01 1 1010- ●
3 WHEEL; STRG
STEERING WHEEL LEATHER<NP5> AIR BAG DRIVER & PASSENGER<7FA> (A) DARK GRAY THA 		8-97390-772-2 01 1 0204-0207 ● ●
3 WHEEL; STRG
STEERING WHEEL LEATHER<NP5> AIR BAG DRIVER & PASSENGER<7FA> (A) DARK GRAY THA 		8-97390-772-2 01 1 0208-0408 ● ● ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER<7FA> (A) DARK GRAY THA 		8-97390-772-2 01 1 0208-0408 ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5> (A) DARK GRAY THA 		8-97390-772-2 01 1 0409-0508 ● ● ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY THA 		8-97390-772-2 01 1 0409-0508 ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5> (A) DARK GRAY THA 		8-97396-453-0 01 1 0509-0602 ● ● ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY THA 		8-97396-453-0 01 1 0509-0602 ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5> (A) DARK GRAY THA 		8-97406-139-0 01 1 0603-0606 ● ● ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY THA 		8-97406-139-0 01 1 0603-0606 ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5> (A) DARK GRAY THA 		8-97403-900-2 01 1 0607-0908 ● ● ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY THA 		8-97403-900-2 01 1 0607-0908 ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5> (A) DARK GRAY THA 		8-97403-900-2 01 1 0909-1001 ● ●
3 WHEEL; STRG
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5> (A) DARK GRAY THA 		8-97403-900-2 01 1 0909-1001 ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY THA 		8-97403-900-2 01 1 0909-1001 ●
3 WHEEL; STRG
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5> (A) DARK GRAY THA 		8-97403-900-2 01 1 1002-1008 ● ●
3 WHEEL; STRG
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5> (A) DARK GRAY THA 		8-97403-900-2 01 1 1002-1008 ●
3 WHEEL; STRG
INTERIOR COLOR BLACK<101>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY THA 		8-97403-900-2 01 1 1002-1008 ●
3 WHEEL; STRG
INTERIOR COLOR VERY DARK GRAY<116> AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5> (A) DARK GRAY THA 		8-97403-900-2 01 1 1009-1009 ● ●
3 WHEEL; STRG
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5> (A) DARK GRAY THA 		8-97403-900-2 01 1 1009-1009 ●
3 WHEEL; STRG
INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY THA 		8-97403-900-2 01 1 1009-1009 ●
3 WHEEL; STRG
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5> (A) DARK GRAY THA 		8-97403-900-2 01 1 1010- ● ●
3 WHEEL; STRG
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5> (A) DARK GRAY THA 		8-97403-900-2 01 1 1010- ●
3 WHEEL; STRG
INTERIOR COLOR BLACK<101>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY THA 		8-97403-900-2 01 1 1010- ●
3 WHEEL; STRG
STEERING WHEEL LEATHER<NP5> EXC. AIR BAG DRIVER & PASSENGER<7FA> (B) DARK GRAY THA 		8-97390-773-1 01 1 0204-0207 ● ●
3 WHEEL; STRG
STEERING WHEEL LEATHER<NP5> EXC. AIR BAG DRIVER & PASSENGER<7FA> (B) DARK GRAY THA 		8-97390-773-1 01 1 0208-0408 ● ● ●
3 WHEEL; STRG
EXC. AIR BAG DRIVER & PASSENGER<7FA> (B) DARK GRAY THA 		8-97390-773-1 01 1 0208-0408 ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5> (B) DARK GRAY THA 		8-97390-773-1 01 1 0409-0504 ● ● ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) DARK GRAY THA 		8-97390-773-1 01 1 0409-0504 ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5> (B) DARK GRAY THA 		8-97402-856-0 01 1 0505-0602 ● ● ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) DARK GRAY THA 		8-97402-856-0 01 1 0505-0602 ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5> (B) DARK GRAY THA 		8-97406-141-0 01 1 0603-0606 ● ● ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) DARK GRAY THA 		8-97406-141-0 01 1 0603-0606 ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5> (B) DARK GRAY THA 		8-97403-870-1 01 1 0607-0908 ● ● ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) DARK GRAY THA 		8-97403-870-1 01 1 0607-0908 ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5> (B) DARK GRAY THA 		8-97403-870-1 01 1 0909-1001 ● ●
3 WHEEL; STRG
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5> (B) DARK GRAY THA 		8-97403-870-1 01 1 0909-1001 ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) DARK GRAY THA 		8-97403-870-1 01 1 0909-1001 ●
3 WHEEL; STRG
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5> (B) DARK GRAY THA 		8-97403-870-1 01 1 1002-1008 ● ●
3 WHEEL; STRG
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5> (B) DARK GRAY THA 		8-97403-870-1 01 1 1002-1008 ●
3 WHEEL; STRG
INTERIOR COLOR BLACK<101>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) DARK GRAY THA 		8-97403-870-1 01 1 1002-1008 ●
3 WHEEL; STRG
INTERIOR COLOR VERY DARK GRAY<116> AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5> (B) DARK GRAY THA 		8-97403-870-1 01 1 1009-1009 ● ●
3 WHEEL; STRG
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5> (B) DARK GRAY THA 		8-97403-870-1 01 1 1009-1009 ●
3 WHEEL; STRG
INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) DARK GRAY THA 		8-97403-870-1 01 1 1009-1009 ●
3 WHEEL; STRG
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5> (B) DARK GRAY THA 		8-97403-870-1 01 1 1010- ● ●
3 WHEEL; STRG
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5> (B) DARK GRAY THA 		8-97403-870-1 01 1 1010- ●
3 WHEEL; STRG
INTERIOR COLOR BLACK<101>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) DARK GRAY THA 		8-97403-870-1 01 1 1010- ●
5 NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER IMA 		8-94455-487-1 01 1 0204-0207 ● ● ●
5 NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER IMA 		8-94455-487-1 01 1 0208- ● ● ● ● ●
30 COWL; STEERING
DARK GRAY THA 		8-97294-053-2 01 1 0204-0207 ● ● ●
30 COWL; STEERING
DARK GRAY THA 		8-97294-053-2 01 1 0208-0507 ● ● ● ● ●
30 COWL; STEERING
DARK GRAY THA 		8-97294-053-2 01 1 0508-0606 ● ● ●
30 COWL; STEERING
EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97294-053-2 01 1 0508-0606 ●
30 COWL; STEERING
DARK GRAY THA 		8-97396-696-2 01 1 0607-0608 ● ● ●
30 COWL; STEERING
EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97396-696-2 01 1 0607-0608 ●
30 COWL; STEERING
DARK GRAY THA 		8-97396-696-2 01 1 0609-0709 ● ● ●
30 COWL; STEERING
EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97396-696-2 01 1 0609-0709 ● ●
30 COWL; STEERING
DARK GRAY THA 		8-97396-696-2 01 1 0710-0908 ● ● ●
30 COWL; STEERING
EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97396-696-2 01 1 0710-0908 ●
30 COWL; STEERING
DARK GRAY THA 		8-97396-696-2 01 1 0909-1001 ● ● ●
30 COWL; STEERING
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97396-696-2 01 1 0909-1001 ●
30 COWL; STEERING
DARK GRAY THA 		8-97396-696-2 01 1 1002-1008 ● ● ●
30 COWL; STEERING
EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97396-696-2 01 1 1002-1008 ●
30 COWL; STEERING
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97396-696-2 01 1 1009-1009 ● ● ●
30 COWL; STEERING
DARK GRAY THA 		8-97396-696-2 01 1 1009-1009 ●
30 COWL; STEERING
DARK GRAY THA 		8-97396-696-2 01 1 1010-1104 ● ● ●
30 COWL; STEERING
EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97396-696-2 01 1 1010-1104 ●
30 COWL; STEERING
DARK GRAY THA 		8-97422-707-0 01 1 1105- ● ● ●
30 COWL; STEERING
EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97422-707-0 01 1 1105- ●
30 COWL; STEERING
IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97294-054-1 01 1 0508-0606 ●
30 COWL; STEERING
DARK GRAY THA 		8-97294-054-1 01 1 0508-0606 ●
30 COWL; STEERING
IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97403-685-1 01 1 0607-0608 ●
30 COWL; STEERING
DARK GRAY THA 		8-97403-685-1 01 1 0607-0608 ●
30 COWL; STEERING
IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97403-685-1 01 1 0609-0709 ● ●
30 COWL; STEERING
IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97403-685-1 01 1 0710-0908 ●
30 COWL; STEERING
DARK GRAY THA 		8-97403-685-1 01 1 0710-0908 ●
30 COWL; STEERING
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97403-685-1 01 1 0909-1001 ●
30 COWL; STEERING
DARK GRAY THA 		8-97403-685-1 01 1 0909-1001 ●
30 COWL; STEERING
IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97403-685-1 01 1 1002-1008 ●
30 COWL; STEERING
DARK GRAY THA 		8-97403-685-1 01 1 1002-1008 ●
30 COWL; STEERING
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97403-685-1 01 1 1009-1009 ●
30 COWL; STEERING
INTERIOR COLOR BEIGE<184> DARK GRAY THA 		8-97403-685-1 01 1 1009-1009 ●
30 COWL; STEERING
IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97403-685-1 01 1 1010-1104 ●
30 COWL; STEERING
DARK GRAY THA 		8-97403-685-1 01 1 1010-1104 ●
30 COWL; STEERING
IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97422-708-0 01 1 1105- ●
30 COWL; STEERING
DARK GRAY THA 		8-97422-708-0 01 1 1105- ●
37 SCREW; STRG COWL UPR
M4X12 W/LK&PL WASHER THA 		9-03920-412-0 03 1 0204-0207 ● ● ●
37 SCREW; STRG COWL UPR
M4X12 W/LK&PL WASHER THA 		9-03920-412-0 03 1 0208-0305 ● ● ● ● ●
37 SCREW; STRG COWL UPR
M4X12 W/PL WASHER THA 		9-03900-412-0 03 1 0306-0606 ● ● ● ● ●
37 SCREW; STRG COWL UPR
M4X12 W/PL WASHER THA 		0-36210-412-0 03 1 0607- ● ● ● ● ●
83 SCREW; LWR COVER TO WHEEL
AIR BAG DRIVER & PASSENGER<AK5> DELUXE STEERING WHEEL URETHANE<N30> THA 		8-97350-038-0 04 1 0603-0606 ● ● ●
83 SCREW; LWR COVER TO WHEEL
EXC. AIR BAG DRIVER & PASSENGER<7FA> THA 		8-97350-037-0 04 1 0204-0207 ● ●
83 SCREW; LWR COVER TO WHEEL
THA 		8-97350-037-0 04 1 0204-0207 ●
83 SCREW; LWR COVER TO WHEEL
EXC. AIR BAG DRIVER & PASSENGER<7FA> THA 		8-97350-037-0 04 1 0208-0408 ● ● ● ●
83 SCREW; LWR COVER TO WHEEL
THA 		8-97350-037-0 04 1 0208-0408 ●
83 SCREW; LWR COVER TO WHEEL
AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-97350-037-0 04 1 0409- ● ● ● ●
83 SCREW; LWR COVER TO WHEEL
THA 		8-97350-037-0 04 1 0409- ●
83 SCREW; LWR COVER TO WHEEL
STEERING WHEEL LEATHER<NP5> AIR BAG DRIVER & PASSENGER<7FA> THA 		8-97350-038-0 02 1 0204-0207 ● ●
83 SCREW; LWR COVER TO WHEEL
STEERING WHEEL LEATHER<NP5> AIR BAG DRIVER & PASSENGER<7FA> THA 		8-97350-038-0 02 1 0208-0408 ● ● ●
83 SCREW; LWR COVER TO WHEEL
AIR BAG DRIVER & PASSENGER<7FA> THA 		8-97350-038-0 02 1 0208-0408 ●
83 SCREW; LWR COVER TO WHEEL
AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5> THA 		8-97350-038-0 02 1 0409-0507 ● ● ●
83 SCREW; LWR COVER TO WHEEL
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-97350-038-0 02 1 0409-0507 ●
83 SCREW; LWR COVER TO WHEEL
AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> THA 		8-97350-038-0 02 1 0508-0508 ● ● ●
83 SCREW; LWR COVER TO WHEEL
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-97350-038-0 02 1 0508-0508 ●
83 SCREW; LWR COVER TO WHEEL
AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> THA 		8-97350-038-0 04 1 0509-0602 ● ● ●
83 SCREW; LWR COVER TO WHEEL
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-97350-038-0 04 1 0509-0602 ●
83 SCREW; LWR COVER TO WHEEL
AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5> THA 		8-97350-038-0 02 1 0603-0606 ● ● ●
83 SCREW; LWR COVER TO WHEEL
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-97350-038-0 02 1 0603-0606 ●
83 SCREW; LWR COVER TO WHEEL
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-97350-038-0 02 1 0607- ● ● ● ●
90 COVER ASM; STRG WHEEL,LWR
EXC. AIR BAG DRIVER & PASSENGER<7FA> DARK GRAY THA 		8-97394-464-0 01 1 0204-0207 ● ●
90 COVER ASM; STRG WHEEL,LWR
DARK GRAY THA 		8-97394-464-0 01 1 0204-0207 ●
90 COVER ASM; STRG WHEEL,LWR
EXC. AIR BAG DRIVER & PASSENGER<7FA> DARK GRAY THA 		8-97394-464-0 01 1 0208-0408 ● ● ● ●
90 COVER ASM; STRG WHEEL,LWR
DARK GRAY THA 		8-97394-464-0 01 1 0208-0408 ●
90 COVER ASM; STRG WHEEL,LWR
AIR BAG DRIVER & PASSENGER DELETE<AK6> DARK GRAY THA 		8-97394-464-0 01 1 0409-0606 ● ● ● ●
90 COVER ASM; STRG WHEEL,LWR
DARK GRAY THA 		8-97394-464-0 01 1 0409-0606 ●
90 COVER ASM; STRG WHEEL,LWR
AIR BAG DRIVER & PASSENGER DELETE<AK6> DARK GRAY THA 		8-97403-939-1 01 1 0607- ● ● ● ●
90 COVER ASM; STRG WHEEL,LWR
DARK GRAY THA 		8-97403-939-1 01 1 0607- ●
90 COVER ASM; STRG WHEEL,LWR
STEERING WHEEL LEATHER<NP5> AIR BAG DRIVER & PASSENGER<7FA> DARK GRAY THA 		8-97394-463-0 01 1 0204-0207 ● ●
90 COVER ASM; STRG WHEEL,LWR
STEERING WHEEL LEATHER<NP5> AIR BAG DRIVER & PASSENGER<7FA> DARK GRAY THA 		8-97394-463-0 01 1 0208-0408 ● ● ●
90 COVER ASM; STRG WHEEL,LWR
AIR BAG DRIVER & PASSENGER<7FA> DARK GRAY THA 		8-97394-463-0 01 1 0208-0408 ●
90 COVER ASM; STRG WHEEL,LWR
AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5> DARK GRAY THA 		8-97394-463-0 01 1 0409-0507 ● ● ●
90 COVER ASM; STRG WHEEL,LWR
AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY THA 		8-97394-463-0 01 1 0409-0507 ●
90 COVER ASM; STRG WHEEL,LWR
AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY THA 		8-97394-463-0 01 1 0508-0606 ● ● ●
90 COVER ASM; STRG WHEEL,LWR
AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY THA 		8-97394-463-0 01 1 0508-0606 ●
90 COVER ASM; STRG WHEEL,LWR
AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY THA 		8-97403-937-1 01 1 0607- ● ● ● ●

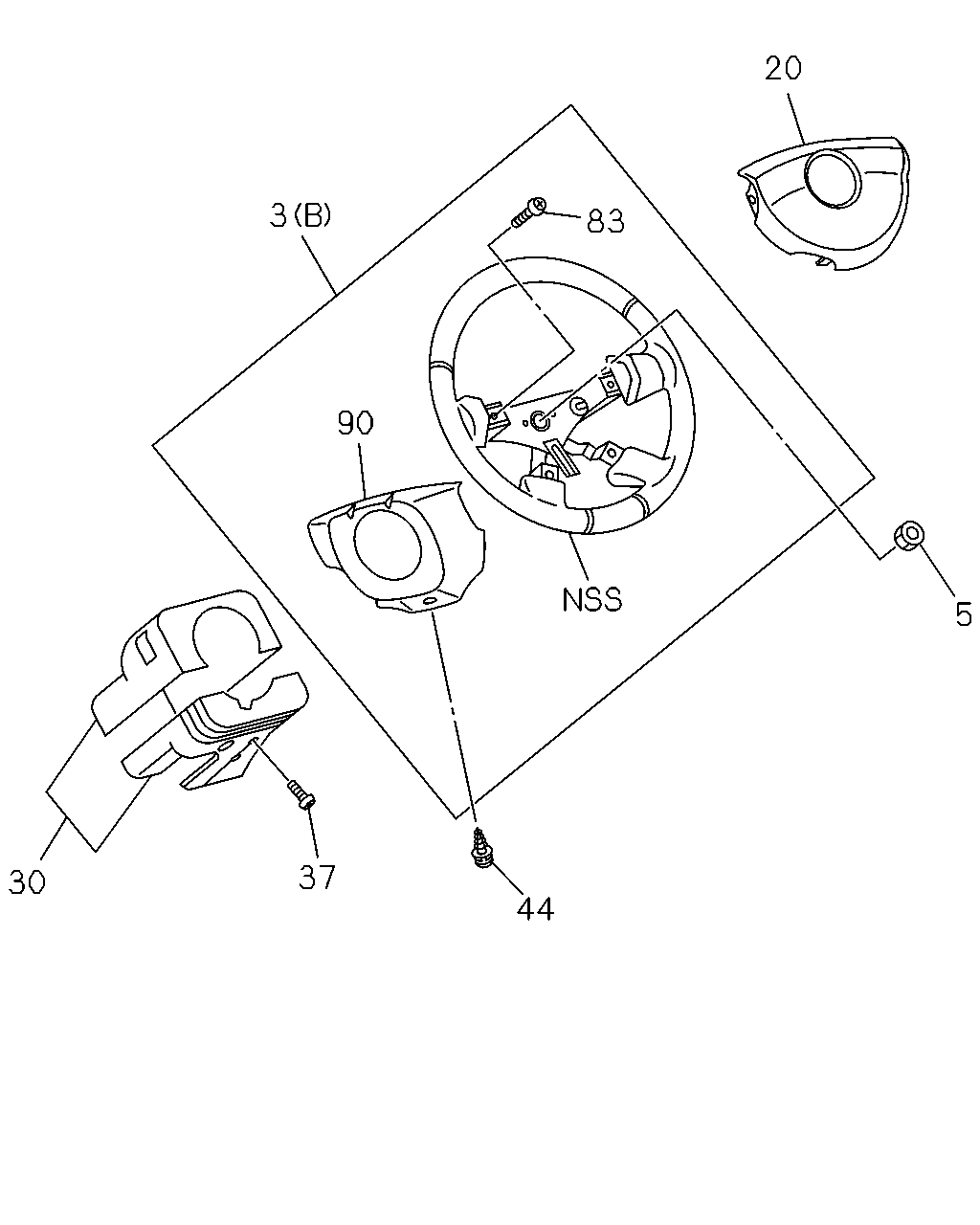

çizim 116591
20 3 83 90 5 37 30 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER<AK5> DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY THA 		8-97294-057-1 01 1 0508-0508 ● ● ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER<AK5> DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY THA 		8-97396-454-0 01 1 0509-0606 ● ● ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER<AK5> DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY THA 		8-97403-688-2 01 1 0607-0908 ● ● ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER<AK5> DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY THA 		8-97403-688-2 01 1 0909-1001 ● ●
3 WHEEL; STRG
INTERIOR COLOR VERY DARK GRAY<116> AIR BAG DRIVER & PASSENGER<AK5> DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY THA 		8-97403-688-2 01 1 0909-1001 ●
3 WHEEL; STRG
INTERIOR COLOR VERY DARK GRAY<116> AIR BAG DRIVER & PASSENGER<AK5> DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY THA 		8-97403-688-2 01 1 1002-1009 ● ● ●
3 WHEEL; STRG
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> AIR BAG DRIVER & PASSENGER<AK5> DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY THA 		8-97403-688-2 01 1 1010- ● ● ●
3 WHEEL; STRG
DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY THA 		8-97294-059-1 01 1 0204-0207 ● ●
3 WHEEL; STRG
(B) DARK GRAY THA 		8-97294-059-1 01 1 0204-0207 ●
3 WHEEL; STRG
DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY THA 		8-97294-059-1 01 1 0208-0408 ● ● ●
3 WHEEL; STRG
(B) DARK GRAY THA 		8-97294-059-1 01 1 0208-0408 ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE<AK6> DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY THA 		8-97294-059-1 01 1 0409-0504 ● ● ●
3 WHEEL; STRG
(B) DARK GRAY THA 		8-97294-059-1 01 1 0409-0504 ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE<AK6> DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY THA 		8-97402-858-0 01 1 0505-0606 ● ● ●
3 WHEEL; STRG
(B) DARK GRAY THA 		8-97402-858-0 01 1 0505-0606 ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE<AK6> DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY THA 		8-97403-871-1 01 1 0607-0908 ● ● ●
3 WHEEL; STRG
(B) DARK GRAY THA 		8-97403-871-1 01 1 0607-0908 ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE<AK6> DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY THA 		8-97403-871-1 01 1 0909-1001 ● ●
3 WHEEL; STRG
(B) DARK GRAY THA 		8-97403-871-1 01 1 0909-1001 ●
3 WHEEL; STRG
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY THA 		8-97403-871-1 01 1 0909-1001 ●
3 WHEEL; STRG
INTERIOR COLOR VERY DARK GRAY<116> AIR BAG DRIVER & PASSENGER DELETE<AK6> DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY THA 		8-97403-871-1 01 1 1002-1009 ● ●
3 WHEEL; STRG
(B) DARK GRAY THA 		8-97403-871-1 01 1 1002-1009 ●
3 WHEEL; STRG
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY THA 		8-97403-871-1 01 1 1002-1009 ●
3 WHEEL; STRG
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> AIR BAG DRIVER & PASSENGER DELETE<AK6> DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY THA 		8-97403-871-1 01 1 1010- ● ●
3 WHEEL; STRG
(B) DARK GRAY THA 		8-97403-871-1 01 1 1010- ●
3 WHEEL; STRG
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY THA 		8-97403-871-1 01 1 1010- ●
3 WHEEL; STRG
STEERING WHEEL LEATHER<NP5> AIR BAG DRIVER & PASSENGER<7FA> (A) DARK GRAY THA 		8-97390-772-2 01 1 0204-0207 ● ●
3 WHEEL; STRG
STEERING WHEEL LEATHER<NP5> AIR BAG DRIVER & PASSENGER<7FA> (A) DARK GRAY THA 		8-97390-772-2 01 1 0208-0408 ● ● ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER<7FA> (A) DARK GRAY THA 		8-97390-772-2 01 1 0208-0408 ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5> (A) DARK GRAY THA 		8-97390-772-2 01 1 0409-0508 ● ● ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY THA 		8-97390-772-2 01 1 0409-0508 ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5> (A) DARK GRAY THA 		8-97396-453-0 01 1 0509-0602 ● ● ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY THA 		8-97396-453-0 01 1 0509-0602 ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5> (A) DARK GRAY THA 		8-97406-139-0 01 1 0603-0606 ● ● ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY THA 		8-97406-139-0 01 1 0603-0606 ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5> (A) DARK GRAY THA 		8-97403-900-2 01 1 0607-0908 ● ● ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY THA 		8-97403-900-2 01 1 0607-0908 ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5> (A) DARK GRAY THA 		8-97403-900-2 01 1 0909-1001 ● ●
3 WHEEL; STRG
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5> (A) DARK GRAY THA 		8-97403-900-2 01 1 0909-1001 ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY THA 		8-97403-900-2 01 1 0909-1001 ●
3 WHEEL; STRG
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5> (A) DARK GRAY THA 		8-97403-900-2 01 1 1002-1008 ● ●
3 WHEEL; STRG
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5> (A) DARK GRAY THA 		8-97403-900-2 01 1 1002-1008 ●
3 WHEEL; STRG
INTERIOR COLOR BLACK<101>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY THA 		8-97403-900-2 01 1 1002-1008 ●
3 WHEEL; STRG
INTERIOR COLOR VERY DARK GRAY<116> AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5> (A) DARK GRAY THA 		8-97403-900-2 01 1 1009-1009 ● ●
3 WHEEL; STRG
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5> (A) DARK GRAY THA 		8-97403-900-2 01 1 1009-1009 ●
3 WHEEL; STRG
INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY THA 		8-97403-900-2 01 1 1009-1009 ●
3 WHEEL; STRG
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5> (A) DARK GRAY THA 		8-97403-900-2 01 1 1010- ● ●
3 WHEEL; STRG
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5> (A) DARK GRAY THA 		8-97403-900-2 01 1 1010- ●
3 WHEEL; STRG
INTERIOR COLOR BLACK<101>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY THA 		8-97403-900-2 01 1 1010- ●
3 WHEEL; STRG
STEERING WHEEL LEATHER<NP5> EXC. AIR BAG DRIVER & PASSENGER<7FA> (B) DARK GRAY THA 		8-97390-773-1 01 1 0204-0207 ● ●
3 WHEEL; STRG
STEERING WHEEL LEATHER<NP5> EXC. AIR BAG DRIVER & PASSENGER<7FA> (B) DARK GRAY THA 		8-97390-773-1 01 1 0208-0408 ● ● ●
3 WHEEL; STRG
EXC. AIR BAG DRIVER & PASSENGER<7FA> (B) DARK GRAY THA 		8-97390-773-1 01 1 0208-0408 ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5> (B) DARK GRAY THA 		8-97390-773-1 01 1 0409-0504 ● ● ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) DARK GRAY THA 		8-97390-773-1 01 1 0409-0504 ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5> (B) DARK GRAY THA 		8-97402-856-0 01 1 0505-0602 ● ● ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) DARK GRAY THA 		8-97402-856-0 01 1 0505-0602 ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5> (B) DARK GRAY THA 		8-97406-141-0 01 1 0603-0606 ● ● ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) DARK GRAY THA 		8-97406-141-0 01 1 0603-0606 ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5> (B) DARK GRAY THA 		8-97403-870-1 01 1 0607-0908 ● ● ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) DARK GRAY THA 		8-97403-870-1 01 1 0607-0908 ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5> (B) DARK GRAY THA 		8-97403-870-1 01 1 0909-1001 ● ●
3 WHEEL; STRG
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5> (B) DARK GRAY THA 		8-97403-870-1 01 1 0909-1001 ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) DARK GRAY THA 		8-97403-870-1 01 1 0909-1001 ●
3 WHEEL; STRG
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5> (B) DARK GRAY THA 		8-97403-870-1 01 1 1002-1008 ● ●
3 WHEEL; STRG
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5> (B) DARK GRAY THA 		8-97403-870-1 01 1 1002-1008 ●
3 WHEEL; STRG
INTERIOR COLOR BLACK<101>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) DARK GRAY THA 		8-97403-870-1 01 1 1002-1008 ●
3 WHEEL; STRG
INTERIOR COLOR VERY DARK GRAY<116> AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5> (B) DARK GRAY THA 		8-97403-870-1 01 1 1009-1009 ● ●
3 WHEEL; STRG
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5> (B) DARK GRAY THA 		8-97403-870-1 01 1 1009-1009 ●
3 WHEEL; STRG
INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) DARK GRAY THA 		8-97403-870-1 01 1 1009-1009 ●
3 WHEEL; STRG
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5> (B) DARK GRAY THA 		8-97403-870-1 01 1 1010- ● ●
3 WHEEL; STRG
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5> (B) DARK GRAY THA 		8-97403-870-1 01 1 1010- ●
3 WHEEL; STRG
INTERIOR COLOR BLACK<101>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) DARK GRAY THA 		8-97403-870-1 01 1 1010- ●
5 NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER IMA 		8-94455-487-1 01 1 0204-0207 ● ● ●
5 NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER IMA 		8-94455-487-1 01 1 0208- ● ● ● ● ●
20 SHROUD; PAD,STRG WHEEL
INTERIOR COLOR BLACK<101> AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> SALES PACKAGE EQUIPMENT SPORTY<XK0> INTERIOR STEERING CENTER PAD BADGE<8MB> DARK GRAY THA 		8-97418-480-0 01 1 1010- ● ● ● ●
20 SHROUD; PAD,STRG WHEEL
INTERIOR COLOR BLACK<101> AIR BAG DRIVER & PASSENGER DELETE<AK6> IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> INTERIOR STEERING CENTER PAD BADGE<8MB> DARK GRAY THA 		8-97418-480-0 01 1 1002-1008 ● ● ● ●
20 SHROUD; PAD,STRG WHEEL
AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> EXC. INTERIOR STEERING CENTER PAD BADGE<8MB> DARK GRAY THA 		8-97403-872-1 01 1 0607-0609 ● ● ● ● ●
20 SHROUD; PAD,STRG WHEEL
AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> EXC. INTERIOR STEERING CENTER PAD BADGE<8MB> DARK GRAY THA 		8-97408-848-0 01 1 0610-1001 ● ● ● ● ●
20 SHROUD; PAD,STRG WHEEL
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> EXC. INTERIOR STEERING CENTER PAD BADGE<8MB> DARK GRAY THA 		8-97408-848-0 01 1 1002-1009 ● ● ● ● ●
20 SHROUD; PAD,STRG WHEEL
AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> EXC. INTERIOR STEERING CENTER PAD BADGE<8MB> DARK GRAY THA 		8-97408-848-0 01 1 1010- ● ● ● ● ●
20 SHROUD; PAD,STRG WHEEL
EXC. AIR BAG DRIVER & PASSENGER<7FA> DARK GRAY THA 		8-97298-469-1 01 1 0204-0207 ● ●
20 SHROUD; PAD,STRG WHEEL
DARK GRAY THA 		8-97298-469-1 01 1 0204-0207 ●
20 SHROUD; PAD,STRG WHEEL
EXC. AIR BAG DRIVER & PASSENGER<7FA> DARK GRAY THA 		8-97298-469-1 01 1 0208-0408 ● ● ● ●
20 SHROUD; PAD,STRG WHEEL
DARK GRAY THA 		8-97298-469-1 01 1 0208-0408 ●
20 SHROUD; PAD,STRG WHEEL
AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY THA 		8-97298-469-1 01 1 0409-0606 ● ● ●
20 SHROUD; PAD,STRG WHEEL
DARK GRAY THA 		8-97298-469-1 01 1 0409-0606 ●
20 SHROUD; PAD,STRG WHEEL
AIR BAG DRIVER & PASSENGER DELETE<AK6> DARK GRAY THA 		8-97298-469-1 01 1 0409-0606 ●
20 SHROUD; PAD,STRG WHEEL
AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> INTERIOR STEERING CENTER PAD BADGE<8MB> DARK GRAY THA 		8-97403-878-1 01 1 0607-0609 ● ● ● ● ●
20 SHROUD; PAD,STRG WHEEL
AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> INTERIOR STEERING CENTER PAD BADGE<8MB> DARK GRAY THA 		8-97408-845-0 01 1 0610-0708 ● ● ● ● ●
20 SHROUD; PAD,STRG WHEEL
AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> INTERIOR STEERING CENTER PAD BADGE<8MB> DARK GRAY THA 		8-97412-976-0 01 1 0709-0808 ● ● ● ● ●
20 SHROUD; PAD,STRG WHEEL
AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> INTERIOR STEERING CENTER PAD BADGE<8MB> DARK GRAY THA 		8-97408-845-0 01 1 0809-1001 ● ● ● ● ●
20 SHROUD; PAD,STRG WHEEL
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> INTERIOR STEERING CENTER PAD BADGE<8MB> EXC. IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO> DARK GRAY THA 		8-97408-845-0 01 1 1002-1008 ● ● ● ● ●
20 SHROUD; PAD,STRG WHEEL
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> INTERIOR STEERING CENTER PAD BADGE<8MB> DARK GRAY THA 		8-97408-845-0 01 1 1009-1009 ● ● ● ● ●
20 SHROUD; PAD,STRG WHEEL
AIR BAG DRIVER & PASSENGER DELETE<AK6> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> INTERIOR STEERING CENTER PAD BADGE<8MB> EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> DARK GRAY THA 		8-97408-845-0 01 1 1010- ● ● ● ● ●
30 COWL; STEERING
DARK GRAY THA 		8-97294-053-2 01 1 0204-0207 ● ● ●
30 COWL; STEERING
DARK GRAY THA 		8-97294-053-2 01 1 0208-0507 ● ● ● ● ●
30 COWL; STEERING
DARK GRAY THA 		8-97294-053-2 01 1 0508-0606 ● ● ●
30 COWL; STEERING
EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97294-053-2 01 1 0508-0606 ●
30 COWL; STEERING
DARK GRAY THA 		8-97396-696-2 01 1 0607-0608 ● ● ●
30 COWL; STEERING
EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97396-696-2 01 1 0607-0608 ●
30 COWL; STEERING
DARK GRAY THA 		8-97396-696-2 01 1 0609-0709 ● ● ●
30 COWL; STEERING
EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97396-696-2 01 1 0609-0709 ● ●
30 COWL; STEERING
DARK GRAY THA 		8-97396-696-2 01 1 0710-0908 ● ● ●
30 COWL; STEERING
EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97396-696-2 01 1 0710-0908 ●
30 COWL; STEERING
DARK GRAY THA 		8-97396-696-2 01 1 0909-1001 ● ● ●
30 COWL; STEERING
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97396-696-2 01 1 0909-1001 ●
30 COWL; STEERING
DARK GRAY THA 		8-97396-696-2 01 1 1002-1008 ● ● ●
30 COWL; STEERING
EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97396-696-2 01 1 1002-1008 ●
30 COWL; STEERING
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97396-696-2 01 1 1009-1009 ● ● ●
30 COWL; STEERING
DARK GRAY THA 		8-97396-696-2 01 1 1009-1009 ●
30 COWL; STEERING
DARK GRAY THA 		8-97396-696-2 01 1 1010-1104 ● ● ●
30 COWL; STEERING
EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97396-696-2 01 1 1010-1104 ●
30 COWL; STEERING
DARK GRAY THA 		8-97422-707-0 01 1 1105- ● ● ●
30 COWL; STEERING
EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97422-707-0 01 1 1105- ●
30 COWL; STEERING
IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97294-054-1 01 1 0508-0606 ●
30 COWL; STEERING
DARK GRAY THA 		8-97294-054-1 01 1 0508-0606 ●
30 COWL; STEERING
IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97403-685-1 01 1 0607-0608 ●
30 COWL; STEERING
DARK GRAY THA 		8-97403-685-1 01 1 0607-0608 ●
30 COWL; STEERING
IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97403-685-1 01 1 0609-0709 ● ●
30 COWL; STEERING
IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97403-685-1 01 1 0710-0908 ●
30 COWL; STEERING
DARK GRAY THA 		8-97403-685-1 01 1 0710-0908 ●
30 COWL; STEERING
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97403-685-1 01 1 0909-1001 ●
30 COWL; STEERING
DARK GRAY THA 		8-97403-685-1 01 1 0909-1001 ●
30 COWL; STEERING
IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97403-685-1 01 1 1002-1008 ●
30 COWL; STEERING
DARK GRAY THA 		8-97403-685-1 01 1 1002-1008 ●
30 COWL; STEERING
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97403-685-1 01 1 1009-1009 ●
30 COWL; STEERING
INTERIOR COLOR BEIGE<184> DARK GRAY THA 		8-97403-685-1 01 1 1009-1009 ●
30 COWL; STEERING
IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97403-685-1 01 1 1010-1104 ●
30 COWL; STEERING
DARK GRAY THA 		8-97403-685-1 01 1 1010-1104 ●
30 COWL; STEERING
IMMOBILIZER SYSTEM<7KC> DARK GRAY THA 		8-97422-708-0 01 1 1105- ●
30 COWL; STEERING
DARK GRAY THA 		8-97422-708-0 01 1 1105- ●
37 SCREW; STRG COWL UPR
M4X12 W/LK&PL WASHER THA 		9-03920-412-0 03 1 0204-0207 ● ● ●
37 SCREW; STRG COWL UPR
M4X12 W/LK&PL WASHER THA 		9-03920-412-0 03 1 0208-0305 ● ● ● ● ●
37 SCREW; STRG COWL UPR
M4X12 W/PL WASHER THA 		9-03900-412-0 03 1 0306-0606 ● ● ● ● ●
37 SCREW; STRG COWL UPR
M4X12 W/PL WASHER THA 		0-36210-412-0 03 1 0607- ● ● ● ● ●
44 SCREW; STRG COWL
EXC. AIR BAG DRIVER & PASSENGER<7FA> M5X19 W/LK&PL WASHER THA 		8-94104-815-1 01 1 0204-0207 ● ●
44 SCREW; STRG COWL
M5X19 W/LK&PL WASHER THA 		8-94104-815-1 01 1 0204-0207 ●
44 SCREW; STRG COWL
EXC. AIR BAG DRIVER & PASSENGER<7FA> M5X19 W/LK&PL WASHER THA 		8-94104-815-1 01 1 0208-0408 ● ● ● ●
44 SCREW; STRG COWL
M5X19 W/LK&PL WASHER THA 		8-94104-815-1 01 1 0208-0408 ●
44 SCREW; STRG COWL
AIR BAG DRIVER & PASSENGER DELETE<AK6> M5X19 W/LK&PL WASHER THA 		8-94104-815-1 01 1 0409-0606 ● ● ● ●
44 SCREW; STRG COWL
M5X19 W/LK&PL WASHER THA 		8-94104-815-1 01 1 0409-0606 ●
44 SCREW; STRG COWL
AIR BAG DRIVER & PASSENGER DELETE<AK6> M5X19 W/LK&PL WASHER THA 		8-98023-674-0 01 1 0607- ● ● ● ●
44 SCREW; STRG COWL
M5X19 W/LK&PL WASHER THA 		8-98023-674-0 01 1 0607- ●
83 SCREW; LWR COVER TO WHEEL
AIR BAG DRIVER & PASSENGER<AK5> DELUXE STEERING WHEEL URETHANE<N30> THA 		8-97350-038-0 04 1 0603-0606 ● ● ●
83 SCREW; LWR COVER TO WHEEL
EXC. AIR BAG DRIVER & PASSENGER<7FA> THA 		8-97350-037-0 04 1 0204-0207 ● ●
83 SCREW; LWR COVER TO WHEEL
THA 		8-97350-037-0 04 1 0204-0207 ●
83 SCREW; LWR COVER TO WHEEL
EXC. AIR BAG DRIVER & PASSENGER<7FA> THA 		8-97350-037-0 04 1 0208-0408 ● ● ● ●
83 SCREW; LWR COVER TO WHEEL
THA 		8-97350-037-0 04 1 0208-0408 ●
83 SCREW; LWR COVER TO WHEEL
AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-97350-037-0 04 1 0409- ● ● ● ●
83 SCREW; LWR COVER TO WHEEL
THA 		8-97350-037-0 04 1 0409- ●
83 SCREW; LWR COVER TO WHEEL
STEERING WHEEL LEATHER<NP5> AIR BAG DRIVER & PASSENGER<7FA> THA 		8-97350-038-0 02 1 0204-0207 ● ●
83 SCREW; LWR COVER TO WHEEL
STEERING WHEEL LEATHER<NP5> AIR BAG DRIVER & PASSENGER<7FA> THA 		8-97350-038-0 02 1 0208-0408 ● ● ●
83 SCREW; LWR COVER TO WHEEL
AIR BAG DRIVER & PASSENGER<7FA> THA 		8-97350-038-0 02 1 0208-0408 ●
83 SCREW; LWR COVER TO WHEEL
AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5> THA 		8-97350-038-0 02 1 0409-0507 ● ● ●
83 SCREW; LWR COVER TO WHEEL
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-97350-038-0 02 1 0409-0507 ●
83 SCREW; LWR COVER TO WHEEL
AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> THA 		8-97350-038-0 02 1 0508-0508 ● ● ●
83 SCREW; LWR COVER TO WHEEL
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-97350-038-0 02 1 0508-0508 ●
83 SCREW; LWR COVER TO WHEEL
AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> THA 		8-97350-038-0 04 1 0509-0602 ● ● ●
83 SCREW; LWR COVER TO WHEEL
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-97350-038-0 04 1 0509-0602 ●
83 SCREW; LWR COVER TO WHEEL
AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5> THA 		8-97350-038-0 02 1 0603-0606 ● ● ●
83 SCREW; LWR COVER TO WHEEL
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-97350-038-0 02 1 0603-0606 ●
83 SCREW; LWR COVER TO WHEEL
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-97350-038-0 02 1 0607- ● ● ● ●
90 COVER ASM; STRG WHEEL,LWR
EXC. AIR BAG DRIVER & PASSENGER<7FA> DARK GRAY THA 		8-97394-464-0 01 1 0204-0207 ● ●
90 COVER ASM; STRG WHEEL,LWR
DARK GRAY THA 		8-97394-464-0 01 1 0204-0207 ●
90 COVER ASM; STRG WHEEL,LWR
EXC. AIR BAG DRIVER & PASSENGER<7FA> DARK GRAY THA 		8-97394-464-0 01 1 0208-0408 ● ● ● ●
90 COVER ASM; STRG WHEEL,LWR
DARK GRAY THA 		8-97394-464-0 01 1 0208-0408 ●
90 COVER ASM; STRG WHEEL,LWR
AIR BAG DRIVER & PASSENGER DELETE<AK6> DARK GRAY THA 		8-97394-464-0 01 1 0409-0606 ● ● ● ●
90 COVER ASM; STRG WHEEL,LWR
DARK GRAY THA 		8-97394-464-0 01 1 0409-0606 ●
90 COVER ASM; STRG WHEEL,LWR
AIR BAG DRIVER & PASSENGER DELETE<AK6> DARK GRAY THA 		8-97403-939-1 01 1 0607- ● ● ● ●
90 COVER ASM; STRG WHEEL,LWR
DARK GRAY THA 		8-97403-939-1 01 1 0607- ●
90 COVER ASM; STRG WHEEL,LWR
STEERING WHEEL LEATHER<NP5> AIR BAG DRIVER & PASSENGER<7FA> DARK GRAY THA 		8-97394-463-0 01 1 0204-0207 ● ●
90 COVER ASM; STRG WHEEL,LWR
STEERING WHEEL LEATHER<NP5> AIR BAG DRIVER & PASSENGER<7FA> DARK GRAY THA 		8-97394-463-0 01 1 0208-0408 ● ● ●
90 COVER ASM; STRG WHEEL,LWR
AIR BAG DRIVER & PASSENGER<7FA> DARK GRAY THA 		8-97394-463-0 01 1 0208-0408 ●
90 COVER ASM; STRG WHEEL,LWR
AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5> DARK GRAY THA 		8-97394-463-0 01 1 0409-0507 ● ● ●
90 COVER ASM; STRG WHEEL,LWR
AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY THA 		8-97394-463-0 01 1 0409-0507 ●
90 COVER ASM; STRG WHEEL,LWR
AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY THA 		8-97394-463-0 01 1 0508-0606 ● ● ●
90 COVER ASM; STRG WHEEL,LWR
AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY THA 		8-97394-463-0 01 1 0508-0606 ●
90 COVER ASM; STRG WHEEL,LWR
AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY THA 		8-97403-937-1 01 1 0607- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
