Sayfa 4-12 - Isuzu EPC

4-12 — FRONT DRIVE SHAFT (#72877) — 201 parça

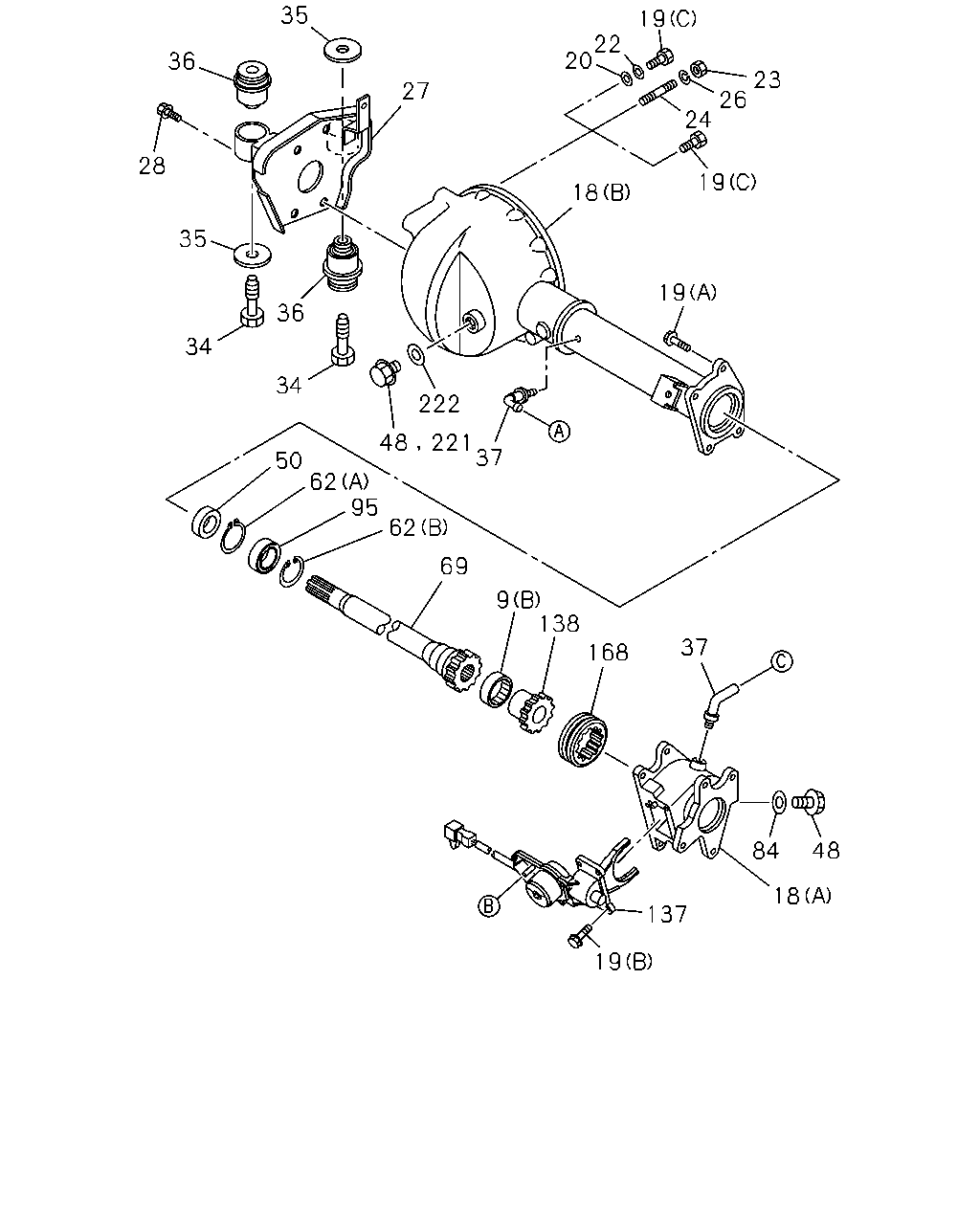

35 19 22 20 36 23 26 24 27 28 19 18 35 19 36 34 34 222 37 50 62 95 62 69 9 138 37 168 84 48 18 137 19 48 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	BEARING; AXLE SHAFT,INNER (A) IMA	8-94407-724-0	02	1	0204-0207	●
9	BEARING; AXLE SHAFT,INNER (A) IMA	8-94407-724-0	02	1	0208-	●	●
9	BEARING; AXLE SHAFT,INNER (B) IMA	8-97101-878-0	01	1	0204-0207	●
9	BEARING; AXLE SHAFT,INNER (B) IMA	8-97101-878-0	01	1	0208-	●	●
18	CASE; FRT AXLE (A) THA	8-97081-658-3	01	1	0204-0207	●
18	CASE; FRT AXLE (A) THA	8-97081-658-3	01	1	0208-	●	●
18	CASE; FRT AXLE (B) THA	8-97239-627-0	01	1	0204-0207	●
18	CASE; FRT AXLE (B) THA	8-97239-627-0	01	1	0208-	●	●
19	BOLT; FRT AXLE (A) M12X22 FLANGE THA	0-28081-222-0	04	1	0204-0207	●
19	BOLT; FRT AXLE (A) M12X22 FLANGE THA	0-28081-222-0	04	1	0208-0606	●	●
19	BOLT; FRT AXLE (A) M12X20 FLANGE IMA	0-28051-220-0	04	1	0607-	●	●
19	BOLT; FRT AXLE (B) M8X35 FLANGE THA	0-28680-835-0	04	1	0204-0207	●
19	BOLT; FRT AXLE (B) M8X35 FLANGE THA	0-28680-835-0	04	1	0208-0301	●	●
19	BOLT; FRT AXLE (B) M8X35 FLANGE THA	0-28680-835-0	03	1	0302-0601	●	●
19	BOLT; FRT AXLE (B) M8X35 FLANGE THA	0-28650-835-0	03	1	0602-	●	●
19	BOLT; FRT AXLE (C) M8X25 W/LK WASHER THA	8-97093-664-1	06	1	0204-0207	●
19	BOLT; FRT AXLE (C) M8X25 W/LK WASHER THA	8-97093-664-1	06	1	0208-0608	●	●
19	BOLT; FRT AXLE (C) M8X25 W/LK WASHER THA	8-98022-410-0	06	1	0609-	●	●
19	BOLT; FRT AXLE (C) M8X30 W/LK WASHER THA	8-97093-665-1	02	1	0204-0207	●
19	BOLT; FRT AXLE (C) M8X30 W/LK WASHER THA	8-97093-665-1	02	1	0208-0608	●	●
19	BOLT; FRT AXLE (C) M8X30 W/LK WASHER THA	8-98022-411-0	02	1	0609-	●	●
19	BOLT; FRT AXLE (C) M8X90 W/LK WASHER THA	8-97093-666-1	02	1	0204-0207	●
19	BOLT; FRT AXLE (C) M8X90 W/LK WASHER THA	8-97093-666-1	02	1	0208-0608	●	●
19	BOLT; FRT AXLE (C) M8X90 W/LK WASHER THA	8-98022-412-0	02	1	0609-	●	●
19	BOLT; FRT AXLE (B) M8X20 FLANGE THA	0-28680-820-0	01	1	0302-0601	●	●
19	BOLT; FRT AXLE (B) M8X20 FLANGE THA	0-28650-820-0	01	1	0602-	●	●
20	GASKET; AXLE CASE ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	01	1	0204-0207	●
20	GASKET; AXLE CASE ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	01	1	0208-	●	●
22	WASHER; PL,AXLE CASE ID=8.4 THA	9-09164-508-0	01	1	0204-0207	●
22	WASHER; PL,AXLE CASE ID=8.4 THA	9-09164-508-0	01	1	0208-0606	●	●
22	WASHER; PL,AXLE CASE ID=8.4 OD=16 IMA	0-91614-508-0	01	1	0607-	●	●
23	NUT; FRT AXLE M8 THA	9-09110-508-0	02	1	0204-0207	●
23	NUT; FRT AXLE M8 THA	9-09110-508-0	02	1	0208-0512	●	●
23	NUT; FRT AXLE M8 IMA	0-91110-508-0	02	1	0601-	●	●
24	STUD; CASE,FRT AXLE M8X25 L=37 THA	9-04110-825-0	02	1	0204-0207	●
24	STUD; CASE,FRT AXLE M8X25 L=37 THA	9-04110-825-0	02	1	0208-0605	●	●
24	STUD; CASE,FRT AXLE M8X25 L=37 THA	0-41010-825-0	02	1	0606-	●	●
26	WASHER; LK,CASE,FRT AXLE ID=8.2 THA	9-09150-608-0	02	1	0204-0207	●
26	WASHER; LK,CASE,FRT AXLE ID=8.2 THA	9-09150-608-0	02	1	0208-0604	●	●
26	WASHER; LK,CASE,FRT AXLE ID=8.2 THA	0-91510-608-0	02	1	0605-0606	●	●
26	WASHER; LK,CASE,FRT AXLE ID=8.2 THA	0-91510-808-0	02	1	0607-	●	●
27	BRACKET; AXLE CASE THA	8-97364-325-0	01	1	0204-0507	●	●
27	BRACKET; AXLE CASE THA	8-98005-641-0	01	1	0508-	●	●
27	BRACKET; AXLE CASE THA	8-97364-324-0	01	1	0204-0507	●	●
27	BRACKET; AXLE CASE THA	8-98005-640-0	01	1	0508-	●	●
28	BOLT; BRKT TO AXLE CASE M12X22 FLANGE THA	0-28081-222-0	08	1	0204-0207	●
28	BOLT; BRKT TO AXLE CASE M12X22 FLANGE THA	0-28081-222-0	08	1	0208-0606	●	●
28	BOLT; BRKT TO AXLE CASE M12X20 FLANGE IMA	0-28051-220-0	08	1	0607-	●	●
34	BOLT; FRT AXLE MTG M14X85 FLANGE THA	8-97259-306-0	04	1	0204-0207	●
34	BOLT; FRT AXLE MTG M14X85 FLANGE THA	8-97259-306-0	04	1	0208-	●	●
35	WASHER; FRT AXLE MTG ID=14.2 OD=50 THA	8-94419-772-0	04	1	0204-0207	●
35	WASHER; FRT AXLE MTG ID=14.2 OD=50 THA	8-94419-772-0	04	1	0208-0606	●	●
35	WASHER; FRT AXLE MTG ID=14.2 OD=50 IMA	8-98008-020-0	04	1	0607-	●	●
36	BUSHING; RUBBER,FRT AXLE MTG THA	8-97139-268-0	02	1	0204-0207	●
36	BUSHING; RUBBER,FRT AXLE MTG THA	8-97139-268-0	02	1	0208-0208	●	●
36	BUSHING; RUBBER,FRT AXLE MTG THA	8-97331-902-0	02	1	0208-0302	●	●
36	BUSHING; RUBBER,FRT AXLE MTG IMA	8-97364-323-0	02	1	0303-	●	●
36	BUSHING; RUBBER,FRT AXLE MTG THA	8-97149-540-0	02	1	0204-0207	●
36	BUSHING; RUBBER,FRT AXLE MTG THA	8-97149-540-0	02	1	0208-0208	●	●
36	BUSHING; RUBBER,FRT AXLE MTG THA	8-97331-901-0	02	1	0208-0302	●	●
36	BUSHING; RUBBER,FRT AXLE MTG IMA	8-97364-319-0	02	1	0303-	●	●
37	BREATHER; FRT AXLE CASE IMA	8-94226-943-0	02	1	0204-0207	●
37	BREATHER; FRT AXLE CASE IMA	8-94226-943-0	02	1	0208-	●	●
48	PLUG; DRAIN,AXLE CASE M20X10.5 THA	9-09662-005-0	02	1	0204-0207	●
48	PLUG; DRAIN,AXLE CASE M20X10.5 THA	9-09662-005-0	02	1	0208-0604	●	●
48	PLUG; DRAIN,AXLE CASE M20X10.5 IMA	8-98009-333-0	02	1	0605-0908	●	●
48	PLUG; DRAIN,AXLE CASE M20X10.5 IMA	8-98009-333-0	01	1	0909-	●	●
50	SEAL; OIL,SHAFT,FRT AXLE IMA	8-97084-507-0	01	1	0204-0207	●
50	SEAL; OIL,SHAFT,FRT AXLE IMA	8-97084-507-0	01	1	0208-	●	●
62	RING; SNAP,AXLE SHAFT (A) ID=37.0 IMA	9-09180-040-0	01	1	0204-0207	●
62	RING; SNAP,AXLE SHAFT (A) ID=37.0 IMA	9-09180-040-0	01	1	0208-	●	●
62	RING; SNAP,AXLE SHAFT (B) ID=57.9 IMA	9-09180-162-0	01	1	0204-0207	●
62	RING; SNAP,AXLE SHAFT (B) ID=57.9 IMA	9-09180-162-0	01	1	0208-	●	●
69	SHAFT; AXLE,FRT INNER IMA	8-97188-174-1	01	1	0204-0207	●
69	SHAFT; AXLE,FRT INNER IMA	8-97188-174-1	01	1	0208-	●	●
84	GASKET; PLUG,OIL FILLER ID=20 OD=30 THA	8-94462-734-0	01	1	0204-0207	●
84	GASKET; PLUG,OIL FILLER ID=20 OD=30 THA	8-94462-734-0	01	1	0208-	●	●
95	BEARING; AXLE SHAFT,FRT IMA	8-97103-392-0	01	1	0204-0207	●
95	BEARING; AXLE SHAFT,FRT IMA	8-97103-392-0	01	1	0208-	●	●
137	ACTUATOR; AXLE THA	8-97259-525-2	01	1	0204-0207	●
137	ACTUATOR; AXLE THA	8-97259-525-2	01	1	0208-0301	●	●
137	ACTUATOR; AXLE THA	8-97356-763-1	01	1	0302-0305	●	●
137	ACTUATOR; AXLE THA	8-97367-959-0	01	1	0306-	●	●
138	GEAR; CLUTCH Z=17 IMA	8-97134-857-1	01	1	0204-0207	●
138	GEAR; CLUTCH Z=17 IMA	8-97134-857-1	01	1	0208-	●	●
168	SLEEVE; FRT AXLE IMA	8-97130-567-1	01	1	0204-	●	●
221	PLUG; FILLER M20X10.5 IMA	8-98009-333-0	01	1	0909-	●	●
222	GASKET; FILLER PLUG ID=20 OD=30 THA	8-94462-734-0	01	1	0204-0207	●
222	GASKET; FILLER PLUG ID=20 OD=30 THA	8-94462-734-0	01	1	0208-	●	●

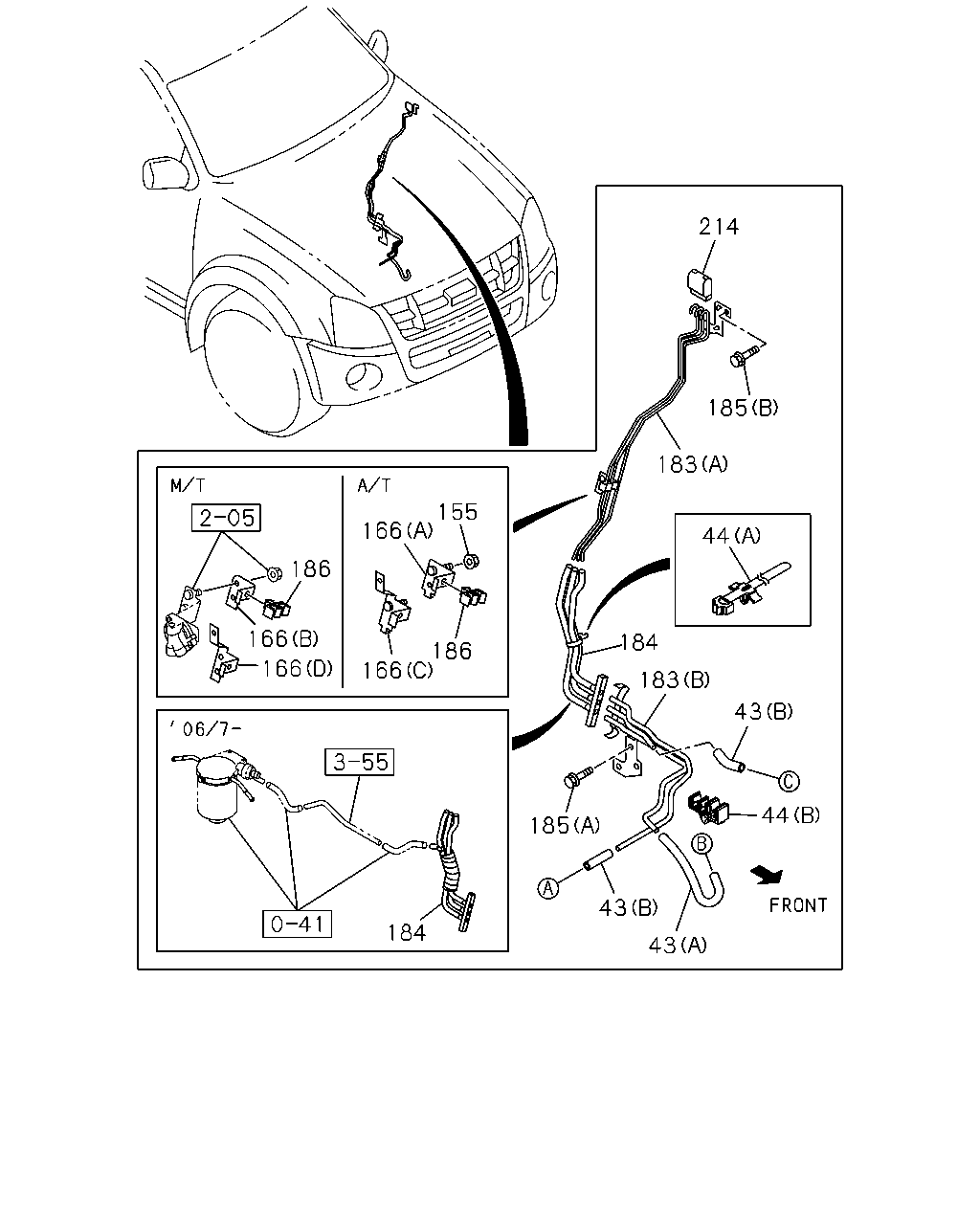

214 185 183 155 166 44 186 166 184 186 166 166 183 43 44 185 43 184 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
43	HOSE; RUBBER,AIR BREATHER (A) L=200 SERVICED BY L=3000 IMA	0-04740-300-0	01	1	0204-0207	●
43	HOSE; RUBBER,AIR BREATHER (A) L=200 SERVICED BY L=3000 IMA	0-04740-300-0	01	1	0208-	●	●
43	HOSE; RUBBER,AIR BREATHER (B) L=50 SERVICED BY L=3000 IMA	0-04750-300-0	02	1	0204-0207	●
43	HOSE; RUBBER,AIR BREATHER (B) L=50 SERVICED BY L=3000 IMA	0-04750-300-0	02	1	0208-	●	●
44	CLIP; AIR BREATHER HOSE (A) L=170.3 THA	1-09987-182-0	01	1	0204-0207	●
44	CLIP; AIR BREATHER HOSE (A) L=170.3 THA	1-09987-182-0	01	1	0208-	●	●
44	CLIP; AIR BREATHER HOSE (B) THA	8-94442-883-1	01	1	0204-0207	●
44	CLIP; AIR BREATHER HOSE (B) THA	8-94442-883-1	01	1	0208-	●	●
155	NUT; BRKT A/T 4 SPEED-JATCO<RMK> M6 FLANGE THA	0-91180-106-0	01	1	0204-0207	●
155	NUT; BRKT A/T 4 SPEED-JATCO<RMK> M6 FLANGE THA	0-91180-106-0	01	1	0208-0608	●	●
155	NUT; BRKT A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> M6 FLANGE THA	0-91180-106-0	01	1	0609-0708	●	●
155	NUT; BRKT A/T 4 SPEED-JATCO<RMK> M6 FLANGE THA	0-91180-106-0	01	1	0709-0709	●	●
155	NUT; BRKT A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> M6 FLANGE THA	0-91180-106-0	01	1	0710-	●	●
166	BRACKET; CLIP A/T 4 SPEED-JATCO<RMK> (A) THA	8-97259-780-0	01	1	0204-0207	●
166	BRACKET; CLIP A/T 4 SPEED-JATCO<RMK> (A) THA	8-97259-780-0	01	1	0208-0606	●	●
166	BRACKET; CLIP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> A/T 4 SPEED-JATCO<RMK> (C) THA	8-98043-612-0	01	1	0607-0608	●	●
166	BRACKET; CLIP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (C) THA	8-98043-612-0	01	1	0609-0708	●	●
166	BRACKET; CLIP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> A/T 4 SPEED-JATCO<RMK> (C) THA	8-98043-612-0	01	1	0709-0709	●	●
166	BRACKET; CLIP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (C) THA	8-98043-612-0	01	1	0710-	●	●
166	BRACKET; CLIP M/T MUA 5 SPEED<RMN> (B) THA	8-97236-435-0	01	1	0204-0207	●
166	BRACKET; CLIP M/T MUA 5 SPEED<RMN> (B) THA	8-97236-435-0	01	1	0208-0408	●	●
166	BRACKET; CLIP 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> (B) THA	8-97236-435-0	01	1	0409-0606	●	●
166	BRACKET; CLIP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> (D) THA	8-98043-613-0	01	1	0607-0608	●	●
166	BRACKET; CLIP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (D) THA	8-98043-613-0	01	1	0609-0708	●	●
166	BRACKET; CLIP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> (D) THA	8-98043-613-0	01	1	0709-0709	●	●
166	BRACKET; CLIP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (D) THA	8-98043-613-0	01	1	0710-	●	●
183	PIPE; BREATHER (A) THA	8-97236-856-2	01	1	0204-0207	●
183	PIPE; BREATHER (A) THA	8-97236-856-2	01	1	0208-0304	●	●
183	PIPE; BREATHER (A) THA	8-97333-080-0	01	1	0305-0606	●	●
183	PIPE; BREATHER 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (A) THA	8-98007-998-0	01	1	0607-0608	●
183	PIPE; BREATHER 4JJ1-TCS ENG<LFB> (A) THA	8-98007-998-0	01	1	0607-0608		●
183	PIPE; BREATHER 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (A) THA	8-98007-998-0	01	1	0609-0708	●
183	PIPE; BREATHER 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> (A) THA	8-98007-998-0	01	1	0609-0708		●
183	PIPE; BREATHER (A) THA	8-98007-998-0	01	1	0709-	●	●
183	PIPE; BREATHER (B) THA	8-97250-343-1	01	1	0204-0207	●
183	PIPE; BREATHER (B) THA	8-97250-343-1	01	1	0208-0606	●	●
183	PIPE; BREATHER (B) THA	8-98007-999-0	01	1	0607-	●	●
184	HOSE; BREATHER THA	8-97250-344-1	01	1	0204-0207	●
184	HOSE; BREATHER THA	8-97250-344-1	01	1	0208-	●	●
185	BOLT; PIPE,BREATHER (A) M6X16 FLANGE THA	0-28650-616-0	01	1	0204-0207	●
185	BOLT; PIPE,BREATHER (A) M6X16 FLANGE THA	0-28650-616-0	01	1	0208-	●	●
185	BOLT; PIPE,BREATHER (B) M6X20 FLANGE THA	0-28650-620-0	01	1	0204-0207	●
185	BOLT; PIPE,BREATHER (B) M6X20 FLANGE THA	0-28650-620-0	01	1	0208-0408	●	●
185	BOLT; PIPE,BREATHER 4JJ1-TCS ENG<LFB> (B) M6X20 FLANGE THA	0-28650-620-0	01	1	0409-0606	●	●
185	BOLT; PIPE,BREATHER 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (B) M6X20 FLANGE THA	0-28650-620-0	01	1	0607-0608	●
185	BOLT; PIPE,BREATHER 4JJ1-TCS ENG<LFB> (B) M6X20 FLANGE THA	0-28650-620-0	01	1	0607-0608		●
185	BOLT; PIPE,BREATHER 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (B) M6X20 FLANGE THA	0-28650-620-0	01	1	0609-0708	●
185	BOLT; PIPE,BREATHER 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> (B) M6X20 FLANGE THA	0-28650-620-0	01	1	0609-0708		●
185	BOLT; PIPE,BREATHER (B) M6X20 FLANGE THA	0-28650-620-0	01	1	0709-	●	●
186	CLIP; HOSE,BREATHER ID=4.76X2 THA	8-97249-905-0	01	1	0204-0207	●
186	CLIP; HOSE,BREATHER ID=4.76X2 THA	8-97249-905-0	01	1	0208-	●	●
214	COVER; BREATHER THA	8-97261-746-0	01	1	0204-0207	●
214	COVER; BREATHER THA	8-97261-746-0	01	1	0208-	●	●

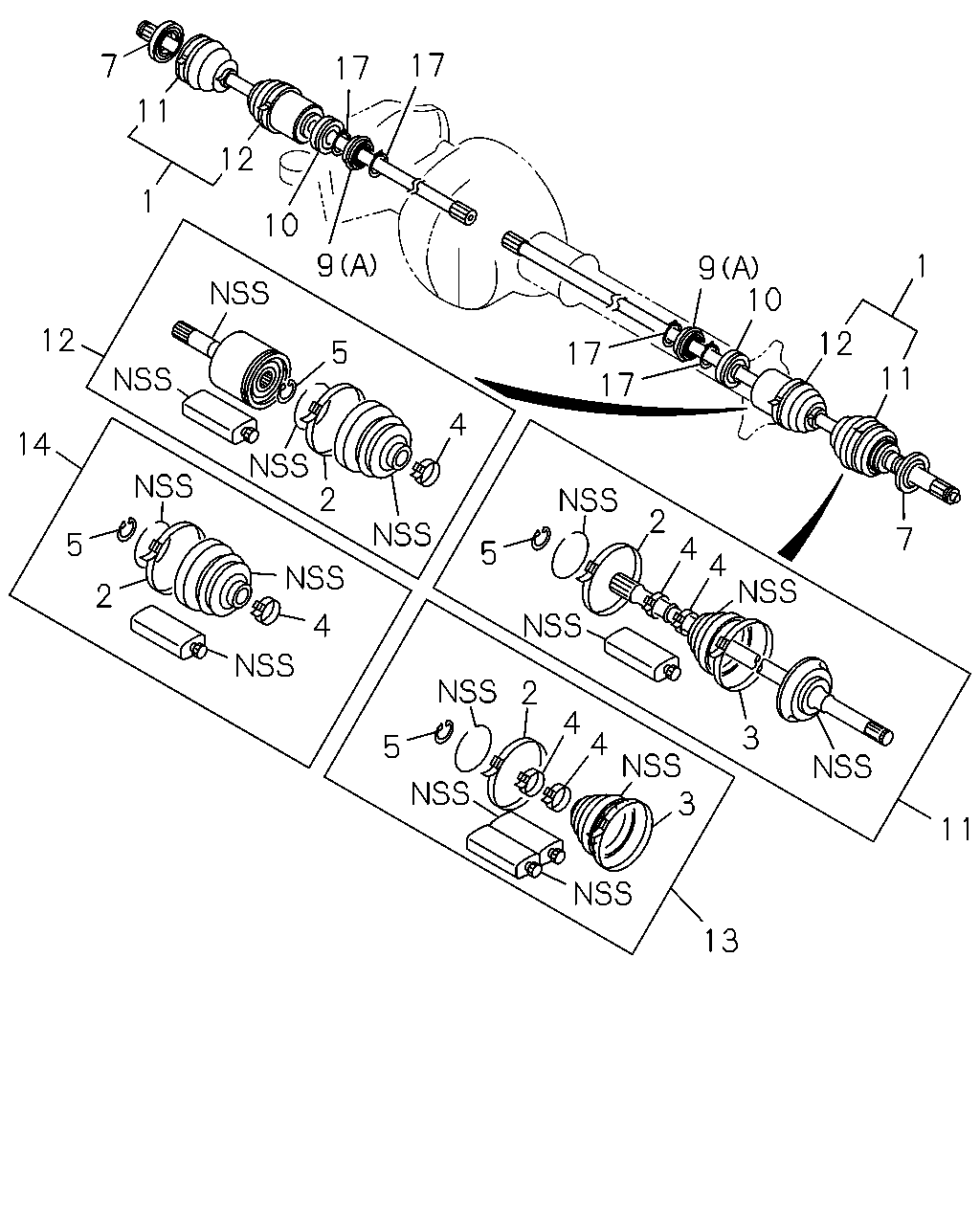

17 7 17 11 12 1 10 9 1 9 10 12 12 5 17 17 11 4 14 2 2 4 4 7 5 5 2 4 2 4 4 3 3 5 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT ASM; FRT DRIVE THA	8-97215-697-1	02	1	0204-0207	●
1	SHAFT ASM; FRT DRIVE THA	8-97215-697-1	02	1	0208-0302	●	●
1	SHAFT ASM; FRT DRIVE THA	8-97360-046-0	02	1	0303-0408	●	●
1	SHAFT ASM; FRT DRIVE THA	8-97360-046-0	01	1	0409-0508	●	●
1	SHAFT ASM; FRT DRIVE THA	8-97360-046-0	01	1	0409-0508	●	●
1	SHAFT ASM; FRT DRIVE THA	8-97387-674-1	01	1	0509-	●	●
1	SHAFT ASM; FRT DRIVE THA	8-97387-674-1	01	1	0509-	●	●
2	BAND; "A",FRT DRIVE SHAFT THA	8-97349-960-0	02	1	0204-0207	●
2	BAND; "A",FRT DRIVE SHAFT THA	8-97349-960-0	02	1	0208-0408	●	●
2	BAND; "A",FRT DRIVE SHAFT THA	8-97349-960-0	01	1	0409-	●	●
2	BAND; "A",FRT DRIVE SHAFT THA	8-97349-960-0	01	1	0409-	●	●
3	BAND; "B",FRT DRIVE SHAFT THA	8-97349-959-0	02	1	0204-0207	●
3	BAND; "B",FRT DRIVE SHAFT THA	8-97349-959-0	02	1	0208-0408	●	●
3	BAND; "B",FRT DRIVE SHAFT THA	8-97349-959-0	01	1	0409-	●	●
3	BAND; "B",FRT DRIVE SHAFT THA	8-97349-959-0	01	1	0409-	●	●
4	BAND; "C",FRT DRIVE SHAFT THA	8-97222-152-0	04	1	0204-0207	●
4	BAND; "C",FRT DRIVE SHAFT THA	8-97222-152-0	04	1	0208-0408	●	●
4	BAND; "C",FRT DRIVE SHAFT THA	8-97222-152-0	02	1	0409-	●	●
4	BAND; "C",FRT DRIVE SHAFT THA	8-97222-152-0	02	1	0409-	●	●
5	RING; RET,FRT DRIVE SHAFT THA	8-97131-402-0	02	1	0204-0207	●
5	RING; RET,FRT DRIVE SHAFT THA	8-97131-402-0	02	1	0208-0408	●	●
5	RING; RET,FRT DRIVE SHAFT THA	8-97131-402-0	01	1	0409-	●	●
5	RING; RET,FRT DRIVE SHAFT THA	8-97131-402-0	01	1	0409-	●	●
7	SEAL; DUST,DRIVE SHAFT THA	8-97123-692-0	02	1	0204-0207	●
7	SEAL; DUST,DRIVE SHAFT THA	8-97123-692-0	02	1	0208-0606	●	●
7	SEAL; DUST,DRIVE SHAFT THA	8-98036-560-0	02	1	0607-	●	●
9	BEARING; AXLE SHAFT,INNER (A) IMA	8-94407-724-0	02	1	0204-0207	●
9	BEARING; AXLE SHAFT,INNER (A) IMA	8-94407-724-0	02	1	0208-	●	●
9	BEARING; AXLE SHAFT,INNER (B) IMA	8-97101-878-0	01	1	0204-0207	●
9	BEARING; AXLE SHAFT,INNER (B) IMA	8-97101-878-0	01	1	0208-	●	●
10	SEAL; OIL,AXLE SHAFT,INNER THA	8-94366-610-0	02	1	0204-0207	●
10	SEAL; OIL,AXLE SHAFT,INNER THA	8-94366-610-0	02	1	0208-0312	●	●
10	SEAL; OIL,AXLE SHAFT,INNER IMA	8-97373-555-0	02	1	0401-	●	●
11	JOINT ASM; OUTSIDE,FRT DRIVE SHAFT THA	8-97349-952-0	02	1	0204-0207	●
11	JOINT ASM; OUTSIDE,FRT DRIVE SHAFT THA	8-97349-952-1	02	1	0208-0408	●	●
11	JOINT ASM; OUTSIDE,FRT DRIVE SHAFT THA	8-97349-952-1	01	1	0409-0508	●	●
11	JOINT ASM; OUTSIDE,FRT DRIVE SHAFT THA	8-97349-952-1	01	1	0409-0508	●	●
11	JOINT ASM; OUTSIDE,FRT DRIVE SHAFT THA	8-97387-664-0	01	1	0509-	●	●
11	JOINT ASM; OUTSIDE,FRT DRIVE SHAFT THA	8-97387-664-0	01	1	0509-	●	●
12	JOINT ASM THA	8-97349-953-0	02	1	0204-0207	●
12	JOINT ASM THA	8-97349-953-0	02	1	0208-0408	●	●
12	JOINT ASM THA	8-97349-953-0	01	1	0409-0508	●	●
12	JOINT ASM THA	8-97349-953-0	01	1	0409-0508	●	●
12	JOINT ASM THA	8-97387-663-0	01	1	0509-	●	●
12	JOINT ASM THA	8-97387-663-0	01	1	0509-	●	●
13	BOOT KIT; OUTSIDE,FRT DRIVE SHAFT THA	8-97349-955-0	02	1	0204-0207	●
13	BOOT KIT; OUTSIDE,FRT DRIVE SHAFT THA	8-97349-955-0	02	1	0208-0408	●	●
13	BOOT KIT; OUTSIDE,FRT DRIVE SHAFT THA	8-97349-955-0	01	1	0409-0508	●	●
13	BOOT KIT; OUTSIDE,FRT DRIVE SHAFT THA	8-97349-955-0	01	1	0409-0508	●	●
13	BOOT KIT; OUTSIDE,FRT DRIVE SHAFT THA	8-97387-478-0	01	1	0509-	●	●
13	BOOT KIT; OUTSIDE,FRT DRIVE SHAFT THA	8-97387-478-0	01	1	0509-	●	●
14	BOOT KIT; IN SIDE,FRT DRIVE SHAFT THA	8-97349-956-0	02	1	0204-0207	●
14	BOOT KIT; IN SIDE,FRT DRIVE SHAFT THA	8-97349-956-0	02	1	0208-0408	●	●
14	BOOT KIT; IN SIDE,FRT DRIVE SHAFT THA	8-97349-956-0	01	1	0409-0508	●	●
14	BOOT KIT; IN SIDE,FRT DRIVE SHAFT THA	8-97349-956-0	01	1	0409-0508	●	●
14	BOOT KIT; IN SIDE,FRT DRIVE SHAFT THA	8-97387-477-0	01	1	0509-	●	●
14	BOOT KIT; IN SIDE,FRT DRIVE SHAFT THA	8-97387-477-0	01	1	0509-	●	●
17	RING; SNAP,DRIVE SHAFT TO TRANS AXLE ID=27.9 IMA	9-09180-030-0	04	1	0204-0207	●
17	RING; SNAP,DRIVE SHAFT TO TRANS AXLE ID=27.9 IMA	9-09180-030-0	04	1	0208-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
