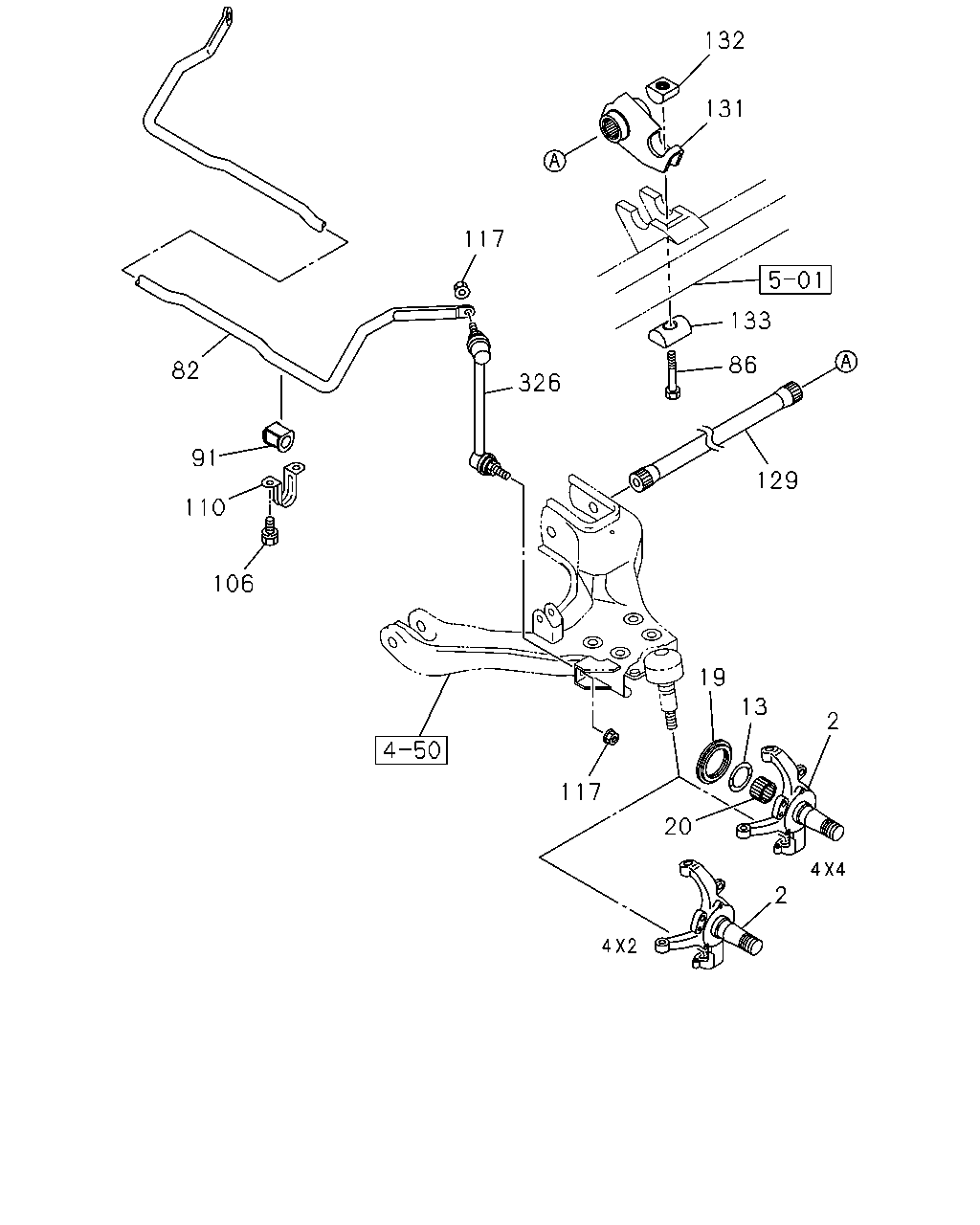

4-10 — FRONT AXLE (#72875) — 183 parça

82 326 91 117 110 106 2 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	KNUCKLE; FRT AXLE THA	8-97238-423-1	01	1	0204-0207	●	●
2	KNUCKLE; FRT AXLE THA	8-97238-423-1	01	1	0208-0306	●	●	●
2	KNUCKLE; FRT AXLE THA	8-97943-436-0	01	1	0307-0307	●	●	●
2	KNUCKLE; FRT AXLE EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97943-625-1	01	1	0308-1103	●		●
2	KNUCKLE; FRT AXLE THA	8-97943-625-1	01	1	0308-1103		●
2	KNUCKLE; FRT AXLE EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97947-028-0	01	1	1104-	●		●
2	KNUCKLE; FRT AXLE THA	8-97947-028-0	01	1	1104-		●
2	KNUCKLE; FRT AXLE THA	8-97238-422-1	01	1	0204-0207	●	●
2	KNUCKLE; FRT AXLE THA	8-97238-422-1	01	1	0208-0306	●	●	●
2	KNUCKLE; FRT AXLE THA	8-97943-435-0	01	1	0307-0307	●	●	●
2	KNUCKLE; FRT AXLE EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97943-624-1	01	1	0308-1103	●		●
2	KNUCKLE; FRT AXLE THA	8-97943-624-1	01	1	0308-1103		●
2	KNUCKLE; FRT AXLE EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97947-027-0	01	1	1104-	●		●
2	KNUCKLE; FRT AXLE THA	8-97947-027-0	01	1	1104-		●
2	KNUCKLE; FRT AXLE HIGH RIDE SUSPENSION<7YC> THA	8-97943-627-1	01	1	0308-	●		●
2	KNUCKLE; FRT AXLE HIGH RIDE SUSPENSION<7YC> THA	8-97943-626-1	01	1	0308-	●		●
2	KNUCKLE; FRT AXLE THA	8-97238-425-1	01	1	0204-0207				●
2	KNUCKLE; FRT AXLE THA	8-97238-425-1	01	1	0208-0306				●	●
2	KNUCKLE; FRT AXLE THA	8-97943-440-0	01	1	0307-0307				●	●
2	KNUCKLE; FRT AXLE THA	8-97943-629-1	01	1	0308-				●	●
2	KNUCKLE; FRT AXLE THA	8-97238-424-1	01	1	0204-0207				●
2	KNUCKLE; FRT AXLE THA	8-97238-424-1	01	1	0208-0306				●	●
2	KNUCKLE; FRT AXLE THA	8-97943-439-0	01	1	0307-0307				●	●
2	KNUCKLE; FRT AXLE THA	8-97943-628-1	01	1	0308-				●	●
82	BAR; STAB,FRT SUSP THA	8-97214-815-1	01	1	0204-0207	●	●
82	BAR; STAB,FRT SUSP THA	8-97214-815-1	01	1	0208-0307	●	●	●
82	BAR; STAB,FRT SUSP EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97214-815-1	01	1	0308-	●		●
82	BAR; STAB,FRT SUSP THA	8-97214-815-1	01	1	0308-		●
82	BAR; STAB,FRT SUSP THA	8-97235-783-1	01	1	0204-0207				●
82	BAR; STAB,FRT SUSP THA	8-97235-783-1	01	1	0208-0307				●	●
82	BAR; STAB,FRT SUSP HIGH RIDE SUSPENSION<7YC> THA	8-97235-783-1	01	1	0308-	●		●
82	BAR; STAB,FRT SUSP THA	8-97235-783-1	01	1	0308-				●	●
91	BUSHING; RUBBER,STAB BAR THA	8-97247-083-0	02	1	0204-0207	●	●
91	BUSHING; RUBBER,STAB BAR THA	8-97247-083-0	02	1	0208-0307	●	●	●
91	BUSHING; RUBBER,STAB BAR EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97247-083-0	02	1	0308-	●		●
91	BUSHING; RUBBER,STAB BAR THA	8-97247-083-0	02	1	0308-		●
91	BUSHING; RUBBER,STAB BAR THA	8-97235-784-0	02	1	0204-0207				●
91	BUSHING; RUBBER,STAB BAR THA	8-97235-784-0	02	1	0208-0307				●	●
91	BUSHING; RUBBER,STAB BAR HIGH RIDE SUSPENSION<7YC> THA	8-97235-784-0	02	1	0308-	●		●
91	BUSHING; RUBBER,STAB BAR THA	8-97235-784-0	02	1	0308-				●	●
106	BOLT; CAP FIX M8X25 FLANGE THA	0-28650-825-0	04	1	0204-0207	●	●		●
106	BOLT; CAP FIX M8X25 FLANGE THA	0-28650-825-0	04	1	0208-	●	●	●	●	●
110	CLAMP; STAB TO ROD THA	8-97235-780-0	02	1	0204-0207	●	●		●
110	CLAMP; STAB TO ROD THA	8-97235-780-0	02	1	0208-0606	●	●	●	●	●
110	CLAMP; STAB TO ROD THA	8-98005-922-0	02	1	0607-	●	●	●	●	●
117	NUT; STAB BAR BUSHING M10 FLANGE THA	8-97245-646-0	02	1	0204-0207	●	●		●
117	NUT; STAB BAR BUSHING M10 FLANGE THA	8-97245-646-0	02	1	0204-0207	●	●		●
117	NUT; STAB BAR BUSHING M10 FLANGE THA	8-97245-646-0	02	1	0208-0606	●	●	●	●	●
117	NUT; STAB BAR BUSHING M10 FLANGE THA	8-97245-646-0	02	1	0208-0606	●	●	●	●	●
117	NUT; STAB BAR BUSHING M10 FLANGE THA	8-97245-646-0	02	1	0607-	●	●	●	●	●
117	NUT; STAB BAR BUSHING M10 FLANGE THA	8-97245-646-0	02	1	0607-		●		●	●
326	LINK ASM; STABILIZER THA	8-97214-822-0	02	1	0204-0207	●	●
326	LINK ASM; STABILIZER THA	8-97214-822-1	02	1	0208-0307	●	●	●
326	LINK ASM; STABILIZER EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97214-822-1	02	1	0308-0507	●		●
326	LINK ASM; STABILIZER THA	8-97214-822-1	02	1	0308-0507		●
326	LINK ASM; STABILIZER EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97944-575-0	02	1	0508-	●		●
326	LINK ASM; STABILIZER THA	8-97944-575-0	02	1	0508-		●
326	LINK ASM; STABILIZER THA	8-97235-787-0	01	1	0204-0207				●
326	LINK ASM; STABILIZER THA	8-97235-787-1	01	1	0208-0307				●	●
326	LINK ASM; STABILIZER HIGH RIDE SUSPENSION<7YC> THA	8-97235-787-1	01	1	0308-0507	●		●
326	LINK ASM; STABILIZER THA	8-97235-787-1	01	1	0308-0507				●	●
326	LINK ASM; STABILIZER HIGH RIDE SUSPENSION<7YC> THA	8-97944-569-0	01	1	0508-	●		●
326	LINK ASM; STABILIZER THA	8-97944-569-0	01	1	0508-				●	●
326	LINK ASM; STABILIZER THA	8-97235-786-0	01	1	0204-0207				●
326	LINK ASM; STABILIZER THA	8-97235-786-1	01	1	0208-0307				●	●
326	LINK ASM; STABILIZER HIGH RIDE SUSPENSION<7YC> THA	8-97235-786-1	01	1	0308-0507	●		●
326	LINK ASM; STABILIZER THA	8-97235-786-1	01	1	0308-0507				●	●
326	LINK ASM; STABILIZER HIGH RIDE SUSPENSION<7YC> THA	8-97944-568-0	01	1	0508-	●		●
326	LINK ASM; STABILIZER THA	8-97944-568-0	01	1	0508-				●	●

132 131 117 133 86 82 326 91 129 110 106 19 13 2 117 20 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	KNUCKLE; FRT AXLE THA	8-97238-423-1	01	1	0204-0207	●	●
2	KNUCKLE; FRT AXLE THA	8-97238-423-1	01	1	0208-0306	●	●	●
2	KNUCKLE; FRT AXLE THA	8-97943-436-0	01	1	0307-0307	●	●	●
2	KNUCKLE; FRT AXLE EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97943-625-1	01	1	0308-1103	●		●
2	KNUCKLE; FRT AXLE THA	8-97943-625-1	01	1	0308-1103		●
2	KNUCKLE; FRT AXLE EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97947-028-0	01	1	1104-	●		●
2	KNUCKLE; FRT AXLE THA	8-97947-028-0	01	1	1104-		●
2	KNUCKLE; FRT AXLE THA	8-97238-422-1	01	1	0204-0207	●	●
2	KNUCKLE; FRT AXLE THA	8-97238-422-1	01	1	0208-0306	●	●	●
2	KNUCKLE; FRT AXLE THA	8-97943-435-0	01	1	0307-0307	●	●	●
2	KNUCKLE; FRT AXLE EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97943-624-1	01	1	0308-1103	●		●
2	KNUCKLE; FRT AXLE THA	8-97943-624-1	01	1	0308-1103		●
2	KNUCKLE; FRT AXLE EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97947-027-0	01	1	1104-	●		●
2	KNUCKLE; FRT AXLE THA	8-97947-027-0	01	1	1104-		●
2	KNUCKLE; FRT AXLE HIGH RIDE SUSPENSION<7YC> THA	8-97943-627-1	01	1	0308-	●		●
2	KNUCKLE; FRT AXLE HIGH RIDE SUSPENSION<7YC> THA	8-97943-626-1	01	1	0308-	●		●
2	KNUCKLE; FRT AXLE THA	8-97238-425-1	01	1	0204-0207				●
2	KNUCKLE; FRT AXLE THA	8-97238-425-1	01	1	0208-0306				●	●
2	KNUCKLE; FRT AXLE THA	8-97943-440-0	01	1	0307-0307				●	●
2	KNUCKLE; FRT AXLE THA	8-97943-629-1	01	1	0308-				●	●
2	KNUCKLE; FRT AXLE THA	8-97238-424-1	01	1	0204-0207				●
2	KNUCKLE; FRT AXLE THA	8-97238-424-1	01	1	0208-0306				●	●
2	KNUCKLE; FRT AXLE THA	8-97943-439-0	01	1	0307-0307				●	●
2	KNUCKLE; FRT AXLE THA	8-97943-628-1	01	1	0308-				●	●
13	WASHER; THRUST,KNUCKLE ID=34 W/OIL GROOVE IMA	8-94407-718-0	02	1	0204-0207				●
13	WASHER; THRUST,KNUCKLE ID=34 W/OIL GROOVE IMA	8-94407-718-0	02	1	0208-				●	●
19	SEAL; OIL,KNUCKLE THA	8-97123-691-0	02	1	0204-0207				●
19	SEAL; OIL,KNUCKLE THA	8-97123-691-0	02	1	0208-0604				●	●
19	SEAL; OIL,KNUCKLE THA	8-98036-595-0	02	1	0605-				●	●
20	BEARING; KNUCKLE IMA	8-94407-708-0	02	1	0204-0207				●
20	BEARING; KNUCKLE IMA	8-94407-708-0	02	1	0208-				●	●
82	BAR; STAB,FRT SUSP THA	8-97214-815-1	01	1	0204-0207	●	●
82	BAR; STAB,FRT SUSP THA	8-97214-815-1	01	1	0208-0307	●	●	●
82	BAR; STAB,FRT SUSP EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97214-815-1	01	1	0308-	●		●
82	BAR; STAB,FRT SUSP THA	8-97214-815-1	01	1	0308-		●
82	BAR; STAB,FRT SUSP THA	8-97235-783-1	01	1	0204-0207				●
82	BAR; STAB,FRT SUSP THA	8-97235-783-1	01	1	0208-0307				●	●
82	BAR; STAB,FRT SUSP HIGH RIDE SUSPENSION<7YC> THA	8-97235-783-1	01	1	0308-	●		●
82	BAR; STAB,FRT SUSP THA	8-97235-783-1	01	1	0308-				●	●
86	BOLT; TORSION BAR,HEIGHT CONT M18X160 THA	8-97250-133-0	02	1	0204-0207				●
86	BOLT; TORSION BAR,HEIGHT CONT M18X160 THA	8-97250-133-0	02	1	0208-0307				●	●
86	BOLT; TORSION BAR,HEIGHT CONT HIGH RIDE SUSPENSION<7YC> M18X160 THA	8-97250-133-0	02	1	0308-0310	●		●
86	BOLT; TORSION BAR,HEIGHT CONT M18X160 THA	8-97250-133-0	02	1	0308-0310				●	●
86	BOLT; TORSION BAR,HEIGHT CONT HIGH RIDE SUSPENSION<7YC> M18X160 THA	8-97354-887-0	02	1	0311-	●		●
86	BOLT; TORSION BAR,HEIGHT CONT M18X160 THA	8-97354-887-0	02	1	0311-				●	●
91	BUSHING; RUBBER,STAB BAR THA	8-97247-083-0	02	1	0204-0207	●	●
91	BUSHING; RUBBER,STAB BAR THA	8-97247-083-0	02	1	0208-0307	●	●	●
91	BUSHING; RUBBER,STAB BAR EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97247-083-0	02	1	0308-	●		●
91	BUSHING; RUBBER,STAB BAR THA	8-97247-083-0	02	1	0308-		●
91	BUSHING; RUBBER,STAB BAR THA	8-97235-784-0	02	1	0204-0207				●
91	BUSHING; RUBBER,STAB BAR THA	8-97235-784-0	02	1	0208-0307				●	●
91	BUSHING; RUBBER,STAB BAR HIGH RIDE SUSPENSION<7YC> THA	8-97235-784-0	02	1	0308-	●		●
91	BUSHING; RUBBER,STAB BAR THA	8-97235-784-0	02	1	0308-				●	●
106	BOLT; CAP FIX M8X25 FLANGE THA	0-28650-825-0	04	1	0204-0207	●	●		●
106	BOLT; CAP FIX M8X25 FLANGE THA	0-28650-825-0	04	1	0208-	●	●	●	●	●
110	CLAMP; STAB TO ROD THA	8-97235-780-0	02	1	0204-0207	●	●		●
110	CLAMP; STAB TO ROD THA	8-97235-780-0	02	1	0208-0606	●	●	●	●	●
110	CLAMP; STAB TO ROD THA	8-98005-922-0	02	1	0607-	●	●	●	●	●
117	NUT; STAB BAR BUSHING M10 FLANGE THA	8-97245-646-0	02	1	0204-0207	●	●		●
117	NUT; STAB BAR BUSHING M10 FLANGE THA	8-97245-646-0	02	1	0204-0207	●	●		●
117	NUT; STAB BAR BUSHING M10 FLANGE THA	8-97245-646-0	02	1	0208-0606	●	●	●	●	●
117	NUT; STAB BAR BUSHING M10 FLANGE THA	8-97245-646-0	02	1	0208-0606	●	●	●	●	●
117	NUT; STAB BAR BUSHING M10 FLANGE THA	8-97245-646-0	02	1	0607-	●	●	●	●	●
117	NUT; STAB BAR BUSHING M10 FLANGE THA	8-97245-646-0	02	1	0607-		●		●	●
129	BAR; TORSION,FRT SUSP THA	8-97235-865-0	01	1	0204-0207				●
129	BAR; TORSION,FRT SUSP THA	8-97235-865-0	01	1	0208-0307				●	●
129	BAR; TORSION,FRT SUSP HIGH RIDE SUSPENSION<7YC> THA	8-97235-865-0	01	1	0308-	●		●
129	BAR; TORSION,FRT SUSP THA	8-97235-865-0	01	1	0308-				●	●
129	BAR; TORSION,FRT SUSP THA	8-97235-864-0	01	1	0204-0207				●
129	BAR; TORSION,FRT SUSP THA	8-97235-864-0	01	1	0208-0307				●	●
129	BAR; TORSION,FRT SUSP HIGH RIDE SUSPENSION<7YC> THA	8-97235-864-0	01	1	0308-	●		●
129	BAR; TORSION,FRT SUSP THA	8-97235-864-0	01	1	0308-				●	●
131	ARM; HEIGHT CONT THA	8-97258-540-1	01	1	0204-0207				●
131	ARM; HEIGHT CONT THA	8-97258-540-1	01	1	0208-0307				●	●
131	ARM; HEIGHT CONT HIGH RIDE SUSPENSION<7YC> THA	8-97258-540-1	01	1	0308-0606	●		●
131	ARM; HEIGHT CONT THA	8-97258-540-1	01	1	0308-0606				●	●
131	ARM; HEIGHT CONT HIGH RIDE SUSPENSION<7YC> THA	8-98005-920-0	01	1	0607-	●		●
131	ARM; HEIGHT CONT THA	8-98005-920-0	01	1	0607-				●	●
131	ARM; HEIGHT CONT THA	8-97258-539-1	01	1	0204-0207				●
131	ARM; HEIGHT CONT THA	8-97258-539-1	01	1	0208-0307				●	●
131	ARM; HEIGHT CONT HIGH RIDE SUSPENSION<7YC> THA	8-97258-539-1	01	1	0308-0606	●		●
131	ARM; HEIGHT CONT THA	8-97258-539-1	01	1	0308-0606				●	●
131	ARM; HEIGHT CONT HIGH RIDE SUSPENSION<7YC> THA	8-98005-919-0	01	1	0607-	●		●
131	ARM; HEIGHT CONT THA	8-98005-919-0	01	1	0607-				●	●
132	COLLAR; TORSION BAR THA	8-94367-757-0	02	1	0204-0207				●
132	COLLAR; TORSION BAR THA	8-94367-757-0	02	1	0208-0307				●	●
132	COLLAR; TORSION BAR HIGH RIDE SUSPENSION<7YC> THA	8-94367-757-0	02	1	0308-0606	●		●
132	COLLAR; TORSION BAR THA	8-94367-757-0	02	1	0308-0606				●	●
132	COLLAR; TORSION BAR HIGH RIDE SUSPENSION<7YC> THA	8-98005-877-0	02	1	0607-	●		●
132	COLLAR; TORSION BAR THA	8-98005-877-0	02	1	0607-				●	●
133	SEAT; TORSION BAR,HEIGHT CONT THA	8-97032-976-1	02	1	0204-0207				●
133	SEAT; TORSION BAR,HEIGHT CONT THA	8-97032-976-1	02	1	0208-0307				●	●
133	SEAT; TORSION BAR,HEIGHT CONT HIGH RIDE SUSPENSION<7YC> THA	8-97032-976-1	02	1	0308-0606	●		●
133	SEAT; TORSION BAR,HEIGHT CONT THA	8-97032-976-1	02	1	0308-0606				●	●
133	SEAT; TORSION BAR,HEIGHT CONT HIGH RIDE SUSPENSION<7YC> THA	8-98005-824-0	02	1	0607-	●		●
133	SEAT; TORSION BAR,HEIGHT CONT THA	8-98005-824-0	02	1	0607-				●	●
326	LINK ASM; STABILIZER THA	8-97214-822-0	02	1	0204-0207	●	●
326	LINK ASM; STABILIZER THA	8-97214-822-1	02	1	0208-0307	●	●	●
326	LINK ASM; STABILIZER EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97214-822-1	02	1	0308-0507	●		●
326	LINK ASM; STABILIZER THA	8-97214-822-1	02	1	0308-0507		●
326	LINK ASM; STABILIZER EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97944-575-0	02	1	0508-	●		●
326	LINK ASM; STABILIZER THA	8-97944-575-0	02	1	0508-		●
326	LINK ASM; STABILIZER THA	8-97235-787-0	01	1	0204-0207				●
326	LINK ASM; STABILIZER THA	8-97235-787-1	01	1	0208-0307				●	●
326	LINK ASM; STABILIZER HIGH RIDE SUSPENSION<7YC> THA	8-97235-787-1	01	1	0308-0507	●		●
326	LINK ASM; STABILIZER THA	8-97235-787-1	01	1	0308-0507				●	●
326	LINK ASM; STABILIZER HIGH RIDE SUSPENSION<7YC> THA	8-97944-569-0	01	1	0508-	●		●
326	LINK ASM; STABILIZER THA	8-97944-569-0	01	1	0508-				●	●
326	LINK ASM; STABILIZER THA	8-97235-786-0	01	1	0204-0207				●
326	LINK ASM; STABILIZER THA	8-97235-786-1	01	1	0208-0307				●	●
326	LINK ASM; STABILIZER HIGH RIDE SUSPENSION<7YC> THA	8-97235-786-1	01	1	0308-0507	●		●
326	LINK ASM; STABILIZER THA	8-97235-786-1	01	1	0308-0507				●	●
326	LINK ASM; STABILIZER HIGH RIDE SUSPENSION<7YC> THA	8-97944-568-0	01	1	0508-	●		●
326	LINK ASM; STABILIZER THA	8-97944-568-0	01	1	0508-				●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
