3-60 — BRAKE PIPING; VACUUM (#72873) — 91 parça

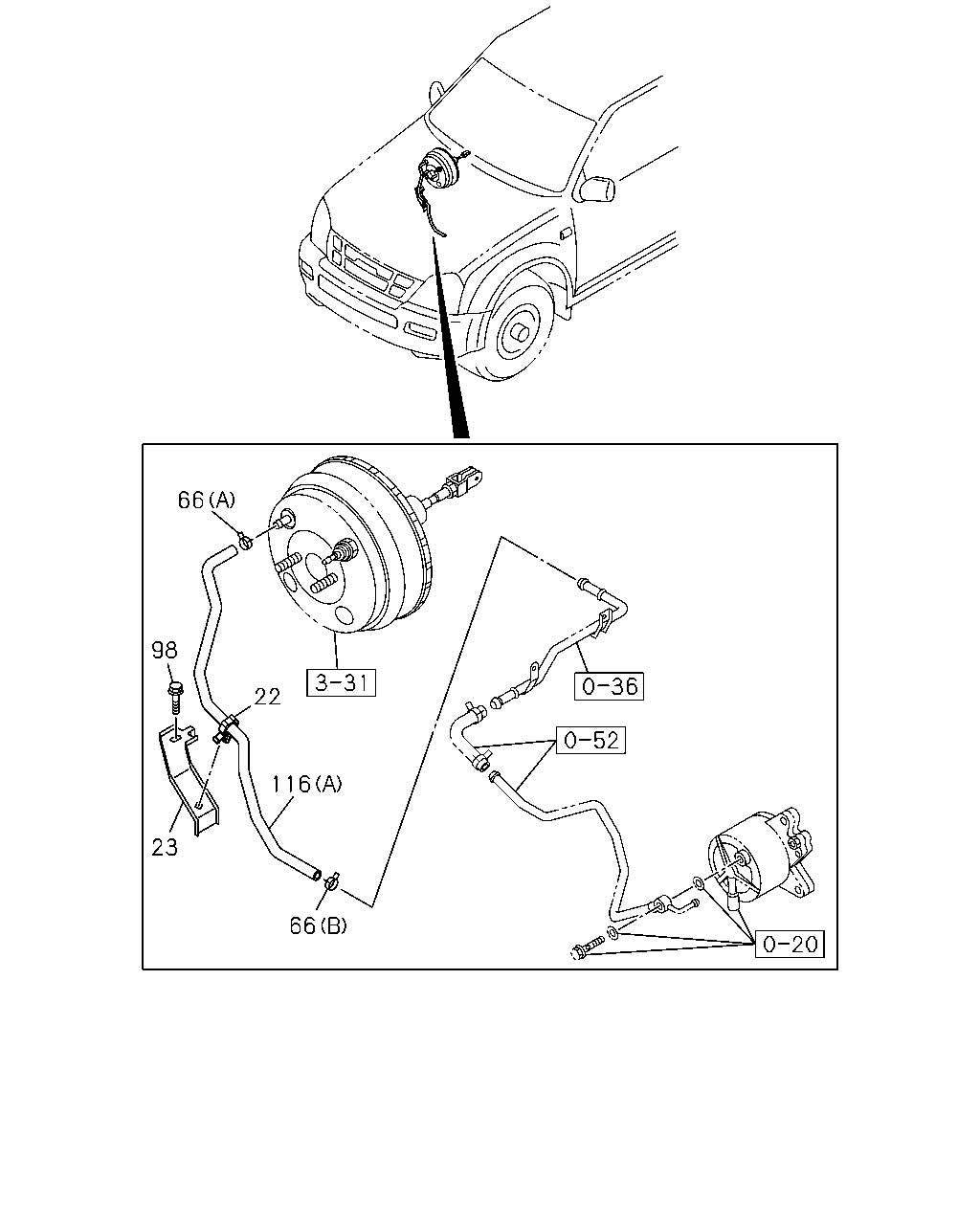

66 98 22 116 23 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
22	CLIP; HOSE,VAC TANK THA	8-97089-536-0	01	1	0204-0207	●	●	●
22	CLIP; HOSE,VAC TANK THA	8-97089-536-0	01	1	0208-0606	●	●	●	●	●
23	BRACKET; VAC PIPE 4JJ1-TCS ENG<LFB> THA	8-97368-824-0	01	1	0409-0412	●		●	●	●
23	BRACKET; VAC PIPE THA	8-97368-824-0	01	1	0501-0606	●	●	●	●	●
66	CLIP; VAC HOSE,M/VAC (A) ID=15.5 IMA	8-94367-944-0	02	1	0204-0207	●	●	●
66	CLIP; VAC HOSE,M/VAC 4JH1 ENG<RJX>,4JA1 ENG<RLE> (A) ID=15.5 IMA	8-94367-944-0	02	1	0204-0207	●	●
66	CLIP; VAC HOSE,M/VAC (A) ID=15.5 IMA	8-94367-944-0	02	1	0204-0207			●
66	CLIP; VAC HOSE,M/VAC (A) ID=15.5 IMA	8-94367-944-0	02	1	0208-0408	●	●	●	●	●
66	CLIP; VAC HOSE,M/VAC (A) ID=15.5 IMA	8-94367-944-0	02	1	0208-0408	●	●	●	●	●
66	CLIP; VAC HOSE,M/VAC 4JA1-T ENG<LP0> (A) ID=15.5 IMA	8-94367-944-0	02	1	0409-0412	●	●		●
66	CLIP; VAC HOSE,M/VAC 4JA1-T ENG<LP0> (A) ID=15.5 IMA	8-94367-944-0	02	1	0409-0412	●	●		●
66	CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG<LFB> (A) ID=15.5 IMA	8-94367-944-0	01	1	0409-0412	●		●	●	●
66	CLIP; VAC HOSE,M/VAC (A) ID=15.5 IMA	8-94367-944-0	01	1	0501-0604	●	●	●	●	●
66	CLIP; VAC HOSE,M/VAC (A) ID=15.5 THA	8-98035-872-0	01	1	0605-0606	●	●	●	●	●
66	CLIP; VAC HOSE,M/VAC (A) ID=15.5 THA	8-98035-872-0	03	1	0607-	●	●	●	●	●
66	CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG<LFB> (B) ID=16 THA	8-97173-222-0	01	1	0409-0412	●		●	●	●
66	CLIP; VAC HOSE,M/VAC (B) ID=16 THA	8-97173-222-0	01	1	0501-0606	●	●	●	●	●
66	CLIP; VAC HOSE,M/VAC (C) ID=16 THA	8-98036-539-0	01	1	0607-	●	●	●	●	●
98	BOLT; VAC PIPE FIX 4JJ1-TCS ENG<LFB> M6X20 FLANGE THA	0-28650-620-0	01	1	0409-0412	●		●	●	●
98	BOLT; VAC PIPE FIX M6X20 FLANGE THA	0-28650-620-0	01	1	0501-0606	●	●	●	●	●
98	BOLT; VAC PIPE FIX M6X16 FLANGE THA	0-28650-616-0	02	1	0607-	●	●	●	●	●
116	HOSE; VAC,M/VAC 4JH1 ENG<RJX>,4JA1 ENG<RLE> (A) THA	8-97236-453-2	01	1	0204-0207	●	●
116	HOSE; VAC,M/VAC (A) THA	8-97236-453-2	01	1	0204-0207			●
116	HOSE; VAC,M/VAC (A) THA	8-97236-453-2	01	1	0208-0408	●	●	●	●	●
116	HOSE; VAC,M/VAC 4JA1-T ENG<LP0> (A) THA	8-97236-453-2	01	1	0409-0412	●	●		●
116	HOSE; VAC,M/VAC (B) THA	8-97944-841-0	01	1	0607-	●	●	●	●	●
116	HOSE; VAC,M/VAC 4JJ1-TCS ENG<LFB> (A) THA	8-97368-829-0	01	1	0409-0412	●		●	●	●
116	HOSE; VAC,M/VAC (A) THA	8-97368-829-0	01	1	0501-0606	●	●	●	●	●
116	HOSE; VAC,M/VAC (C) THA	8-97944-840-1	01	1	0607-	●	●	●	●	●

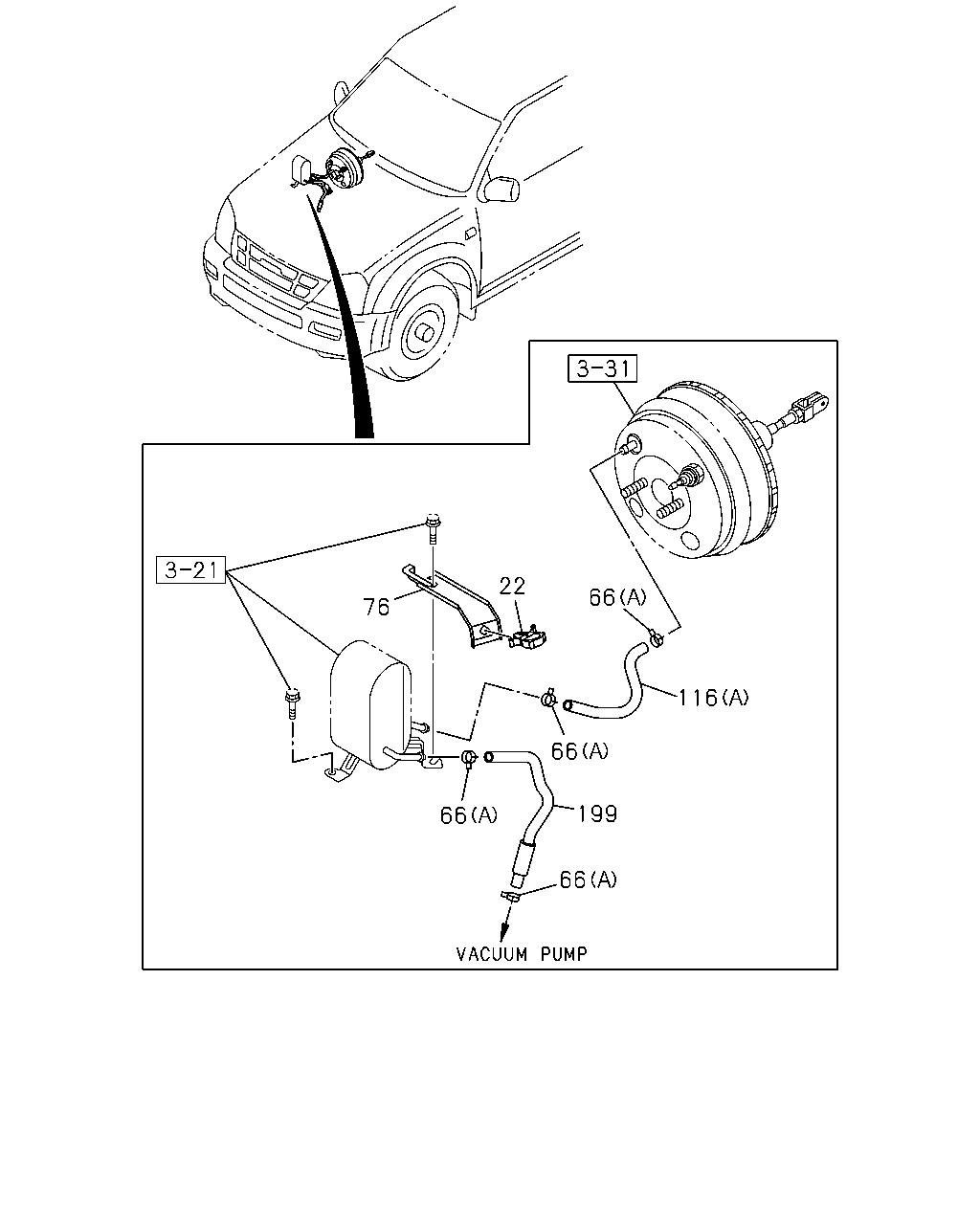

22 66 76 116 66 199 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
22	CLIP; HOSE,VAC TANK THA	8-97089-536-0	01	1	0204-0207	●	●	●
22	CLIP; HOSE,VAC TANK THA	8-97089-536-0	01	1	0208-0606	●	●	●	●	●
66	CLIP; VAC HOSE,M/VAC (A) ID=15.5 IMA	8-94367-944-0	02	1	0204-0207	●	●	●
66	CLIP; VAC HOSE,M/VAC 4JH1 ENG<RJX>,4JA1 ENG<RLE> (A) ID=15.5 IMA	8-94367-944-0	02	1	0204-0207	●	●
66	CLIP; VAC HOSE,M/VAC (A) ID=15.5 IMA	8-94367-944-0	02	1	0204-0207			●
66	CLIP; VAC HOSE,M/VAC (A) ID=15.5 IMA	8-94367-944-0	02	1	0208-0408	●	●	●	●	●
66	CLIP; VAC HOSE,M/VAC (A) ID=15.5 IMA	8-94367-944-0	02	1	0208-0408	●	●	●	●	●
66	CLIP; VAC HOSE,M/VAC 4JA1-T ENG<LP0> (A) ID=15.5 IMA	8-94367-944-0	02	1	0409-0412	●	●		●
66	CLIP; VAC HOSE,M/VAC 4JA1-T ENG<LP0> (A) ID=15.5 IMA	8-94367-944-0	02	1	0409-0412	●	●		●
66	CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG<LFB> (A) ID=15.5 IMA	8-94367-944-0	01	1	0409-0412	●		●	●	●
66	CLIP; VAC HOSE,M/VAC (A) ID=15.5 IMA	8-94367-944-0	01	1	0501-0604	●	●	●	●	●
66	CLIP; VAC HOSE,M/VAC (A) ID=15.5 THA	8-98035-872-0	01	1	0605-0606	●	●	●	●	●
66	CLIP; VAC HOSE,M/VAC (A) ID=15.5 THA	8-98035-872-0	03	1	0607-	●	●	●	●	●
66	CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG<LFB> (B) ID=16 THA	8-97173-222-0	01	1	0409-0412	●		●	●	●
66	CLIP; VAC HOSE,M/VAC (B) ID=16 THA	8-97173-222-0	01	1	0501-0606	●	●	●	●	●
66	CLIP; VAC HOSE,M/VAC (C) ID=16 THA	8-98036-539-0	01	1	0607-	●	●	●	●	●
76	BRACKET; VAC HOSE CLIP THA	8-97301-841-2	01	1	0204-0207	●	●	●
76	BRACKET; VAC HOSE CLIP THA	8-97301-841-2	01	1	0208-0408	●	●	●	●	●
76	BRACKET; VAC HOSE CLIP 4JA1-T ENG<LP0> THA	8-97301-841-2	01	1	0409-0412	●	●		●
116	HOSE; VAC,M/VAC 4JH1 ENG<RJX>,4JA1 ENG<RLE> (A) THA	8-97236-453-2	01	1	0204-0207	●	●
116	HOSE; VAC,M/VAC (A) THA	8-97236-453-2	01	1	0204-0207			●
116	HOSE; VAC,M/VAC (A) THA	8-97236-453-2	01	1	0208-0408	●	●	●	●	●
116	HOSE; VAC,M/VAC 4JA1-T ENG<LP0> (A) THA	8-97236-453-2	01	1	0409-0412	●	●		●
116	HOSE; VAC,M/VAC (B) THA	8-97944-841-0	01	1	0607-	●	●	●	●	●
116	HOSE; VAC,M/VAC 4JJ1-TCS ENG<LFB> (A) THA	8-97368-829-0	01	1	0409-0412	●		●	●	●
116	HOSE; VAC,M/VAC (A) THA	8-97368-829-0	01	1	0501-0606	●	●	●	●	●
116	HOSE; VAC,M/VAC (C) THA	8-97944-840-1	01	1	0607-	●	●	●	●	●
199	HOSE; VAC,VAC TANK TO VAC PUMP 4JH1 ENG<RJX>,4JA1 ENG<RLE> THA	8-97250-036-3	01	1	0204-0207	●	●
199	HOSE; VAC,VAC TANK TO VAC PUMP THA	8-97250-036-3	01	1	0204-0207			●
199	HOSE; VAC,VAC TANK TO VAC PUMP 4JH1 ENG<RJX>,4JA1 ENG<RLE> THA	8-97250-036-3	01	1	0208-0302	●	●		●
199	HOSE; VAC,VAC TANK TO VAC PUMP THA	8-97250-036-3	01	1	0208-0302			●		●
199	HOSE; VAC,VAC TANK TO VAC PUMP THA	8-97365-118-0	01	1	0303-0408	●	●	●	●	●
199	HOSE; VAC,VAC TANK TO VAC PUMP 4JA1-T ENG<LP0> THA	8-97365-118-0	01	1	0409-0409	●	●		●
199	HOSE; VAC,VAC TANK TO VAC PUMP 4JA1-T ENG<LP0> THA	8-97385-746-0	01	1	0410-0412	●	●		●

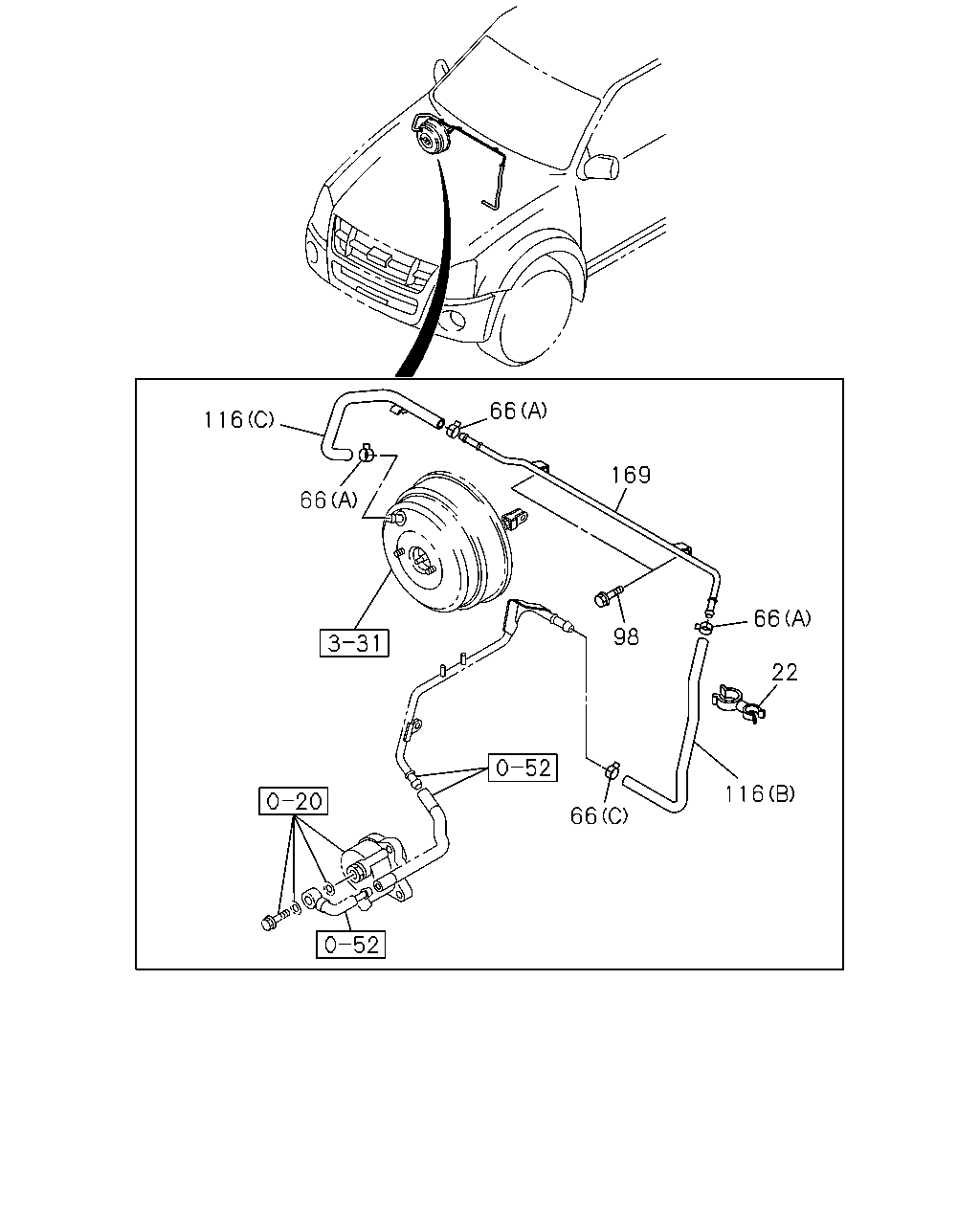

66 116 169 66 66 98 22 116 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
22	CLIP; HOSE,VAC TANK THA	8-97089-536-0	01	1	0204-0207	●	●	●
22	CLIP; HOSE,VAC TANK THA	8-97089-536-0	01	1	0208-0606	●	●	●	●	●
66	CLIP; VAC HOSE,M/VAC (A) ID=15.5 IMA	8-94367-944-0	02	1	0204-0207	●	●	●
66	CLIP; VAC HOSE,M/VAC 4JH1 ENG<RJX>,4JA1 ENG<RLE> (A) ID=15.5 IMA	8-94367-944-0	02	1	0204-0207	●	●
66	CLIP; VAC HOSE,M/VAC (A) ID=15.5 IMA	8-94367-944-0	02	1	0204-0207			●
66	CLIP; VAC HOSE,M/VAC (A) ID=15.5 IMA	8-94367-944-0	02	1	0208-0408	●	●	●	●	●
66	CLIP; VAC HOSE,M/VAC (A) ID=15.5 IMA	8-94367-944-0	02	1	0208-0408	●	●	●	●	●
66	CLIP; VAC HOSE,M/VAC 4JA1-T ENG<LP0> (A) ID=15.5 IMA	8-94367-944-0	02	1	0409-0412	●	●		●
66	CLIP; VAC HOSE,M/VAC 4JA1-T ENG<LP0> (A) ID=15.5 IMA	8-94367-944-0	02	1	0409-0412	●	●		●
66	CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG<LFB> (A) ID=15.5 IMA	8-94367-944-0	01	1	0409-0412	●		●	●	●
66	CLIP; VAC HOSE,M/VAC (A) ID=15.5 IMA	8-94367-944-0	01	1	0501-0604	●	●	●	●	●
66	CLIP; VAC HOSE,M/VAC (A) ID=15.5 THA	8-98035-872-0	01	1	0605-0606	●	●	●	●	●
66	CLIP; VAC HOSE,M/VAC (A) ID=15.5 THA	8-98035-872-0	03	1	0607-	●	●	●	●	●
66	CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG<LFB> (B) ID=16 THA	8-97173-222-0	01	1	0409-0412	●		●	●	●
66	CLIP; VAC HOSE,M/VAC (B) ID=16 THA	8-97173-222-0	01	1	0501-0606	●	●	●	●	●
66	CLIP; VAC HOSE,M/VAC (C) ID=16 THA	8-98036-539-0	01	1	0607-	●	●	●	●	●
98	BOLT; VAC PIPE FIX 4JJ1-TCS ENG<LFB> M6X20 FLANGE THA	0-28650-620-0	01	1	0409-0412	●		●	●	●
98	BOLT; VAC PIPE FIX M6X20 FLANGE THA	0-28650-620-0	01	1	0501-0606	●	●	●	●	●
98	BOLT; VAC PIPE FIX M6X16 FLANGE THA	0-28650-616-0	02	1	0607-	●	●	●	●	●
116	HOSE; VAC,M/VAC 4JH1 ENG<RJX>,4JA1 ENG<RLE> (A) THA	8-97236-453-2	01	1	0204-0207	●	●
116	HOSE; VAC,M/VAC (A) THA	8-97236-453-2	01	1	0204-0207			●
116	HOSE; VAC,M/VAC (A) THA	8-97236-453-2	01	1	0208-0408	●	●	●	●	●
116	HOSE; VAC,M/VAC 4JA1-T ENG<LP0> (A) THA	8-97236-453-2	01	1	0409-0412	●	●		●
116	HOSE; VAC,M/VAC (B) THA	8-97944-841-0	01	1	0607-	●	●	●	●	●
116	HOSE; VAC,M/VAC 4JJ1-TCS ENG<LFB> (A) THA	8-97368-829-0	01	1	0409-0412	●		●	●	●
116	HOSE; VAC,M/VAC (A) THA	8-97368-829-0	01	1	0501-0606	●	●	●	●	●
116	HOSE; VAC,M/VAC (C) THA	8-97944-840-1	01	1	0607-	●	●	●	●	●
169	PIPE; VAC,BOOSTER SIDE THA	8-97944-847-1	01	1	0607-	●	●	●	●	●
