4 |
BOLT; BRKT
ANTI LOCK BRAKE SYSTEM<JE5>
M8X20 FLANGE
THA
|
0-28650-820-0 |
02 |
1 |
0204-0207 |
● |
● |
|
|
|
| |
4 |
BOLT; BRKT
ANTI LOCK BRAKE SYSTEM<JE5>
M8X20 FLANGE
THA
|
0-28650-820-0 |
02 |
1 |
0208-0405 |
● |
● |
● |
● |
|
| |
4 |
BOLT; BRKT
ANTI LOCK BRAKE SYSTEM<JE5>
M8X16 FLANGE
THA
|
0-28050-816-0 |
02 |
1 |
0406- |
● |
● |
● |
● |
|
| |
20 |

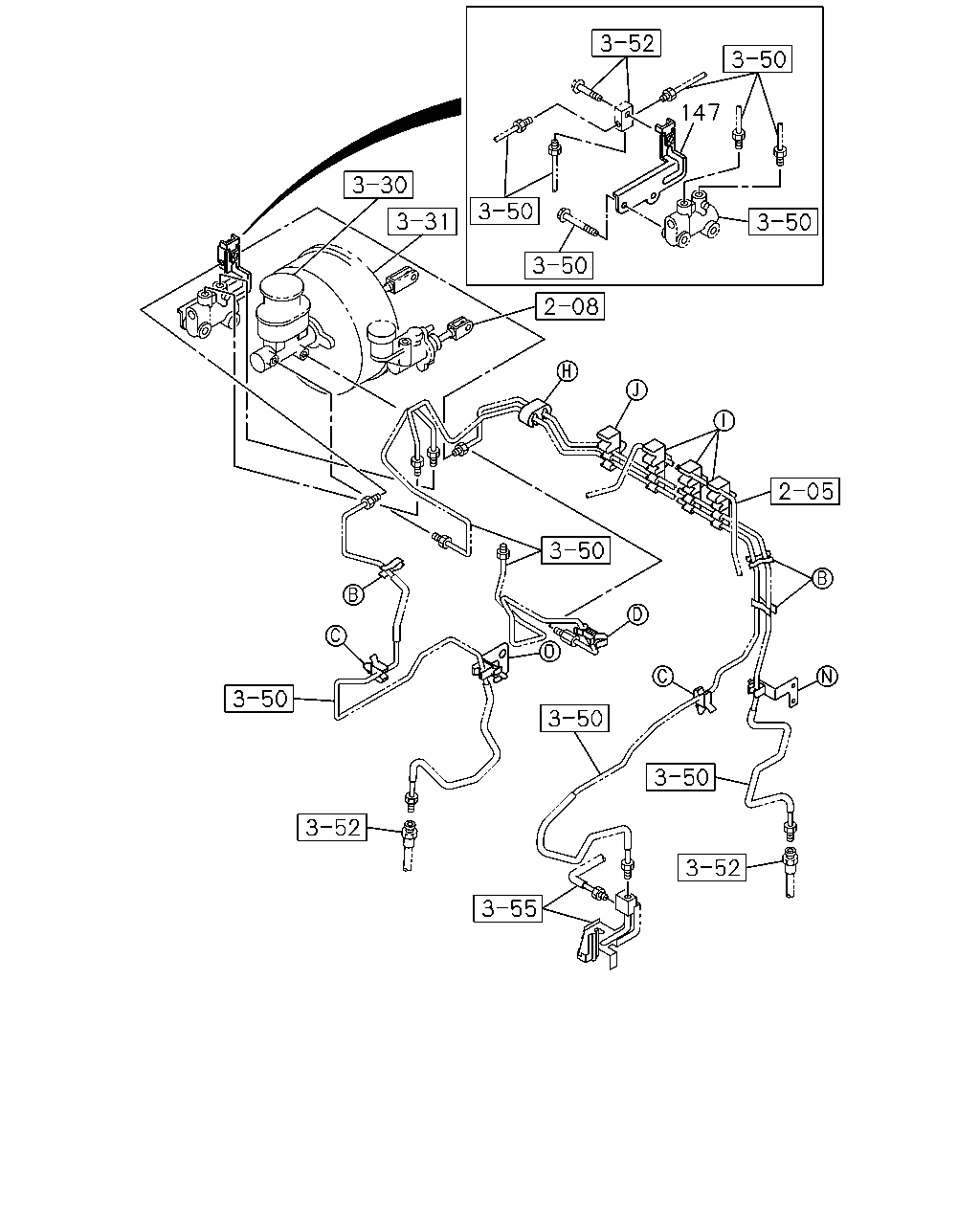

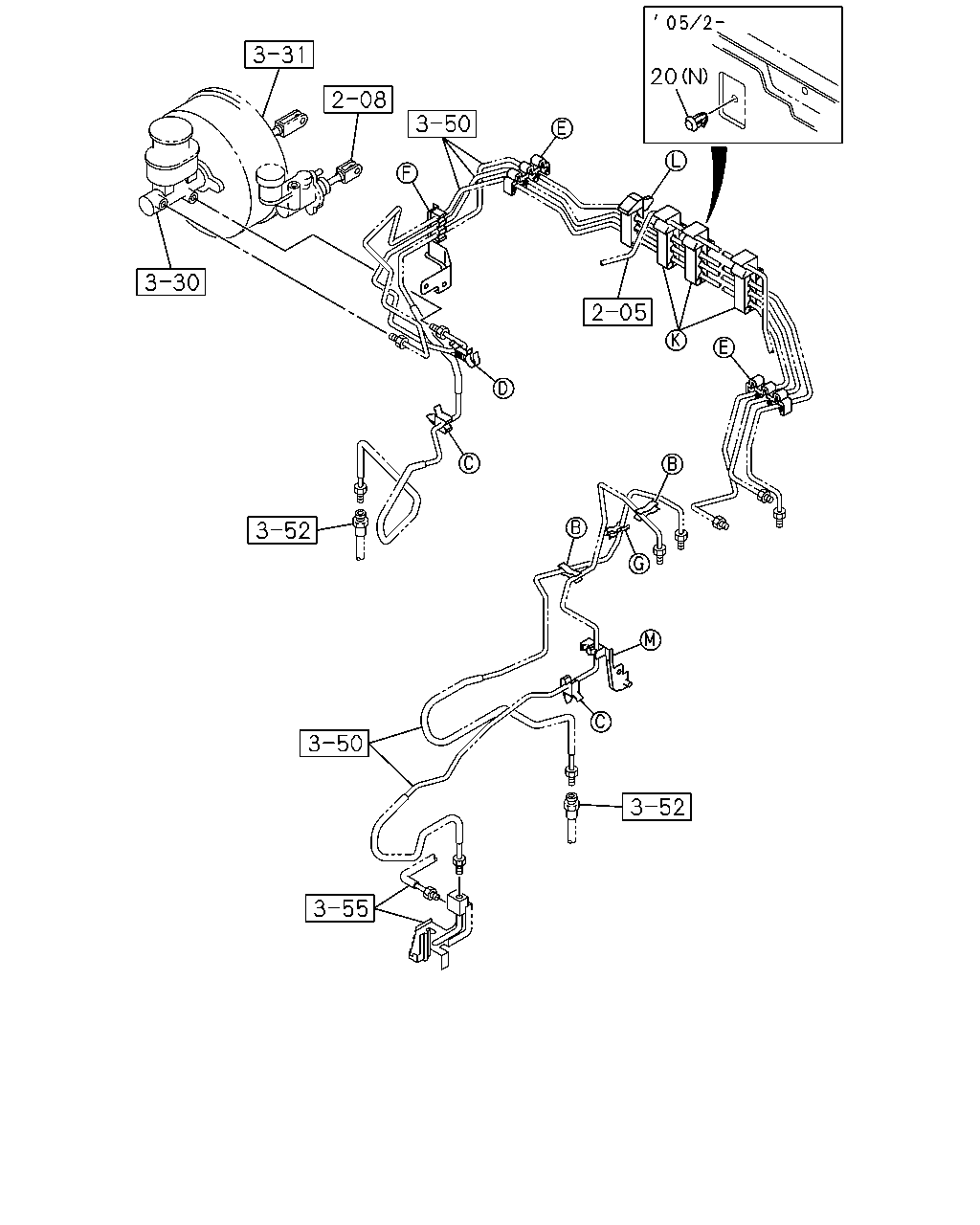

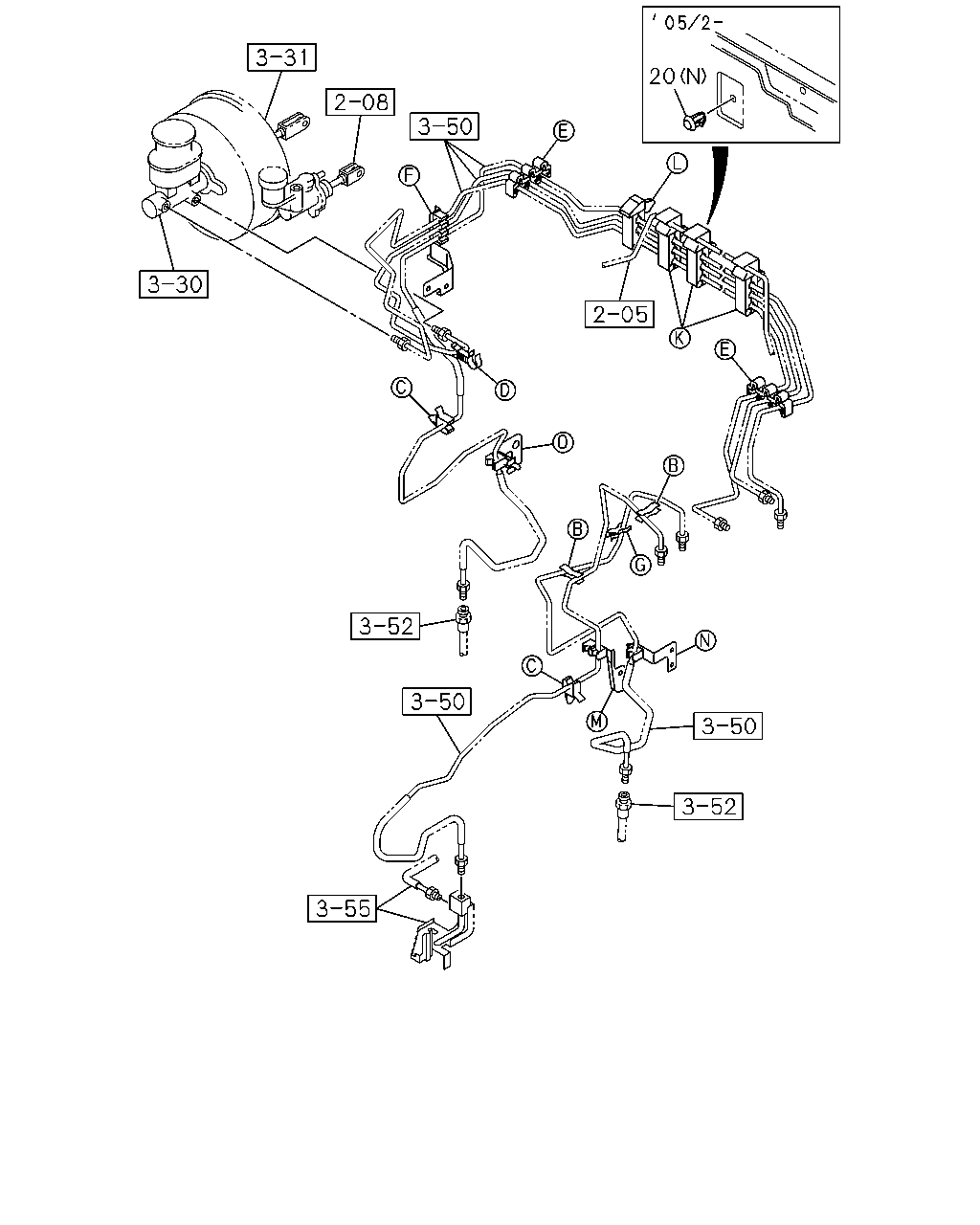

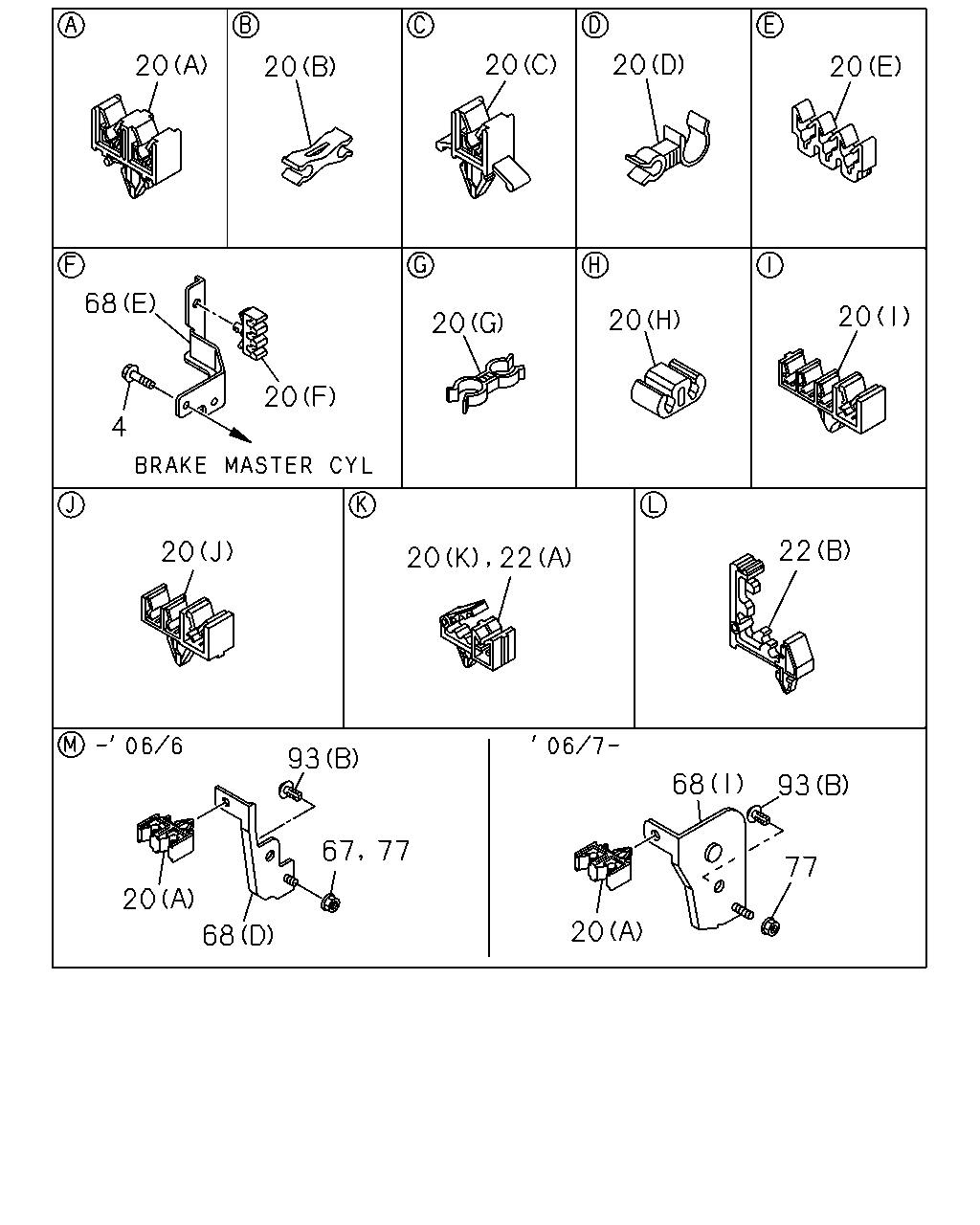

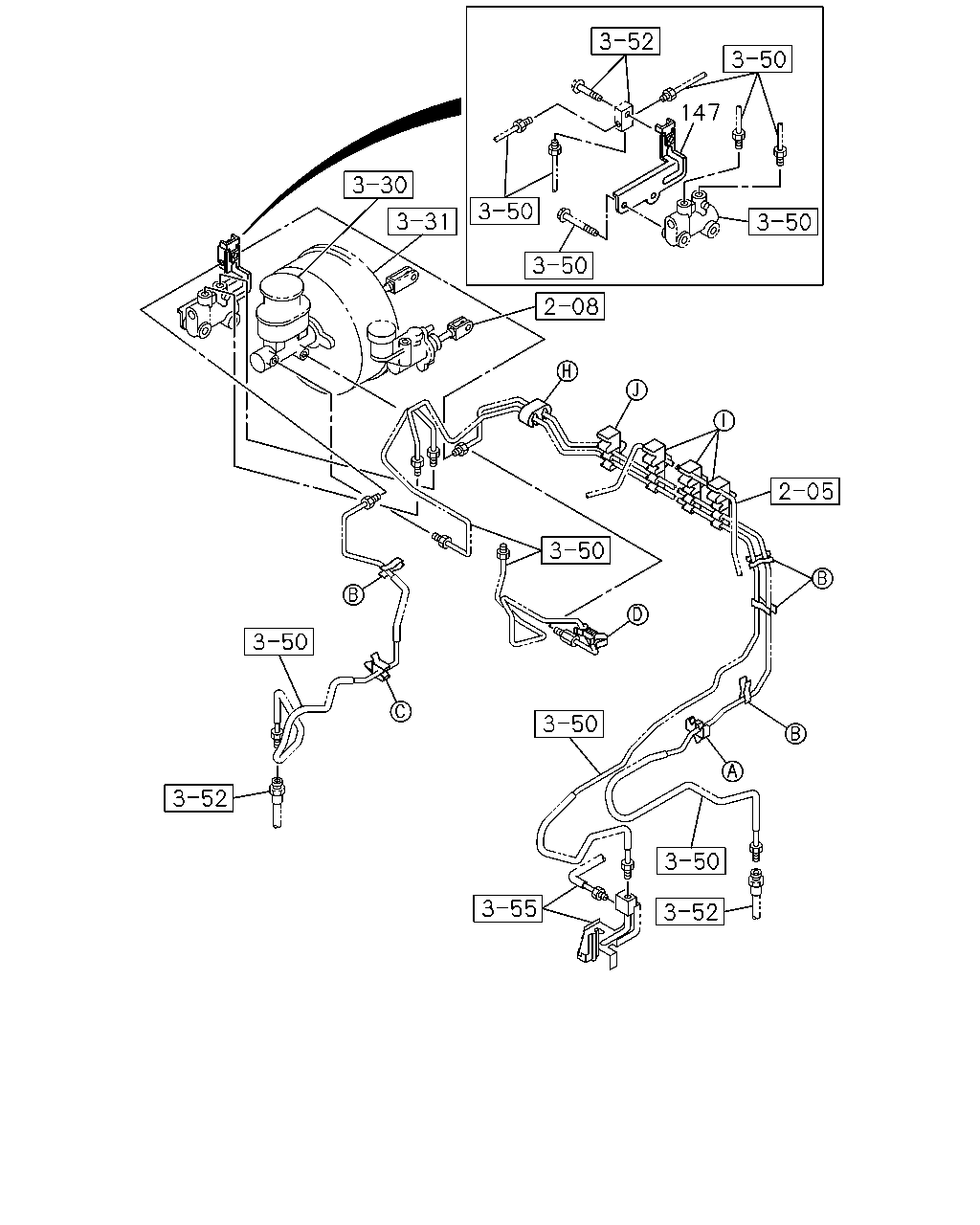

CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(A)
ID=4.76X2
THA
|
8-97249-905-0 |
01 |
1 |
0204-0207 |
● |
|
|
|
|
| |
20 |
CLIP; BRK PIPE
(A)
ID=4.76X2
THA
|
8-97249-905-0 |
01 |
1 |
0204-0207 |
|
● |
|
|
|
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(A)
ID=4.76X2
THA
|
8-97249-905-0 |
01 |
1 |
0208-0307 |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
(A)
ID=4.76X2
THA
|
8-97249-905-0 |
01 |
1 |
0208-0307 |
|
● |
|
● |
|
| |
20 |
CLIP; BRK PIPE
HIGH RIDE SUSPENSION<7YC>
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
(A)
ID=4.76X2
THA
|
8-97249-905-0 |
01 |
1 |
0308-0408 |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(A)
ID=4.76X2
THA
|
8-97249-905-0 |
01 |
1 |
0308-0408 |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
(A)
ID=4.76X2
THA
|
8-97249-905-0 |
01 |
1 |
0308-0408 |
|
● |
|
● |
|
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
EXC. HIGH RIDE SUSPENSION<7YC>
(A)
ID=4.76X2
THA
|
8-97249-905-0 |
01 |
1 |
0409-0606 |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
HIGH RIDE SUSPENSION<7YC>
(A)
ID=4.76X2
THA
|
8-97249-905-0 |
01 |
1 |
0409-0606 |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
(A)
ID=4.76X2
THA
|
8-97249-905-0 |
01 |
1 |
0409-0606 |
|
● |
|
● |
|
| |
20 |
CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
(B)
ID=4.6X2
THA
|
8-94241-454-0 |
03 |
1 |
0204-0207 |
● |
|
|
|
|
| |
20 |
CLIP; BRK PIPE
(B)
ID=4.6X2
THA
|
8-94241-454-0 |
03 |
1 |
0204-0207 |
|
|
|
|
● |
| |
20 |
CLIP; BRK PIPE
(C)
ID=4.76
THA
|
8-97300-443-0 |
04 |
1 |
0204-0207 |
● |
|
|
|
● |
| |
20 |
CLIP; BRK PIPE
(C)
ID=4.76
THA
|
8-97300-443-0 |
04 |
1 |
0208-0301 |
● |
|
● |
|
● |
| |
20 |
CLIP; BRK PIPE
(C)
ID=4.76
THA
|
8-97300-443-0 |
02 |
1 |
0302-0307 |
● |
|
● |
|
● |
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(C)
ID=4.76
THA
|
8-97300-443-0 |
02 |
1 |
0302-0307 |
|
● |
|
● |
|
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
HIGH RIDE SUSPENSION<7YC>
(C)
ID=4.76
THA
|
8-97300-443-0 |
02 |
1 |
0308-0408 |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
EXC. HIGH RIDE SUSPENSION<7YC>
(C)
ID=4.76
THA
|
8-97300-443-0 |
02 |
1 |
0308-0408 |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
(C)
ID=4.76
THA
|
8-97300-443-0 |
02 |
1 |
0308-0408 |
|
|
|
|
● |
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(C)
ID=4.76
THA
|
8-97300-443-0 |
02 |
1 |
0308-0408 |
|
● |
|
● |
|
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
HIGH RIDE SUSPENSION<7YC>
(B)
ID=4.6X2
THA
|
8-94241-454-0 |
02 |
1 |
0409-0412 |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
EXC. HIGH RIDE SUSPENSION<7YC>
(B)
ID=4.6X2
THA
|
8-94241-454-0 |
02 |
1 |
0409-0412 |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
(B)
ID=4.6X2
THA
|
8-94241-454-0 |
02 |
1 |
0409-0412 |
|
|
|
|
● |
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(B)
ID=4.6X2
THA
|
8-94241-454-0 |
02 |
1 |
0409-0412 |
|
● |
|
● |
|
| |
20 |
CLIP; BRK PIPE
EXC. HIGH RIDE SUSPENSION<7YC>
(B)
ID=4.6X2
THA
|
8-94241-454-0 |
02 |
1 |
0501-0606 |
● |
|
● |
|
● |
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
HIGH RIDE SUSPENSION<7YC>
(B)
ID=4.6X2
THA
|
8-94241-454-0 |
02 |
1 |
0501-0606 |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(B)
ID=4.6X2
THA
|
8-94241-454-0 |
02 |
1 |
0501-0606 |
|
● |
|
● |
|
| |
20 |

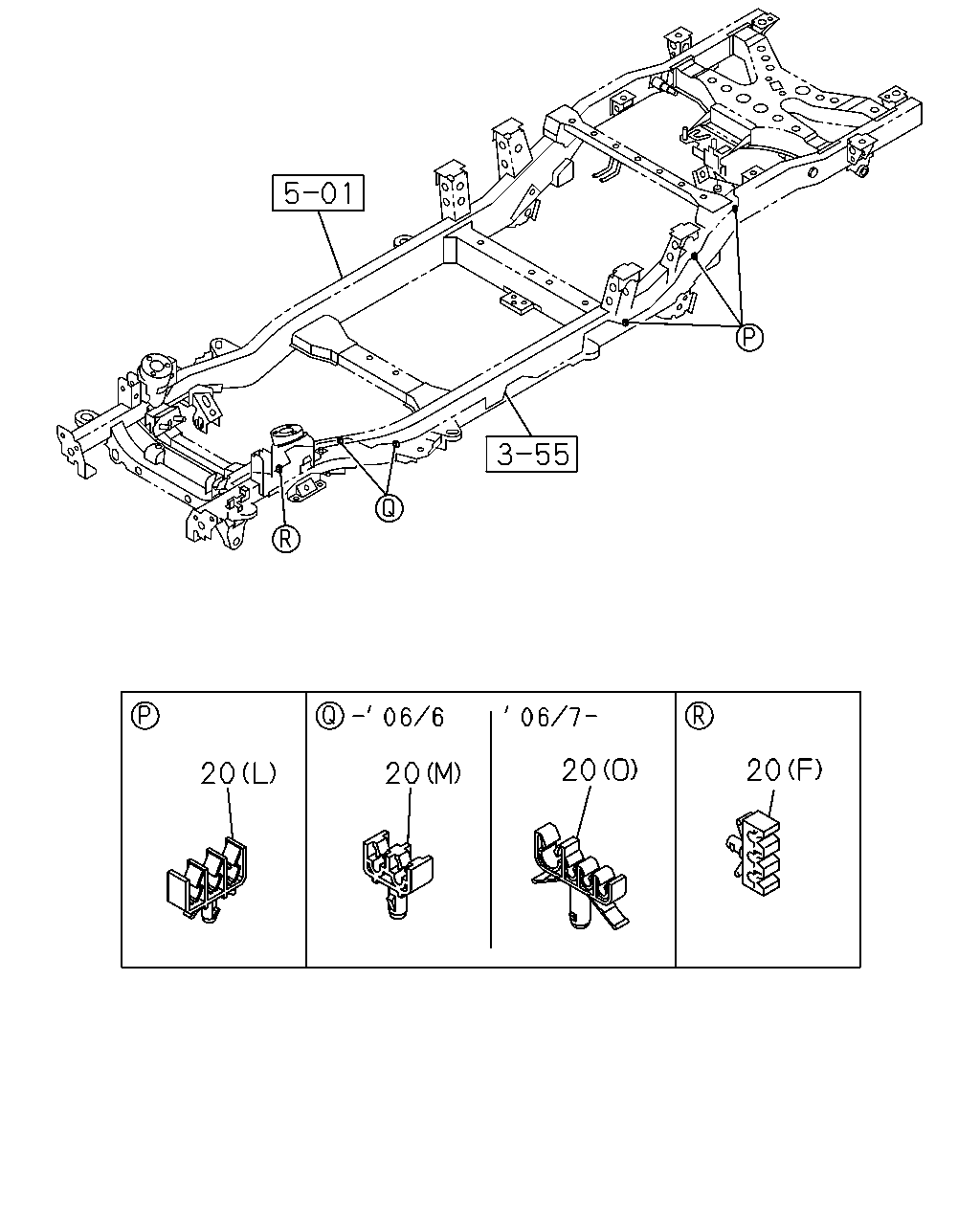

CLIP; BRK PIPE
(M)
ID=6.8X2
THA
|
8-97251-124-0 |
02 |
1 |
0210-0606 |
● |
● |
● |
● |
● |
| |
20 |
CLIP; BRK PIPE
(L)
ID=10 & 6.8X2 OR 8.4X3
THA
|
8-97249-906-1 |
03 |
1 |
0210- |
● |
● |
● |
● |
● |
| |
20 |
CLIP; BRK PIPE
(O)
ID=8.7 & 7.1X3
THA
|
8-98043-266-0 |
02 |
1 |
0607- |
● |
● |
● |
● |
● |
| |
20 |
CLIP; BRK PIPE
(D)
ID=10.5 & 4.8
THA
|
8-97019-966-0 |
01 |
1 |
0204-0207 |
● |
● |
|
|
● |
| |
20 |
CLIP; BRK PIPE
(D)
ID=10.5 & 4.8
THA
|
8-97019-966-0 |
01 |
1 |
0208-0408 |
● |
● |
● |
● |
● |
| |
20 |
CLIP; BRK PIPE
4JA1-T ENG<LP0>
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
(D)
ID=10.5 & 4.8
THA
|
8-97019-966-0 |
01 |
1 |
0409-0412 |
● |
|
● |
|
● |
| |
20 |
CLIP; BRK PIPE
4JA1-T ENG<LP0>
ANTI LOCK BRAKE SYSTEM<JE5>
EXC. HIGH RIDE SUSPENSION<7YC>
(D)
ID=10.5 & 4.8
THA
|
8-97019-966-0 |
01 |
1 |
0409-0412 |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(K)
ID=10 & 4.76X3
THA
|
8-97249-904-0 |
01 |
1 |
0208-0305 |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(K)
ID=10 & 4.76X3
THA
|
8-97249-904-0 |
01 |
1 |
0306-0408 |
● |
● |
● |
● |
|
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
HIGH RIDE SUSPENSION<7YC>
(K)
ID=10 & 4.76X3
THA
|
8-97249-904-0 |
01 |
1 |
0409-0412 |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0>
ANTI LOCK BRAKE SYSTEM<JE5>
EXC. HIGH RIDE SUSPENSION<7YC>
(K)
ID=10 & 4.76X3
THA
|
8-97249-904-0 |
01 |
1 |
0409-0412 |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(K)
ID=10 & 4.76X3
THA
|
8-97249-904-0 |
01 |
1 |
0409-0412 |
|
● |
|
● |
|
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(K)
ID=10 & 4.76X3
THA
|
8-97249-904-0 |
01 |
1 |
0501-0507 |
● |
● |
● |
● |
|
| |
20 |
CLIP; BRK PIPE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
ANTI LOCK BRAKE SYSTEM<JE5>
(K)
ID=10 & 4.76X3
THA
|
8-97249-904-0 |
01 |
1 |
0508-0606 |
● |
● |
● |
● |
|
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
HIGH RIDE SUSPENSION<7YC>
(C)
ID=4.76
THA
|
8-97300-443-0 |
01 |
1 |
0607-0708 |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
HIGH RIDE SUSPENSION<7YC>
(C)
ID=4.76
THA
|
8-97300-443-0 |
01 |
1 |
0607-0708 |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
(C)
ID=4.76
THA
|
8-97300-443-0 |
01 |
1 |
0607-0708 |
|
● |
|
● |
|
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(C)
ID=4.76
THA
|
8-97300-443-0 |
01 |
1 |
0607-0708 |
|
● |
|
● |
|
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
HIGH RIDE SUSPENSION<7YC>
(C)
ID=4.76
THA
|
8-97300-443-0 |
02 |
1 |
0709- |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
EXC. HIGH RIDE SUSPENSION<7YC>
(C)
ID=4.76
THA
|
8-97300-443-0 |
02 |
1 |
0709- |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
(C)
ID=4.76
THA
|
8-97300-443-0 |
02 |
1 |
0709- |
|
|
|
|
● |
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(C)
ID=4.76
THA
|
8-97300-443-0 |
02 |
1 |
0709- |
|
● |
|
● |
|
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
HIGH RIDE SUSPENSION<7YC>
(B)
ID=4.6X2
THA
|
8-94241-454-0 |
02 |
1 |
0607- |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
EXC. HIGH RIDE SUSPENSION<7YC>
(B)
ID=4.6X2
THA
|
8-94241-454-0 |
02 |
1 |
0607- |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
(B)
ID=4.6X2
THA
|
8-94241-454-0 |
02 |
1 |
0607- |
|
|
|
|
● |
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(B)
ID=4.6X2
THA
|
8-94241-454-0 |
02 |
1 |
0607- |
|
● |
|
● |
|
| |
20 |
CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
(B)
ID=4.6X2
THA
|
8-94241-454-0 |
03 |
1 |
0208-0307 |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
(B)
ID=4.6X2
THA
|
8-94241-454-0 |
03 |
1 |
0208-0307 |
|
|
|
|
● |
| |
20 |
CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE
SUSPENSION<7YC>
(B)
ID=4.6X2
THA
|
8-94241-454-0 |
03 |
1 |
0308-0408 |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
(B)
ID=4.6X2
THA
|
8-94241-454-0 |
03 |
1 |
0308-0408 |
|
|
|
|
● |
| |
20 |
CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
(B)
ID=4.6X2
THA
|
8-94241-454-0 |
01 |
1 |
0409-0507 |
● |
● |
● |
● |
|
| |
20 |
CLIP; BRK PIPE
(B)
ID=4.6X2
THA
|
8-94241-454-0 |
01 |
1 |
0409-0507 |
|
|
|
|
● |
| |
20 |
CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
(B)
ID=4.6X2
THA
|
8-94241-454-0 |
01 |
1 |
0508-0606 |
● |
● |
● |
● |
● |
| |
20 |
CLIP; BRK PIPE
HIGH RIDE SUSPENSION<7YC>
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
(B)
ID=4.6X2
THA
|
8-94241-454-0 |
03 |
1 |
0607- |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
(B)
ID=4.6X2
THA
|
8-94241-454-0 |
03 |
1 |
0607- |
|
● |
|
● |
|
| |
20 |
CLIP; BRK PIPE
EXC. HIGH RIDE SUSPENSION<7YC>
(C)
ID=4.76
THA
|
8-97300-443-0 |
02 |
1 |
0607-0708 |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
(C)
ID=4.76
THA
|
8-97300-443-0 |
02 |
1 |
0607-0708 |
|
|
|
|
● |
| |
20 |
CLIP; BRK PIPE
HIGH RIDE SUSPENSION<7YC>
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
(C)
ID=4.76
THA
|
8-97300-443-0 |
01 |
1 |
0709- |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
(C)
ID=4.76
THA
|
8-97300-443-0 |
01 |
1 |
0709- |
|
● |
|
● |
|
| |
20 |
CLIP; BRK PIPE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
ANTI LOCK BRAKE SYSTEM<JE5>
HIGH RIDE SUSPENSION<7YC>
(C)
ID=4.76
THA
|
8-97300-443-0 |
02 |
1 |
0508-0606 |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
4JJ1-TCS ENG<LFB>
ANTI LOCK BRAKE SYSTEM<JE5>
(C)
ID=4.76
THA
|
8-97300-443-0 |
02 |
1 |
0508-0606 |
|
● |
|
● |
|
| |
20 |
CLIP; BRK PIPE
(A)
ID=4.76X2
THA
|
8-97249-905-0 |
01 |
1 |
0607- |
● |
● |
● |
● |
|
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(N)
THA
|
8-97310-401-0 |
01 |
1 |
0502-0507 |
● |
● |
● |
● |
|
| |
20 |
CLIP; BRK PIPE
(N)
THA
|
8-97310-401-0 |
01 |
1 |
0508- |
● |
● |
● |
● |
● |
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(E)
ID=4.8X3
THA
|
8-94487-369-0 |
02 |
1 |
0607- |
● |
● |
● |
● |
|
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(F)
ID=4.76X3
THA
|
8-97216-721-1 |
01 |
1 |
0607- |
● |
● |
● |
● |
|
| |
20 |
CLIP; BRK PIPE
EXC. HIGH RIDE SUSPENSION<7YC>
(F)
ID=4.76X3
THA
|
8-97216-721-1 |
01 |
1 |
0607- |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
(F)
ID=4.76X3
THA
|
8-97216-721-1 |
01 |
1 |
0607- |
|
|
|
|
● |
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(K)
ID=10 & 4.76X3
THA
|
8-97249-904-0 |
01 |
1 |
0607- |
● |
● |
● |
● |
|
| |
20 |
CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
(H)
ID=4.8X2
THA
|
8-94389-060-0 |
01 |
1 |
0607- |
● |
● |
● |
● |
|
| |
20 |
CLIP; BRK PIPE
(H)
ID=4.8X2
THA
|
8-94389-060-0 |
01 |
1 |
0607- |
|
|
|
|
● |
| |
20 |
CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
(I)
ID=10 & 4.76X3
THA
|
8-97201-752-0 |
02 |
1 |
0607- |
● |
● |
● |
● |
|
| |
20 |
CLIP; BRK PIPE
(I)
ID=10 & 4.76X3
THA
|
8-97201-752-0 |
02 |
1 |
0607- |
|
|
|
|
● |
| |
20 |
CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
(J)
THA
|
8-97264-768-0 |
01 |
1 |
0607- |
● |
● |
● |
● |
|
| |
20 |
CLIP; BRK PIPE
(J)
THA
|
8-97264-768-0 |
01 |
1 |
0607- |
|
|
|
|
● |
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(E)
ID=4.8X3
THA
|
8-94487-369-0 |
02 |
1 |
0204-0207 |
● |
● |
|
|
|
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(E)
ID=4.8X3
THA
|
8-94487-369-0 |
02 |
1 |
0208-0408 |
● |
● |
● |
● |
|
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
HIGH RIDE SUSPENSION<7YC>
(E)
ID=4.8X3
THA
|
8-94487-369-0 |
02 |
1 |
0409-0412 |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0>
ANTI LOCK BRAKE SYSTEM<JE5>
EXC. HIGH RIDE SUSPENSION<7YC>
(E)
ID=4.8X3
THA
|
8-94487-369-0 |
02 |
1 |
0409-0412 |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(E)
ID=4.8X3
THA
|
8-94487-369-0 |
02 |
1 |
0409-0412 |
|
● |
|
● |
|
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(E)
ID=4.8X3
THA
|
8-94487-369-0 |
02 |
1 |
0501-0507 |
● |
● |
● |
● |
|
| |
20 |
CLIP; BRK PIPE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
ANTI LOCK BRAKE SYSTEM<JE5>
(E)
ID=4.8X3
THA
|
8-94487-369-0 |
02 |
1 |
0508-0606 |
● |
● |
● |
● |
|
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(F)
ID=4.76X3
THA
|
8-97216-721-1 |
01 |
1 |
0204-0207 |
● |
● |
|
|
|
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(F)
ID=4.76X3
THA
|
8-97216-721-1 |
01 |
1 |
0208-0209 |
● |
● |
● |
● |
|
| |
20 |
CLIP; BRK PIPE
(F)
ID=4.76X3
THA
|
8-97216-721-1 |
01 |
1 |
0210-0301 |
● |
|
● |
|
● |
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(F)
ID=4.76X3
THA
|
8-97216-721-1 |
01 |
1 |
0210-0301 |
● |
● |
● |
● |
|
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(B)
ID=4.6X2
THA
|
8-94241-454-0 |
02 |
1 |
0204-0207 |
● |
● |
|
|
|
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(B)
ID=4.6X2
THA
|
8-94241-454-0 |
02 |
1 |
0208-0408 |
● |
● |
● |
● |
|
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(G)
ID=4.8
THA
|
8-97300-405-0 |
01 |
1 |
0204-0207 |
● |
● |
|
|
|
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(G)
ID=4.8
THA
|
8-97300-405-0 |
01 |
1 |
0208-0606 |
● |
● |
● |
● |
|
| |
20 |
CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
(H)
ID=4.8X2
THA
|
8-94389-060-0 |
01 |
1 |
0204-0207 |
● |
● |
|
|
|
| |
20 |
CLIP; BRK PIPE
(H)
ID=4.8X2
THA
|
8-94389-060-0 |
01 |
1 |
0204-0207 |
|
|
|
|
● |
| |
20 |
CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
(H)
ID=4.8X2
THA
|
8-94389-060-0 |
01 |
1 |
0208-0606 |
● |
● |
● |
● |
|
| |
20 |
CLIP; BRK PIPE
(H)
ID=4.8X2
THA
|
8-94389-060-0 |
01 |
1 |
0208-0606 |
|
|
|
|
● |
| |
20 |
CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
(I)
ID=10 & 4.76X3
THA
|
8-97201-752-0 |
03 |
1 |
0204-0207 |
● |
● |
|
|
|
| |
20 |
CLIP; BRK PIPE
(I)
ID=10 & 4.76X3
THA
|
8-97201-752-0 |
03 |
1 |
0204-0207 |
|
|
|
|
● |
| |
20 |
CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
(I)
ID=10 & 4.76X3
THA
|
8-97201-752-0 |
03 |
1 |
0208-0507 |
● |
● |
● |
● |
|
| |
20 |
CLIP; BRK PIPE
(I)
ID=10 & 4.76X3
THA
|
8-97201-752-0 |
03 |
1 |
0208-0507 |
|
|
|
|
● |
| |
20 |
CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
(I)
ID=10 & 4.76X3
THA
|
8-97201-752-0 |
02 |
1 |
0508-0606 |
● |
● |
● |
● |
|
| |
20 |
CLIP; BRK PIPE
(I)
ID=10 & 4.76X3
THA
|
8-97201-752-0 |
02 |
1 |
0508-0606 |
|
|
|
|
● |
| |
20 |
CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
(J)
THA
|
8-97264-768-0 |
01 |
1 |
0204-0207 |
● |
● |
|
|
|
| |
20 |
CLIP; BRK PIPE
(J)
THA
|
8-97264-768-0 |
01 |
1 |
0204-0207 |
|
|
|
|
● |
| |
20 |
CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
(J)
THA
|
8-97264-768-0 |
01 |
1 |
0208-0606 |
● |
● |
● |
● |
|
| |
20 |
CLIP; BRK PIPE
(J)
THA
|
8-97264-768-0 |
01 |
1 |
0208-0606 |
|
|
|
|
● |
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(C)
ID=4.76
THA
|
8-97300-443-0 |
02 |
1 |
0204-0207 |
|
● |
|
|
|
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(C)
ID=4.76
THA
|
8-97300-443-0 |
02 |
1 |
0208-0301 |
|
● |
|
● |
|
| |
20 |
CLIP; BRK PIPE
(F)
ID=4.76X3
THA
|
8-97216-721-1 |
01 |
1 |
0302-0307 |
● |
|
● |
|
● |
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(F)
ID=4.76X3
THA
|
8-97216-721-1 |
01 |
1 |
0302-0307 |
● |
● |
● |
● |
|
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(F)
ID=4.76X3
THA
|
8-97216-721-1 |
01 |
1 |
0308-0408 |
● |
● |
● |
● |
|
| |
20 |
CLIP; BRK PIPE
EXC. HIGH RIDE SUSPENSION<7YC>
(F)
ID=4.76X3
THA
|
8-97216-721-1 |
01 |
1 |
0308-0408 |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
(F)
ID=4.76X3
THA
|
8-97216-721-1 |
01 |
1 |
0308-0408 |
|
|
|
|
● |
| |
20 |
CLIP; BRK PIPE
EXC. HIGH RIDE SUSPENSION<7YC>
(F)
ID=4.76X3
THA
|
8-97216-721-1 |
01 |
1 |
0409-0412 |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
HIGH RIDE SUSPENSION<7YC>
(F)
ID=4.76X3
THA
|
8-97216-721-1 |
01 |
1 |
0409-0412 |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0>
ANTI LOCK BRAKE SYSTEM<JE5>
EXC. HIGH RIDE SUSPENSION<7YC>
(F)
ID=4.76X3
THA
|
8-97216-721-1 |
01 |
1 |
0409-0412 |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
(F)
ID=4.76X3
THA
|
8-97216-721-1 |
01 |
1 |
0409-0412 |
|
|
|
|
● |
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(F)
ID=4.76X3
THA
|
8-97216-721-1 |
01 |
1 |
0409-0412 |
|
● |
|
● |
|
| |
20 |
CLIP; BRK PIPE
EXC. HIGH RIDE SUSPENSION<7YC>
(F)
ID=4.76X3
THA
|
8-97216-721-1 |
01 |
1 |
0501-0606 |
● |
|
● |
|
● |
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(F)
ID=4.76X3
THA
|
8-97216-721-1 |
01 |
1 |
0501-0606 |
● |
● |
● |
● |
|
| |
20 |
CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
(B)
ID=4.6X2
THA
|
8-94241-454-0 |
04 |
1 |
0204-0207 |
|
● |
|
|
|
| |
20 |
CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
(B)
ID=4.6X2
THA
|
8-94241-454-0 |
04 |
1 |
0208-0307 |
|
● |
|
● |
|
| |
20 |
CLIP; BRK PIPE
HIGH RIDE SUSPENSION<7YC>
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
(B)
ID=4.6X2
THA
|
8-94241-454-0 |
04 |
1 |
0308-0408 |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
(B)
ID=4.6X2
THA
|
8-94241-454-0 |
04 |
1 |
0308-0408 |
|
● |
|
● |
|
| |
20 |
CLIP; BRK PIPE
HIGH RIDE SUSPENSION<7YC>
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
(B)
ID=4.6X2
THA
|
8-94241-454-0 |
03 |
1 |
0409-0606 |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
(B)
ID=4.6X2
THA
|
8-94241-454-0 |
03 |
1 |
0409-0606 |
|
● |
|
● |
|
| |
20 |
CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
(C)
ID=4.76
THA
|
8-97300-443-0 |
01 |
1 |
0204-0207 |
|
● |
|
|
|
| |
20 |
CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
(C)
ID=4.76
THA
|
8-97300-443-0 |
01 |
1 |
0208-0307 |
|
● |
|
● |
|
| |
20 |
CLIP; BRK PIPE
HIGH RIDE SUSPENSION<7YC>
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
(C)
ID=4.76
THA
|
8-97300-443-0 |
01 |
1 |
0308-0408 |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
(C)
ID=4.76
THA
|
8-97300-443-0 |
01 |
1 |
0308-0408 |
|
● |
|
● |
|
| |
20 |
CLIP; BRK PIPE
(C)
ID=4.76
THA
|
8-97300-443-0 |
01 |
1 |
0409-0507 |
● |
● |
● |
● |
● |
| |
20 |
CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE
SUSPENSION<7YC>
(C)
ID=4.76
THA
|
8-97300-443-0 |
01 |
1 |
0409-0507 |
● |
|
● |
|
● |
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
(C)
ID=4.76
THA
|
8-97300-443-0 |
01 |
1 |
0409-0507 |
● |
● |
● |
● |
|
| |
20 |
CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
(C)
ID=4.76
THA
|
8-97300-443-0 |
01 |
1 |
0508-0606 |
● |
● |
● |
● |
|
| |
20 |
CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
EXC. HIGH RIDE SUSPENSION<7YC>
(C)
ID=4.76
THA
|
8-97300-443-0 |
01 |
1 |
0508-0606 |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
EXC. HIGH RIDE SUSPENSION<7YC>
(C)
ID=4.76
THA
|
8-97300-443-0 |
01 |
1 |
0508-0606 |
● |
|
● |
|
|
| |
20 |
CLIP; BRK PIPE
(C)
ID=4.76
THA
|
8-97300-443-0 |
01 |
1 |
0508-0606 |
|
|
|
|
● |
| |
20 |
CLIP; BRK PIPE
4JK1 ENG<LKZ>
(C)
ID=4.76
THA
|
8-97300-443-0 |
01 |
1 |
0508-0606 |
|
|
|
|
● |
| |
22 |
CLIP; PIPE TO FRAME
EXC. HIGH RIDE SUSPENSION<7YC>
(C)
ID=9
THA
|
5-09707-027-0 |
02 |
1 |
0409- |
● |
|
● |
|
|
| |
22 |
CLIP; PIPE TO FRAME
(C)
ID=9
THA
|
5-09707-027-0 |
02 |
1 |
0409- |
|
|
|
|
● |
| |
22 |
CLIP; PIPE TO FRAME
ANTI LOCK BRAKE SYSTEM<JE5>
(A)
ID=10 & 4.76X3
THA
|
8-97249-904-0 |
03 |
1 |
0204-0207 |
● |
● |
|
|
|
| |
22 |
CLIP; PIPE TO FRAME
ANTI LOCK BRAKE SYSTEM<JE5>
(A)
ID=10 & 4.76X3
THA
|
8-97249-904-0 |
02 |
1 |
0208-0501 |
● |
● |
● |
● |
|
| |
22 |
CLIP; PIPE TO FRAME
ANTI LOCK BRAKE SYSTEM<JE5>
(A)
ID=10 & 4.76X3
THA
|
8-97249-904-0 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
| |
22 |
CLIP; PIPE TO FRAME
ANTI LOCK BRAKE SYSTEM<JE5>
(B)
THA
|
8-97255-709-0 |
01 |
1 |
0204-0207 |
● |
● |
|
|
|
| |
22 |
CLIP; PIPE TO FRAME
ANTI LOCK BRAKE SYSTEM<JE5>
(B)
THA
|
8-97255-709-0 |
01 |
1 |
0208- |
● |
● |
● |
● |
|
| |
67 |
NUT; BRKT
A/T 4 SPEED-JATCO<RMK>
M6 FLANGE
THA
|
0-91180-106-0 |
02 |
1 |
0204-0207 |
● |
|
|
|
|
| |
67 |
NUT; BRKT
A/T 4 SPEED-JATCO<RMK>
M6 FLANGE
THA
|
0-91180-106-0 |
02 |
1 |
0208-0307 |
● |
|
● |
|
|
| |
67 |
NUT; BRKT
A/T 4 SPEED-JATCO<RMK>
EXC. HIGH RIDE SUSPENSION<7YC>
M6 FLANGE
THA
|
0-91180-106-0 |
02 |
1 |
0308-0408 |
● |
|
● |
|
|
| |
67 |
NUT; BRKT
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN>
M6 FLANGE
THA
|
0-91180-106-0 |
01 |
1 |
0204-0207 |
● |
|
|
|
● |
| |
67 |
NUT; BRKT
ANTI LOCK BRAKE SYSTEM<JE5>
M6 FLANGE
THA
|
0-91180-106-0 |
01 |
1 |
0204-0207 |
● |
● |
|
|
|
| |
67 |
NUT; BRKT
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN>
M6 FLANGE
THA
|
0-91180-106-0 |
01 |
1 |
0208-0307 |
● |
|
● |
|
● |
| |
67 |
NUT; BRKT
ANTI LOCK BRAKE SYSTEM<JE5>
M6 FLANGE
THA
|
0-91180-106-0 |
01 |
1 |
0208-0307 |
● |
● |
● |
● |
|
| |
67 |
NUT; BRKT
ANTI LOCK BRAKE SYSTEM<JE5>
M6 FLANGE
THA
|
0-91180-106-0 |
01 |
1 |
0308-0408 |
● |
● |
● |
● |
|
| |
67 |
NUT; BRKT
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN>
EXC. HIGH RIDE SUSPENSION<7YC>
M6 FLANGE
THA
|
0-91180-106-0 |
01 |
1 |
0308-0408 |
● |
|
● |
|
|
| |
67 |
NUT; BRKT
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN>
M6 FLANGE
THA
|
0-91180-106-0 |
01 |
1 |
0308-0408 |
|
|
|
|
● |
| |
68 |

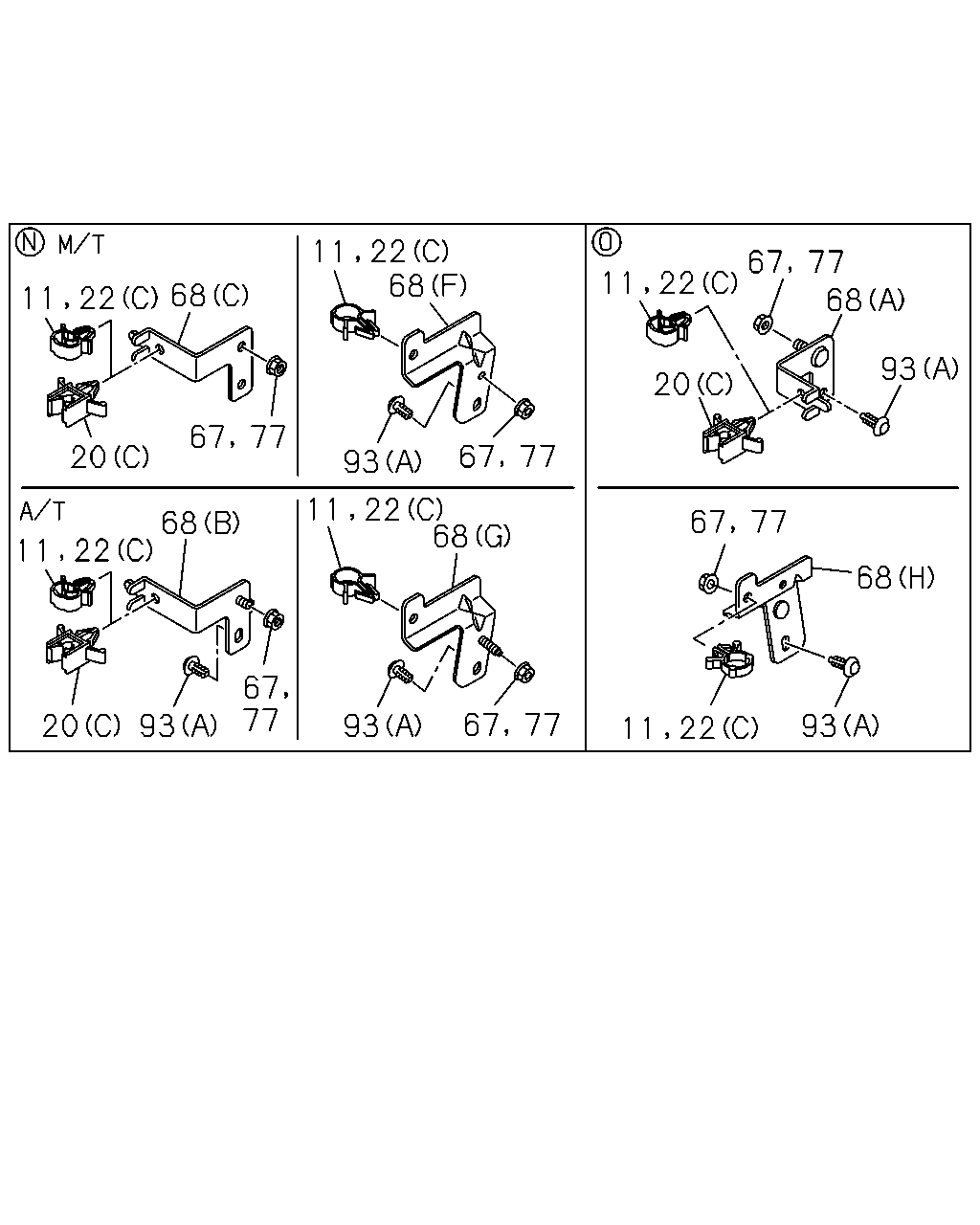

BRACKET; CLIP
A/T 4 SPEED-JATCO<RMK>
(B)
THA
|
8-97300-690-1 |
01 |
1 |
0204-0207 |
● |
|
|
|
|
| |
68 |
BRACKET; CLIP
A/T 4 SPEED-JATCO<RMK>
(B)
THA
|
8-97300-690-1 |
01 |
1 |
0208-0302 |
● |
|
● |
|
|
| |
68 |
BRACKET; CLIP
A/T 4 SPEED-JATCO<RMK>
(B)
THA
|
8-97355-523-0 |
01 |
1 |
0303-0303 |
● |
|
● |
|
|
| |
68 |
BRACKET; CLIP
A/T 4 SPEED-JATCO<RMK>
(G)
THA
|
8-97357-946-0 |
01 |
1 |
0303-0307 |
● |
|
● |
|
|
| |
68 |
BRACKET; CLIP
A/T 4 SPEED-JATCO<RMK>
EXC. HIGH RIDE SUSPENSION<7YC>
(G)
THA
|
8-97357-946-0 |
01 |
1 |
0308-0408 |
● |
|
● |
|
|
| |
68 |
BRACKET; CLIP
4JJ1-TCS ENG<LFB>
A/T 4 SPEED-JATCO<RMK>
EXC. HIGH RIDE SUSPENSION<7YC>
(G)
THA
|
8-97357-946-0 |
01 |
1 |
0409-0606 |
● |
|
● |
|
|
| |
68 |
BRACKET; CLIP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
ANTI LOCK BRAKE SYSTEM<JE5>
(I)
THA
|
8-98006-970-0 |
01 |
1 |
0607-0608 |
● |
● |
● |
|
|
| |
68 |
BRACKET; CLIP
4JJ1-TCS ENG<LFB>
ANTI LOCK BRAKE SYSTEM<JE5>
(I)
THA
|
8-98006-970-0 |
01 |
1 |
0607-0608 |
|
|
|
● |
|
| |
68 |
BRACKET; CLIP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
ANTI LOCK BRAKE SYSTEM<JE5>
(I)
THA
|
8-98006-970-0 |
01 |
1 |
0609-0708 |
● |
● |
● |
|
|
| |
68 |
BRACKET; CLIP
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0>
ANTI LOCK BRAKE SYSTEM<JE5>
(I)
THA
|
8-98006-970-0 |
01 |
1 |
0609-0708 |
|
|
|
● |
|
| |
68 |
BRACKET; CLIP
ANTI LOCK BRAKE SYSTEM<JE5>
(I)
THA
|
8-98006-970-0 |
01 |
1 |
0709- |
● |
● |
● |
● |
|
| |
68 |
BRACKET; CLIP
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN>
(C)
THA
|
8-97300-692-0 |
01 |
1 |
0204-0207 |
● |
|
|
|
|
| |
68 |
BRACKET; CLIP
(C)
THA
|
8-97300-692-0 |
01 |
1 |
0204-0207 |
|
|
|
|
● |
| |
68 |
BRACKET; CLIP
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN>
(C)
THA
|
8-97300-692-0 |
01 |
1 |
0208-0302 |
● |
|
● |
|
|
| |
68 |
BRACKET; CLIP
(C)
THA
|
8-97300-692-0 |
01 |
1 |
0208-0302 |
|
|
|
|
● |
| |
68 |
BRACKET; CLIP
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN>
(C)
THA
|
8-97355-524-0 |
01 |
1 |
0303-0303 |
● |
|
● |
|
|
| |
68 |
BRACKET; CLIP
(C)
THA
|
8-97355-524-0 |
01 |
1 |
0303-0303 |
|
|
|
|
● |
| |
68 |
BRACKET; CLIP
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN>
(F)
THA
|
8-97357-948-0 |
01 |
1 |
0303-0307 |
● |
|
● |
|
|
| |
68 |
BRACKET; CLIP
(F)
THA
|
8-97357-948-0 |
01 |
1 |
0303-0307 |
|
|
|
|
● |
| |
68 |
BRACKET; CLIP
4JH1 ENG<RJX>,4JA1 ENG<RLE>
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN>
EXC. HIGH RIDE SUSPENSION<7YC>
(F)
THA
|
8-97357-948-0 |
01 |
1 |
0308-0408 |
● |
|
● |
|
|
| |
68 |
BRACKET; CLIP
4JH1 ENG<RJX>,4JA1 ENG<RLE>
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN>
(F)
THA
|
8-97357-948-0 |
01 |
1 |
0308-0408 |
|
|
|
|
● |
| |
68 |
BRACKET; CLIP
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP>
EXC. HIGH RIDE SUSPENSION<7YC>
(F)
THA
|
8-97357-948-0 |
01 |
1 |
0409-0412 |
● |
|
● |
|
|
| |
68 |
BRACKET; CLIP
(F)
THA
|
8-97357-948-0 |
01 |
1 |
0409-0412 |
|
|
|
|
● |
| |
68 |
BRACKET; CLIP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP>
EXC. HIGH RIDE SUSPENSION<7YC>
(F)
THA
|
8-97357-948-0 |
01 |
1 |
0501-0507 |
● |
|
● |
|
|
| |
68 |
BRACKET; CLIP
4JK1 ENG<LKZ>
(F)
THA
|
8-97357-948-0 |
01 |
1 |
0501-0507 |
|
|
|
|
● |
| |
68 |
BRACKET; CLIP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP>
EXC. HIGH RIDE SUSPENSION<7YC>
(F)
THA
|
8-97357-948-0 |
01 |
1 |
0508-0606 |
● |
|
● |
|
|
| |
68 |
BRACKET; CLIP
4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
(F)
THA
|
8-97357-948-0 |
01 |
1 |
0508-0606 |
|
|
|
|
● |
| |
68 |
BRACKET; CLIP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
(F)
THA
|
8-98034-935-0 |
01 |
1 |
0607-0709 |
● |
|
● |
|
|
| |
68 |
BRACKET; CLIP
4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
(F)
THA
|
8-98034-935-0 |
01 |
1 |
0607-0709 |
|
|
|
|
● |
| |
68 |
BRACKET; CLIP
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
(F)
THA
|
8-98034-935-0 |
01 |
1 |
0710- |
● |
|
● |
|
● |
| |
68 |
BRACKET; CLIP
(A)
THA
|
8-97300-691-1 |
01 |
1 |
0204-0207 |
● |
|
|
|
● |
| |
68 |
BRACKET; CLIP
(A)
THA
|
8-97300-691-1 |
01 |
1 |
0208-0302 |
● |
|
● |
|
● |
| |
68 |
BRACKET; CLIP
(A)
THA
|
8-97355-521-0 |
01 |
1 |
0303-0303 |
● |
|
● |
|
● |
| |
68 |
BRACKET; CLIP
(H)
THA
|
8-97357-947-0 |
01 |
1 |
0303-0307 |
● |
|
● |
|
● |
| |
68 |
BRACKET; CLIP
4JH1 ENG<RJX>,4JA1 ENG<RLE>
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN>
EXC. HIGH RIDE SUSPENSION<7YC>
(H)
THA
|
8-97357-947-0 |
01 |
1 |
0308-0408 |
● |
|
● |
|
|
| |
68 |
BRACKET; CLIP
A/T 4 SPEED-JATCO<RMK>
EXC. HIGH RIDE SUSPENSION<7YC>
(H)
THA
|
8-97357-947-0 |
01 |
1 |
0308-0408 |
● |
|
● |
|
|
| |
68 |
BRACKET; CLIP
4JH1 ENG<RJX>,4JA1 ENG<RLE>
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN>
(H)
THA
|
8-97357-947-0 |
01 |
1 |
0308-0408 |
|
|
|
|
● |
| |
68 |
BRACKET; CLIP
EXC. HIGH RIDE SUSPENSION<7YC>
(H)
THA
|
8-97357-947-0 |
01 |
1 |
0409-0606 |
● |
|
● |
|
|
| |
68 |
BRACKET; CLIP
(H)
THA
|
8-97357-947-0 |
01 |
1 |
0409-0606 |
|
|
|
|
● |
| |
68 |
BRACKET; CLIP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
EXC. HIGH RIDE SUSPENSION<7YC>
(H)
THA
|
8-97944-661-0 |
01 |
1 |
0607-0708 |
● |
|
● |
|
|
| |
68 |
BRACKET; CLIP
4JK1 ENG<LKZ>
(H)
THA
|
8-97944-661-0 |
01 |
1 |
0607-0708 |
|
|
|
|
● |
| |
68 |
BRACKET; CLIP
EXC. HIGH RIDE SUSPENSION<7YC>
(H)
THA
|
8-97944-661-0 |
01 |
1 |
0709- |
● |
|
● |
|
|
| |
68 |
BRACKET; CLIP
(H)
THA
|
8-97944-661-0 |
01 |
1 |
0709- |
|
|
|
|
● |
| |
68 |
BRACKET; CLIP
ANTI LOCK BRAKE SYSTEM<JE5>
(D)
THA
|
8-97236-433-4 |
01 |
1 |
0204-0207 |
● |
● |
|
|
|
| |
68 |
BRACKET; CLIP
ANTI LOCK BRAKE SYSTEM<JE5>
(D)
THA
|
8-97236-433-4 |
01 |
1 |
0208-0606 |
● |
● |
● |
● |
|
| |
68 |
BRACKET; CLIP
ANTI LOCK BRAKE SYSTEM<JE5>
(E)
THA
|
8-97944-656-1 |
01 |
1 |
0607- |
● |
● |
● |
● |
|
| |
68 |
BRACKET; CLIP
ANTI LOCK BRAKE SYSTEM<JE5>
(E)
THA
|
8-97259-810-1 |
01 |
1 |
0204-0207 |
● |
● |
|
|
|
| |
68 |
BRACKET; CLIP
ANTI LOCK BRAKE SYSTEM<JE5>
(E)
THA
|
8-97259-810-1 |
01 |
1 |
0208-0606 |
● |
● |
● |
● |
|
| |
68 |
BRACKET; CLIP
4JJ1-TCS ENG<LFB>
A/T 4 SPEED-JATCO<RMK>
(G)
THA
|
8-98036-122-0 |
01 |
1 |
0607-0709 |
● |
|
● |
|
|
| |
68 |
BRACKET; CLIP
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK>
(G)
THA
|
8-98036-122-0 |
01 |
1 |
0710- |
● |
|
● |
|
● |
| |
77 |
NUT; BRKT,OIL PIPE
4JJ1-TCS ENG<LFB>
A/T 4 SPEED-JATCO<RMK>
EXC. HIGH RIDE SUSPENSION<7YC>
M6 FLANGE
THA
|
0-91180-106-0 |
02 |
1 |
0409-0606 |
● |
|
● |
|
|
| |
77 |
NUT; BRKT,OIL PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
M6 FLANGE
THA
|
0-91180-106-0 |
01 |
1 |
0409-0412 |
● |
● |
● |
● |
|
| |
77 |
NUT; BRKT,OIL PIPE
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP>
EXC. HIGH RIDE SUSPENSION<7YC>
M6 FLANGE
THA
|
0-91180-106-0 |
01 |
1 |
0409-0412 |
● |
|
● |
|
|
| |
77 |
NUT; BRKT,OIL PIPE
M6 FLANGE
THA
|
0-91180-106-0 |
01 |
1 |
0409-0412 |
|
|
|
|
● |
| |
77 |
NUT; BRKT,OIL PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
M6 FLANGE
THA
|
0-91180-106-0 |
01 |
1 |
0501-0507 |
● |
● |
● |
● |
|
| |
77 |
NUT; BRKT,OIL PIPE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP>
EXC. HIGH RIDE SUSPENSION<7YC>
M6 FLANGE
THA
|
0-91180-106-0 |
01 |
1 |
0501-0507 |
● |
|
● |
|
|
| |
77 |
NUT; BRKT,OIL PIPE
M6 FLANGE
THA
|
0-91180-106-0 |
01 |
1 |
0501-0507 |
|
|
|
|
● |
| |
77 |
NUT; BRKT,OIL PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
M6 FLANGE
THA
|
0-91180-106-0 |
01 |
1 |
0508-0606 |
● |
● |
● |
● |
|
| |
77 |
NUT; BRKT,OIL PIPE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP>
EXC. HIGH RIDE SUSPENSION<7YC>
M6 FLANGE
THA
|
0-91180-106-0 |
01 |
1 |
0508-0606 |
● |
|
● |
|
|
| |
77 |
NUT; BRKT,OIL PIPE
M/T MUA 5 SPEED 5H<MWQ>
M6 FLANGE
THA
|
0-91180-106-0 |
01 |
1 |
0508-0606 |
|
|
|
|
● |
| |
77 |
NUT; BRKT,OIL PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
M6 FLANGE
THA
|
0-91180-106-0 |
01 |
1 |
0607-0709 |
● |
● |
● |
● |
|
| |
77 |
NUT; BRKT,OIL PIPE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
EXC. HIGH RIDE SUSPENSION<7YC>
M6 FLANGE
THA
|
0-91180-106-0 |
01 |
1 |
0607-0709 |
● |
|
● |
|
|
| |
77 |
NUT; BRKT,OIL PIPE
4JJ1-TCS ENG<LFB>
A/T 4 SPEED-JATCO<RMK>
M6 FLANGE
THA
|
0-91180-106-0 |
01 |
1 |
0607-0709 |
● |
|
● |
|
|
| |
77 |
NUT; BRKT,OIL PIPE
4JK1 ENG<LKZ>
M6 FLANGE
THA
|
0-91180-106-0 |
01 |
1 |
0607-0709 |
|
|
|
|
● |
| |
77 |
NUT; BRKT,OIL PIPE
ANTI LOCK BRAKE SYSTEM<JE5>
M6 FLANGE
THA
|
0-91180-106-0 |
01 |
1 |
0710- |
● |
● |
● |
● |
|
| |
77 |
NUT; BRKT,OIL PIPE
EXC. HIGH RIDE SUSPENSION<7YC>
M6 FLANGE
THA
|
0-91180-106-0 |
01 |
1 |
0710- |
● |
|
● |
|
|
| |
77 |
NUT; BRKT,OIL PIPE
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK>
M6 FLANGE
THA
|
0-91180-106-0 |
01 |
1 |
0710- |
● |
|
● |
|
|
| |
77 |
NUT; BRKT,OIL PIPE
M6 FLANGE
THA
|
0-91180-106-0 |
01 |
1 |
0710- |
|
|
|
|
● |
| |
93 |
CLIP; BRKT
A/T 4 SPEED-JATCO<RMK>
(A)
OD=18
THA
|
8-94269-290-0 |
02 |
1 |
0204-0207 |
● |
|
|
|
|
| |
93 |
CLIP; BRKT
A/T 4 SPEED-JATCO<RMK>
(A)
OD=18
THA
|
8-94269-290-0 |
02 |
1 |
0208-0307 |
● |
|
● |
|
|
| |
93 |
CLIP; BRKT
A/T 4 SPEED-JATCO<RMK>
EXC. HIGH RIDE SUSPENSION<7YC>
(A)
OD=18
THA
|
8-94269-290-0 |
02 |
1 |
0308-0408 |
● |
|
● |
|
|
| |
93 |
CLIP; BRKT
4JJ1-TCS ENG<LFB>
A/T 4 SPEED-JATCO<RMK>
EXC. HIGH RIDE SUSPENSION<7YC>
(A)
OD=18
THA
|
8-94269-290-0 |
02 |
1 |
0409-0606 |
● |
|
● |
|
|
| |
93 |
CLIP; BRKT
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN>
(A)
OD=18
THA
|
8-94269-290-0 |
01 |
1 |
0204-0207 |
● |
|
|
|
|
| |
93 |
CLIP; BRKT
(A)
OD=18
THA
|
8-94269-290-0 |
01 |
1 |
0204-0207 |
|
|
|
|
● |
| |
93 |
CLIP; BRKT
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN>
(A)
OD=18
THA
|
8-94269-290-0 |
01 |
1 |
0208-0307 |
● |
|
● |
|
|
| |
93 |
CLIP; BRKT
(A)
OD=18
THA
|
8-94269-290-0 |
01 |
1 |
0208-0307 |
|
|
|
|
● |
| |
93 |
CLIP; BRKT
4JH1 ENG<RJX>,4JA1 ENG<RLE>
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN>
EXC. HIGH RIDE SUSPENSION<7YC>
(A)
OD=18
THA
|
8-94269-290-0 |
01 |
1 |
0308-0408 |
● |
|
● |
|
|
| |
93 |
CLIP; BRKT
4JH1 ENG<RJX>,4JA1 ENG<RLE>
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN>
(A)
OD=18
THA
|
8-94269-290-0 |
01 |
1 |
0308-0408 |
|
|
|
|
● |
| |
93 |
CLIP; BRKT
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5G<RSP>
EXC. HIGH RIDE SUSPENSION<7YC>
(A)
OD=18
THA
|
8-94269-290-0 |
01 |
1 |
0409-0412 |
● |
|
● |
|
|
| |
93 |
CLIP; BRKT
4JA1-T ENG<LP0>
EXC. HIGH RIDE SUSPENSION<7YC>
(A)
OD=18
THA
|
8-94269-290-0 |
01 |
1 |
0409-0412 |
● |
|
● |
|
|
| |
93 |
CLIP; BRKT
4JA1-T ENG<LP0>
(A)
OD=18
THA
|
8-94269-290-0 |
01 |
1 |
0409-0412 |
|
|
|
|
● |
| |
93 |
CLIP; BRKT
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP>
EXC. HIGH RIDE SUSPENSION<7YC>
(A)
OD=18
THA
|
8-94269-290-0 |
01 |
1 |
0501-0606 |
● |
|
● |
|
|
| |
93 |
CLIP; BRKT
4JK1 ENG<LKZ>
EXC. HIGH RIDE SUSPENSION<7YC>
(A)
OD=18
THA
|
8-94269-290-0 |
01 |
1 |
0501-0606 |
● |
|
● |
|
|
| |
93 |
CLIP; BRKT
4JK1 ENG<LKZ>
(A)
OD=18
THA
|
8-94269-290-0 |
01 |
1 |
0501-0606 |
|
|
|
|
● |
| |
93 |
CLIP; BRKT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
EXC. HIGH RIDE SUSPENSION<7YC>
(A)
OD=18
THA
|
8-94269-290-0 |
01 |
1 |
0607-0709 |
● |
|
● |
|
|
| |
93 |
CLIP; BRKT
4JJ1-TCS ENG<LFB>
A/T 4 SPEED-JATCO<RMK>
(A)
OD=18
THA
|
8-94269-290-0 |
01 |
1 |
0607-0709 |
● |
|
● |
|
|
| |
93 |
CLIP; BRKT
4JK1 ENG<LKZ>
(A)
OD=18
THA
|
8-94269-290-0 |
01 |
1 |
0607-0709 |
|
|
|
|
● |
| |
93 |
CLIP; BRKT
EXC. HIGH RIDE SUSPENSION<7YC>
(A)
OD=18
THA
|
8-94269-290-0 |
01 |
1 |
0710- |
● |
|
● |
|
|
| |
93 |
CLIP; BRKT
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK>
(A)
OD=18
THA
|
8-94269-290-0 |
01 |
1 |
0710- |
● |
|
● |
|
|
| |
93 |
CLIP; BRKT
(A)
OD=18
THA
|
8-94269-290-0 |
01 |
1 |
0710- |
|
|
|
|
● |
| |
93 |
CLIP; BRKT
ANTI LOCK BRAKE SYSTEM<JE5>
(B)
OD=25
THA
|
8-94279-810-0 |
01 |
1 |
0204-0207 |
● |
● |
|
|
|
| |
93 |
CLIP; BRKT
ANTI LOCK BRAKE SYSTEM<JE5>
(B)
OD=25
THA
|
8-94279-810-0 |
01 |
1 |
0208- |
● |
● |
● |
● |
|
