3-55 — BRAKE PIPING; OIL,REAR (#72871) — 73 parça

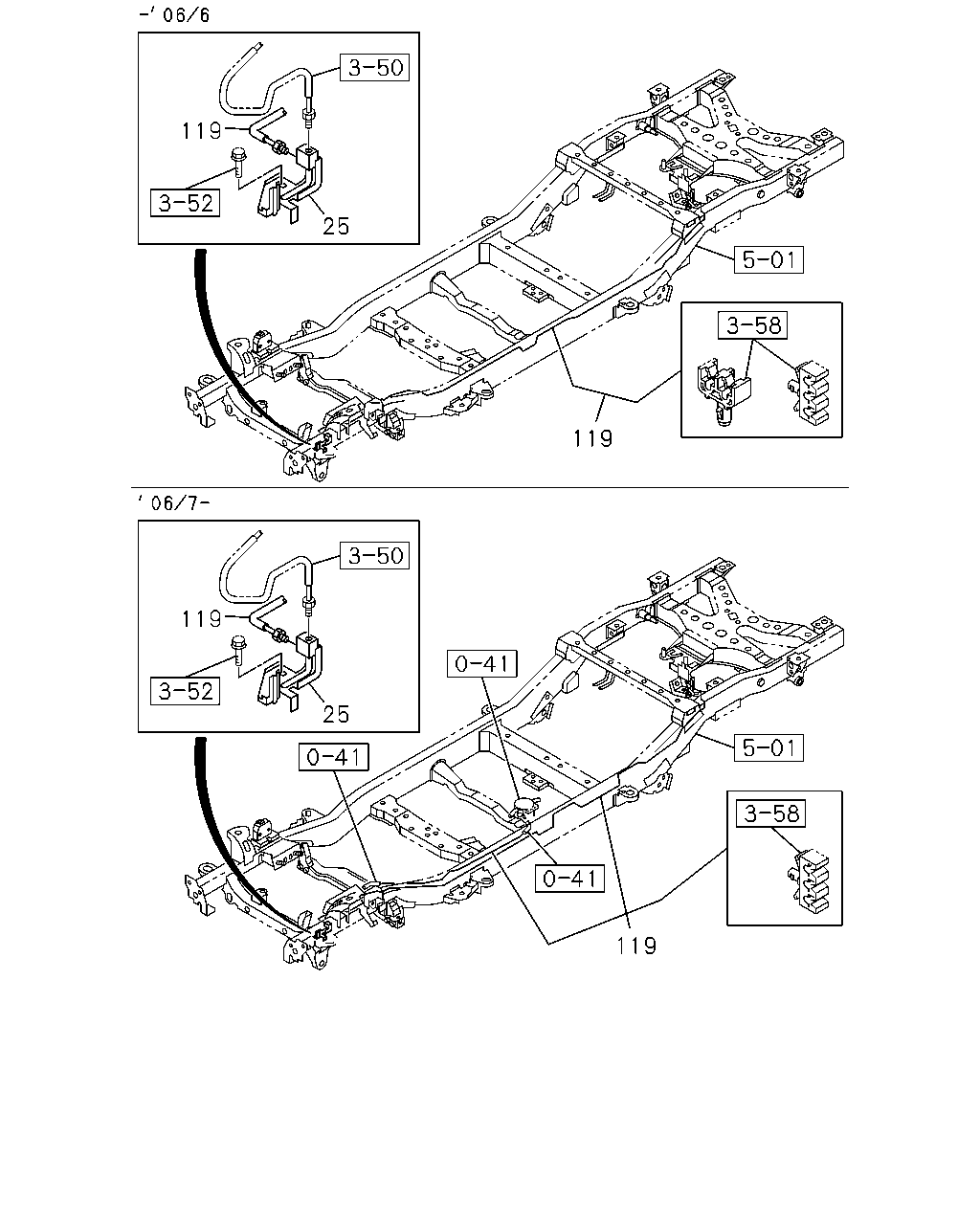

119 25 119 119 25 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
25	CONNECTOR THA	8-97258-536-1	01	1	0204-0207	●	●	●
25	CONNECTOR THA	8-97258-536-1	01	1	0208-0606	●	●	●	●	●
25	CONNECTOR THA	8-98008-369-0	01	1	0607-0609	●	●	●	●	●
25	CONNECTOR THA	8-98046-620-0	01	1	0610-	●	●	●	●	●
119	PIPE; BRK,2WAY TO RR THA	8-97250-049-3	01	1	0204-0207	●	●
119	PIPE; BRK,2WAY TO RR THA	8-97250-049-3	01	1	0208-0307	●	●		●
119	PIPE; BRK,2WAY TO RR EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97250-049-3	01	1	0308-0606	●			●
119	PIPE; BRK,2WAY TO RR THA	8-97250-049-3	01	1	0308-0606		●
119	PIPE; BRK,2WAY TO RR EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98043-599-0	01	1	0607-	●			●
119	PIPE; BRK,2WAY TO RR THA	8-98043-599-0	01	1	0607-		●
119	PIPE; BRK,2WAY TO RR THA	8-97250-051-5	01	1	0204-0207			●
119	PIPE; BRK,2WAY TO RR THA	8-97250-051-5	01	1	0208-0307			●		●
119	PIPE; BRK,2WAY TO RR HIGH RIDE SUSPENSION<7YC> THA	8-97250-051-5	01	1	0308-0606	●			●
119	PIPE; BRK,2WAY TO RR THA	8-97250-051-5	01	1	0308-0606			●		●
119	PIPE; BRK,2WAY TO RR HIGH RIDE SUSPENSION<7YC> THA	8-98043-601-0	01	1	0607-	●			●
119	PIPE; BRK,2WAY TO RR THA	8-98043-601-0	01	1	0607-			●		●

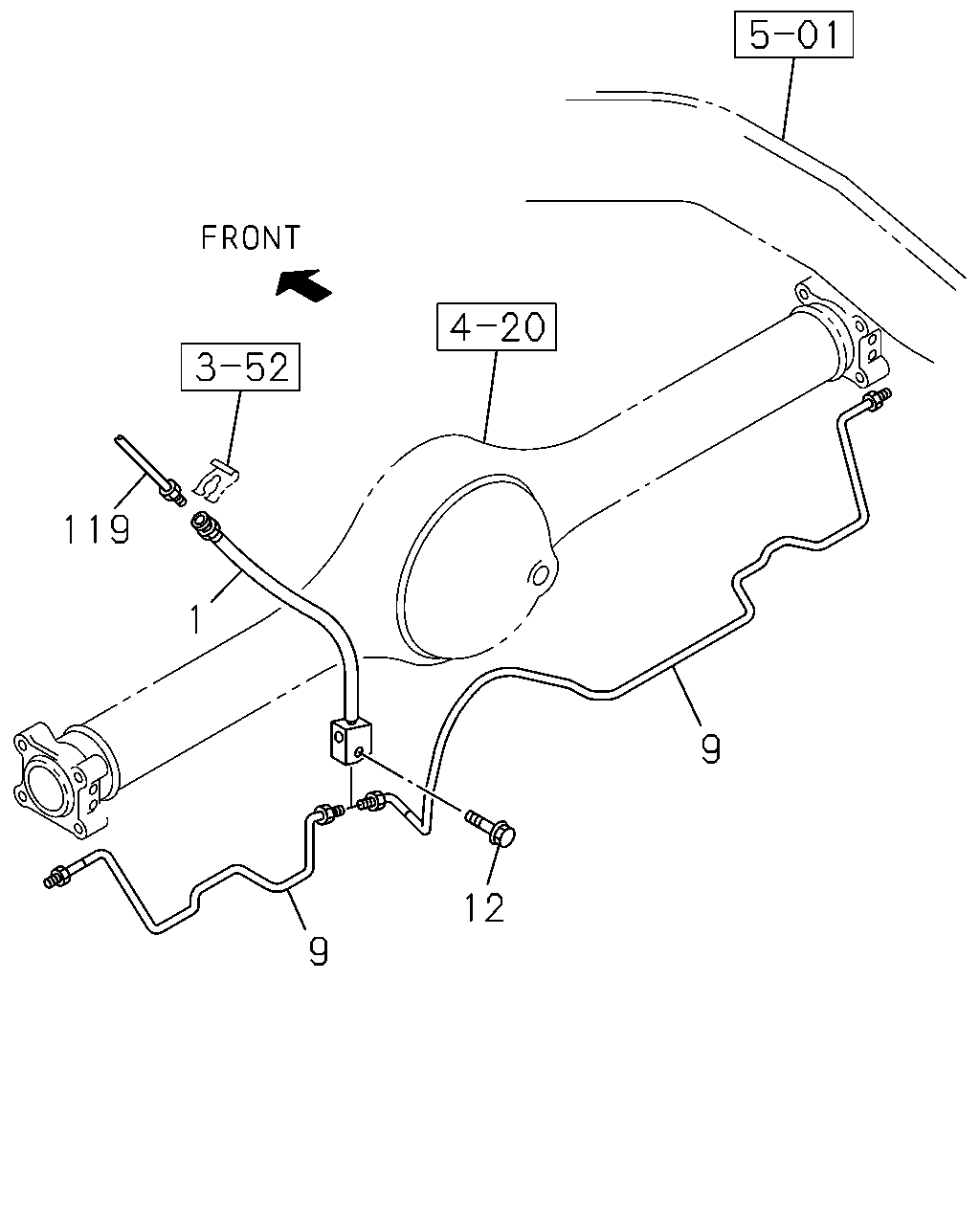

119 1 9 12 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	HOSE; FLEX,RR BRK THA	8-97235-558-1	01	1	0204-0207	●	●	●
1	HOSE; FLEX,RR BRK THA	8-97235-558-1	01	1	0208-0606	●	●	●	●	●
1	HOSE; FLEX,RR BRK THA	8-98006-785-0	01	1	0607-0808	●	●	●	●	●
1	HOSE; FLEX,RR BRK THA	8-98122-044-0	01	1	0809-	●	●	●	●	●
9	PIPE; BRK,RR AXLE THA	8-97215-340-2	01	1	0204-0207	●	●
9	PIPE; BRK,RR AXLE THA	8-97215-340-2	01	1	0208-0307	●	●		●
9	PIPE; BRK,RR AXLE EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97215-340-2	01	1	0308-0606	●			●
9	PIPE; BRK,RR AXLE THA	8-97215-340-2	01	1	0308-0606		●
9	PIPE; BRK,RR AXLE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97944-703-0	01	1	0607-0708	●			●
9	PIPE; BRK,RR AXLE 4JK1 ENG<LKZ> THA	8-97944-703-0	01	1	0607-0708		●
9	PIPE; BRK,RR AXLE EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97944-703-0	01	1	0709-	●			●
9	PIPE; BRK,RR AXLE THA	8-97944-703-0	01	1	0709-		●
9	PIPE; BRK,RR AXLE REAR AXLE HEAVY DUTY 292MM<G73> THA	8-97217-853-4	01	1	0204-0207	●	●
9	PIPE; BRK,RR AXLE REAR AXLE HEAVY DUTY 292MM<G73> THA	8-97217-853-4	01	1	0208-0307	●	●		●
9	PIPE; BRK,RR AXLE REAR AXLE HEAVY DUTY 292MM<G73> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97217-853-4	01	1	0308-0408	●			●
9	PIPE; BRK,RR AXLE REAR AXLE HEAVY DUTY 292MM<G73> THA	8-97217-853-4	01	1	0308-0408		●
9	PIPE; BRK,RR AXLE 4JJ1-TCS ENG<LFB> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97217-853-4	01	1	0409-0412	●			●
9	PIPE; BRK,RR AXLE EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97217-853-4	01	1	0501-0606	●			●
9	PIPE; BRK,RR AXLE THA	8-97217-853-4	01	1	0501-0606		●
9	PIPE; BRK,RR AXLE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97944-705-0	01	1	0607-0708	●			●
9	PIPE; BRK,RR AXLE 4JK1 ENG<LKZ> THA	8-97944-705-0	01	1	0607-0708		●
9	PIPE; BRK,RR AXLE EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97944-705-0	01	1	0709-	●			●
9	PIPE; BRK,RR AXLE THA	8-97944-705-0	01	1	0709-		●
9	PIPE; BRK,RR AXLE REAR AXLE STANDARD 244MM<R39> THA	8-97236-445-4	01	1	0204-0207	●	●
9	PIPE; BRK,RR AXLE REAR AXLE STANDARD 244MM<R39> THA	8-97236-445-4	01	1	0208-0408	●	●		●
9	PIPE; BRK,RR AXLE 4JA1-T ENG<LP0> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97236-445-4	01	1	0409-0412	●			●
9	PIPE; BRK,RR AXLE 4JA1-T ENG<LP0> THA	8-97236-445-4	01	1	0409-0412		●
9	PIPE; BRK,RR AXLE THA	8-97217-850-3	01	1	0204-0207			●
9	PIPE; BRK,RR AXLE THA	8-97217-850-3	01	1	0208-0307			●		●
9	PIPE; BRK,RR AXLE REAR AXLE HEAVY DUTY 292MM<G73> HIGH RIDE SUSPENSION<7YC> THA	8-97217-850-3	01	1	0308-0408	●			●
9	PIPE; BRK,RR AXLE THA	8-97217-850-3	01	1	0308-0408			●		●
9	PIPE; BRK,RR AXLE HIGH RIDE SUSPENSION<7YC> THA	8-97217-850-3	01	1	0409-0606	●			●
9	PIPE; BRK,RR AXLE THA	8-97217-850-3	01	1	0409-0606			●		●
9	PIPE; BRK,RR AXLE HIGH RIDE SUSPENSION<7YC> THA	8-97944-704-0	01	1	0607-	●			●
9	PIPE; BRK,RR AXLE THA	8-97944-704-0	01	1	0607-			●		●
9	PIPE; BRK,RR AXLE THA	8-97236-447-4	01	1	0204-0207			●
9	PIPE; BRK,RR AXLE THA	8-97236-447-4	01	1	0208-0307			●		●
9	PIPE; BRK,RR AXLE REAR AXLE HEAVY DUTY 292MM<G73> HIGH RIDE SUSPENSION<7YC> THA	8-97236-447-4	01	1	0308-0408	●			●
9	PIPE; BRK,RR AXLE THA	8-97236-447-4	01	1	0308-0408			●		●
9	PIPE; BRK,RR AXLE HIGH RIDE SUSPENSION<7YC> THA	8-97236-447-4	01	1	0409-0606	●			●
9	PIPE; BRK,RR AXLE THA	8-97236-447-4	01	1	0409-0606			●		●
9	PIPE; BRK,RR AXLE HIGH RIDE SUSPENSION<7YC> THA	8-97944-706-0	01	1	0607-	●			●
9	PIPE; BRK,RR AXLE THA	8-97944-706-0	01	1	0607-			●		●
12	BOLT; FLEX HOSE TO RR AXLE M8X30 FLANGE THA	0-28650-830-0	01	1	0204-0207	●	●	●
12	BOLT; FLEX HOSE TO RR AXLE M8X30 FLANGE THA	0-28650-830-0	01	1	0208-	●	●	●	●	●
119	PIPE; BRK,2WAY TO RR THA	8-97250-049-3	01	1	0204-0207	●	●
119	PIPE; BRK,2WAY TO RR THA	8-97250-049-3	01	1	0208-0307	●	●		●
119	PIPE; BRK,2WAY TO RR EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97250-049-3	01	1	0308-0606	●			●
119	PIPE; BRK,2WAY TO RR THA	8-97250-049-3	01	1	0308-0606		●
119	PIPE; BRK,2WAY TO RR EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98043-599-0	01	1	0607-	●			●
119	PIPE; BRK,2WAY TO RR THA	8-98043-599-0	01	1	0607-		●
119	PIPE; BRK,2WAY TO RR THA	8-97250-051-5	01	1	0204-0207			●
119	PIPE; BRK,2WAY TO RR THA	8-97250-051-5	01	1	0208-0307			●		●
119	PIPE; BRK,2WAY TO RR HIGH RIDE SUSPENSION<7YC> THA	8-97250-051-5	01	1	0308-0606	●			●
119	PIPE; BRK,2WAY TO RR THA	8-97250-051-5	01	1	0308-0606			●		●
119	PIPE; BRK,2WAY TO RR HIGH RIDE SUSPENSION<7YC> THA	8-98043-601-0	01	1	0607-	●			●
119	PIPE; BRK,2WAY TO RR THA	8-98043-601-0	01	1	0607-			●		●
