◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#72870) — 73 parça

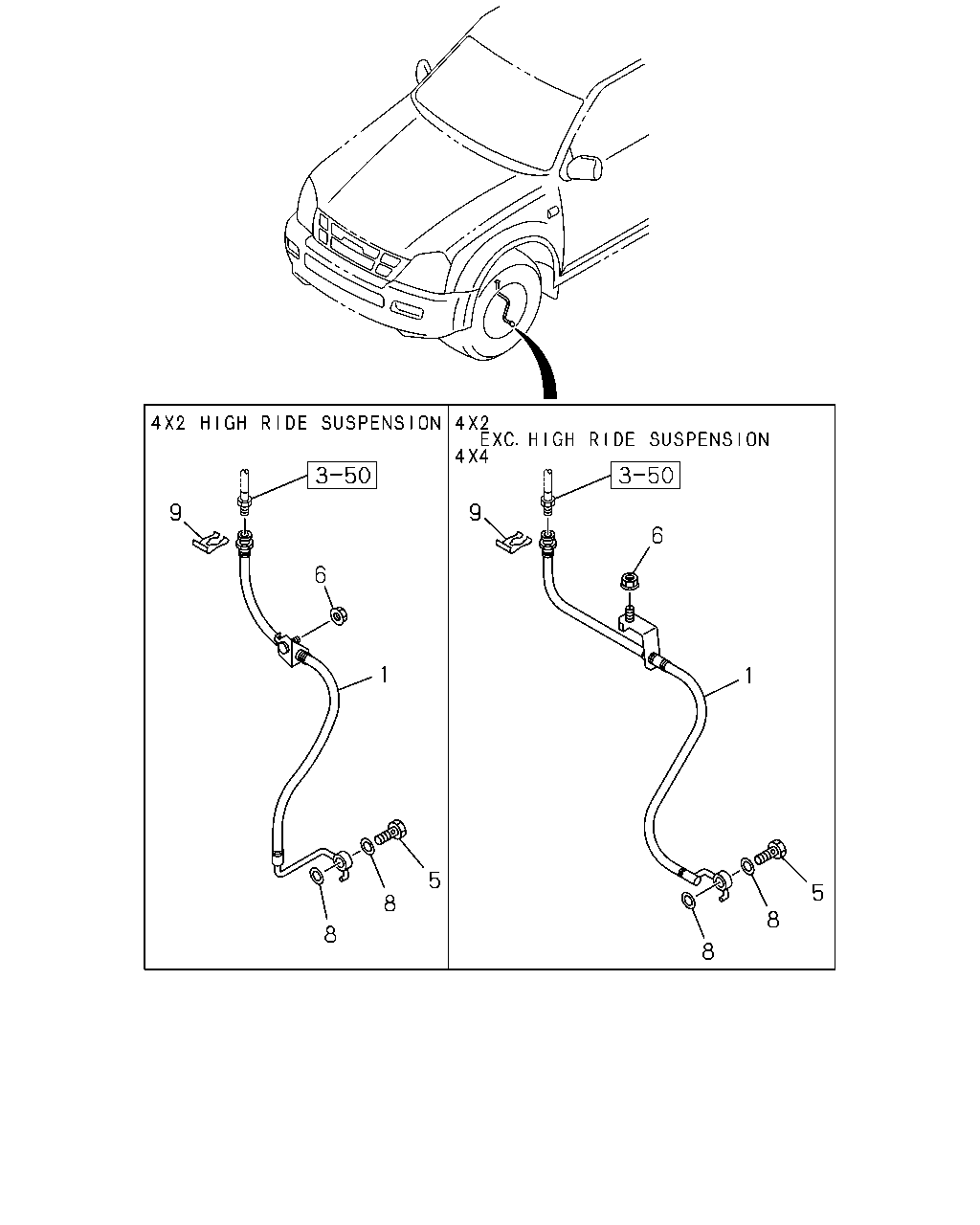

çizim 116480
9 9 6 6 1 1 5 5 8 8 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 HOSE; FLEX,FRT BRK
THA 		8-97289-210-2 01 1 0204-0207 ● ●
1 HOSE; FLEX,FRT BRK
THA 		8-97289-210-2 01 1 0208-0307 ● ● ●
1 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97363-804-0 01 1 0308-0606 ● ●
1 HOSE; FLEX,FRT BRK
THA 		8-97363-804-0 01 1 0308-0606 ●
1 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98006-705-0 01 1 0607-0802 ● ●
1 HOSE; FLEX,FRT BRK
THA 		8-98006-705-0 01 1 0607-0802 ●
1 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98008-257-0 01 1 0803-0808 ● ●
1 HOSE; FLEX,FRT BRK
THA 		8-98008-257-0 01 1 0803-0808 ●
1 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98122-041-0 01 1 0809- ● ●
1 HOSE; FLEX,FRT BRK
THA 		8-98122-041-0 01 1 0809- ●
1 HOSE; FLEX,FRT BRK
THA 		8-97289-209-2 01 1 0204-0207 ● ●
1 HOSE; FLEX,FRT BRK
THA 		8-97289-209-2 01 1 0208-0307 ● ● ●
1 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97289-209-2 01 1 0308-0606 ● ●
1 HOSE; FLEX,FRT BRK
THA 		8-97289-209-2 01 1 0308-0606 ●
1 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98006-704-0 01 1 0607-0802 ● ●
1 HOSE; FLEX,FRT BRK
THA 		8-98006-704-0 01 1 0607-0802 ●
1 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98008-256-0 01 1 0803-0808 ● ●
1 HOSE; FLEX,FRT BRK
THA 		8-98008-256-0 01 1 0803-0808 ●
1 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98122-040-0 01 1 0809- ● ●
1 HOSE; FLEX,FRT BRK
THA 		8-98122-040-0 01 1 0809- ●
1 HOSE; FLEX,FRT BRK
THA 		8-97330-455-0 01 1 0204-0207 ●
1 HOSE; FLEX,FRT BRK
THA 		8-97330-455-0 01 1 0208-0307 ● ●
1 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION<7YC> THA 		8-97363-805-0 01 1 0308-0606 ● ●
1 HOSE; FLEX,FRT BRK
THA 		8-97363-805-0 01 1 0308-0606 ● ●
1 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION<7YC> THA 		8-98006-707-0 01 1 0607-0808 ● ●
1 HOSE; FLEX,FRT BRK
THA 		8-98006-707-0 01 1 0607-0808 ● ●
1 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION<7YC> THA 		8-98122-043-0 01 1 0809- ● ●
1 HOSE; FLEX,FRT BRK
THA 		8-98122-043-0 01 1 0809- ● ●
1 HOSE; FLEX,FRT BRK
THA 		8-97330-454-0 01 1 0204-0207 ●
1 HOSE; FLEX,FRT BRK
THA 		8-97330-454-0 01 1 0208-0307 ● ●
1 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION<7YC> THA 		8-97330-454-0 01 1 0308-0606 ● ●
1 HOSE; FLEX,FRT BRK
THA 		8-97330-454-0 01 1 0308-0606 ● ●
1 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION<7YC> THA 		8-98006-706-0 01 1 0607-0808 ● ●
1 HOSE; FLEX,FRT BRK
THA 		8-98006-706-0 01 1 0607-0808 ● ●
1 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION<7YC> THA 		8-98122-042-0 01 1 0809- ● ●
1 HOSE; FLEX,FRT BRK
THA 		8-98122-042-0 01 1 0809- ● ●
5 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 THA 		5-09675-017-0 02 1 0204-0207 ● ● ●
5 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 THA 		5-09675-017-0 02 1 0208-0606 ● ● ● ● ●
5 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 THA 		8-97359-818-0 02 1 0607- ● ● ● ● ●
6 NUT; FLEX HOSE,FRT BRK
M8 FLANGE THA 		0-91180-108-0 02 1 0204-0207 ● ● ●
6 NUT; FLEX HOSE,FRT BRK
M8 FLANGE THA 		0-91180-108-0 02 1 0208- ● ● ● ● ●
8 GASKET; FLEX HOSE,FRT BRK
ID=10.2 OD=16.0 THA 		9-09571-410-0 04 1 0204-0207 ● ● ●
8 GASKET; FLEX HOSE,FRT BRK
ID=10.2 OD=16.0 THA 		9-09571-410-0 04 1 0208- ● ● ● ● ●
9 CLIP; FLEX HOSE,FRT BRK
THA 		8-94137-662-0 03 1 0204-0207 ● ● ●
9 CLIP; FLEX HOSE,FRT BRK
THA 		8-94137-662-0 03 1 0208-0606 ● ● ● ● ●
9 CLIP; FLEX HOSE,FRT BRK
IMA 		8-97360-054-0 03 1 0607- ● ● ● ● ●

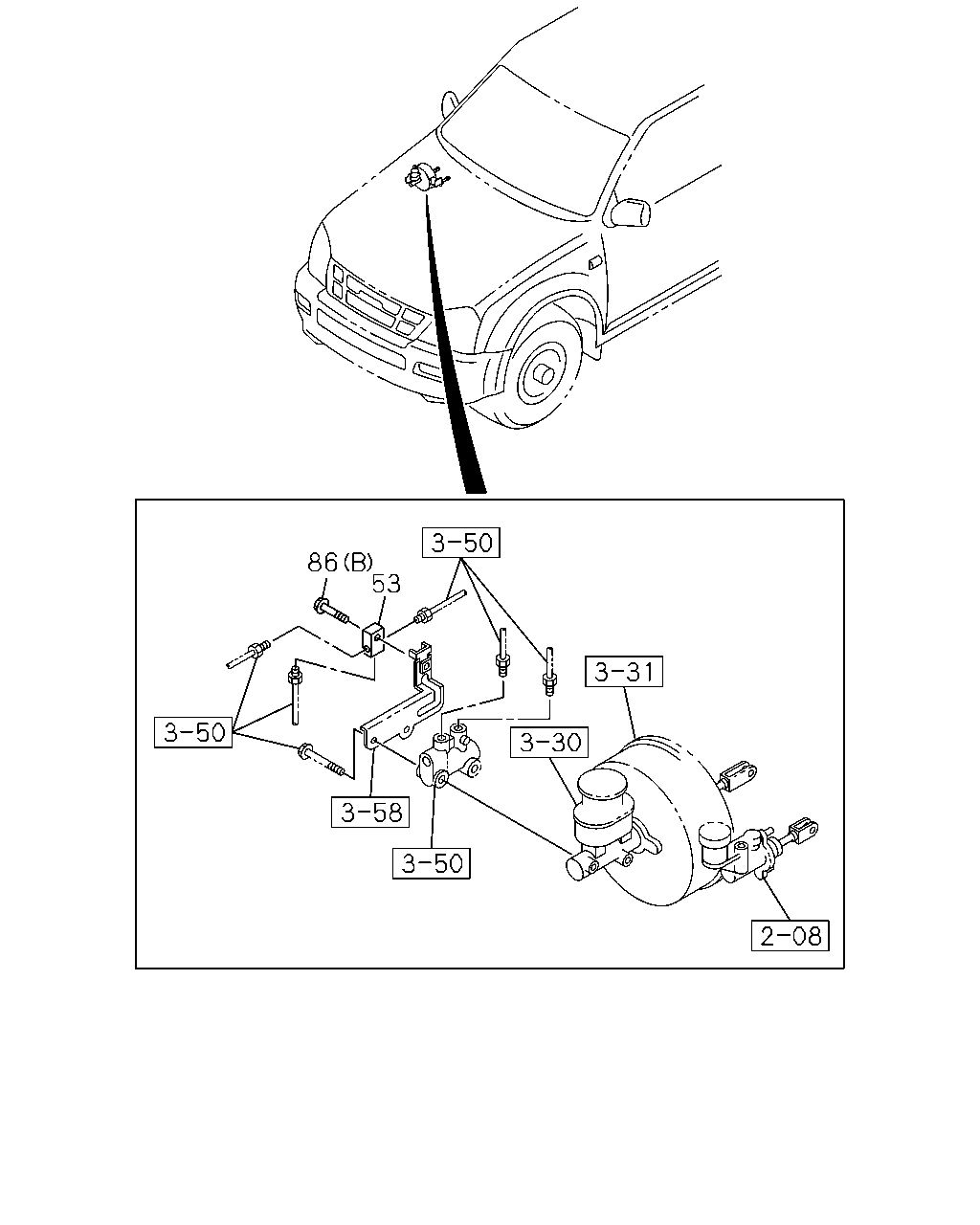

çizim 116570
86 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E
53 CONNECTOR; OIL PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-94406-895-0 01 1 0204-0207 ● ●
53 CONNECTOR; OIL PIPE
THA 		8-94406-895-0 01 1 0204-0207 ●
53 CONNECTOR; OIL PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-94406-895-0 01 1 0208-0606 ● ● ● ●
53 CONNECTOR; OIL PIPE
THA 		8-94406-895-0 01 1 0208-0606 ●
53 CONNECTOR; OIL PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98008-113-0 01 1 0607- ● ● ● ●
53 CONNECTOR; OIL PIPE
THA 		8-98008-113-0 01 1 0607- ●
86 BOLT; BRK PIPE
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 0204-0207 ● ● ●
86 BOLT; BRK PIPE
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 0208-0511 ● ● ● ● ●
86 BOLT; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5> (B) M8X25 FLANGE THA 		0-28650-825-0 01 1 0204-0207 ● ●
86 BOLT; BRK PIPE
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 0204-0207 ●
86 BOLT; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5> (B) M8X25 FLANGE THA 		0-28650-825-0 01 1 0208-0511 ● ● ● ●
86 BOLT; BRK PIPE
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 0208-0511 ●
86 BOLT; BRK PIPE
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 0512- ● ● ● ● ●
86 BOLT; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5> (B) M8X25 FLANGE THA 		0-28650-825-0 01 1 0512- ● ● ● ●
86 BOLT; BRK PIPE
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 0512- ●

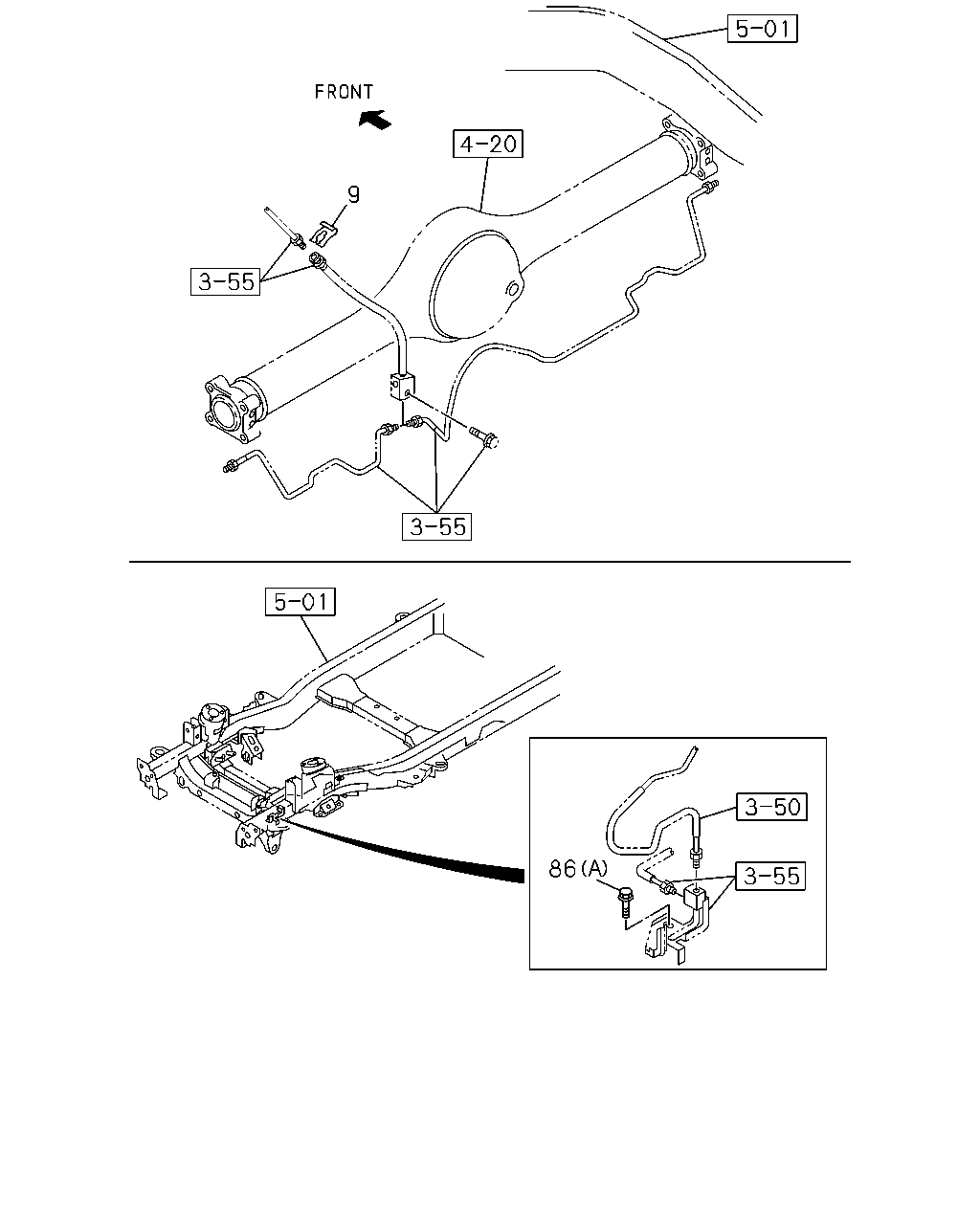

çizim 116573
9 86
BalonParca AdiParca NoAdetTipApplied Date A B C D E
9 CLIP; FLEX HOSE,FRT BRK
THA 		8-94137-662-0 03 1 0204-0207 ● ● ●
9 CLIP; FLEX HOSE,FRT BRK
THA 		8-94137-662-0 03 1 0208-0606 ● ● ● ● ●
9 CLIP; FLEX HOSE,FRT BRK
IMA 		8-97360-054-0 03 1 0607- ● ● ● ● ●
86 BOLT; BRK PIPE
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 0204-0207 ● ● ●
86 BOLT; BRK PIPE
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 0208-0511 ● ● ● ● ●
86 BOLT; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5> (B) M8X25 FLANGE THA 		0-28650-825-0 01 1 0204-0207 ● ●
86 BOLT; BRK PIPE
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 0204-0207 ●
86 BOLT; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5> (B) M8X25 FLANGE THA 		0-28650-825-0 01 1 0208-0511 ● ● ● ●
86 BOLT; BRK PIPE
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 0208-0511 ●
86 BOLT; BRK PIPE
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 0512- ● ● ● ● ●
86 BOLT; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5> (B) M8X25 FLANGE THA 		0-28650-825-0 01 1 0512- ● ● ● ●
86 BOLT; BRK PIPE
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 0512- ●
