6-05 — FRONT PANEL (#7287) — 207 parça

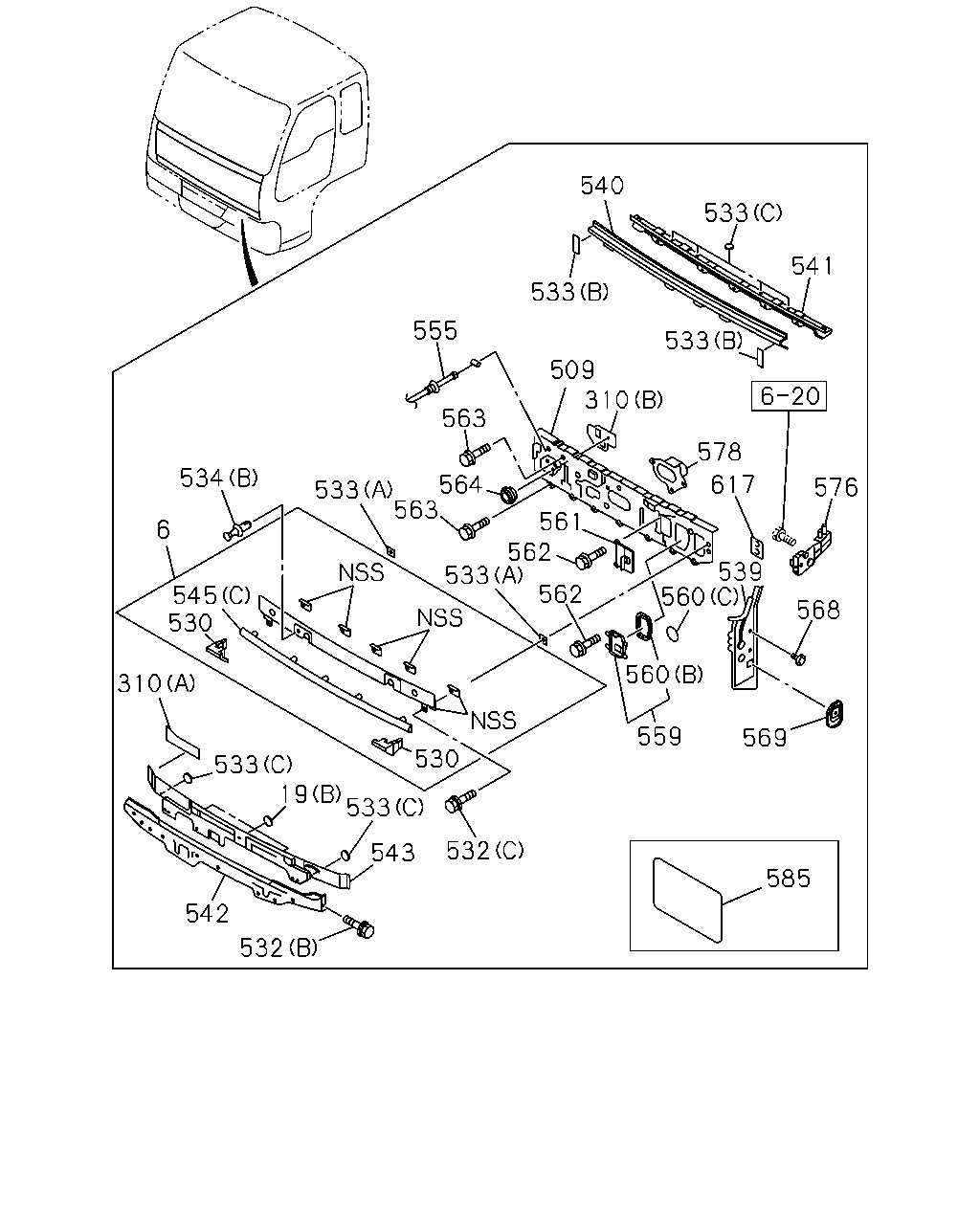

çizim 7527
540 533 541 533 555 533 509 310 563 578 534 564 563 617 576 533 561 562 533 6 539 560 562 545 530 568 560 310 559 569 530 533 19 533 532 543 585 542 532
BalonParca AdiParca NoAdetTipApplied Date
6 PANEL; FRONT 1-65472-549-3 01 1 9906-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9906-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 9906-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 9906-
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-160-4 01 1 9906-
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-159-4 01 1 9906-
19 SEAL; FRT SIDE PANEL
BODY COLOR MARINE BLUE(890) (A) 		1-71907-165-4 01 1 9906-
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729) BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-165-4 01 1 9906-
19 SEAL; FRT SIDE PANEL
BODY COLOR MARINE BLUE(890) (A) 		1-71907-164-4 01 1 9906-
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729) BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-164-4 01 1 9906-
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 9906-
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 9906-
509 PANEL; DASH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-492-1 01 1 9906-
509 PANEL; DASH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-478-5 01 1 9906-
530 STOPPER; FRT PANEL,SIDE 1-71907-487-0 01 1 9906-
530 STOPPER; FRT PANEL,SIDE 1-71907-482-1 01 1 9906-
532 BOLT; FRT PANEL
(C) M8X20 		1-79198-002-0 02 1 9906-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9906-
532 BOLT; FRT PANEL
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9906-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-2 02 1 9906-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 12 1 9906-
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 9906-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9906-0001
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0002-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 9906-
539 CLOSING; PILLAR 1-61480-674-6 01 1 9906-
539 CLOSING; PILLAR 1-61480-673-6 01 1 9906-
540 PANEL; FRONT,OUTER 1-61470-688-2 01 1 9906-
541 PANEL; FRONT,INNER 1-61470-690-0 01 1 9906-
542 RAIL; FRT MOUNTING 1-61470-705-3 01 1 9906-
543 CLOSING; FRT MTG RAIL 1-61470-680-4 01 1 9906-
545 SEAL; FRT LID
(C) L=2038 		1-71907-481-0 01 1 9906-
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502 		1-71907-471-0 01 1 9906-
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502 		1-71907-470-0 01 1 9906-
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) 		1-71907-154-4 01 1 9906-
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) 		1-71907-153-3 01 1 9906-
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B) 		1-71907-472-0 01 1 9906-
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (E) L=63 		1-71998-963-2 01 1 9906-
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) OD=25 BLACK 		1-76798-019-0 01 1 9906-
555 CABLE; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> L=2442 		1-79347-003-4 01 1 9906-
555 CABLE; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> L=2682 		1-79347-005-2 01 1 9906-
559 COVER; EVAPOLATOR 1-71996-194-0 01 1 9906-
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 9906-
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9906-
560 SEAL; COVER
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9906-
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9906-9907
560 SEAL; COVER
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9908-
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9908-
561 COVER; HEATER CORE 1-71998-829-1 01 1 9906-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9906-
562 BOLT; COVER
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9906-
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 18 1 9906-
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 9906-
568 PATCH; INST REINF 1-61480-675-2 02 1 9906-
569 PATCH; LWR GRIP 1-61480-689-2 01 1 9906-
569 PATCH; LWR GRIP 1-61480-736-2 01 1 9906-
576 FRAME; INST SIDE 1-62280-177-7 01 1 9906-
576 FRAME; INST SIDE 1-62280-176-6 01 1 9906-
578 COVER; WIPER MOTOR 1-62280-185-3 01 1 9906-0009
578 COVER; WIPER MOTOR 1-62280-254-1 01 1 0010-
585 PLATE; EVAPOLATOR
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-71996-084-1 01 1 9906-
617 SEAL; DASH 1-61281-497-0 02 1 9906-

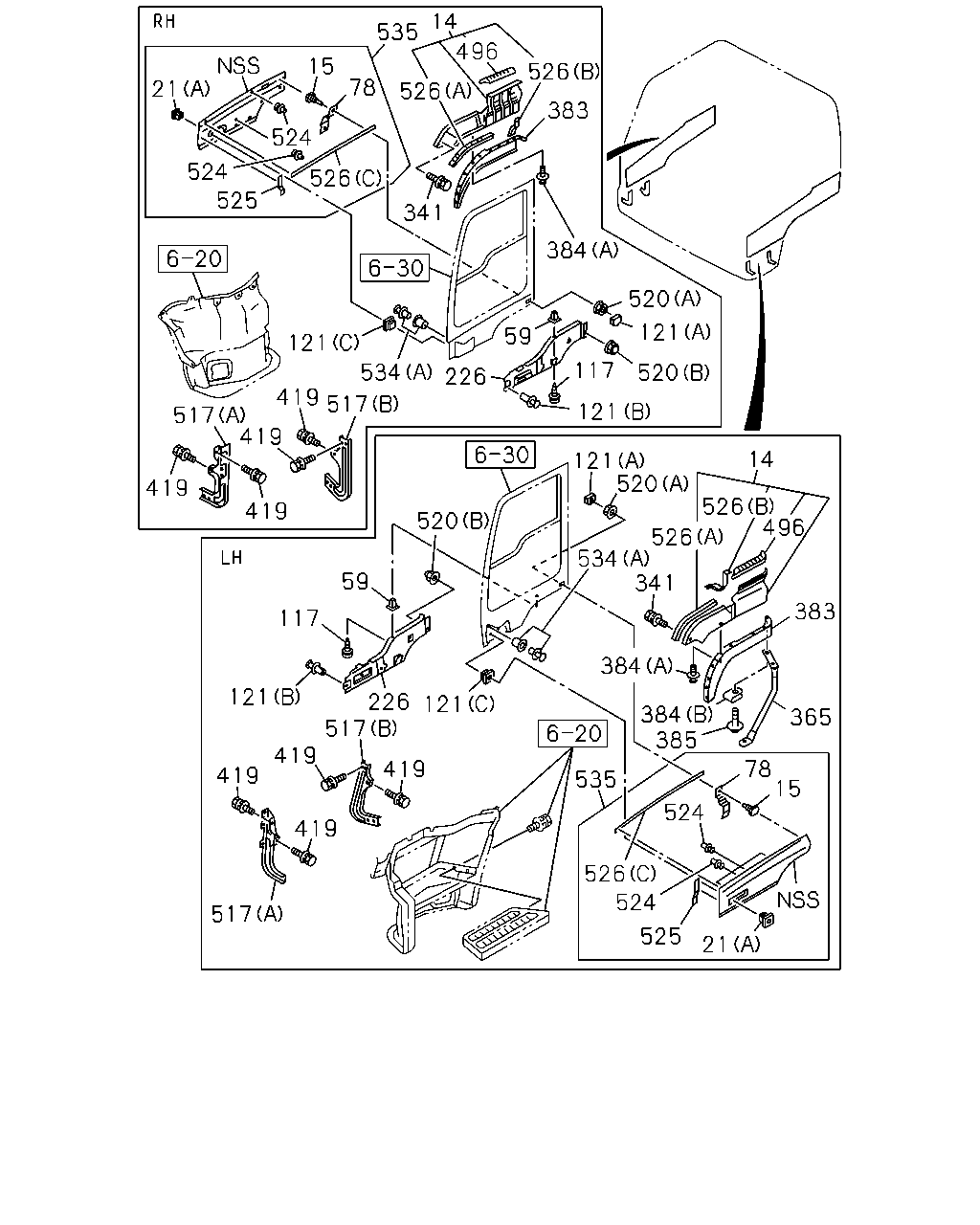

çizim 7987
14 535 496 15 526 78 21 526 383 524 524 526 525 341 384 520 121 59 121 117 534 520 226 419 517 121 517 419 14 121 520 419 526 496 419 520 526 534 341 59 383 117 384 384 385 121 226 517 121 365 419 419 78 15 419 535 524 419 526 524 517 525 21
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT
WHITE 		1-65472-453-2 01 1 9906-
14 FENDER; FRT
WHITE 		1-65472-452-2 01 1 9906-
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 9906-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9906-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9906-
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 9906-
78 BRACKET; FENDER 1-71267-215-0 01 1 9906-
78 BRACKET; FENDER 1-71267-214-0 01 1 9906-
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 9906-
121 GROMMET; FENDER
(A) 		1-09983-162-0 02 1 9906-
121 GROMMET; FENDER
(B) D8X13.5 		1-09987-248-1 08 1 9906-
121 GROMMET; FENDER
(C) 14.5X14.5 BLACK 		8-94279-714-0 02 1 9906-
226 PROTECTOR; FRT 1-71267-269-1 01 1 9906-
226 PROTECTOR; FRT 1-71267-268-1 01 1 9906-
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 18 1 9906-
365 SUPPORT; FENDER
CAB UP +110MM<TGG> 		1-71907-418-1 01 1 9906-
365 SUPPORT; FENDER
CAB UP +110MM<TGG> 		1-71907-417-1 01 1 9906-
383 GUARD; MUD,FENDER LWR
CAB UP +110MM<TGG> 		1-71907-457-2 01 1 9906-
383 GUARD; MUD,FENDER LWR
CAB UP +110MM<TGG> 		1-71907-456-2 01 1 9906-
383 GUARD; MUD,FENDER LWR
EXC. CAB UP +110MM<TGG> 		1-71907-443-2 01 1 9906-
383 GUARD; MUD,FENDER LWR
EXC. CAB UP +110MM<TGG> 		1-71907-442-2 01 1 9906-
384 CLIP; FENDER LWR
CAB UP +110MM<TGG> (A) D8X13.5 		1-09987-248-1 09 1 9906-
384 CLIP; FENDER LWR
CAB UP +110MM<TGG> (B) ID=6 		1-09987-266-0 04 1 9906-
384 CLIP; FENDER LWR
EXC. CAB UP +110MM<TGG> (A) D8X13.5 		1-09987-248-1 11 1 9906-
385 SCREW; FENDER LWR
CAB UP +110MM<TGG> M6X25 		1-65481-736-0 04 1 9906-
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 9906-
496 RUBBER; STEP 1-71998-862-0 01 1 9906-
496 RUBBER; STEP 1-71998-861-0 01 1 9906-
517 SUPPORT; STEP PANEL
(B) 		1-65671-531-1 01 1 9906-
517 SUPPORT; STEP PANEL
(A) 		1-65671-767-1 01 1 9906-
517 SUPPORT; STEP PANEL
(B) 		1-65671-530-1 01 1 9906-
517 SUPPORT; STEP PANEL
(A) 		1-65671-766-1 01 1 9906-
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9906-
520 NUT; FENDER
(B) M6 		8-94343-366-1 02 1 9906-
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 9906-
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 9906-
526 FINISHER; FENDER
(B) 		1-71998-900-3 02 1 9906-
526 FINISHER; FENDER
(C) 		1-71268-276-1 01 1 9906-
526 FINISHER; FENDER
(A) 		1-71907-181-4 01 1 9906-
526 FINISHER; FENDER
(C) 		1-71268-275-1 01 1 9906-
526 FINISHER; FENDER
(A) 		1-71907-180-4 01 1 9906-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9906-0001
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0002-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 9906-
535 FENDER; BLISTER 1-71267-186-2 01 1 9906-
535 FENDER; BLISTER 1-71267-185-2 01 1 9906-

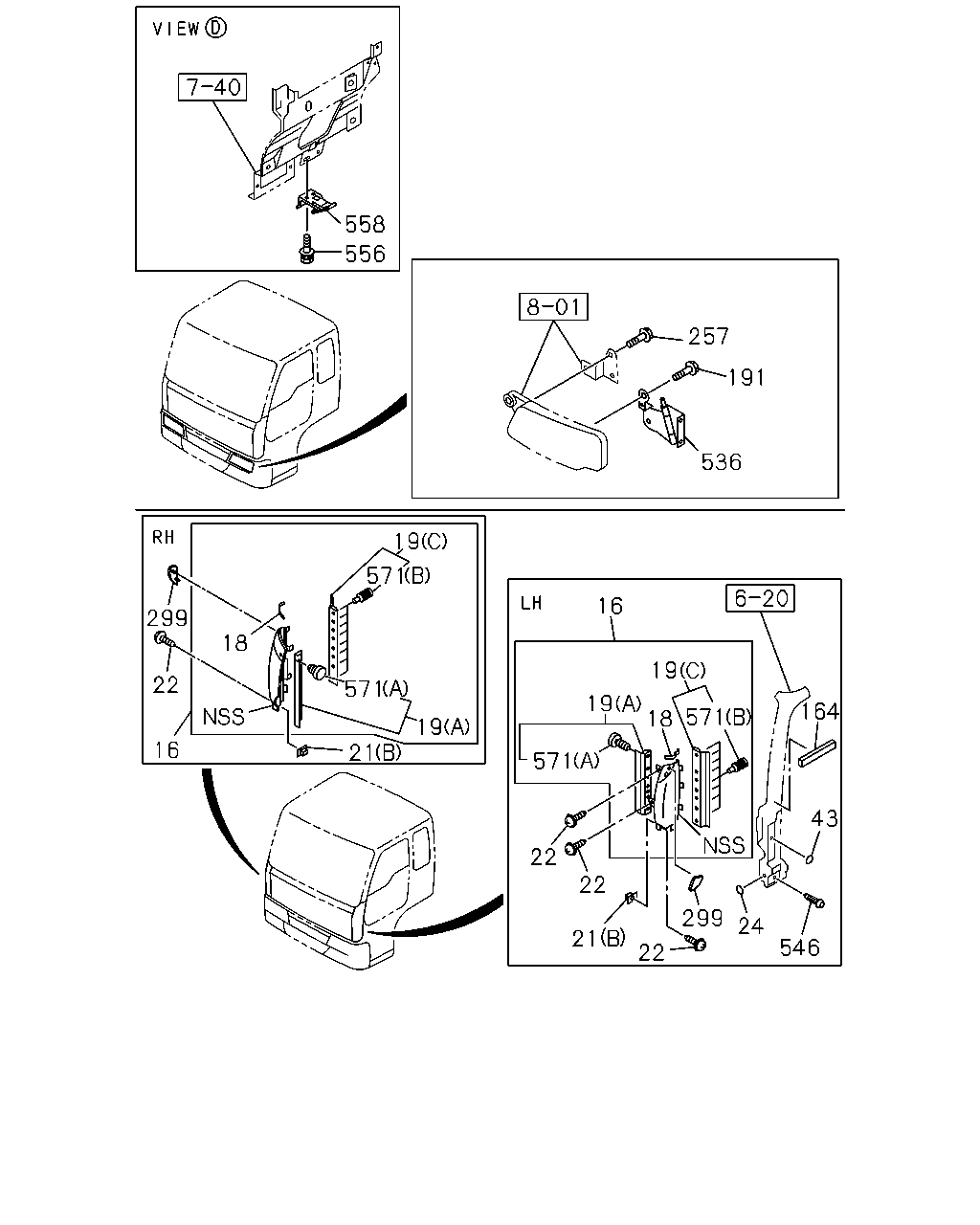

çizim 42995
558 556 257 191 536 19 571 16 299 571 18 22 18 164 571 19 16 21 571 43 22 22 299 24 21 546 22 19 19
BalonParca AdiParca NoAdetTipApplied Date
16 PANEL; FRONT,SIDE
BUMPER W/HEADLAMPS<SLB> 		1-65471-899-0 01 1 9906-
16 PANEL; FRONT,SIDE
BUMPER W/HEADLAMPS<SLB> 		1-65471-898-0 01 1 9906-
16 PANEL; FRONT,SIDE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-65471-897-0 01 1 9906-
16 PANEL; FRONT,SIDE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-65471-896-0 01 1 9906-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 9906-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 9906-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9906-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 9906-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 9906-
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-160-4 01 1 9906-
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-159-4 01 1 9906-
19 SEAL; FRT SIDE PANEL
BODY COLOR MARINE BLUE(890) (A) 		1-71907-165-4 01 1 9906-
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729) BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-165-4 01 1 9906-
19 SEAL; FRT SIDE PANEL
BODY COLOR MARINE BLUE(890) (A) 		1-71907-164-4 01 1 9906-
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729) BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-164-4 01 1 9906-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9906-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9906-
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 9906-0003
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0004-
24 SEAL; FRT PANEL LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 06 1 9906-
24 SEAL; FRT PANEL LWR
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 10 1 9906-
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 9906-
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 9906-
191 BOLT; HINGE
EXC. BUMPER W/HEADLAMPS<SLB> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9906-
257 BOLT; BRKT
EXC. BUMPER W/HEADLAMPS<SLB> M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9906-
299 COVER; FRT PANEL SIDE 1-71998-995-1 01 1 9906-9912
299 COVER; FRT PANEL SIDE
EXC. MIR O/S RR VIEW LONG ARM<DH2> 		1-71998-995-1 01 1 0001-
299 COVER; FRT PANEL SIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-71998-996-1 01 1 9906-
536 HINGE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-032-5 01 1 9906-
536 HINGE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-031-5 01 1 9906-
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 9906-
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 9906-
558 LEVER; FRT LID 1-79338-003-1 01 1 9906-
571 CLIP; SEAL
(B) PINK 		1-09987-256-0 08 1 9906-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 08 1 9906-
571 CLIP; SEAL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-09987-228-0 14 1 9906-
571 CLIP; SEAL
BODY COLOR MARINE BLUE(890) (A) 		1-09987-228-0 16 1 9906-
571 CLIP; SEAL
BODY COLOR ARC WHITE(729) BUMPER W/HEADLAMPS<SLB> (A) 		1-09987-228-0 16 1 9906-

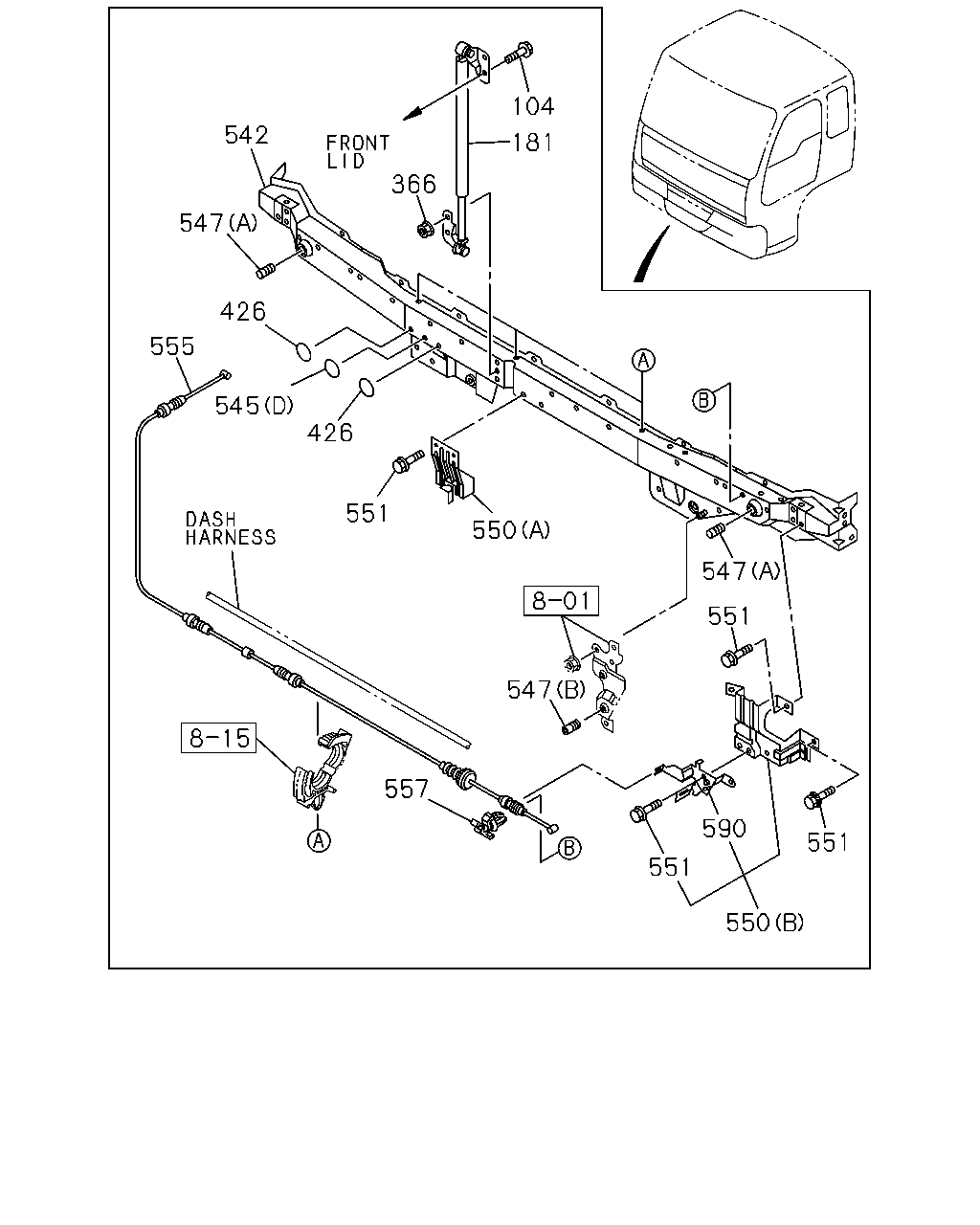

çizim 44058
104 542 181 366 547 426 555 545 426 551 550 547 551 547 557 590 551 551 550
BalonParca AdiParca NoAdetTipApplied Date
104 BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 9906-
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-261-0 01 1 9906-
366 NUT; SUPPORT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 9906-
426 GASKET
OD=25 BLACK 		1-76798-019-0 01 1 9906-
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 9906-
426 GASKET
EXC. ANTILOCK BRAKE SYSTEM(BFA) OD=25 BLACK 		1-76798-019-0 02 1 0103-
542 RAIL; FRT MOUNTING 1-61470-705-3 01 1 9906-
545 SEAL; FRT LID
(C) L=2038 		1-71907-481-0 01 1 9906-
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502 		1-71907-471-0 01 1 9906-
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502 		1-71907-470-0 01 1 9906-
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) 		1-71907-154-4 01 1 9906-
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) 		1-71907-153-3 01 1 9906-
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B) 		1-71907-472-0 01 1 9906-
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (E) L=63 		1-71998-963-2 01 1 9906-
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) OD=25 BLACK 		1-76798-019-0 01 1 9906-
547 RUBBER; CUSHION
(B) OD=22 L=39 		1-71907-419-0 02 1 9906-
547 RUBBER; CUSHION
(A) OD=22 L=29 		8-94324-556-2 02 1 9906-
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) 		1-79317-002-2 01 1 9906-
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) 		1-79318-010-1 01 1 9906-
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) 		1-79318-009-3 01 1 9906-
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) 		1-79317-006-1 01 1 9906-
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) 		1-79317-008-0 01 1 9906-
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) 		1-79317-007-1 01 1 9906-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 9906-
551 BOLT; LOCK
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9906-
551 BOLT; LOCK
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 9906-
555 CABLE; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> L=2442 		1-79347-003-4 01 1 9906-
555 CABLE; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> L=2682 		1-79347-005-2 01 1 9906-
557 CLIP; CABLE
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> ID=4.8 		8-94128-483-0 02 1 9906-
557 CLIP; CABLE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> ID=4.8 		8-94128-483-0 01 1 9906-
590 LOCK; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> 		1-79318-010-1 01 1 9906-
590 LOCK; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> 		1-79318-009-3 01 1 9906-
çizim 44222
544 544 560 548 545 545 601 545 548 198 548 532
BalonParca AdiParca NoAdetTipApplied Date
198 NUT; PANEL
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> M6 FLANGE 		8-94197-199-0 02 1 9906-
532 BOLT; FRT PANEL
(C) M8X20 		1-79198-002-0 02 1 9906-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9906-
532 BOLT; FRT PANEL
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9906-
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 1<NBH> DELUXE CAB(W14) 		1-71107-237-2 01 1 9906-
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 1<NBH> EXC. DELUXE CAB(W14) 		1-71107-345-0 01 1 9906-
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 2<NBJ> DELUXE CAB(W14) 		1-71107-218-3 01 1 9906-
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 2<NBJ> EXC. DELUXE CAB(W14) 		1-71107-281-0 01 1 9906-
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF> DELUXE CAB(W14) 		1-71107-249-1 01 1 9906-
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF> EXC. DELUXE CAB(W14) 		1-71107-346-0 01 1 9906-
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> DELUXE CAB(W14) 		1-71107-217-2 01 1 9906-
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> EXC. DELUXE CAB(W14) 		1-71107-293-0 01 1 9906-
545 SEAL; FRT LID
(C) L=2038 		1-71907-481-0 01 1 9906-
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502 		1-71907-471-0 01 1 9906-
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502 		1-71907-470-0 01 1 9906-
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) 		1-71907-154-4 01 1 9906-
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) 		1-71907-153-3 01 1 9906-
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B) 		1-71907-472-0 01 1 9906-
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (E) L=63 		1-71998-963-2 01 1 9906-
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) OD=25 BLACK 		1-76798-019-0 01 1 9906-
548 STRIKER; FRT LID PANEL
(A) 		1-79317-003-0 01 1 9906-
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-0 02 1 9906-
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 9906-
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9906-
560 SEAL; COVER
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9906-
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9906-9907
560 SEAL; COVER
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9908-
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9908-
601 FINISHER; LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> L=120 SERVICED BY L=190 		1-71998-300-0 01 1 9906-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
