Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#72869) — 648 parça

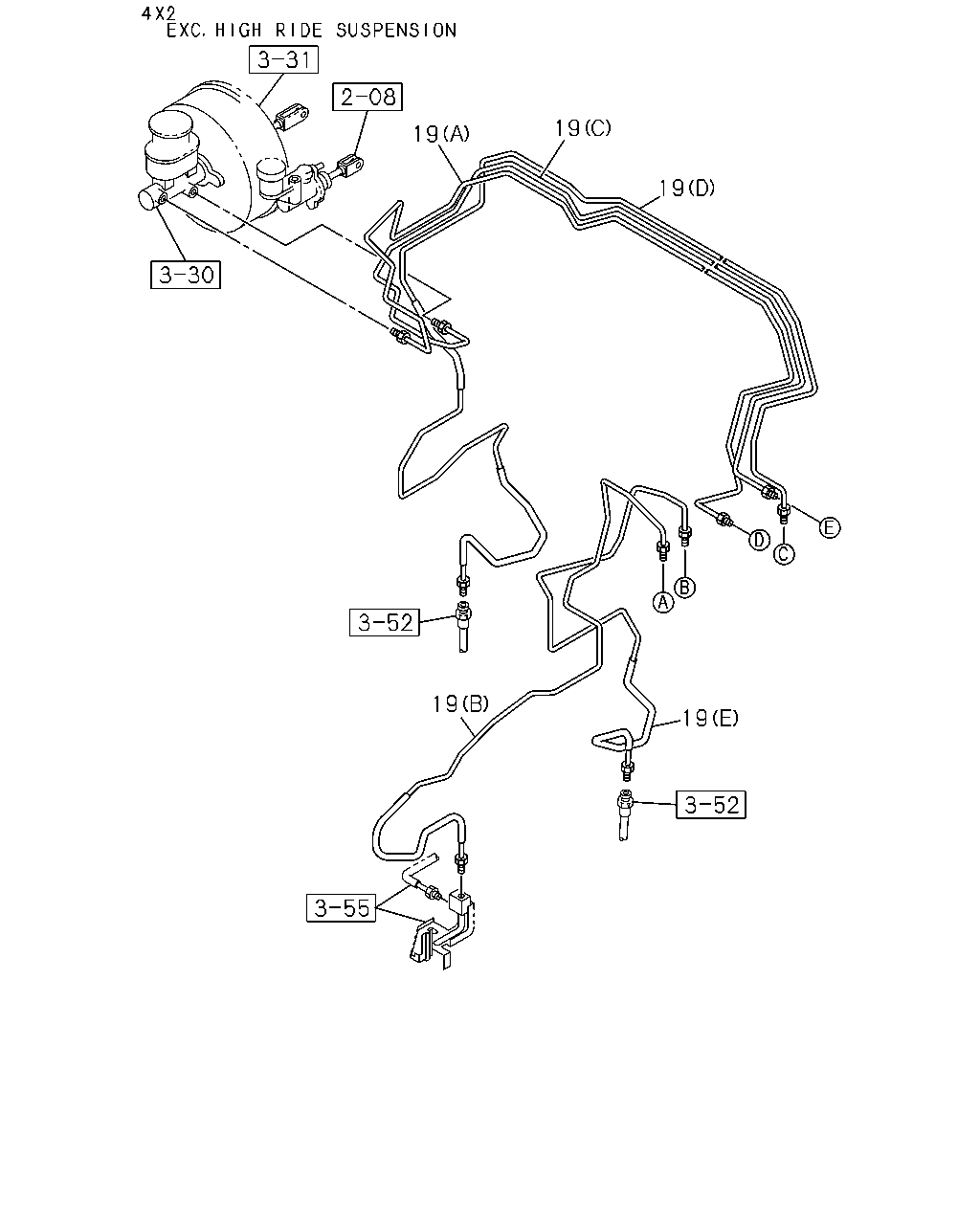

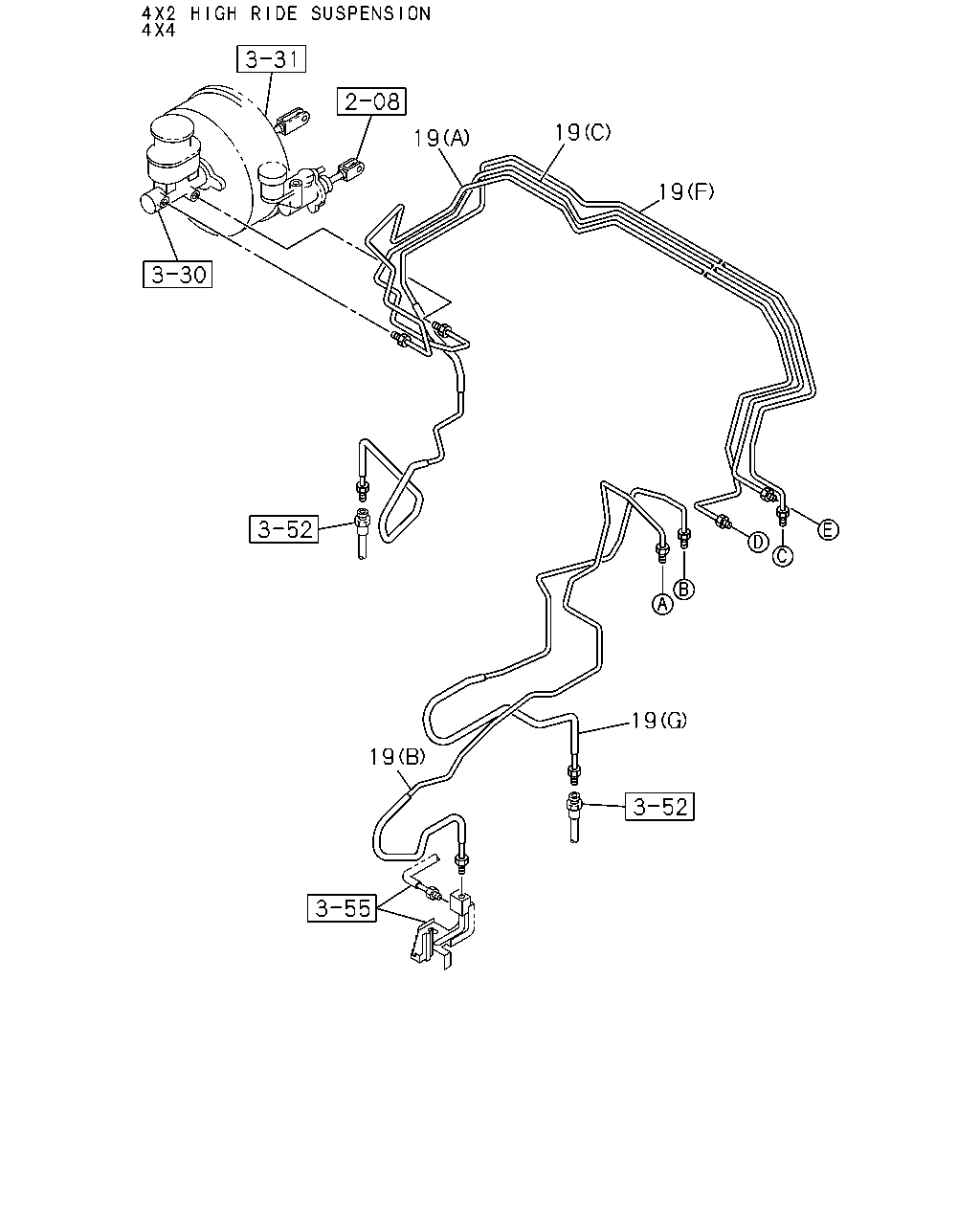

19 19 19 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (E) FRONT THA	8-97236-426-3	01	1	0204-0207	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (E) FRONT THA	8-97236-426-3	01	1	0208-0211	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (D) FRONT THA	8-97236-423-7	01	1	0204-0207	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (D) FRONT THA	8-97236-423-7	01	1	0208-0211	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (D) FRONT THA	8-97355-530-3	01	1	0212-0307	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) FRONT THA	8-97355-530-3	01	1	0308-0408	●	●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) FRONT THA	8-97370-466-1	01	1	0409-0410	●	●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) FRONT THA	8-98002-906-0	01	1	0411-0412	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) FRONT THA	8-98002-906-0	01	1	0501-0606	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (H) FRONT THA	8-97236-413-3	01	1	0204-0207	●
19	PIPE; BRK,M/CYL TO UNION (H) FRONT THA	8-97236-413-3	01	1	0204-0207			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (H) FRONT THA	8-97236-413-3	01	1	0208-0211	●	●
19	PIPE; BRK,M/CYL TO UNION (H) FRONT THA	8-97236-413-3	01	1	0208-0211			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (H) FRONT THA	8-97355-526-3	01	1	0212-0307	●	●
19	PIPE; BRK,M/CYL TO UNION (H) FRONT THA	8-97355-526-3	01	1	0212-0307			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> (H) FRONT THA	8-97355-526-3	01	1	0308-0606	●	●
19	PIPE; BRK,M/CYL TO UNION (H) FRONT THA	8-97355-526-3	01	1	0308-0606			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (I) REAR THA	8-97236-416-2	01	1	0204-0207	●
19	PIPE; BRK,M/CYL TO UNION (I) REAR THA	8-97236-416-2	01	1	0204-0207			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (I) REAR THA	8-97236-416-2	01	1	0208-0307	●	●
19	PIPE; BRK,M/CYL TO UNION (I) REAR THA	8-97236-416-2	01	1	0208-0307			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> (I) REAR THA	8-97236-416-2	01	1	0308-0606	●	●
19	PIPE; BRK,M/CYL TO UNION (I) REAR THA	8-97236-416-2	01	1	0308-0606			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J) FRONT THA	8-97250-053-2	01	1	0204-0207	●
19	PIPE; BRK,M/CYL TO UNION (J) FRONT THA	8-97250-053-2	01	1	0204-0207			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J) FRONT THA	8-97250-053-2	01	1	0208-0211	●	●
19	PIPE; BRK,M/CYL TO UNION (J) FRONT THA	8-97250-053-2	01	1	0208-0211			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J) FRONT THA	8-97355-527-3	01	1	0212-0307	●	●
19	PIPE; BRK,M/CYL TO UNION (J) FRONT THA	8-97355-527-3	01	1	0212-0307			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> (J) FRONT THA	8-97355-527-3	01	1	0308-0408	●	●
19	PIPE; BRK,M/CYL TO UNION (J) FRONT THA	8-97355-527-3	01	1	0308-0408			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> (J) FRONT THA	8-97370-468-1	01	1	0409-0507	●	●
19	PIPE; BRK,M/CYL TO UNION (J) FRONT THA	8-97370-468-1	01	1	0409-0507			●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> (J) FRONT THA	8-97370-468-1	01	1	0508-0606	●	●
19	PIPE; BRK,M/CYL TO UNION 4JK1 ENG<LKZ> (J) FRONT THA	8-97370-468-1	01	1	0508-0606			●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (P) FRONT THA	8-97374-466-0	01	1	0409-0606	●	●	●	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (P) FRONT THA	8-97944-664-0	01	1	0607-	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION (P) FRONT THA	8-97944-664-0	01	1	0607-			●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (E) FRONT THA	8-97355-529-3	01	1	0212-0307	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (E) FRONT THA	8-97355-529-3	01	1	0308-0606	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> (C) FRONT THA	8-97374-465-0	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (C) FRONT THA	8-97374-465-0	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (C) FRONT THA	8-97374-465-0	01	1	0409-0412				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (C) FRONT THA	8-97374-465-0	01	1	0501-0507	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> ANTI LOCK BRAKE SYSTEM<JE5> (C) FRONT THA	8-97374-465-0	01	1	0508-0606	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> (F) FRONT THA	8-97944-855-1	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (F) FRONT THA	8-97944-855-1	01	1	0607-				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> (G) FRONT THA	8-97944-752-1	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (G) FRONT THA	8-97944-752-1	01	1	0607-				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) FRONT THA	8-97944-791-0	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (E) FRONT THA	8-97944-763-1	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> (I) REAR THA	8-97944-635-0	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION (I) REAR THA	8-97944-635-0	01	1	0607-			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> (H) FRONT THA	8-97944-636-0	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION (H) FRONT THA	8-97944-636-0	01	1	0607-			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> (J) FRONT THA	8-97944-700-0	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION (J) FRONT THA	8-97944-700-0	01	1	0607-			●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (O) FRONT THA	8-97944-667-0	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (O) FRONT THA	8-97944-667-0	01	1	0607-				●	●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (N) REAR THA	8-97944-622-0	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (N) REAR THA	8-97944-622-0	01	1	0607-				●	●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (M) FRONT THA	8-97944-623-0	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (M) FRONT THA	8-97944-623-0	01	1	0607-				●	●
19	PIPE; BRK,M/CYL TO UNION 4JA1-T ENG<LP0> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) FRONT THA	8-97355-530-3	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (C) FRONT THA	8-97944-787-0	01	1	0607-	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97944-788-0	01	1	0607-	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (B) REAR THA	8-97944-751-1	01	1	0607-	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (L) REAR THA	8-97363-714-1	01	1	0409-0412	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (L) REAR THA	8-97363-714-1	01	1	0501-0606	●	●	●	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97236-419-2	01	1	0204-0207	●			●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97236-419-2	01	1	0208-0305	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97236-419-2	01	1	0306-0307	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (A) REAR THA	8-97236-419-2	01	1	0308-0408	●	●
19	PIPE; BRK,M/CYL TO UNION 4JA1-T ENG<LP0> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (A) REAR THA	8-97236-419-2	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (C) FRONT THA	8-97261-907-2	01	1	0204-0207	●			●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (C) FRONT THA	8-97261-907-2	01	1	0208-0408	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION 4JA1-T ENG<LP0> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (C) FRONT THA	8-97261-907-2	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (B) REAR THA	8-97236-428-2	01	1	0204-0207	●			●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (B) REAR THA	8-97236-428-2	01	1	0208-0606	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (K) FRONT THA	8-97215-322-1	01	1	0204-0207	●			●
19	PIPE; BRK,M/CYL TO UNION (K) FRONT THA	8-97215-322-1	01	1	0204-0207			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (K) FRONT THA	8-97215-322-1	01	1	0208-0408	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION (K) FRONT THA	8-97215-322-1	01	1	0208-0408			●
19	PIPE; BRK,M/CYL TO UNION 4JA1-T ENG<LP0> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (K) FRONT THA	8-97215-322-1	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION 4JA1-T ENG<LP0> (K) FRONT THA	8-97215-322-1	01	1	0409-0412			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (L) REAR THA	8-97236-415-0	01	1	0204-0207	●			●
19	PIPE; BRK,M/CYL TO UNION (L) REAR THA	8-97236-415-0	01	1	0204-0207			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (L) REAR THA	8-97236-415-0	01	1	0208-0408	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION (L) REAR THA	8-97236-415-0	01	1	0208-0408			●
19	PIPE; BRK,M/CYL TO UNION 4JA1-T ENG<LP0> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (L) REAR THA	8-97236-415-0	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION 4JA1-T ENG<LP0> (L) REAR THA	8-97236-415-0	01	1	0409-0412			●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (G) FRONT THA	8-97236-427-2	01	1	0204-0207				●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (G) FRONT THA	8-97236-427-2	01	1	0208-0307				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> (G) FRONT THA	8-97236-427-2	01	1	0308-0606	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (G) FRONT THA	8-97236-427-2	01	1	0308-0606				●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (L) REAR THA	8-97944-789-0	01	1	0607-	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION (L) REAR THA	8-97944-789-0	01	1	0607-			●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (F) FRONT THA	8-97236-425-4	01	1	0204-0207				●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (F) FRONT THA	8-97236-425-4	01	1	0208-0305				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (F) FRONT THA	8-97307-534-3	01	1	0306-0306				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (F) FRONT THA	8-97365-221-0	01	1	0306-0307				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> (F) FRONT THA	8-97365-221-0	01	1	0308-0606	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (F) FRONT THA	8-97365-221-0	01	1	0308-0606				●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (M) FRONT THA	8-97236-414-1	01	1	0204-0207				●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (M) FRONT THA	8-97236-414-1	01	1	0208-0307				●	●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (M) FRONT THA	8-97236-414-1	01	1	0308-0606	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (M) FRONT THA	8-97236-414-1	01	1	0308-0606				●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (N) REAR THA	8-97309-497-2	01	1	0204-0207				●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (N) REAR THA	8-97309-497-2	01	1	0208-0307				●	●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (N) REAR THA	8-97309-497-2	01	1	0308-0606	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (N) REAR THA	8-97309-497-2	01	1	0308-0606				●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (O) FRONT THA	8-97215-334-1	01	1	0204-0207				●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (O) FRONT THA	8-97215-334-1	01	1	0208-0305				●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (O) FRONT THA	8-97307-529-2	01	1	0306-0306				●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (O) FRONT THA	8-97365-223-0	01	1	0306-0307				●	●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (O) FRONT THA	8-97365-223-0	01	1	0308-0606	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (O) FRONT THA	8-97365-223-0	01	1	0308-0606				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97355-356-0	01	1	0306-0307				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> (A) REAR THA	8-97355-356-0	01	1	0308-0408	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97355-356-0	01	1	0308-0408				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> (A) REAR THA	8-97363-712-1	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (A) REAR THA	8-97363-712-1	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97363-712-1	01	1	0409-0412				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97363-712-1	01	1	0501-0507	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97363-712-1	01	1	0508-0606	●	●		●	●

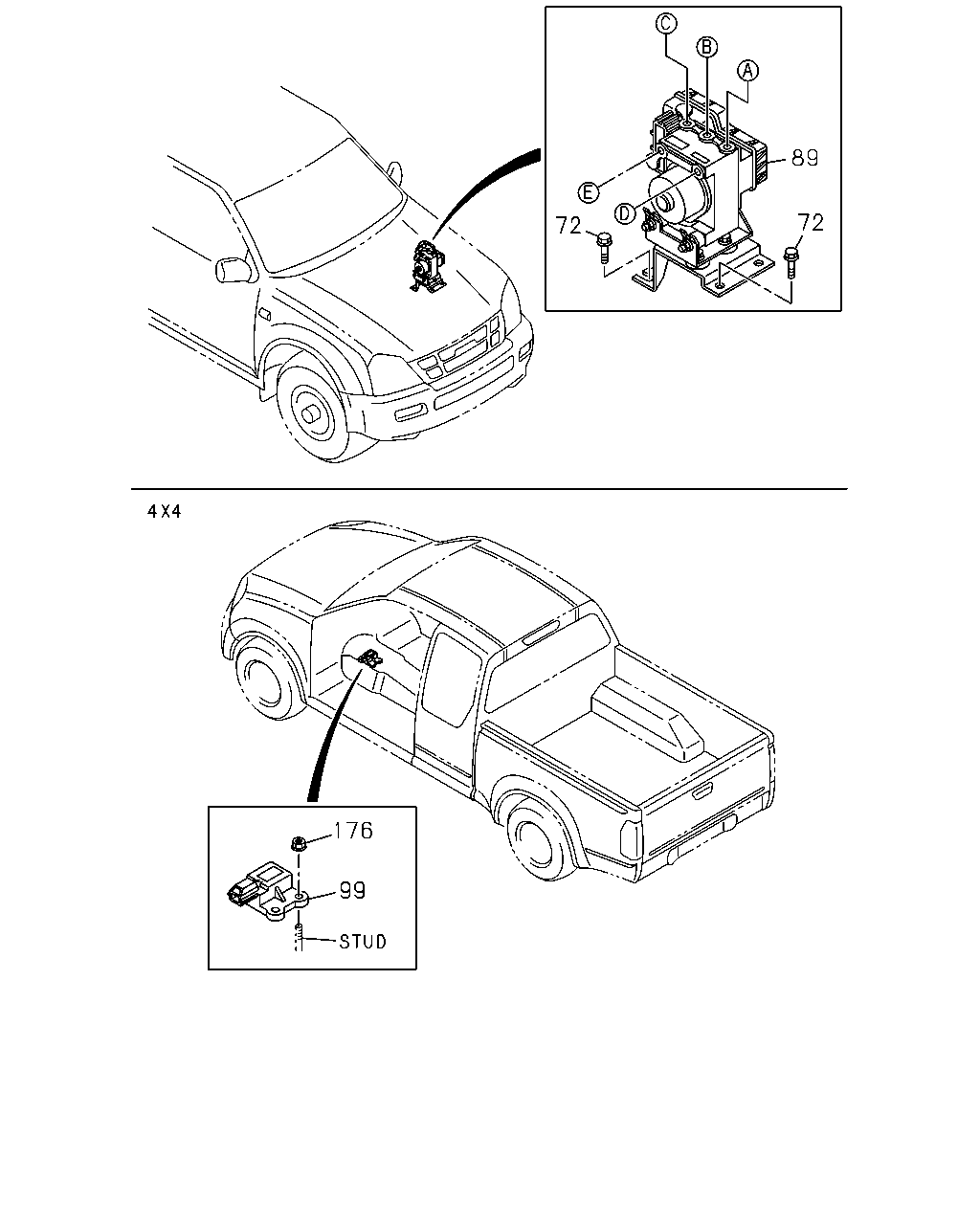

89 72 72 176 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E
72	BOLT; BRKT TO BODY ANTI LOCK BRAKE SYSTEM<JE5> M6X16 FLANGE THA	0-28650-616-0	03	1	0204-0207	●		●
72	BOLT; BRKT TO BODY ANTI LOCK BRAKE SYSTEM<JE5> M6X16 FLANGE THA	0-28650-616-0	03	1	0208-	●	●	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98089-804-0	01	1	0803-1008	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98089-804-0	01	1	1009-	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97249-126-0	01	1	0204-0207	●
89	HYDRAULIC UNIT; ANTI LOCK BRK ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97249-126-0	01	1	0208-0305	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97329-787-0	01	1	0306-0505	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK ANTI LOCK BRAKE SYSTEM<JE5> THA	8-98004-194-0	01	1	0506-0606	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK ANTI LOCK BRAKE SYSTEM<JE5> THA	8-98008-783-0	01	1	0607-0802	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1-TCX ENG<LS0> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98008-783-0	01	1	0803-1008	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> THA	8-98008-783-0	01	1	0803-1008	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1-TCX ENG<LS0> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98008-783-0	01	1	1009-	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> THA	8-98008-783-0	01	1	1009-	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97249-127-0	01	1	0204-0207			●
89	HYDRAULIC UNIT; ANTI LOCK BRK ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97249-127-0	01	1	0208-0305			●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97349-969-0	01	1	0306-0408			●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97379-144-0	01	1	0409-0508			●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK ANTI LOCK BRAKE SYSTEM<JE5> THA	8-98004-195-0	01	1	0509-0606			●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK ANTI LOCK BRAKE SYSTEM<JE5> THA	8-98008-784-0	01	1	0607-1008			●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK ANTI LOCK BRAKE SYSTEM<JE5> THA	8-98008-784-0	01	1	1009-			●	●
99	SENSOR; DECELERATION ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97262-548-0	01	1	0204-0207			●
99	SENSOR; DECELERATION ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97262-548-0	01	1	0208-0606			●	●
99	SENSOR; DECELERATION ANTI LOCK BRAKE SYSTEM<JE5> THA	8-98013-796-0	01	1	0607-			●	●
176	NUT; SENSOR ANTI LOCK BRAKE SYSTEM<JE5> M6 FLANGE THA	0-91180-206-0	02	1	0204-0207			●
176	NUT; SENSOR ANTI LOCK BRAKE SYSTEM<JE5> M6 FLANGE THA	0-91180-206-0	02	1	0208-			●	●

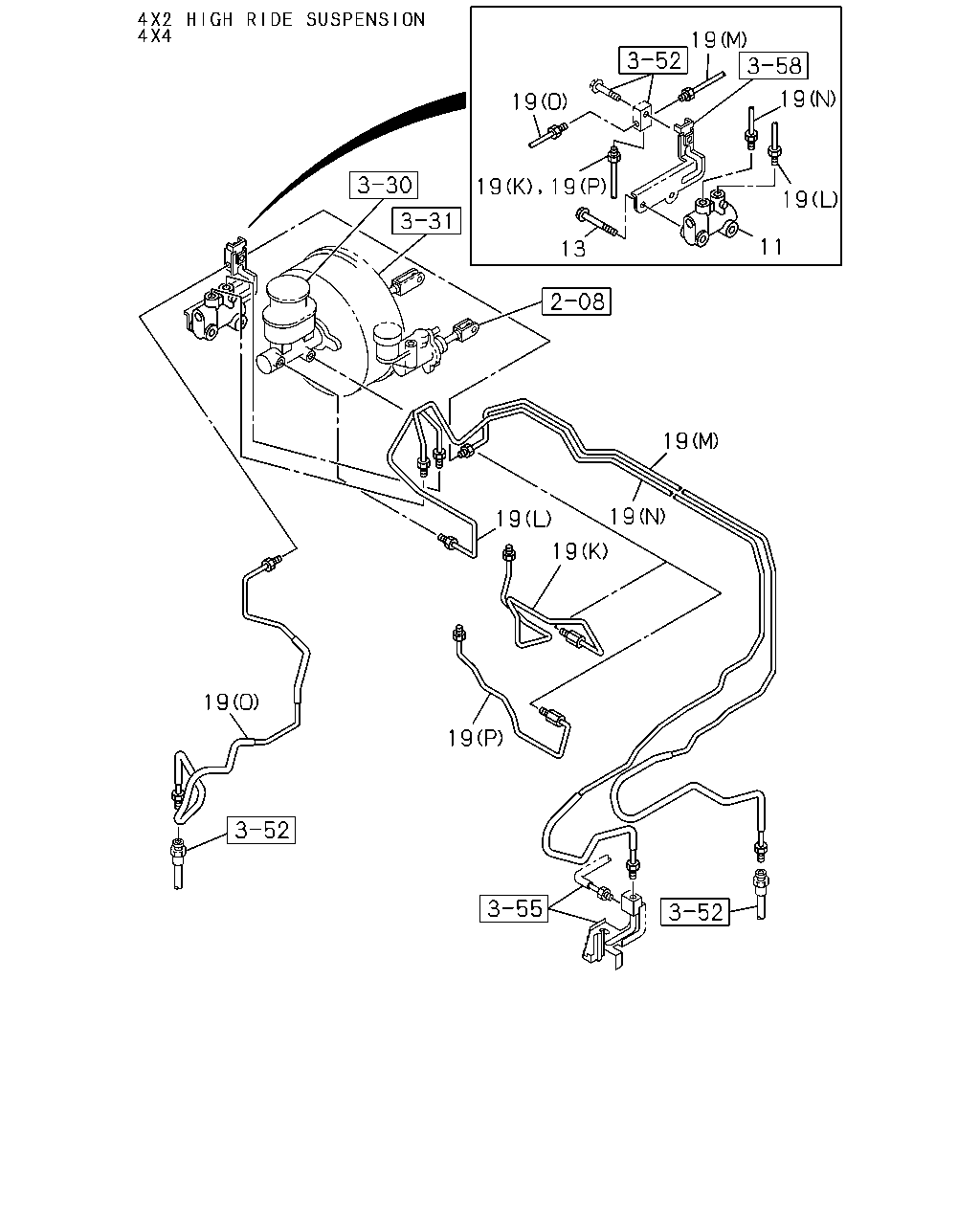

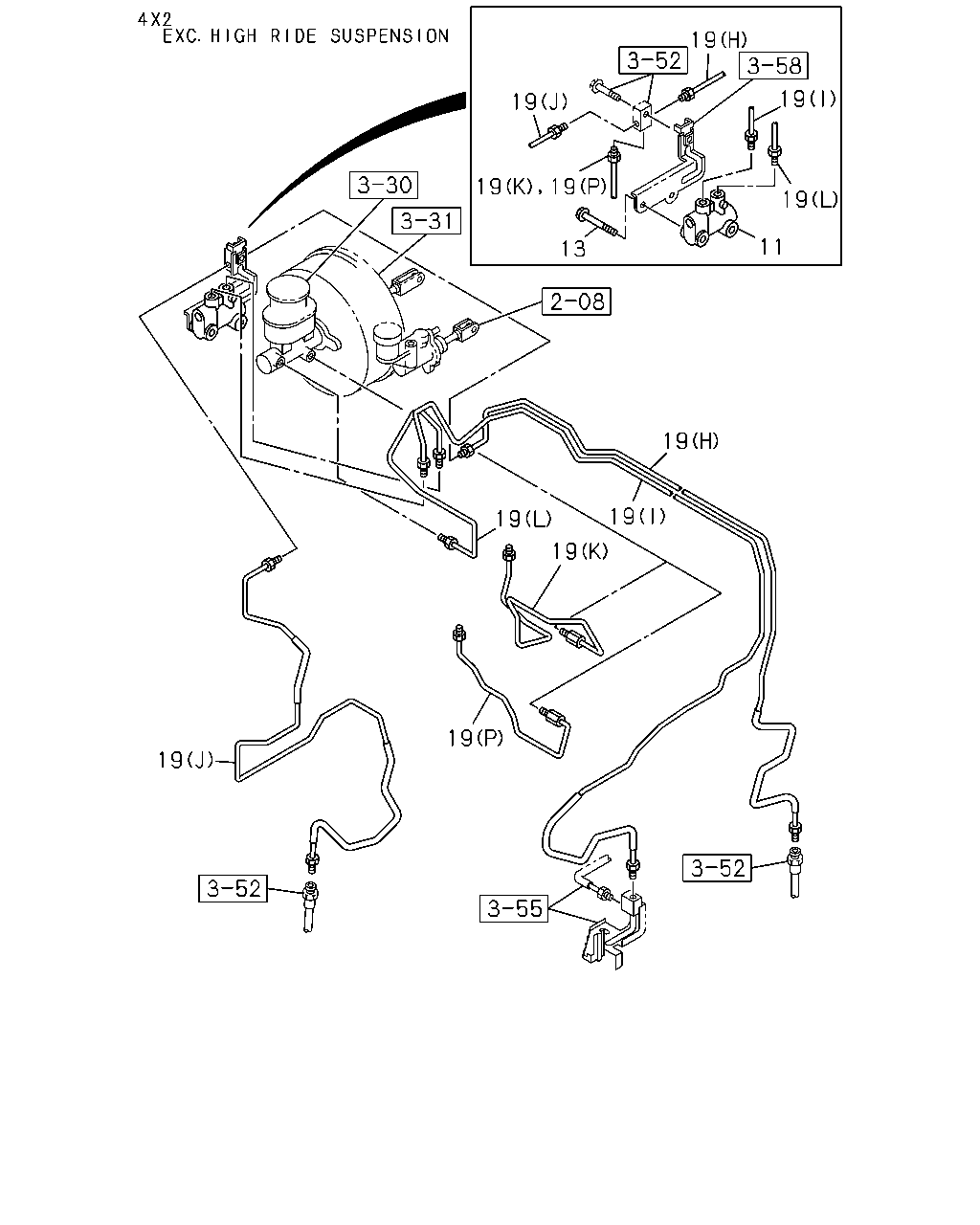

19 19 19 19 19 19 11 13 19 19 19 19 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
11	VALVE; BRK CONT EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97235-339-2	01	1	0204-0207	●
11	VALVE; BRK CONT THA	8-97235-339-2	01	1	0204-0207			●
11	VALVE; BRK CONT EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97235-339-2	01	1	0208-0307	●	●
11	VALVE; BRK CONT THA	8-97235-339-2	01	1	0208-0307			●
11	VALVE; BRK CONT EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> THA	8-97235-339-2	01	1	0308-0606	●	●
11	VALVE; BRK CONT THA	8-97235-339-2	01	1	0308-0606			●
11	VALVE; BRK CONT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> THA	8-97235-339-2	01	1	0607-0802	●	●
11	VALVE; BRK CONT 4JK1 ENG<LKZ> THA	8-97235-339-2	01	1	0607-0802			●
11	VALVE; BRK CONT EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97235-340-2	01	1	0204-0207				●
11	VALVE; BRK CONT EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97235-340-2	01	1	0208-0307				●	●
11	VALVE; BRK CONT HIGH RIDE SUSPENSION<7YC> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97235-340-2	01	1	0308-0606	●	●
11	VALVE; BRK CONT EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97235-340-2	01	1	0308-0606				●	●
11	VALVE; BRK CONT HIGH RIDE SUSPENSION<7YC> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97333-079-0	01	1	0607-0709	●	●
11	VALVE; BRK CONT EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97333-079-0	01	1	0607-0709				●	●
11	VALVE; BRK CONT HIGH RIDE SUSPENSION<7YC> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97333-079-0	01	1	0710-0802	●	●
11	VALVE; BRK CONT 4JJ1-TCX ENG<LS0> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> THA	8-97333-079-0	01	1	0710-0802		●
11	VALVE; BRK CONT EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97333-079-0	01	1	0710-0802				●	●
11	VALVE; BRK CONT EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97333-079-0	01	1	0803-	●	●		●	●
11	VALVE; BRK CONT THA	8-97333-079-0	01	1	0803-			●
13	BOLT; VLV TO BRKT EXC. ANTI LOCK BRAKE SYSTEM<JE5> M8X45 FLANGE THA	0-29260-845-0	02	1	0204-0207	●			●
13	BOLT; VLV TO BRKT M8X45 FLANGE THA	0-29260-845-0	02	1	0204-0207			●
13	BOLT; VLV TO BRKT EXC. ANTI LOCK BRAKE SYSTEM<JE5> M8X45 FLANGE THA	0-29260-845-0	02	1	0208-	●	●		●	●
13	BOLT; VLV TO BRKT M8X45 FLANGE THA	0-29260-845-0	02	1	0208-			●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (E) FRONT THA	8-97236-426-3	01	1	0204-0207	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (E) FRONT THA	8-97236-426-3	01	1	0208-0211	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (D) FRONT THA	8-97236-423-7	01	1	0204-0207	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (D) FRONT THA	8-97236-423-7	01	1	0208-0211	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (D) FRONT THA	8-97355-530-3	01	1	0212-0307	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) FRONT THA	8-97355-530-3	01	1	0308-0408	●	●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) FRONT THA	8-97370-466-1	01	1	0409-0410	●	●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) FRONT THA	8-98002-906-0	01	1	0411-0412	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) FRONT THA	8-98002-906-0	01	1	0501-0606	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (H) FRONT THA	8-97236-413-3	01	1	0204-0207	●
19	PIPE; BRK,M/CYL TO UNION (H) FRONT THA	8-97236-413-3	01	1	0204-0207			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (H) FRONT THA	8-97236-413-3	01	1	0208-0211	●	●
19	PIPE; BRK,M/CYL TO UNION (H) FRONT THA	8-97236-413-3	01	1	0208-0211			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (H) FRONT THA	8-97355-526-3	01	1	0212-0307	●	●
19	PIPE; BRK,M/CYL TO UNION (H) FRONT THA	8-97355-526-3	01	1	0212-0307			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> (H) FRONT THA	8-97355-526-3	01	1	0308-0606	●	●
19	PIPE; BRK,M/CYL TO UNION (H) FRONT THA	8-97355-526-3	01	1	0308-0606			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (I) REAR THA	8-97236-416-2	01	1	0204-0207	●
19	PIPE; BRK,M/CYL TO UNION (I) REAR THA	8-97236-416-2	01	1	0204-0207			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (I) REAR THA	8-97236-416-2	01	1	0208-0307	●	●
19	PIPE; BRK,M/CYL TO UNION (I) REAR THA	8-97236-416-2	01	1	0208-0307			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> (I) REAR THA	8-97236-416-2	01	1	0308-0606	●	●
19	PIPE; BRK,M/CYL TO UNION (I) REAR THA	8-97236-416-2	01	1	0308-0606			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J) FRONT THA	8-97250-053-2	01	1	0204-0207	●
19	PIPE; BRK,M/CYL TO UNION (J) FRONT THA	8-97250-053-2	01	1	0204-0207			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J) FRONT THA	8-97250-053-2	01	1	0208-0211	●	●
19	PIPE; BRK,M/CYL TO UNION (J) FRONT THA	8-97250-053-2	01	1	0208-0211			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J) FRONT THA	8-97355-527-3	01	1	0212-0307	●	●
19	PIPE; BRK,M/CYL TO UNION (J) FRONT THA	8-97355-527-3	01	1	0212-0307			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> (J) FRONT THA	8-97355-527-3	01	1	0308-0408	●	●
19	PIPE; BRK,M/CYL TO UNION (J) FRONT THA	8-97355-527-3	01	1	0308-0408			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> (J) FRONT THA	8-97370-468-1	01	1	0409-0507	●	●
19	PIPE; BRK,M/CYL TO UNION (J) FRONT THA	8-97370-468-1	01	1	0409-0507			●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> (J) FRONT THA	8-97370-468-1	01	1	0508-0606	●	●
19	PIPE; BRK,M/CYL TO UNION 4JK1 ENG<LKZ> (J) FRONT THA	8-97370-468-1	01	1	0508-0606			●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (P) FRONT THA	8-97374-466-0	01	1	0409-0606	●	●	●	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (P) FRONT THA	8-97944-664-0	01	1	0607-	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION (P) FRONT THA	8-97944-664-0	01	1	0607-			●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (E) FRONT THA	8-97355-529-3	01	1	0212-0307	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (E) FRONT THA	8-97355-529-3	01	1	0308-0606	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> (C) FRONT THA	8-97374-465-0	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (C) FRONT THA	8-97374-465-0	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (C) FRONT THA	8-97374-465-0	01	1	0409-0412				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (C) FRONT THA	8-97374-465-0	01	1	0501-0507	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> ANTI LOCK BRAKE SYSTEM<JE5> (C) FRONT THA	8-97374-465-0	01	1	0508-0606	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> (F) FRONT THA	8-97944-855-1	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (F) FRONT THA	8-97944-855-1	01	1	0607-				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> (G) FRONT THA	8-97944-752-1	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (G) FRONT THA	8-97944-752-1	01	1	0607-				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) FRONT THA	8-97944-791-0	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (E) FRONT THA	8-97944-763-1	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> (I) REAR THA	8-97944-635-0	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION (I) REAR THA	8-97944-635-0	01	1	0607-			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> (H) FRONT THA	8-97944-636-0	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION (H) FRONT THA	8-97944-636-0	01	1	0607-			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> (J) FRONT THA	8-97944-700-0	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION (J) FRONT THA	8-97944-700-0	01	1	0607-			●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (O) FRONT THA	8-97944-667-0	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (O) FRONT THA	8-97944-667-0	01	1	0607-				●	●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (N) REAR THA	8-97944-622-0	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (N) REAR THA	8-97944-622-0	01	1	0607-				●	●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (M) FRONT THA	8-97944-623-0	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (M) FRONT THA	8-97944-623-0	01	1	0607-				●	●
19	PIPE; BRK,M/CYL TO UNION 4JA1-T ENG<LP0> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) FRONT THA	8-97355-530-3	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (C) FRONT THA	8-97944-787-0	01	1	0607-	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97944-788-0	01	1	0607-	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (B) REAR THA	8-97944-751-1	01	1	0607-	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (L) REAR THA	8-97363-714-1	01	1	0409-0412	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (L) REAR THA	8-97363-714-1	01	1	0501-0606	●	●	●	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97236-419-2	01	1	0204-0207	●			●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97236-419-2	01	1	0208-0305	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97236-419-2	01	1	0306-0307	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (A) REAR THA	8-97236-419-2	01	1	0308-0408	●	●
19	PIPE; BRK,M/CYL TO UNION 4JA1-T ENG<LP0> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (A) REAR THA	8-97236-419-2	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (C) FRONT THA	8-97261-907-2	01	1	0204-0207	●			●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (C) FRONT THA	8-97261-907-2	01	1	0208-0408	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION 4JA1-T ENG<LP0> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (C) FRONT THA	8-97261-907-2	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (B) REAR THA	8-97236-428-2	01	1	0204-0207	●			●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (B) REAR THA	8-97236-428-2	01	1	0208-0606	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (K) FRONT THA	8-97215-322-1	01	1	0204-0207	●			●
19	PIPE; BRK,M/CYL TO UNION (K) FRONT THA	8-97215-322-1	01	1	0204-0207			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (K) FRONT THA	8-97215-322-1	01	1	0208-0408	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION (K) FRONT THA	8-97215-322-1	01	1	0208-0408			●
19	PIPE; BRK,M/CYL TO UNION 4JA1-T ENG<LP0> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (K) FRONT THA	8-97215-322-1	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION 4JA1-T ENG<LP0> (K) FRONT THA	8-97215-322-1	01	1	0409-0412			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (L) REAR THA	8-97236-415-0	01	1	0204-0207	●			●
19	PIPE; BRK,M/CYL TO UNION (L) REAR THA	8-97236-415-0	01	1	0204-0207			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (L) REAR THA	8-97236-415-0	01	1	0208-0408	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION (L) REAR THA	8-97236-415-0	01	1	0208-0408			●
19	PIPE; BRK,M/CYL TO UNION 4JA1-T ENG<LP0> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (L) REAR THA	8-97236-415-0	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION 4JA1-T ENG<LP0> (L) REAR THA	8-97236-415-0	01	1	0409-0412			●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (G) FRONT THA	8-97236-427-2	01	1	0204-0207				●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (G) FRONT THA	8-97236-427-2	01	1	0208-0307				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> (G) FRONT THA	8-97236-427-2	01	1	0308-0606	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (G) FRONT THA	8-97236-427-2	01	1	0308-0606				●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (L) REAR THA	8-97944-789-0	01	1	0607-	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION (L) REAR THA	8-97944-789-0	01	1	0607-			●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (F) FRONT THA	8-97236-425-4	01	1	0204-0207				●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (F) FRONT THA	8-97236-425-4	01	1	0208-0305				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (F) FRONT THA	8-97307-534-3	01	1	0306-0306				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (F) FRONT THA	8-97365-221-0	01	1	0306-0307				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> (F) FRONT THA	8-97365-221-0	01	1	0308-0606	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (F) FRONT THA	8-97365-221-0	01	1	0308-0606				●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (M) FRONT THA	8-97236-414-1	01	1	0204-0207				●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (M) FRONT THA	8-97236-414-1	01	1	0208-0307				●	●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (M) FRONT THA	8-97236-414-1	01	1	0308-0606	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (M) FRONT THA	8-97236-414-1	01	1	0308-0606				●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (N) REAR THA	8-97309-497-2	01	1	0204-0207				●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (N) REAR THA	8-97309-497-2	01	1	0208-0307				●	●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (N) REAR THA	8-97309-497-2	01	1	0308-0606	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (N) REAR THA	8-97309-497-2	01	1	0308-0606				●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (O) FRONT THA	8-97215-334-1	01	1	0204-0207				●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (O) FRONT THA	8-97215-334-1	01	1	0208-0305				●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (O) FRONT THA	8-97307-529-2	01	1	0306-0306				●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (O) FRONT THA	8-97365-223-0	01	1	0306-0307				●	●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (O) FRONT THA	8-97365-223-0	01	1	0308-0606	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (O) FRONT THA	8-97365-223-0	01	1	0308-0606				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97355-356-0	01	1	0306-0307				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> (A) REAR THA	8-97355-356-0	01	1	0308-0408	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97355-356-0	01	1	0308-0408				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> (A) REAR THA	8-97363-712-1	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (A) REAR THA	8-97363-712-1	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97363-712-1	01	1	0409-0412				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97363-712-1	01	1	0501-0507	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97363-712-1	01	1	0508-0606	●	●		●	●

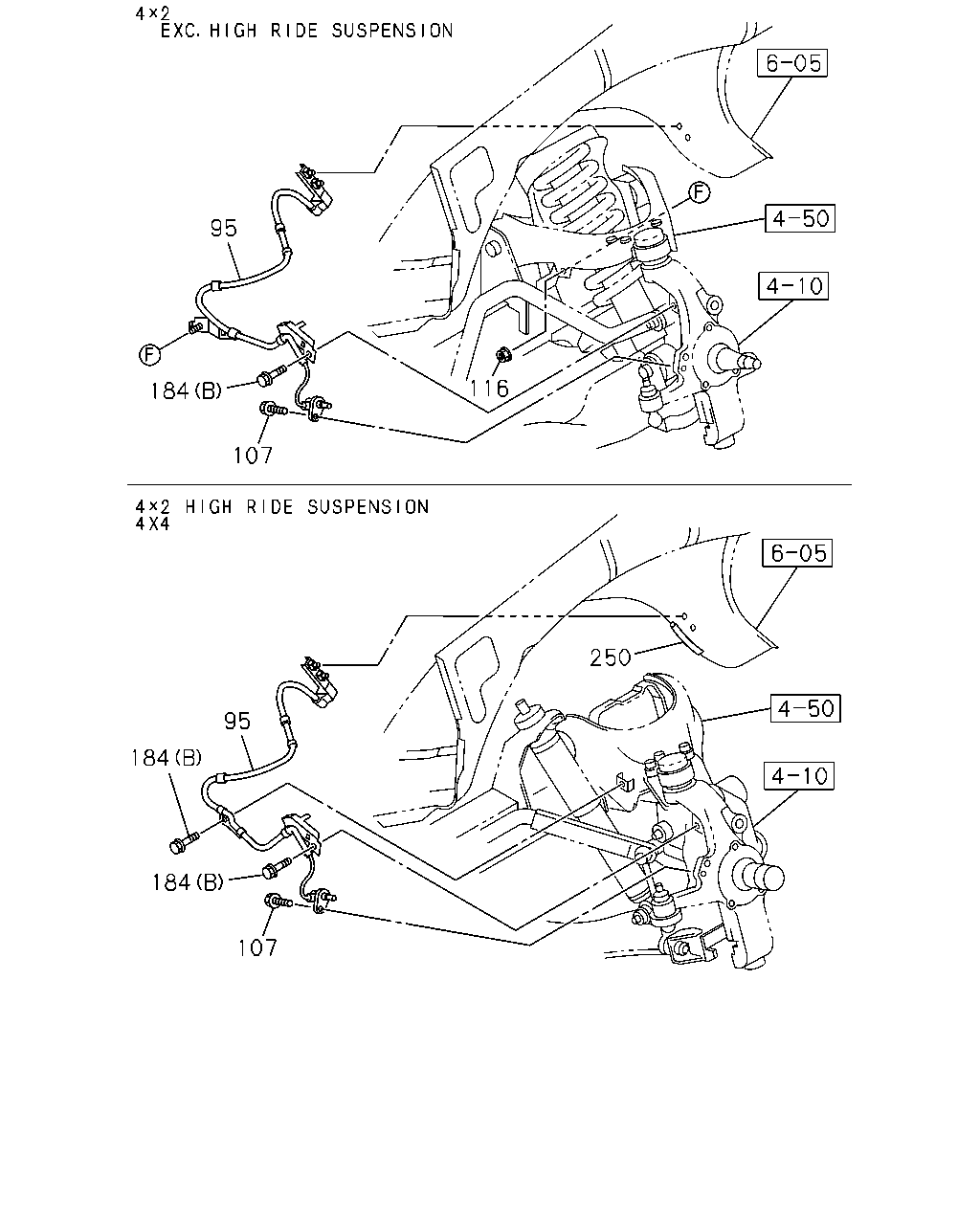

95 116 184 107 250 95 184 184 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E
95	SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97236-103-2	01	1	0204-0207	●
95	SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97236-103-2	01	1	0208-0307	●	●
95	SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97236-103-2	01	1	0308-0606	●	●
95	SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97387-988-1	01	1	0607-	●	●
95	SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97239-255-2	01	1	0204-0207	●
95	SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97239-255-2	01	1	0208-0307	●	●
95	SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97239-255-2	01	1	0308-0408	●	●
95	SENSOR; SPD,FRT WHEEL 4JA1-T ENG<LP0> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97239-255-2	01	1	0409-0412	●	●
95	SENSOR; SPD,FRT WHEEL 4JJ1-TCS ENG<LFB> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97370-589-0	01	1	0409-0412	●	●
95	SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97370-589-0	01	1	0501-0606	●	●
95	SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97387-987-1	01	1	0607-	●	●
95	SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97236-106-2	01	1	0204-0207			●
95	SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97236-106-2	01	1	0208-0307			●	●
95	SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> THA	8-97236-106-2	01	1	0308-0606	●	●
95	SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97236-106-2	01	1	0308-0606			●	●
95	SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> THA	8-97387-990-1	01	1	0607-	●	●
95	SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97387-990-1	01	1	0607-			●	●
95	SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97236-104-2	01	1	0204-0207			●
95	SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97236-104-2	01	1	0208-0307			●	●
95	SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> THA	8-97236-104-2	01	1	0308-0408	●	●
95	SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97236-104-2	01	1	0308-0408			●	●
95	SENSOR; SPD,FRT WHEEL 4JJ1-TCS ENG<LFB> ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> THA	8-97370-590-0	01	1	0409-0412	●	●
95	SENSOR; SPD,FRT WHEEL 4JJ1-TCS ENG<LFB> ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97370-590-0	01	1	0409-0412			●	●
95	SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> THA	8-97370-590-0	01	1	0501-0606	●	●
95	SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97370-590-0	01	1	0501-0606			●	●
95	SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> THA	8-97387-989-1	01	1	0607-	●	●
95	SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97387-989-1	01	1	0607-			●	●
107	BOLT; WHEEL SPD SENSOR ANTI LOCK BRAKE SYSTEM<JE5> M6X10 FLANGE THA	0-28050-610-0	02	1	0204-0207	●		●
107	BOLT; WHEEL SPD SENSOR ANTI LOCK BRAKE SYSTEM<JE5> M6X10 FLANGE THA	0-28050-610-0	02	1	0208-	●	●	●	●
116	NUT ANTI LOCK BRAKE SYSTEM<JE5> M8 FLANGE THA	0-91180-208-0	02	1	0204-0207	●
116	NUT ANTI LOCK BRAKE SYSTEM<JE5> M8 FLANGE THA	0-91180-208-0	02	1	0208-0307	●	●
116	NUT ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> M8 FLANGE THA	0-91180-208-0	02	1	0308-	●	●

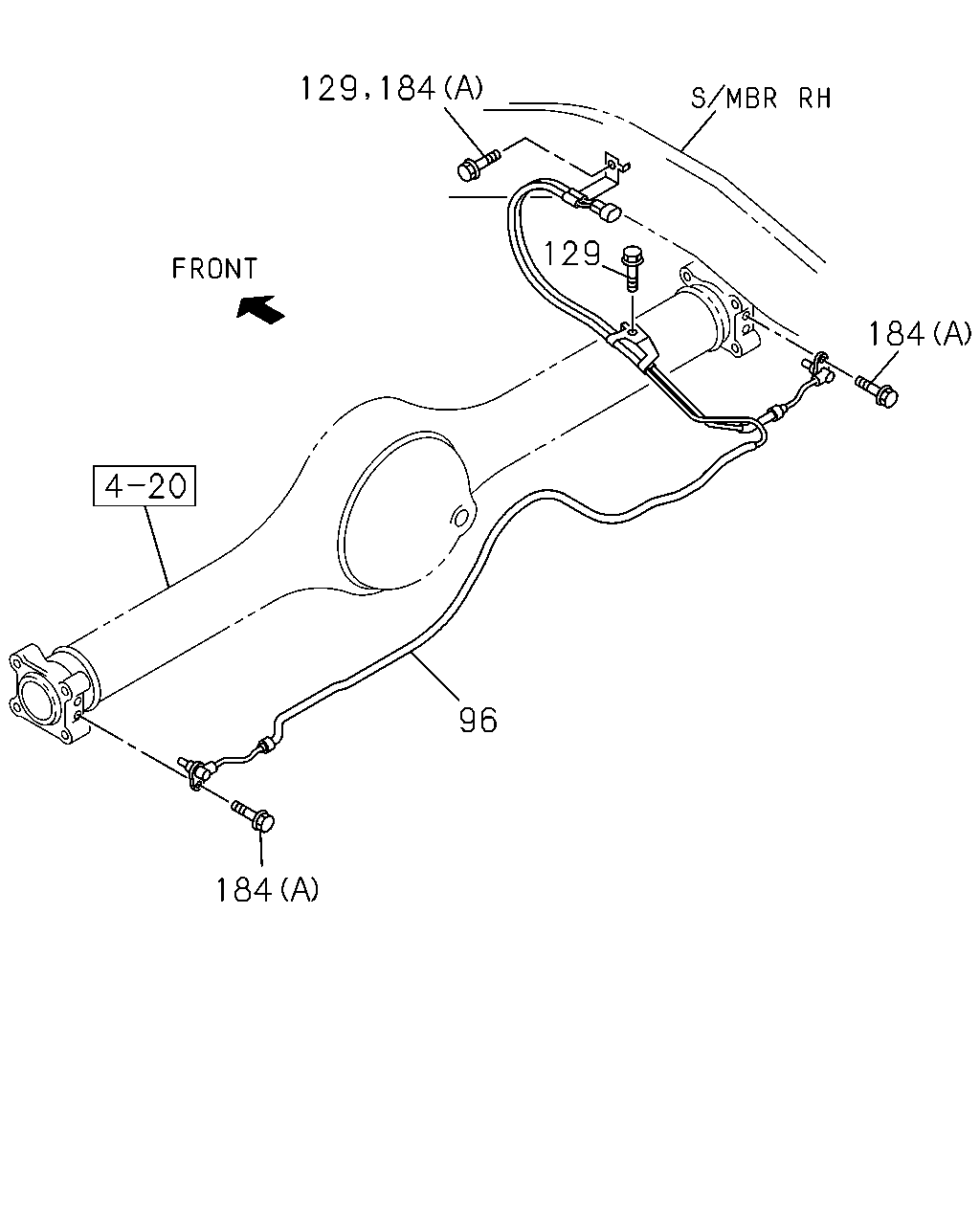

184	BOLT; CLIP ANTI LOCK BRAKE SYSTEM<JE5> (B) M6X10 FLANGE THA	0-28050-610-0	02	1	0204-0207	●		●
184	BOLT; CLIP ANTI LOCK BRAKE SYSTEM<JE5> (B) M6X10 FLANGE THA	0-28050-610-0	02	1	0204-0207			●
184	BOLT; CLIP ANTI LOCK BRAKE SYSTEM<JE5> (B) M6X10 FLANGE THA	0-28050-610-0	02	1	0208-0307	●	●	●	●
184	BOLT; CLIP ANTI LOCK BRAKE SYSTEM<JE5> (B) M6X10 FLANGE THA	0-28050-610-0	02	1	0208-0307			●	●
184	BOLT; CLIP ANTI LOCK BRAKE SYSTEM<JE5> (B) M6X10 FLANGE THA	0-28050-610-0	02	1	0308-	●	●	●	●
184	BOLT; CLIP ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> (B) M6X10 FLANGE THA	0-28050-610-0	02	1	0308-	●	●
184	BOLT; CLIP ANTI LOCK BRAKE SYSTEM<JE5> (B) M6X10 FLANGE THA	0-28050-610-0	02	1	0308-			●	●
184	BOLT; CLIP ANTI LOCK BRAKE SYSTEM<JE5> (A) M6X16 FLANGE THA	0-28650-616-0	03	1	0204-0207	●		●
184	BOLT; CLIP ANTI LOCK BRAKE SYSTEM<JE5> (A) M6X16 FLANGE THA	0-28650-616-0	03	1	0208-0408	●	●	●	●
184	BOLT; CLIP ANTI LOCK BRAKE SYSTEM<JE5> (A) M6X16 FLANGE THA	0-28650-616-0	02	1	0409-	●	●	●	●
250	FINISHER; HARNESS ANTI LOCK BRAKE SYSTEM<JE5> L=80 THA	5-71997-133-0	02	1	0204-0207			●
250	FINISHER; HARNESS ANTI LOCK BRAKE SYSTEM<JE5> L=80 THA	5-71997-133-0	02	1	0208-0307			●	●
250	FINISHER; HARNESS ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> L=80 THA	5-71997-133-0	02	1	0308-0408	●	●
250	FINISHER; HARNESS ANTI LOCK BRAKE SYSTEM<JE5> L=80 THA	5-71997-133-0	02	1	0308-0408			●	●
250	FINISHER; HARNESS 4JJ1-TCS ENG<LFB> ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> L=80 THA	5-71997-133-0	01	1	0409-0412	●	●
250	FINISHER; HARNESS 4JJ1-TCS ENG<LFB> ANTI LOCK BRAKE SYSTEM<JE5> L=80 THA	5-71997-133-0	01	1	0409-0412			●	●
250	FINISHER; HARNESS ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> L=80 THA	5-71997-133-0	01	1	0501-1008	●	●
250	FINISHER; HARNESS ANTI LOCK BRAKE SYSTEM<JE5> L=80 THA	5-71997-133-0	01	1	0501-1008			●	●
250	FINISHER; HARNESS ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> L=80 SERVICED BY L=90 IMA	1-71997-795-0	01	1	1009-	●	●
250	FINISHER; HARNESS ANTI LOCK BRAKE SYSTEM<JE5> L=80 SERVICED BY L=90 IMA	1-71997-795-0	01	1	1009-			●	●

19 19 19 19 19 19 11 13 19 19 19 19 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
11	VALVE; BRK CONT EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97235-339-2	01	1	0204-0207	●
11	VALVE; BRK CONT THA	8-97235-339-2	01	1	0204-0207			●
11	VALVE; BRK CONT EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97235-339-2	01	1	0208-0307	●	●
11	VALVE; BRK CONT THA	8-97235-339-2	01	1	0208-0307			●
11	VALVE; BRK CONT EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> THA	8-97235-339-2	01	1	0308-0606	●	●
11	VALVE; BRK CONT THA	8-97235-339-2	01	1	0308-0606			●
11	VALVE; BRK CONT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> THA	8-97235-339-2	01	1	0607-0802	●	●
11	VALVE; BRK CONT 4JK1 ENG<LKZ> THA	8-97235-339-2	01	1	0607-0802			●
11	VALVE; BRK CONT EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97235-340-2	01	1	0204-0207				●
11	VALVE; BRK CONT EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97235-340-2	01	1	0208-0307				●	●
11	VALVE; BRK CONT HIGH RIDE SUSPENSION<7YC> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97235-340-2	01	1	0308-0606	●	●
11	VALVE; BRK CONT EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97235-340-2	01	1	0308-0606				●	●
11	VALVE; BRK CONT HIGH RIDE SUSPENSION<7YC> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97333-079-0	01	1	0607-0709	●	●
11	VALVE; BRK CONT EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97333-079-0	01	1	0607-0709				●	●
11	VALVE; BRK CONT HIGH RIDE SUSPENSION<7YC> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97333-079-0	01	1	0710-0802	●	●
11	VALVE; BRK CONT 4JJ1-TCX ENG<LS0> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> THA	8-97333-079-0	01	1	0710-0802		●
11	VALVE; BRK CONT EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97333-079-0	01	1	0710-0802				●	●
11	VALVE; BRK CONT EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97333-079-0	01	1	0803-	●	●		●	●
11	VALVE; BRK CONT THA	8-97333-079-0	01	1	0803-			●
13	BOLT; VLV TO BRKT EXC. ANTI LOCK BRAKE SYSTEM<JE5> M8X45 FLANGE THA	0-29260-845-0	02	1	0204-0207	●			●
13	BOLT; VLV TO BRKT M8X45 FLANGE THA	0-29260-845-0	02	1	0204-0207			●
13	BOLT; VLV TO BRKT EXC. ANTI LOCK BRAKE SYSTEM<JE5> M8X45 FLANGE THA	0-29260-845-0	02	1	0208-	●	●		●	●
13	BOLT; VLV TO BRKT M8X45 FLANGE THA	0-29260-845-0	02	1	0208-			●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (E) FRONT THA	8-97236-426-3	01	1	0204-0207	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (E) FRONT THA	8-97236-426-3	01	1	0208-0211	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (D) FRONT THA	8-97236-423-7	01	1	0204-0207	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (D) FRONT THA	8-97236-423-7	01	1	0208-0211	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (D) FRONT THA	8-97355-530-3	01	1	0212-0307	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) FRONT THA	8-97355-530-3	01	1	0308-0408	●	●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) FRONT THA	8-97370-466-1	01	1	0409-0410	●	●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) FRONT THA	8-98002-906-0	01	1	0411-0412	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) FRONT THA	8-98002-906-0	01	1	0501-0606	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (H) FRONT THA	8-97236-413-3	01	1	0204-0207	●
19	PIPE; BRK,M/CYL TO UNION (H) FRONT THA	8-97236-413-3	01	1	0204-0207			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (H) FRONT THA	8-97236-413-3	01	1	0208-0211	●	●
19	PIPE; BRK,M/CYL TO UNION (H) FRONT THA	8-97236-413-3	01	1	0208-0211			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (H) FRONT THA	8-97355-526-3	01	1	0212-0307	●	●
19	PIPE; BRK,M/CYL TO UNION (H) FRONT THA	8-97355-526-3	01	1	0212-0307			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> (H) FRONT THA	8-97355-526-3	01	1	0308-0606	●	●
19	PIPE; BRK,M/CYL TO UNION (H) FRONT THA	8-97355-526-3	01	1	0308-0606			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (I) REAR THA	8-97236-416-2	01	1	0204-0207	●
19	PIPE; BRK,M/CYL TO UNION (I) REAR THA	8-97236-416-2	01	1	0204-0207			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (I) REAR THA	8-97236-416-2	01	1	0208-0307	●	●
19	PIPE; BRK,M/CYL TO UNION (I) REAR THA	8-97236-416-2	01	1	0208-0307			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> (I) REAR THA	8-97236-416-2	01	1	0308-0606	●	●
19	PIPE; BRK,M/CYL TO UNION (I) REAR THA	8-97236-416-2	01	1	0308-0606			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J) FRONT THA	8-97250-053-2	01	1	0204-0207	●
19	PIPE; BRK,M/CYL TO UNION (J) FRONT THA	8-97250-053-2	01	1	0204-0207			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J) FRONT THA	8-97250-053-2	01	1	0208-0211	●	●
19	PIPE; BRK,M/CYL TO UNION (J) FRONT THA	8-97250-053-2	01	1	0208-0211			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J) FRONT THA	8-97355-527-3	01	1	0212-0307	●	●
19	PIPE; BRK,M/CYL TO UNION (J) FRONT THA	8-97355-527-3	01	1	0212-0307			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> (J) FRONT THA	8-97355-527-3	01	1	0308-0408	●	●
19	PIPE; BRK,M/CYL TO UNION (J) FRONT THA	8-97355-527-3	01	1	0308-0408			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> (J) FRONT THA	8-97370-468-1	01	1	0409-0507	●	●
19	PIPE; BRK,M/CYL TO UNION (J) FRONT THA	8-97370-468-1	01	1	0409-0507			●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> (J) FRONT THA	8-97370-468-1	01	1	0508-0606	●	●
19	PIPE; BRK,M/CYL TO UNION 4JK1 ENG<LKZ> (J) FRONT THA	8-97370-468-1	01	1	0508-0606			●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (P) FRONT THA	8-97374-466-0	01	1	0409-0606	●	●	●	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (P) FRONT THA	8-97944-664-0	01	1	0607-	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION (P) FRONT THA	8-97944-664-0	01	1	0607-			●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (E) FRONT THA	8-97355-529-3	01	1	0212-0307	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (E) FRONT THA	8-97355-529-3	01	1	0308-0606	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> (C) FRONT THA	8-97374-465-0	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (C) FRONT THA	8-97374-465-0	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (C) FRONT THA	8-97374-465-0	01	1	0409-0412				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (C) FRONT THA	8-97374-465-0	01	1	0501-0507	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> ANTI LOCK BRAKE SYSTEM<JE5> (C) FRONT THA	8-97374-465-0	01	1	0508-0606	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> (F) FRONT THA	8-97944-855-1	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (F) FRONT THA	8-97944-855-1	01	1	0607-				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> (G) FRONT THA	8-97944-752-1	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (G) FRONT THA	8-97944-752-1	01	1	0607-				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) FRONT THA	8-97944-791-0	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (E) FRONT THA	8-97944-763-1	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> (I) REAR THA	8-97944-635-0	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION (I) REAR THA	8-97944-635-0	01	1	0607-			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> (H) FRONT THA	8-97944-636-0	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION (H) FRONT THA	8-97944-636-0	01	1	0607-			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> (J) FRONT THA	8-97944-700-0	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION (J) FRONT THA	8-97944-700-0	01	1	0607-			●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (O) FRONT THA	8-97944-667-0	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (O) FRONT THA	8-97944-667-0	01	1	0607-				●	●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (N) REAR THA	8-97944-622-0	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (N) REAR THA	8-97944-622-0	01	1	0607-				●	●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (M) FRONT THA	8-97944-623-0	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (M) FRONT THA	8-97944-623-0	01	1	0607-				●	●
19	PIPE; BRK,M/CYL TO UNION 4JA1-T ENG<LP0> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) FRONT THA	8-97355-530-3	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (C) FRONT THA	8-97944-787-0	01	1	0607-	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97944-788-0	01	1	0607-	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (B) REAR THA	8-97944-751-1	01	1	0607-	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (L) REAR THA	8-97363-714-1	01	1	0409-0412	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (L) REAR THA	8-97363-714-1	01	1	0501-0606	●	●	●	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97236-419-2	01	1	0204-0207	●			●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97236-419-2	01	1	0208-0305	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97236-419-2	01	1	0306-0307	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (A) REAR THA	8-97236-419-2	01	1	0308-0408	●	●
19	PIPE; BRK,M/CYL TO UNION 4JA1-T ENG<LP0> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (A) REAR THA	8-97236-419-2	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (C) FRONT THA	8-97261-907-2	01	1	0204-0207	●			●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (C) FRONT THA	8-97261-907-2	01	1	0208-0408	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION 4JA1-T ENG<LP0> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (C) FRONT THA	8-97261-907-2	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (B) REAR THA	8-97236-428-2	01	1	0204-0207	●			●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (B) REAR THA	8-97236-428-2	01	1	0208-0606	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (K) FRONT THA	8-97215-322-1	01	1	0204-0207	●			●
19	PIPE; BRK,M/CYL TO UNION (K) FRONT THA	8-97215-322-1	01	1	0204-0207			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (K) FRONT THA	8-97215-322-1	01	1	0208-0408	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION (K) FRONT THA	8-97215-322-1	01	1	0208-0408			●
19	PIPE; BRK,M/CYL TO UNION 4JA1-T ENG<LP0> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (K) FRONT THA	8-97215-322-1	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION 4JA1-T ENG<LP0> (K) FRONT THA	8-97215-322-1	01	1	0409-0412			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (L) REAR THA	8-97236-415-0	01	1	0204-0207	●			●
19	PIPE; BRK,M/CYL TO UNION (L) REAR THA	8-97236-415-0	01	1	0204-0207			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (L) REAR THA	8-97236-415-0	01	1	0208-0408	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION (L) REAR THA	8-97236-415-0	01	1	0208-0408			●
19	PIPE; BRK,M/CYL TO UNION 4JA1-T ENG<LP0> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (L) REAR THA	8-97236-415-0	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION 4JA1-T ENG<LP0> (L) REAR THA	8-97236-415-0	01	1	0409-0412			●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (G) FRONT THA	8-97236-427-2	01	1	0204-0207				●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (G) FRONT THA	8-97236-427-2	01	1	0208-0307				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> (G) FRONT THA	8-97236-427-2	01	1	0308-0606	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (G) FRONT THA	8-97236-427-2	01	1	0308-0606				●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (L) REAR THA	8-97944-789-0	01	1	0607-	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION (L) REAR THA	8-97944-789-0	01	1	0607-			●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (F) FRONT THA	8-97236-425-4	01	1	0204-0207				●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (F) FRONT THA	8-97236-425-4	01	1	0208-0305				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (F) FRONT THA	8-97307-534-3	01	1	0306-0306				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (F) FRONT THA	8-97365-221-0	01	1	0306-0307				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> (F) FRONT THA	8-97365-221-0	01	1	0308-0606	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (F) FRONT THA	8-97365-221-0	01	1	0308-0606				●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (M) FRONT THA	8-97236-414-1	01	1	0204-0207				●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (M) FRONT THA	8-97236-414-1	01	1	0208-0307				●	●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (M) FRONT THA	8-97236-414-1	01	1	0308-0606	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (M) FRONT THA	8-97236-414-1	01	1	0308-0606				●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (N) REAR THA	8-97309-497-2	01	1	0204-0207				●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (N) REAR THA	8-97309-497-2	01	1	0208-0307				●	●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (N) REAR THA	8-97309-497-2	01	1	0308-0606	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (N) REAR THA	8-97309-497-2	01	1	0308-0606				●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (O) FRONT THA	8-97215-334-1	01	1	0204-0207				●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (O) FRONT THA	8-97215-334-1	01	1	0208-0305				●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (O) FRONT THA	8-97307-529-2	01	1	0306-0306				●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (O) FRONT THA	8-97365-223-0	01	1	0306-0307				●	●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (O) FRONT THA	8-97365-223-0	01	1	0308-0606	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (O) FRONT THA	8-97365-223-0	01	1	0308-0606				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97355-356-0	01	1	0306-0307				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> (A) REAR THA	8-97355-356-0	01	1	0308-0408	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97355-356-0	01	1	0308-0408				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> (A) REAR THA	8-97363-712-1	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (A) REAR THA	8-97363-712-1	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97363-712-1	01	1	0409-0412				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97363-712-1	01	1	0501-0507	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97363-712-1	01	1	0508-0606	●	●		●	●

19 19 19 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (E) FRONT THA	8-97236-426-3	01	1	0204-0207	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (E) FRONT THA	8-97236-426-3	01	1	0208-0211	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (D) FRONT THA	8-97236-423-7	01	1	0204-0207	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (D) FRONT THA	8-97236-423-7	01	1	0208-0211	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (D) FRONT THA	8-97355-530-3	01	1	0212-0307	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) FRONT THA	8-97355-530-3	01	1	0308-0408	●	●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) FRONT THA	8-97370-466-1	01	1	0409-0410	●	●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) FRONT THA	8-98002-906-0	01	1	0411-0412	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) FRONT THA	8-98002-906-0	01	1	0501-0606	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (H) FRONT THA	8-97236-413-3	01	1	0204-0207	●
19	PIPE; BRK,M/CYL TO UNION (H) FRONT THA	8-97236-413-3	01	1	0204-0207			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (H) FRONT THA	8-97236-413-3	01	1	0208-0211	●	●
19	PIPE; BRK,M/CYL TO UNION (H) FRONT THA	8-97236-413-3	01	1	0208-0211			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (H) FRONT THA	8-97355-526-3	01	1	0212-0307	●	●
19	PIPE; BRK,M/CYL TO UNION (H) FRONT THA	8-97355-526-3	01	1	0212-0307			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> (H) FRONT THA	8-97355-526-3	01	1	0308-0606	●	●
19	PIPE; BRK,M/CYL TO UNION (H) FRONT THA	8-97355-526-3	01	1	0308-0606			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (I) REAR THA	8-97236-416-2	01	1	0204-0207	●
19	PIPE; BRK,M/CYL TO UNION (I) REAR THA	8-97236-416-2	01	1	0204-0207			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (I) REAR THA	8-97236-416-2	01	1	0208-0307	●	●
19	PIPE; BRK,M/CYL TO UNION (I) REAR THA	8-97236-416-2	01	1	0208-0307			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> (I) REAR THA	8-97236-416-2	01	1	0308-0606	●	●
19	PIPE; BRK,M/CYL TO UNION (I) REAR THA	8-97236-416-2	01	1	0308-0606			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J) FRONT THA	8-97250-053-2	01	1	0204-0207	●
19	PIPE; BRK,M/CYL TO UNION (J) FRONT THA	8-97250-053-2	01	1	0204-0207			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J) FRONT THA	8-97250-053-2	01	1	0208-0211	●	●
19	PIPE; BRK,M/CYL TO UNION (J) FRONT THA	8-97250-053-2	01	1	0208-0211			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J) FRONT THA	8-97355-527-3	01	1	0212-0307	●	●
19	PIPE; BRK,M/CYL TO UNION (J) FRONT THA	8-97355-527-3	01	1	0212-0307			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> (J) FRONT THA	8-97355-527-3	01	1	0308-0408	●	●
19	PIPE; BRK,M/CYL TO UNION (J) FRONT THA	8-97355-527-3	01	1	0308-0408			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> (J) FRONT THA	8-97370-468-1	01	1	0409-0507	●	●
19	PIPE; BRK,M/CYL TO UNION (J) FRONT THA	8-97370-468-1	01	1	0409-0507			●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> (J) FRONT THA	8-97370-468-1	01	1	0508-0606	●	●
19	PIPE; BRK,M/CYL TO UNION 4JK1 ENG<LKZ> (J) FRONT THA	8-97370-468-1	01	1	0508-0606			●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (P) FRONT THA	8-97374-466-0	01	1	0409-0606	●	●	●	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (P) FRONT THA	8-97944-664-0	01	1	0607-	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION (P) FRONT THA	8-97944-664-0	01	1	0607-			●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (E) FRONT THA	8-97355-529-3	01	1	0212-0307	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (E) FRONT THA	8-97355-529-3	01	1	0308-0606	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> (C) FRONT THA	8-97374-465-0	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (C) FRONT THA	8-97374-465-0	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (C) FRONT THA	8-97374-465-0	01	1	0409-0412				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (C) FRONT THA	8-97374-465-0	01	1	0501-0507	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> ANTI LOCK BRAKE SYSTEM<JE5> (C) FRONT THA	8-97374-465-0	01	1	0508-0606	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> (F) FRONT THA	8-97944-855-1	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (F) FRONT THA	8-97944-855-1	01	1	0607-				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> (G) FRONT THA	8-97944-752-1	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (G) FRONT THA	8-97944-752-1	01	1	0607-				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) FRONT THA	8-97944-791-0	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (E) FRONT THA	8-97944-763-1	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> (I) REAR THA	8-97944-635-0	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION (I) REAR THA	8-97944-635-0	01	1	0607-			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> (H) FRONT THA	8-97944-636-0	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION (H) FRONT THA	8-97944-636-0	01	1	0607-			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION<7YC> (J) FRONT THA	8-97944-700-0	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION (J) FRONT THA	8-97944-700-0	01	1	0607-			●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (O) FRONT THA	8-97944-667-0	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (O) FRONT THA	8-97944-667-0	01	1	0607-				●	●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (N) REAR THA	8-97944-622-0	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (N) REAR THA	8-97944-622-0	01	1	0607-				●	●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (M) FRONT THA	8-97944-623-0	01	1	0607-	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (M) FRONT THA	8-97944-623-0	01	1	0607-				●	●
19	PIPE; BRK,M/CYL TO UNION 4JA1-T ENG<LP0> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) FRONT THA	8-97355-530-3	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (C) FRONT THA	8-97944-787-0	01	1	0607-	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97944-788-0	01	1	0607-	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (B) REAR THA	8-97944-751-1	01	1	0607-	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (L) REAR THA	8-97363-714-1	01	1	0409-0412	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (L) REAR THA	8-97363-714-1	01	1	0501-0606	●	●	●	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97236-419-2	01	1	0204-0207	●			●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97236-419-2	01	1	0208-0305	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97236-419-2	01	1	0306-0307	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (A) REAR THA	8-97236-419-2	01	1	0308-0408	●	●
19	PIPE; BRK,M/CYL TO UNION 4JA1-T ENG<LP0> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (A) REAR THA	8-97236-419-2	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (C) FRONT THA	8-97261-907-2	01	1	0204-0207	●			●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (C) FRONT THA	8-97261-907-2	01	1	0208-0408	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION 4JA1-T ENG<LP0> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (C) FRONT THA	8-97261-907-2	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (B) REAR THA	8-97236-428-2	01	1	0204-0207	●			●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (B) REAR THA	8-97236-428-2	01	1	0208-0606	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (K) FRONT THA	8-97215-322-1	01	1	0204-0207	●			●
19	PIPE; BRK,M/CYL TO UNION (K) FRONT THA	8-97215-322-1	01	1	0204-0207			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (K) FRONT THA	8-97215-322-1	01	1	0208-0408	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION (K) FRONT THA	8-97215-322-1	01	1	0208-0408			●
19	PIPE; BRK,M/CYL TO UNION 4JA1-T ENG<LP0> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (K) FRONT THA	8-97215-322-1	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION 4JA1-T ENG<LP0> (K) FRONT THA	8-97215-322-1	01	1	0409-0412			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (L) REAR THA	8-97236-415-0	01	1	0204-0207	●			●
19	PIPE; BRK,M/CYL TO UNION (L) REAR THA	8-97236-415-0	01	1	0204-0207			●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (L) REAR THA	8-97236-415-0	01	1	0208-0408	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION (L) REAR THA	8-97236-415-0	01	1	0208-0408			●
19	PIPE; BRK,M/CYL TO UNION 4JA1-T ENG<LP0> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (L) REAR THA	8-97236-415-0	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION 4JA1-T ENG<LP0> (L) REAR THA	8-97236-415-0	01	1	0409-0412			●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (G) FRONT THA	8-97236-427-2	01	1	0204-0207				●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (G) FRONT THA	8-97236-427-2	01	1	0208-0307				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> (G) FRONT THA	8-97236-427-2	01	1	0308-0606	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (G) FRONT THA	8-97236-427-2	01	1	0308-0606				●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (L) REAR THA	8-97944-789-0	01	1	0607-	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION (L) REAR THA	8-97944-789-0	01	1	0607-			●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (F) FRONT THA	8-97236-425-4	01	1	0204-0207				●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (F) FRONT THA	8-97236-425-4	01	1	0208-0305				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (F) FRONT THA	8-97307-534-3	01	1	0306-0306				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (F) FRONT THA	8-97365-221-0	01	1	0306-0307				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> (F) FRONT THA	8-97365-221-0	01	1	0308-0606	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (F) FRONT THA	8-97365-221-0	01	1	0308-0606				●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (M) FRONT THA	8-97236-414-1	01	1	0204-0207				●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (M) FRONT THA	8-97236-414-1	01	1	0208-0307				●	●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (M) FRONT THA	8-97236-414-1	01	1	0308-0606	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (M) FRONT THA	8-97236-414-1	01	1	0308-0606				●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (N) REAR THA	8-97309-497-2	01	1	0204-0207				●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (N) REAR THA	8-97309-497-2	01	1	0208-0307				●	●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (N) REAR THA	8-97309-497-2	01	1	0308-0606	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (N) REAR THA	8-97309-497-2	01	1	0308-0606				●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (O) FRONT THA	8-97215-334-1	01	1	0204-0207				●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (O) FRONT THA	8-97215-334-1	01	1	0208-0305				●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (O) FRONT THA	8-97307-529-2	01	1	0306-0306				●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (O) FRONT THA	8-97365-223-0	01	1	0306-0307				●	●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (O) FRONT THA	8-97365-223-0	01	1	0308-0606	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (O) FRONT THA	8-97365-223-0	01	1	0308-0606				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97355-356-0	01	1	0306-0307				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> (A) REAR THA	8-97355-356-0	01	1	0308-0408	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97355-356-0	01	1	0308-0408				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> (A) REAR THA	8-97363-712-1	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (A) REAR THA	8-97363-712-1	01	1	0409-0412	●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97363-712-1	01	1	0409-0412				●	●
19	PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97363-712-1	01	1	0501-0507	●	●		●	●
19	PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> ANTI LOCK BRAKE SYSTEM<JE5> (A) REAR THA	8-97363-712-1	01	1	0508-0606	●	●		●	●

129 184 96 184 129 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E
96	SENSOR; SPD,RR WHEEL ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97311-997-0	01	1	0204-0207	●
96	SENSOR; SPD,RR WHEEL ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97311-997-0	01	1	0208-0302	●	●
96	SENSOR; SPD,RR WHEEL ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97362-459-0	01	1	0303-0307	●	●
96	SENSOR; SPD,RR WHEEL ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97362-459-0	01	1	0308-0606	●	●
96	SENSOR; SPD,RR WHEEL ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97387-991-1	01	1	0607-	●	●
96	SENSOR; SPD,RR WHEEL ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97311-998-0	01	1	0204-0207			●
96	SENSOR; SPD,RR WHEEL ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97311-998-0	01	1	0208-0302			●	●
96	SENSOR; SPD,RR WHEEL ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97362-460-0	01	1	0303-0307			●	●
96	SENSOR; SPD,RR WHEEL ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> THA	8-97362-460-0	01	1	0308-0606	●	●
96	SENSOR; SPD,RR WHEEL ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97362-460-0	01	1	0308-0606			●	●
96	SENSOR; SPD,RR WHEEL ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> THA	8-97387-992-1	01	1	0607-	●	●
96	SENSOR; SPD,RR WHEEL ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97387-992-1	01	1	0607-			●	●
129	BOLT; BRKT ANTI LOCK BRAKE SYSTEM<JE5> M6X16 FLANGE THA	0-28650-616-0	01	1	0204-0207	●		●
129	BOLT; BRKT ANTI LOCK BRAKE SYSTEM<JE5> M6X16 FLANGE THA	0-28650-616-0	01	1	0208-0408	●	●	●	●
129	BOLT; BRKT ANTI LOCK BRAKE SYSTEM<JE5> M6X16 FLANGE THA	0-28650-616-0	02	1	0409-	●	●	●	●
184	BOLT; CLIP ANTI LOCK BRAKE SYSTEM<JE5> (B) M6X10 FLANGE THA	0-28050-610-0	02	1	0204-0207	●		●
184	BOLT; CLIP ANTI LOCK BRAKE SYSTEM<JE5> (B) M6X10 FLANGE THA	0-28050-610-0	02	1	0204-0207			●
184	BOLT; CLIP ANTI LOCK BRAKE SYSTEM<JE5> (B) M6X10 FLANGE THA	0-28050-610-0	02	1	0208-0307	●	●	●	●
184	BOLT; CLIP ANTI LOCK BRAKE SYSTEM<JE5> (B) M6X10 FLANGE THA	0-28050-610-0	02	1	0208-0307			●	●
184	BOLT; CLIP ANTI LOCK BRAKE SYSTEM<JE5> (B) M6X10 FLANGE THA	0-28050-610-0	02	1	0308-	●	●	●	●
184	BOLT; CLIP ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION<7YC> (B) M6X10 FLANGE THA	0-28050-610-0	02	1	0308-	●	●
184	BOLT; CLIP ANTI LOCK BRAKE SYSTEM<JE5> (B) M6X10 FLANGE THA	0-28050-610-0	02	1	0308-			●	●
184	BOLT; CLIP ANTI LOCK BRAKE SYSTEM<JE5> (A) M6X16 FLANGE THA	0-28650-616-0	03	1	0204-0207	●		●
184	BOLT; CLIP ANTI LOCK BRAKE SYSTEM<JE5> (A) M6X16 FLANGE THA	0-28650-616-0	03	1	0208-0408	●	●	●	●
184	BOLT; CLIP ANTI LOCK BRAKE SYSTEM<JE5> (A) M6X16 FLANGE THA	0-28650-616-0	02	1	0409-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
