3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#72868) — 29 parça

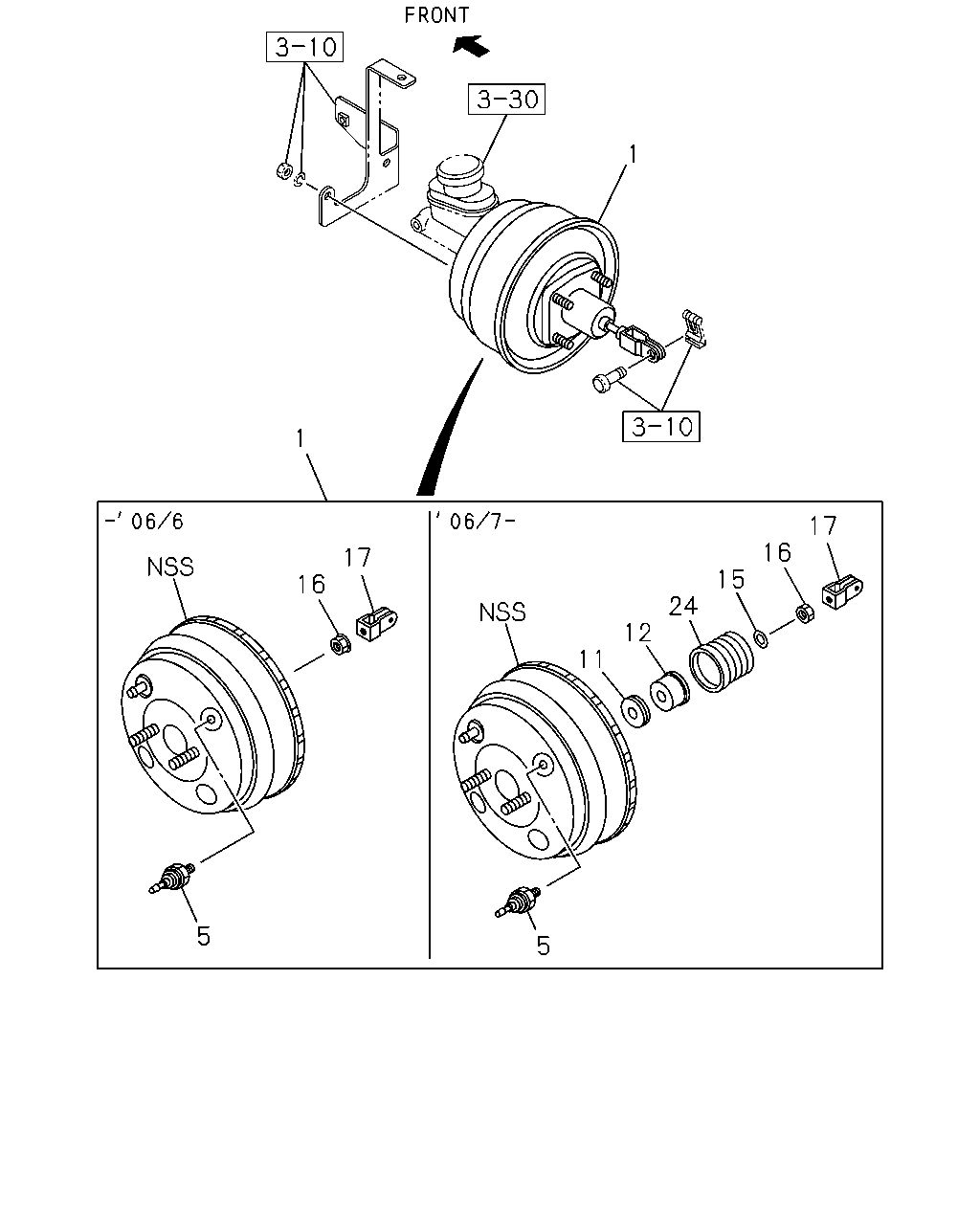

çizim 116468
1 1 17 16 17 15 16 24 12 11 5 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 MASTER VAC ASM; BRK
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97301-535-0 01 1 0204-0207 ● ●
1 MASTER VAC ASM; BRK
THA 		8-97301-535-0 01 1 0204-0207 ●
1 MASTER VAC ASM; BRK
THA 		8-97301-535-0 01 1 0208-0302 ● ● ● ● ●
1 MASTER VAC ASM; BRK
THA 		8-97365-516-0 01 1 0303-0408 ● ● ● ● ●
1 MASTER VAC ASM; BRK
4JA1-T ENG<LP0> THA 		8-97365-516-0 01 1 0409-0412 ● ● ●
1 MASTER VAC ASM; BRK
4JJ1-TCS ENG<LFB> THA 		8-97363-563-1 01 1 0409-0412 ● ● ● ●
1 MASTER VAC ASM; BRK
THA 		8-97363-563-1 01 1 0501-0606 ● ● ● ● ●
1 MASTER VAC ASM; BRK
THA 		8-98006-788-0 01 1 0607- ● ● ● ● ●
5 SWITCH; VAC,M/VAC
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97301-656-0 01 1 0204-0207 ● ●
5 SWITCH; VAC,M/VAC
THA 		8-97301-656-0 01 1 0204-0207 ●
5 SWITCH; VAC,M/VAC
THA 		8-97301-656-0 01 1 0208-0408 ● ● ● ● ●
5 SWITCH; VAC,M/VAC
4JA1-T ENG<LP0> THA 		8-97301-656-0 01 1 0409-0412 ● ● ●
5 SWITCH; VAC,M/VAC
THA 		8-98081-668-0 01 1 0607- ● ● ● ● ●
11 FILTER; M/VAC
THA 		8-98048-044-0 01 1 0607- ● ● ● ● ●
12 SILENCER; M/VAC
IMA 		8-97205-577-0 01 1 0607- ● ● ● ● ●
15 RETAINER; GUARD,M/VAC
THA 		8-98048-040-0 01 1 0607- ● ● ● ● ●
16 NUT; VLV ROD,M/VAC
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97301-598-0 01 1 0204-0207 ● ●
16 NUT; VLV ROD,M/VAC
THA 		8-97301-598-0 01 1 0204-0207 ●
16 NUT; VLV ROD,M/VAC
THA 		8-97301-598-0 01 1 0208-0606 ● ● ● ● ●
16 NUT; VLV ROD,M/VAC
THA 		8-98048-038-0 01 1 0607- ● ● ● ● ●
17 CLEVIS; YOKE,M/VAC
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97301-597-0 01 1 0204-0207 ● ●
17 CLEVIS; YOKE,M/VAC
THA 		8-97301-597-0 01 1 0204-0207 ●
17 CLEVIS; YOKE,M/VAC
THA 		8-97301-597-0 01 1 0208-0302 ● ● ● ● ●
17 CLEVIS; YOKE,M/VAC
THA 		8-97365-745-0 01 1 0303-0408 ● ● ● ● ●
17 CLEVIS; YOKE,M/VAC
4JA1-T ENG<LP0> THA 		8-97365-745-0 01 1 0409-0412 ● ● ●
17 CLEVIS; YOKE,M/VAC
4JJ1-TCS ENG<LFB> THA 		8-97301-597-0 01 1 0409-0412 ● ● ● ●
17 CLEVIS; YOKE,M/VAC
THA 		8-97301-597-0 01 1 0501-0606 ● ● ● ● ●
17 CLEVIS; YOKE,M/VAC
THA 		8-98048-039-0 01 1 0607- ● ● ● ● ●
24 GUARD; VLV BODY,M/VAC
THA 		8-98048-043-0 01 1 0607- ● ● ● ● ●
