3-30 — BRAKE MASTER CYLINDER (#72867) — 49 parça

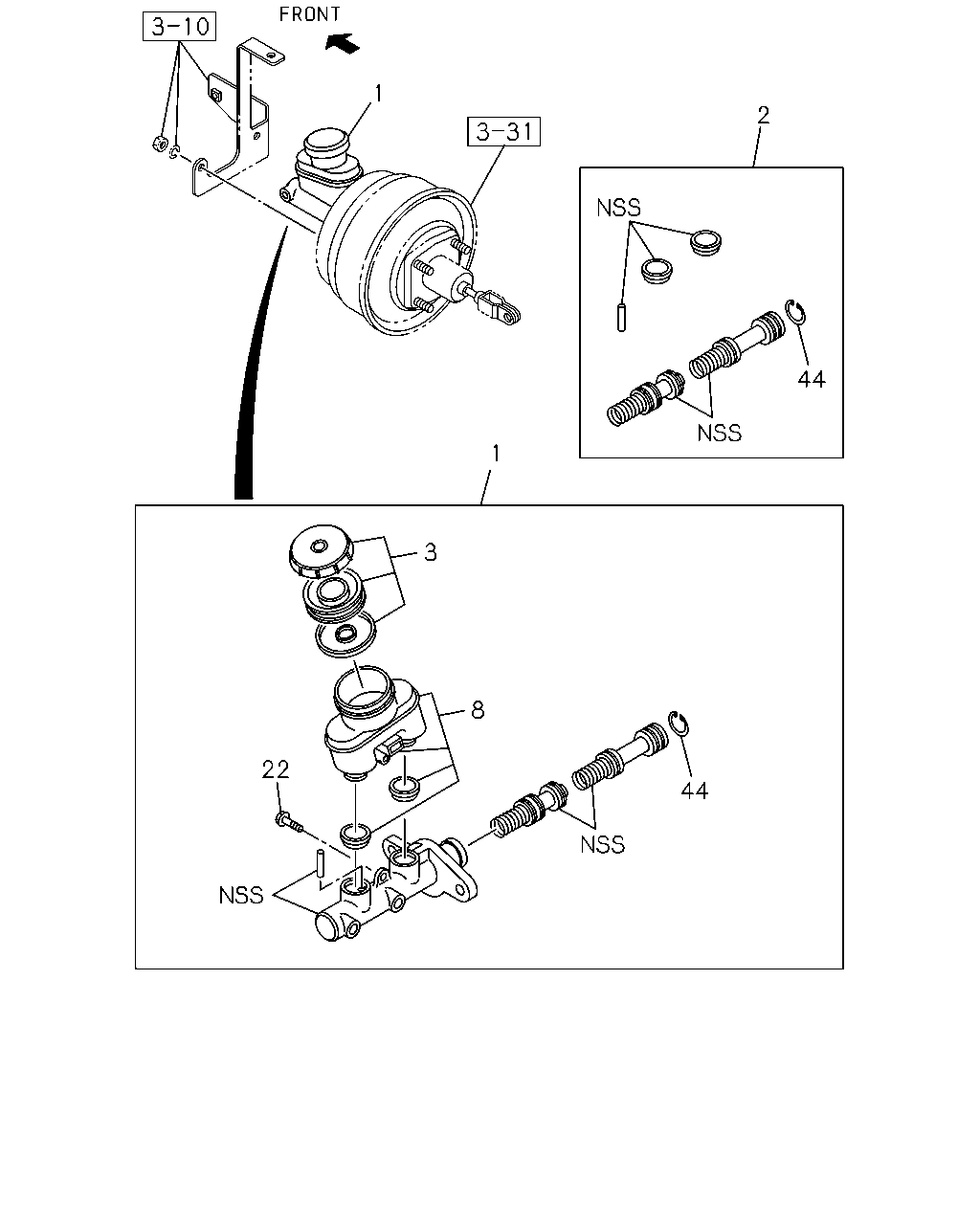

çizim 116464
1 2 44 1 3 8 22 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CYLINDER ASM; BRK MASTER
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97301-532-0 01 1 0204-0207 ● ●
1 CYLINDER ASM; BRK MASTER
THA 		8-97301-532-0 01 1 0204-0207 ●
1 CYLINDER ASM; BRK MASTER
THA 		8-97301-532-0 01 1 0208-0408 ● ● ● ● ●
1 CYLINDER ASM; BRK MASTER
THA 		8-97355-870-0 01 1 0409-0606 ● ● ● ● ●
1 CYLINDER ASM; BRK MASTER
THA 		8-98006-941-0 01 1 0607- ● ● ● ● ●
2 REPAIR KIT; BRK,M/CYL
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97349-828-0 01 1 0204-0207 ● ●
2 REPAIR KIT; BRK,M/CYL
THA 		8-97349-828-0 01 1 0204-0207 ●
2 REPAIR KIT; BRK,M/CYL
THA 		8-97349-828-0 01 1 0208-0408 ● ● ● ● ●
2 REPAIR KIT; BRK,M/CYL
THA 		8-97357-713-0 01 1 0409-0606 ● ● ● ● ●
2 REPAIR KIT; BRK,M/CYL
THA 		8-98047-691-0 01 1 0607- ● ● ● ● ●
3 CAP; OIL TANK
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97349-827-0 01 1 0204-0207 ● ●
3 CAP; OIL TANK
THA 		8-97349-827-0 01 1 0204-0207 ●
3 CAP; OIL TANK
THA 		8-97349-827-0 01 1 0208-0606 ● ● ● ● ●
3 CAP; OIL TANK
THA 		8-98047-705-0 01 1 0607- ● ● ● ● ●
8 TANK; OIL,M/CYL
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97350-923-0 01 1 0204-0207 ● ●
8 TANK; OIL,M/CYL
THA 		8-97350-923-0 01 1 0204-0207 ●
8 TANK; OIL,M/CYL
THA 		8-97350-923-0 01 1 0208-0606 ● ● ● ● ●
8 TANK; OIL,M/CYL
THA 		8-98047-700-0 01 1 0607- ● ● ● ● ●
22 SCREW; OIL TANK
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97301-579-0 01 1 0204-0207 ● ●
22 SCREW; OIL TANK
THA 		8-97301-579-0 01 1 0204-0207 ●
22 SCREW; OIL TANK
THA 		8-97301-579-0 01 1 0208-0606 ● ● ● ● ●
22 SCREW; OIL TANK
THA 		8-98047-707-0 01 1 0607- ● ● ● ● ●
44 RING; SNAP,M/CYL
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97301-563-0 01 1 0204-0207 ● ●
44 RING; SNAP,M/CYL
THA 		8-97301-563-0 01 1 0204-0207 ●
44 RING; SNAP,M/CYL
THA 		8-97301-563-0 01 1 0208-0606 ● ● ● ● ●

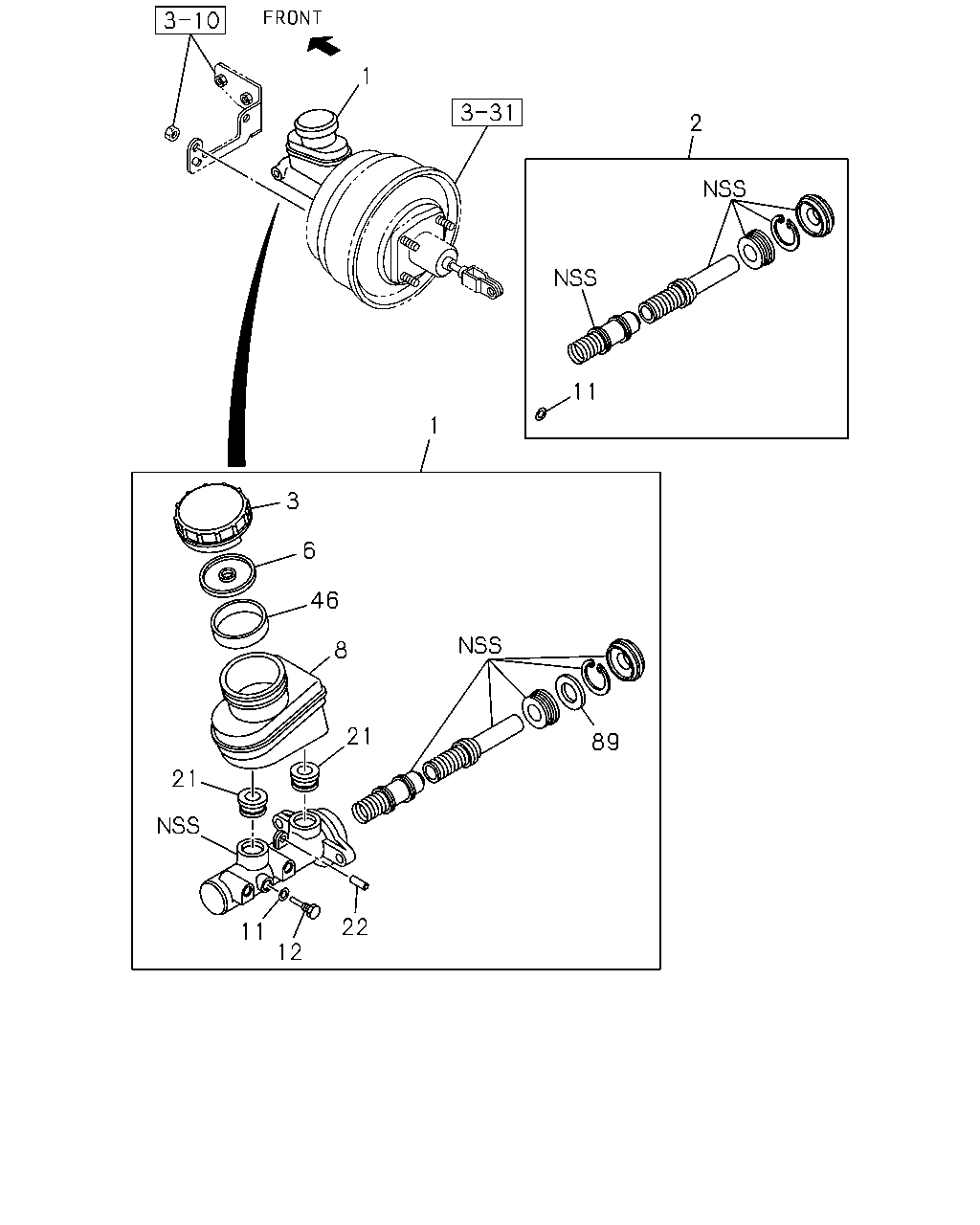

çizim 116564
1 2 11 1 3 6 46 8 21 89 21 2 11 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CYLINDER ASM; BRK MASTER
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97301-532-0 01 1 0204-0207 ● ●
1 CYLINDER ASM; BRK MASTER
THA 		8-97301-532-0 01 1 0204-0207 ●
1 CYLINDER ASM; BRK MASTER
THA 		8-97301-532-0 01 1 0208-0408 ● ● ● ● ●
1 CYLINDER ASM; BRK MASTER
THA 		8-97355-870-0 01 1 0409-0606 ● ● ● ● ●
1 CYLINDER ASM; BRK MASTER
THA 		8-98006-941-0 01 1 0607- ● ● ● ● ●
2 REPAIR KIT; BRK,M/CYL
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97349-828-0 01 1 0204-0207 ● ●
2 REPAIR KIT; BRK,M/CYL
THA 		8-97349-828-0 01 1 0204-0207 ●
2 REPAIR KIT; BRK,M/CYL
THA 		8-97349-828-0 01 1 0208-0408 ● ● ● ● ●
2 REPAIR KIT; BRK,M/CYL
THA 		8-97357-713-0 01 1 0409-0606 ● ● ● ● ●
2 REPAIR KIT; BRK,M/CYL
THA 		8-98047-691-0 01 1 0607- ● ● ● ● ●
3 CAP; OIL TANK
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97349-827-0 01 1 0204-0207 ● ●
3 CAP; OIL TANK
THA 		8-97349-827-0 01 1 0204-0207 ●
3 CAP; OIL TANK
THA 		8-97349-827-0 01 1 0208-0606 ● ● ● ● ●
3 CAP; OIL TANK
THA 		8-98047-705-0 01 1 0607- ● ● ● ● ●
6 DIAPHRAGM; BRK M/CYL
THA 		8-98047-706-0 01 1 0607- ● ● ● ● ●
8 TANK; OIL,M/CYL
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97350-923-0 01 1 0204-0207 ● ●
8 TANK; OIL,M/CYL
THA 		8-97350-923-0 01 1 0204-0207 ●
8 TANK; OIL,M/CYL
THA 		8-97350-923-0 01 1 0208-0606 ● ● ● ● ●
8 TANK; OIL,M/CYL
THA 		8-98047-700-0 01 1 0607- ● ● ● ● ●
11 GASKET; STOPPER BOLT TO BRK M/CYL BODY
THA 		8-98047-696-0 01 1 0607- ● ● ● ● ●
12 BOLT; STOPPER,BRK M/CYL
THA 		8-98047-695-0 01 1 0607- ● ● ● ● ●
21 GROMMET; BRK M/CYL
THA 		8-97940-643-0 02 1 0607- ● ● ● ● ●
46 FILTER; OIL TANK,M/CYL
THA 		8-98047-702-0 01 1 0607- ● ● ● ● ●
89 PLATE; BRK M/CYL
THA 		8-98047-698-0 01 1 0607- ● ● ● ● ●
