Sayfa 3-11 - Isuzu EPC

3-11 — PARKING BRAKE CONTROL (#72865) — 320 parça

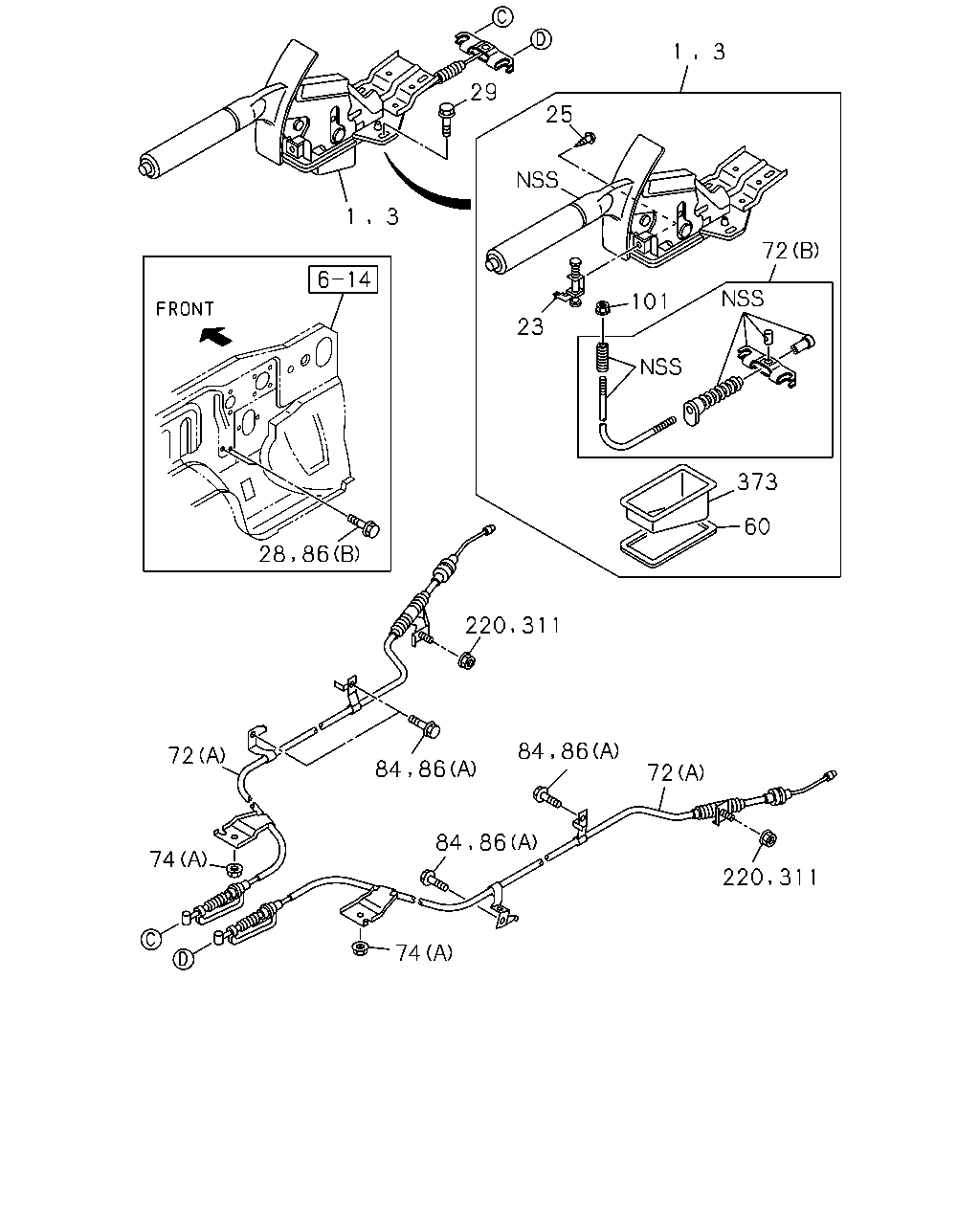

3 1 29 25 3 1 72 101 23 373 60 72 72 74 74 28 86 220 311 86 84 86 84 84 86 220 311

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	STEM ASM; PARKING BRK PARKING BRAKE FLOOR<7XW> THA	8-97363-082-0	01	1	0409-0507	●	●	●
1	STEM ASM; PARKING BRK THA	8-97363-082-0	01	1	0409-0507				●
1	STEM ASM; PARKING BRK THA	8-97363-082-0	01	1	0508-0606	●	●	●	●
1	STEM ASM; PARKING BRK THA	8-98007-034-0	01	1	0607-0708	●	●	●	●
1	STEM ASM; PARKING BRK THA	8-98007-034-0	01	1	0709-0709	●	●	●
1	STEM ASM; PARKING BRK PARKING BRAKE FLOOR<7XW> THA	8-98007-034-0	01	1	0709-0709				●
1	STEM ASM; PARKING BRK THA	8-98007-034-0	01	1	0710-	●	●	●	●
1	STEM ASM; PARKING BRK THA	8-97235-284-3	01	1	0204-0207					●
1	STEM ASM; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> THA	8-97235-284-3	01	1	0208-0304	●	●	●
1	STEM ASM; PARKING BRK THA	8-97235-284-3	01	1	0208-0304					●
1	STEM ASM; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> THA	8-97367-028-0	01	1	0305-0507	●	●	●
1	STEM ASM; PARKING BRK THA	8-97367-028-0	01	1	0305-0507					●
1	STEM ASM; PARKING BRK THA	8-97367-028-0	01	1	0508-0606					●
1	STEM ASM; PARKING BRK THA	8-98007-032-0	01	1	0607-0708					●
1	STEM ASM; PARKING BRK THA	8-98007-032-0	01	1	0709-0709					●
1	STEM ASM; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> THA	8-98007-032-0	01	1	0709-0709				●
1	STEM ASM; PARKING BRK THA	8-98007-032-0	01	1	0710-					●
3	LEVER; PARKING BRK THA	8-97328-608-0	01	1	0204-0207	●		●
3	LEVER; PARKING BRK PARKING BRAKE FLOOR<7XW> THA	8-97328-608-0	01	1	0208-0304	●	●	●
3	LEVER; PARKING BRK THA	8-97328-608-0	01	1	0208-0304				●
3	LEVER; PARKING BRK PARKING BRAKE FLOOR<7XW> THA	8-97363-082-0	01	1	0305-0408	●	●	●
3	LEVER; PARKING BRK THA	8-97363-082-0	01	1	0305-0408				●
23	SWITCH; PARKING BRK THA	8-97301-436-0	01	1	0204-0207	●		●
23	SWITCH; PARKING BRK PARKING BRAKE FLOOR<7XW> THA	8-97301-436-0	01	1	0208-0507	●	●	●
23	SWITCH; PARKING BRK THA	8-97301-436-0	01	1	0208-0507				●
23	SWITCH; PARKING BRK THA	8-97301-436-0	01	1	0508-0606	●	●	●	●
23	SWITCH; PARKING BRK THA	8-98017-627-0	01	1	0607-0708	●	●	●	●
23	SWITCH; PARKING BRK THA	8-98017-627-0	01	1	0709-0709	●	●	●
23	SWITCH; PARKING BRK PARKING BRAKE FLOOR<7XW> THA	8-98017-627-0	01	1	0709-0709				●
23	SWITCH; PARKING BRK THA	8-98017-627-0	01	1	0710-	●	●	●	●
23	SWITCH; PARKING BRK THA	8-97032-276-0	01	1	0204-0207					●
23	SWITCH; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> THA	8-97032-276-0	01	1	0208-0507	●	●	●
23	SWITCH; PARKING BRK THA	8-97032-276-0	01	1	0208-0507					●
23	SWITCH; PARKING BRK THA	8-97032-276-0	01	1	0508-0606					●
23	SWITCH; PARKING BRK THA	8-98017-625-0	01	1	0607-0708					●
23	SWITCH; PARKING BRK THA	8-98017-625-0	01	1	0709-0709					●
23	SWITCH; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> THA	8-98017-625-0	01	1	0709-0709				●
23	SWITCH; PARKING BRK THA	8-98017-625-0	01	1	0710-					●
25	SCREW; SW,PARKING BRK THA	8-97103-556-0	01	1	0204-0207	●		●		●
25	SCREW; SW,PARKING BRK THA	8-97103-556-0	01	1	0208-0606	●	●	●	●	●
25	SCREW; SW,PARKING BRK THA	8-98017-655-0	01	1	0607-	●	●	●	●	●
28	BOLT; HAND BRK LEVER M8X20 FLANGE THA	0-28650-820-0	02	1	0204-0207	●		●		●
28	BOLT; HAND BRK LEVER M8X20 FLANGE THA	0-28650-820-0	02	1	0204-0207					●
28	BOLT; HAND BRK LEVER M8X20 FLANGE THA	0-28650-820-0	02	1	0208-0408	●	●	●	●	●
28	BOLT; HAND BRK LEVER EXC. PARKING BRAKE FLOOR<7XW> M8X20 FLANGE THA	0-28650-820-0	02	1	0208-0408	●	●	●
28	BOLT; HAND BRK LEVER M8X20 FLANGE THA	0-28650-820-0	02	1	0208-0408					●
28	BOLT; HAND BRK LEVER EXC. PARKING BRAKE FLOOR<7XW> M8X20 FLANGE THA	0-28650-820-0	02	1	0409-0507	●	●	●
28	BOLT; HAND BRK LEVER M8X20 FLANGE THA	0-28650-820-0	02	1	0409-0507					●
28	BOLT; HAND BRK LEVER M8X20 FLANGE THA	0-28650-820-0	02	1	0508-0708					●
28	BOLT; HAND BRK LEVER M8X20 FLANGE THA	0-28650-820-0	02	1	0709-0709					●
28	BOLT; HAND BRK LEVER EXC. PARKING BRAKE FLOOR<7XW> M8X20 FLANGE THA	0-28650-820-0	02	1	0709-0709				●
28	BOLT; HAND BRK LEVER M8X20 FLANGE THA	0-28650-820-0	02	1	0710-					●
29	BOLT; PARKING BRK LEVER TO BODY M8X20 FLANGE THA	0-28650-820-0	03	1	0204-0207	●		●
29	BOLT; PARKING BRK LEVER TO BODY PARKING BRAKE FLOOR<7XW> M8X20 FLANGE THA	0-28650-820-0	03	1	0208-0408	●	●	●
29	BOLT; PARKING BRK LEVER TO BODY M8X20 FLANGE THA	0-28650-820-0	03	1	0208-0408				●
29	BOLT; PARKING BRK LEVER TO BODY M8X20 FLANGE THA	0-28650-820-0	02	1	0409-0712	●	●	●	●	●
29	BOLT; PARKING BRK LEVER TO BODY M8X20 FLANGE THA	0-28650-820-0	02	1	0801-					●
29	BOLT; PARKING BRK LEVER TO BODY M8X20 FLANGE THA	0-28650-820-0	02	1	0204-0207					●
29	BOLT; PARKING BRK LEVER TO BODY EXC. PARKING BRAKE FLOOR<7XW> M8X20 FLANGE THA	0-28650-820-0	02	1	0208-0408	●	●	●
29	BOLT; PARKING BRK LEVER TO BODY M8X20 FLANGE THA	0-28650-820-0	02	1	0208-0408					●
60	GASKET; PARKING BRK PARKING BRAKE FLOOR<7XW> THA	8-97355-931-0	01	1	0204-0507	●	●	●
60	GASKET; PARKING BRK THA	8-97355-931-0	01	1	0204-0507				●
60	GASKET; PARKING BRK THA	8-97355-931-0	01	1	0508-0708	●	●	●	●
60	GASKET; PARKING BRK THA	8-97355-931-0	01	1	0709-0709	●	●	●
60	GASKET; PARKING BRK PARKING BRAKE FLOOR<7XW> THA	8-97355-931-0	01	1	0709-0709				●
60	GASKET; PARKING BRK THA	8-97355-931-0	01	1	0710-	●	●	●	●
72	CABLE; PARKING BRK 4JJ1-TCX ENG<LS0> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98008-158-1	01	1	0711-0802		●
72	CABLE; PARKING BRK 4JJ1-TCX ENG<LS0> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98008-158-1	01	1	0803-	●	●
72	CABLE; PARKING BRK 4JJ1-TCX ENG<LS0> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98008-159-1	01	1	0711-0802		●
72	CABLE; PARKING BRK 4JJ1-TCX ENG<LS0> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98008-159-1	01	1	0803-	●	●
72	CABLE; PARKING BRK (A) THA	8-97235-293-6	01	1	0204-0207	●				●
72	CABLE; PARKING BRK (A) THA	8-97235-293-6	01	1	0208-0301	●	●			●
72	CABLE; PARKING BRK (A) THA	8-97361-256-0	01	1	0302-0304	●	●			●
72	CABLE; PARKING BRK (A) THA	8-97363-343-0	01	1	0305-0307	●	●			●
72	CABLE; PARKING BRK EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97363-343-0	01	1	0308-0606	●	●
72	CABLE; PARKING BRK (A) THA	8-97363-343-0	01	1	0308-0606					●
72	CABLE; PARKING BRK EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98007-008-1	01	1	0607-0708	●	●
72	CABLE; PARKING BRK (A) THA	8-98007-008-1	01	1	0607-0708					●
72	CABLE; PARKING BRK 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98007-008-1	01	1	0709-	●	●
72	CABLE; PARKING BRK (A) THA	8-98007-008-1	01	1	0709-					●
72	CABLE; PARKING BRK (A) THA	8-97235-292-5	01	1	0204-0207	●				●
72	CABLE; PARKING BRK (A) THA	8-97235-292-5	01	1	0208-0304	●	●			●
72	CABLE; PARKING BRK (A) THA	8-97363-341-0	01	1	0305-0305	●	●			●
72	CABLE; PARKING BRK (A) THA	8-97368-066-0	01	1	0306-0307	●	●			●
72	CABLE; PARKING BRK EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97368-066-0	01	1	0308-0606	●	●
72	CABLE; PARKING BRK (A) THA	8-97368-066-0	01	1	0308-0606					●
72	CABLE; PARKING BRK EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98007-007-1	01	1	0607-0708	●	●
72	CABLE; PARKING BRK (A) THA	8-98007-007-1	01	1	0607-0708					●
72	CABLE; PARKING BRK 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98007-007-1	01	1	0709-	●	●
72	CABLE; PARKING BRK (A) THA	8-98007-007-1	01	1	0709-					●
72	CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> (B) THA	8-97374-294-0	01	1	0204-0507	●	●	●
72	CABLE; PARKING BRK (B) THA	8-97374-294-0	01	1	0204-0507				●
72	CABLE; PARKING BRK (B) THA	8-97374-294-0	01	1	0508-0606	●	●	●	●
72	CABLE; PARKING BRK (B) THA	8-98017-629-0	01	1	0607-0708	●	●	●	●
72	CABLE; PARKING BRK (B) THA	8-98017-629-0	01	1	0709-0709	●	●	●
72	CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> (B) THA	8-98017-629-0	01	1	0709-0709				●
72	CABLE; PARKING BRK (B) THA	8-98017-629-0	01	1	0710-	●	●	●	●
72	CABLE; PARKING BRK (A) THA	8-97235-297-6	01	1	0204-0207			●
72	CABLE; PARKING BRK (A) THA	8-97235-297-6	01	1	0208-0301			●	●
72	CABLE; PARKING BRK (A) THA	8-97361-258-0	01	1	0302-0304			●	●
72	CABLE; PARKING BRK (A) THA	8-97363-346-0	01	1	0305-0307			●	●
72	CABLE; PARKING BRK HIGH RIDE SUSPENSION<7YC> (A) THA	8-97363-346-0	01	1	0308-0606	●	●
72	CABLE; PARKING BRK (A) THA	8-97363-346-0	01	1	0308-0606			●	●
72	CABLE; PARKING BRK HIGH RIDE SUSPENSION<7YC> (A) THA	8-98007-011-1	01	1	0607-	●	●
72	CABLE; PARKING BRK (A) THA	8-98007-011-1	01	1	0607-			●	●
72	CABLE; PARKING BRK (A) THA	8-97235-296-5	01	1	0204-0207			●
72	CABLE; PARKING BRK (A) THA	8-97235-296-5	01	1	0208-0304			●	●
72	CABLE; PARKING BRK (A) THA	8-97363-344-0	01	1	0305-0305			●	●
72	CABLE; PARKING BRK (A) THA	8-97368-068-0	01	1	0306-0307			●	●
72	CABLE; PARKING BRK HIGH RIDE SUSPENSION<7YC> (A) THA	8-97368-068-0	01	1	0308-0606	●	●
72	CABLE; PARKING BRK (A) THA	8-97368-068-0	01	1	0308-0606			●	●
72	CABLE; PARKING BRK HIGH RIDE SUSPENSION<7YC> (A) THA	8-98007-010-1	01	1	0607-	●	●
72	CABLE; PARKING BRK (A) THA	8-98007-010-1	01	1	0607-			●	●
74	NUT; CONT WIRE (A) THA	8-97136-404-0	02	1	0204-0207	●		●		●
74	NUT; CONT WIRE (A) THA	8-97136-404-0	02	1	0208-0606	●	●	●	●	●
74	NUT; CONT WIRE (A) IMA	8-98008-071-0	02	1	0607-	●	●	●	●	●
74	NUT; CONT WIRE EXC. PARKING BRAKE FLOOR<7XW> (B) M6 LOCK NUT FLANGE THA	0-91303-606-0	01	1	0409-0507	●	●	●
74	NUT; CONT WIRE (B) M6 LOCK NUT FLANGE THA	0-91303-606-0	01	1	0409-0507					●
74	NUT; CONT WIRE (B) M6 LOCK NUT FLANGE THA	0-91303-606-0	01	1	0508-0605					●
74	NUT; CONT WIRE (B) M6 LOCK NUT FLANGE THA	0-91380-006-0	01	1	0606-0708					●
74	NUT; CONT WIRE (B) M6 LOCK NUT FLANGE THA	0-91380-006-0	01	1	0709-0709					●
74	NUT; CONT WIRE EXC. PARKING BRAKE FLOOR<7XW> (B) M6 LOCK NUT FLANGE THA	0-91380-006-0	01	1	0709-0709				●
74	NUT; CONT WIRE (B) M6 LOCK NUT FLANGE THA	0-91380-006-0	01	1	0710-					●
84	BOLT; CABLE M6X20 FLANGE THA	0-28650-620-0	04	1	0204-0207	●		●		●
84	BOLT; CABLE M6X20 FLANGE THA	0-28650-620-0	04	1	0208-0408	●	●	●	●	●
86	BOLT (A) M6X20 FLANGE THA	0-28650-620-0	04	1	0409-	●	●	●	●	●
86	BOLT (B) M8X20 FLANGE THA	0-28650-820-0	03	1	0409-	●	●	●	●	●
101	NUT; CABLE TO LEVER PARKING BRAKE FLOOR<7XW> THA	8-97355-929-0	01	1	0204-0507	●	●	●
101	NUT; CABLE TO LEVER THA	8-97355-929-0	01	1	0204-0507				●
101	NUT; CABLE TO LEVER THA	8-97355-929-0	01	1	0508-0606	●	●	●	●
101	NUT; CABLE TO LEVER THA	8-98017-654-0	01	1	0607-0708	●	●	●	●
101	NUT; CABLE TO LEVER THA	8-98017-654-0	01	1	0709-0709	●	●	●
101	NUT; CABLE TO LEVER PARKING BRAKE FLOOR<7XW> THA	8-98017-654-0	01	1	0709-0709				●
101	NUT; CABLE TO LEVER THA	8-98017-654-0	01	1	0710-	●	●	●	●
220	NUT; CLIP,PARKING CONT CABLE M6 FLANGE THA	0-91180-106-0	02	1	0409-	●	●	●	●	●
311	NUT; CLIP,PARKING BRK CABLE M6 FLANGE THA	0-91180-106-0	02	1	0204-0207	●		●		●
311	NUT; CLIP,PARKING BRK CABLE M6 FLANGE THA	0-91180-106-0	02	1	0208-0408	●	●	●	●	●
373	COVER; BOTTOM,PARKING BRK LEVER PARKING BRAKE FLOOR<7XW> THA	8-97355-930-0	01	1	0204-0507	●	●	●
373	COVER; BOTTOM,PARKING BRK LEVER THA	8-97355-930-0	01	1	0204-0507				●
373	COVER; BOTTOM,PARKING BRK LEVER THA	8-97355-930-0	01	1	0508-0708	●	●	●	●
373	COVER; BOTTOM,PARKING BRK LEVER THA	8-97355-930-0	01	1	0709-0709	●	●	●
373	COVER; BOTTOM,PARKING BRK LEVER PARKING BRAKE FLOOR<7XW> THA	8-97355-930-0	01	1	0709-0709				●
373	COVER; BOTTOM,PARKING BRK LEVER THA	8-97355-930-0	01	1	0710-	●	●	●	●

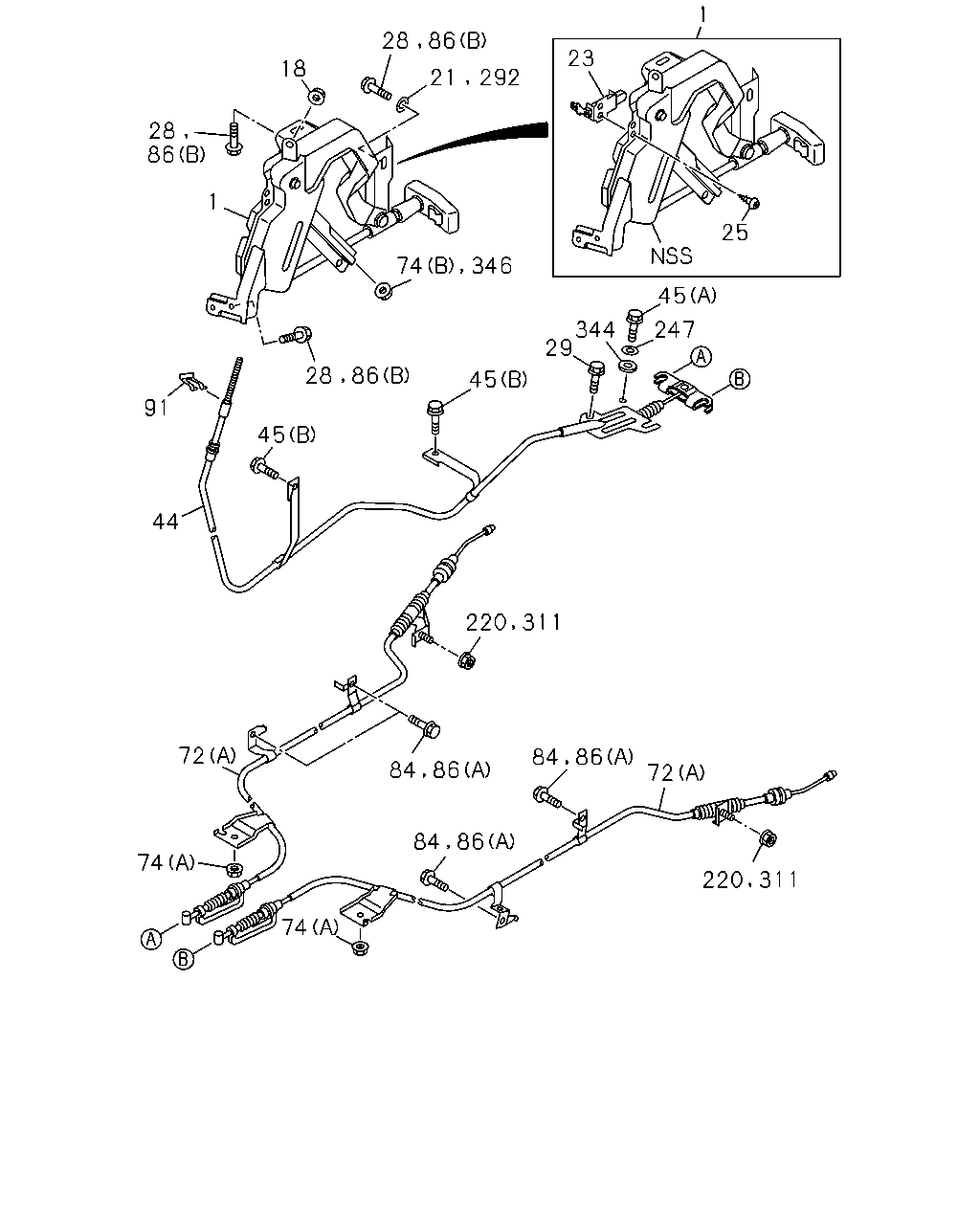

1 23 18 21 292 28 86 1 25 45 344 29 247 45 91 45 44 72 72 74 74 28 86 346 74 86 28 86 84 86 84 86 84 220 311

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	STEM ASM; PARKING BRK PARKING BRAKE FLOOR<7XW> THA	8-97363-082-0	01	1	0409-0507	●	●	●
1	STEM ASM; PARKING BRK THA	8-97363-082-0	01	1	0409-0507				●
1	STEM ASM; PARKING BRK THA	8-97363-082-0	01	1	0508-0606	●	●	●	●
1	STEM ASM; PARKING BRK THA	8-98007-034-0	01	1	0607-0708	●	●	●	●
1	STEM ASM; PARKING BRK THA	8-98007-034-0	01	1	0709-0709	●	●	●
1	STEM ASM; PARKING BRK PARKING BRAKE FLOOR<7XW> THA	8-98007-034-0	01	1	0709-0709				●
1	STEM ASM; PARKING BRK THA	8-98007-034-0	01	1	0710-	●	●	●	●
1	STEM ASM; PARKING BRK THA	8-97235-284-3	01	1	0204-0207					●
1	STEM ASM; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> THA	8-97235-284-3	01	1	0208-0304	●	●	●
1	STEM ASM; PARKING BRK THA	8-97235-284-3	01	1	0208-0304					●
1	STEM ASM; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> THA	8-97367-028-0	01	1	0305-0507	●	●	●
1	STEM ASM; PARKING BRK THA	8-97367-028-0	01	1	0305-0507					●
1	STEM ASM; PARKING BRK THA	8-97367-028-0	01	1	0508-0606					●
1	STEM ASM; PARKING BRK THA	8-98007-032-0	01	1	0607-0708					●
1	STEM ASM; PARKING BRK THA	8-98007-032-0	01	1	0709-0709					●
1	STEM ASM; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> THA	8-98007-032-0	01	1	0709-0709				●
1	STEM ASM; PARKING BRK THA	8-98007-032-0	01	1	0710-					●
18	NUT; STEM M8 FLANGE THA	0-91180-108-0	01	1	0204-0207					●
18	NUT; STEM EXC. PARKING BRAKE FLOOR<7XW> M8 FLANGE THA	0-91180-108-0	01	1	0208-0507	●	●	●
18	NUT; STEM M8 FLANGE THA	0-91180-108-0	01	1	0208-0507					●
18	NUT; STEM M8 FLANGE THA	0-91180-108-0	01	1	0508-0708					●
18	NUT; STEM M8 FLANGE THA	0-91180-108-0	01	1	0709-0709					●
18	NUT; STEM EXC. PARKING BRAKE FLOOR<7XW> M8 FLANGE THA	0-91180-108-0	01	1	0709-0709				●
18	NUT; STEM M8 FLANGE THA	0-91180-108-0	01	1	0710-					●
21	WASHER; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> ID=8.4 OD=18 THA	9-09164-608-0	01	1	0209-0408	●	●	●
21	WASHER; PARKING BRK ID=8.4 OD=18 THA	9-09164-608-0	01	1	0209-0408					●
23	SWITCH; PARKING BRK THA	8-97301-436-0	01	1	0204-0207	●		●
23	SWITCH; PARKING BRK PARKING BRAKE FLOOR<7XW> THA	8-97301-436-0	01	1	0208-0507	●	●	●
23	SWITCH; PARKING BRK THA	8-97301-436-0	01	1	0208-0507				●
23	SWITCH; PARKING BRK THA	8-97301-436-0	01	1	0508-0606	●	●	●	●
23	SWITCH; PARKING BRK THA	8-98017-627-0	01	1	0607-0708	●	●	●	●
23	SWITCH; PARKING BRK THA	8-98017-627-0	01	1	0709-0709	●	●	●
23	SWITCH; PARKING BRK PARKING BRAKE FLOOR<7XW> THA	8-98017-627-0	01	1	0709-0709				●
23	SWITCH; PARKING BRK THA	8-98017-627-0	01	1	0710-	●	●	●	●
23	SWITCH; PARKING BRK THA	8-97032-276-0	01	1	0204-0207					●
23	SWITCH; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> THA	8-97032-276-0	01	1	0208-0507	●	●	●
23	SWITCH; PARKING BRK THA	8-97032-276-0	01	1	0208-0507					●
23	SWITCH; PARKING BRK THA	8-97032-276-0	01	1	0508-0606					●
23	SWITCH; PARKING BRK THA	8-98017-625-0	01	1	0607-0708					●
23	SWITCH; PARKING BRK THA	8-98017-625-0	01	1	0709-0709					●
23	SWITCH; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> THA	8-98017-625-0	01	1	0709-0709				●
23	SWITCH; PARKING BRK THA	8-98017-625-0	01	1	0710-					●
25	SCREW; SW,PARKING BRK THA	8-97103-556-0	01	1	0204-0207	●		●		●
25	SCREW; SW,PARKING BRK THA	8-97103-556-0	01	1	0208-0606	●	●	●	●	●
25	SCREW; SW,PARKING BRK THA	8-98017-655-0	01	1	0607-	●	●	●	●	●
28	BOLT; HAND BRK LEVER M8X20 FLANGE THA	0-28650-820-0	02	1	0204-0207	●		●		●
28	BOLT; HAND BRK LEVER M8X20 FLANGE THA	0-28650-820-0	02	1	0204-0207					●
28	BOLT; HAND BRK LEVER M8X20 FLANGE THA	0-28650-820-0	02	1	0208-0408	●	●	●	●	●
28	BOLT; HAND BRK LEVER EXC. PARKING BRAKE FLOOR<7XW> M8X20 FLANGE THA	0-28650-820-0	02	1	0208-0408	●	●	●
28	BOLT; HAND BRK LEVER M8X20 FLANGE THA	0-28650-820-0	02	1	0208-0408					●
28	BOLT; HAND BRK LEVER EXC. PARKING BRAKE FLOOR<7XW> M8X20 FLANGE THA	0-28650-820-0	02	1	0409-0507	●	●	●
28	BOLT; HAND BRK LEVER M8X20 FLANGE THA	0-28650-820-0	02	1	0409-0507					●
28	BOLT; HAND BRK LEVER M8X20 FLANGE THA	0-28650-820-0	02	1	0508-0708					●
28	BOLT; HAND BRK LEVER M8X20 FLANGE THA	0-28650-820-0	02	1	0709-0709					●
28	BOLT; HAND BRK LEVER EXC. PARKING BRAKE FLOOR<7XW> M8X20 FLANGE THA	0-28650-820-0	02	1	0709-0709				●
28	BOLT; HAND BRK LEVER M8X20 FLANGE THA	0-28650-820-0	02	1	0710-					●
29	BOLT; PARKING BRK LEVER TO BODY M8X20 FLANGE THA	0-28650-820-0	03	1	0204-0207	●		●
29	BOLT; PARKING BRK LEVER TO BODY PARKING BRAKE FLOOR<7XW> M8X20 FLANGE THA	0-28650-820-0	03	1	0208-0408	●	●	●
29	BOLT; PARKING BRK LEVER TO BODY M8X20 FLANGE THA	0-28650-820-0	03	1	0208-0408				●
29	BOLT; PARKING BRK LEVER TO BODY M8X20 FLANGE THA	0-28650-820-0	02	1	0409-0712	●	●	●	●	●
29	BOLT; PARKING BRK LEVER TO BODY M8X20 FLANGE THA	0-28650-820-0	02	1	0801-					●
29	BOLT; PARKING BRK LEVER TO BODY M8X20 FLANGE THA	0-28650-820-0	02	1	0204-0207					●
29	BOLT; PARKING BRK LEVER TO BODY EXC. PARKING BRAKE FLOOR<7XW> M8X20 FLANGE THA	0-28650-820-0	02	1	0208-0408	●	●	●
29	BOLT; PARKING BRK LEVER TO BODY M8X20 FLANGE THA	0-28650-820-0	02	1	0208-0408					●
44	CABLE; PARKING BRK,FRT THA	8-97235-290-2	01	1	0204-0207					●
44	CABLE; PARKING BRK,FRT EXC. PARKING BRAKE FLOOR<7XW> THA	8-97235-290-2	01	1	0208-0211	●	●	●
44	CABLE; PARKING BRK,FRT THA	8-97235-290-2	01	1	0208-0211					●
44	CABLE; PARKING BRK,FRT EXC. PARKING BRAKE FLOOR<7XW> THA	8-97358-839-0	01	1	0212-0507	●	●	●
44	CABLE; PARKING BRK,FRT THA	8-97358-839-0	01	1	0212-0507					●
44	CABLE; PARKING BRK,FRT THA	8-97358-839-0	01	1	0508-0606					●
44	CABLE; PARKING BRK,FRT THA	8-98006-945-0	01	1	0607-0708					●
44	CABLE; PARKING BRK,FRT THA	8-98006-945-0	01	1	0709-0709					●
44	CABLE; PARKING BRK,FRT EXC. PARKING BRAKE FLOOR<7XW> THA	8-98006-945-0	01	1	0709-0709				●
44	CABLE; PARKING BRK,FRT THA	8-98006-945-0	01	1	0710-					●
45	BOLT; CABLE TO FLOOR (B) M8X12 FLANGE THA	0-28050-812-0	02	1	0204-0207					●
45	BOLT; CABLE TO FLOOR EXC. PARKING BRAKE FLOOR<7XW> (B) M8X12 FLANGE THA	0-28050-812-0	02	1	0208-0507	●	●	●
45	BOLT; CABLE TO FLOOR (B) M8X12 FLANGE THA	0-28050-812-0	02	1	0208-0507					●
45	BOLT; CABLE TO FLOOR (B) M8X12 FLANGE THA	0-28050-812-0	02	1	0508-0708					●
45	BOLT; CABLE TO FLOOR (B) M8X12 FLANGE THA	0-28050-812-0	02	1	0709-0709					●
45	BOLT; CABLE TO FLOOR EXC. PARKING BRAKE FLOOR<7XW> (B) M8X12 FLANGE THA	0-28050-812-0	02	1	0709-0709				●
45	BOLT; CABLE TO FLOOR (B) M8X12 FLANGE THA	0-28050-812-0	02	1	0710-					●
45	BOLT; CABLE TO FLOOR (A) M8X20 FLANGE THA	0-28650-820-0	01	1	0204-0207					●
45	BOLT; CABLE TO FLOOR EXC. PARKING BRAKE FLOOR<7XW> (A) M8X20 FLANGE THA	0-28650-820-0	01	1	0208-0408	●	●	●
45	BOLT; CABLE TO FLOOR (A) M8X20 FLANGE THA	0-28650-820-0	01	1	0208-0408					●
72	CABLE; PARKING BRK 4JJ1-TCX ENG<LS0> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98008-158-1	01	1	0711-0802		●
72	CABLE; PARKING BRK 4JJ1-TCX ENG<LS0> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98008-158-1	01	1	0803-	●	●
72	CABLE; PARKING BRK 4JJ1-TCX ENG<LS0> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98008-159-1	01	1	0711-0802		●
72	CABLE; PARKING BRK 4JJ1-TCX ENG<LS0> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98008-159-1	01	1	0803-	●	●
72	CABLE; PARKING BRK (A) THA	8-97235-293-6	01	1	0204-0207	●				●
72	CABLE; PARKING BRK (A) THA	8-97235-293-6	01	1	0208-0301	●	●			●
72	CABLE; PARKING BRK (A) THA	8-97361-256-0	01	1	0302-0304	●	●			●
72	CABLE; PARKING BRK (A) THA	8-97363-343-0	01	1	0305-0307	●	●			●
72	CABLE; PARKING BRK EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97363-343-0	01	1	0308-0606	●	●
72	CABLE; PARKING BRK (A) THA	8-97363-343-0	01	1	0308-0606					●
72	CABLE; PARKING BRK EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98007-008-1	01	1	0607-0708	●	●
72	CABLE; PARKING BRK (A) THA	8-98007-008-1	01	1	0607-0708					●
72	CABLE; PARKING BRK 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98007-008-1	01	1	0709-	●	●
72	CABLE; PARKING BRK (A) THA	8-98007-008-1	01	1	0709-					●
72	CABLE; PARKING BRK (A) THA	8-97235-292-5	01	1	0204-0207	●				●
72	CABLE; PARKING BRK (A) THA	8-97235-292-5	01	1	0208-0304	●	●			●
72	CABLE; PARKING BRK (A) THA	8-97363-341-0	01	1	0305-0305	●	●			●
72	CABLE; PARKING BRK (A) THA	8-97368-066-0	01	1	0306-0307	●	●			●
72	CABLE; PARKING BRK EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97368-066-0	01	1	0308-0606	●	●
72	CABLE; PARKING BRK (A) THA	8-97368-066-0	01	1	0308-0606					●
72	CABLE; PARKING BRK EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98007-007-1	01	1	0607-0708	●	●
72	CABLE; PARKING BRK (A) THA	8-98007-007-1	01	1	0607-0708					●
72	CABLE; PARKING BRK 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98007-007-1	01	1	0709-	●	●
72	CABLE; PARKING BRK (A) THA	8-98007-007-1	01	1	0709-					●
72	CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> (B) THA	8-97374-294-0	01	1	0204-0507	●	●	●
72	CABLE; PARKING BRK (B) THA	8-97374-294-0	01	1	0204-0507				●
72	CABLE; PARKING BRK (B) THA	8-97374-294-0	01	1	0508-0606	●	●	●	●
72	CABLE; PARKING BRK (B) THA	8-98017-629-0	01	1	0607-0708	●	●	●	●
72	CABLE; PARKING BRK (B) THA	8-98017-629-0	01	1	0709-0709	●	●	●
72	CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> (B) THA	8-98017-629-0	01	1	0709-0709				●
72	CABLE; PARKING BRK (B) THA	8-98017-629-0	01	1	0710-	●	●	●	●
72	CABLE; PARKING BRK (A) THA	8-97235-297-6	01	1	0204-0207			●
72	CABLE; PARKING BRK (A) THA	8-97235-297-6	01	1	0208-0301			●	●
72	CABLE; PARKING BRK (A) THA	8-97361-258-0	01	1	0302-0304			●	●
72	CABLE; PARKING BRK (A) THA	8-97363-346-0	01	1	0305-0307			●	●
72	CABLE; PARKING BRK HIGH RIDE SUSPENSION<7YC> (A) THA	8-97363-346-0	01	1	0308-0606	●	●
72	CABLE; PARKING BRK (A) THA	8-97363-346-0	01	1	0308-0606			●	●
72	CABLE; PARKING BRK HIGH RIDE SUSPENSION<7YC> (A) THA	8-98007-011-1	01	1	0607-	●	●
72	CABLE; PARKING BRK (A) THA	8-98007-011-1	01	1	0607-			●	●
72	CABLE; PARKING BRK (A) THA	8-97235-296-5	01	1	0204-0207			●
72	CABLE; PARKING BRK (A) THA	8-97235-296-5	01	1	0208-0304			●	●
72	CABLE; PARKING BRK (A) THA	8-97363-344-0	01	1	0305-0305			●	●
72	CABLE; PARKING BRK (A) THA	8-97368-068-0	01	1	0306-0307			●	●
72	CABLE; PARKING BRK HIGH RIDE SUSPENSION<7YC> (A) THA	8-97368-068-0	01	1	0308-0606	●	●
72	CABLE; PARKING BRK (A) THA	8-97368-068-0	01	1	0308-0606			●	●
72	CABLE; PARKING BRK HIGH RIDE SUSPENSION<7YC> (A) THA	8-98007-010-1	01	1	0607-	●	●
72	CABLE; PARKING BRK (A) THA	8-98007-010-1	01	1	0607-			●	●
74	NUT; CONT WIRE (A) THA	8-97136-404-0	02	1	0204-0207	●		●		●
74	NUT; CONT WIRE (A) THA	8-97136-404-0	02	1	0208-0606	●	●	●	●	●
74	NUT; CONT WIRE (A) IMA	8-98008-071-0	02	1	0607-	●	●	●	●	●
74	NUT; CONT WIRE EXC. PARKING BRAKE FLOOR<7XW> (B) M6 LOCK NUT FLANGE THA	0-91303-606-0	01	1	0409-0507	●	●	●
74	NUT; CONT WIRE (B) M6 LOCK NUT FLANGE THA	0-91303-606-0	01	1	0409-0507					●
74	NUT; CONT WIRE (B) M6 LOCK NUT FLANGE THA	0-91303-606-0	01	1	0508-0605					●
74	NUT; CONT WIRE (B) M6 LOCK NUT FLANGE THA	0-91380-006-0	01	1	0606-0708					●
74	NUT; CONT WIRE (B) M6 LOCK NUT FLANGE THA	0-91380-006-0	01	1	0709-0709					●
74	NUT; CONT WIRE EXC. PARKING BRAKE FLOOR<7XW> (B) M6 LOCK NUT FLANGE THA	0-91380-006-0	01	1	0709-0709				●
74	NUT; CONT WIRE (B) M6 LOCK NUT FLANGE THA	0-91380-006-0	01	1	0710-					●
84	BOLT; CABLE M6X20 FLANGE THA	0-28650-620-0	04	1	0204-0207	●		●		●
84	BOLT; CABLE M6X20 FLANGE THA	0-28650-620-0	04	1	0208-0408	●	●	●	●	●
86	BOLT (A) M6X20 FLANGE THA	0-28650-620-0	04	1	0409-	●	●	●	●	●
86	BOLT (B) M8X20 FLANGE THA	0-28650-820-0	03	1	0409-	●	●	●	●	●
91	CLIP; PARKING BRK CABLE THA	5-09709-039-0	01	1	0204-0207					●
91	CLIP; PARKING BRK CABLE EXC. PARKING BRAKE FLOOR<7XW> THA	5-09709-039-0	01	1	0208-0507	●	●	●
91	CLIP; PARKING BRK CABLE THA	5-09709-039-0	01	1	0208-0507					●
91	CLIP; PARKING BRK CABLE THA	5-09709-039-0	01	1	0508-0606					●
91	CLIP; PARKING BRK CABLE THA	8-98007-093-0	01	1	0607-0708					●
91	CLIP; PARKING BRK CABLE THA	8-98007-093-0	01	1	0709-0709					●
91	CLIP; PARKING BRK CABLE EXC. PARKING BRAKE FLOOR<7XW> THA	8-98007-093-0	01	1	0709-0709				●
91	CLIP; PARKING BRK CABLE THA	8-98007-093-0	01	1	0710-					●
220	NUT; CLIP,PARKING CONT CABLE M6 FLANGE THA	0-91180-106-0	02	1	0409-	●	●	●	●	●
247	WASHER; PL ID=8.4 OD=22 THA	9-09160-708-0	01	1	0204-0207					●
247	WASHER; PL EXC. PARKING BRAKE FLOOR<7XW> ID=8.4 OD=22 THA	9-09160-708-0	01	1	0208-0507	●	●	●
247	WASHER; PL ID=8.4 OD=22 THA	9-09160-708-0	01	1	0208-0507					●
247	WASHER; PL ID=8.4 OD=22 THA	9-09160-708-0	01	1	0508-0606					●
247	WASHER; PL ID=8.4 OD=22 IMA	0-91610-708-0	01	1	0607-0708					●
247	WASHER; PL ID=8.4 OD=22 IMA	0-91610-708-0	01	1	0709-0709					●
247	WASHER; PL EXC. PARKING BRAKE FLOOR<7XW> ID=8.4 OD=22 IMA	0-91610-708-0	01	1	0709-0709				●
247	WASHER; PL ID=8.4 OD=22 IMA	0-91610-708-0	01	1	0710-					●
292	WASHER; PARK BRK LEVER EXC. PARKING BRAKE FLOOR<7XW> ID=8.4 OD=18 THA	9-09164-608-0	01	1	0409-0507	●	●	●
292	WASHER; PARK BRK LEVER ID=8.4 OD=18 THA	9-09164-608-0	01	1	0409-0507					●
292	WASHER; PARK BRK LEVER ID=8.4 OD=18 THA	9-09164-608-0	01	1	0508-0606					●
292	WASHER; PARK BRK LEVER ID=8.4 OD=18 IMA	0-91614-608-0	01	1	0607-0708					●
292	WASHER; PARK BRK LEVER ID=8.4 OD=18 IMA	0-91614-608-0	01	1	0709-0709					●
292	WASHER; PARK BRK LEVER EXC. PARKING BRAKE FLOOR<7XW> ID=8.4 OD=18 IMA	0-91614-608-0	01	1	0709-0709				●
292	WASHER; PARK BRK LEVER ID=8.4 OD=18 IMA	0-91614-608-0	01	1	0710-					●
311	NUT; CLIP,PARKING BRK CABLE M6 FLANGE THA	0-91180-106-0	02	1	0204-0207	●		●		●
311	NUT; CLIP,PARKING BRK CABLE M6 FLANGE THA	0-91180-106-0	02	1	0208-0408	●	●	●	●	●
344	GASKET; DASH LWR THA	8-94334-899-1	01	1	0204-0207					●
344	GASKET; DASH LWR EXC. PARKING BRAKE FLOOR<7XW> THA	8-94334-899-1	01	1	0208-0410	●	●	●
344	GASKET; DASH LWR THA	8-94334-899-1	01	1	0208-0410					●
346	NUT; ADJUST M6 LOCK NUT FLANGE THA	0-91303-606-0	01	1	0204-0207					●
346	NUT; ADJUST EXC. PARKING BRAKE FLOOR<7XW> M6 LOCK NUT FLANGE THA	0-91303-606-0	01	1	0208-0408	●	●	●
346	NUT; ADJUST M6 LOCK NUT FLANGE THA	0-91303-606-0	01	1	0208-0408					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
