3-10 — BRAKE PEDAL AND CONTROL (#72864) — 94 parça

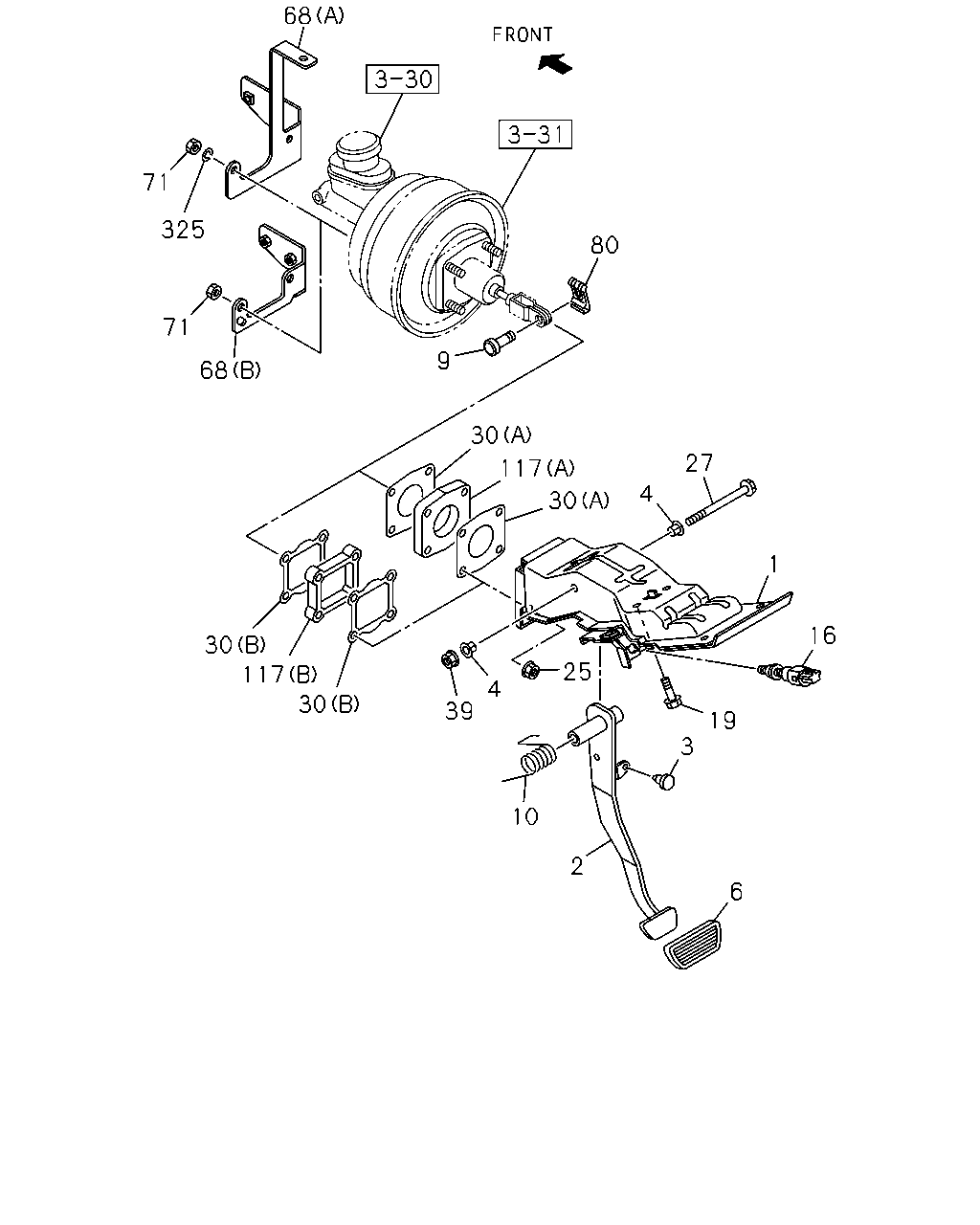

çizim 116471
68 71 325 80 71 9 68 30 27 117 4 30 1 16 30 25 117 30 4 39 19 3 10 2 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 BRACKET ASM; PEDAL
THA 		8-97301-681-1 01 1 0204-0207 ● ● ●
1 BRACKET ASM; PEDAL
THA 		8-97301-681-1 01 1 0208-0406 ● ● ● ● ●
1 BRACKET ASM; PEDAL
THA 		8-97368-145-0 01 1 0407-0606 ● ● ● ● ●
1 BRACKET ASM; PEDAL
THA 		8-98013-694-0 01 1 0607- ● ● ● ● ●
2 PEDAL; BRK
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97327-158-1 01 1 0607-0608 ● ● ● ● ●
2 PEDAL; BRK
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-97327-158-1 01 1 0609-0708 ● ● ● ● ●
2 PEDAL; BRK
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97327-158-1 01 1 0709-0709 ● ● ● ● ●
2 PEDAL; BRK
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-97327-158-1 01 1 0710- ● ● ● ● ●
2 PEDAL; BRK
A/T 4 SPEED-JATCO<RMK> THA 		8-97327-159-1 01 1 0607-0608 ● ● ● ●
2 PEDAL; BRK
A/T 4 SPEED-JATCO<RMK> THA 		8-97327-159-1 01 1 0609-0708 ● ● ●
2 PEDAL; BRK
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-97327-159-1 01 1 0609-0708 ●
2 PEDAL; BRK
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-97327-159-1 01 1 0709-0709 ● ● ● ●
2 PEDAL; BRK
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-97327-159-1 01 1 0710- ● ● ● ●
2 PEDAL; BRK
A/T 4 SPEED-JATCO<RMK> THA 		8-97301-680-1 01 1 0204-0207 ● ●
2 PEDAL; BRK
A/T 4 SPEED-JATCO<RMK> THA 		8-97301-680-1 01 1 0208-0606 ● ● ● ●
2 PEDAL; BRK
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97301-679-1 01 1 0204-0207 ● ●
2 PEDAL; BRK
THA 		8-97301-679-1 01 1 0204-0207 ●
2 PEDAL; BRK
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97301-679-1 01 1 0208-0408 ● ● ● ●
2 PEDAL; BRK
THA 		8-97301-679-1 01 1 0208-0408 ●
2 PEDAL; BRK
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97301-679-1 01 1 0409-0412 ● ●
2 PEDAL; BRK
THA 		8-97301-679-1 01 1 0409-0412 ●
2 PEDAL; BRK
M/T MUA 5 SPEED 5G<RSP> THA 		8-97301-679-1 01 1 0409-0412 ● ●
2 PEDAL; BRK
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97301-679-1 01 1 0501-0507 ● ●
2 PEDAL; BRK
THA 		8-97301-679-1 01 1 0501-0507 ●
2 PEDAL; BRK
M/T MUA 5 SPEED 5G<RSP> THA 		8-97301-679-1 01 1 0501-0507 ● ●
2 PEDAL; BRK
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97301-679-1 01 1 0508-0606 ● ●
2 PEDAL; BRK
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97301-679-1 01 1 0508-0606 ●
2 PEDAL; BRK
M/T MUA 5 SPEED 5G<RSP> THA 		8-97301-679-1 01 1 0508-0606 ● ●
3 STOPPER; BRK PEDAL
THA 		8-97302-035-0 01 1 0204-0207 ● ● ●
3 STOPPER; BRK PEDAL
THA 		8-97302-035-0 01 1 0208- ● ● ● ● ●
4 BUSHING; BRK PEDAL
THA 		8-97301-688-0 02 1 0204-0207 ● ● ●
4 BUSHING; BRK PEDAL
THA 		8-97301-688-0 02 1 0208-1008 ● ● ● ● ●
6 COVER; BRK PEDAL
A/T 4 SPEED-JATCO<RMK> THA 		8-97263-035-0 01 1 0204-0207 ● ●
6 COVER; BRK PEDAL
A/T 4 SPEED-JATCO<RMK> THA 		8-97263-035-0 01 1 0208-0608 ● ● ● ●
6 COVER; BRK PEDAL
A/T 4 SPEED-JATCO<RMK> THA 		8-97263-035-0 01 1 0609-0708 ● ● ●
6 COVER; BRK PEDAL
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-97263-035-0 01 1 0609-0708 ●
6 COVER; BRK PEDAL
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-97263-035-0 01 1 0709-0709 ● ● ● ●
6 COVER; BRK PEDAL
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-97263-035-0 01 1 0710- ● ● ● ●
6 COVER; BRK PEDAL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97318-799-0 01 1 0204-0207 ● ●
6 COVER; BRK PEDAL
THA 		8-97318-799-0 01 1 0204-0207 ●
6 COVER; BRK PEDAL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97318-799-0 01 1 0208-0408 ● ● ● ●
6 COVER; BRK PEDAL
THA 		8-97318-799-0 01 1 0208-0408 ●
6 COVER; BRK PEDAL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97318-799-0 01 1 0409-0412 ● ●
6 COVER; BRK PEDAL
THA 		8-97318-799-0 01 1 0409-0412 ●
6 COVER; BRK PEDAL
M/T MUA 5 SPEED 5G<RSP> THA 		8-97318-799-0 01 1 0409-0412 ● ●
6 COVER; BRK PEDAL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97318-799-0 01 1 0501-0507 ● ●
6 COVER; BRK PEDAL
THA 		8-97318-799-0 01 1 0501-0507 ●
6 COVER; BRK PEDAL
M/T MUA 5 SPEED 5G<RSP> THA 		8-97318-799-0 01 1 0501-0507 ● ●
6 COVER; BRK PEDAL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97318-799-0 01 1 0508-0606 ● ●
6 COVER; BRK PEDAL
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97318-799-0 01 1 0508-0606 ●
6 COVER; BRK PEDAL
M/T MUA 5 SPEED 5G<RSP> THA 		8-97318-799-0 01 1 0508-0606 ● ●
6 COVER; BRK PEDAL
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97318-799-0 01 1 0607-0608 ● ● ● ● ●
6 COVER; BRK PEDAL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-97318-799-0 01 1 0609-0708 ● ● ● ● ●
6 COVER; BRK PEDAL
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97318-799-0 01 1 0709-0709 ● ● ● ● ●
6 COVER; BRK PEDAL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-97318-799-0 01 1 0710- ● ● ● ● ●
9 PIN; JAW JOINT
IMA 		8-97311-602-0 01 1 0204-0207 ● ● ●
9 PIN; JAW JOINT
IMA 		8-97311-602-0 01 1 0208- ● ● ● ● ●
10 SPRING; RETURN,BRK PEDAL
THA 		8-97301-689-1 01 1 0204-0207 ● ● ●
10 SPRING; RETURN,BRK PEDAL
THA 		8-97301-689-1 01 1 0208-0606 ● ● ● ● ●
10 SPRING; RETURN,BRK PEDAL
THA 		8-97387-812-0 01 1 0607- ● ● ● ● ●
16 SWITCH; STOP LAMP
THA 		8-97301-684-0 01 1 0204-0207 ● ● ●
16 SWITCH; STOP LAMP
THA 		8-97301-684-0 01 1 0208- ● ● ● ● ●
19 BOLT; BRKT
M8X20 FLANGE THA 		0-28650-820-0 02 1 0204-0207 ● ● ●
19 BOLT; BRKT
M8X20 FLANGE THA 		0-28650-820-0 02 1 0208- ● ● ● ● ●
25 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE THA 		5-09440-005-0 04 1 0204-0207 ● ● ●
25 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE THA 		8-97943-102-0 04 1 0208-0606 ● ● ● ● ●
25 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE THA 		8-97581-233-0 04 1 0607- ● ● ● ● ●
27 SHAFT; BRK PEDAL
THA 		8-97304-171-0 01 1 0204-0207 ● ● ●
27 SHAFT; BRK PEDAL
THA 		8-97304-171-0 01 1 0208- ● ● ● ● ●
30 GASKET; M/VAC TO BODY
4JH1 ENG<RJX>,4JA1 ENG<RLE> (A) THA 		8-97301-539-0 02 1 0204-0207 ● ●
30 GASKET; M/VAC TO BODY
(A) THA 		8-97301-539-0 02 1 0204-0207 ●
30 GASKET; M/VAC TO BODY
(A) THA 		8-97301-539-0 02 1 0208-0606 ● ● ● ● ●
30 GASKET; M/VAC TO BODY
(B) THA 		8-97943-457-0 02 1 0607- ● ● ● ● ●
39 NUT; STOPPER LK
M10 LOCK NUT FLANGE THA 		0-91303-610-0 01 1 0204-0207 ● ● ●
39 NUT; STOPPER LK
M10 LOCK NUT FLANGE THA 		0-91303-610-0 01 1 0208-0606 ● ● ● ● ●
39 NUT; STOPPER LK
M10 LOCK NUT FLANGE THA 		0-91380-010-0 01 1 0607- ● ● ● ● ●
68 BRACKET; SERVO TO DASH PANEL
4JH1 ENG<RJX>,4JA1 ENG<RLE> (A) THA 		8-97301-541-1 01 1 0204-0207 ● ●
68 BRACKET; SERVO TO DASH PANEL
(A) THA 		8-97301-541-1 01 1 0204-0207 ●
68 BRACKET; SERVO TO DASH PANEL
(A) THA 		8-97301-541-1 01 1 0208-0606 ● ● ● ● ●
68 BRACKET; SERVO TO DASH PANEL
(B) THA 		8-98007-772-0 01 1 0607- ● ● ● ● ●
71 NUT; BRK M/CYL
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97301-537-0 02 1 0204-0207 ● ●
71 NUT; BRK M/CYL
THA 		8-97301-537-0 02 1 0204-0207 ●
71 NUT; BRK M/CYL
THA 		8-97301-537-0 02 1 0208-0501 ● ● ● ● ●
71 NUT; BRK M/CYL
THA 		8-97301-598-0 02 1 0502-0606 ● ● ● ● ●
71 NUT; BRK M/CYL
THA 		8-98031-675-0 02 1 0607- ● ● ● ● ●
80 PIN; SNAP,BRK PEDAL
THA 		8-97311-594-0 01 1 0204-0207 ● ● ●
80 PIN; SNAP,BRK PEDAL
THA 		8-97311-594-0 01 1 0208-0606 ● ● ● ● ●
80 PIN; SNAP,BRK PEDAL
IMA 		8-98007-161-0 01 1 0607- ● ● ● ● ●
117 SPACER; M/VAC TO BODY
4JH1 ENG<RJX>,4JA1 ENG<RLE> (A) THA 		8-97301-540-0 01 1 0204-0207 ● ●
117 SPACER; M/VAC TO BODY
(A) THA 		8-97301-540-0 01 1 0204-0207 ●
117 SPACER; M/VAC TO BODY
(A) THA 		8-97301-540-0 01 1 0208-0606 ● ● ● ● ●
117 SPACER; M/VAC TO BODY
(B) THA 		8-98008-278-0 01 1 0607- ● ● ● ● ●
325 WASHER; BRK M/CYL
THA 		8-97301-538-0 02 1 0204-0207 ● ● ●
325 WASHER; BRK M/CYL
THA 		8-97301-538-0 02 1 0208-0501 ● ● ● ● ●
