2-66 — MANUAL TRANSFER GEAR; OUTPUT (#72861) — 94 parça

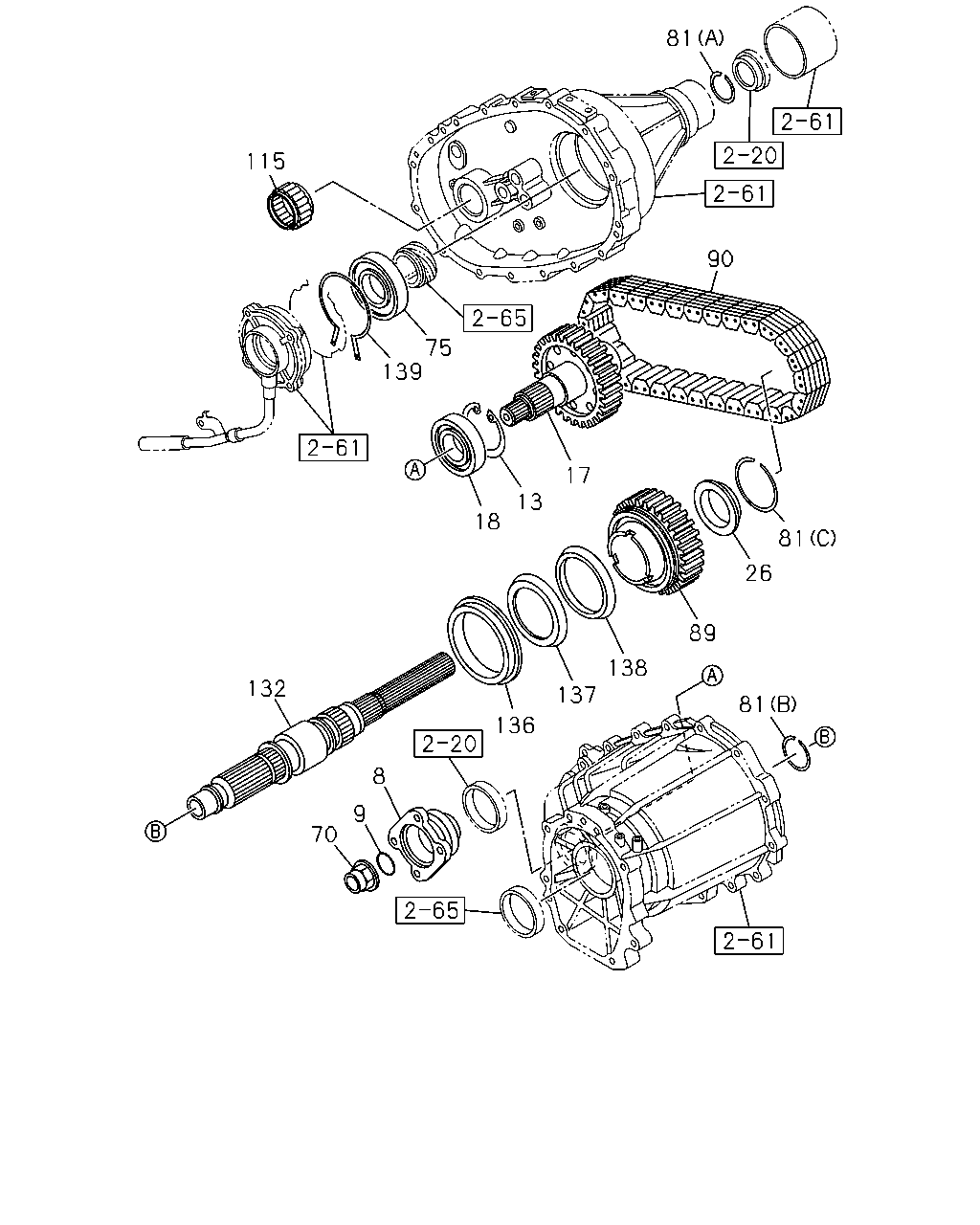

çizim 116583
81 115 90 75 139 17 13 18 81 26 89 138 132 137 81 136 8 9 70
BalonParca AdiParca NoAdetTipApplied Date A B
8 FLANGE; OUTPUT
THA 		8-97307-914-1 01 1 0204-0207 ●
8 FLANGE; OUTPUT
THA 		8-97307-914-1 01 1 0208-0310 ● ●
8 FLANGE; OUTPUT
IMA 		8-97319-825-2 01 1 0311-0708 ● ●
8 FLANGE; OUTPUT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> IMA 		8-97319-825-2 01 1 0709-0709 ● ●
8 FLANGE; OUTPUT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> IMA 		8-97319-825-2 01 1 0710- ● ●
9 GASKET; SHAFT
ID=29.7 OD=36.1 IMA 		8-94483-035-0 01 1 0204-0207 ●
9 GASKET; SHAFT
ID=29.7 OD=36.1 IMA 		8-94483-035-0 01 1 0208-0708 ● ●
9 GASKET; SHAFT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> ID=29.7 OD=36.1 IMA 		8-94483-035-0 01 1 0709-0709 ● ●
9 GASKET; SHAFT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> ID=29.7 OD=36.1 IMA 		8-94483-035-0 01 1 0710- ● ●
13 RING; SNAP,OUTPUT,FRT
ID=67 IMA 		8-97305-402-0 01 1 0204-0207 ●
13 RING; SNAP,OUTPUT,FRT
ID=67 IMA 		8-97305-402-0 01 1 0208-0708 ● ●
13 RING; SNAP,OUTPUT,FRT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> ID=67 IMA 		8-97305-402-0 01 1 0709-0709 ● ●
13 RING; SNAP,OUTPUT,FRT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> ID=67 IMA 		8-97305-402-0 01 1 0710- ● ●
17 SHAFT; OUTPUT
IMA 		8-97231-853-0 01 1 0204-0207 ●
17 SHAFT; OUTPUT
IMA 		8-97231-853-0 01 1 0208-0708 ● ●
17 SHAFT; OUTPUT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> IMA 		8-97231-853-0 01 1 0709-0709 ● ●
17 SHAFT; OUTPUT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> IMA 		8-97231-853-0 01 1 0710- ● ●
18 BEARING; BALL,OUTPUT,FRT
NSK IMA 		8-94422-172-1 01 1 0204-0207 ●
18 BEARING; BALL,OUTPUT,FRT
NSK IMA 		8-94422-172-1 01 1 0208-0708 ● ●
18 BEARING; BALL,OUTPUT,FRT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> NSK IMA 		8-94422-172-1 01 1 0709-0709 ● ●
18 BEARING; BALL,OUTPUT,FRT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> NSK IMA 		8-94422-172-1 01 1 0710- ● ●
26 WASHER; THRUST
IMA 		8-97239-774-0 01 1 0204-0207 ●
26 WASHER; THRUST
IMA 		8-97239-774-0 01 1 0208-0708 ● ●
26 WASHER; THRUST
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> IMA 		8-97239-774-0 01 1 0709-0709 ● ●
26 WASHER; THRUST
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> IMA 		8-97239-774-0 01 1 0710- ● ●
70 NUT; RR OUTPUT SHAFT,TRANSFER
THA 		8-97305-605-0 01 1 0204-0207 ●
70 NUT; RR OUTPUT SHAFT,TRANSFER
THA 		8-97305-605-0 01 1 0208-0603 ● ●
70 NUT; RR OUTPUT SHAFT,TRANSFER
M36 FLANGE IMA 		8-97358-603-0 01 1 0604-0708 ● ●
70 NUT; RR OUTPUT SHAFT,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> M36 FLANGE IMA 		8-97358-603-0 01 1 0709-0709 ● ●
70 NUT; RR OUTPUT SHAFT,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> M36 FLANGE IMA 		8-97358-603-0 01 1 0710- ● ●
75 BEARING; BALL,RR OUTPUT
IMA 		8-97234-737-0 01 1 0204-0207 ●
75 BEARING; BALL,RR OUTPUT
IMA 		8-97234-737-0 01 1 0208-0708 ● ●
75 BEARING; BALL,RR OUTPUT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> IMA 		8-97234-737-0 01 1 0709-0709 ● ●
75 BEARING; BALL,RR OUTPUT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> IMA 		8-97234-737-0 01 1 0710- ● ●
81 RING; SNAP
(A) T=1.9 IMA 		8-97305-404-1 01 1 0204-0207 ●
81 RING; SNAP
(A) T=1.9 IMA 		8-97305-404-1 01 1 0208-0708 ● ●
81 RING; SNAP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (A) T=1.9 IMA 		8-97305-404-1 01 1 0709-0709 ● ●
81 RING; SNAP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> (A) T=1.9 IMA 		8-97305-404-1 01 1 0710- ● ●
81 RING; SNAP
(B) T=1.4 IMA 		8-97305-405-0 01 1 0204-0207 ●
81 RING; SNAP
(B) T=1.4 IMA 		8-97305-405-0 01 1 0208-0708 ● ●
81 RING; SNAP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (B) T=1.4 IMA 		8-97305-405-0 01 1 0709-0709 ● ●
81 RING; SNAP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> (B) T=1.4 IMA 		8-97305-405-0 01 1 0710- ● ●
81 RING; SNAP
(C) T=2.15 RED IMA 		8-97305-407-0 01 1 0204-0207 ●
81 RING; SNAP
(C) T=2.15 RED IMA 		8-97305-407-0 01 1 0208-0708 ● ●
81 RING; SNAP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (C) T=2.15 RED IMA 		8-97305-407-0 01 1 0709-0709 ● ●
81 RING; SNAP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> (C) T=2.15 RED IMA 		8-97305-407-0 01 1 0710- ● ●
81 RING; SNAP
(C) T=2.10 NON COLOR IMA 		8-97305-408-0 01 1 0204-0207 ●
81 RING; SNAP
(C) T=2.10 NON COLOR IMA 		8-97305-408-0 01 1 0208-0708 ● ●
81 RING; SNAP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (C) T=2.10 NON COLOR IMA 		8-97305-408-0 01 1 0709-0709 ● ●
81 RING; SNAP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> (C) T=2.10 NON COLOR IMA 		8-97305-408-0 01 1 0710- ● ●
81 RING; SNAP
(C) T=2.05 BLUE IMA 		8-97305-409-0 01 1 0204-0207 ●
81 RING; SNAP
(C) T=2.05 BLUE IMA 		8-97305-409-0 01 1 0208-0708 ● ●
81 RING; SNAP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (C) T=2.05 BLUE IMA 		8-97305-409-0 01 1 0709-0709 ● ●
81 RING; SNAP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> (C) T=2.05 BLUE IMA 		8-97305-409-0 01 1 0710- ● ●
81 RING; SNAP
(C) T=2.00 WHITE IMA 		8-97305-410-0 01 1 0204-0207 ●
81 RING; SNAP
(C) T=2.00 WHITE IMA 		8-97305-410-0 01 1 0208-0708 ● ●
81 RING; SNAP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (C) T=2.00 WHITE IMA 		8-97305-410-0 01 1 0709-0709 ● ●
81 RING; SNAP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> (C) T=2.00 WHITE IMA 		8-97305-410-0 01 1 0710- ● ●
89 SPROCKET; DRIVE
THA 		8-97231-852-0 01 1 0204-0207 ●
89 SPROCKET; DRIVE
THA 		8-97231-852-0 01 1 0208-0506 ● ●
89 SPROCKET; DRIVE
Z=48 IMA 		8-98013-525-0 01 1 0507-0708 ● ●
89 SPROCKET; DRIVE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> Z=48 IMA 		8-98013-525-0 01 1 0709-0709 ● ●
89 SPROCKET; DRIVE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> Z=48 IMA 		8-98013-525-0 01 1 0710- ● ●
90 CHAIN; DRIVE
THA 		8-97323-177-0 01 1 0204-0207 ●
90 CHAIN; DRIVE
THA 		8-97323-177-0 01 1 0208-0708 ● ●
90 CHAIN; DRIVE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97323-177-0 01 1 0709-0709 ● ●
90 CHAIN; DRIVE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> THA 		8-97323-177-0 01 1 0710- ● ●
115 BEARING; NEEDLE
IMA 		8-97234-747-0 01 1 0204-0207 ●
115 BEARING; NEEDLE
IMA 		8-97234-747-0 01 1 0208-0708 ● ●
115 BEARING; NEEDLE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> IMA 		8-97234-747-0 01 1 0709-0709 ● ●
115 BEARING; NEEDLE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> IMA 		8-97234-747-0 01 1 0710- ● ●
132 SHAFT; MAIN,TRANSFER
THA 		8-97231-833-3 01 1 0204-0207 ●
132 SHAFT; MAIN,TRANSFER
THA 		8-97231-833-3 01 1 0208-0608 ● ●
132 SHAFT; MAIN,TRANSFER
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97231-833-3 01 1 0609-0708 ● ●
132 SHAFT; MAIN,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97231-833-3 01 1 0709- ● ●
132 SHAFT; MAIN,TRANSFER
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> Z=34-36-26-27 THA 		8-98013-925-0 01 1 0609-0708 ●
132 SHAFT; MAIN,TRANSFER
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> Z=34-36-26-27 THA 		8-98013-925-0 01 1 0710-0802 ●
132 SHAFT; MAIN,TRANSFER
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> Z=34-36-26-27 IMA 		8-98013-925-1 01 1 0803- ● ●
136 BLOCK RING; 2-4
Z=48 IMA 		8-94363-054-1 01 1 0204-0207 ●
136 BLOCK RING; 2-4
Z=48 IMA 		8-94363-054-1 01 1 0208-0708 ● ●
136 BLOCK RING; 2-4
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> Z=48 IMA 		8-94363-054-1 01 1 0709-0709 ● ●
136 BLOCK RING; 2-4
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> Z=48 IMA 		8-94363-054-1 01 1 0710- ● ●
137 RING; OUTSIDE,2-4
OD=90.0 IMA 		8-94363-055-1 01 1 0204-0207 ●
137 RING; OUTSIDE,2-4
OD=90.0 IMA 		8-94363-055-1 01 1 0208-0708 ● ●
137 RING; OUTSIDE,2-4
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> OD=90.0 IMA 		8-94363-055-1 01 1 0709-0709 ● ●
137 RING; OUTSIDE,2-4
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> OD=90.0 IMA 		8-94363-055-1 01 1 0710- ● ●
138 RING; INSIDE,2-4
OD=95.8 IMA 		8-94363-056-0 01 1 0204-0207 ●
138 RING; INSIDE,2-4
OD=95.8 IMA 		8-94363-056-0 01 1 0208-0708 ● ●
138 RING; INSIDE,2-4
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> OD=95.8 IMA 		8-94363-056-0 01 1 0709-0709 ● ●
138 RING; INSIDE,2-4
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> OD=95.8 IMA 		8-94363-056-0 01 1 0710- ● ●
139 RING; RETAINING,RR OUTPUT
ID=76 IMA 		8-97305-012-0 01 1 0204-0207 ●
139 RING; RETAINING,RR OUTPUT
ID=76 IMA 		8-97305-012-0 01 1 0208-0708 ● ●
139 RING; RETAINING,RR OUTPUT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> ID=76 IMA 		8-97305-012-0 01 1 0709-0709 ● ●
139 RING; RETAINING,RR OUTPUT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> ID=76 IMA 		8-97305-012-0 01 1 0710- ● ●
