2-65 — MANUAL TRANSFER GEAR; INPUT AND IDLE (#72860) — 75 parça

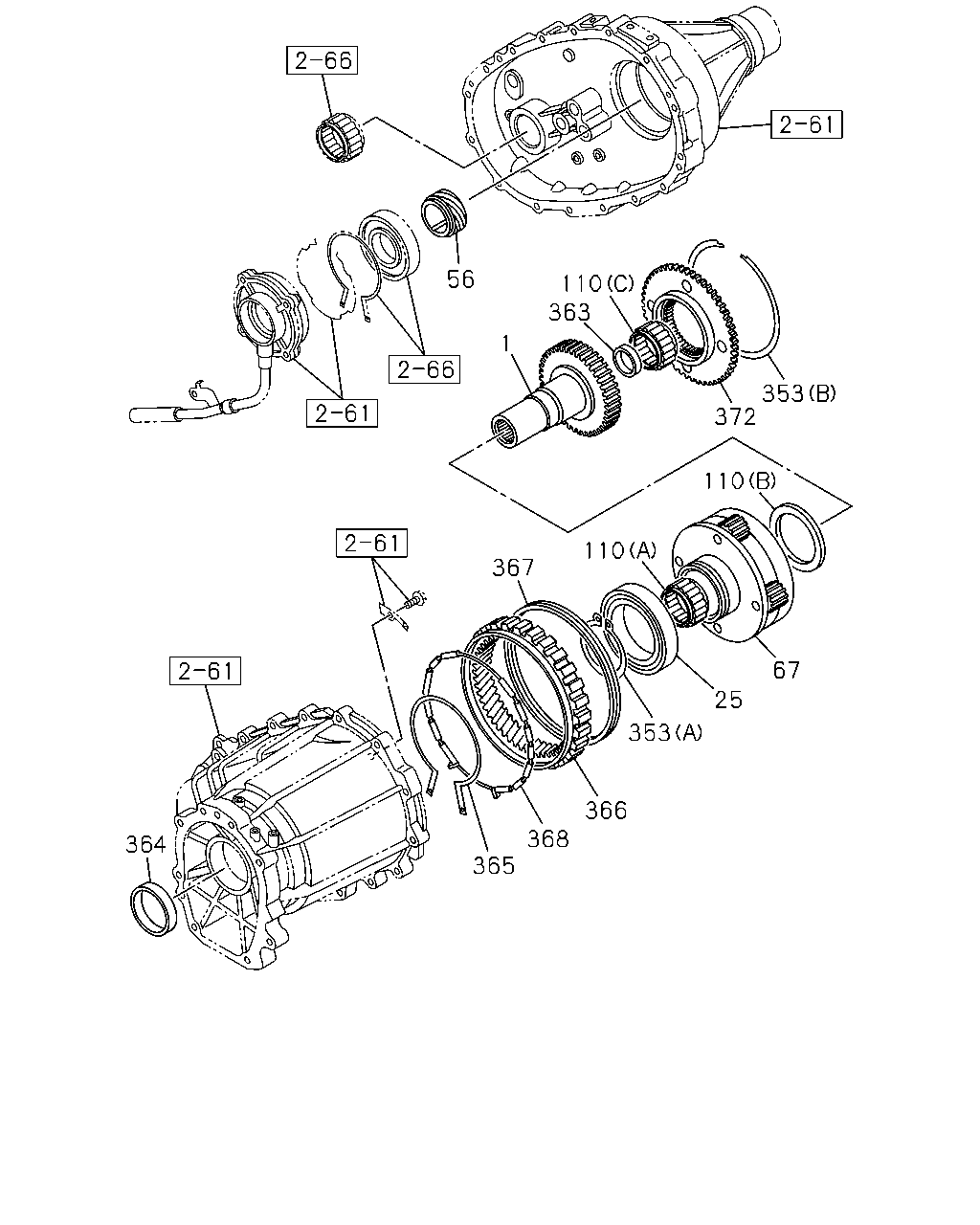

çizim 116466
56 110 363 1 353 372 110 110 367 67 25 353 366 364 368 365
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; GEAR,INPUT
THA 		8-97231-827-1 01 1 0204-0207 ●
1 SHAFT; GEAR,INPUT
THA 		8-97231-827-1 01 1 0208-0310 ● ●
1 SHAFT; GEAR,INPUT
IMA 		8-97373-467-0 01 1 0311-0708 ● ●
1 SHAFT; GEAR,INPUT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> IMA 		8-97373-467-0 01 1 0709-0709 ● ●
1 SHAFT; GEAR,INPUT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> IMA 		8-97373-467-0 01 1 0710- ● ●
25 BEARING; BALL,INPUT SHAFT
NSK IMA 		8-97234-735-0 01 1 0204-0207 ●
25 BEARING; BALL,INPUT SHAFT
NSK IMA 		8-97234-735-0 01 1 0208-0708 ● ●
25 BEARING; BALL,INPUT SHAFT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> NSK IMA 		8-97234-735-0 01 1 0709-0709 ● ●
25 BEARING; BALL,INPUT SHAFT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> NSK IMA 		8-97234-735-0 01 1 0710- ● ●
56 GEAR; SPD DRIVE,TRANSFER
A/T 4 SPEED-JATCO<RMK> Z=5 THA 		8-97238-580-0 01 1 0204-0207 ●
56 GEAR; SPD DRIVE,TRANSFER
A/T 4 SPEED-JATCO<RMK> Z=5 THA 		8-97238-580-0 01 1 0208-0408 ● ●
56 GEAR; SPD DRIVE,TRANSFER
M/T MUA 5 SPEED<RMN> Z=6 IMA 		8-97238-581-0 01 1 0204-0207 ●
56 GEAR; SPD DRIVE,TRANSFER
M/T MUA 5 SPEED<RMN> Z=6 IMA 		8-97238-581-0 01 1 0208-0408 ● ●
56 GEAR; SPD DRIVE,TRANSFER
Z=6 IMA 		8-97238-581-0 01 1 0409-0608 ● ●
56 GEAR; SPD DRIVE,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> Z=6 IMA 		8-97238-581-0 01 1 0609-0708 ● ●
56 GEAR; SPD DRIVE,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> Z=6 IMA 		8-97238-581-0 01 1 0709-0709 ● ●
56 GEAR; SPD DRIVE,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> Z=6 IMA 		8-97238-581-0 01 1 0710- ● ●
56 GEAR; SPD DRIVE,TRANSFER
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> Z=7 THA 		8-98008-938-0 01 1 0609-0708 ●
56 GEAR; SPD DRIVE,TRANSFER
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> Z=7 THA 		8-98008-938-0 01 1 0710-0802 ●
56 GEAR; SPD DRIVE,TRANSFER
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> Z=7 THA 		8-98008-938-0 01 1 0803-1008 ● ●
56 GEAR; SPD DRIVE,TRANSFER
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> Z=7 THA 		8-98008-938-0 01 1 1009- ● ●
67 CARRIER; TRANSFER
THA 		8-97252-987-1 01 1 0204-0207 ●
67 CARRIER; TRANSFER
THA 		8-97252-987-1 01 1 0208-0708 ● ●
67 CARRIER; TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97252-987-1 01 1 0709-0709 ● ●
67 CARRIER; TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> THA 		8-97252-987-1 01 1 0710-1001 ● ●
67 CARRIER; TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> IMA 		8-98158-116-0 01 1 1002- ● ●
110 BEARING; NEEDLE
(A) IMA 		8-97234-739-0 01 1 0204-0207 ●
110 BEARING; NEEDLE
(A) IMA 		8-97234-739-0 01 1 0208-0708 ● ●
110 BEARING; NEEDLE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (A) IMA 		8-97234-739-0 01 1 0709-0709 ● ●
110 BEARING; NEEDLE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> (A) IMA 		8-97234-739-0 01 1 0710- ● ●
110 BEARING; NEEDLE
(B) IMA 		8-97234-741-0 01 1 0204-0207 ●
110 BEARING; NEEDLE
(B) IMA 		8-97234-741-0 01 1 0208-0708 ● ●
110 BEARING; NEEDLE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (B) IMA 		8-97234-741-0 01 1 0709-0709 ● ●
110 BEARING; NEEDLE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> (B) IMA 		8-97234-741-0 01 1 0710- ● ●
110 BEARING; NEEDLE
(C) IMA 		8-97234-743-0 01 1 0204-0207 ●
110 BEARING; NEEDLE
(C) IMA 		8-97234-743-0 01 1 0208-0708 ● ●
110 BEARING; NEEDLE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (C) IMA 		8-97234-743-0 01 1 0709-0709 ● ●
110 BEARING; NEEDLE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> (C) IMA 		8-97234-743-0 01 1 0710- ● ●
353 RING; SNAP,CARRIER
(A) ID=65.5 IMA 		8-97305-403-0 01 1 0204-0207 ●
353 RING; SNAP,CARRIER
(A) ID=65.5 IMA 		8-97305-403-0 01 1 0208-0708 ● ●
353 RING; SNAP,CARRIER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (A) ID=65.5 IMA 		8-97305-403-0 01 1 0709-0709 ● ●
353 RING; SNAP,CARRIER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> (A) ID=65.5 IMA 		8-97305-403-0 01 1 0710- ● ●
353 RING; SNAP,CARRIER
(B) ID=137 IMA 		8-97305-406-0 01 1 0204-0207 ●
353 RING; SNAP,CARRIER
(B) ID=137 IMA 		8-97305-406-0 01 1 0208-0708 ● ●
353 RING; SNAP,CARRIER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (B) ID=137 IMA 		8-97305-406-0 01 1 0709-0709 ● ●
353 RING; SNAP,CARRIER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> (B) ID=137 IMA 		8-97305-406-0 01 1 0710- ● ●
363 CAP; SEAL,INPUT SHAFT
IMA 		8-97238-725-0 01 1 0204-0207 ●
363 CAP; SEAL,INPUT SHAFT
IMA 		8-97238-725-0 01 1 0208-0708 ● ●
363 CAP; SEAL,INPUT SHAFT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> IMA 		8-97238-725-0 01 1 0709-0709 ● ●
363 CAP; SEAL,INPUT SHAFT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> IMA 		8-97238-725-0 01 1 0710- ● ●
364 SEAL; OIL,COVER,INPUT
NOK IMA 		8-97238-999-0 01 1 0204-0207 ●
364 SEAL; OIL,COVER,INPUT
NOK IMA 		8-97238-999-0 01 1 0208-0708 ● ●
364 SEAL; OIL,COVER,INPUT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> NOK IMA 		8-97238-999-0 01 1 0709-0709 ● ●
364 SEAL; OIL,COVER,INPUT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> NOK IMA 		8-97238-999-0 01 1 0710- ● ●
365 RING; RETAINING,OUTER INPUT
ID=97 IMA 		8-97305-010-1 01 1 0204-0207 ●
365 RING; RETAINING,OUTER INPUT
ID=97 IMA 		8-97305-010-1 01 1 0208-0708 ● ●
365 RING; RETAINING,OUTER INPUT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> ID=97 IMA 		8-97305-010-1 01 1 0709-0709 ● ●
365 RING; RETAINING,OUTER INPUT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> ID=97 IMA 		8-97305-010-1 01 1 0710- ● ●
366 GEAR; INTERNAL,HIGH-LOW
Z=27 IMA 		8-97231-831-2 01 1 0204-0207 ●
366 GEAR; INTERNAL,HIGH-LOW
Z=27 IMA 		8-97231-831-2 01 1 0208-0708 ● ●
366 GEAR; INTERNAL,HIGH-LOW
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> Z=27 IMA 		8-97231-831-2 01 1 0709-0709 ● ●
366 GEAR; INTERNAL,HIGH-LOW
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> Z=27 IMA 		8-97231-831-2 01 1 0710- ● ●
367 RING; RETAINING,SPIRAL TYPE
ID=162 OD=176 IMA 		8-97247-459-0 01 1 0204-0207 ●
367 RING; RETAINING,SPIRAL TYPE
ID=162 OD=176 IMA 		8-97247-459-0 01 1 0208-0708 ● ●
367 RING; RETAINING,SPIRAL TYPE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> ID=162 OD=176 IMA 		8-97247-459-0 01 1 0709-0709 ● ●
367 RING; RETAINING,SPIRAL TYPE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> ID=162 OD=176 IMA 		8-97247-459-0 01 1 0710- ● ●
368 RING; DAMPER,TRANSFER
ID=168.4 OD=178 IMA 		8-97320-914-0 01 1 0204-0207 ●
368 RING; DAMPER,TRANSFER
ID=168.4 OD=178 IMA 		8-97320-914-0 01 1 0208-0708 ● ●
368 RING; DAMPER,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> ID=168.4 OD=178 IMA 		8-97320-914-0 01 1 0709-0709 ● ●
368 RING; DAMPER,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> ID=168.4 OD=178 IMA 		8-97320-914-0 01 1 0710- ● ●
372 TEETH; DOG,PLANETARY
THA 		8-97233-025-1 01 1 0204-0207 ●
372 TEETH; DOG,PLANETARY
THA 		8-97233-025-1 01 1 0208-0211 ● ●
372 TEETH; DOG,PLANETARY
Z=56 IMA 		8-97358-244-0 01 1 0212-0708 ● ●
372 TEETH; DOG,PLANETARY
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> Z=56 IMA 		8-97358-244-0 01 1 0709-0709 ● ●
372 TEETH; DOG,PLANETARY
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> Z=56 IMA 		8-97358-244-0 01 1 0710- ● ●
