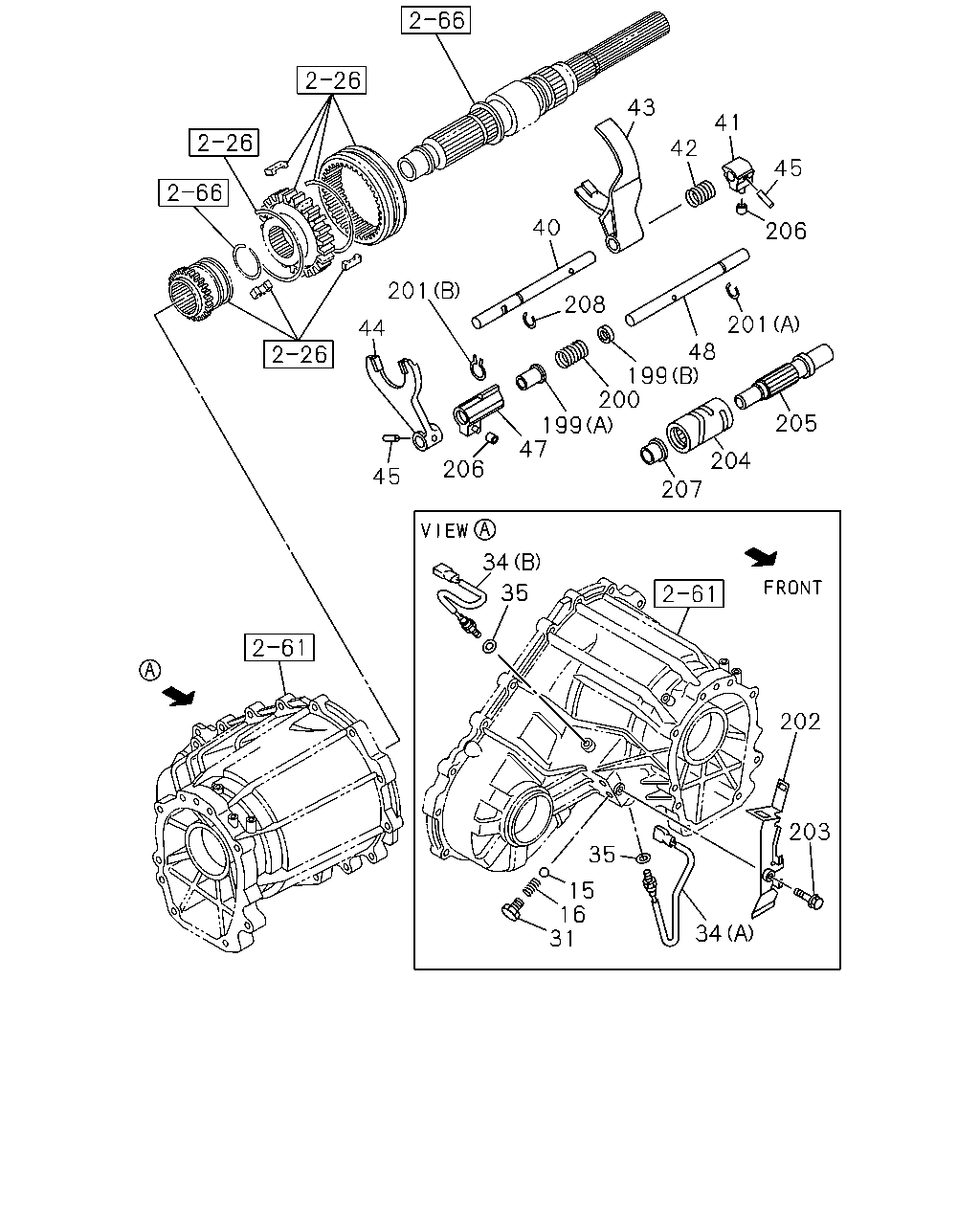

15 |
BALL; DETENT,SHIFT ROD,TRANSFER
IMA
|
8-94435-335-0 |
02 |
1 |
0204-0207 |
● |
|
| |
15 |
BALL; DETENT,SHIFT ROD,TRANSFER
IMA
|
8-94435-335-0 |
02 |
1 |
0208-0708 |
● |
● |
| |
15 |
BALL; DETENT,SHIFT ROD,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>
IMA
|
8-94435-335-0 |
02 |
1 |
0709-0709 |
● |
● |
| |
15 |
BALL; DETENT,SHIFT ROD,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
,A/T AISIN<RMD>
IMA
|
8-94435-335-0 |
02 |
1 |
0710- |
● |
● |
| |
16 |
SPRING; DETENT,SHIFT ROD,TRANSFER
L=23.4
IMA
|
8-97145-374-0 |
02 |
1 |
0204-0207 |
● |
|
| |
16 |
SPRING; DETENT,SHIFT ROD,TRANSFER
L=23.4
IMA
|
8-97145-374-0 |
02 |
1 |
0208-0708 |
● |
● |
| |
16 |
SPRING; DETENT,SHIFT ROD,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>
L=23.4
IMA
|
8-97145-374-0 |
02 |
1 |
0709-0709 |
● |
● |
| |
16 |
SPRING; DETENT,SHIFT ROD,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
,A/T AISIN<RMD>
L=23.4
IMA
|
8-97145-374-0 |
02 |
1 |
0710- |
● |
● |
| |
31 |
PLUG; DETENT BALL,TRANSFER
M12X9
THA
|
9-99202-312-0 |
02 |
1 |
0204-0207 |
● |
|
| |
31 |
PLUG; DETENT BALL,TRANSFER
M12X9
THA
|
9-99202-312-0 |
02 |
1 |
0208-0603 |
● |
● |
| |
31 |
PLUG; DETENT BALL,TRANSFER
M12X9
IMA
|
0-92002-412-0 |
02 |
1 |
0604-0708 |
● |
● |
| |
31 |
PLUG; DETENT BALL,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>
M12X9
IMA
|
0-92002-412-0 |
02 |
1 |
0709-0709 |
● |
● |
| |
31 |
PLUG; DETENT BALL,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
,A/T AISIN<RMD>
M12X9
IMA
|
0-92002-412-0 |
02 |
1 |
0710- |
● |
● |
| |
34 |
SWITCH; TRANSFER INDICATOR
(A)
THA
|
8-97314-204-0 |
01 |
1 |
0204-0207 |
● |
|
| |
34 |
SWITCH; TRANSFER INDICATOR
(A)
THA
|
8-97314-204-0 |
01 |
1 |
0208-0603 |
● |
● |
| |
34 |
SWITCH; TRANSFER INDICATOR
(A)
THA
|
8-97358-605-0 |
01 |
1 |
0604-0708 |
● |
● |
| |
34 |
SWITCH; TRANSFER INDICATOR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>
(A)
THA
|
8-97358-605-0 |
01 |
1 |
0709-0709 |
● |
● |
| |
34 |
SWITCH; TRANSFER INDICATOR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
,A/T AISIN<RMD>
(A)
THA
|
8-97358-605-0 |
01 |
1 |
0710-1405 |
● |
● |
| |
34 |
SWITCH; TRANSFER INDICATOR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
,A/T AISIN<RMD>
(A)
THA
|
8-98181-804-0 |
01 |
1 |
1406- |
● |
● |
| |
34 |
SWITCH; TRANSFER INDICATOR
(B)
THA
|
8-97314-205-0 |
01 |
1 |
0204-0207 |
● |
|
| |
34 |
SWITCH; TRANSFER INDICATOR
(B)
THA
|
8-97314-205-0 |
01 |
1 |
0208-0603 |
● |
● |
| |
34 |
SWITCH; TRANSFER INDICATOR
(B)
THA
|
8-97358-606-0 |
01 |
1 |
0604-0708 |
● |
● |
| |
34 |
SWITCH; TRANSFER INDICATOR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>
(B)
THA
|
8-97358-606-0 |
01 |
1 |
0709-0709 |
● |
● |
| |
34 |
SWITCH; TRANSFER INDICATOR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
,A/T AISIN<RMD>
(B)
THA
|
8-97358-606-0 |
01 |
1 |
0710-1405 |
● |
● |
| |
34 |
SWITCH; TRANSFER INDICATOR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
,A/T AISIN<RMD>
(B)
IMA
|
8-98180-974-0 |
01 |
1 |
1406- |
● |
● |
| |
35 |
GASKET; INDICATOR SWITCH,TRANSFER
ID=14.2 OD=20.0
THA
|
9-09571-414-0 |
02 |
1 |
0204-0207 |
● |
|
| |
35 |
GASKET; INDICATOR SWITCH,TRANSFER
ID=14.2 OD=20.0
THA
|
9-09571-414-0 |
02 |
1 |
0208-0708 |
● |
● |
| |
35 |
GASKET; INDICATOR SWITCH,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>
ID=14.2 OD=20.0
THA
|
9-09571-414-0 |
02 |
1 |
0709-0709 |
● |
● |
| |
35 |
GASKET; INDICATOR SWITCH,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
,A/T AISIN<RMD>
ID=14.2 OD=20.0
THA
|
9-09571-414-0 |
02 |
1 |
0710- |
● |
● |
| |
40 |
ROD; SHIFT,4X2-4X4,TRANSFER
IMA
|
8-97234-229-0 |
01 |
1 |
0204-0207 |
● |
|
| |
40 |
ROD; SHIFT,4X2-4X4,TRANSFER
IMA
|
8-97234-229-0 |
01 |
1 |
0208-0708 |
● |
● |
| |
40 |
ROD; SHIFT,4X2-4X4,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>
IMA
|
8-97234-229-0 |
01 |
1 |
0709-0709 |
● |
● |
| |
40 |
ROD; SHIFT,4X2-4X4,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
,A/T AISIN<RMD>
IMA
|
8-97234-229-0 |
01 |
1 |
0710- |
● |
● |
| |
41 |
BLOCK; SHIFT,4X2-4X4,TRANSFER
IMA
|
8-97234-233-1 |
01 |
1 |
0204-0207 |
● |
|
| |
41 |
BLOCK; SHIFT,4X2-4X4,TRANSFER
IMA
|
8-97234-233-1 |
01 |
1 |
0208-0708 |
● |
● |
| |
41 |
BLOCK; SHIFT,4X2-4X4,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>
IMA
|
8-97234-233-1 |
01 |
1 |
0709-0709 |
● |
● |
| |
41 |
BLOCK; SHIFT,4X2-4X4,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
,A/T AISIN<RMD>
IMA
|
8-97234-233-1 |
01 |
1 |
0710- |
● |
● |
| |
42 |
SPRING; GEAR LOCK RELEASE,TRANSFER
IMA
|
8-97239-010-1 |
01 |
1 |
0204-0207 |
● |
|
| |
42 |
SPRING; GEAR LOCK RELEASE,TRANSFER
IMA
|
8-97239-010-1 |
01 |
1 |
0208-0708 |
● |
● |
| |
42 |
SPRING; GEAR LOCK RELEASE,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>
IMA
|
8-97239-010-1 |
01 |
1 |
0709-0709 |
● |
● |
| |
42 |
SPRING; GEAR LOCK RELEASE,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
,A/T AISIN<RMD>
IMA
|
8-97239-010-1 |
01 |
1 |
0710- |
● |
● |
| |
43 |
ARM; SHIFT,4X2-4X4,TRANSFER
IMA
|
8-97234-231-0 |
01 |
1 |
0204-0207 |
● |
|
| |
43 |
ARM; SHIFT,4X2-4X4,TRANSFER
IMA
|
8-97234-231-0 |
01 |
1 |
0208-0708 |
● |
● |
| |
43 |
ARM; SHIFT,4X2-4X4,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>
IMA
|
8-97234-231-0 |
01 |
1 |
0709-0709 |
● |
● |
| |
43 |
ARM; SHIFT,4X2-4X4,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
,A/T AISIN<RMD>
IMA
|
8-97234-231-0 |
01 |
1 |
0710- |
● |
● |
| |
44 |
ARM; SHIFT,HIGH-LOW,TRANSFER
IMA
|
8-97300-106-1 |
01 |
1 |
0204-0207 |
● |
|
| |
44 |
ARM; SHIFT,HIGH-LOW,TRANSFER
IMA
|
8-97300-106-1 |
01 |
1 |
0208-0708 |
● |
● |
| |
44 |
ARM; SHIFT,HIGH-LOW,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>
IMA
|
8-97300-106-1 |
01 |
1 |
0709-0709 |
● |
● |
| |
44 |
ARM; SHIFT,HIGH-LOW,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
,A/T AISIN<RMD>
IMA
|
8-97300-106-1 |
01 |
1 |
0710- |
● |
● |
| |
45 |
PIN; SPR,SHIFT ARM TO ROD
D=4.2 L=25
IMA
|
8-94171-541-0 |
02 |
1 |
0204-0207 |
● |
|
| |
45 |
PIN; SPR,SHIFT ARM TO ROD
D=4.2 L=25
IMA
|
8-94171-541-0 |
02 |
1 |
0208-0708 |
● |
● |
| |
45 |
PIN; SPR,SHIFT ARM TO ROD
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>
D=4.2 L=25
IMA
|
8-94171-541-0 |
02 |
1 |
0709-0709 |
● |
● |
| |
45 |
PIN; SPR,SHIFT ARM TO ROD
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
,A/T AISIN<RMD>
D=4.2 L=25
IMA
|
8-94171-541-0 |
02 |
1 |
0710- |
● |
● |
| |
47 |
BLOCK; SHIFT,LOW-HIGH,TRANSFER
THA
|
8-97234-234-1 |
01 |
1 |
0204-0207 |
● |
|
| |
47 |
BLOCK; SHIFT,LOW-HIGH,TRANSFER
THA
|
8-97234-234-1 |
01 |
1 |
0208-0708 |
● |
● |
| |
47 |
BLOCK; SHIFT,LOW-HIGH,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>
THA
|
8-97234-234-1 |
01 |
1 |
0709-0709 |
● |
● |
| |
47 |
BLOCK; SHIFT,LOW-HIGH,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
,A/T AISIN<RMD>
THA
|
8-97234-234-1 |
01 |
1 |
0710-1001 |
● |
● |
| |
47 |
BLOCK; SHIFT,LOW-HIGH,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
,A/T AISIN<RMD>
IMA
|
8-98161-034-0 |
01 |
1 |
1002- |
● |
● |
| |
48 |
ROD; SHIFT,HIGH-LOW,TRANSFER
IMA
|
8-97234-230-0 |
01 |
1 |
0204-0207 |
● |
|
| |
48 |
ROD; SHIFT,HIGH-LOW,TRANSFER
IMA
|
8-97234-230-0 |
01 |
1 |
0208-0708 |
● |
● |
| |
48 |
ROD; SHIFT,HIGH-LOW,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>
IMA
|
8-97234-230-0 |
01 |
1 |
0709-0709 |
● |
● |
| |
48 |
ROD; SHIFT,HIGH-LOW,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
,A/T AISIN<RMD>
IMA
|
8-97234-230-0 |
01 |
1 |
0710- |
● |
● |
| |
199 |
COLLAR; TRANSFER CONTROL
(A)
IMA
|
8-97234-662-1 |
01 |
1 |
0204-0207 |
● |
|
| |
199 |
COLLAR; TRANSFER CONTROL
(A)
IMA
|
8-97234-662-1 |
01 |
1 |
0208-0708 |
● |
● |
| |
199 |
COLLAR; TRANSFER CONTROL
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>
(A)
IMA
|
8-97234-662-1 |
01 |
1 |
0709-0709 |
● |
● |
| |
199 |
COLLAR; TRANSFER CONTROL
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
,A/T AISIN<RMD>
(A)
IMA
|
8-97234-662-1 |
01 |
1 |
0710- |
● |
● |
| |
199 |
COLLAR; TRANSFER CONTROL
(B)
IMA
|
8-97234-663-1 |
01 |
1 |
0204-0207 |
● |
|
| |
199 |
COLLAR; TRANSFER CONTROL
(B)
IMA
|
8-97234-663-1 |
01 |
1 |
0208-0708 |
● |
● |
| |
199 |
COLLAR; TRANSFER CONTROL
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>
(B)
IMA
|
8-97234-663-1 |
01 |
1 |
0709-0709 |
● |
● |
| |
199 |
COLLAR; TRANSFER CONTROL
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
,A/T AISIN<RMD>
(B)
IMA
|
8-97234-663-1 |
01 |
1 |
0710- |
● |
● |
| |
200 |
SPRING; SHIFT HIGH-LOW
IMA
|
8-97239-011-0 |
01 |
1 |
0204-0207 |
● |
|
| |
200 |
SPRING; SHIFT HIGH-LOW
IMA
|
8-97239-011-0 |
01 |
1 |
0208-0708 |
● |
● |
| |
200 |
SPRING; SHIFT HIGH-LOW
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>
IMA
|
8-97239-011-0 |
01 |
1 |
0709-0709 |
● |
● |
| |
200 |
SPRING; SHIFT HIGH-LOW
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
,A/T AISIN<RMD>
IMA
|
8-97239-011-0 |
01 |
1 |
0710- |
● |
● |
| |
201 |
RING; SNAP,SHIFT
(A)
ID=12
IMA
|
8-94460-357-0 |
01 |
1 |
0204-0207 |
● |
|
| |
201 |
RING; SNAP,SHIFT
(A)
ID=12
IMA
|
8-94460-357-0 |
01 |
1 |
0208-0708 |
● |
● |
| |
201 |
RING; SNAP,SHIFT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>
(A)
ID=12
IMA
|
8-94460-357-0 |
01 |
1 |
0709-0709 |
● |
● |
| |
201 |
RING; SNAP,SHIFT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
,A/T AISIN<RMD>
(A)
ID=12
IMA
|
8-94460-357-0 |
01 |
1 |
0710- |
● |
● |
| |
201 |
RING; SNAP,SHIFT
(B)
ID=23
IMA
|
8-97305-011-1 |
01 |
1 |
0204-0207 |
● |
|
| |
201 |
RING; SNAP,SHIFT
(B)
ID=23
IMA
|
8-97305-011-1 |
01 |
1 |
0208-0708 |
● |
● |
| |
201 |
RING; SNAP,SHIFT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>
(B)
ID=23
IMA
|
8-97305-011-1 |
01 |
1 |
0709-0709 |
● |
● |
| |
201 |
RING; SNAP,SHIFT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
,A/T AISIN<RMD>
(B)
ID=23
IMA
|
8-97305-011-1 |
01 |
1 |
0710- |
● |
● |
| |
202 |
BRACKET; SWITCH
THA
|
8-97305-519-2 |
01 |
1 |
0204-0207 |
● |
|
| |
202 |
BRACKET; SWITCH
THA
|
8-97305-519-2 |
01 |
1 |
0208-0603 |
● |
● |
| |
202 |
BRACKET; SWITCH
THA
|
8-97358-324-0 |
01 |
1 |
0604-0708 |
● |
● |
| |
202 |
BRACKET; SWITCH
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>
THA
|
8-97358-324-0 |
01 |
1 |
0709-0709 |
● |
● |
| |
202 |
BRACKET; SWITCH
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
,A/T AISIN<RMD>
THA
|
8-97358-324-0 |
01 |
1 |
0710- |
● |
● |
| |
203 |
BOLT; BRACKET,SWITCH
M8X25 FLANGE
THA
|
0-28680-825-0 |
01 |
1 |
0204-0207 |
● |
|
| |
203 |
BOLT; BRACKET,SWITCH
M8X25 FLANGE
THA
|
0-28680-825-0 |
01 |
1 |
0208-0601 |
● |
● |
| |
203 |
BOLT; BRACKET,SWITCH
M8X25 FLANGE
THA
|
0-28650-825-0 |
01 |
1 |
0602-0708 |
● |
● |
| |
203 |
BOLT; BRACKET,SWITCH
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>
M8X25 FLANGE
THA
|
0-28650-825-0 |
01 |
1 |
0709-0709 |
● |
● |
| |
203 |
BOLT; BRACKET,SWITCH
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
,A/T AISIN<RMD>
M8X25 FLANGE
THA
|
0-28650-825-0 |
01 |
1 |
0710- |
● |
● |
| |
204 |
DRUM; SHIFT
THA
|
8-97231-854-0 |
01 |
1 |
0204-0207 |
● |
|
| |
204 |
DRUM; SHIFT
THA
|
8-97231-854-0 |
01 |
1 |
0208-0211 |
● |
● |
| |
204 |
DRUM; SHIFT
THA
|
8-97358-246-0 |
01 |
1 |
0212-0708 |
● |
● |
| |
204 |
DRUM; SHIFT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>
THA
|
8-97358-246-0 |
01 |
1 |
0709-0709 |
● |
● |
| |
204 |
DRUM; SHIFT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
,A/T AISIN<RMD>
THA
|
8-97358-246-0 |
01 |
1 |
0710-1001 |
● |
● |
| |
204 |
DRUM; SHIFT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
,A/T AISIN<RMD>
IMA
|
8-98158-123-0 |
01 |
1 |
1002- |
● |
● |
| |
205 |
SHAFT; SHIFT DRUM
THA
|
8-97231-855-0 |
01 |
1 |
0204-0207 |
● |
|
| |
205 |
SHAFT; SHIFT DRUM
THA
|
8-97231-855-0 |
01 |
1 |
0208-0708 |
● |
● |
| |
205 |
SHAFT; SHIFT DRUM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>
THA
|
8-97231-855-0 |
01 |
1 |
0709-0709 |
● |
● |
| |
205 |
SHAFT; SHIFT DRUM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
,A/T AISIN<RMD>
THA
|
8-97231-855-0 |
01 |
1 |
0710- |
● |
● |
| |
206 |
ROLLER; GUIDE,SHIFT
IMA
|
8-97234-499-0 |
02 |
1 |
0204-0207 |
● |
|
| |
206 |
ROLLER; GUIDE,SHIFT
IMA
|
8-97234-499-0 |
02 |
1 |
0208-0708 |
● |
● |
| |
206 |
ROLLER; GUIDE,SHIFT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>
IMA
|
8-97234-499-0 |
02 |
1 |
0709-0709 |
● |
● |
| |
206 |
ROLLER; GUIDE,SHIFT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
,A/T AISIN<RMD>
IMA
|
8-97234-499-0 |
02 |
1 |
0710- |
● |
● |
| |
207 |
BUSH; CONTROL SHAFT
THA
|
8-97239-687-0 |
01 |
1 |
0204-0207 |
● |
|
| |
207 |
BUSH; CONTROL SHAFT
THA
|
8-97239-687-0 |
01 |
1 |
0208-0708 |
● |
● |
| |
207 |
BUSH; CONTROL SHAFT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>
THA
|
8-97239-687-0 |
01 |
1 |
0709-0709 |
● |
● |
| |
207 |
BUSH; CONTROL SHAFT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
,A/T AISIN<RMD>
THA
|
8-97239-687-0 |
01 |
1 |
0710-1001 |
● |
● |
| |
207 |
BUSH; CONTROL SHAFT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
,A/T AISIN<RMD>
IMA
|
8-98158-124-0 |
01 |
1 |
1002- |
● |
● |
| |
208 |
RING; SNAP,SHIFT
ID=12
IMA
|
8-94460-357-0 |
01 |
1 |
0204-0207 |
● |
|
| |
208 |
RING; SNAP,SHIFT
ID=12
IMA
|
8-94460-357-0 |
01 |
1 |
0208-0708 |
● |
● |
| |
208 |
RING; SNAP,SHIFT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>
ID=12
IMA
|
8-94460-357-0 |
01 |
1 |
0709-0709 |
● |
● |
| |
208 |
RING; SNAP,SHIFT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX
ENG<LS0>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
,A/T AISIN<RMD>
ID=12
IMA
|
8-94460-357-0 |
01 |
1 |
0710- |
● |
● |
