2-61 — TRANSFER CASE AND GEAR SHIFTER (#72858) — 100 parça

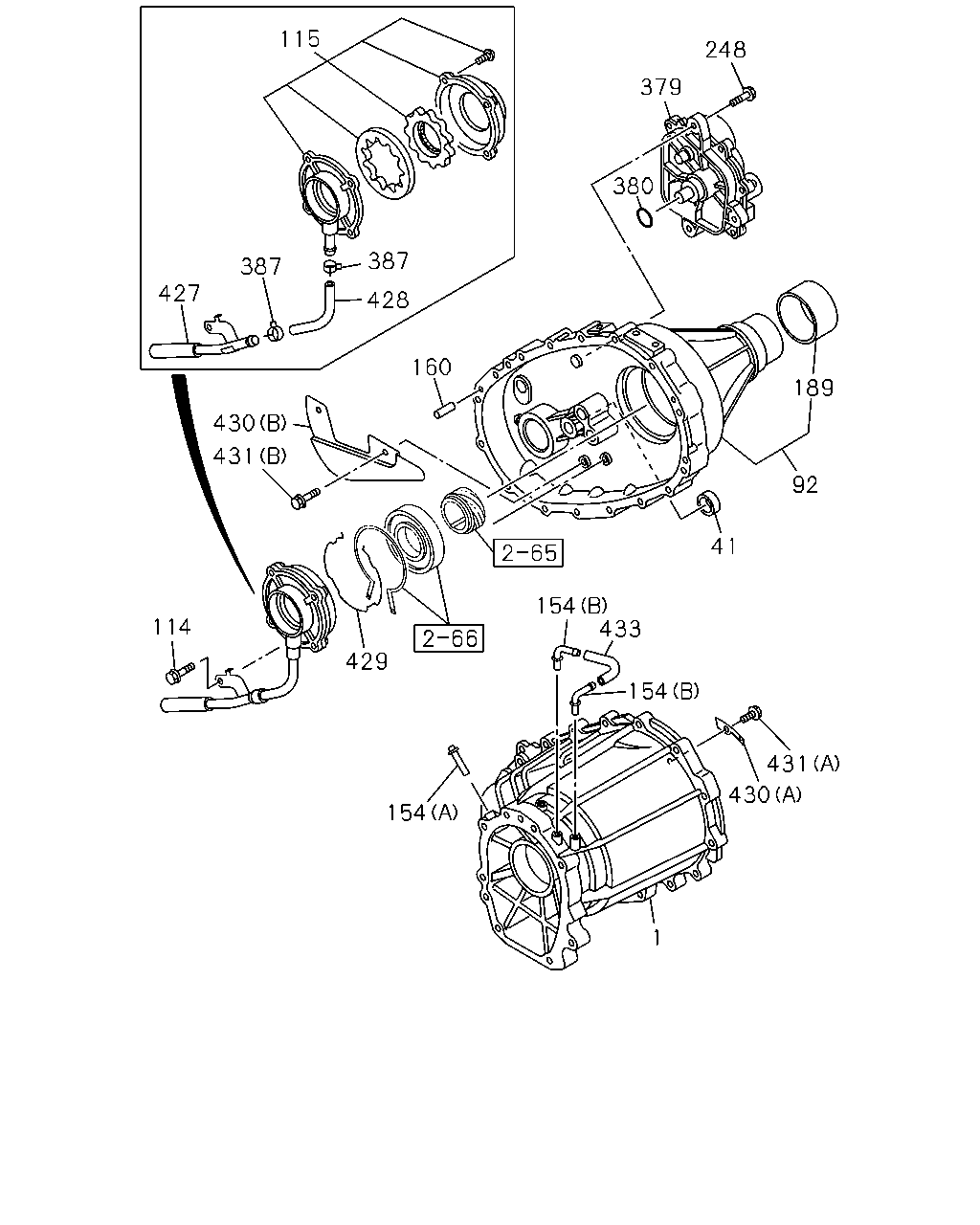

çizim 116581
115 248 379 380 387 387 427 428 160 189 430 431 92 41 154 433 114 429 154 431 430 154 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CASE; TRANSFER
THA 		8-97306-571-5 01 1 0204-0207 ●
1 CASE; TRANSFER
THA 		8-97306-571-5 01 1 0208-0708 ● ●
1 CASE; TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97306-571-5 01 1 0709-0709 ● ●
1 CASE; TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> THA 		8-97306-571-5 01 1 0710- ● ●
41 SEAL; OIL,SHIFT ROD
IMA 		8-97238-998-0 01 1 0204-0207 ●
41 SEAL; OIL,SHIFT ROD
IMA 		8-97238-998-0 01 1 0208-0708 ● ●
41 SEAL; OIL,SHIFT ROD
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> IMA 		8-97238-998-0 01 1 0709-0709 ● ●
41 SEAL; OIL,SHIFT ROD
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> IMA 		8-97238-998-0 01 1 0710- ● ●
92 COVER; RR,TRANSFER
THA 		8-97306-579-3 01 1 0204-0207 ●
92 COVER; RR,TRANSFER
THA 		8-97306-579-3 01 1 0208-0402 ● ●
92 COVER; RR,TRANSFER
THA 		8-97376-868-1 01 1 0403-0506 ● ●
92 COVER; RR,TRANSFER
THA 		8-98013-523-0 01 1 0507-0708 ● ●
92 COVER; RR,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-98013-523-0 01 1 0709-0709 ● ●
92 COVER; RR,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> THA 		8-98013-523-0 01 1 0710- ● ●
114 BOLT; OIL PUMP,TRANSFER
M8X20 FLANGE THA 		0-28680-820-0 01 1 0204-0207 ●
114 BOLT; OIL PUMP,TRANSFER
M8X20 FLANGE THA 		0-28680-820-0 01 1 0208-0601 ● ●
114 BOLT; OIL PUMP,TRANSFER
M8X20 FLANGE THA 		0-28650-820-0 01 1 0602-0708 ● ●
114 BOLT; OIL PUMP,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> M8X20 FLANGE THA 		0-28650-820-0 01 1 0709-0709 ● ●
114 BOLT; OIL PUMP,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> M8X20 FLANGE THA 		0-28650-820-0 01 1 0710- ● ●
115 PUMP ASM; OIL,TRANSFER
THA 		8-97233-741-0 01 1 0204-0207 ●
115 PUMP ASM; OIL,TRANSFER
THA 		8-97233-741-0 01 1 0208-0603 ● ●
115 PUMP ASM; OIL,TRANSFER
IMA 		8-98029-157-0 01 1 0604-0708 ● ●
115 PUMP ASM; OIL,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> IMA 		8-98029-157-0 01 1 0709-0709 ● ●
115 PUMP ASM; OIL,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> IMA 		8-98029-157-0 01 1 0710- ● ●
154 PIPE; BREATHER
(A) THA 		8-97173-545-0 01 1 0204-0207 ●
154 PIPE; BREATHER
(A) THA 		8-97173-545-0 01 1 0208-0603 ● ●
154 PIPE; BREATHER
(A) IMA 		8-97358-319-0 01 1 0604-0708 ● ●
154 PIPE; BREATHER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (A) IMA 		8-97358-319-0 01 1 0709-0709 ● ●
154 PIPE; BREATHER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> (A) IMA 		8-97358-319-0 01 1 0710- ● ●
154 PIPE; BREATHER
(B) THA 		8-97305-517-0 02 1 0204-0207 ●
154 PIPE; BREATHER
(B) THA 		8-97305-517-0 02 1 0208-0603 ● ●
154 PIPE; BREATHER
(B) IMA 		8-97358-318-0 02 1 0604-0708 ● ●
154 PIPE; BREATHER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (B) IMA 		8-97358-318-0 02 1 0709-0709 ● ●
154 PIPE; BREATHER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> (B) IMA 		8-97358-318-0 02 1 0710- ● ●
160 PIN; KNOCK,SHIFT CASE
OD=10 L=20 IMA 		8-97135-423-0 02 1 0204-0207 ●
160 PIN; KNOCK,SHIFT CASE
OD=10 L=20 IMA 		8-97135-423-0 02 1 0208-0708 ● ●
160 PIN; KNOCK,SHIFT CASE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> OD=10 L=20 IMA 		8-97135-423-0 02 1 0709-0709 ● ●
160 PIN; KNOCK,SHIFT CASE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> OD=10 L=20 IMA 		8-97135-423-0 02 1 0710- ● ●
189 COVER; DUST,OIL SEAL
THA 		8-94310-493-0 01 1 0204-0207 ●
189 COVER; DUST,OIL SEAL
THA 		8-94310-493-0 01 1 0208-0603 ● ●
189 COVER; DUST,OIL SEAL
IMA 		8-98027-802-0 01 1 0604-0708 ● ●
189 COVER; DUST,OIL SEAL
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> IMA 		8-98027-802-0 01 1 0709-0709 ● ●
189 COVER; DUST,OIL SEAL
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> IMA 		8-98027-802-0 01 1 0710-1109 ● ●
189 COVER; DUST,OIL SEAL
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> IMA 		8-98173-748-0 01 1 1110- ● ●
248 BOLT
M8X30 FLANGE IMA 		0-28680-830-0 03 1 0204-0207 ●
248 BOLT
M8X30 FLANGE IMA 		0-28680-830-0 03 1 0208-0601 ● ●
248 BOLT
M8X30 FLANGE THA 		0-28650-830-0 03 1 0602-0708 ● ●
248 BOLT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> M8X30 FLANGE THA 		0-28650-830-0 03 1 0709-0709 ● ●
248 BOLT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> M8X30 FLANGE THA 		0-28650-830-0 03 1 0710- ● ●
379 ACTUATOR; TRANSFER,2-4 SHIFT
THA 		8-97234-664-2 01 1 0204-0207 ●
379 ACTUATOR; TRANSFER,2-4 SHIFT
THA 		8-97234-664-2 01 1 0208-0305 ● ●
379 ACTUATOR; TRANSFER,2-4 SHIFT
THA 		8-97366-626-0 01 1 0306-0708 ● ●
379 ACTUATOR; TRANSFER,2-4 SHIFT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97366-626-0 01 1 0709-0709 ● ●
379 ACTUATOR; TRANSFER,2-4 SHIFT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> THA 		8-97366-626-0 01 1 0710-1110 ● ●
379 ACTUATOR; TRANSFER,2-4 SHIFT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> IMA 		8-98196-415-0 01 1 1111- ● ●
380 GASKET; ACTUATOR
ID=29.7 OD=36.7 IMA 		8-97318-475-0 01 1 0204-0207 ●
380 GASKET; ACTUATOR
ID=29.7 OD=36.7 IMA 		8-97318-475-0 01 1 0208-0708 ● ●
380 GASKET; ACTUATOR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> ID=29.7 OD=36.7 IMA 		8-97318-475-0 01 1 0709-0709 ● ●
380 GASKET; ACTUATOR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> ID=29.7 OD=36.7 IMA 		8-97318-475-0 01 1 0710- ● ●
387 CLAMP; HOSE
ID=14.2 THA 		8-97087-056-1 02 1 0204-0207 ●
387 CLAMP; HOSE
ID=14.2 THA 		8-97087-056-1 02 1 0208-0502 ● ●
387 CLAMP; HOSE
ID=16 IMA 		8-94392-924-0 02 1 0503-0603 ● ●
387 CLAMP; HOSE
ID=16 THA 		8-97329-628-0 02 1 0604-0708 ● ●
387 CLAMP; HOSE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> ID=16 THA 		8-97329-628-0 02 1 0709-0709 ● ●
387 CLAMP; HOSE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> ID=16 THA 		8-97329-628-0 02 1 0710- ● ●
427 SCREEN; OIL PUMP
THA 		8-97234-488-3 01 1 0204-0207 ●
427 SCREEN; OIL PUMP
THA 		8-97234-488-3 01 1 0208-0708 ● ●
427 SCREEN; OIL PUMP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97234-488-3 01 1 0709-0709 ● ●
427 SCREEN; OIL PUMP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> THA 		8-97234-488-3 01 1 0710- ● ●
428 HOSE; OIL PUMP
L=80 SERVICED BY L=3000 THA 		0-02259-300-0 01 1 0204-0207 ●
428 HOSE; OIL PUMP
L=80 SERVICED BY L=3000 THA 		0-02259-300-0 01 1 0208-0502 ● ●
428 HOSE; OIL PUMP
ID=9.5 OD=16.5 L=80 THA 		8-98009-116-0 01 1 0503-0708 ● ●
428 HOSE; OIL PUMP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> ID=9.5 OD=16.5 L=80 THA 		8-98009-116-0 01 1 0709-0709 ● ●
428 HOSE; OIL PUMP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> ID=9.5 OD=16.5 L=80 THA 		8-98009-116-0 01 1 0710- ● ●
429 RING; SNAP,OIL PUMP
IMA 		8-97240-666-0 01 1 0204-0207 ●
429 RING; SNAP,OIL PUMP
IMA 		8-97240-666-0 01 1 0208-0708 ● ●
429 RING; SNAP,OIL PUMP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> IMA 		8-97240-666-0 01 1 0709-0709 ● ●
429 RING; SNAP,OIL PUMP
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> IMA 		8-97240-666-0 01 1 0710- ● ●
430 PLATE; BAFFLE
(A) IMA 		8-97239-130-0 01 1 0204-0207 ●
430 PLATE; BAFFLE
(A) IMA 		8-97239-130-0 01 1 0208-0708 ● ●
430 PLATE; BAFFLE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (A) IMA 		8-97239-130-0 01 1 0709-0709 ● ●
430 PLATE; BAFFLE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> (A) IMA 		8-97239-130-0 01 1 0710- ● ●
430 PLATE; BAFFLE
(B) THA 		8-97249-300-1 01 1 0204-0207 ●
430 PLATE; BAFFLE
(B) THA 		8-97249-300-1 01 1 0208-0708 ● ●
430 PLATE; BAFFLE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97249-300-1 01 1 0709-0709 ● ●
430 PLATE; BAFFLE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> (B) THA 		8-97249-300-1 01 1 0710- ● ●
431 BOLT; BAFFLE PLATE
(A) M6X16 FLANGE THA 		0-28680-616-0 01 1 0204-0207 ●
431 BOLT; BAFFLE PLATE
(A) M6X16 FLANGE THA 		0-28680-616-0 01 1 0208-0601 ● ●
431 BOLT; BAFFLE PLATE
(A) M6X16 FLANGE THA 		0-28650-616-0 01 1 0602-0708 ● ●
431 BOLT; BAFFLE PLATE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (A) M6X16 FLANGE THA 		0-28650-616-0 01 1 0709-0709 ● ●
431 BOLT; BAFFLE PLATE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> (A) M6X16 FLANGE THA 		0-28650-616-0 01 1 0710- ● ●
431 BOLT; BAFFLE PLATE
(B) M8X20 FLANGE THA 		0-28680-820-0 02 1 0204-0207 ●
431 BOLT; BAFFLE PLATE
(B) M8X20 FLANGE THA 		0-28680-820-0 02 1 0208-0601 ● ●
431 BOLT; BAFFLE PLATE
(B) M8X20 FLANGE THA 		0-28650-820-0 02 1 0602-0708 ● ●
431 BOLT; BAFFLE PLATE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (B) M8X20 FLANGE THA 		0-28650-820-0 02 1 0709-0709 ● ●
431 BOLT; BAFFLE PLATE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> (B) M8X20 FLANGE THA 		0-28650-820-0 02 1 0710- ● ●
433 HOSE; AIR,TRANSFER
IMA 		8-97236-080-0 01 1 0204-0207 ●
433 HOSE; AIR,TRANSFER
IMA 		8-97236-080-0 01 1 0208-0708 ● ●
433 HOSE; AIR,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> IMA 		8-97236-080-0 01 1 0709-0709 ● ●
433 HOSE; AIR,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD> IMA 		8-97236-080-0 01 1 0710- ● ●
