◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-60 - TRANSFER ▶
2-60 — TRANSFER (#72857) — 34 parça

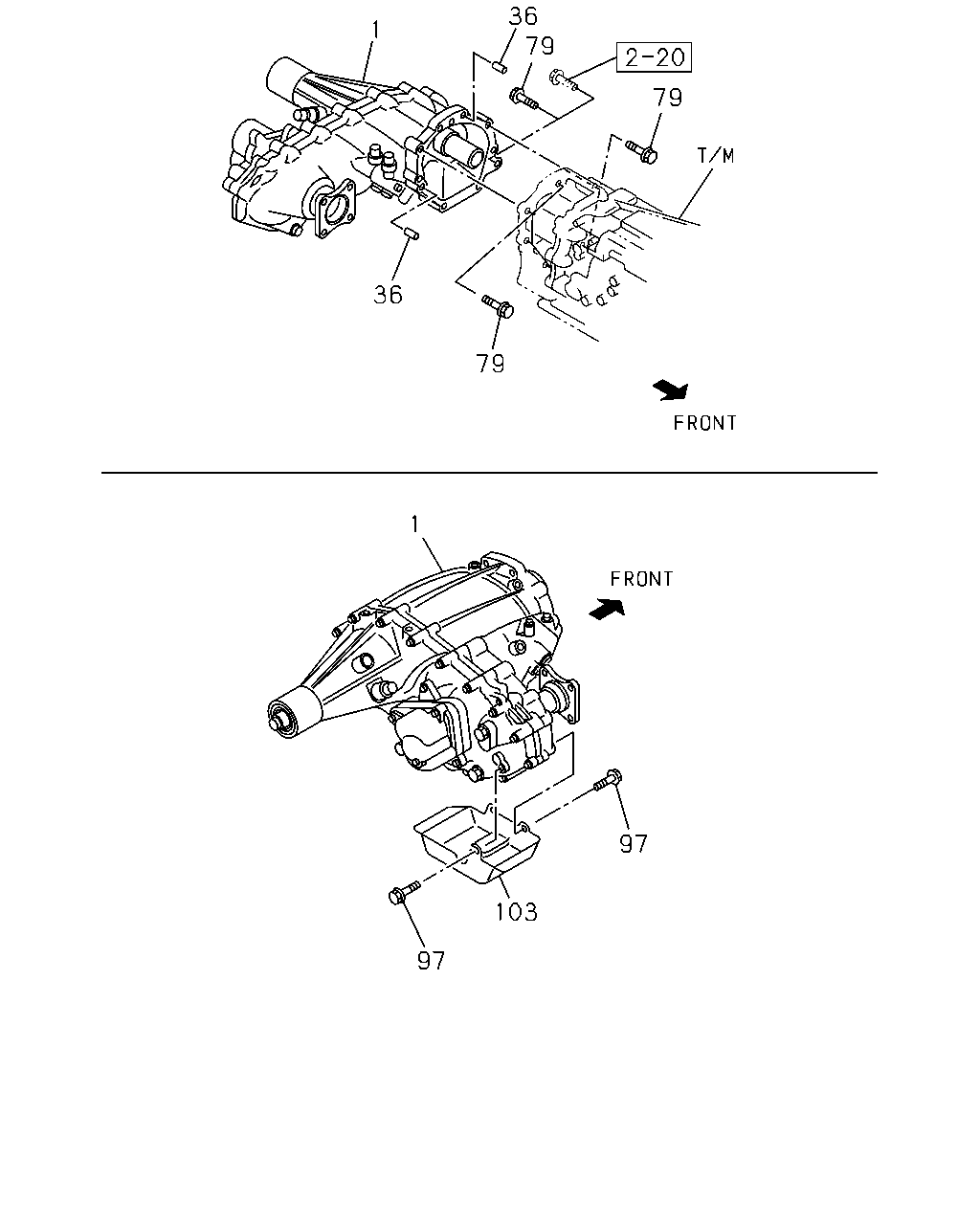

çizim 116461
36 79 1 79 36 79 1 97 103 97
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRANSFER ASM
A/T 4 SPEED-JATCO<RMK> THA 		8-97323-629-0 01 1 0204-0207 ●
1 TRANSFER ASM
A/T 4 SPEED-JATCO<RMK> THA 		8-97323-629-0 01 1 0208-0310 ● ●
1 TRANSFER ASM
A/T 4 SPEED-JATCO<RMK> THA 		8-97368-282-0 01 1 0311-0402 ● ●
1 TRANSFER ASM
A/T 4 SPEED-JATCO<RMK> THA 		8-97376-876-0 01 1 0403-0408 ● ●
1 TRANSFER ASM
M/T MUA 5 SPEED<RMN> THA 		8-97323-630-0 01 1 0204-0207 ●
1 TRANSFER ASM
M/T MUA 5 SPEED<RMN> THA 		8-97323-630-0 01 1 0208-0310 ● ●
1 TRANSFER ASM
M/T MUA 5 SPEED<RMN> TRANSFER CONTROL SW TYPE HIGH-LOW<8CE> THA 		8-97368-283-0 01 1 0311-0402 ● ●
1 TRANSFER ASM
M/T MUA 5 SPEED<RMN> THA 		8-97376-877-0 01 1 0403-0408 ● ●
1 TRANSFER ASM
THA 		8-97376-877-0 01 1 0409-0604 ● ●
1 TRANSFER ASM
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-97376-877-0 01 1 0605-0606 ● ●
1 TRANSFER ASM
M/T MUA 5 SPEED 5G<RSP> THA 		8-98028-762-0 01 1 0605-0606 ● ●
1 TRANSFER ASM
THA 		8-98028-762-0 01 1 0607-0608 ● ●
1 TRANSFER ASM
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-98028-762-0 01 1 0609-0708 ● ●
1 TRANSFER ASM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-98028-762-0 01 1 0709- ● ●
1 TRANSFER ASM
4JJ1-TCX ENG<LS0> A/T AISIN<RMD> THA 		8-98028-766-0 01 1 0609-0708 ●
1 TRANSFER ASM
4JJ1-TCX ENG<LS0> A/T AISIN<RMD> THA 		8-98028-766-0 01 1 0710- ●
1 TRANSFER ASM
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98028-765-0 01 1 0609-0708 ●
1 TRANSFER ASM
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98028-765-0 01 1 0710-0802 ●
1 TRANSFER ASM
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98028-765-0 01 1 0803-1008 ● ●
1 TRANSFER ASM
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98028-765-0 01 1 1009- ● ●
36 PIN; KNOCK,TRANSFER
A/T 4 SPEED-JATCO<RMK> OD=10 L=20 IMA 		8-97135-423-0 02 1 0204-0207 ●
36 PIN; KNOCK,TRANSFER
A/T 4 SPEED-JATCO<RMK> OD=10 L=20 IMA 		8-97135-423-0 02 1 0208-0606 ● ●
79 BOLT; STOPPER
A/T 4 SPEED-JATCO<RMK> M10X35 FLANGE THA 		0-28051-035-0 07 1 0204-0207 ●
79 BOLT; STOPPER
A/T 4 SPEED-JATCO<RMK> M10X35 FLANGE THA 		0-28051-035-0 07 1 0208-0606 ● ●
79 BOLT; STOPPER
A/T 4 SPEED-JATCO<RMK> M10X35 FLANGE THA 		0-28051-035-0 07 1 0607-0608 ● ●
79 BOLT; STOPPER
A/T 4 SPEED-JATCO<RMK> M10X35 FLANGE THA 		0-28051-035-0 07 1 0609-0708 ●
79 BOLT; STOPPER
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> M10X35 FLANGE THA 		0-28051-035-0 07 1 0609-0708 ●
79 BOLT; STOPPER
A/T 4 SPEED-JATCO<RMK> M10X35 FLANGE THA 		0-28051-035-0 07 1 0709-0709 ● ●
79 BOLT; STOPPER
A/T 4 SPEED-JATCO<RMK> M10X35 FLANGE THA 		0-28051-035-0 07 1 0710-1008 ●
79 BOLT; STOPPER
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> M10X35 FLANGE THA 		0-28051-035-0 07 1 0710-1008 ●
97 BOLT
M8X20 FLANGE THA 		0-28650-820-0 03 1 0204-0207 ●
97 BOLT
M8X20 FLANGE THA 		0-28650-820-0 03 1 0208- ● ●
103 GUARD; TRANSFER
THA 		8-97234-751-0 01 1 0204-0207 ●
103 GUARD; TRANSFER
THA 		8-97234-751-0 01 1 0208- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
