2-56 — AUTO TRANS CONTROL LINK (#72856) — 64 parça

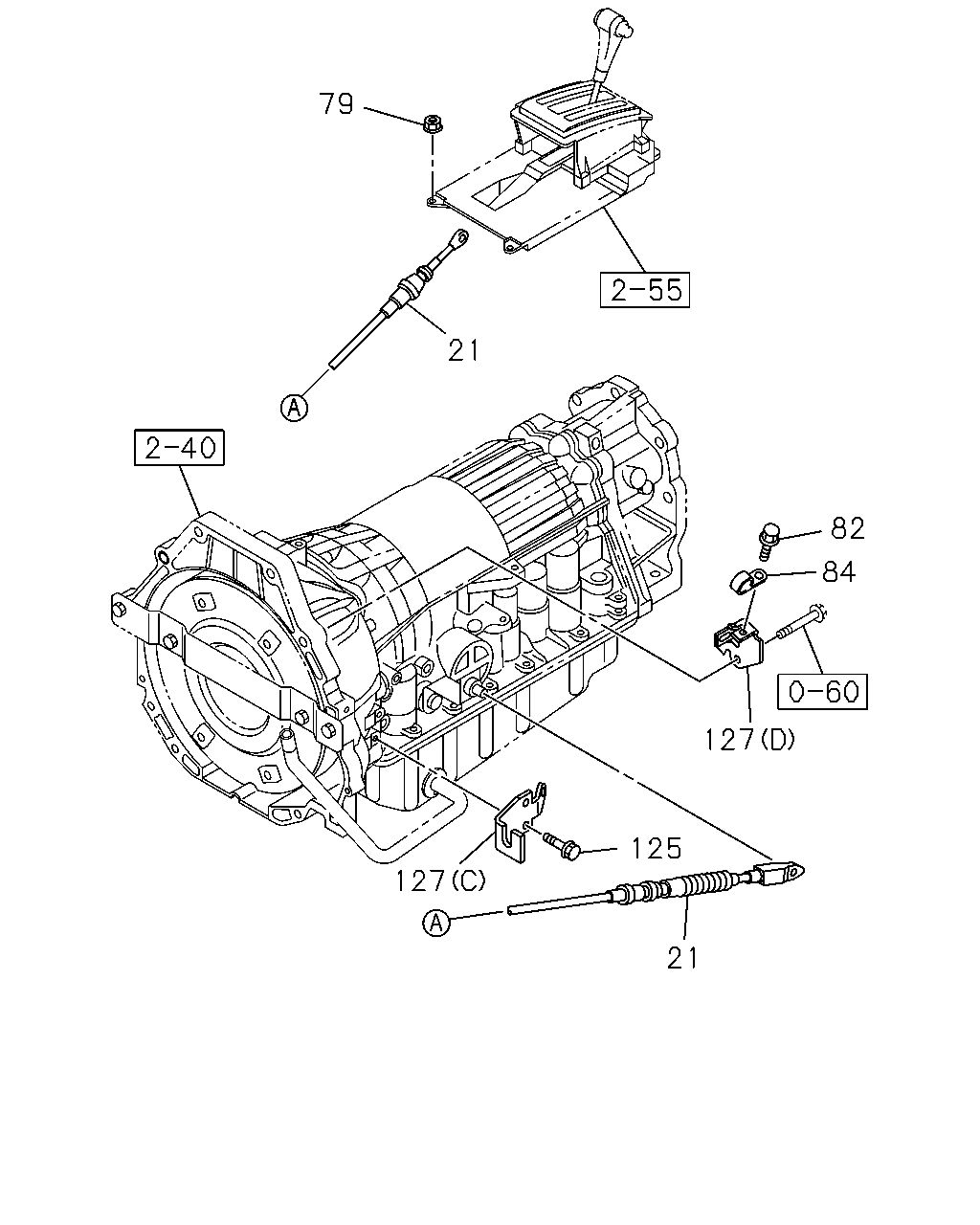

79 21 82 84 127 125 21 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	CABLE; A/T THA	8-97301-821-1	01	1	0204-0302	●
21	CABLE; A/T THA	8-97363-357-0	01	1	0303-	●
21	CABLE; A/T 4JJ1-TCX ENG<LS0> THA	8-97388-319-0	01	1	0609-0708		●
21	CABLE; A/T 4JJ1-TCX ENG<LS0> THA	8-97388-319-0	01	1	0710-		●
79	NUT; CONT CABLE M6 FLANGE THA	8-97063-399-0	04	1	0204-0608	●
79	NUT; CONT CABLE M6 FLANGE THA	8-97063-399-0	04	1	0609-0702	●	●
79	NUT; CONT CABLE M6 FLANGE IMA	8-98055-704-0	04	1	0703-0708	●	●
79	NUT; CONT CABLE M6 FLANGE IMA	8-98055-704-0	04	1	0709-0709	●
79	NUT; CONT CABLE M6 FLANGE IMA	8-98055-704-0	04	1	0710-	●	●
82	BOLT; A/T CONT CABLE M6X16 FLANGE THA	0-28650-616-0	01	1	0204-0608	●
82	BOLT; A/T CONT CABLE M6X16 FLANGE THA	0-28650-616-0	01	1	0609-0708	●	●
82	BOLT; A/T CONT CABLE M6X16 FLANGE THA	0-28650-616-0	01	1	0709-0709	●
82	BOLT; A/T CONT CABLE M6X16 FLANGE THA	0-28650-616-0	01	1	0710-	●	●
84	CLIP; A/T CONT CABLE ID=11 L=28 THA	9-09525-052-0	01	1	0204-0408	●
84	CLIP; A/T CONT CABLE ID=11 L=28 THA	8-97367-952-0	01	1	0409-0608	●
84	CLIP; A/T CONT CABLE ID=11 L=28 THA	8-97367-952-0	01	1	0609-0702	●	●
84	CLIP; A/T CONT CABLE ID=11 L=28 THA	0-95235-052-0	01	1	0703-0708	●	●
84	CLIP; A/T CONT CABLE ID=11 L=28 THA	0-95235-052-0	01	1	0709-0709	●
84	CLIP; A/T CONT CABLE ID=11 L=28 THA	0-95235-052-0	01	1	0710-	●	●
125	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	02	1	0204-0608	●
125	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	02	1	0609-0708	●	●
125	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	02	1	0709-0709	●
125	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	02	1	0710-	●	●
127	BRACKET; A/T CONT CABLE (A) THA	8-97236-021-1	01	1	0204-	●
127	BRACKET; A/T CONT CABLE (B) THA	8-97301-831-1	01	1	0409-	●
127	BRACKET; A/T CONT CABLE 4JJ1-TCX ENG<LS0> (D) THA	8-97388-320-1	01	1	0609-0708		●
127	BRACKET; A/T CONT CABLE 4JJ1-TCX ENG<LS0> (C) THA	8-97388-321-1	01	1	0609-0708		●
127	BRACKET; A/T CONT CABLE 4JJ1-TCX ENG<LS0> (D) THA	8-97388-320-1	01	1	0710-		●
127	BRACKET; A/T CONT CABLE 4JJ1-TCX ENG<LS0> (C) THA	8-97388-321-1	01	1	0710-		●

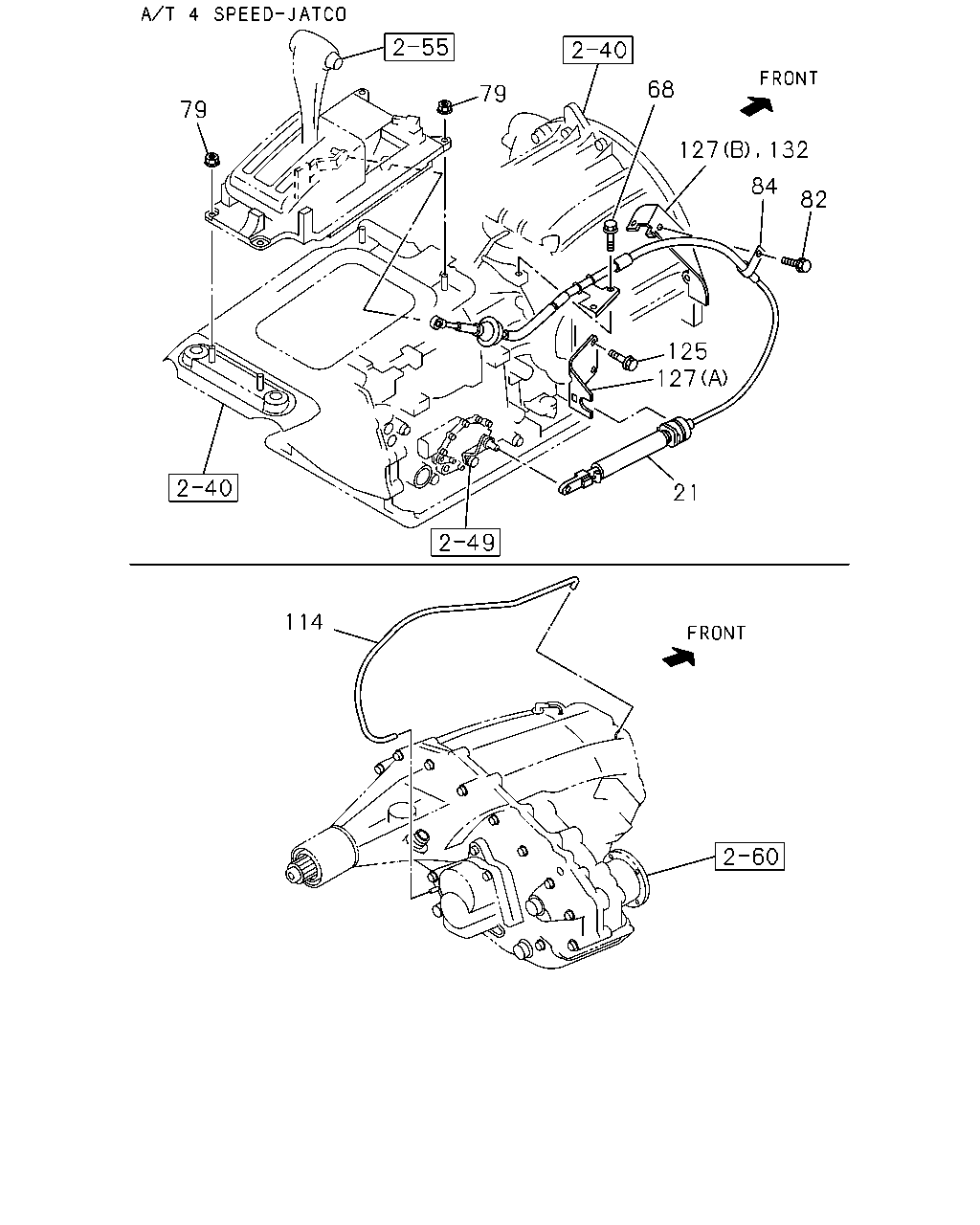

68 79 79 127 132 84 82 125 127 21 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
21	CABLE; A/T THA	8-97301-821-1	01	1	0204-0302	●
21	CABLE; A/T THA	8-97363-357-0	01	1	0303-	●
21	CABLE; A/T 4JJ1-TCX ENG<LS0> THA	8-97388-319-0	01	1	0609-0708		●
21	CABLE; A/T 4JJ1-TCX ENG<LS0> THA	8-97388-319-0	01	1	0710-		●
68	BOLT; A/T CONT CABLE M6X12 FLANGE THA	0-28050-612-0	01	1	0204-	●
79	NUT; CONT CABLE M6 FLANGE THA	8-97063-399-0	04	1	0204-0608	●
79	NUT; CONT CABLE M6 FLANGE THA	8-97063-399-0	04	1	0609-0702	●	●
79	NUT; CONT CABLE M6 FLANGE IMA	8-98055-704-0	04	1	0703-0708	●	●
79	NUT; CONT CABLE M6 FLANGE IMA	8-98055-704-0	04	1	0709-0709	●
79	NUT; CONT CABLE M6 FLANGE IMA	8-98055-704-0	04	1	0710-	●	●
82	BOLT; A/T CONT CABLE M6X16 FLANGE THA	0-28650-616-0	01	1	0204-0608	●
82	BOLT; A/T CONT CABLE M6X16 FLANGE THA	0-28650-616-0	01	1	0609-0708	●	●
82	BOLT; A/T CONT CABLE M6X16 FLANGE THA	0-28650-616-0	01	1	0709-0709	●
82	BOLT; A/T CONT CABLE M6X16 FLANGE THA	0-28650-616-0	01	1	0710-	●	●
84	CLIP; A/T CONT CABLE ID=11 L=28 THA	9-09525-052-0	01	1	0204-0408	●
84	CLIP; A/T CONT CABLE ID=11 L=28 THA	8-97367-952-0	01	1	0409-0608	●
84	CLIP; A/T CONT CABLE ID=11 L=28 THA	8-97367-952-0	01	1	0609-0702	●	●
84	CLIP; A/T CONT CABLE ID=11 L=28 THA	0-95235-052-0	01	1	0703-0708	●	●
84	CLIP; A/T CONT CABLE ID=11 L=28 THA	0-95235-052-0	01	1	0709-0709	●
84	CLIP; A/T CONT CABLE ID=11 L=28 THA	0-95235-052-0	01	1	0710-	●	●
114	HOSE; BREATHER 4X4<TFS***> TRANSFER CONTROL SW TYPE HIGH-LOW<8CE> THA	8-97236-081-0	01	1	0204-0408	●		●
114	HOSE; BREATHER 4X4<TFS***> THA	8-97236-081-0	01	1	0409-0507	●			●
114	HOSE; BREATHER 4X4<TFS***> THA	8-97236-081-0	01	1	0508-0606	●			●	●
114	HOSE; BREATHER 4X4<TFS***> THA	8-97326-218-0	01	1	0607-	●	●			●	●
125	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	02	1	0204-0608	●
125	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	02	1	0609-0708	●	●
125	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	02	1	0709-0709	●
125	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	02	1	0710-	●	●
127	BRACKET; A/T CONT CABLE (A) THA	8-97236-021-1	01	1	0204-	●
127	BRACKET; A/T CONT CABLE (B) THA	8-97301-831-1	01	1	0409-	●
127	BRACKET; A/T CONT CABLE 4JJ1-TCX ENG<LS0> (D) THA	8-97388-320-1	01	1	0609-0708		●
127	BRACKET; A/T CONT CABLE 4JJ1-TCX ENG<LS0> (C) THA	8-97388-321-1	01	1	0609-0708		●
127	BRACKET; A/T CONT CABLE 4JJ1-TCX ENG<LS0> (D) THA	8-97388-320-1	01	1	0710-		●
127	BRACKET; A/T CONT CABLE 4JJ1-TCX ENG<LS0> (C) THA	8-97388-321-1	01	1	0710-		●
132	BRACKET; A/T CONT CABLE THA	8-97301-831-1	01	1	0204-0408	●
