◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-55 - AUTO TRANS SHIFT CONTROL LEVER ▶
2-55 — AUTO TRANS SHIFT CONTROL LEVER (#72855) — 386 parça

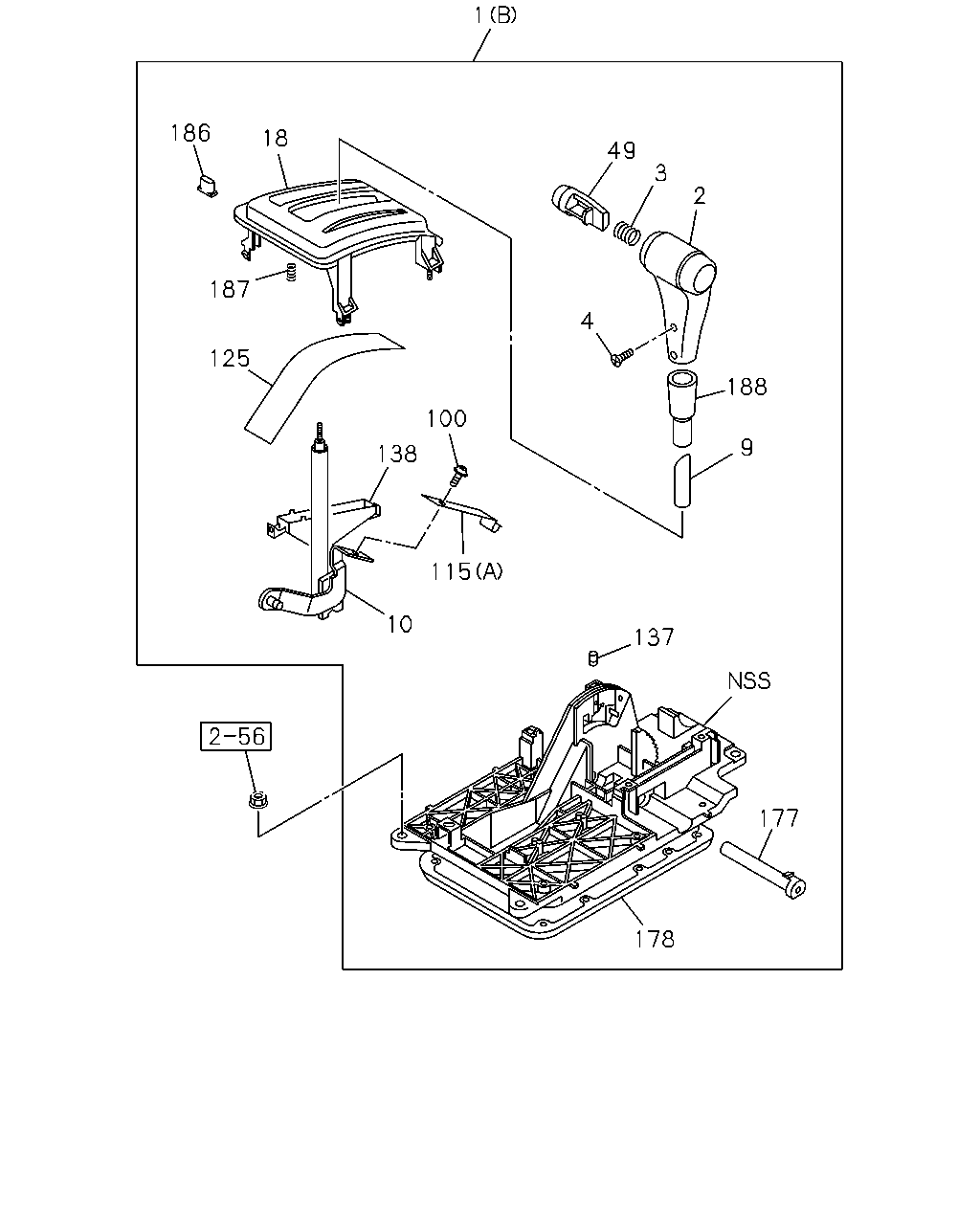

çizim 116450
1 49 3 2 188 9 4 100 138 115 10 125 187 18 186 137 177 178
BalonParca AdiParca NoAdetTipApplied Date A B
1 LEVER; SHIFT,A/T
IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO> SHIFT KNOB LEATHER<VY7> (C) THA 		8-97418-477-0 01 1 1002-1008 ●
1 LEVER; SHIFT,A/T
IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO> SHIFT KNOB LEATHER<VY7> (C) LIGHT GRAY THA 		8-97418-476-0 01 1 1002-1008 ●
1 LEVER; SHIFT,A/T
(A) DARK GRAY THA 		8-97298-467-4 01 1 0204-0408 ●
1 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> (A) DARK GRAY THA 		8-97298-467-4 01 1 0409-0511 ●
1 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> (A) DARK GRAY THA 		8-97404-462-0 01 1 0512-0606 ●
1 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> (B) LIGHT GRAY THA 		8-97403-665-1 01 1 0607-1001 ●
1 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> EXC. IDENTIFICATION BREAKING POINT 2010.5 M.Y .<BSO> (B) LIGHT GRAY THA 		8-97403-665-1 01 1 1002-1008 ●
1 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> (C) THA 		8-97418-477-0 01 1 1009- ●
1 LEVER; SHIFT,A/T
EXC. SHIFT KNOB LEATHER<VY7> (A) DARK GRAY THA 		8-97298-775-3 01 1 0508-0511 ●
1 LEVER; SHIFT,A/T
EXC. SHIFT KNOB LEATHER<VY7> (A) DARK GRAY THA 		8-97404-460-0 01 1 0512-0606 ●
1 LEVER; SHIFT,A/T
(B) LIGHT GRAY THA 		8-97403-655-1 01 1 0609-0708 ●
1 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> (B) LIGHT GRAY THA 		8-97403-655-1 01 1 0710-1001 ●
1 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> EXC. IDENTIFICATION BREAKING POINT 2010.5 M.Y .<BSO> (B) LIGHT GRAY THA 		8-97403-655-1 01 1 1002-1008 ●
1 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> (C) LIGHT GRAY THA 		8-97418-476-0 01 1 1009- ●
2 KNOB ASM; AUTO CONT LEVER
DARK GRAY THA 		8-97393-975-0 01 1 0204-0408 ●
2 KNOB ASM; AUTO CONT LEVER
SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97393-975-0 01 1 0409-0606 ●
2 KNOB ASM; AUTO CONT LEVER
SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97407-875-0 01 1 0607-0607 ●
2 KNOB ASM; AUTO CONT LEVER
SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97408-715-0 01 1 0608-0608 ●
2 KNOB ASM; AUTO CONT LEVER
SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97408-715-0 01 1 0609-0708 ● ●
2 KNOB ASM; AUTO CONT LEVER
SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97408-715-0 01 1 0709-0709 ●
2 KNOB ASM; AUTO CONT LEVER
SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97408-715-0 01 1 0710- ● ●
2 KNOB ASM; AUTO CONT LEVER
EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97393-976-0 01 1 0508-0606 ●
3 SPRING; RETURN,KNOB
THA 		8-97332-979-0 01 1 0204-0408 ●
3 SPRING; RETURN,KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-97332-979-0 01 1 0409-0507 ●
3 SPRING; RETURN,KNOB
THA 		8-97332-979-0 01 1 0508-0606 ●
3 SPRING; RETURN,KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-97332-979-0 01 1 0607-0608 ●
3 SPRING; RETURN,KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-97332-979-0 01 1 0609-0708 ● ●
3 SPRING; RETURN,KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-97332-979-0 01 1 0709-0709 ●
3 SPRING; RETURN,KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-97332-979-0 01 1 0710- ● ●
4 SCREW; KNOB TO LEVER
THA 		8-97332-950-0 02 1 0204-0408 ●
4 SCREW; KNOB TO LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-950-0 02 1 0409-0507 ●
4 SCREW; KNOB TO LEVER
THA 		8-97332-950-0 02 1 0508-0606 ●
4 SCREW; KNOB TO LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-950-0 02 1 0607-0608 ●
4 SCREW; KNOB TO LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-950-0 02 1 0609-0708 ● ●
4 SCREW; KNOB TO LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-950-0 02 1 0709-0709 ●
4 SCREW; KNOB TO LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-950-0 02 1 0710- ● ●
9 SLEEVE; KNOB,SHIFT LEVER
THA 		8-97332-980-0 01 1 0204-0408 ●
9 SLEEVE; KNOB,SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-980-0 01 1 0409-0507 ●
9 SLEEVE; KNOB,SHIFT LEVER
THA 		8-97332-980-0 01 1 0508-0606 ●
9 SLEEVE; KNOB,SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-980-0 01 1 0607-0608 ●
9 SLEEVE; KNOB,SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-980-0 01 1 0609-0708 ● ●
9 SLEEVE; KNOB,SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-980-0 01 1 0709-0709 ●
9 SLEEVE; KNOB,SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-980-0 01 1 0710- ● ●
10 LEVER; A/T CONT
THA 		8-97332-956-0 01 1 0204-0408 ●
10 LEVER; A/T CONT
SHIFT KNOB LEATHER<VY7> THA 		8-97332-956-0 01 1 0409-0507 ●
10 LEVER; A/T CONT
THA 		8-97332-956-0 01 1 0508-0606 ●
10 LEVER; A/T CONT
SHIFT KNOB LEATHER<VY7> THA 		8-98032-564-0 01 1 0607-0608 ●
10 LEVER; A/T CONT
SHIFT KNOB LEATHER<VY7> THA 		8-98032-564-0 01 1 0609-0708 ● ●
10 LEVER; A/T CONT
SHIFT KNOB LEATHER<VY7> THA 		8-98032-564-0 01 1 0709-0709 ●
10 LEVER; A/T CONT
SHIFT KNOB LEATHER<VY7> THA 		8-98032-564-0 01 1 0710- ● ●
18 COVER; INDICATOR,UPR
DARK GRAY THA 		8-97393-973-0 01 1 0204-0408 ●
18 COVER; INDICATOR,UPR
SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97393-973-0 01 1 0409-0507 ●
18 COVER; INDICATOR,UPR
DARK GRAY THA 		8-97393-973-0 01 1 0508-0606 ●
18 COVER; INDICATOR,UPR
SHIFT KNOB LEATHER<VY7> LIGHT GRAY THA 		8-97407-874-0 01 1 0607-0608 ●
18 COVER; INDICATOR,UPR
SHIFT KNOB LEATHER<VY7> LIGHT GRAY THA 		8-97407-874-0 01 1 0609-0708 ● ●
18 COVER; INDICATOR,UPR
SHIFT KNOB LEATHER<VY7> LIGHT GRAY THA 		8-97407-874-0 01 1 0709-0709 ●
18 COVER; INDICATOR,UPR
SHIFT KNOB LEATHER<VY7> LIGHT GRAY THA 		8-97407-874-0 01 1 0710- ● ●
49 BUTTON; PUSH,KNOB
DARK GRAY THA 		8-97393-974-0 01 1 0204-0408 ●
49 BUTTON; PUSH,KNOB
SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97393-974-0 01 1 0409-0507 ●
49 BUTTON; PUSH,KNOB
DARK GRAY THA 		8-97393-974-0 01 1 0508-0606 ●
49 BUTTON; PUSH,KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-98032-538-0 01 1 0607-0608 ●
49 BUTTON; PUSH,KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-98032-538-0 01 1 0609-0708 ● ●
49 BUTTON; PUSH,KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-98032-538-0 01 1 0709-0709 ●
49 BUTTON; PUSH,KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-98032-538-0 01 1 0710- ● ●
100 SCREW
THA 		8-97332-953-0 01 1 0204-0408 ●
100 SCREW
SHIFT KNOB LEATHER<VY7> THA 		8-97332-953-0 01 1 0409-0507 ●
100 SCREW
THA 		8-97332-953-0 01 1 0508-0606 ●
100 SCREW
SHIFT KNOB LEATHER<VY7> THA 		8-97332-953-0 01 1 0607-0608 ●
100 SCREW
SHIFT KNOB LEATHER<VY7> THA 		8-97332-953-0 01 1 0609-0708 ● ●
100 SCREW
SHIFT KNOB LEATHER<VY7> THA 		8-97332-953-0 01 1 0709-0709 ●
100 SCREW
SHIFT KNOB LEATHER<VY7> THA 		8-97332-953-0 01 1 0710- ● ●
115 PLATE; SPR,LEVER
(A) THA 		8-97332-936-0 01 1 0204-0408 ●
115 PLATE; SPR,LEVER
SHIFT KNOB LEATHER<VY7> (A) THA 		8-97332-936-0 01 1 0409-0507 ●
115 PLATE; SPR,LEVER
(A) THA 		8-97332-936-0 01 1 0508-0606 ●
115 PLATE; SPR,LEVER
SHIFT KNOB LEATHER<VY7> (A) THA 		8-97332-936-0 01 1 0607-0608 ●
115 PLATE; SPR,LEVER
SHIFT KNOB LEATHER<VY7> (A) THA 		8-97332-936-0 01 1 0609-0708 ● ●
115 PLATE; SPR,LEVER
SHIFT KNOB LEATHER<VY7> (A) THA 		8-97332-936-0 01 1 0709-0709 ●
115 PLATE; SPR,LEVER
SHIFT KNOB LEATHER<VY7> (A) THA 		8-97332-936-0 01 1 0710- ● ●
115 PLATE; SPR,LEVER
(B) THA 		8-97332-939-0 01 1 0204-0408 ●
115 PLATE; SPR,LEVER
SHIFT KNOB LEATHER<VY7> (B) THA 		8-97332-939-0 01 1 0409-0507 ●
115 PLATE; SPR,LEVER
(B) THA 		8-97332-939-0 01 1 0508-0606 ●
125 COVER; SHIFT LEVER
THA 		8-97332-934-0 01 1 0204-0408 ●
125 COVER; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-934-0 01 1 0409-0507 ●
125 COVER; SHIFT LEVER
THA 		8-97332-934-0 01 1 0508-0606 ●
125 COVER; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-98052-035-0 01 1 0607-0608 ●
125 COVER; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-98052-035-0 01 1 0609-0708 ● ●
125 COVER; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-98052-035-0 01 1 0709-0709 ●
125 COVER; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-98052-035-0 01 1 0710- ● ●
137 CUSHION
THA 		8-97332-938-0 03 1 0204-0408 ●
137 CUSHION
SHIFT KNOB LEATHER<VY7> THA 		8-97332-938-0 03 1 0409-0507 ●
137 CUSHION
THA 		8-97332-938-0 03 1 0508-0606 ●
137 CUSHION
SHIFT KNOB LEATHER<VY7> THA 		8-97332-938-0 03 1 0607-0608 ●
137 CUSHION
SHIFT KNOB LEATHER<VY7> THA 		8-97332-938-0 03 1 0609-0708 ● ●
137 CUSHION
SHIFT KNOB LEATHER<VY7> THA 		8-97332-938-0 03 1 0709-0709 ●
137 CUSHION
SHIFT KNOB LEATHER<VY7> THA 		8-97332-938-0 03 1 0710- ● ●
138 BOX; LAMP
THA 		8-97332-976-0 01 1 0204-0408 ●
138 BOX; LAMP
SHIFT KNOB LEATHER<VY7> THA 		8-97332-976-0 01 1 0409-0507 ●
138 BOX; LAMP
THA 		8-97332-976-0 01 1 0508-0606 ●
138 BOX; LAMP
SHIFT KNOB LEATHER<VY7> THA 		8-98032-536-0 01 1 0607-0608 ●
138 BOX; LAMP
SHIFT KNOB LEATHER<VY7> THA 		8-98032-536-0 01 1 0609-0708 ● ●
138 BOX; LAMP
SHIFT KNOB LEATHER<VY7> THA 		8-98032-536-0 01 1 0709-0709 ●
138 BOX; LAMP
SHIFT KNOB LEATHER<VY7> THA 		8-98032-536-0 01 1 0710- ● ●
177 SHAFT; SHIFT LEVER,A/T
THA 		8-97332-952-0 01 1 0204-0408 ●
177 SHAFT; SHIFT LEVER,A/T
SHIFT KNOB LEATHER<VY7> THA 		8-97332-952-0 01 1 0409-0507 ●
177 SHAFT; SHIFT LEVER,A/T
THA 		8-97332-952-0 01 1 0508-0606 ●
177 SHAFT; SHIFT LEVER,A/T
SHIFT KNOB LEATHER<VY7> THA 		8-97332-952-0 01 1 0607-0608 ●
177 SHAFT; SHIFT LEVER,A/T
SHIFT KNOB LEATHER<VY7> THA 		8-97332-952-0 01 1 0609-0708 ● ●
177 SHAFT; SHIFT LEVER,A/T
SHIFT KNOB LEATHER<VY7> THA 		8-97332-952-0 01 1 0709-0709 ●
177 SHAFT; SHIFT LEVER,A/T
SHIFT KNOB LEATHER<VY7> THA 		8-97332-952-0 01 1 0710- ● ●
178 SHEET; SHIFT LEVER
THA 		8-97332-935-0 01 1 0204-0408 ●
178 SHEET; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-935-0 01 1 0409-0507 ●
178 SHEET; SHIFT LEVER
THA 		8-97332-935-0 01 1 0508-0606 ●
178 SHEET; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-935-0 01 1 0607-0608 ●
178 SHEET; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-935-0 01 1 0609-0708 ● ●
178 SHEET; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-935-0 01 1 0709-0709 ●
178 SHEET; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-935-0 01 1 0710- ● ●
186 BUTTON; SHIFT LOCK
SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97407-872-0 01 1 0607-0608 ●
186 BUTTON; SHIFT LOCK
SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97407-872-0 01 1 0609-0708 ● ●
186 BUTTON; SHIFT LOCK
SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97407-872-0 01 1 0709-0709 ●
186 BUTTON; SHIFT LOCK
SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97407-872-0 01 1 0710- ● ●
187 SPRING; RETURN,SHIFT
SHIFT KNOB LEATHER<VY7> THA 		8-98032-566-0 01 1 0607-0608 ●
187 SPRING; RETURN,SHIFT
SHIFT KNOB LEATHER<VY7> THA 		8-98032-566-0 01 1 0609-0708 ● ●
187 SPRING; RETURN,SHIFT
SHIFT KNOB LEATHER<VY7> THA 		8-98032-566-0 01 1 0709-0709 ●
187 SPRING; RETURN,SHIFT
SHIFT KNOB LEATHER<VY7> THA 		8-98032-566-0 01 1 0710- ● ●
188 COVER; KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-98032-557-0 01 1 0607-0608 ●
188 COVER; KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-98032-557-0 01 1 0609-0708 ● ●
188 COVER; KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-98032-557-0 01 1 0709-0709 ●
188 COVER; KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-98032-557-0 01 1 0710- ● ●

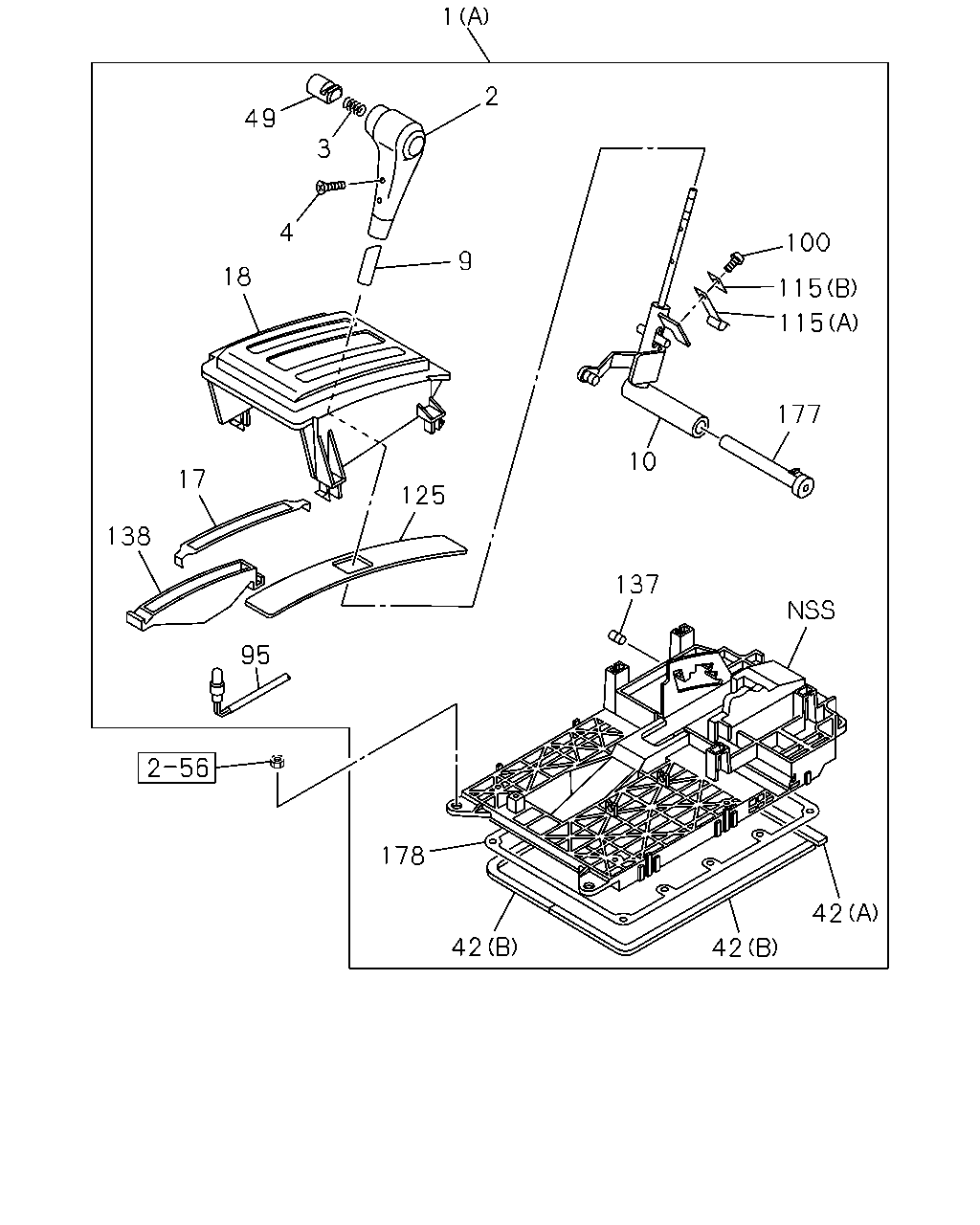

çizim 116458
1 2 9 125 49 4 3 18 17 138 95 178 42 42 42 137 10 177 115 115 100
BalonParca AdiParca NoAdetTipApplied Date A B
1 LEVER; SHIFT,A/T
IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO> SHIFT KNOB LEATHER<VY7> (C) THA 		8-97418-477-0 01 1 1002-1008 ●
1 LEVER; SHIFT,A/T
IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO> SHIFT KNOB LEATHER<VY7> (C) LIGHT GRAY THA 		8-97418-476-0 01 1 1002-1008 ●
1 LEVER; SHIFT,A/T
(A) DARK GRAY THA 		8-97298-467-4 01 1 0204-0408 ●
1 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> (A) DARK GRAY THA 		8-97298-467-4 01 1 0409-0511 ●
1 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> (A) DARK GRAY THA 		8-97404-462-0 01 1 0512-0606 ●
1 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> (B) LIGHT GRAY THA 		8-97403-665-1 01 1 0607-1001 ●
1 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> EXC. IDENTIFICATION BREAKING POINT 2010.5 M.Y .<BSO> (B) LIGHT GRAY THA 		8-97403-665-1 01 1 1002-1008 ●
1 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> (C) THA 		8-97418-477-0 01 1 1009- ●
1 LEVER; SHIFT,A/T
EXC. SHIFT KNOB LEATHER<VY7> (A) DARK GRAY THA 		8-97298-775-3 01 1 0508-0511 ●
1 LEVER; SHIFT,A/T
EXC. SHIFT KNOB LEATHER<VY7> (A) DARK GRAY THA 		8-97404-460-0 01 1 0512-0606 ●
1 LEVER; SHIFT,A/T
(B) LIGHT GRAY THA 		8-97403-655-1 01 1 0609-0708 ●
1 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> (B) LIGHT GRAY THA 		8-97403-655-1 01 1 0710-1001 ●
1 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> EXC. IDENTIFICATION BREAKING POINT 2010.5 M.Y .<BSO> (B) LIGHT GRAY THA 		8-97403-655-1 01 1 1002-1008 ●
1 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> (C) LIGHT GRAY THA 		8-97418-476-0 01 1 1009- ●
2 KNOB ASM; AUTO CONT LEVER
DARK GRAY THA 		8-97393-975-0 01 1 0204-0408 ●
2 KNOB ASM; AUTO CONT LEVER
SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97393-975-0 01 1 0409-0606 ●
2 KNOB ASM; AUTO CONT LEVER
SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97407-875-0 01 1 0607-0607 ●
2 KNOB ASM; AUTO CONT LEVER
SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97408-715-0 01 1 0608-0608 ●
2 KNOB ASM; AUTO CONT LEVER
SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97408-715-0 01 1 0609-0708 ● ●
2 KNOB ASM; AUTO CONT LEVER
SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97408-715-0 01 1 0709-0709 ●
2 KNOB ASM; AUTO CONT LEVER
SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97408-715-0 01 1 0710- ● ●
2 KNOB ASM; AUTO CONT LEVER
EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97393-976-0 01 1 0508-0606 ●
3 SPRING; RETURN,KNOB
THA 		8-97332-979-0 01 1 0204-0408 ●
3 SPRING; RETURN,KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-97332-979-0 01 1 0409-0507 ●
3 SPRING; RETURN,KNOB
THA 		8-97332-979-0 01 1 0508-0606 ●
3 SPRING; RETURN,KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-97332-979-0 01 1 0607-0608 ●
3 SPRING; RETURN,KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-97332-979-0 01 1 0609-0708 ● ●
3 SPRING; RETURN,KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-97332-979-0 01 1 0709-0709 ●
3 SPRING; RETURN,KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-97332-979-0 01 1 0710- ● ●
4 SCREW; KNOB TO LEVER
THA 		8-97332-950-0 02 1 0204-0408 ●
4 SCREW; KNOB TO LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-950-0 02 1 0409-0507 ●
4 SCREW; KNOB TO LEVER
THA 		8-97332-950-0 02 1 0508-0606 ●
4 SCREW; KNOB TO LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-950-0 02 1 0607-0608 ●
4 SCREW; KNOB TO LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-950-0 02 1 0609-0708 ● ●
4 SCREW; KNOB TO LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-950-0 02 1 0709-0709 ●
4 SCREW; KNOB TO LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-950-0 02 1 0710- ● ●
9 SLEEVE; KNOB,SHIFT LEVER
THA 		8-97332-980-0 01 1 0204-0408 ●
9 SLEEVE; KNOB,SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-980-0 01 1 0409-0507 ●
9 SLEEVE; KNOB,SHIFT LEVER
THA 		8-97332-980-0 01 1 0508-0606 ●
9 SLEEVE; KNOB,SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-980-0 01 1 0607-0608 ●
9 SLEEVE; KNOB,SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-980-0 01 1 0609-0708 ● ●
9 SLEEVE; KNOB,SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-980-0 01 1 0709-0709 ●
9 SLEEVE; KNOB,SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-980-0 01 1 0710- ● ●
10 LEVER; A/T CONT
THA 		8-97332-956-0 01 1 0204-0408 ●
10 LEVER; A/T CONT
SHIFT KNOB LEATHER<VY7> THA 		8-97332-956-0 01 1 0409-0507 ●
10 LEVER; A/T CONT
THA 		8-97332-956-0 01 1 0508-0606 ●
10 LEVER; A/T CONT
SHIFT KNOB LEATHER<VY7> THA 		8-98032-564-0 01 1 0607-0608 ●
10 LEVER; A/T CONT
SHIFT KNOB LEATHER<VY7> THA 		8-98032-564-0 01 1 0609-0708 ● ●
10 LEVER; A/T CONT
SHIFT KNOB LEATHER<VY7> THA 		8-98032-564-0 01 1 0709-0709 ●
10 LEVER; A/T CONT
SHIFT KNOB LEATHER<VY7> THA 		8-98032-564-0 01 1 0710- ● ●
17 PLATE; INDICATOR
THA 		8-97332-933-0 01 1 0204-0408 ●
17 PLATE; INDICATOR
SHIFT KNOB LEATHER<VY7> THA 		8-97332-933-0 01 1 0409-0507 ●
17 PLATE; INDICATOR
THA 		8-97332-933-0 01 1 0508-0606 ●
18 COVER; INDICATOR,UPR
DARK GRAY THA 		8-97393-973-0 01 1 0204-0408 ●
18 COVER; INDICATOR,UPR
SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97393-973-0 01 1 0409-0507 ●
18 COVER; INDICATOR,UPR
DARK GRAY THA 		8-97393-973-0 01 1 0508-0606 ●
18 COVER; INDICATOR,UPR
SHIFT KNOB LEATHER<VY7> LIGHT GRAY THA 		8-97407-874-0 01 1 0607-0608 ●
18 COVER; INDICATOR,UPR
SHIFT KNOB LEATHER<VY7> LIGHT GRAY THA 		8-97407-874-0 01 1 0609-0708 ● ●
18 COVER; INDICATOR,UPR
SHIFT KNOB LEATHER<VY7> LIGHT GRAY THA 		8-97407-874-0 01 1 0709-0709 ●
18 COVER; INDICATOR,UPR
SHIFT KNOB LEATHER<VY7> LIGHT GRAY THA 		8-97407-874-0 01 1 0710- ● ●
42 SEAL; RUBBER
(A) THA 		8-97332-954-0 01 1 0204-0408 ●
42 SEAL; RUBBER
SHIFT KNOB LEATHER<VY7> (A) THA 		8-97332-954-0 01 1 0409-0507 ●
42 SEAL; RUBBER
(A) THA 		8-97332-954-0 01 1 0508-0511 ●
42 SEAL; RUBBER
(B) THA 		8-97332-955-0 02 1 0204-0408 ●
42 SEAL; RUBBER
SHIFT KNOB LEATHER<VY7> (B) THA 		8-97332-955-0 02 1 0409-0507 ●
42 SEAL; RUBBER
(B) THA 		8-97332-955-0 02 1 0508-0511 ●
49 BUTTON; PUSH,KNOB
DARK GRAY THA 		8-97393-974-0 01 1 0204-0408 ●
49 BUTTON; PUSH,KNOB
SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97393-974-0 01 1 0409-0507 ●
49 BUTTON; PUSH,KNOB
DARK GRAY THA 		8-97393-974-0 01 1 0508-0606 ●
49 BUTTON; PUSH,KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-98032-538-0 01 1 0607-0608 ●
49 BUTTON; PUSH,KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-98032-538-0 01 1 0609-0708 ● ●
49 BUTTON; PUSH,KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-98032-538-0 01 1 0709-0709 ●
49 BUTTON; PUSH,KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-98032-538-0 01 1 0710- ● ●
95 LAMP; INDICATOR
THA 		8-97332-977-0 01 1 0204-0408 ●
95 LAMP; INDICATOR
SHIFT KNOB LEATHER<VY7> THA 		8-97332-977-0 01 1 0409-0507 ●
95 LAMP; INDICATOR
THA 		8-97332-977-0 01 1 0508-0606 ●
100 SCREW
THA 		8-97332-953-0 01 1 0204-0408 ●
100 SCREW
SHIFT KNOB LEATHER<VY7> THA 		8-97332-953-0 01 1 0409-0507 ●
100 SCREW
THA 		8-97332-953-0 01 1 0508-0606 ●
100 SCREW
SHIFT KNOB LEATHER<VY7> THA 		8-97332-953-0 01 1 0607-0608 ●
100 SCREW
SHIFT KNOB LEATHER<VY7> THA 		8-97332-953-0 01 1 0609-0708 ● ●
100 SCREW
SHIFT KNOB LEATHER<VY7> THA 		8-97332-953-0 01 1 0709-0709 ●
100 SCREW
SHIFT KNOB LEATHER<VY7> THA 		8-97332-953-0 01 1 0710- ● ●
115 PLATE; SPR,LEVER
(A) THA 		8-97332-936-0 01 1 0204-0408 ●
115 PLATE; SPR,LEVER
SHIFT KNOB LEATHER<VY7> (A) THA 		8-97332-936-0 01 1 0409-0507 ●
115 PLATE; SPR,LEVER
(A) THA 		8-97332-936-0 01 1 0508-0606 ●
115 PLATE; SPR,LEVER
SHIFT KNOB LEATHER<VY7> (A) THA 		8-97332-936-0 01 1 0607-0608 ●
115 PLATE; SPR,LEVER
SHIFT KNOB LEATHER<VY7> (A) THA 		8-97332-936-0 01 1 0609-0708 ● ●
115 PLATE; SPR,LEVER
SHIFT KNOB LEATHER<VY7> (A) THA 		8-97332-936-0 01 1 0709-0709 ●
115 PLATE; SPR,LEVER
SHIFT KNOB LEATHER<VY7> (A) THA 		8-97332-936-0 01 1 0710- ● ●
115 PLATE; SPR,LEVER
(B) THA 		8-97332-939-0 01 1 0204-0408 ●
115 PLATE; SPR,LEVER
SHIFT KNOB LEATHER<VY7> (B) THA 		8-97332-939-0 01 1 0409-0507 ●
115 PLATE; SPR,LEVER
(B) THA 		8-97332-939-0 01 1 0508-0606 ●
125 COVER; SHIFT LEVER
THA 		8-97332-934-0 01 1 0204-0408 ●
125 COVER; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-934-0 01 1 0409-0507 ●
125 COVER; SHIFT LEVER
THA 		8-97332-934-0 01 1 0508-0606 ●
125 COVER; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-98052-035-0 01 1 0607-0608 ●
125 COVER; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-98052-035-0 01 1 0609-0708 ● ●
125 COVER; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-98052-035-0 01 1 0709-0709 ●
125 COVER; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-98052-035-0 01 1 0710- ● ●
137 CUSHION
THA 		8-97332-938-0 03 1 0204-0408 ●
137 CUSHION
SHIFT KNOB LEATHER<VY7> THA 		8-97332-938-0 03 1 0409-0507 ●
137 CUSHION
THA 		8-97332-938-0 03 1 0508-0606 ●
137 CUSHION
SHIFT KNOB LEATHER<VY7> THA 		8-97332-938-0 03 1 0607-0608 ●
137 CUSHION
SHIFT KNOB LEATHER<VY7> THA 		8-97332-938-0 03 1 0609-0708 ● ●
137 CUSHION
SHIFT KNOB LEATHER<VY7> THA 		8-97332-938-0 03 1 0709-0709 ●
137 CUSHION
SHIFT KNOB LEATHER<VY7> THA 		8-97332-938-0 03 1 0710- ● ●
138 BOX; LAMP
THA 		8-97332-976-0 01 1 0204-0408 ●
138 BOX; LAMP
SHIFT KNOB LEATHER<VY7> THA 		8-97332-976-0 01 1 0409-0507 ●
138 BOX; LAMP
THA 		8-97332-976-0 01 1 0508-0606 ●
138 BOX; LAMP
SHIFT KNOB LEATHER<VY7> THA 		8-98032-536-0 01 1 0607-0608 ●
138 BOX; LAMP
SHIFT KNOB LEATHER<VY7> THA 		8-98032-536-0 01 1 0609-0708 ● ●
138 BOX; LAMP
SHIFT KNOB LEATHER<VY7> THA 		8-98032-536-0 01 1 0709-0709 ●
138 BOX; LAMP
SHIFT KNOB LEATHER<VY7> THA 		8-98032-536-0 01 1 0710- ● ●
177 SHAFT; SHIFT LEVER,A/T
THA 		8-97332-952-0 01 1 0204-0408 ●
177 SHAFT; SHIFT LEVER,A/T
SHIFT KNOB LEATHER<VY7> THA 		8-97332-952-0 01 1 0409-0507 ●
177 SHAFT; SHIFT LEVER,A/T
THA 		8-97332-952-0 01 1 0508-0606 ●
177 SHAFT; SHIFT LEVER,A/T
SHIFT KNOB LEATHER<VY7> THA 		8-97332-952-0 01 1 0607-0608 ●
177 SHAFT; SHIFT LEVER,A/T
SHIFT KNOB LEATHER<VY7> THA 		8-97332-952-0 01 1 0609-0708 ● ●
177 SHAFT; SHIFT LEVER,A/T
SHIFT KNOB LEATHER<VY7> THA 		8-97332-952-0 01 1 0709-0709 ●
177 SHAFT; SHIFT LEVER,A/T
SHIFT KNOB LEATHER<VY7> THA 		8-97332-952-0 01 1 0710- ● ●
178 SHEET; SHIFT LEVER
THA 		8-97332-935-0 01 1 0204-0408 ●
178 SHEET; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-935-0 01 1 0409-0507 ●
178 SHEET; SHIFT LEVER
THA 		8-97332-935-0 01 1 0508-0606 ●
178 SHEET; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-935-0 01 1 0607-0608 ●
178 SHEET; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-935-0 01 1 0609-0708 ● ●
178 SHEET; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-935-0 01 1 0709-0709 ●
178 SHEET; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-935-0 01 1 0710- ● ●

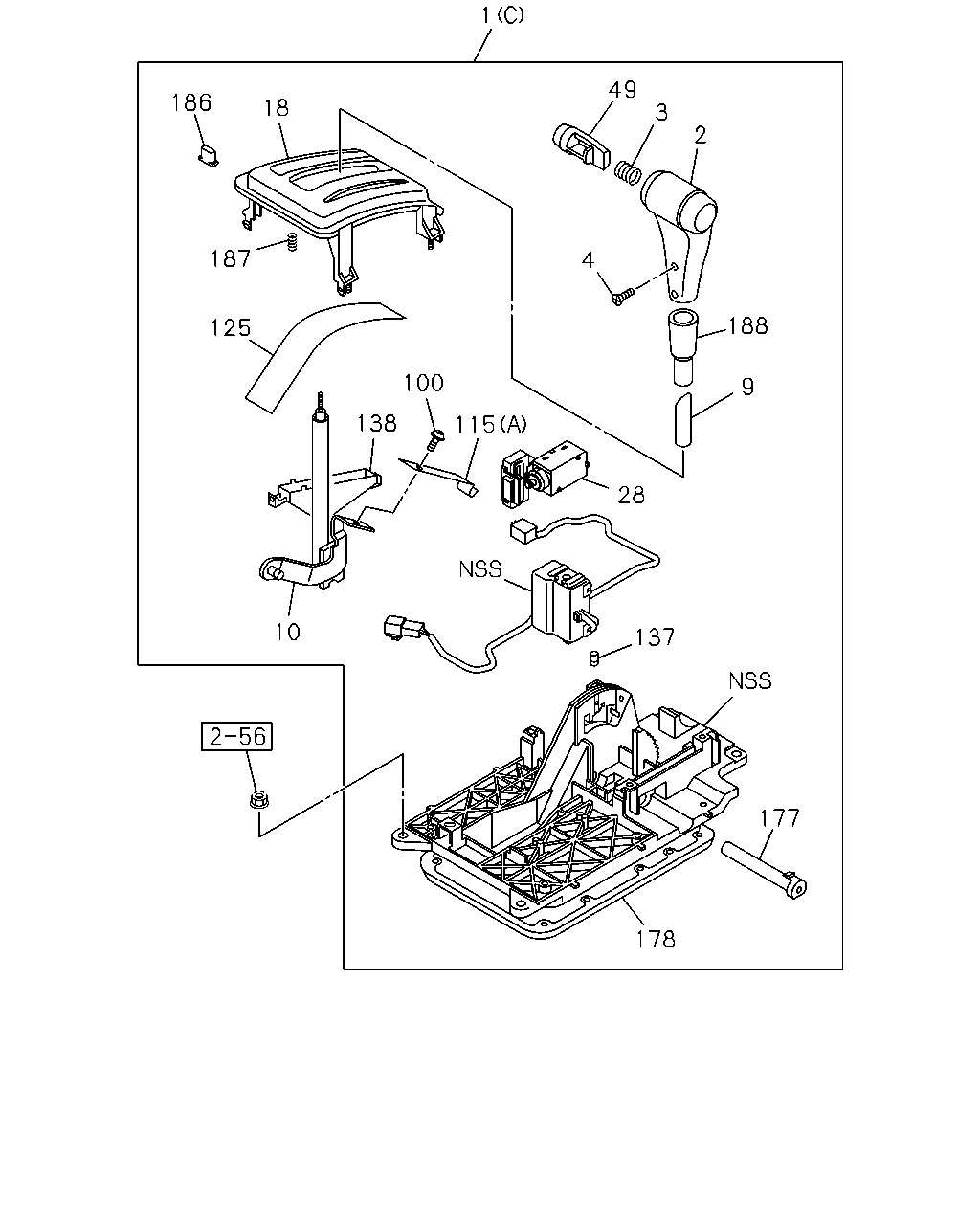

çizim 116479
1 49 3 2 188 9 4 100 115 138 28 137 177 178 10 125 187 18 186
BalonParca AdiParca NoAdetTipApplied Date A B
1 LEVER; SHIFT,A/T
IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO> SHIFT KNOB LEATHER<VY7> (C) THA 		8-97418-477-0 01 1 1002-1008 ●
1 LEVER; SHIFT,A/T
IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO> SHIFT KNOB LEATHER<VY7> (C) LIGHT GRAY THA 		8-97418-476-0 01 1 1002-1008 ●
1 LEVER; SHIFT,A/T
(A) DARK GRAY THA 		8-97298-467-4 01 1 0204-0408 ●
1 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> (A) DARK GRAY THA 		8-97298-467-4 01 1 0409-0511 ●
1 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> (A) DARK GRAY THA 		8-97404-462-0 01 1 0512-0606 ●
1 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> (B) LIGHT GRAY THA 		8-97403-665-1 01 1 0607-1001 ●
1 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> EXC. IDENTIFICATION BREAKING POINT 2010.5 M.Y .<BSO> (B) LIGHT GRAY THA 		8-97403-665-1 01 1 1002-1008 ●
1 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> (C) THA 		8-97418-477-0 01 1 1009- ●
1 LEVER; SHIFT,A/T
EXC. SHIFT KNOB LEATHER<VY7> (A) DARK GRAY THA 		8-97298-775-3 01 1 0508-0511 ●
1 LEVER; SHIFT,A/T
EXC. SHIFT KNOB LEATHER<VY7> (A) DARK GRAY THA 		8-97404-460-0 01 1 0512-0606 ●
1 LEVER; SHIFT,A/T
(B) LIGHT GRAY THA 		8-97403-655-1 01 1 0609-0708 ●
1 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> (B) LIGHT GRAY THA 		8-97403-655-1 01 1 0710-1001 ●
1 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> EXC. IDENTIFICATION BREAKING POINT 2010.5 M.Y .<BSO> (B) LIGHT GRAY THA 		8-97403-655-1 01 1 1002-1008 ●
1 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> (C) LIGHT GRAY THA 		8-97418-476-0 01 1 1009- ●
2 KNOB ASM; AUTO CONT LEVER
DARK GRAY THA 		8-97393-975-0 01 1 0204-0408 ●
2 KNOB ASM; AUTO CONT LEVER
SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97393-975-0 01 1 0409-0606 ●
2 KNOB ASM; AUTO CONT LEVER
SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97407-875-0 01 1 0607-0607 ●
2 KNOB ASM; AUTO CONT LEVER
SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97408-715-0 01 1 0608-0608 ●
2 KNOB ASM; AUTO CONT LEVER
SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97408-715-0 01 1 0609-0708 ● ●
2 KNOB ASM; AUTO CONT LEVER
SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97408-715-0 01 1 0709-0709 ●
2 KNOB ASM; AUTO CONT LEVER
SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97408-715-0 01 1 0710- ● ●
2 KNOB ASM; AUTO CONT LEVER
EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97393-976-0 01 1 0508-0606 ●
3 SPRING; RETURN,KNOB
THA 		8-97332-979-0 01 1 0204-0408 ●
3 SPRING; RETURN,KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-97332-979-0 01 1 0409-0507 ●
3 SPRING; RETURN,KNOB
THA 		8-97332-979-0 01 1 0508-0606 ●
3 SPRING; RETURN,KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-97332-979-0 01 1 0607-0608 ●
3 SPRING; RETURN,KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-97332-979-0 01 1 0609-0708 ● ●
3 SPRING; RETURN,KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-97332-979-0 01 1 0709-0709 ●
3 SPRING; RETURN,KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-97332-979-0 01 1 0710- ● ●
4 SCREW; KNOB TO LEVER
THA 		8-97332-950-0 02 1 0204-0408 ●
4 SCREW; KNOB TO LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-950-0 02 1 0409-0507 ●
4 SCREW; KNOB TO LEVER
THA 		8-97332-950-0 02 1 0508-0606 ●
4 SCREW; KNOB TO LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-950-0 02 1 0607-0608 ●
4 SCREW; KNOB TO LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-950-0 02 1 0609-0708 ● ●
4 SCREW; KNOB TO LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-950-0 02 1 0709-0709 ●
4 SCREW; KNOB TO LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-950-0 02 1 0710- ● ●
9 SLEEVE; KNOB,SHIFT LEVER
THA 		8-97332-980-0 01 1 0204-0408 ●
9 SLEEVE; KNOB,SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-980-0 01 1 0409-0507 ●
9 SLEEVE; KNOB,SHIFT LEVER
THA 		8-97332-980-0 01 1 0508-0606 ●
9 SLEEVE; KNOB,SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-980-0 01 1 0607-0608 ●
9 SLEEVE; KNOB,SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-980-0 01 1 0609-0708 ● ●
9 SLEEVE; KNOB,SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-980-0 01 1 0709-0709 ●
9 SLEEVE; KNOB,SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-980-0 01 1 0710- ● ●
10 LEVER; A/T CONT
THA 		8-97332-956-0 01 1 0204-0408 ●
10 LEVER; A/T CONT
SHIFT KNOB LEATHER<VY7> THA 		8-97332-956-0 01 1 0409-0507 ●
10 LEVER; A/T CONT
THA 		8-97332-956-0 01 1 0508-0606 ●
10 LEVER; A/T CONT
SHIFT KNOB LEATHER<VY7> THA 		8-98032-564-0 01 1 0607-0608 ●
10 LEVER; A/T CONT
SHIFT KNOB LEATHER<VY7> THA 		8-98032-564-0 01 1 0609-0708 ● ●
10 LEVER; A/T CONT
SHIFT KNOB LEATHER<VY7> THA 		8-98032-564-0 01 1 0709-0709 ●
10 LEVER; A/T CONT
SHIFT KNOB LEATHER<VY7> THA 		8-98032-564-0 01 1 0710- ● ●
18 COVER; INDICATOR,UPR
DARK GRAY THA 		8-97393-973-0 01 1 0204-0408 ●
18 COVER; INDICATOR,UPR
SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97393-973-0 01 1 0409-0507 ●
18 COVER; INDICATOR,UPR
DARK GRAY THA 		8-97393-973-0 01 1 0508-0606 ●
18 COVER; INDICATOR,UPR
SHIFT KNOB LEATHER<VY7> LIGHT GRAY THA 		8-97407-874-0 01 1 0607-0608 ●
18 COVER; INDICATOR,UPR
SHIFT KNOB LEATHER<VY7> LIGHT GRAY THA 		8-97407-874-0 01 1 0609-0708 ● ●
18 COVER; INDICATOR,UPR
SHIFT KNOB LEATHER<VY7> LIGHT GRAY THA 		8-97407-874-0 01 1 0709-0709 ●
18 COVER; INDICATOR,UPR
SHIFT KNOB LEATHER<VY7> LIGHT GRAY THA 		8-97407-874-0 01 1 0710- ● ●
28 SOLENOID ASM
IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO> EXC. SHIFT KNOB LEATHER<VY7> THA 		8-98032-553-0 01 1 1002-1008 ● ●
28 SOLENOID ASM
SHIFT KNOB LEATHER<VY7> THA 		8-98032-553-0 01 1 1009- ● ●
49 BUTTON; PUSH,KNOB
DARK GRAY THA 		8-97393-974-0 01 1 0204-0408 ●
49 BUTTON; PUSH,KNOB
SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97393-974-0 01 1 0409-0507 ●
49 BUTTON; PUSH,KNOB
DARK GRAY THA 		8-97393-974-0 01 1 0508-0606 ●
49 BUTTON; PUSH,KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-98032-538-0 01 1 0607-0608 ●
49 BUTTON; PUSH,KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-98032-538-0 01 1 0609-0708 ● ●
49 BUTTON; PUSH,KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-98032-538-0 01 1 0709-0709 ●
49 BUTTON; PUSH,KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-98032-538-0 01 1 0710- ● ●
100 SCREW
THA 		8-97332-953-0 01 1 0204-0408 ●
100 SCREW
SHIFT KNOB LEATHER<VY7> THA 		8-97332-953-0 01 1 0409-0507 ●
100 SCREW
THA 		8-97332-953-0 01 1 0508-0606 ●
100 SCREW
SHIFT KNOB LEATHER<VY7> THA 		8-97332-953-0 01 1 0607-0608 ●
100 SCREW
SHIFT KNOB LEATHER<VY7> THA 		8-97332-953-0 01 1 0609-0708 ● ●
100 SCREW
SHIFT KNOB LEATHER<VY7> THA 		8-97332-953-0 01 1 0709-0709 ●
100 SCREW
SHIFT KNOB LEATHER<VY7> THA 		8-97332-953-0 01 1 0710- ● ●
115 PLATE; SPR,LEVER
(A) THA 		8-97332-936-0 01 1 0204-0408 ●
115 PLATE; SPR,LEVER
SHIFT KNOB LEATHER<VY7> (A) THA 		8-97332-936-0 01 1 0409-0507 ●
115 PLATE; SPR,LEVER
(A) THA 		8-97332-936-0 01 1 0508-0606 ●
115 PLATE; SPR,LEVER
SHIFT KNOB LEATHER<VY7> (A) THA 		8-97332-936-0 01 1 0607-0608 ●
115 PLATE; SPR,LEVER
SHIFT KNOB LEATHER<VY7> (A) THA 		8-97332-936-0 01 1 0609-0708 ● ●
115 PLATE; SPR,LEVER
SHIFT KNOB LEATHER<VY7> (A) THA 		8-97332-936-0 01 1 0709-0709 ●
115 PLATE; SPR,LEVER
SHIFT KNOB LEATHER<VY7> (A) THA 		8-97332-936-0 01 1 0710- ● ●
115 PLATE; SPR,LEVER
(B) THA 		8-97332-939-0 01 1 0204-0408 ●
115 PLATE; SPR,LEVER
SHIFT KNOB LEATHER<VY7> (B) THA 		8-97332-939-0 01 1 0409-0507 ●
115 PLATE; SPR,LEVER
(B) THA 		8-97332-939-0 01 1 0508-0606 ●
125 COVER; SHIFT LEVER
THA 		8-97332-934-0 01 1 0204-0408 ●
125 COVER; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-934-0 01 1 0409-0507 ●
125 COVER; SHIFT LEVER
THA 		8-97332-934-0 01 1 0508-0606 ●
125 COVER; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-98052-035-0 01 1 0607-0608 ●
125 COVER; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-98052-035-0 01 1 0609-0708 ● ●
125 COVER; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-98052-035-0 01 1 0709-0709 ●
125 COVER; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-98052-035-0 01 1 0710- ● ●
137 CUSHION
THA 		8-97332-938-0 03 1 0204-0408 ●
137 CUSHION
SHIFT KNOB LEATHER<VY7> THA 		8-97332-938-0 03 1 0409-0507 ●
137 CUSHION
THA 		8-97332-938-0 03 1 0508-0606 ●
137 CUSHION
SHIFT KNOB LEATHER<VY7> THA 		8-97332-938-0 03 1 0607-0608 ●
137 CUSHION
SHIFT KNOB LEATHER<VY7> THA 		8-97332-938-0 03 1 0609-0708 ● ●
137 CUSHION
SHIFT KNOB LEATHER<VY7> THA 		8-97332-938-0 03 1 0709-0709 ●
137 CUSHION
SHIFT KNOB LEATHER<VY7> THA 		8-97332-938-0 03 1 0710- ● ●
138 BOX; LAMP
THA 		8-97332-976-0 01 1 0204-0408 ●
138 BOX; LAMP
SHIFT KNOB LEATHER<VY7> THA 		8-97332-976-0 01 1 0409-0507 ●
138 BOX; LAMP
THA 		8-97332-976-0 01 1 0508-0606 ●
138 BOX; LAMP
SHIFT KNOB LEATHER<VY7> THA 		8-98032-536-0 01 1 0607-0608 ●
138 BOX; LAMP
SHIFT KNOB LEATHER<VY7> THA 		8-98032-536-0 01 1 0609-0708 ● ●
138 BOX; LAMP
SHIFT KNOB LEATHER<VY7> THA 		8-98032-536-0 01 1 0709-0709 ●
138 BOX; LAMP
SHIFT KNOB LEATHER<VY7> THA 		8-98032-536-0 01 1 0710- ● ●
177 SHAFT; SHIFT LEVER,A/T
THA 		8-97332-952-0 01 1 0204-0408 ●
177 SHAFT; SHIFT LEVER,A/T
SHIFT KNOB LEATHER<VY7> THA 		8-97332-952-0 01 1 0409-0507 ●
177 SHAFT; SHIFT LEVER,A/T
THA 		8-97332-952-0 01 1 0508-0606 ●
177 SHAFT; SHIFT LEVER,A/T
SHIFT KNOB LEATHER<VY7> THA 		8-97332-952-0 01 1 0607-0608 ●
177 SHAFT; SHIFT LEVER,A/T
SHIFT KNOB LEATHER<VY7> THA 		8-97332-952-0 01 1 0609-0708 ● ●
177 SHAFT; SHIFT LEVER,A/T
SHIFT KNOB LEATHER<VY7> THA 		8-97332-952-0 01 1 0709-0709 ●
177 SHAFT; SHIFT LEVER,A/T
SHIFT KNOB LEATHER<VY7> THA 		8-97332-952-0 01 1 0710- ● ●
178 SHEET; SHIFT LEVER
THA 		8-97332-935-0 01 1 0204-0408 ●
178 SHEET; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-935-0 01 1 0409-0507 ●
178 SHEET; SHIFT LEVER
THA 		8-97332-935-0 01 1 0508-0606 ●
178 SHEET; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-935-0 01 1 0607-0608 ●
178 SHEET; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-935-0 01 1 0609-0708 ● ●
178 SHEET; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-935-0 01 1 0709-0709 ●
178 SHEET; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> THA 		8-97332-935-0 01 1 0710- ● ●
186 BUTTON; SHIFT LOCK
SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97407-872-0 01 1 0607-0608 ●
186 BUTTON; SHIFT LOCK
SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97407-872-0 01 1 0609-0708 ● ●
186 BUTTON; SHIFT LOCK
SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97407-872-0 01 1 0709-0709 ●
186 BUTTON; SHIFT LOCK
SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97407-872-0 01 1 0710- ● ●
187 SPRING; RETURN,SHIFT
SHIFT KNOB LEATHER<VY7> THA 		8-98032-566-0 01 1 0607-0608 ●
187 SPRING; RETURN,SHIFT
SHIFT KNOB LEATHER<VY7> THA 		8-98032-566-0 01 1 0609-0708 ● ●
187 SPRING; RETURN,SHIFT
SHIFT KNOB LEATHER<VY7> THA 		8-98032-566-0 01 1 0709-0709 ●
187 SPRING; RETURN,SHIFT
SHIFT KNOB LEATHER<VY7> THA 		8-98032-566-0 01 1 0710- ● ●
188 COVER; KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-98032-557-0 01 1 0607-0608 ●
188 COVER; KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-98032-557-0 01 1 0609-0708 ● ●
188 COVER; KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-98032-557-0 01 1 0709-0709 ●
188 COVER; KNOB
SHIFT KNOB LEATHER<VY7> THA 		8-98032-557-0 01 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
