2-49 — AUTO TRANS INHIBITOR SWITCH (#72851) — 124 parça

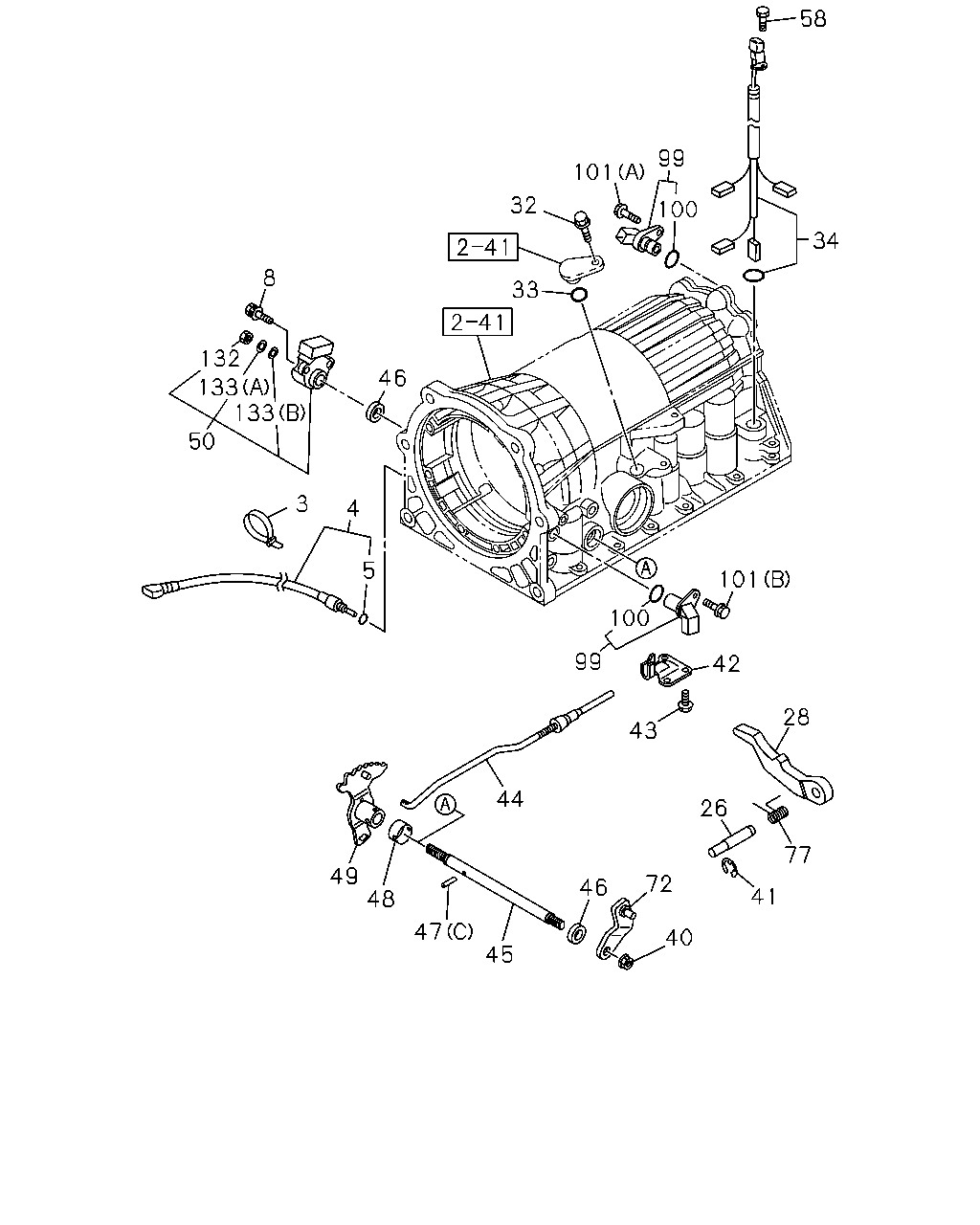

58 99 101 32 100 34 8 33 132 46 133 133 50 3 4 5 101 100 99 42 28 43 44 26 77 49 48 72 46 41 47 40 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	CLIP; INHIBITOR SW,A/T 4JJ1-TCX ENG<LS0> THA	8-94473-565-0	01	1	0710-	●
3	CLIP; INHIBITOR SW,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-94473-565-0	01	1	0609-0708	●
4	SENSOR; THERMO,A/T OIL 4JJ1-TCX ENG<LS0> THA	8-97331-531-0	01	1	0710-	●
4	SENSOR; THERMO,A/T OIL 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-97331-531-0	01	1	0609-0708	●
5	GASKET; OIL THERMO SENSOR,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-726-0	01	1	0710-	●
5	GASKET; OIL THERMO SENSOR,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-94479-726-0	01	1	0609-0708	●
8	BOLT; NEUTRAL START SW,A/T 4JJ1-TCX ENG<LS0> M8X30 THA	8-97130-929-0	01	1	0710-	●
8	BOLT; NEUTRAL START SW,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> M8X30 THA	8-97130-929-0	01	1	0609-0708	●
26	SHAFT; PARKING PAWL,A/T 4JH1 ENG<RJX> THA	8-97331-117-0	01	1	0204-0408		●
26	SHAFT; PARKING PAWL,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-117-0	01	1	0409-		●
26	SHAFT; PARKING PAWL,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-975-0	01	1	0710-	●
26	SHAFT; PARKING PAWL,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-94479-975-0	01	1	0609-0708	●
28	PAWL; PARKING,A/T 4JH1 ENG<RJX> THA	8-97331-119-0	01	1	0204-0408		●
28	PAWL; PARKING,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-119-0	01	1	0409-0711		●
28	PAWL; PARKING,A/T 4JJ1-TCS ENG<LFB> THA	8-98126-855-0	01	1	0712-		●
28	PAWL; PARKING,A/T 4JJ1-TCX ENG<LS0> THA	8-97143-087-0	01	1	0710-	●
28	PAWL; PARKING,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-97143-087-0	01	1	0609-0708	●
32	BOLT; THROTTLE CABLE 4X2<TFB***> 4JJ1-TCX ENG<LS0> M6X16 THA	8-94479-712-0	01	1	0710-1008	●
33	GASKET; THROTTLE CABLE 4X2<TFB***> 4JJ1-TCX ENG<LS0> THA	8-94364-922-0	01	1	0710-1008	●
34	SOLENOID ASM; A/T 4JJ1-TCX ENG<LS0> THA	8-98050-495-0	01	1	0710-	●
34	SOLENOID ASM; A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-98050-495-0	01	1	0609-0708	●
40	NUT; LEVER TO SHAFT 4JH1 ENG<RJX> M10 FLANGE THA	0-91180-110-0	01	1	0204-0408		●
40	NUT; LEVER TO SHAFT 4JJ1-TCS ENG<LFB> M10 FLANGE THA	0-91180-110-0	01	1	0409-		●
40	NUT; LEVER TO SHAFT 4JJ1-TCX ENG<LS0> M8 FLANGE THA	0-91180-108-0	01	1	0609-0708	●
40	NUT; LEVER TO SHAFT 4JJ1-TCX ENG<LS0> M8 FLANGE THA	0-91180-108-0	01	1	0710-	●
41	RETAINER; SPR,SHAFT 4JJ1-TCX ENG<LS0> THA	5-34488-002-0	01	1	0710-	●
41	RETAINER; SPR,SHAFT 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	5-34488-002-0	01	1	0609-0708	●
42	BRACKET; PARKING LOCK 4JJ1-TCX ENG<LS0> THA	8-97126-815-0	01	1	0710-	●
42	BRACKET; PARKING LOCK 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-97126-815-0	01	1	0609-0708	●
43	BOLT; BRKT 4JJ1-TCX ENG<LS0> M6X14 THA	8-94479-978-0	03	1	0710-	●
43	BOLT; BRKT 4X4<TFS***> 4JJ1-TCX ENG<LS0> M6X14 THA	8-94479-978-0	03	1	0609-0708	●
44	ROD ASM; PARKING PAWL 4JJ1-TCX ENG<LS0> THA	8-98050-534-0	01	1	0710-	●
44	ROD ASM; PARKING PAWL 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-98050-534-0	01	1	0609-0708	●
45	SHAFT; VALVE LEVER 4JJ1-TCX ENG<LS0> THA	8-97025-848-0	01	1	0710-	●
45	SHAFT; VALVE LEVER 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-97025-848-0	01	1	0609-0708	●
46	SEAL; OIL 4JH1 ENG<RJX> THA	8-97330-908-0	01	1	0204-0408		●
46	SEAL; OIL 4JJ1-TCS ENG<LFB> THA	8-97330-908-0	01	1	0409-		●
46	SEAL; OIL 4JJ1-TCX ENG<LS0> OD=22 THA	8-94479-740-0	02	1	0710-	●
46	SEAL; OIL 4X4<TFS***> 4JJ1-TCX ENG<LS0> OD=22 THA	8-94479-740-0	02	1	0609-0708	●
47	PIN; ROLL SHAFT 4JH1 ENG<RJX> (A) THA	8-97331-125-0	01	1	0204-0408		●
47	PIN; ROLL SHAFT 4JJ1-TCS ENG<LFB> (A) THA	8-97331-125-0	01	1	0409-		●
47	PIN; ROLL SHAFT 4JH1 ENG<RJX> (B) THA	8-97331-126-0	01	1	0204-0408		●
47	PIN; ROLL SHAFT 4JJ1-TCS ENG<LFB> (B) THA	8-97331-126-0	01	1	0409-		●
47	PIN; ROLL SHAFT 4JJ1-TCX ENG<LS0> (C) D=4 THA	8-94257-081-0	01	1	0710-	●
47	PIN; ROLL SHAFT 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C) D=4 THA	8-94257-081-0	01	1	0609-0708	●
48	COVER; SLEEVE 4JJ1-TCX ENG<LS0> THA	8-97362-483-0	01	1	0710-	●
48	COVER; SLEEVE 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-97362-483-0	01	1	0609-0708	●
49	LEVER ASM; CAM 4JJ1-TCX ENG<LS0> THA	8-97331-535-0	01	1	0710-	●
49	LEVER ASM; CAM 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-97331-535-0	01	1	0609-0708	●
50	SWITCH; NEUTRAL,A/T 4JJ1-TCX ENG<LS0> THA	8-97207-138-0	01	1	0710-	●
50	SWITCH; NEUTRAL,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-97207-138-0	01	1	0609-0708	●
58	BOLT; SOLENOID TO A/T 4JJ1-TCX ENG<LS0> M6X16 THA	8-94479-712-0	01	1	0710-	●
58	BOLT; SOLENOID TO A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> M6X16 THA	8-94479-712-0	01	1	0609-0708	●
72	LEVER; SELECT CONT 4JH1 ENG<RJX> THA	8-97231-904-1	01	1	0204-0408		●
72	LEVER; SELECT CONT 4JJ1-TCS ENG<LFB> THA	8-97231-904-1	01	1	0409-		●
72	LEVER; SELECT CONT 4JJ1-TCX ENG<LS0> THA	8-98005-235-0	01	1	0609-0708	●
72	LEVER; SELECT CONT 4JJ1-TCX ENG<LS0> THA	8-98005-235-0	01	1	0710-	●
77	SPRING; TORSION,PARKING BRK LK,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-976-0	01	1	0710-	●
77	SPRING; TORSION,PARKING BRK LK,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-94479-976-0	01	1	0609-0708	●
99	SENSOR; SPD 4X2 DOUBLE CAB<TFBW> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/10<GT5> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> HIGH RIDE SUSPENSION<7YC> THA	8-97027-383-0	02	1	0710-1008	●
99	SENSOR; SPD 4JJ1-TCX ENG<LS0> THA	8-97027-383-0	02	1	1009-	●
99	SENSOR; SPD 4X2 DOUBLE CAB<TFBW> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 43/11<GW1> FRT&RR 225/75R15C<BZC> HIGH RIDE SUSPENSION<7YC> THA	8-97027-383-0	01	1	0710-1008	●
99	SENSOR; SPD 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-97027-383-0	01	1	0710-1008	●
99	SENSOR; SPD 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-97027-383-0	01	1	0609-0708	●
100	GASKET; SPD SENSOR 4JJ1-TCX ENG<LS0> THA	8-97027-197-0	02	1	0710-	●
100	GASKET; SPD SENSOR 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-97027-197-0	02	1	0609-0708	●
101	BOLT; SPD SENSOR 4JJ1-TCX ENG<LS0> (A) M6X16 THA	8-94479-712-0	01	1	0710-	●
101	BOLT; SPD SENSOR 4JJ1-TCX ENG<LS0> (B) M6X14 THA	8-94479-978-0	01	1	0710-	●
101	BOLT; SPD SENSOR 4X4<TFS***> 4JJ1-TCX ENG<LS0> (A) M6X16 THA	8-94479-712-0	01	1	0609-0708	●
101	BOLT; SPD SENSOR 4X4<TFS***> 4JJ1-TCX ENG<LS0> (B) M6X14 THA	8-94479-978-0	01	1	0609-0708	●
132	NUT; SWITCH 4JJ1-TCX ENG<LS0> M16 THA	8-97354-883-0	01	1	0710-	●
132	NUT; SWITCH 4X4<TFS***> 4JJ1-TCX ENG<LS0> M16 THA	8-97354-883-0	01	1	0609-0708	●
133	WASHER; SWITCH 4JJ1-TCX ENG<LS0> (B) THA	8-97354-888-0	01	1	0710-	●
133	WASHER; SWITCH 4JJ1-TCX ENG<LS0> (A) ID=16 THA	8-97354-889-0	01	1	0710-	●
133	WASHER; SWITCH 4X4<TFS***> 4JJ1-TCX ENG<LS0> (B) THA	8-97354-888-0	01	1	0609-0708	●
133	WASHER; SWITCH 4X4<TFS***> 4JJ1-TCX ENG<LS0> (A) ID=16 THA	8-97354-889-0	01	1	0609-0708	●

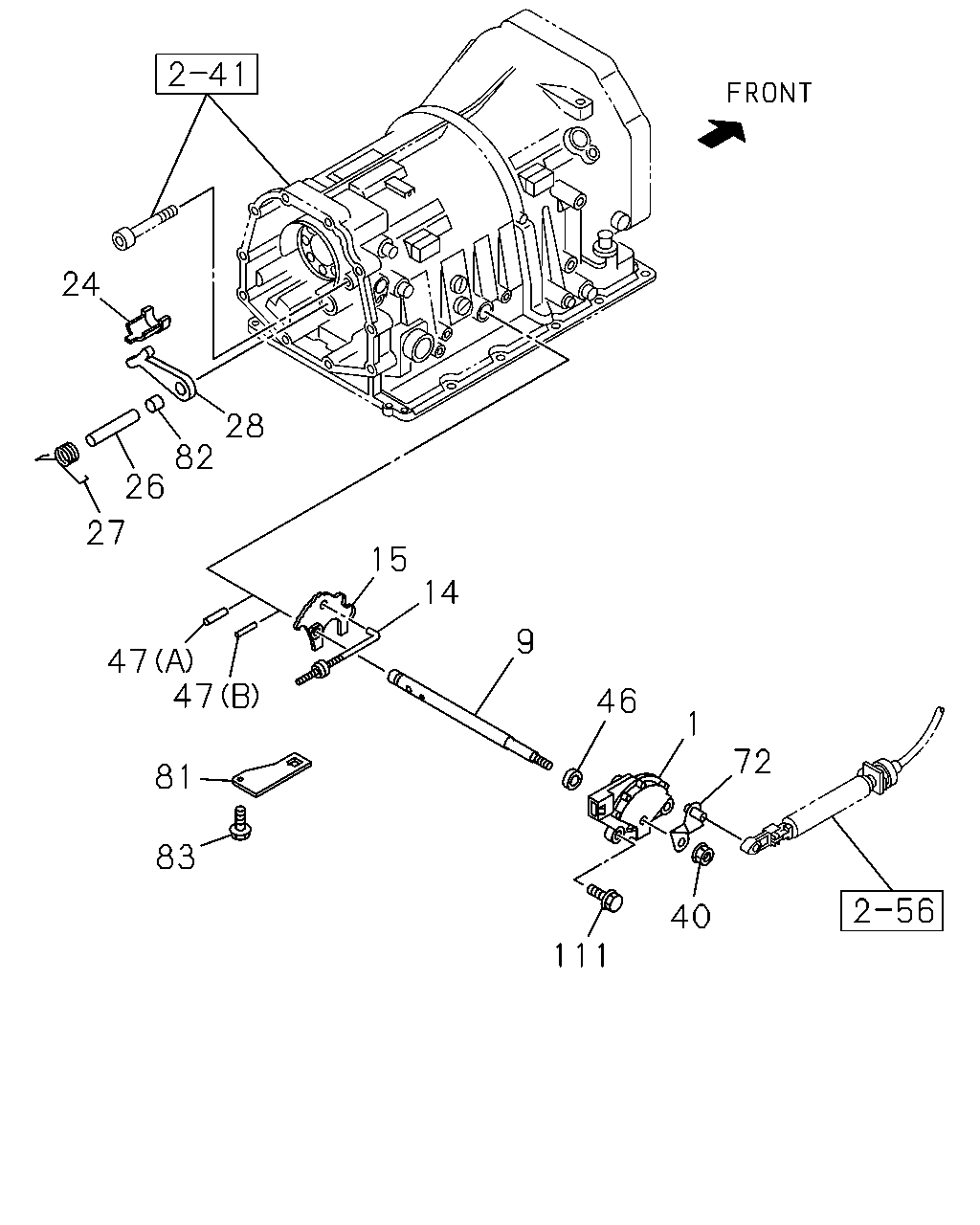

24 28 82 26 27 15 14 9 47 47 46 1 72 81 83 40 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SWITCH; INHIBITOR,A/T 4JH1 ENG<RJX> THA	8-97331-105-0	01	1	0204-0408		●
1	SWITCH; INHIBITOR,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-105-0	01	1	0409-		●
9	SHAFT; MANUAL,A/T 4JH1 ENG<RJX> THA	8-97331-106-0	01	1	0204-0408		●
9	SHAFT; MANUAL,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-106-0	01	1	0409-		●
14	ROD ASM; PARKING,A/T 4JH1 ENG<RJX> THA	8-97331-114-0	01	1	0204-0408		●
14	ROD ASM; PARKING,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-114-0	01	1	0409-		●
15	PLATE; MANUAL SHAFT,A/T 4JH1 ENG<RJX> THA	8-97331-107-0	01	1	0204-0408		●
15	PLATE; MANUAL SHAFT,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-107-0	01	1	0409-		●
24	SUPPORT; ACTUATOR,A/T 4JH1 ENG<RJX> THA	8-97331-116-0	01	1	0204-0408		●
24	SUPPORT; ACTUATOR,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-116-0	01	1	0409-0711		●
24	SUPPORT; ACTUATOR,A/T 4JJ1-TCS ENG<LFB> THA	8-98126-857-0	01	1	0712-		●
26	SHAFT; PARKING PAWL,A/T 4JH1 ENG<RJX> THA	8-97331-117-0	01	1	0204-0408		●
26	SHAFT; PARKING PAWL,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-117-0	01	1	0409-		●
26	SHAFT; PARKING PAWL,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-975-0	01	1	0710-	●
26	SHAFT; PARKING PAWL,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-94479-975-0	01	1	0609-0708	●
27	SPRING; PAWL RETURN,A/T 4JH1 ENG<RJX> THA	8-97331-118-0	01	1	0204-0408		●
27	SPRING; PAWL RETURN,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-118-0	01	1	0409-		●
28	PAWL; PARKING,A/T 4JH1 ENG<RJX> THA	8-97331-119-0	01	1	0204-0408		●
28	PAWL; PARKING,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-119-0	01	1	0409-0711		●
28	PAWL; PARKING,A/T 4JJ1-TCS ENG<LFB> THA	8-98126-855-0	01	1	0712-		●
28	PAWL; PARKING,A/T 4JJ1-TCX ENG<LS0> THA	8-97143-087-0	01	1	0710-	●
28	PAWL; PARKING,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-97143-087-0	01	1	0609-0708	●
40	NUT; LEVER TO SHAFT 4JH1 ENG<RJX> M10 FLANGE THA	0-91180-110-0	01	1	0204-0408		●
40	NUT; LEVER TO SHAFT 4JJ1-TCS ENG<LFB> M10 FLANGE THA	0-91180-110-0	01	1	0409-		●
40	NUT; LEVER TO SHAFT 4JJ1-TCX ENG<LS0> M8 FLANGE THA	0-91180-108-0	01	1	0609-0708	●
40	NUT; LEVER TO SHAFT 4JJ1-TCX ENG<LS0> M8 FLANGE THA	0-91180-108-0	01	1	0710-	●
46	SEAL; OIL 4JH1 ENG<RJX> THA	8-97330-908-0	01	1	0204-0408		●
46	SEAL; OIL 4JJ1-TCS ENG<LFB> THA	8-97330-908-0	01	1	0409-		●
46	SEAL; OIL 4JJ1-TCX ENG<LS0> OD=22 THA	8-94479-740-0	02	1	0710-	●
46	SEAL; OIL 4X4<TFS***> 4JJ1-TCX ENG<LS0> OD=22 THA	8-94479-740-0	02	1	0609-0708	●
47	PIN; ROLL SHAFT 4JH1 ENG<RJX> (A) THA	8-97331-125-0	01	1	0204-0408		●
47	PIN; ROLL SHAFT 4JJ1-TCS ENG<LFB> (A) THA	8-97331-125-0	01	1	0409-		●
47	PIN; ROLL SHAFT 4JH1 ENG<RJX> (B) THA	8-97331-126-0	01	1	0204-0408		●
47	PIN; ROLL SHAFT 4JJ1-TCS ENG<LFB> (B) THA	8-97331-126-0	01	1	0409-		●
47	PIN; ROLL SHAFT 4JJ1-TCX ENG<LS0> (C) D=4 THA	8-94257-081-0	01	1	0710-	●
47	PIN; ROLL SHAFT 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C) D=4 THA	8-94257-081-0	01	1	0609-0708	●
72	LEVER; SELECT CONT 4JH1 ENG<RJX> THA	8-97231-904-1	01	1	0204-0408		●
72	LEVER; SELECT CONT 4JJ1-TCS ENG<LFB> THA	8-97231-904-1	01	1	0409-		●
72	LEVER; SELECT CONT 4JJ1-TCX ENG<LS0> THA	8-98005-235-0	01	1	0609-0708	●
72	LEVER; SELECT CONT 4JJ1-TCX ENG<LS0> THA	8-98005-235-0	01	1	0710-	●
81	SPRING; DETENT,MANUAL CONT PLATE 4JH1 ENG<RJX> THA	8-97331-113-0	01	1	0204-0408		●
81	SPRING; DETENT,MANUAL CONT PLATE 4JJ1-TCS ENG<LFB> THA	8-97331-113-0	01	1	0409-		●
82	SPACER; DETENT SPRING 4JH1 ENG<RJX> THA	8-97330-950-0	01	1	0204-0408		●
82	SPACER; DETENT SPRING 4JJ1-TCS ENG<LFB> THA	8-97330-950-0	01	1	0409-		●
83	SCREW; DETENT SPRING,MANUAL CONT PLATE 4JH1 ENG<RJX> THA	8-97331-124-0	01	1	0204-0408		●
83	SCREW; DETENT SPRING,MANUAL CONT PLATE 4JJ1-TCS ENG<LFB> THA	8-97331-124-0	01	1	0409-0711		●
111	BOLT; INHIBITOR SW 4JH1 ENG<RJX> THA	8-97331-127-0	02	1	0204-0408		●
111	BOLT; INHIBITOR SW 4JJ1-TCS ENG<LFB> THA	8-97331-127-0	02	1	0409-		●
