◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-47 - AUTO TRANS PLANETARY GEAR AND GOVERNOR ▶
2-47 — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#72849) — 186 parça

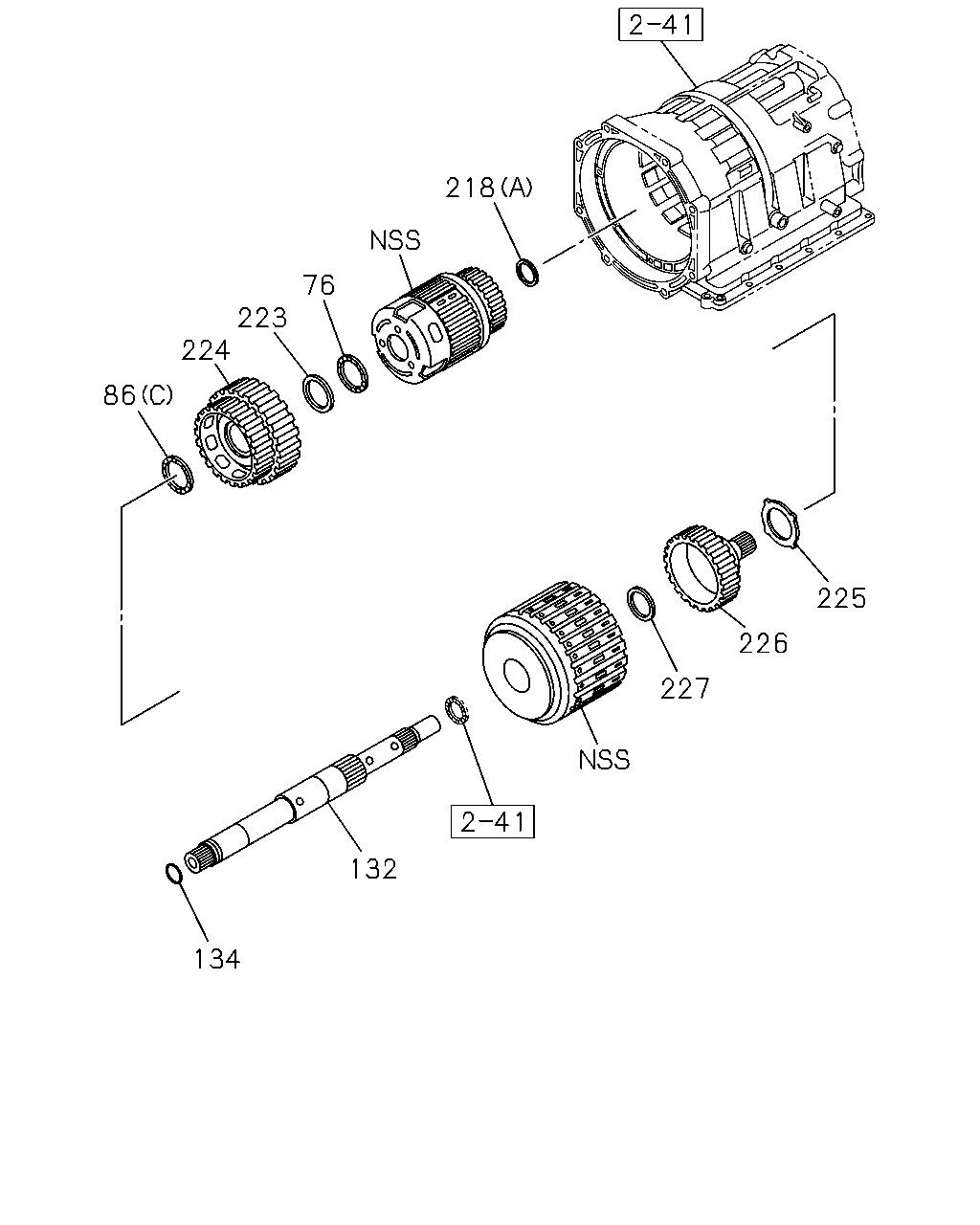

çizim 116438
218 76 223 224 86 225 226 227 132 134
BalonParca AdiParca NoAdetTipApplied Date A B
76 BEARING; THRUST,CARRIER
4JH1 ENG<RJX> THA 		8-97330-927-0 01 1 0204-0408 ●
76 BEARING; THRUST,CARRIER
4JJ1-TCS ENG<LFB> THA 		8-97330-927-0 01 1 0409- ●
86 BEARING; THRUST,SUN GEAR
4JH1 ENG<RJX> (A) THA 		8-97330-919-0 01 1 0204-0408 ●
86 BEARING; THRUST,SUN GEAR
4JJ1-TCS ENG<LFB> (A) THA 		8-97330-919-0 01 1 0409- ●
86 BEARING; THRUST,SUN GEAR
4JH1 ENG<RJX> (B) THA 		8-97330-920-0 01 1 0204-0408 ●
86 BEARING; THRUST,SUN GEAR
4JJ1-TCS ENG<LFB> (B) THA 		8-97330-920-0 01 1 0409- ●
86 BEARING; THRUST,SUN GEAR
4JH1 ENG<RJX> (C) THA 		8-97330-926-0 01 1 0204-0408 ●
86 BEARING; THRUST,SUN GEAR
4JJ1-TCS ENG<LFB> (C) THA 		8-97330-926-0 01 1 0409-0711 ●
86 BEARING; THRUST,SUN GEAR
4JJ1-TCS ENG<LFB> (C) THA 		8-97374-016-0 01 1 0712- ●
132 SHAFT; INPUT,A/T
4JH1 ENG<RJX> THA 		8-97330-931-0 01 1 0204-0408 ●
132 SHAFT; INPUT,A/T
4JJ1-TCS ENG<LFB> THA 		8-97330-931-0 01 1 0409- ●
134 SEAL; INPUT SHAFT,FRT
4JH1 ENG<RJX> THA 		8-97331-697-0 01 1 0204-0408 ●
134 SEAL; INPUT SHAFT,FRT
4JJ1-TCS ENG<LFB> THA 		8-97331-697-0 01 1 0409- ●
218 BEARING; THRUST,INTERNAL GEAR
4JH1 ENG<RJX> (A) THA 		8-97330-928-0 01 1 0204-0408 ●
218 BEARING; THRUST,INTERNAL GEAR
4JJ1-TCS ENG<LFB> (A) THA 		8-97330-928-0 01 1 0409- ●
218 BEARING; THRUST,INTERNAL GEAR
4JH1 ENG<RJX> (B) THA 		8-97330-938-0 01 1 0204-0408 ●
218 BEARING; THRUST,INTERNAL GEAR
4JJ1-TCS ENG<LFB> (B) THA 		8-97330-938-0 01 1 0409- ●
223 RACE; BRG,CARRIER
4JH1 ENG<RJX> THA 		8-97330-946-0 01 1 0204-0408 ●
223 RACE; BRG,CARRIER
4JJ1-TCS ENG<LFB> THA 		8-97330-946-0 01 1 0409- ●
224 GEAR ASM; SUN,FRT
4JH1 ENG<RJX> IMA 		8-97330-955-0 01 1 0204-0408 ●
224 GEAR ASM; SUN,FRT
4JJ1-TCS ENG<LFB> THA 		8-97357-796-0 01 1 0409-0711 ●
224 GEAR ASM; SUN,FRT
4JJ1-TCS ENG<LFB> THA 		8-97374-015-0 01 1 0712- ●
225 RACE; BRG,SUN GEAR
4JH1 ENG<RJX> THA 		8-97330-949-0 01 1 0204-0408 ●
225 RACE; BRG,SUN GEAR
4JJ1-TCS ENG<LFB> THA 		8-97330-949-0 01 1 0409- ●
226 HUB; HIGH CLUTCH
4JH1 ENG<RJX> THA 		8-97331-038-0 01 1 0204-0408 ●
226 HUB; HIGH CLUTCH
4JJ1-TCS ENG<LFB> THA 		8-97331-038-0 01 1 0409- ●
227 BEARING; HUB,HIGH CLUTCH
4JH1 ENG<RJX> THA 		8-97330-925-0 01 1 0204-0408 ●
227 BEARING; HUB,HIGH CLUTCH
4JJ1-TCS ENG<LFB> THA 		8-97330-925-0 01 1 0409- ●

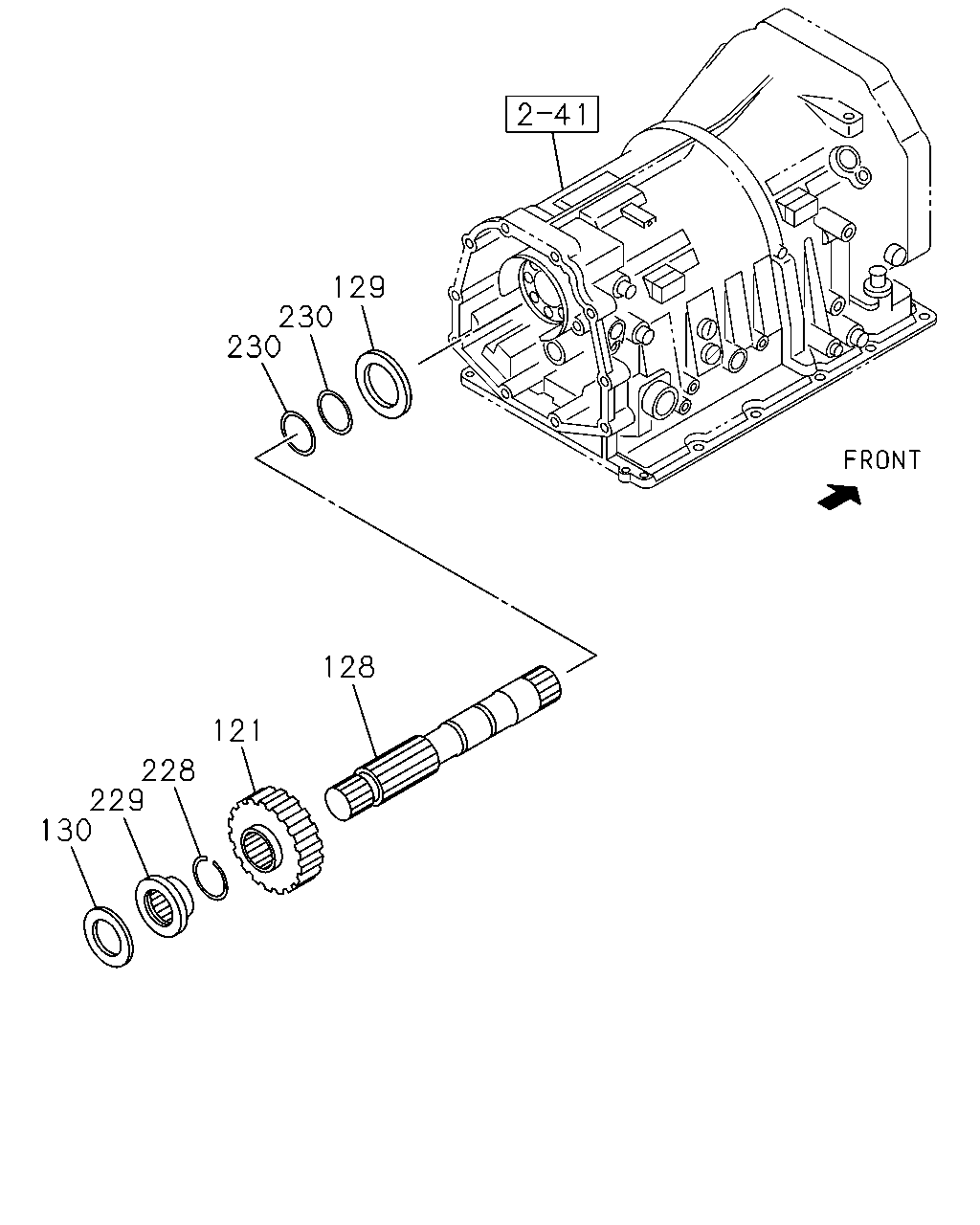

çizim 116453
129 230 230 128 121 228 229 130
BalonParca AdiParca NoAdetTipApplied Date A B
121 GEAR; PARKING LK,A/T
4JH1 ENG<RJX> THA 		8-97330-962-0 01 1 0204-0408 ●
121 GEAR; PARKING LK,A/T
4JJ1-TCS ENG<LFB> THA 		8-97330-962-0 01 1 0409- ●
128 SHAFT; OUTPUT,A/T
4X2<TFB***> 4JJ1-TCX ENG<LS0> THA 		8-98065-079-0 01 1 1009- ●
128 SHAFT; OUTPUT,A/T
4X2<TFB***> 4JH1 ENG<RJX> THA 		8-97330-960-0 01 1 0204-0408 ●
128 SHAFT; OUTPUT,A/T
4X2<TFB***> 4JJ1-TCS ENG<LFB> THA 		8-97330-960-0 01 1 0409- ●
128 SHAFT; OUTPUT,A/T
4X4<TFS***> 4JH1 ENG<RJX> THA 		8-97330-961-0 01 1 0204-0408 ●
128 SHAFT; OUTPUT,A/T
4X4<TFS***> 4JJ1-TCS ENG<LFB> THA 		8-97330-961-0 01 1 0409- ●
128 SHAFT; OUTPUT,A/T
4X2<TFB***> 4JJ1-TCX ENG<LS0> THA 		8-97184-427-0 01 1 0710-1008 ●
128 SHAFT; OUTPUT,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> THA 		8-98050-557-0 01 1 0609-0708 ●
128 SHAFT; OUTPUT,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> THA 		8-98050-557-0 01 1 0710- ●
129 BEARING; OUTPUT SHAFT,FRT,A/T
4JH1 ENG<RJX> THA 		8-97330-918-0 01 1 0204-0408 ●
129 BEARING; OUTPUT SHAFT,FRT,A/T
4JJ1-TCS ENG<LFB> THA 		8-97330-918-0 01 1 0409- ●
130 BEARING; OUTPUT SHAFT,RR,A/T
4JH1 ENG<RJX> THA 		8-97330-918-0 01 1 0204-0408 ●
130 BEARING; OUTPUT SHAFT,RR,A/T
4JJ1-TCS ENG<LFB> THA 		8-97330-918-0 01 1 0409- ●
228 RING; SNAP,OUTPUT SHAFT
4X2<TFB***> 4JH1 ENG<RJX> THA 		8-97330-963-0 02 1 0204-0408 ●
228 RING; SNAP,OUTPUT SHAFT
4X2<TFB***> 4JJ1-TCS ENG<LFB> THA 		8-97330-963-0 02 1 0409- ●
228 RING; SNAP,OUTPUT SHAFT
4X4<TFS***> 4JH1 ENG<RJX> THA 		8-97330-963-0 01 1 0204-0408 ●
228 RING; SNAP,OUTPUT SHAFT
4X4<TFS***> 4JJ1-TCS ENG<LFB> THA 		8-97330-963-0 01 1 0409- ●
229 SPACER; OUTPUT SHAFT
4JH1 ENG<RJX> THA 		8-97330-951-0 01 1 0204-0408 ●
229 SPACER; OUTPUT SHAFT
4JJ1-TCS ENG<LFB> THA 		8-97330-951-0 01 1 0409- ●
230 RING; SEAL,OUTPUT SHAFT
4JH1 ENG<RJX> THA 		8-97330-983-0 02 1 0204-0408 ●
230 RING; SEAL,OUTPUT SHAFT
4JJ1-TCS ENG<LFB> THA 		8-97330-983-0 02 1 0409- ●

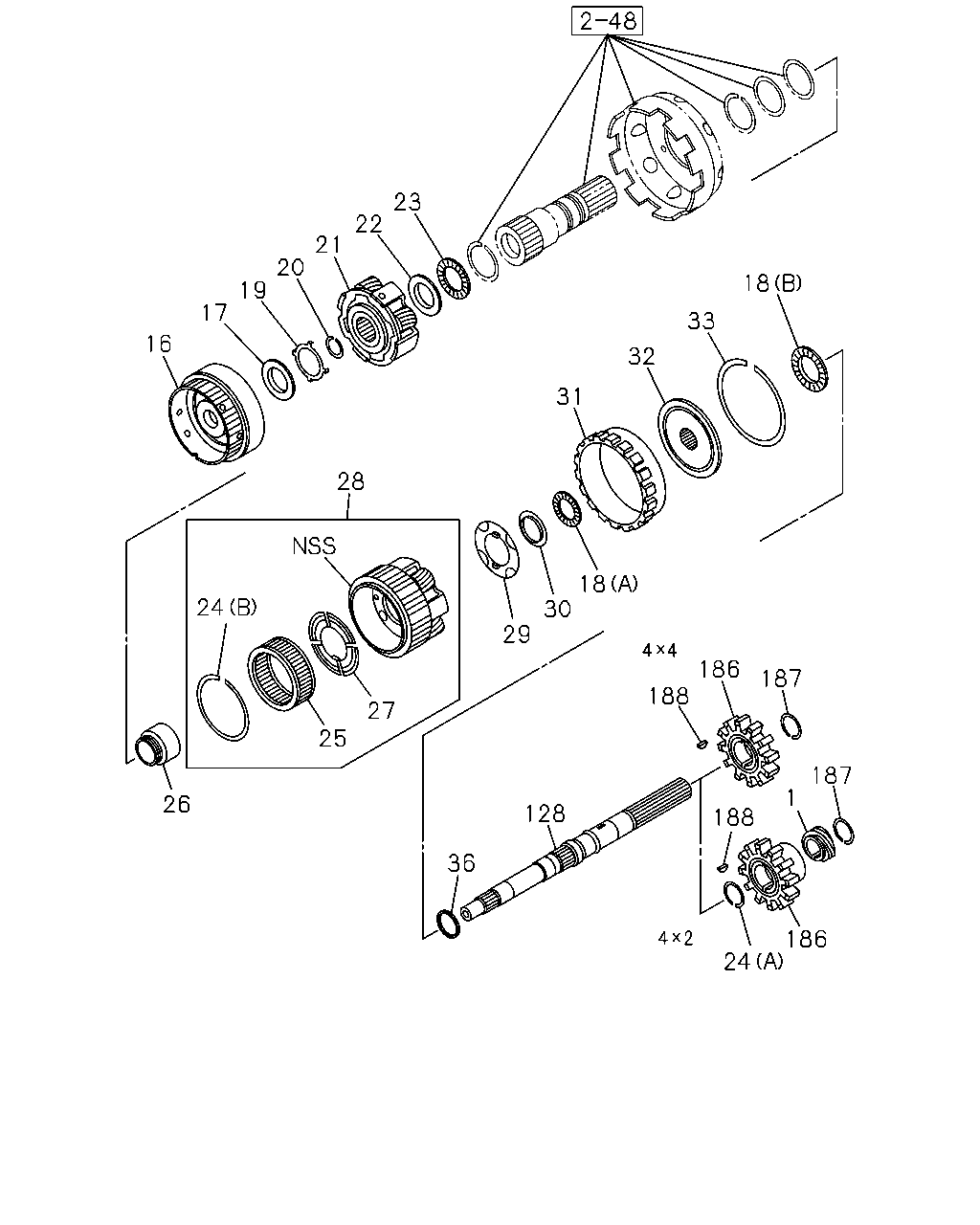

çizim 116454
23 22 21 20 18 19 17 33 16 32 31 28 18 30 24 29 186 187 188 27 25 187 1 26 128 188 36 186 24
BalonParca AdiParca NoAdetTipApplied Date A B
1 GEAR; SPEEDOMETER DRIVE,A/T
4X2<TFB***> 4JJ1-TCX ENG<LS0> THA 		8-98056-393-0 01 1 0710- ●
16 GEAR ASM; FRT PLANETARY,A/T
4JJ1-TCX ENG<LS0> THA 		8-98050-544-0 01 1 0710-0801 ●
16 GEAR ASM; FRT PLANETARY,A/T
4JJ1-TCX ENG<LS0> THA 		8-98112-185-0 01 1 0802- ●
16 GEAR ASM; FRT PLANETARY,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> THA 		8-98050-544-0 01 1 0609-0708 ●
17 RACE; THRUST BRG,PLANETARY SHAFT,A/T
4JJ1-TCX ENG<LS0> THA 		8-98050-545-0 01 1 0710- ●
17 RACE; THRUST BRG,PLANETARY SHAFT,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> THA 		8-98050-545-0 01 1 0609-0708 ●
18 BEARING; THRUST,RR PLANETARY GEAR,A/T
4JJ1-TCX ENG<LS0> (B) THA 		8-97249-735-0 01 1 0710- ●
18 BEARING; THRUST,RR PLANETARY GEAR,A/T
4JJ1-TCX ENG<LS0> (A) THA 		8-97331-548-0 01 1 0710- ●
18 BEARING; THRUST,RR PLANETARY GEAR,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> (B) THA 		8-97249-735-0 01 1 0609-0708 ●
18 BEARING; THRUST,RR PLANETARY GEAR,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> (A) THA 		8-97331-548-0 01 1 0609-0708 ●
19 RACE; THRUST BRG,PLANETARY SHAFT,A/T
4JJ1-TCX ENG<LS0> THA 		8-98050-546-0 01 1 0710- ●
19 RACE; THRUST BRG,PLANETARY SHAFT,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> THA 		8-98050-546-0 01 1 0609-0708 ●
20 RING; RET,PLANETARY GEAR,A/T
4JJ1-TCX ENG<LS0> THA 		8-94479-842-0 01 1 0710- ●
20 RING; RET,PLANETARY GEAR,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> THA 		8-94479-842-0 01 1 0609-0708 ●
21 GEAR; PLANETARY,INTERNAL FRT,A/T
4JJ1-TCX ENG<LS0> THA 		8-98050-547-0 01 1 0710- ●
21 GEAR; PLANETARY,INTERNAL FRT,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> THA 		8-98050-547-0 01 1 0609-0708 ●
22 RACE; THRUST BRG,FRT PLANETARY SHAFT,A
4JJ1-TCX ENG<LS0> THA 		8-98050-548-0 01 1 0710- ●
22 RACE; THRUST BRG,FRT PLANETARY SHAFT,A
4X4<TFS***> 4JJ1-TCX ENG<LS0> THA 		8-98050-548-0 01 1 0609-0708 ●
23 BEARING; THRUST,PLANETARY SHAFT,A/T
4JJ1-TCX ENG<LS0> THA 		8-98050-549-0 01 1 0710- ●
23 BEARING; THRUST,PLANETARY SHAFT,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> THA 		8-98050-549-0 01 1 0609-0708 ●
24 RING; RET,FRT PLANETARY,A/T
4JJ1-TCX ENG<LS0> (B) THA 		8-97143-129-0 01 1 0710- ●
24 RING; RET,FRT PLANETARY,A/T
4X2<TFB***> 4JJ1-TCX ENG<LS0> (A) THA 		8-97069-457-0 01 1 0710- ●
24 RING; RET,FRT PLANETARY,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> (B) THA 		8-97143-129-0 01 1 0609-0708 ●
25 CLUTCH ASM; ONEWAY,FRT PLANETARY,A/T
4JJ1-TCX ENG<LS0> THA 		8-94364-924-0 01 1 0710- ●
25 CLUTCH ASM; ONEWAY,FRT PLANETARY,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> THA 		8-94364-924-0 01 1 0609-0708 ●
26 RACE; ONEWAY CLU,A/T
4JJ1-TCX ENG<LS0> THA 		8-97019-542-0 01 1 0710- ●
26 RACE; ONEWAY CLU,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> THA 		8-97019-542-0 01 1 0609-0708 ●
27 WASHER; THRUST,FRT PLANETARY,A/T
4JJ1-TCX ENG<LS0> THA 		8-98050-550-0 01 1 0710- ●
27 WASHER; THRUST,FRT PLANETARY,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> THA 		8-98050-550-0 01 1 0609-0708 ●
28 GEAR ASM; RR PLANETARY,A/T
4JJ1-TCX ENG<LS0> THA 		8-98065-077-0 01 1 1009- ●
28 GEAR ASM; RR PLANETARY,A/T
4JJ1-TCX ENG<LS0> THA 		8-97232-050-0 01 1 0710-1008 ●
28 GEAR ASM; RR PLANETARY,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> THA 		8-97232-050-0 01 1 0609-0708 ●
29 WASHER; THRUST,FRT PLANETARY,A/T
4JJ1-TCX ENG<LS0> THA 		8-98050-551-0 01 1 0710- ●
29 WASHER; THRUST,FRT PLANETARY,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> THA 		8-98050-551-0 01 1 0609-0708 ●
30 RACE; THRUST BRG,RR PLANETARY FLANGE
4JJ1-TCX ENG<LS0> THA 		8-97331-549-0 01 1 0710- ●
30 RACE; THRUST BRG,RR PLANETARY FLANGE
4X4<TFS***> 4JJ1-TCX ENG<LS0> THA 		8-97331-549-0 01 1 0609-0708 ●
31 GEAR ASM; INTERNAL,PLANETARY,A/T
4JH1 ENG<RJX> THA 		8-97330-953-0 01 1 0204-0408 ●
31 GEAR ASM; INTERNAL,PLANETARY,A/T
4JJ1-TCS ENG<LFB> THA 		8-97330-953-0 01 1 0409- ●
31 GEAR ASM; INTERNAL,PLANETARY,A/T
4JJ1-TCX ENG<LS0> THA 		8-94479-854-0 01 1 0710- ●
31 GEAR ASM; INTERNAL,PLANETARY,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> THA 		8-94479-854-0 01 1 0609-0708 ●
32 FLANGE; RING GEAR,RR PLANETARY,A/T
4JJ1-TCX ENG<LS0> THA 		8-94479-852-0 01 1 0710- ●
32 FLANGE; RING GEAR,RR PLANETARY,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> THA 		8-94479-852-0 01 1 0609-0708 ●
33 RING; RET,PLANETARY GEAR,A/T
4JJ1-TCX ENG<LS0> THA 		8-94479-853-0 01 1 0710- ●
33 RING; RET,PLANETARY GEAR,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> THA 		8-94479-853-0 01 1 0609-0708 ●
36 RING; SEALING,FRT PLANETARY SHAFT,A/T
4JJ1-TCX ENG<LS0> THA 		8-94479-902-0 01 1 0710- ●
36 RING; SEALING,FRT PLANETARY SHAFT,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> THA 		8-94479-902-0 01 1 0609-0708 ●
128 SHAFT; OUTPUT,A/T
4X2<TFB***> 4JJ1-TCX ENG<LS0> THA 		8-98065-079-0 01 1 1009- ●
128 SHAFT; OUTPUT,A/T
4X2<TFB***> 4JH1 ENG<RJX> THA 		8-97330-960-0 01 1 0204-0408 ●
128 SHAFT; OUTPUT,A/T
4X2<TFB***> 4JJ1-TCS ENG<LFB> THA 		8-97330-960-0 01 1 0409- ●
128 SHAFT; OUTPUT,A/T
4X4<TFS***> 4JH1 ENG<RJX> THA 		8-97330-961-0 01 1 0204-0408 ●
128 SHAFT; OUTPUT,A/T
4X4<TFS***> 4JJ1-TCS ENG<LFB> THA 		8-97330-961-0 01 1 0409- ●
128 SHAFT; OUTPUT,A/T
4X2<TFB***> 4JJ1-TCX ENG<LS0> THA 		8-97184-427-0 01 1 0710-1008 ●
128 SHAFT; OUTPUT,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> THA 		8-98050-557-0 01 1 0609-0708 ●
128 SHAFT; OUTPUT,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> THA 		8-98050-557-0 01 1 0710- ●
186 ROTOR; SPEED SENSOR
4X2<TFB***> 4JJ1-TCX ENG<LS0> THA 		8-97331-552-0 01 1 0710- ●
186 ROTOR; SPEED SENSOR
4X4<TFS***> 4JJ1-TCX ENG<LS0> THA 		8-97331-553-0 01 1 0609-0708 ●
186 ROTOR; SPEED SENSOR
4X4<TFS***> 4JJ1-TCX ENG<LS0> THA 		8-97331-553-0 01 1 0710- ●
187 RING; SNAP,ROTOR,SPEED SENSOR
4X2<TFB***> 4JJ1-TCX ENG<LS0> THA 		8-97069-451-0 01 1 0710- ●
187 RING; SNAP,ROTOR,SPEED SENSOR
4X4<TFS***> 4JJ1-TCX ENG<LS0> THA 		8-94479-905-0 01 1 0609-0708 ●
187 RING; SNAP,ROTOR,SPEED SENSOR
4X4<TFS***> 4JJ1-TCX ENG<LS0> THA 		8-94479-905-0 01 1 0710- ●
188 KEY; SPEED SENSOR ROTOR
4JJ1-TCX ENG<LS0> THA 		8-94479-904-0 01 1 0710- ●
188 KEY; SPEED SENSOR ROTOR
4X4<TFS***> 4JJ1-TCX ENG<LS0> THA 		8-94479-904-0 01 1 0609-0708 ●

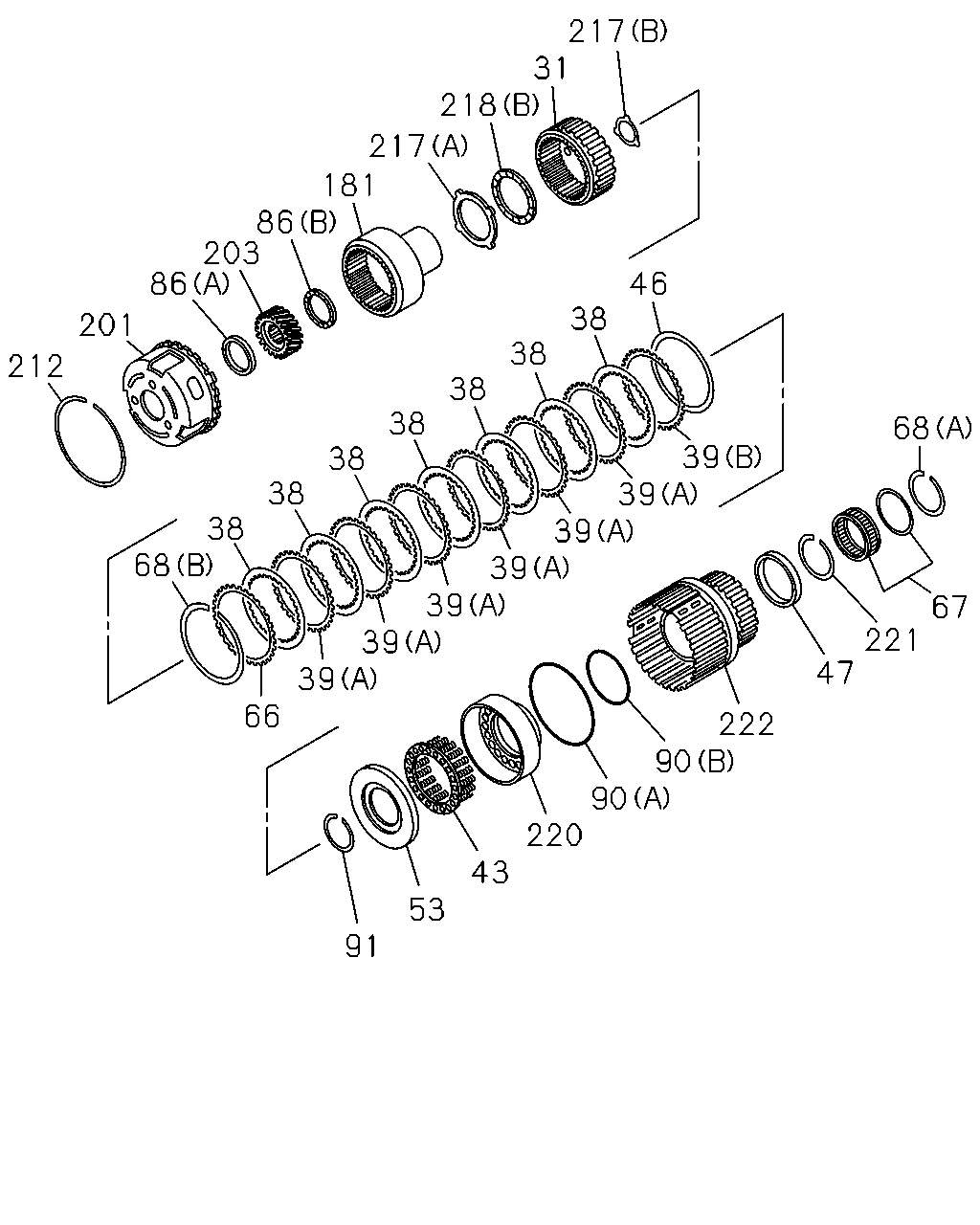

çizim 116462
217 31 218 217 181 86 203 86 46 38 201 38 212 38 38 68 39 39 39 39 39 39 39 38 38 38 68 67 221 47 66 222 90 90 220 43 53 91
BalonParca AdiParca NoAdetTipApplied Date A B
31 GEAR ASM; INTERNAL,PLANETARY,A/T
4JH1 ENG<RJX> THA 		8-97330-953-0 01 1 0204-0408 ●
31 GEAR ASM; INTERNAL,PLANETARY,A/T
4JJ1-TCS ENG<LFB> THA 		8-97330-953-0 01 1 0409- ●
31 GEAR ASM; INTERNAL,PLANETARY,A/T
4JJ1-TCX ENG<LS0> THA 		8-94479-854-0 01 1 0710- ●
31 GEAR ASM; INTERNAL,PLANETARY,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> THA 		8-94479-854-0 01 1 0609-0708 ●
38 PLATE; DRIVE,LOW & REV,A/T
4JH1 ENG<RJX> THA 		8-97330-998-0 07 1 0204-0408 ●
38 PLATE; DRIVE,LOW & REV,A/T
4JJ1-TCS ENG<LFB> THA 		8-97330-998-0 07 1 0409-0711 ●
38 PLATE; DRIVE,LOW & REV,A/T
4JJ1-TCS ENG<LFB> THA 		8-98126-848-0 07 1 0712- ●
39 PLATE; DRIVEN,LOW & REV,A/T
4JH1 ENG<RJX> (A) THA 		8-97331-005-0 06 1 0204-0408 ●
39 PLATE; DRIVEN,LOW & REV,A/T
4JJ1-TCS ENG<LFB> (A) THA 		8-97331-005-0 06 1 0409-0711 ●
39 PLATE; DRIVEN,LOW & REV,A/T
4JJ1-TCS ENG<LFB> (A) THA 		8-97331-005-0 07 1 0712- ●
39 PLATE; DRIVEN,LOW & REV,A/T
4JH1 ENG<RJX> (B) THA 		8-97331-008-0 01 1 0204-0408 ●
39 PLATE; DRIVEN,LOW & REV,A/T
4JJ1-TCS ENG<LFB> (B) THA 		8-97331-008-0 01 1 0409-0711 ●
43 SPRING; PISTON RETURN,A/T
4JH1 ENG<RJX> THA 		8-97330-981-0 01 1 0204-0408 ●
43 SPRING; PISTON RETURN,A/T
4JJ1-TCS ENG<LFB> THA 		8-97330-981-0 01 1 0409- ●
46 PLATE; DISHED,LOW & REV,A/T
4JH1 ENG<RJX> THA 		8-97331-004-0 01 1 0204-0408 ●
46 PLATE; DISHED,LOW & REV,A/T
4JJ1-TCS ENG<LFB> THA 		8-97331-004-0 01 1 0409- ●
47 BEARING; NEEDLE,LOW & REV
4JH1 ENG<RJX> THA 		8-97330-954-0 01 1 0204-0408 ●
47 BEARING; NEEDLE,LOW & REV
4JJ1-TCS ENG<LFB> THA 		8-97330-954-0 01 1 0409- ●
53 RETAINER; LOW & REV,CLU SPR
4JH1 ENG<RJX> THA 		8-97331-041-0 01 1 0204-0408 ●
53 RETAINER; LOW & REV,CLU SPR
4JJ1-TCS ENG<LFB> THA 		8-97331-041-0 01 1 0409- ●
66 PLATE; RET,CLU,LOW & REV,A/T
4JH1 ENG<RJX> T=3.8 THA 		8-97331-010-0 01 1 0204-0408 ●
66 PLATE; RET,CLU,LOW & REV,A/T
4JJ1-TCS ENG<LFB> T=3.8 THA 		8-97331-010-0 01 1 0409- ●
66 PLATE; RET,CLU,LOW & REV,A/T
4JH1 ENG<RJX> T=4.0 THA 		8-97331-011-0 01 1 0204-0408 ●
66 PLATE; RET,CLU,LOW & REV,A/T
4JJ1-TCS ENG<LFB> T=4.0 THA 		8-97331-011-0 01 1 0409- ●
66 PLATE; RET,CLU,LOW & REV,A/T
4JH1 ENG<RJX> T=4.2 THA 		8-97331-012-0 01 1 0204-0408 ●
66 PLATE; RET,CLU,LOW & REV,A/T
4JJ1-TCS ENG<LFB> T=4.2 THA 		8-97331-012-0 01 1 0409- ●
66 PLATE; RET,CLU,LOW & REV,A/T
4JH1 ENG<RJX> T=4.4 THA 		8-97331-013-0 01 1 0204-0408 ●
66 PLATE; RET,CLU,LOW & REV,A/T
4JJ1-TCS ENG<LFB> T=4.4 THA 		8-97331-013-0 01 1 0409- ●
66 PLATE; RET,CLU,LOW & REV,A/T
4JH1 ENG<RJX> T=4.6 THA 		8-97331-014-0 01 1 0204-0408 ●
66 PLATE; RET,CLU,LOW & REV,A/T
4JJ1-TCS ENG<LFB> T=4.6 THA 		8-97331-014-0 01 1 0409- ●
66 PLATE; RET,CLU,LOW & REV,A/T
4JH1 ENG<RJX> T=4.8 THA 		8-97331-024-0 01 1 0204-0408 ●
66 PLATE; RET,CLU,LOW & REV,A/T
4JJ1-TCS ENG<LFB> T=4.8 THA 		8-97331-024-0 01 1 0409- ●
67 CLUTCH ASM; ONEWAY,LOW & REV,A/T
4JH1 ENG<RJX> THA 		8-97330-959-0 01 1 0204-0408 ●
67 CLUTCH ASM; ONEWAY,LOW & REV,A/T
4JJ1-TCS ENG<LFB> THA 		8-97330-959-0 01 1 0409- ●
68 RING; SNAP,CLU,LOW & REV,A/T
4JH1 ENG<RJX> (A) THA 		8-97330-965-0 01 1 0204-0408 ●
68 RING; SNAP,CLU,LOW & REV,A/T
4JJ1-TCS ENG<LFB> (A) THA 		8-97330-965-0 01 1 0409- ●
68 RING; SNAP,CLU,LOW & REV,A/T
4JH1 ENG<RJX> (B) THA 		8-97330-966-0 01 1 0204-0408 ●
68 RING; SNAP,CLU,LOW & REV,A/T
4JJ1-TCS ENG<LFB> (B) THA 		8-97330-966-0 01 1 0409- ●
86 BEARING; THRUST,SUN GEAR
4JH1 ENG<RJX> (A) THA 		8-97330-919-0 01 1 0204-0408 ●
86 BEARING; THRUST,SUN GEAR
4JJ1-TCS ENG<LFB> (A) THA 		8-97330-919-0 01 1 0409- ●
86 BEARING; THRUST,SUN GEAR
4JH1 ENG<RJX> (B) THA 		8-97330-920-0 01 1 0204-0408 ●
86 BEARING; THRUST,SUN GEAR
4JJ1-TCS ENG<LFB> (B) THA 		8-97330-920-0 01 1 0409- ●
86 BEARING; THRUST,SUN GEAR
4JH1 ENG<RJX> (C) THA 		8-97330-926-0 01 1 0204-0408 ●
86 BEARING; THRUST,SUN GEAR
4JJ1-TCS ENG<LFB> (C) THA 		8-97330-926-0 01 1 0409-0711 ●
86 BEARING; THRUST,SUN GEAR
4JJ1-TCS ENG<LFB> (C) THA 		8-97374-016-0 01 1 0712- ●
90 SEAL; PISTON,LOW & REV
4JH1 ENG<RJX> (A) THA 		8-97330-990-0 01 1 0204-0408 ●
90 SEAL; PISTON,LOW & REV
4JJ1-TCS ENG<LFB> (A) THA 		8-97330-990-0 01 1 0409- ●
90 SEAL; PISTON,LOW & REV
4JH1 ENG<RJX> (B) THA 		8-97330-991-0 01 1 0204-0408 ●
90 SEAL; PISTON,LOW & REV
4JJ1-TCS ENG<LFB> (B) THA 		8-97330-991-0 01 1 0409- ●
91 RING; SNAP,SPRING RET
4JH1 ENG<RJX> THA 		8-97330-969-0 01 1 0204-0408 ●
91 RING; SNAP,SPRING RET
4JJ1-TCS ENG<LFB> THA 		8-97330-969-0 01 1 0409- ●
181 CARRIER ASM; RR PLANETARY,A/T
4JH1 ENG<RJX> THA 		8-97330-952-0 01 1 0204-0408 ●
181 CARRIER ASM; RR PLANETARY,A/T
4JJ1-TCS ENG<LFB> THA 		8-97330-952-0 01 1 0409- ●
201 CARRIER; PLANETARY
4JH1 ENG<RJX> IMA 		8-97330-933-0 01 1 0204-0408 ●
201 CARRIER; PLANETARY
4JJ1-TCS ENG<LFB> THA 		8-97357-797-0 01 1 0409- ●
203 GEAR; SUN
4JH1 ENG<RJX> THA 		8-97330-956-0 01 1 0204-0408 ●
203 GEAR; SUN
4JJ1-TCS ENG<LFB> THA 		8-97330-956-0 01 1 0409- ●
212 RING; SNAP,PLANETARY CARRIER
4JH1 ENG<RJX> THA 		8-97330-967-0 01 1 0204-0408 ●
212 RING; SNAP,PLANETARY CARRIER
4JJ1-TCS ENG<LFB> THA 		8-97330-967-0 01 1 0409- ●
217 RACE; THRUST BRG,INTERNAL GEAR
4JH1 ENG<RJX> (A) THA 		8-97330-939-0 01 1 0204-0408 ●
217 RACE; THRUST BRG,INTERNAL GEAR
4JJ1-TCS ENG<LFB> (A) THA 		8-97330-939-0 01 1 0409- ●
217 RACE; THRUST BRG,INTERNAL GEAR
4JH1 ENG<RJX> (B) THA 		8-97330-947-0 01 1 0204-0408 ●
217 RACE; THRUST BRG,INTERNAL GEAR
4JJ1-TCS ENG<LFB> (B) THA 		8-97330-947-0 01 1 0409- ●
218 BEARING; THRUST,INTERNAL GEAR
4JH1 ENG<RJX> (A) THA 		8-97330-928-0 01 1 0204-0408 ●
218 BEARING; THRUST,INTERNAL GEAR
4JJ1-TCS ENG<LFB> (A) THA 		8-97330-928-0 01 1 0409- ●
218 BEARING; THRUST,INTERNAL GEAR
4JH1 ENG<RJX> (B) THA 		8-97330-938-0 01 1 0204-0408 ●
218 BEARING; THRUST,INTERNAL GEAR
4JJ1-TCS ENG<LFB> (B) THA 		8-97330-938-0 01 1 0409- ●
220 PISTON; LOW CLUTCH
4JH1 ENG<RJX> THA 		8-97331-040-0 01 1 0204-0408 ●
220 PISTON; LOW CLUTCH
4JJ1-TCS ENG<LFB> THA 		8-97331-040-0 01 1 0409-0711 ●
220 PISTON; LOW CLUTCH
4JJ1-TCS ENG<LFB> THA 		8-97374-932-0 01 1 0712- ●
221 RING; SNAP,BRG,LOW CLUTCH
4JH1 ENG<RJX> THA 		8-94483-379-0 01 1 0204-0408 ●
221 RING; SNAP,BRG,LOW CLUTCH
4JJ1-TCS ENG<LFB> THA 		8-94483-379-0 01 1 0409- ●
222 DRUM; LOW CLUTCH
4JH1 ENG<RJX> THA 		8-97331-039-0 01 1 0204-0408 ●
222 DRUM; LOW CLUTCH
4JJ1-TCS ENG<LFB> THA 		8-97331-039-0 01 1 0409- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
