Sayfa 2-41 - Isuzu EPC

2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#72843) — 265 parça

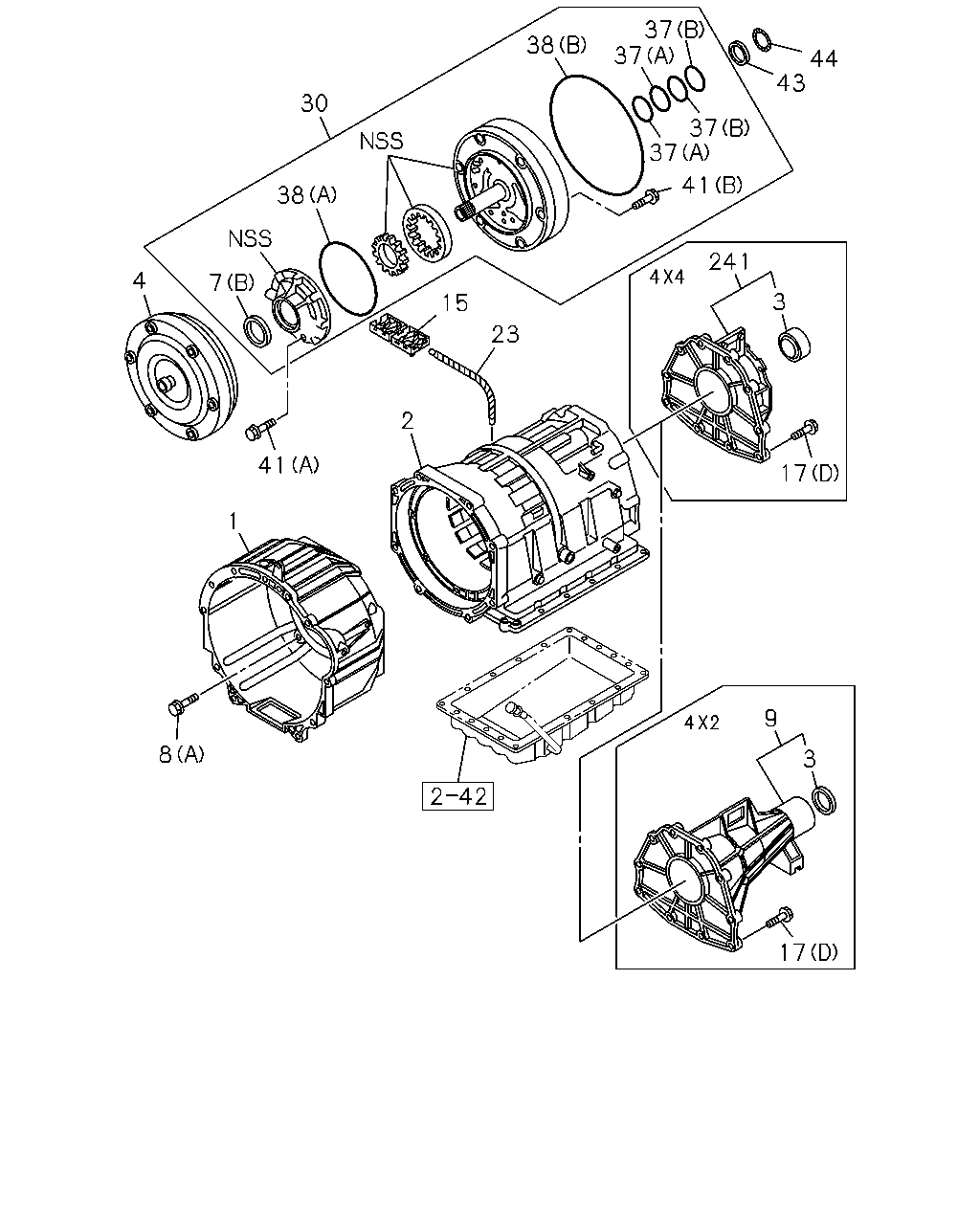

37 37 38 44 43 30 37 37 41 38 241 4 7 3 15 23 2 41 17 1 9 8 3 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOUSING; CONV,A/T 4JJ1-TCX ENG<LS0> THA	8-97179-520-0	01	1	1009-	●
1	HOUSING; CONV,A/T 4JH1 ENG<RJX> THA	8-97330-899-0	01	1	0204-0408		●
1	HOUSING; CONV,A/T 4JJ1-TCS ENG<LFB> THA	8-97330-899-0	01	1	0409-		●
1	HOUSING; CONV,A/T 4JJ1-TCX ENG<LS0> THA	8-98056-390-0	01	1	0710-1008	●
1	HOUSING; CONV,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-98056-390-0	01	1	0609-0708	●
2	CASE ASM; A/T 4X2<TFB***> 4JJ1-TCX ENG<LS0> THA	8-98112-178-0	01	1	1009-	●
2	CASE ASM; A/T 4JH1 ENG<RJX> THA	8-97330-900-0	01	1	0204-0408		●
2	CASE ASM; A/T 4JJ1-TCS ENG<LFB> THA	8-97330-900-0	01	1	0409-0711		●
2	CASE ASM; A/T 4JJ1-TCS ENG<LFB> THA	8-97383-551-0	01	1	0712-		●
2	CASE ASM; A/T 4X2<TFB***> 4JJ1-TCX ENG<LS0> THA	8-97288-902-0	01	1	0710-0801	●
2	CASE ASM; A/T 4X2<TFB***> 4JJ1-TCX ENG<LS0> THA	8-98112-177-0	01	1	0802-1008	●
2	CASE ASM; A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-98029-249-0	01	1	0609-0708	●
2	CASE ASM; A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-98029-249-0	01	1	0710-0801	●
2	CASE ASM; A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-98112-176-0	01	1	0802-	●
3	SEAL; OIL,RR COVER,A/T 4X2<TFB***> 4JH1 ENG<RJX> THA	8-97330-910-0	01	1	0204-0408		●
3	SEAL; OIL,RR COVER,A/T 4X2<TFB***> 4JJ1-TCS ENG<LFB> THA	8-97330-910-0	01	1	0409-		●
3	SEAL; OIL,RR COVER,A/T 4X4<TFS***> 4JH1 ENG<RJX> THA	8-97330-909-0	01	1	0204-0408		●
3	SEAL; OIL,RR COVER,A/T 4X4<TFS***> 4JJ1-TCS ENG<LFB> THA	8-97330-909-0	01	1	0409-		●
3	SEAL; OIL,RR COVER,A/T 4X2<TFB***> 4JJ1-TCX ENG<LS0> THA	8-97184-430-0	01	1	0710-	●
3	SEAL; OIL,RR COVER,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-97069-465-0	01	1	0609-0708	●
3	SEAL; OIL,RR COVER,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-97069-465-0	01	1	0710-	●
4	CONVERTER ASM; TORQUE,A/T 4JH1 ENG<RJX> THA	8-97330-898-0	01	1	0204-0408		●
4	CONVERTER ASM; TORQUE,A/T 4JJ1-TCS ENG<LFB> THA	8-97368-547-0	01	1	0409-		●
4	CONVERTER ASM; TORQUE,A/T 4JJ1-TCX ENG<LS0> THA	8-98056-389-0	01	1	0710-	●
4	CONVERTER ASM; TORQUE,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-98056-389-0	01	1	0609-0708	●
7	SEAL; OIL,LIP,A/T 4JH1 ENG<RJX> (A) THA	8-94385-664-0	01	1	0204-0408		●
7	SEAL; OIL,LIP,A/T 4JJ1-TCS ENG<LFB> (A) THA	8-94385-664-0	01	1	0409-		●
7	SEAL; OIL,LIP,A/T 4JH1 ENG<RJX> (B) THA	8-97330-904-0	01	1	0204-0408		●
7	SEAL; OIL,LIP,A/T 4JJ1-TCS ENG<LFB> (B) THA	8-97330-904-0	01	1	0409-0711		●
7	SEAL; OIL,LIP,A/T 4JJ1-TCS ENG<LFB> (B) THA	8-98126-853-0	01	1	0712-		●
7	SEAL; OIL,LIP,A/T 4JJ1-TCX ENG<LS0> (C) THA	8-94479-742-1	01	1	0710-	●
7	SEAL; OIL,LIP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C) THA	8-94479-742-1	01	1	0609-0708	●
8	BOLT; HSG TO CASE 4JH1 ENG<RJX> (A) M8X35 THA	8-97330-912-0	08	1	0204-0408		●
8	BOLT; HSG TO CASE 4JJ1-TCS ENG<LFB> (A) M8X35 THA	8-97330-912-0	08	1	0409-		●
8	BOLT; HSG TO CASE 4JJ1-TCX ENG<LS0> (B) M10X35 THA	8-90257-082-0	04	1	0710-	●
8	BOLT; HSG TO CASE 4JJ1-TCX ENG<LS0> (C) M12X68 THA	8-97025-830-0	02	1	0710-	●
8	BOLT; HSG TO CASE 4X4<TFS***> 4JJ1-TCX ENG<LS0> (B) M10X35 THA	8-90257-082-0	04	1	0609-0708	●
8	BOLT; HSG TO CASE 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C) M12X68 THA	8-97025-830-0	02	1	0609-0708	●
9	COVER ASM; RR,A/T 4X2<TFB***> 4JH1 ENG<RJX> THA	8-97330-901-0	01	1	0204-0408		●
9	COVER ASM; RR,A/T 4X2<TFB***> 4JJ1-TCS ENG<LFB> THA	8-97330-901-0	01	1	0409-		●
9	COVER ASM; RR,A/T 4X2<TFB***> 4JJ1-TCX ENG<LS0> THA	8-98056-398-0	01	1	0710-	●
15	BREATHER; A/T CASE 4JH1 ENG<RJX> THA	8-97301-433-1	01	1	0204-0408		●
15	BREATHER; A/T CASE 4JJ1-TCS ENG<LFB> THA	8-97301-433-1	01	1	0409-		●
17	BOLT; REAR COVER TO CASE 4JH1 ENG<RJX> (D) M8X35 THA	8-97330-912-0	10	1	0204-0408		●
17	BOLT; REAR COVER TO CASE 4JJ1-TCS ENG<LFB> (D) M8X35 THA	8-97330-912-0	10	1	0409-		●
17	BOLT; REAR COVER TO CASE 4X2<TFB***> 4JJ1-TCX ENG<LS0> (A) M10X45 THA	8-94473-632-0	04	1	0710-	●
17	BOLT; REAR COVER TO CASE 4X2<TFB***> 4JJ1-TCX ENG<LS0> (B) M10X35 THA	8-94479-951-0	02	1	0710-	●
17	BOLT; REAR COVER TO CASE 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C) THA	8-94479-936-0	07	1	0609-0708	●
17	BOLT; REAR COVER TO CASE 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C) THA	8-94479-936-0	07	1	0710-	●
23	HOSE; BREATHER,A/T 4JH1 ENG<RJX> L=580 SERVICED BY L=3000 IMA	0-04750-300-0	01	1	0204-0408		●
23	HOSE; BREATHER,A/T 4JJ1-TCS ENG<LFB> L=580 SERVICED BY L=3000 IMA	0-04750-300-0	01	1	0409-		●
23	HOSE; BREATHER,A/T 4JJ1-TCX ENG<LS0> L=240 SERVICED BY L=3000 THA	0-02857-300-0	02	1	0710-	●
23	HOSE; BREATHER,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> L=240 SERVICED BY L=3000 THA	0-02857-300-0	02	1	0609-0708	●
30	PUMP ASM; OIL,A/T 4JH1 ENG<RJX> THA	8-97357-220-0	01	1	0204-0408		●
30	PUMP ASM; OIL,A/T 4JJ1-TCS ENG<LFB> THA	8-97357-220-0	01	1	0409-		●
30	PUMP ASM; OIL,A/T 4JJ1-TCX ENG<LS0> THA	8-97370-809-0	01	1	0710-	●
30	PUMP ASM; OIL,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-97370-809-0	01	1	0609-0708	●
37	RING; SEAL,OIL PUMP,A/T 4JH1 ENG<RJX> (A) THA	8-94483-322-0	02	1	0204-0408		●
37	RING; SEAL,OIL PUMP,A/T 4JJ1-TCS ENG<LFB> (A) THA	8-94483-322-0	02	1	0409-		●
37	RING; SEAL,OIL PUMP,A/T 4JH1 ENG<RJX> (B) THA	8-97330-984-0	02	1	0204-0408		●
37	RING; SEAL,OIL PUMP,A/T 4JJ1-TCS ENG<LFB> (B) THA	8-97330-984-0	02	1	0409-		●
37	RING; SEAL,OIL PUMP,A/T 4JJ1-TCX ENG<LS0> (C) THA	8-94479-747-0	02	1	0710-	●
37	RING; SEAL,OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C) THA	8-94479-747-0	02	1	0609-0708	●
38	GASKET; OIL PUMP,A/T 4JH1 ENG<RJX> (A) THA	8-97330-985-0	01	1	0204-0408		●
38	GASKET; OIL PUMP,A/T 4JJ1-TCS ENG<LFB> (A) THA	8-97330-985-0	01	1	0409-		●
38	GASKET; OIL PUMP,A/T 4JH1 ENG<RJX> (B) THA	8-97330-986-0	01	1	0204-0408		●
38	GASKET; OIL PUMP,A/T 4JJ1-TCS ENG<LFB> (B) THA	8-97330-986-0	01	1	0409-		●
38	GASKET; OIL PUMP,A/T 4JJ1-TCX ENG<LS0> (C) THA	8-94479-748-0	01	1	0710-	●
38	GASKET; OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C) THA	8-94479-748-0	01	1	0609-0708	●
41	BOLT; OIL PUMP HSG,A/T 4JH1 ENG<RJX> (A) M8X45 FLANGE THA	8-97330-913-0	08	1	0204-0408		●
41	BOLT; OIL PUMP HSG,A/T 4JJ1-TCS ENG<LFB> (A) M8X45 FLANGE THA	8-97330-913-0	08	1	0409-		●
41	BOLT; OIL PUMP HSG,A/T 4JH1 ENG<RJX> (B) M6X25 FLANGE THA	8-97331-123-0	08	1	0204-0408		●
41	BOLT; OIL PUMP HSG,A/T 4JJ1-TCS ENG<LFB> (B) M6X25 FLANGE THA	8-97331-123-0	08	1	0409-		●
41	BOLT; OIL PUMP HSG,A/T 4JJ1-TCX ENG<LS0> (C) M8X35 THA	8-94479-749-0	07	1	0710-	●
41	BOLT; OIL PUMP HSG,A/T 4JJ1-TCX ENG<LS0> (D) M6X15.5 THA	8-97019-532-0	13	1	0710-	●
41	BOLT; OIL PUMP HSG,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C) M8X35 THA	8-94479-749-0	07	1	0609-0708	●
41	BOLT; OIL PUMP HSG,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (D) M6X15.5 THA	8-97019-532-0	13	1	0609-0708	●
43	RACE; THRUST BRG,OIL PUMP,A/T 4JH1 ENG<RJX> T=1.4 THA	8-97330-940-0	01	1	0204-0408		●
43	RACE; THRUST BRG,OIL PUMP,A/T 4JJ1-TCS ENG<LFB> T=1.4 THA	8-97330-940-0	01	1	0409-		●
43	RACE; THRUST BRG,OIL PUMP,A/T 4JH1 ENG<RJX> T=1.6 THA	8-97330-941-0	01	1	0204-0408		●
43	RACE; THRUST BRG,OIL PUMP,A/T 4JJ1-TCS ENG<LFB> T=1.6 THA	8-97330-941-0	01	1	0409-		●
43	RACE; THRUST BRG,OIL PUMP,A/T 4JH1 ENG<RJX> T=1.8 THA	8-97330-942-0	01	1	0204-0408		●
43	RACE; THRUST BRG,OIL PUMP,A/T 4JJ1-TCS ENG<LFB> T=1.8 THA	8-97330-942-0	01	1	0409-		●
43	RACE; THRUST BRG,OIL PUMP,A/T 4JH1 ENG<RJX> T=2.0 THA	8-97330-943-0	01	1	0204-0408		●
43	RACE; THRUST BRG,OIL PUMP,A/T 4JJ1-TCS ENG<LFB> T=2.0 THA	8-97330-943-0	01	1	0409-		●
43	RACE; THRUST BRG,OIL PUMP,A/T 4JH1 ENG<RJX> T=2.2 THA	8-97330-944-0	01	1	0204-0408		●
43	RACE; THRUST BRG,OIL PUMP,A/T 4JJ1-TCS ENG<LFB> T=2.2 THA	8-97330-944-0	01	1	0409-		●
43	RACE; THRUST BRG,OIL PUMP,A/T 4JH1 ENG<RJX> T=2.4 THA	8-97330-945-0	01	1	0204-0408		●
43	RACE; THRUST BRG,OIL PUMP,A/T 4JJ1-TCS ENG<LFB> T=2.4 THA	8-97330-945-0	01	1	0409-		●
44	BEARING; THRUST,OIL PUMP,A/T 4JH1 ENG<RJX> THA	8-97330-924-0	01	1	0204-0408		●
44	BEARING; THRUST,OIL PUMP,A/T 4JJ1-TCS ENG<LFB> THA	8-97330-924-0	01	1	0409-		●
241	ADAPTER; A/T 4X4<TFS***> 4JH1 ENG<RJX> THA	8-97330-902-0	01	1	0204-0408		●
241	ADAPTER; A/T 4X4<TFS***> 4JJ1-TCS ENG<LFB> THA	8-97330-902-0	01	1	0409-		●
241	ADAPTER; A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-98050-559-0	01	1	0609-0708	●
241	ADAPTER; A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-98050-559-0	01	1	0710-	●

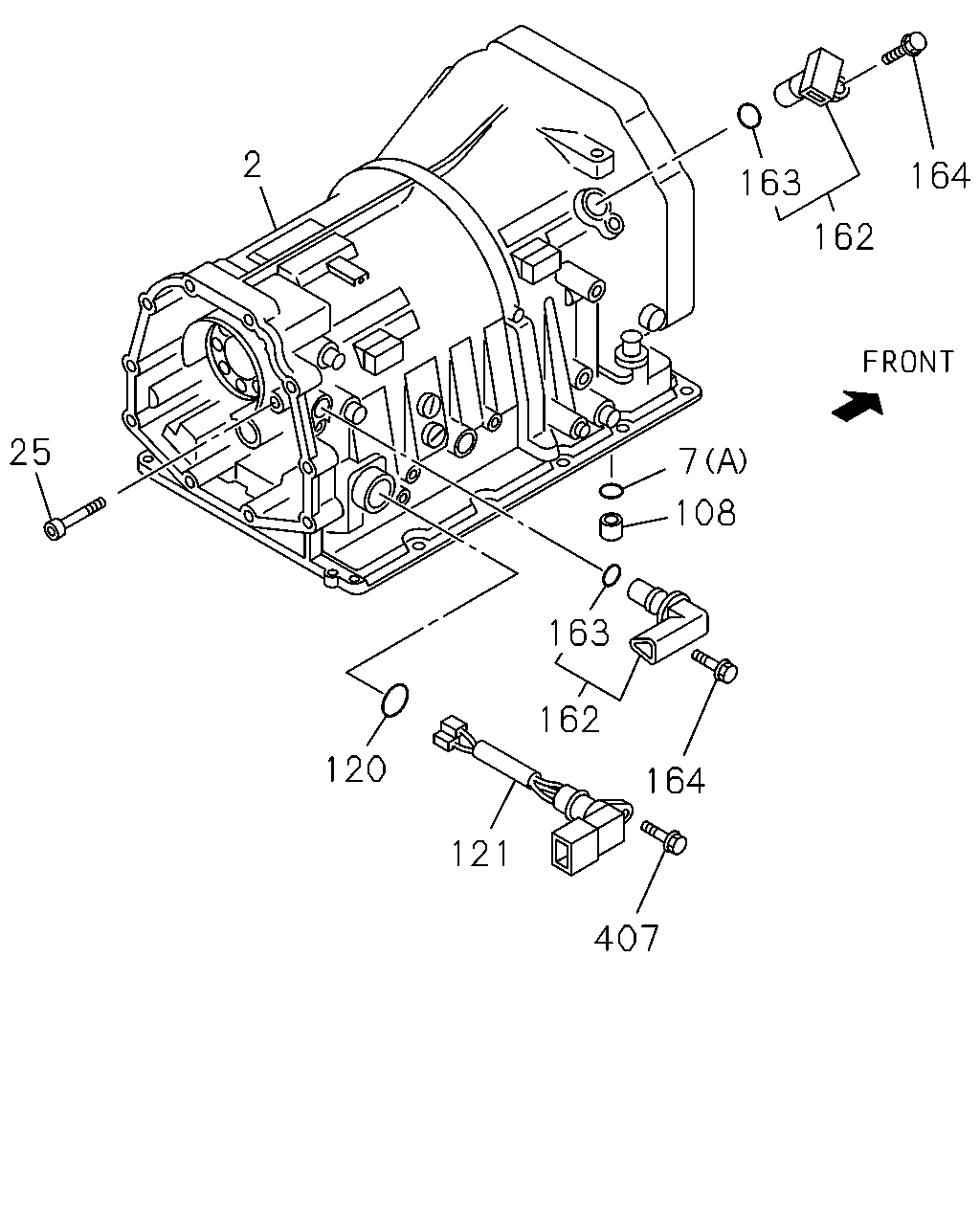

2 164 163 162 25 7 108 163 162 120 164 121 407

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	CASE ASM; A/T 4X2<TFB***> 4JJ1-TCX ENG<LS0> THA	8-98112-178-0	01	1	1009-	●
2	CASE ASM; A/T 4JH1 ENG<RJX> THA	8-97330-900-0	01	1	0204-0408		●
2	CASE ASM; A/T 4JJ1-TCS ENG<LFB> THA	8-97330-900-0	01	1	0409-0711		●
2	CASE ASM; A/T 4JJ1-TCS ENG<LFB> THA	8-97383-551-0	01	1	0712-		●
2	CASE ASM; A/T 4X2<TFB***> 4JJ1-TCX ENG<LS0> THA	8-97288-902-0	01	1	0710-0801	●
2	CASE ASM; A/T 4X2<TFB***> 4JJ1-TCX ENG<LS0> THA	8-98112-177-0	01	1	0802-1008	●
2	CASE ASM; A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-98029-249-0	01	1	0609-0708	●
2	CASE ASM; A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-98029-249-0	01	1	0710-0801	●
2	CASE ASM; A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-98112-176-0	01	1	0802-	●
7	SEAL; OIL,LIP,A/T 4JH1 ENG<RJX> (A) THA	8-94385-664-0	01	1	0204-0408		●
7	SEAL; OIL,LIP,A/T 4JJ1-TCS ENG<LFB> (A) THA	8-94385-664-0	01	1	0409-		●
7	SEAL; OIL,LIP,A/T 4JH1 ENG<RJX> (B) THA	8-97330-904-0	01	1	0204-0408		●
7	SEAL; OIL,LIP,A/T 4JJ1-TCS ENG<LFB> (B) THA	8-97330-904-0	01	1	0409-0711		●
7	SEAL; OIL,LIP,A/T 4JJ1-TCS ENG<LFB> (B) THA	8-98126-853-0	01	1	0712-		●
7	SEAL; OIL,LIP,A/T 4JJ1-TCX ENG<LS0> (C) THA	8-94479-742-1	01	1	0710-	●
7	SEAL; OIL,LIP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C) THA	8-94479-742-1	01	1	0609-0708	●
25	PIN; SPR,BRG HSG,A/T 4JH1 ENG<RJX> THA	8-97330-914-0	07	1	0204-0408		●
25	PIN; SPR,BRG HSG,A/T 4JJ1-TCS ENG<LFB> THA	8-97330-914-0	07	1	0409-		●
108	SLEEVE; LOW & REV BRAKE,A/T 4JH1 ENG<RJX> THA	8-94385-683-0	01	1	0204-0408		●
108	SLEEVE; LOW & REV BRAKE,A/T 4JJ1-TCS ENG<LFB> THA	8-94385-683-0	01	1	0409-		●
120	SEAL; TRANS,ELEC CONN 4JH1 ENG<RJX> THA	8-97330-987-0	01	1	0204-0408		●
120	SEAL; TRANS,ELEC CONN 4JJ1-TCS ENG<LFB> THA	8-97330-987-0	01	1	0409-		●
121	CONNECTOR; ELEC 4JH1 ENG<RJX> THA	8-97331-112-0	01	1	0204-0408		●
121	CONNECTOR; ELEC 4JJ1-TCS ENG<LFB> THA	8-97331-112-0	01	1	0409-		●
162	SENSOR; REVOLUTION,A/T CONT 4JH1 ENG<RJX> THA	8-97331-108-0	02	1	0204-0408		●
162	SENSOR; REVOLUTION,A/T CONT 4JJ1-TCS ENG<LFB> THA	8-97331-108-0	02	1	0409-		●
163	GASKET; REV SENSOR,A/T 4JH1 ENG<RJX> THA	8-97330-988-0	02	1	0204-0408		●
163	GASKET; REV SENSOR,A/T 4JJ1-TCS ENG<LFB> THA	8-97330-988-0	02	1	0409-0711		●
163	GASKET; REV SENSOR,A/T 4JJ1-TCS ENG<LFB> THA	8-98126-854-0	02	1	0712-		●
164	BOLT; REV SENSOR,A/T 4JH1 ENG<RJX> THA	8-94483-616-0	02	1	0204-0408		●
164	BOLT; REV SENSOR,A/T 4JJ1-TCS ENG<LFB> THA	8-94483-616-0	02	1	0409-		●
407	BOLT; ELEC CONNECTOR 4JH1 ENG<RJX> THA	8-94483-616-0	01	1	0204-0408		●
407	BOLT; ELEC CONNECTOR 4JJ1-TCS ENG<LFB> THA	8-94483-616-0	01	1	0409-		●

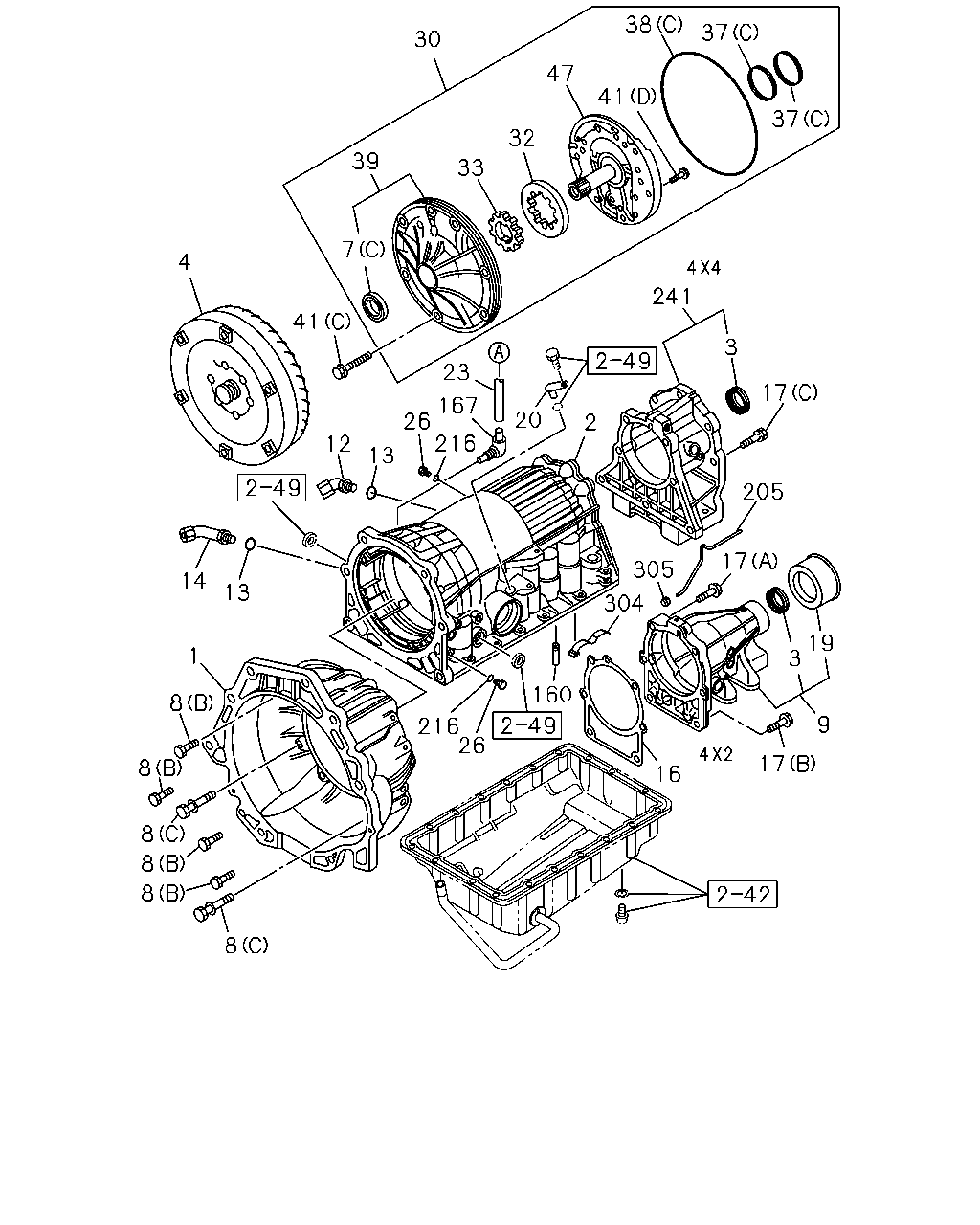

4 41 7 39 30 33 32 47 38 41 37 37 241 3 17 205 2 20 23 167 216 26 13 12 14 13 1 8 8 8 8 8 8 26 216 160 304 305 17 3 19 9 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOUSING; CONV,A/T 4JJ1-TCX ENG<LS0> THA	8-97179-520-0	01	1	1009-	●
1	HOUSING; CONV,A/T 4JH1 ENG<RJX> THA	8-97330-899-0	01	1	0204-0408		●
1	HOUSING; CONV,A/T 4JJ1-TCS ENG<LFB> THA	8-97330-899-0	01	1	0409-		●
1	HOUSING; CONV,A/T 4JJ1-TCX ENG<LS0> THA	8-98056-390-0	01	1	0710-1008	●
1	HOUSING; CONV,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-98056-390-0	01	1	0609-0708	●
2	CASE ASM; A/T 4X2<TFB***> 4JJ1-TCX ENG<LS0> THA	8-98112-178-0	01	1	1009-	●
2	CASE ASM; A/T 4JH1 ENG<RJX> THA	8-97330-900-0	01	1	0204-0408		●
2	CASE ASM; A/T 4JJ1-TCS ENG<LFB> THA	8-97330-900-0	01	1	0409-0711		●
2	CASE ASM; A/T 4JJ1-TCS ENG<LFB> THA	8-97383-551-0	01	1	0712-		●
2	CASE ASM; A/T 4X2<TFB***> 4JJ1-TCX ENG<LS0> THA	8-97288-902-0	01	1	0710-0801	●
2	CASE ASM; A/T 4X2<TFB***> 4JJ1-TCX ENG<LS0> THA	8-98112-177-0	01	1	0802-1008	●
2	CASE ASM; A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-98029-249-0	01	1	0609-0708	●
2	CASE ASM; A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-98029-249-0	01	1	0710-0801	●
2	CASE ASM; A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-98112-176-0	01	1	0802-	●
3	SEAL; OIL,RR COVER,A/T 4X2<TFB***> 4JH1 ENG<RJX> THA	8-97330-910-0	01	1	0204-0408		●
3	SEAL; OIL,RR COVER,A/T 4X2<TFB***> 4JJ1-TCS ENG<LFB> THA	8-97330-910-0	01	1	0409-		●
3	SEAL; OIL,RR COVER,A/T 4X4<TFS***> 4JH1 ENG<RJX> THA	8-97330-909-0	01	1	0204-0408		●
3	SEAL; OIL,RR COVER,A/T 4X4<TFS***> 4JJ1-TCS ENG<LFB> THA	8-97330-909-0	01	1	0409-		●
3	SEAL; OIL,RR COVER,A/T 4X2<TFB***> 4JJ1-TCX ENG<LS0> THA	8-97184-430-0	01	1	0710-	●
3	SEAL; OIL,RR COVER,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-97069-465-0	01	1	0609-0708	●
3	SEAL; OIL,RR COVER,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-97069-465-0	01	1	0710-	●
4	CONVERTER ASM; TORQUE,A/T 4JH1 ENG<RJX> THA	8-97330-898-0	01	1	0204-0408		●
4	CONVERTER ASM; TORQUE,A/T 4JJ1-TCS ENG<LFB> THA	8-97368-547-0	01	1	0409-		●
4	CONVERTER ASM; TORQUE,A/T 4JJ1-TCX ENG<LS0> THA	8-98056-389-0	01	1	0710-	●
4	CONVERTER ASM; TORQUE,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-98056-389-0	01	1	0609-0708	●
7	SEAL; OIL,LIP,A/T 4JH1 ENG<RJX> (A) THA	8-94385-664-0	01	1	0204-0408		●
7	SEAL; OIL,LIP,A/T 4JJ1-TCS ENG<LFB> (A) THA	8-94385-664-0	01	1	0409-		●
7	SEAL; OIL,LIP,A/T 4JH1 ENG<RJX> (B) THA	8-97330-904-0	01	1	0204-0408		●
7	SEAL; OIL,LIP,A/T 4JJ1-TCS ENG<LFB> (B) THA	8-97330-904-0	01	1	0409-0711		●
7	SEAL; OIL,LIP,A/T 4JJ1-TCS ENG<LFB> (B) THA	8-98126-853-0	01	1	0712-		●
7	SEAL; OIL,LIP,A/T 4JJ1-TCX ENG<LS0> (C) THA	8-94479-742-1	01	1	0710-	●
7	SEAL; OIL,LIP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C) THA	8-94479-742-1	01	1	0609-0708	●
8	BOLT; HSG TO CASE 4JH1 ENG<RJX> (A) M8X35 THA	8-97330-912-0	08	1	0204-0408		●
8	BOLT; HSG TO CASE 4JJ1-TCS ENG<LFB> (A) M8X35 THA	8-97330-912-0	08	1	0409-		●
8	BOLT; HSG TO CASE 4JJ1-TCX ENG<LS0> (B) M10X35 THA	8-90257-082-0	04	1	0710-	●
8	BOLT; HSG TO CASE 4JJ1-TCX ENG<LS0> (C) M12X68 THA	8-97025-830-0	02	1	0710-	●
8	BOLT; HSG TO CASE 4X4<TFS***> 4JJ1-TCX ENG<LS0> (B) M10X35 THA	8-90257-082-0	04	1	0609-0708	●
8	BOLT; HSG TO CASE 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C) M12X68 THA	8-97025-830-0	02	1	0609-0708	●
9	COVER ASM; RR,A/T 4X2<TFB***> 4JH1 ENG<RJX> THA	8-97330-901-0	01	1	0204-0408		●
9	COVER ASM; RR,A/T 4X2<TFB***> 4JJ1-TCS ENG<LFB> THA	8-97330-901-0	01	1	0409-		●
9	COVER ASM; RR,A/T 4X2<TFB***> 4JJ1-TCX ENG<LS0> THA	8-98056-398-0	01	1	0710-	●
12	CONNECTOR; OIL COOLER OUTLET PIPE 4JJ1-TCX ENG<LS0> THA	8-94450-761-0	01	1	0710-	●
12	CONNECTOR; OIL COOLER OUTLET PIPE 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-94450-761-0	01	1	0609-0708	●
13	GASKET; OIL COOLER PIPE 4JJ1-TCX ENG<LS0> ID=11.7 THA	8-94479-724-0	02	1	0710-	●
13	GASKET; OIL COOLER PIPE 4X4<TFS***> 4JJ1-TCX ENG<LS0> ID=11.7 THA	8-94479-724-0	02	1	0609-0708	●
14	UNION; OIL COOLER RETURN PIPE 4JJ1-TCX ENG<LS0> THA	8-94450-762-0	01	1	0710-	●
14	UNION; OIL COOLER RETURN PIPE 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-94450-762-0	01	1	0609-0708	●
16	GASKET; EXT HSG 4X2<TFB***> 4JJ1-TCX ENG<LS0> THA	8-97032-928-0	01	1	0710-	●
17	BOLT; REAR COVER TO CASE 4JH1 ENG<RJX> (D) M8X35 THA	8-97330-912-0	10	1	0204-0408		●
17	BOLT; REAR COVER TO CASE 4JJ1-TCS ENG<LFB> (D) M8X35 THA	8-97330-912-0	10	1	0409-		●
17	BOLT; REAR COVER TO CASE 4X2<TFB***> 4JJ1-TCX ENG<LS0> (A) M10X45 THA	8-94473-632-0	04	1	0710-	●
17	BOLT; REAR COVER TO CASE 4X2<TFB***> 4JJ1-TCX ENG<LS0> (B) M10X35 THA	8-94479-951-0	02	1	0710-	●
17	BOLT; REAR COVER TO CASE 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C) THA	8-94479-936-0	07	1	0609-0708	●
17	BOLT; REAR COVER TO CASE 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C) THA	8-94479-936-0	07	1	0710-	●
19	COVER; DUST,REAR COVER 4X2<TFB***> 4JJ1-TCX ENG<LS0> THA	8-97184-432-0	01	1	0710-	●
20	PLUG; TAPER,A/T CASE 4X2<TFB***> 4JJ1-TCX ENG<LS0> THA	8-97232-067-0	01	1	0710-1008	●
23	HOSE; BREATHER,A/T 4JH1 ENG<RJX> L=580 SERVICED BY L=3000 IMA	0-04750-300-0	01	1	0204-0408		●
23	HOSE; BREATHER,A/T 4JJ1-TCS ENG<LFB> L=580 SERVICED BY L=3000 IMA	0-04750-300-0	01	1	0409-		●
23	HOSE; BREATHER,A/T 4JJ1-TCX ENG<LS0> L=240 SERVICED BY L=3000 THA	0-02857-300-0	02	1	0710-	●
23	HOSE; BREATHER,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> L=240 SERVICED BY L=3000 THA	0-02857-300-0	02	1	0609-0708	●
26	PLUG; TRANS CASE 4JJ1-TCX ENG<LS0> THA	5-34119-002-0	02	1	0710-	●
26	PLUG; TRANS CASE 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	5-34119-002-0	02	1	0609-0708	●
30	PUMP ASM; OIL,A/T 4JH1 ENG<RJX> THA	8-97357-220-0	01	1	0204-0408		●
30	PUMP ASM; OIL,A/T 4JJ1-TCS ENG<LFB> THA	8-97357-220-0	01	1	0409-		●
30	PUMP ASM; OIL,A/T 4JJ1-TCX ENG<LS0> THA	8-97370-809-0	01	1	0710-	●
30	PUMP ASM; OIL,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-97370-809-0	01	1	0609-0708	●
32	GEAR; OUTER,OIL PUMP,A/T 4JJ1-TCX ENG<LS0> T=11.715 -0.016/-0.025 MARK M THA	8-97370-816-0	01	1	0710-	●
32	GEAR; OUTER,OIL PUMP,A/T 4JJ1-TCX ENG<LS0> T=11.715 -0.006/-0.015 MARK N THA	8-97370-817-0	01	1	0710-	●
32	GEAR; OUTER,OIL PUMP,A/T 4JJ1-TCX ENG<LS0> T=11.715 +0.005/-0.005 MARK P THA	8-97370-818-0	01	1	0710-	●
32	GEAR; OUTER,OIL PUMP,A/T 4JJ1-TCX ENG<LS0> T=11.715 +0.015/+0.006 MARK R THA	8-97370-819-0	01	1	0710-	●
32	GEAR; OUTER,OIL PUMP,A/T 4JJ1-TCX ENG<LS0> T=11.715 +0.025/+0.016 MARK S THA	8-97370-820-0	01	1	0710-	●
32	GEAR; OUTER,OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=11.715 -0.016/-0.025 MARK M THA	8-97370-816-0	01	1	0609-0708	●
32	GEAR; OUTER,OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=11.715 -0.006/-0.015 MARK N THA	8-97370-817-0	01	1	0609-0708	●
32	GEAR; OUTER,OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=11.715 +0.005/-0.005 MARK P THA	8-97370-818-0	01	1	0609-0708	●
32	GEAR; OUTER,OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=11.715 +0.015/+0.006 MARK R THA	8-97370-819-0	01	1	0609-0708	●
32	GEAR; OUTER,OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=11.715 +0.025/+0.016 MARK S THA	8-97370-820-0	01	1	0609-0708	●
33	GEAR; INNER,OIL PUMP,A/T 4JJ1-TCX ENG<LS0> T=11.715 -0.016/-0.025 MARK M THA	8-97370-811-0	01	1	0710-	●
33	GEAR; INNER,OIL PUMP,A/T 4JJ1-TCX ENG<LS0> T=11.715 -0.006/-0.015 MARK N THA	8-97370-812-0	01	1	0710-	●
33	GEAR; INNER,OIL PUMP,A/T 4JJ1-TCX ENG<LS0> T=11.715 +0.005/-0.005 MARK P THA	8-97370-813-0	01	1	0710-	●
33	GEAR; INNER,OIL PUMP,A/T 4JJ1-TCX ENG<LS0> T=11.715 +0.015/+0.006 MARK R THA	8-97370-814-0	01	1	0710-	●
33	GEAR; INNER,OIL PUMP,A/T 4JJ1-TCX ENG<LS0> T=11.715 +0.025/+0.016 MARK S THA	8-97370-815-0	01	1	0710-	●
33	GEAR; INNER,OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=11.715 -0.016/-0.025 MARK M THA	8-97370-811-0	01	1	0609-0708	●
33	GEAR; INNER,OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=11.715 -0.006/-0.015 MARK N THA	8-97370-812-0	01	1	0609-0708	●
33	GEAR; INNER,OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=11.715 +0.005/-0.005 MARK P THA	8-97370-813-0	01	1	0609-0708	●
33	GEAR; INNER,OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=11.715 +0.015/+0.006 MARK R THA	8-97370-814-0	01	1	0609-0708	●
33	GEAR; INNER,OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=11.715 +0.025/+0.016 MARK S THA	8-97370-815-0	01	1	0609-0708	●
37	RING; SEAL,OIL PUMP,A/T 4JH1 ENG<RJX> (A) THA	8-94483-322-0	02	1	0204-0408		●
37	RING; SEAL,OIL PUMP,A/T 4JJ1-TCS ENG<LFB> (A) THA	8-94483-322-0	02	1	0409-		●
37	RING; SEAL,OIL PUMP,A/T 4JH1 ENG<RJX> (B) THA	8-97330-984-0	02	1	0204-0408		●
37	RING; SEAL,OIL PUMP,A/T 4JJ1-TCS ENG<LFB> (B) THA	8-97330-984-0	02	1	0409-		●
37	RING; SEAL,OIL PUMP,A/T 4JJ1-TCX ENG<LS0> (C) THA	8-94479-747-0	02	1	0710-	●
37	RING; SEAL,OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C) THA	8-94479-747-0	02	1	0609-0708	●
38	GASKET; OIL PUMP,A/T 4JH1 ENG<RJX> (A) THA	8-97330-985-0	01	1	0204-0408		●
38	GASKET; OIL PUMP,A/T 4JJ1-TCS ENG<LFB> (A) THA	8-97330-985-0	01	1	0409-		●
38	GASKET; OIL PUMP,A/T 4JH1 ENG<RJX> (B) THA	8-97330-986-0	01	1	0204-0408		●
38	GASKET; OIL PUMP,A/T 4JJ1-TCS ENG<LFB> (B) THA	8-97330-986-0	01	1	0409-		●
38	GASKET; OIL PUMP,A/T 4JJ1-TCX ENG<LS0> (C) THA	8-94479-748-0	01	1	0710-	●
38	GASKET; OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C) THA	8-94479-748-0	01	1	0609-0708	●
39	BODY SUB ASM; FRT,OIL PUMP,A/T 4JJ1-TCX ENG<LS0> THA	8-98050-498-0	01	1	0710-0801	●
39	BODY SUB ASM; FRT,OIL PUMP,A/T 4JJ1-TCX ENG<LS0> THA	8-98112-183-0	01	1	0802-	●
39	BODY SUB ASM; FRT,OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-98050-498-0	01	1	0609-0708	●
41	BOLT; OIL PUMP HSG,A/T 4JH1 ENG<RJX> (A) M8X45 FLANGE THA	8-97330-913-0	08	1	0204-0408		●
41	BOLT; OIL PUMP HSG,A/T 4JJ1-TCS ENG<LFB> (A) M8X45 FLANGE THA	8-97330-913-0	08	1	0409-		●
41	BOLT; OIL PUMP HSG,A/T 4JH1 ENG<RJX> (B) M6X25 FLANGE THA	8-97331-123-0	08	1	0204-0408		●
41	BOLT; OIL PUMP HSG,A/T 4JJ1-TCS ENG<LFB> (B) M6X25 FLANGE THA	8-97331-123-0	08	1	0409-		●
41	BOLT; OIL PUMP HSG,A/T 4JJ1-TCX ENG<LS0> (C) M8X35 THA	8-94479-749-0	07	1	0710-	●
41	BOLT; OIL PUMP HSG,A/T 4JJ1-TCX ENG<LS0> (D) M6X15.5 THA	8-97019-532-0	13	1	0710-	●
41	BOLT; OIL PUMP HSG,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C) M8X35 THA	8-94479-749-0	07	1	0609-0708	●
41	BOLT; OIL PUMP HSG,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (D) M6X15.5 THA	8-97019-532-0	13	1	0609-0708	●
47	SHAFT; OIL PUMP,A/T 4JJ1-TCX ENG<LS0> THA	8-97370-821-0	01	1	0710-0801	●
47	SHAFT; OIL PUMP,A/T 4JJ1-TCX ENG<LS0> THA	8-98112-188-0	01	1	0802-	●
47	SHAFT; OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-97370-821-0	01	1	0609-0708	●
160	GASKET; BRK DRUM,A/T 4JJ1-TCX ENG<LS0> THA	8-94313-576-0	01	1	0710-	●
160	GASKET; BRK DRUM,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-94313-576-0	01	1	0609-0708	●
167	CONNECTOR; CASE,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-727-0	01	1	1009-	●
167	CONNECTOR; CASE,A/T 4JJ1-TCX ENG<LS0> THA	8-97126-812-0	01	1	0710-1008	●
167	CONNECTOR; CASE,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-97126-812-0	01	1	0609-0708	●
205	TUBE; EXT HSG 4X2<TFB***> 4JJ1-TCX ENG<LS0> THA	8-97331-557-0	01	1	0710-	●
216	GASKET; SOLENOID OUTER 4JJ1-TCX ENG<LS0> ID=6 THA	5-34119-001-0	02	1	0710-	●
216	GASKET; SOLENOID OUTER 4X4<TFS***> 4JJ1-TCX ENG<LS0> ID=6 THA	5-34119-001-0	02	1	0609-0708	●
241	ADAPTER; A/T 4X4<TFS***> 4JH1 ENG<RJX> THA	8-97330-902-0	01	1	0204-0408		●
241	ADAPTER; A/T 4X4<TFS***> 4JJ1-TCS ENG<LFB> THA	8-97330-902-0	01	1	0409-		●
241	ADAPTER; A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-98050-559-0	01	1	0609-0708	●
241	ADAPTER; A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-98050-559-0	01	1	0710-	●
304	SPRING; LEAF,A/T 4JJ1-TCX ENG<LS0> THA	8-97184-331-0	01	1	0710-	●
304	SPRING; LEAF,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-97184-331-0	01	1	0609-0708	●
305	GASKET; TUBE,EXT HSG 4X2<TFB***> 4JJ1-TCX ENG<LS0> THA	8-97027-228-0	01	1	0710-	●

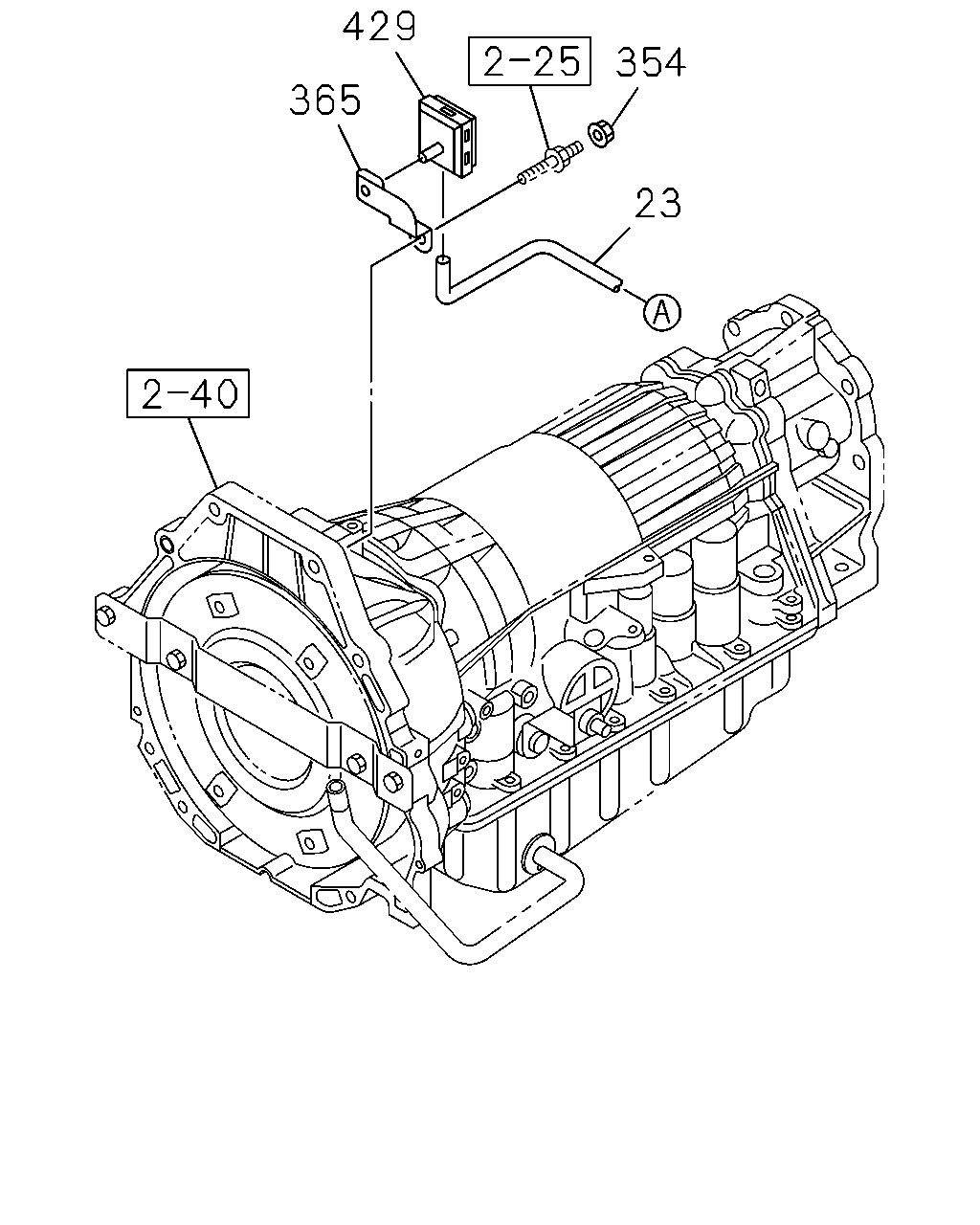

429 365 354 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	HOSE; BREATHER,A/T 4JH1 ENG<RJX> L=580 SERVICED BY L=3000 IMA	0-04750-300-0	01	1	0204-0408		●
23	HOSE; BREATHER,A/T 4JJ1-TCS ENG<LFB> L=580 SERVICED BY L=3000 IMA	0-04750-300-0	01	1	0409-		●
23	HOSE; BREATHER,A/T 4JJ1-TCX ENG<LS0> L=240 SERVICED BY L=3000 THA	0-02857-300-0	02	1	0710-	●
23	HOSE; BREATHER,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> L=240 SERVICED BY L=3000 THA	0-02857-300-0	02	1	0609-0708	●
354	NUT; BRKT 4JJ1-TCX ENG<LS0> M10 FLANGE THA	0-91180-110-0	01	1	0609-0708	●
354	NUT; BRKT 4JJ1-TCX ENG<LS0> M10 FLANGE THA	0-91180-110-0	01	1	0710-	●
365	BRACKET; BREATHER HOSE,A/T 4JJ1-TCX ENG<LS0> THA	8-98005-233-0	01	1	0609-0708	●
365	BRACKET; BREATHER HOSE,A/T 4JJ1-TCX ENG<LS0> THA	8-98005-233-0	01	1	0710-	●
429	CLIP; BREATHER HOSE 4JJ1-TCX ENG<LS0> THA	8-97301-433-1	01	1	0609-0708	●
429	CLIP; BREATHER HOSE 4JJ1-TCX ENG<LS0> THA	8-97301-433-1	01	1	0710-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
