◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#72841) — 71 parça

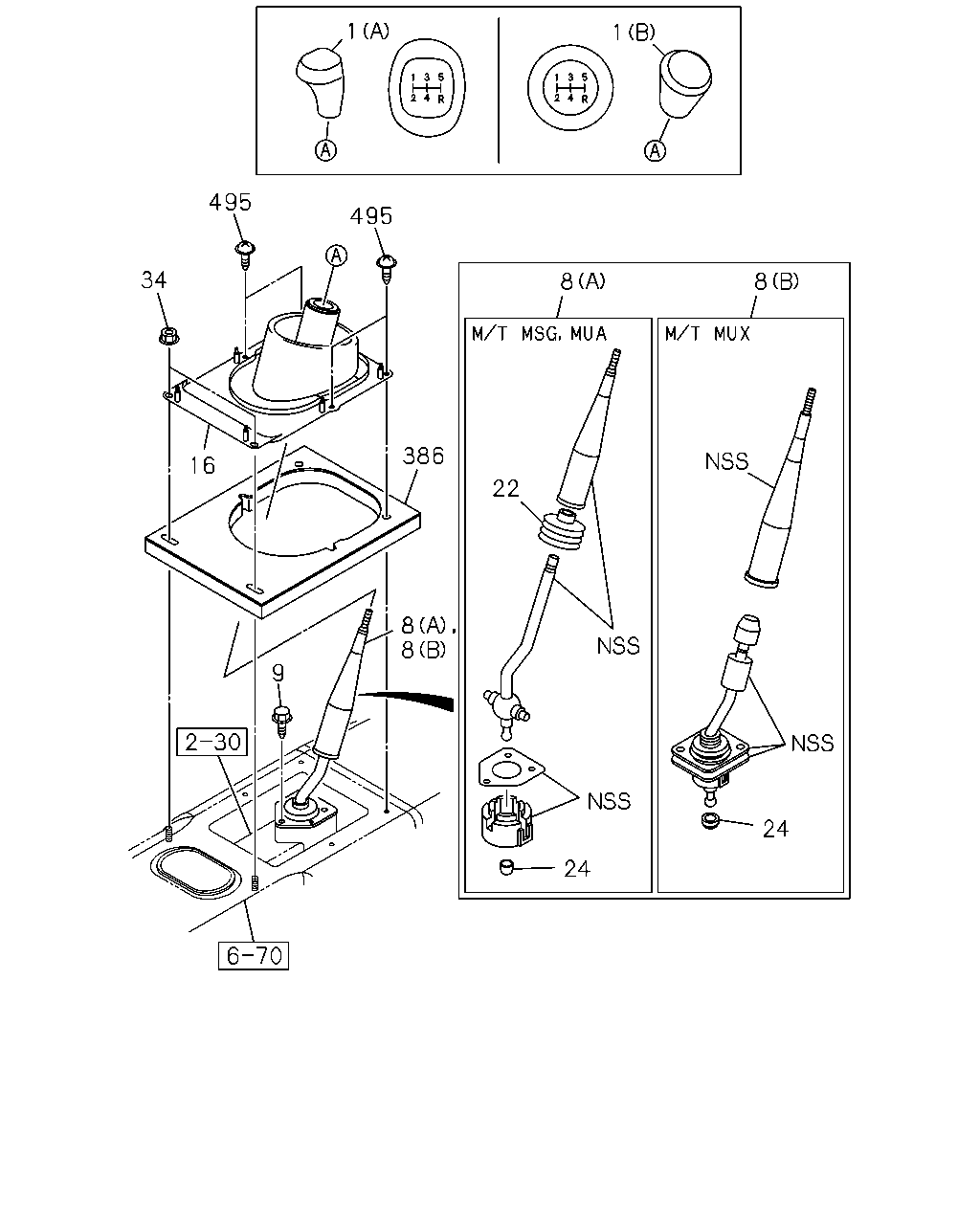

çizim 116435
1 1 495 495 34 8 8 386 16 22 8 8 9 24 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 KNOB; CHANGE LEVER
EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOB LEATHER<VY7> (B) IMA 		8-97371-734-0 01 1 0710- ● ●
1 KNOB; CHANGE LEVER
LEATHER GRIP PACKAGE<7GZ> EXC. SHIFT KNOB SPORTY<M09> (A) DARK GRAY THA 		8-97298-804-0 01 1 0204-0404 ● ●
1 KNOB; CHANGE LEVER
LEATHER GRIP PACKAGE<7GZ> EXC. SHIFT KNOB SPORTY<M09> (A) DARK GRAY THA 		8-97944-165-0 01 1 0405-0408 ● ●
1 KNOB; CHANGE LEVER
SHIFT KNOB LEATHER<VY7> (A) DARK GRAY THA 		8-97398-543-0 01 1 0409-0412 ● ●
1 KNOB; CHANGE LEVER
SHIFT KNOB LEATHER<VY7> (A) DARK GRAY THA 		8-97398-543-0 01 1 0501-0512 ● ●
1 KNOB; CHANGE LEVER
SHIFT KNOB LEATHER<VY7> (A) DARK GRAY THA 		8-97406-181-0 01 1 0601-0606 ● ●
1 KNOB; CHANGE LEVER
SHIFT KNOB LEATHER<VY7> (A) DARK GRAY THA 		8-97406-182-0 01 1 0607-0608 ●
1 KNOB; CHANGE LEVER
SHIFT KNOB LEATHER<VY7> (A) DARK GRAY THA 		8-97406-182-0 01 1 0609-0708 ● ●
1 KNOB; CHANGE LEVER
SHIFT KNOB LEATHER<VY7> (A) DARK GRAY THA 		8-97406-182-0 01 1 0709-0709 ●
1 KNOB; CHANGE LEVER
SHIFT KNOB LEATHER<VY7> (A) DARK GRAY THA 		8-97406-182-0 01 1 0710- ● ●
1 KNOB; CHANGE LEVER
SHIFT KNOB SPORTY<M09> EXC. LEATHER GRIP PACKAGE<7GZ> (A) DARK GRAY THA 		8-97298-803-0 01 1 0204-0408 ● ●
1 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) DARK GRAY THA 		8-97398-545-0 01 1 0409-0412 ● ●
1 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) DARK GRAY THA 		8-97398-545-0 01 1 0501-0512 ● ●
1 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) DARK GRAY THA 		8-97406-183-0 01 1 0601-0606 ● ●
1 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) DARK GRAY THA 		8-97406-184-0 01 1 0607-0709 ●
1 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) DARK GRAY THA 		8-97406-184-0 01 1 0710- ● ●
1 KNOB; CHANGE LEVER
EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOB LEATHER<VY7> (B) IMA 		8-97371-734-0 01 1 0607-0708 ●
8 LEVER; CHANGE
4JA1 ENG<RLE> (A) THA 		8-97235-808-3 01 1 0204-0305 ●
8 LEVER; CHANGE
4JA1 ENG<RLE> (A) THA 		8-97943-609-0 01 1 0306-0408 ●
8 LEVER; CHANGE
4JA1-T ENG<LP0> (A) THA 		8-97943-609-0 01 1 0409-0412 ●
8 LEVER; CHANGE
4JH1 ENG<RJX> (A) THA 		8-97235-806-3 01 1 0204-0305 ●
8 LEVER; CHANGE
4JH1 ENG<RJX> (A) THA 		8-97943-608-0 01 1 0306-0408 ●
8 LEVER; CHANGE
4JA1-T ENG<LP0> (A) THA 		8-97943-608-0 01 1 0409-0412 ●
8 LEVER; CHANGE
4JJ1-TCS ENG<LFB> (A) THA 		8-97944-094-0 01 1 0409-0412 ●
8 LEVER; CHANGE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (A) THA 		8-97944-094-0 01 1 0501-0606 ● ●
8 LEVER; CHANGE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (A) THA 		8-97945-707-0 01 1 0607-0610 ●
8 LEVER; CHANGE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (A) THA 		8-97945-847-0 01 1 0611-0802 ●
8 LEVER; CHANGE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (A) THA 		8-97947-101-1 01 1 0803- ●
8 LEVER; CHANGE
4JJ1-TCX ENG<LS0> (B) THA 		8-97945-472-0 01 1 0609-0708 ●
8 LEVER; CHANGE
4JJ1-TCX ENG<LS0> (B) THA 		8-97945-472-0 01 1 0710- ●
9 BOLT; CHANGE LEVER
M8X20 FLANGE THA 		0-28650-820-0 03 1 0204-0408 ● ●
9 BOLT; CHANGE LEVER
M8X20 FLANGE THA 		0-28650-820-0 03 1 0409-0412 ● ●
9 BOLT; CHANGE LEVER
M8X20 FLANGE THA 		0-28650-820-0 03 1 0501-0606 ● ●
9 BOLT; CHANGE LEVER
M8X20 FLANGE THA 		0-28650-820-0 03 1 0607- ●
9 BOLT; CHANGE LEVER
M8X20 FLANGE THA 		0-28650-820-0 04 1 0609-0708 ●
9 BOLT; CHANGE LEVER
M8X20 FLANGE THA 		0-28650-820-0 04 1 0710- ●
16 BOOT; CHANGE LEVER
THA 		8-97235-879-2 01 1 0204-0408 ● ●
16 BOOT; CHANGE LEVER
THA 		8-97235-879-2 01 1 0409-0412 ● ●
16 BOOT; CHANGE LEVER
THA 		8-97235-879-2 01 1 0501-0507 ● ●
16 BOOT; CHANGE LEVER
FRONT CONSOLE<D55> THA 		8-97235-879-2 01 1 0508-0606 ● ●
16 BOOT; CHANGE LEVER
THA 		8-97235-879-2 01 1 0607-0608 ●
16 BOOT; CHANGE LEVER
THA 		8-97235-879-2 01 1 0609-0708 ● ●
16 BOOT; CHANGE LEVER
THA 		8-97235-879-2 01 1 0709-0709 ●
16 BOOT; CHANGE LEVER
THA 		8-97235-879-2 01 1 0710- ● ●
22 COVER; DUST,CHANGE LEVER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97945-801-0 01 1 0611- ●
24 BUSHING; CHANGE LEVER
THA 		8-97161-606-0 01 1 0207-0305 ● ●
24 BUSHING; CHANGE LEVER
THA 		8-97943-618-0 01 1 0306-0408 ● ●
24 BUSHING; CHANGE LEVER
4JA1-T ENG<LP0> THA 		8-97943-618-0 01 1 0409-0412 ●
24 BUSHING; CHANGE LEVER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97943-618-0 01 1 0501-0606 ● ●
24 BUSHING; CHANGE LEVER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97943-618-0 01 1 0607-0608 ●
24 BUSHING; CHANGE LEVER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> THA 		8-97943-618-0 01 1 0609-0708 ● ●
24 BUSHING; CHANGE LEVER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97943-618-0 01 1 0709-0709 ●
24 BUSHING; CHANGE LEVER
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> THA 		8-97943-618-0 01 1 0710- ● ●
34 NUT
M6 FLANGE THA 		8-97063-399-0 02 1 0204-0408 ● ●
34 NUT
M6 FLANGE THA 		8-97063-399-0 02 1 0409-0412 ● ●
34 NUT
M6 FLANGE THA 		8-97063-399-0 02 1 0501-0606 ● ●
34 NUT
M6 FLANGE THA 		8-97063-399-0 02 1 0607-0608 ●
34 NUT
M6 FLANGE THA 		8-97063-399-0 02 1 0609-0702 ● ●
34 NUT
M6 FLANGE IMA 		8-98055-704-0 02 1 0703-0708 ● ●
34 NUT
M6 FLANGE IMA 		8-98055-704-0 02 1 0709-0709 ●
34 NUT
M6 FLANGE IMA 		8-98055-704-0 02 1 0710- ● ●
386 INSULATION; CHANGE LEVER
THA 		8-98063-555-0 01 1 0611-0708 ●
386 INSULATION; CHANGE LEVER
THA 		8-98063-555-0 01 1 0710- ●
495 SCREW; GROMMET
M5X16 TAPPING W/PL WASHER THA 		0-74305-516-0 04 1 0204-0408 ● ●
495 SCREW; GROMMET
M5X16 TAPPING W/PL WASHER THA 		0-74305-516-0 04 1 0409-0412 ● ●
495 SCREW; GROMMET
M5X16 TAPPING W/PL WASHER THA 		0-74305-516-0 04 1 0501-0605 ● ●
495 SCREW; GROMMET
M5X16 TAPPING W/PL WASHER THA 		0-74365-516-0 04 1 0606-0606 ● ●
495 SCREW; GROMMET
M5X16 TAPPING W/PL WASHER THA 		0-74365-516-0 04 1 0607-0608 ●
495 SCREW; GROMMET
M5X16 TAPPING W/PL WASHER THA 		0-74365-516-0 04 1 0609-0708 ● ●
495 SCREW; GROMMET
M5X16 TAPPING W/PL WASHER THA 		0-74365-516-0 04 1 0709-0709 ●
495 SCREW; GROMMET
M5X16 TAPPING W/PL WASHER THA 		0-74365-516-0 04 1 0710- ● ●
