Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#72840) — 572 parça

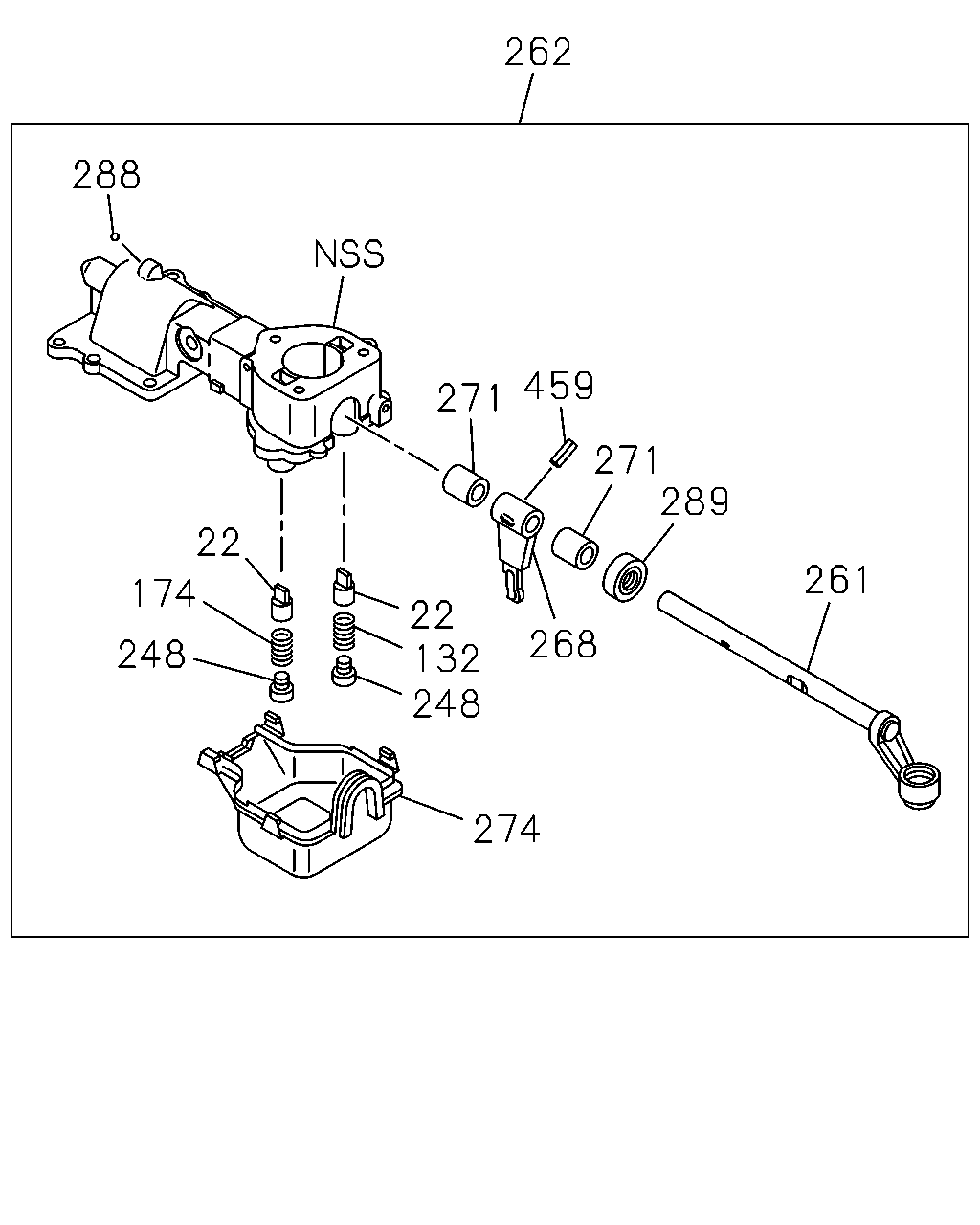

262 288 459 271 271 289 22 261 174 22 132 248 268 248 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
22	CAP; RETURN SPR,SHIFT BLOCK IMA	8-97181-326-0	02	1	0204-0408	●	●
22	CAP; RETURN SPR,SHIFT BLOCK IMA	8-97181-326-0	02	1	0409-0412	●		●
22	CAP; RETURN SPR,SHIFT BLOCK 4JJ1-TCS ENG<LFB> IMA	8-97181-326-0	02	1	0501-0606			●
22	CAP; RETURN SPR,SHIFT BLOCK 4JK1 ENG<LKZ> IMA	8-97181-326-0	02	1	0501-0606				●
22	CAP; RETURN SPR,SHIFT BLOCK 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMA	8-97181-326-0	02	1	0607-				●
132	SPRING; SELECT STOP IMA	8-97181-395-0	01	1	0204-0408	●	●
132	SPRING; SELECT STOP IMA	8-97181-395-0	01	1	0409-0412	●		●
132	SPRING; SELECT STOP 4JJ1-TCS ENG<LFB> IMA	8-97181-395-0	01	1	0501-0606			●
132	SPRING; SELECT STOP 4JK1 ENG<LKZ> IMA	8-97181-395-0	01	1	0501-0606				●
132	SPRING; SELECT STOP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMA	8-97181-395-0	01	1	0607-				●
174	SPRING; REV THA	8-97181-394-0	01	1	0204-0408	●	●
174	SPRING; REV THA	8-97181-394-0	01	1	0409-0412	●		●
174	SPRING; REV 4JJ1-TCS ENG<LFB> THA	8-97181-394-0	01	1	0501-0606			●
174	SPRING; REV 4JK1 ENG<LKZ> THA	8-97181-394-0	01	1	0501-0606				●
174	SPRING; REV 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA	8-97181-394-0	01	1	0607-				●
248	RETAINER; CONT BOX THA	8-97181-325-0	02	1	0204-0408	●	●
248	RETAINER; CONT BOX THA	8-97181-325-0	02	1	0409-0412	●		●
248	RETAINER; CONT BOX 4JJ1-TCS ENG<LFB> THA	8-97181-325-0	02	1	0501-0606			●
248	RETAINER; CONT BOX 4JK1 ENG<LKZ> THA	8-97181-325-0	02	1	0501-0606				●
248	RETAINER; CONT BOX 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA	8-97181-325-0	02	1	0607-1211				●
248	RETAINER; CONT BOX 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMA	8-98210-983-0	02	1	1212-				●
261	ROD; GEAR CONT 4JA1 ENG<RLE> THA	8-97257-825-0	01	1	0204-0408	●
261	ROD; GEAR CONT 4JA1-T ENG<LP0> THA	8-97257-825-0	01	1	0409-0412	●
261	ROD; GEAR CONT 4JH1 ENG<RJX> THA	8-97257-911-0	01	1	0204-0408		●
261	ROD; GEAR CONT 4JJ1-TCS ENG<LFB> THA	8-97257-911-0	01	1	0409-0412			●
261	ROD; GEAR CONT 4JJ1-TCS ENG<LFB> THA	8-97257-911-0	01	1	0501-0606			●
261	ROD; GEAR CONT 4JK1 ENG<LKZ> THA	8-97257-911-0	01	1	0501-0606				●
261	ROD; GEAR CONT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA	8-97257-911-0	01	1	0607-				●
261	ROD; GEAR CONT 4JJ1-TCX ENG<LS0> IMA	8-97362-444-0	01	1	0710-					●
261	ROD; GEAR CONT 4JJ1-TCX ENG<LS0> IMA	8-97362-444-0	01	1	0609-0708					●
262	BOX ASM; SHIFT CONT 4JA1 ENG<RLE> THA	8-97201-493-1	01	1	0204-0408	●
262	BOX ASM; SHIFT CONT 4JA1-T ENG<LP0> THA	8-97201-493-1	01	1	0409-0412	●
262	BOX ASM; SHIFT CONT 4JH1 ENG<RJX> THA	8-97180-891-2	01	1	0204-0305		●
262	BOX ASM; SHIFT CONT 4JH1 ENG<RJX> THA	8-97357-040-0	01	1	0306-0408		●
262	BOX ASM; SHIFT CONT 4JJ1-TCS ENG<LFB> THA	8-97357-040-0	01	1	0409-0412			●
262	BOX ASM; SHIFT CONT 4JJ1-TCS ENG<LFB> THA	8-97357-040-0	01	1	0501-0603			●
262	BOX ASM; SHIFT CONT 4JK1 ENG<LKZ> THA	8-97357-040-0	01	1	0501-0603				●
262	BOX ASM; SHIFT CONT 4JJ1-TCS ENG<LFB> THA	8-98017-729-0	01	1	0604-0606			●
262	BOX ASM; SHIFT CONT 4JK1 ENG<LKZ> THA	8-98017-729-0	01	1	0604-0606				●
262	BOX ASM; SHIFT CONT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA	8-98017-729-0	01	1	0607-1204				●
262	BOX ASM; SHIFT CONT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA	8-98203-264-0	01	1	1205-				●
268	LEVER; CONT,INTERNAL 4JA1 ENG<RLE> THA	8-97184-894-0	01	1	0204-0408	●
268	LEVER; CONT,INTERNAL 4JA1-T ENG<LP0> THA	8-97184-894-0	01	1	0409-0412	●
268	LEVER; CONT,INTERNAL 4JH1 ENG<RJX> IMA	8-97184-895-0	01	1	0204-0408		●
268	LEVER; CONT,INTERNAL 4JJ1-TCS ENG<LFB> IMA	8-97184-895-0	01	1	0409-0412			●
268	LEVER; CONT,INTERNAL 4JJ1-TCS ENG<LFB> IMA	8-97184-895-0	01	1	0501-0606			●
268	LEVER; CONT,INTERNAL 4JK1 ENG<LKZ> IMA	8-97184-895-0	01	1	0501-0606				●
268	LEVER; CONT,INTERNAL 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMA	8-97184-895-0	01	1	0607-				●
271	BUSHING; QUAD BOX ID=14 L=12 THA	8-97203-909-0	02	1	0204-0408	●	●
271	BUSHING; QUAD BOX ID=14 L=12 THA	8-97203-909-0	02	1	0409-0412	●		●
271	BUSHING; QUAD BOX 4JJ1-TCS ENG<LFB> ID=14 L=12 THA	8-97203-909-0	02	1	0501-0603			●
271	BUSHING; QUAD BOX 4JK1 ENG<LKZ> ID=14 L=12 THA	8-97203-909-0	02	1	0501-0603				●
271	BUSHING; QUAD BOX 4JJ1-TCS ENG<LFB> ID=14 L=12 IMA	8-98017-908-0	02	1	0604-0606			●
271	BUSHING; QUAD BOX 4JK1 ENG<LKZ> ID=14 L=12 IMA	8-98017-908-0	02	1	0604-0606				●
271	BUSHING; QUAD BOX 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> ID=14 L=12 IMA	8-98017-908-0	02	1	0607-				●
274	COVER; SHAFT,QUAD BOX IMA	8-97181-324-1	01	1	0204-0408	●	●
274	COVER; SHAFT,QUAD BOX IMA	8-97181-324-1	01	1	0409-0412	●		●
274	COVER; SHAFT,QUAD BOX 4JJ1-TCS ENG<LFB> IMA	8-97181-324-1	01	1	0501-0606			●
274	COVER; SHAFT,QUAD BOX 4JK1 ENG<LKZ> IMA	8-97181-324-1	01	1	0501-0606				●
274	COVER; SHAFT,QUAD BOX 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMA	8-97181-324-1	01	1	0607-				●
288	PLUG; AIR BREATHER 4JA1 ENG<RLE> IMA	9-00097-517-0	01	1	0204-0408	●
288	PLUG; AIR BREATHER 4JA1-T ENG<LP0> IMA	9-00097-517-0	01	1	0409-0412	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX THA	8-97181-327-0	01	1	0204-0408	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX THA	8-97181-327-0	01	1	0409-0412	●		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX 4JJ1-TCS ENG<LFB> THA	8-97181-327-0	01	1	0501-0603			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX 4JK1 ENG<LKZ> THA	8-97181-327-0	01	1	0501-0603				●
289	SEAL; OIL,CONT SHAFT,QUAD BOX 4JJ1-TCS ENG<LFB> IMA	8-98017-744-0	01	1	0604-0606			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX 4JK1 ENG<LKZ> IMA	8-98017-744-0	01	1	0604-0606				●
289	SEAL; OIL,CONT SHAFT,QUAD BOX 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMA	8-98017-744-0	01	1	0607-				●
459	PIN; SPR,ROD TO ARM OD=5 IMA	8-97184-905-0	01	1	0204-0408	●	●
459	PIN; SPR,ROD TO ARM OD=5 IMA	8-97184-905-0	01	1	0409-0412	●		●
459	PIN; SPR,ROD TO ARM 4JJ1-TCS ENG<LFB> OD=5 IMA	8-97184-905-0	01	1	0501-0606			●
459	PIN; SPR,ROD TO ARM 4JK1 ENG<LKZ> OD=5 IMA	8-97184-905-0	01	1	0501-0606				●
459	PIN; SPR,ROD TO ARM 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> OD=5 IMA	8-97184-905-0	01	1	0607-				●

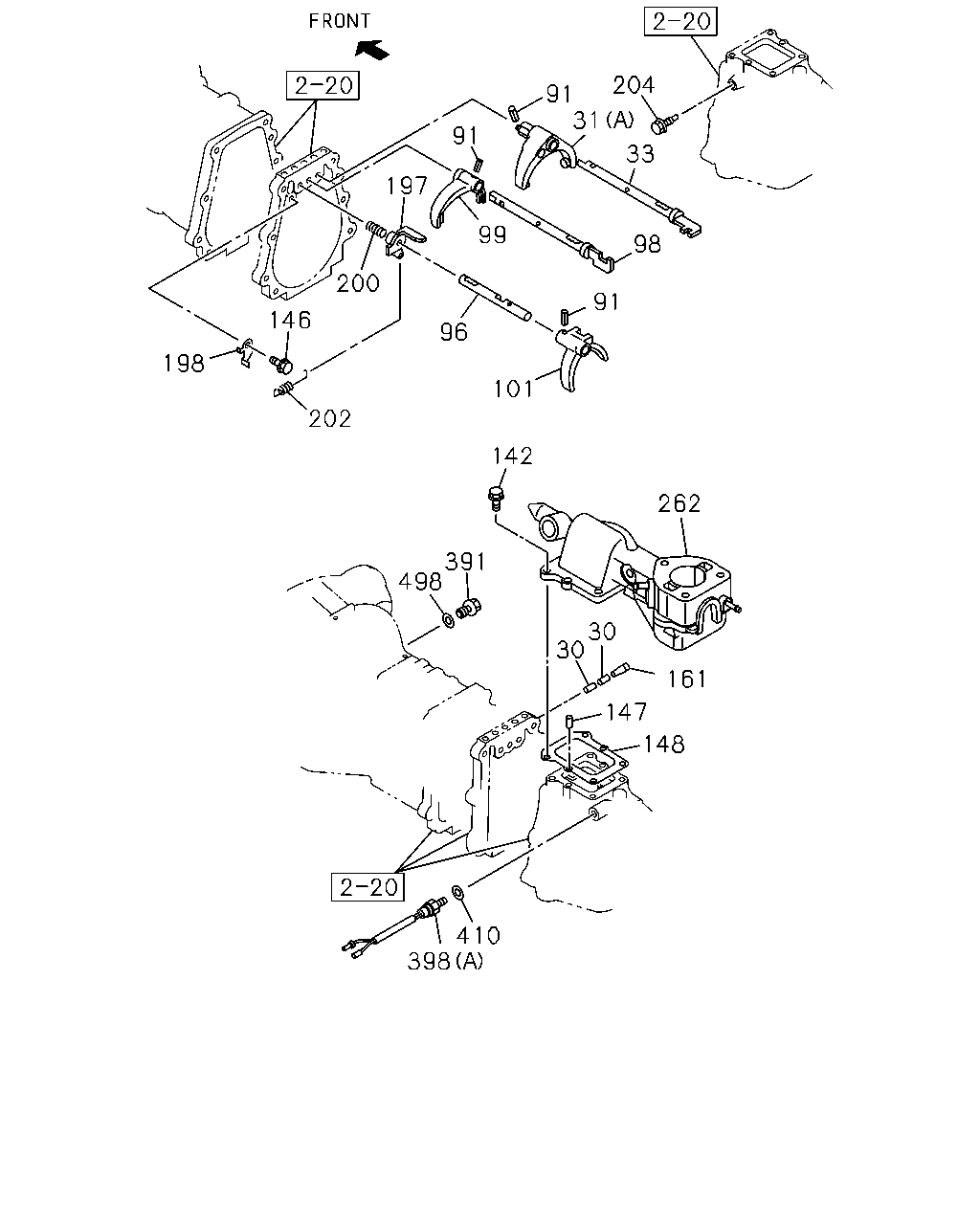

204 91 31 91 33 197 99 98 200 91 146 96 198 101 202 142 262 391 498 30 30 161 147 148 410 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
30	PIN; INTER LK OD=5.5 L=10 IMA	5-33534-002-1	02	1	0204-0408	●	●
30	PIN; INTER LK 4JA1-T ENG<LP0> OD=5.5 L=10 IMA	5-33534-002-1	02	1	0409-0412	●
30	PIN; INTER LK OD=5.5 L=10 IMA	5-33534-002-1	02	1	0409-0412			●
30	PIN; INTER LK 4JJ1-TCS ENG<LFB> OD=5.5 L=10 IMA	5-33534-002-1	02	1	0501-0606			●
30	PIN; INTER LK 4JK1 ENG<LKZ> OD=5.5 L=10 IMA	5-33534-002-1	02	1	0501-0606				●
30	PIN; INTER LK 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> OD=5.5 L=10 IMA	5-33534-002-1	02	1	0607-				●
31	ARM; SHIFT,LOW & 2ND 4JA1 ENG<RLE> (C) THA	8-97238-345-0	01	1	0204-0408	●
31	ARM; SHIFT,LOW & 2ND 4JA1-T ENG<LP0> (C) THA	8-97238-345-0	01	1	0409-0412	●
31	ARM; SHIFT,LOW & 2ND 4JH1 ENG<RJX> (A) IMA	8-94421-912-2	01	1	0204-0408		●
31	ARM; SHIFT,LOW & 2ND 4JJ1-TCS ENG<LFB> (A) IMA	8-94421-912-2	01	1	0409-0412			●
31	ARM; SHIFT,LOW & 2ND 4JJ1-TCS ENG<LFB> (A) IMA	8-94421-912-2	01	1	0501-0606			●
31	ARM; SHIFT,LOW & 2ND 4JK1 ENG<LKZ> (A) IMA	8-94421-912-2	01	1	0501-0606				●
31	ARM; SHIFT,LOW & 2ND 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (A) IMA	8-94421-912-2	01	1	0607-				●
31	ARM; SHIFT,LOW & 2ND 4JJ1-TCX ENG<LS0> (B) IMA	8-97362-435-0	01	1	0710-					●
31	ARM; SHIFT,LOW & 2ND 4JJ1-TCX ENG<LS0> (B) IMA	8-97362-435-0	01	1	0609-0708					●
33	ROD; SHIFT,LOW & 2ND 4JA1 ENG<RLE> THA	8-97213-047-0	01	1	0204-0408	●
33	ROD; SHIFT,LOW & 2ND 4JA1-T ENG<LP0> THA	8-97213-047-0	01	1	0409-0412	●
33	ROD; SHIFT,LOW & 2ND 4JH1 ENG<RJX> IMA	8-97019-061-2	01	1	0204-0408		●
33	ROD; SHIFT,LOW & 2ND 4JJ1-TCS ENG<LFB> IMA	8-97019-061-2	01	1	0409-0412			●
33	ROD; SHIFT,LOW & 2ND 4JJ1-TCS ENG<LFB> IMA	8-97019-061-2	01	1	0501-0606			●
33	ROD; SHIFT,LOW & 2ND 4JK1 ENG<LKZ> IMA	8-97019-061-2	01	1	0501-0606				●
33	ROD; SHIFT,LOW & 2ND 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMA	8-97019-061-2	01	1	0607-				●
33	ROD; SHIFT,LOW & 2ND 4JJ1-TCX ENG<LS0> IMA	8-97362-441-0	01	1	0710-					●
33	ROD; SHIFT,LOW & 2ND 4JJ1-TCX ENG<LS0> IMA	8-97362-441-0	01	1	0609-0708					●
91	PIN; SPR,SHIFT ARM D=4.2 L=25 IMA	8-94171-541-0	03	1	0204-0408	●	●
91	PIN; SPR,SHIFT ARM 4JA1-T ENG<LP0> D=4.2 L=25 IMA	8-94171-541-0	03	1	0409-0412	●
91	PIN; SPR,SHIFT ARM D=4.2 L=25 IMA	8-94171-541-0	03	1	0409-0412			●
91	PIN; SPR,SHIFT ARM 4JJ1-TCS ENG<LFB> D=4.2 L=25 IMA	8-94171-541-0	03	1	0501-0606			●
91	PIN; SPR,SHIFT ARM 4JK1 ENG<LKZ> D=4.2 L=25 IMA	8-94171-541-0	03	1	0501-0606				●
91	PIN; SPR,SHIFT ARM 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> D=4.2 L=25 IMA	8-94171-541-0	03	1	0607-				●
96	ROD; SHIFT,5TH 4JH1 ENG<RJX> THA	8-97232-886-0	01	1	0204-0408		●
96	ROD; SHIFT,5TH 4JJ1-TCS ENG<LFB> THA	8-97232-886-0	01	1	0409-0412			●
96	ROD; SHIFT,5TH 4JJ1-TCS ENG<LFB> THA	8-97232-886-0	01	1	0501-0606			●
96	ROD; SHIFT,5TH 4JK1 ENG<LKZ> THA	8-97232-886-0	01	1	0501-0606				●
96	ROD; SHIFT,5TH 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA	8-97232-886-0	01	1	0607-				●
98	ROD; SHIFT,TOP & 3RD 4JA1 ENG<RLE> THA	8-97213-045-0	01	1	0204-0408	●
98	ROD; SHIFT,TOP & 3RD 4JA1-T ENG<LP0> THA	8-97213-045-0	01	1	0409-0412	●
98	ROD; SHIFT,TOP & 3RD 4JH1 ENG<RJX> IMA	8-97019-060-3	01	1	0204-0408		●
98	ROD; SHIFT,TOP & 3RD 4JJ1-TCS ENG<LFB> IMA	8-97019-060-3	01	1	0409-0412			●
98	ROD; SHIFT,TOP & 3RD 4JJ1-TCS ENG<LFB> IMA	8-97019-060-3	01	1	0501-0606			●
98	ROD; SHIFT,TOP & 3RD 4JK1 ENG<LKZ> IMA	8-97019-060-3	01	1	0501-0606				●
98	ROD; SHIFT,TOP & 3RD 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMA	8-97019-060-3	01	1	0607-				●
99	ARM; SHIFT,4TH & 3RD 4JA1 ENG<RLE> THA	8-94435-153-1	01	1	0204-0408	●
99	ARM; SHIFT,4TH & 3RD 4JA1-T ENG<LP0> THA	8-94435-153-1	01	1	0409-0412	●
99	ARM; SHIFT,4TH & 3RD 4JH1 ENG<RJX> IMA	8-94421-911-2	01	1	0204-0408		●
99	ARM; SHIFT,4TH & 3RD 4JJ1-TCS ENG<LFB> IMA	8-94421-911-2	01	1	0409-0412			●
99	ARM; SHIFT,4TH & 3RD 4JJ1-TCS ENG<LFB> IMA	8-94421-911-2	01	1	0501-0606			●
99	ARM; SHIFT,4TH & 3RD 4JK1 ENG<LKZ> IMA	8-94421-911-2	01	1	0501-0606				●
99	ARM; SHIFT,4TH & 3RD 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMA	8-94421-911-2	01	1	0607-				●
99	ARM; SHIFT,4TH & 3RD 4JJ1-TCX ENG<LS0> THA	8-97362-439-2	01	1	0609-0708					●
99	ARM; SHIFT,4TH & 3RD 4JJ1-TCX ENG<LS0> THA	8-97362-439-2	01	1	0710-					●
101	ARM; SHIFT,REV & 5TH 4JA1 ENG<RLE> THA	8-94455-851-3	01	1	0204-0408	●
101	ARM; SHIFT,REV & 5TH 4JA1-T ENG<LP0> THA	8-94455-851-3	01	1	0409-0412	●
101	ARM; SHIFT,REV & 5TH 4JH1 ENG<RJX> THA	8-97232-894-0	01	1	0204-0408		●
101	ARM; SHIFT,REV & 5TH 4JJ1-TCS ENG<LFB> THA	8-97232-894-0	01	1	0409-0412			●
101	ARM; SHIFT,REV & 5TH 4JJ1-TCS ENG<LFB> THA	8-97232-894-0	01	1	0501-0606			●
101	ARM; SHIFT,REV & 5TH 4JK1 ENG<LKZ> THA	8-97232-894-0	01	1	0501-0606				●
101	ARM; SHIFT,REV & 5TH 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA	8-97232-894-0	01	1	0607-				●
142	BOLT; QUAD BOX M8X22 FLANGE THA	8-94448-815-3	04	1	0204-0408	●	●
142	BOLT; QUAD BOX 4JA1-T ENG<LP0> M8X22 FLANGE THA	8-94448-815-3	04	1	0409-0412	●
142	BOLT; QUAD BOX M8X22 FLANGE THA	8-94448-815-3	04	1	0409-0412			●
142	BOLT; QUAD BOX 4JJ1-TCS ENG<LFB> M8X22 FLANGE THA	8-94448-815-3	04	1	0501-0604			●
142	BOLT; QUAD BOX 4JK1 ENG<LKZ> M8X22 FLANGE THA	8-94448-815-3	04	1	0501-0604				●
142	BOLT; QUAD BOX 4JJ1-TCS ENG<LFB> M8X22 FLANGE IMA	8-97365-376-0	04	1	0605-0606			●
142	BOLT; QUAD BOX 4JK1 ENG<LKZ> M8X22 FLANGE IMA	8-97365-376-0	04	1	0605-0606				●
142	BOLT; QUAD BOX 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M8X22 FLANGE IMA	8-97365-376-0	04	1	0607-				●
142	BOLT; QUAD BOX 4JJ1-TCX ENG<LS0> M8X35 FLANGE THA	0-28650-835-0	04	1	0710-					●
142	BOLT; QUAD BOX 4JJ1-TCX ENG<LS0> M8X35 FLANGE THA	0-28650-835-0	04	1	0609-0708					●
146	BOLT; REV INHIBITOR 4JH1 ENG<RJX> M8X20 FLANGE THA	0-28680-820-0	01	1	0204-0408		●
146	BOLT; REV INHIBITOR 4JJ1-TCS ENG<LFB> M8X20 FLANGE THA	0-28680-820-0	01	1	0409-0412			●
146	BOLT; REV INHIBITOR 4JJ1-TCS ENG<LFB> M8X20 FLANGE THA	0-28680-820-0	01	1	0501-0512			●
146	BOLT; REV INHIBITOR 4JK1 ENG<LKZ> M8X20 FLANGE THA	0-28680-820-0	01	1	0501-0512				●
146	BOLT; REV INHIBITOR 4JJ1-TCS ENG<LFB> M8X20 FLANGE THA	0-28650-820-0	01	1	0601-0606			●
146	BOLT; REV INHIBITOR 4JK1 ENG<LKZ> M8X20 FLANGE THA	0-28650-820-0	01	1	0601-0606				●
146	BOLT; REV INHIBITOR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M8X20 FLANGE THA	0-28650-820-0	01	1	0607-				●
147	PIN; KNOCK 4JH1 ENG<RJX> OD=6 L=12 IMA	9-08150-612-0	02	1	0204-0408		●
147	PIN; KNOCK 4JJ1-TCS ENG<LFB> OD=6 L=12 IMA	9-08150-612-0	02	1	0409-0412			●
147	PIN; KNOCK 4JJ1-TCS ENG<LFB> OD=6 L=12 IMA	9-08150-612-0	02	1	0501-0606			●
147	PIN; KNOCK 4JK1 ENG<LKZ> OD=6 L=12 IMA	9-08150-612-0	02	1	0501-0606				●
147	PIN; KNOCK 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> OD=6 L=12 IMA	9-08150-612-0	02	1	0607-				●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JA1 ENG<RLE> THA	8-97184-922-0	01	1	0204-0408	●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JA1-T ENG<LP0> THA	8-97184-922-0	01	1	0409-0412	●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX> IMA	8-97083-599-0	01	1	0204-0408		●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> IMA	8-97083-599-0	01	1	0409-0412			●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> IMA	8-97083-599-0	01	1	0501-0606			●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JK1 ENG<LKZ> IMA	8-97083-599-0	01	1	0501-0606				●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMA	8-97083-599-0	01	1	0607-				●
161	PLUG; INTER LK HOLE IMA	8-94239-543-1	01	1	0204-0408	●	●
161	PLUG; INTER LK HOLE 4JA1-T ENG<LP0> IMA	8-94239-543-1	01	1	0409-0412	●
161	PLUG; INTER LK HOLE IMA	8-94239-543-1	01	1	0409-0412			●
161	PLUG; INTER LK HOLE 4JJ1-TCS ENG<LFB> IMA	8-94239-543-1	01	1	0501-0606			●
161	PLUG; INTER LK HOLE 4JK1 ENG<LKZ> IMA	8-94239-543-1	01	1	0501-0606				●
161	PLUG; INTER LK HOLE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMA	8-94239-543-1	01	1	0607-				●
197	INHIBITOR; REV SHIFT 4JH1 ENG<RJX> IMA	8-94448-753-0	01	1	0204-0408		●
197	INHIBITOR; REV SHIFT 4JJ1-TCS ENG<LFB> IMA	8-94448-753-0	01	1	0409-0412			●
197	INHIBITOR; REV SHIFT 4JJ1-TCS ENG<LFB> IMA	8-94448-753-0	01	1	0501-0606			●
197	INHIBITOR; REV SHIFT 4JK1 ENG<LKZ> IMA	8-94448-753-0	01	1	0501-0606				●
197	INHIBITOR; REV SHIFT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMA	8-94448-753-0	01	1	0607-				●
198	BRACKET; REV INHIBITOR 4JH1 ENG<RJX> IMA	8-94448-199-0	01	1	0204-0408		●
198	BRACKET; REV INHIBITOR 4JJ1-TCS ENG<LFB> IMA	8-94448-199-0	01	1	0409-0412			●
198	BRACKET; REV INHIBITOR 4JJ1-TCS ENG<LFB> IMA	8-94448-199-0	01	1	0501-0606			●
198	BRACKET; REV INHIBITOR 4JK1 ENG<LKZ> IMA	8-94448-199-0	01	1	0501-0606				●
198	BRACKET; REV INHIBITOR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMA	8-94448-199-0	01	1	0607-				●
200	SPRING; REV INHIBITOR,COMP 4JH1 ENG<RJX> IMA	8-94448-807-0	01	1	0204-0408		●
200	SPRING; REV INHIBITOR,COMP 4JJ1-TCS ENG<LFB> IMA	8-94448-807-0	01	1	0409-0412			●
200	SPRING; REV INHIBITOR,COMP 4JJ1-TCS ENG<LFB> IMA	8-94448-807-0	01	1	0501-0606			●
200	SPRING; REV INHIBITOR,COMP 4JK1 ENG<LKZ> IMA	8-94448-807-0	01	1	0501-0606				●
200	SPRING; REV INHIBITOR,COMP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMA	8-94448-807-0	01	1	0607-				●
202	SPRING; REV INHIBITOR,EXT 4JH1 ENG<RJX> IMA	8-97017-500-0	01	1	0204-0408		●
202	SPRING; REV INHIBITOR,EXT 4JJ1-TCS ENG<LFB> IMA	8-97017-500-0	01	1	0409-0412			●
202	SPRING; REV INHIBITOR,EXT 4JJ1-TCS ENG<LFB> IMA	8-97017-500-0	01	1	0501-0606			●
202	SPRING; REV INHIBITOR,EXT 4JK1 ENG<LKZ> IMA	8-97017-500-0	01	1	0501-0606				●
202	SPRING; REV INHIBITOR,EXT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMA	8-97017-500-0	01	1	0607-				●
204	STOPPER; REV INHIBITOR 4JH1 ENG<RJX> THA	8-94479-434-2	01	1	0204-0408		●
204	STOPPER; REV INHIBITOR 4JJ1-TCS ENG<LFB> THA	8-94479-434-2	01	1	0409-0412			●
204	STOPPER; REV INHIBITOR 4JJ1-TCS ENG<LFB> THA	8-94479-434-2	01	1	0501-0604			●
204	STOPPER; REV INHIBITOR 4JK1 ENG<LKZ> THA	8-94479-434-2	01	1	0501-0604				●
204	STOPPER; REV INHIBITOR 4JJ1-TCS ENG<LFB> IMA	8-98035-673-0	01	1	0605-0606			●
204	STOPPER; REV INHIBITOR 4JK1 ENG<LKZ> IMA	8-98035-673-0	01	1	0605-0606				●
204	STOPPER; REV INHIBITOR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMA	8-98035-673-0	01	1	0607-				●

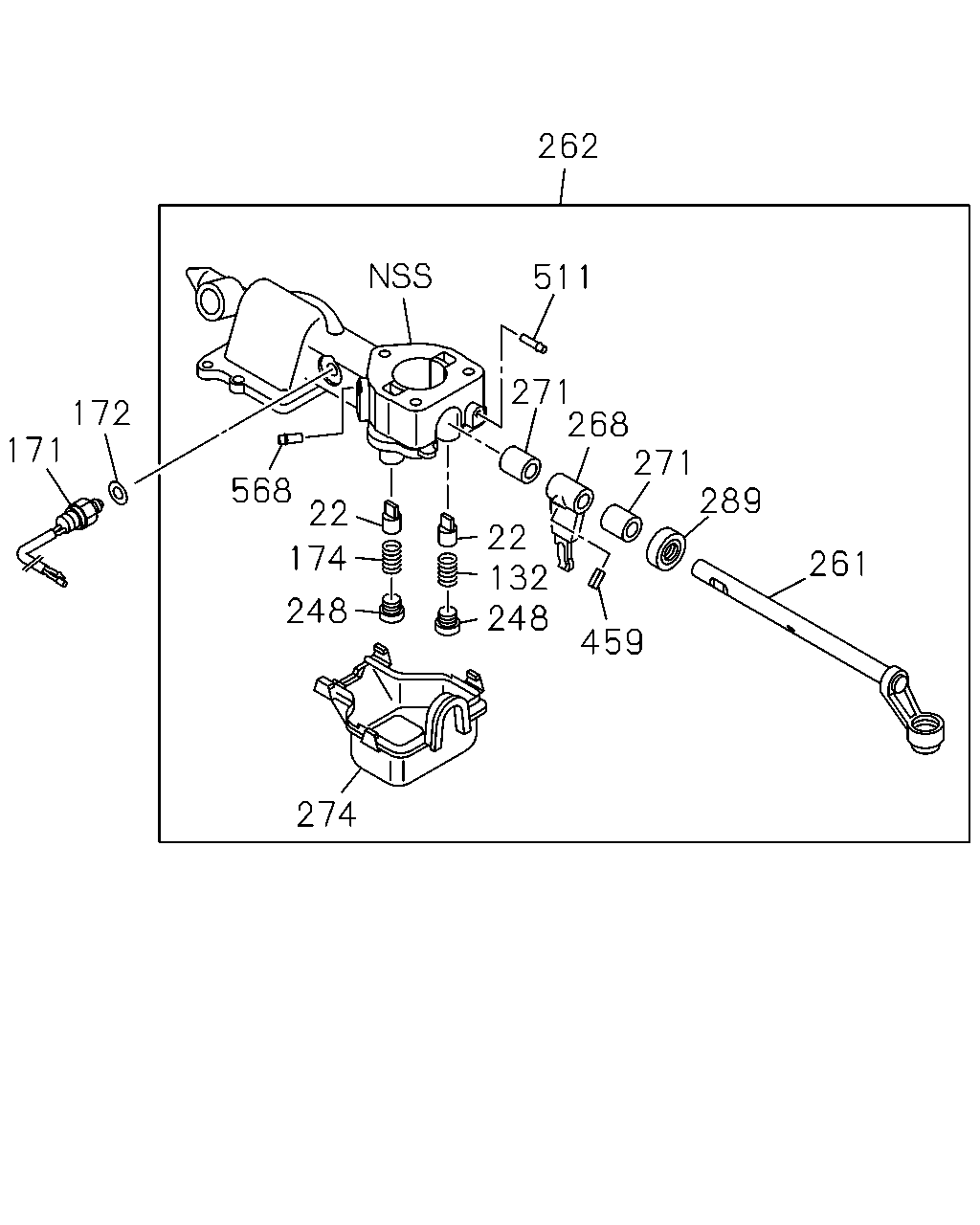

262	BOX ASM; SHIFT CONT 4JA1 ENG<RLE> THA	8-97201-493-1	01	1	0204-0408	●
262	BOX ASM; SHIFT CONT 4JA1-T ENG<LP0> THA	8-97201-493-1	01	1	0409-0412	●
262	BOX ASM; SHIFT CONT 4JH1 ENG<RJX> THA	8-97180-891-2	01	1	0204-0305		●
262	BOX ASM; SHIFT CONT 4JH1 ENG<RJX> THA	8-97357-040-0	01	1	0306-0408		●
262	BOX ASM; SHIFT CONT 4JJ1-TCS ENG<LFB> THA	8-97357-040-0	01	1	0409-0412			●
262	BOX ASM; SHIFT CONT 4JJ1-TCS ENG<LFB> THA	8-97357-040-0	01	1	0501-0603			●
262	BOX ASM; SHIFT CONT 4JK1 ENG<LKZ> THA	8-97357-040-0	01	1	0501-0603				●
262	BOX ASM; SHIFT CONT 4JJ1-TCS ENG<LFB> THA	8-98017-729-0	01	1	0604-0606			●
262	BOX ASM; SHIFT CONT 4JK1 ENG<LKZ> THA	8-98017-729-0	01	1	0604-0606				●
262	BOX ASM; SHIFT CONT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA	8-98017-729-0	01	1	0607-1204				●
262	BOX ASM; SHIFT CONT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA	8-98203-264-0	01	1	1205-				●
391	PLUG; SW HOLE 4JH1 ENG<RJX> M14X11 THA	8-94252-142-0	01	1	0204-0408		●
391	PLUG; SW HOLE 4JJ1-TCS ENG<LFB> M14X11 THA	8-94252-142-0	01	1	0409-0412			●
391	PLUG; SW HOLE 4JJ1-TCS ENG<LFB> M14X11 THA	8-94252-142-0	01	1	0501-0604			●
391	PLUG; SW HOLE 4JK1 ENG<LKZ> M14X11 THA	8-94252-142-0	01	1	0501-0604				●
391	PLUG; SW HOLE 4JJ1-TCS ENG<LFB> M14X11 IMA	8-98035-674-0	01	1	0605-0606			●
391	PLUG; SW HOLE 4JK1 ENG<LKZ> M14X11 IMA	8-98035-674-0	01	1	0605-0606				●
391	PLUG; SW HOLE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M14X11 IMA	8-98035-674-0	01	1	0607-1008				●
398	SWITCH; REV LAMP 4JA1 ENG<RLE> (A) THA	8-94411-366-1	01	1	0204-0408	●
398	SWITCH; REV LAMP 4JA1-T ENG<LP0> (A) THA	8-94411-366-1	01	1	0409-0412	●
398	SWITCH; REV LAMP 4JH1 ENG<RJX> (A) THA	8-97138-635-0	01	1	0204-0408		●
398	SWITCH; REV LAMP 4JJ1-TCS ENG<LFB> (A) THA	8-97138-635-0	01	1	0409-0412			●
398	SWITCH; REV LAMP 4JJ1-TCS ENG<LFB> (A) THA	8-97138-635-0	01	1	0501-0604			●
398	SWITCH; REV LAMP 4JK1 ENG<LKZ> (A) THA	8-97138-635-0	01	1	0501-0604				●
398	SWITCH; REV LAMP 4JJ1-TCS ENG<LFB> (A) THA	8-98035-681-0	01	1	0605-0606			●
398	SWITCH; REV LAMP 4JK1 ENG<LKZ> (A) THA	8-98035-681-0	01	1	0605-0606				●
398	SWITCH; REV LAMP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (A) THA	8-98035-681-0	01	1	0607-1405				●
398	SWITCH; REV LAMP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (A) THA	8-98181-802-0	01	1	1406-				●
398	SWITCH; REV LAMP 4JJ1-TCX ENG<LS0> (B) THA	8-98037-159-0	01	1	0710-1405					●
398	SWITCH; REV LAMP 4JJ1-TCX ENG<LS0> (B) THA	8-98181-801-0	01	1	1406-					●
398	SWITCH; REV LAMP 4JJ1-TCX ENG<LS0> (C) THA	8-98037-160-0	01	1	0710-1405					●
398	SWITCH; REV LAMP 4JJ1-TCX ENG<LS0> (C) IMA	8-98180-973-0	01	1	1406-					●
398	SWITCH; REV LAMP 4JJ1-TCX ENG<LS0> (B) THA	8-98037-159-0	01	1	0609-0708					●
398	SWITCH; REV LAMP 4JJ1-TCX ENG<LS0> (C) THA	8-98037-160-0	01	1	0609-0708					●
410	GASKET; REV SW ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX> ID=14.2 OD=20.0 THA	9-09571-414-0	01	1	0204-0408		●
410	GASKET; REV SW ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> ID=14.2 OD=20.0 THA	9-09571-414-0	01	1	0409-0412			●
410	GASKET; REV SW ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> ID=14.2 OD=20.0 THA	9-09571-414-0	01	1	0501-0606			●
410	GASKET; REV SW ALSO INCLUDED IN GASKET SET(M/T). 4JK1 ENG<LKZ> ID=14.2 OD=20.0 THA	9-09571-414-0	01	1	0501-0606				●
410	GASKET; REV SW ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> ID=14.2 OD=20.0 THA	9-09571-414-0	01	1	0607-				●
498	GASKET; SWITCH,1ST & 2ND 4JH1 ENG<RJX> ID=14.2 OD=20.0 THA	9-09571-414-0	01	1	0204-0408		●
498	GASKET; SWITCH,1ST & 2ND 4JJ1-TCS ENG<LFB> ID=14.2 OD=20.0 THA	9-09571-414-0	01	1	0409-0412			●
498	GASKET; SWITCH,1ST & 2ND 4JJ1-TCS ENG<LFB> ID=14.2 OD=20.0 THA	9-09571-414-0	01	1	0501-0606			●
498	GASKET; SWITCH,1ST & 2ND 4JK1 ENG<LKZ> ID=14.2 OD=20.0 THA	9-09571-414-0	01	1	0501-0606				●
498	GASKET; SWITCH,1ST & 2ND 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> ID=14.2 OD=20.0 THA	9-09571-414-0	01	1	0607-1008				●

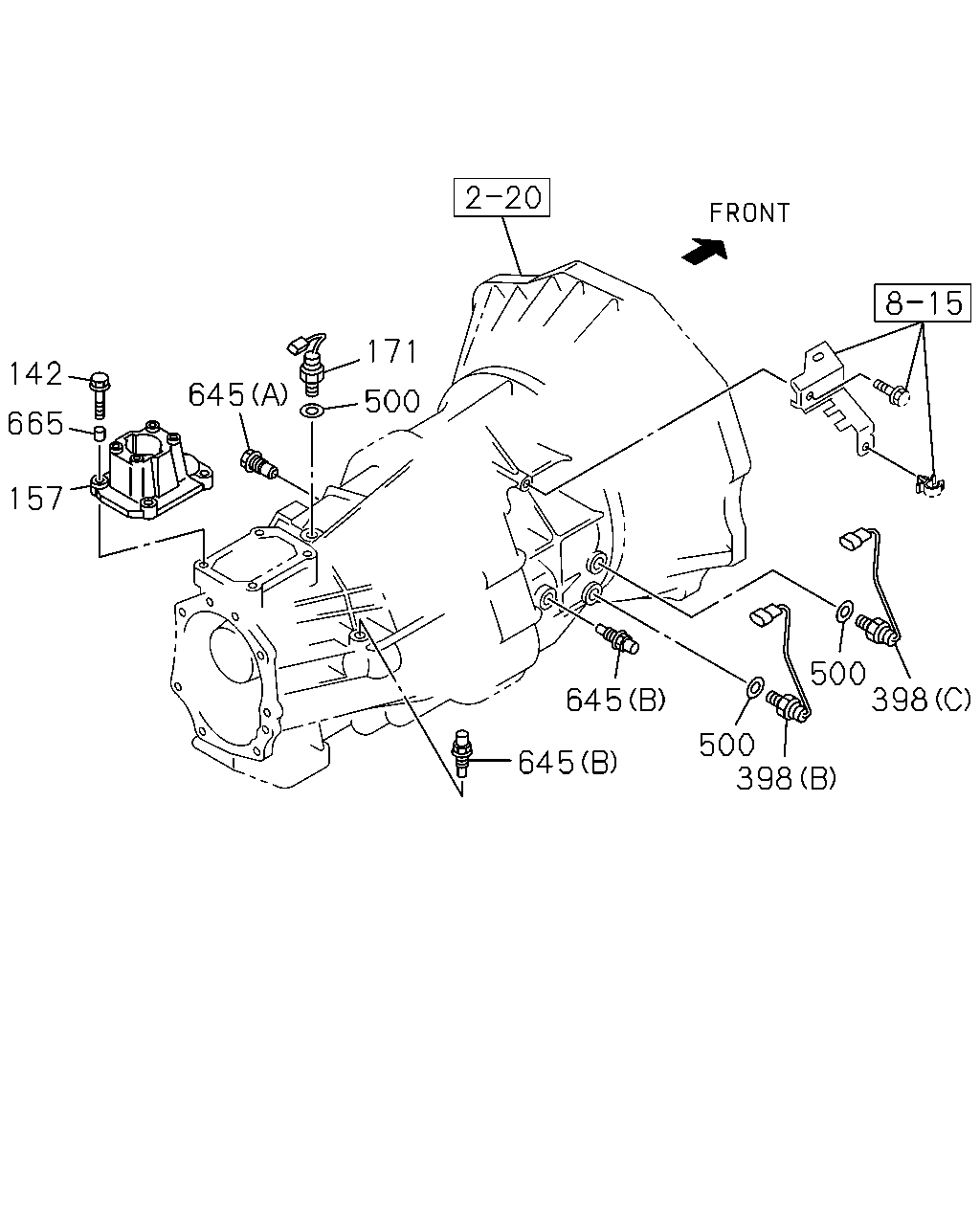

171 142 645 500 665 157 500 398 645 500 398 645

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
142	BOLT; QUAD BOX M8X22 FLANGE THA	8-94448-815-3	04	1	0204-0408	●	●
142	BOLT; QUAD BOX 4JA1-T ENG<LP0> M8X22 FLANGE THA	8-94448-815-3	04	1	0409-0412	●
142	BOLT; QUAD BOX M8X22 FLANGE THA	8-94448-815-3	04	1	0409-0412			●
142	BOLT; QUAD BOX 4JJ1-TCS ENG<LFB> M8X22 FLANGE THA	8-94448-815-3	04	1	0501-0604			●
142	BOLT; QUAD BOX 4JK1 ENG<LKZ> M8X22 FLANGE THA	8-94448-815-3	04	1	0501-0604				●
142	BOLT; QUAD BOX 4JJ1-TCS ENG<LFB> M8X22 FLANGE IMA	8-97365-376-0	04	1	0605-0606			●
142	BOLT; QUAD BOX 4JK1 ENG<LKZ> M8X22 FLANGE IMA	8-97365-376-0	04	1	0605-0606				●
142	BOLT; QUAD BOX 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M8X22 FLANGE IMA	8-97365-376-0	04	1	0607-				●
142	BOLT; QUAD BOX 4JJ1-TCX ENG<LS0> M8X35 FLANGE THA	0-28650-835-0	04	1	0710-					●
142	BOLT; QUAD BOX 4JJ1-TCX ENG<LS0> M8X35 FLANGE THA	0-28650-835-0	04	1	0609-0708					●
157	BOX; QUAD,TRANS 4JJ1-TCX ENG<LS0> THA	8-97362-383-0	01	1	0710-					●
157	BOX; QUAD,TRANS 4JJ1-TCX ENG<LS0> THA	8-97362-383-0	01	1	0609-0708					●
171	SWITCH; NEUTRAL 4JH1 ENG<RJX> THA	8-97138-631-0	01	1	0204-0408		●
171	SWITCH; NEUTRAL THA	8-97138-631-0	01	1	0409-0412			●
171	SWITCH; NEUTRAL 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA	8-97138-631-0	01	1	0501-0606			●	●
171	SWITCH; NEUTRAL 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA	8-97138-631-0	01	1	0607-0612				●
171	SWITCH; NEUTRAL 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA	8-98035-680-0	01	1	0701-				●
171	SWITCH; NEUTRAL 4JJ1-TCX ENG<LS0> THA	8-97358-606-0	01	1	0710-1405					●
171	SWITCH; NEUTRAL 4JJ1-TCX ENG<LS0> IMA	8-98180-974-0	01	1	1406-					●
171	SWITCH; NEUTRAL 4JJ1-TCX ENG<LS0> THA	8-97358-606-0	01	1	0609-0708					●
398	SWITCH; REV LAMP 4JA1 ENG<RLE> (A) THA	8-94411-366-1	01	1	0204-0408	●
398	SWITCH; REV LAMP 4JA1-T ENG<LP0> (A) THA	8-94411-366-1	01	1	0409-0412	●
398	SWITCH; REV LAMP 4JH1 ENG<RJX> (A) THA	8-97138-635-0	01	1	0204-0408		●
398	SWITCH; REV LAMP 4JJ1-TCS ENG<LFB> (A) THA	8-97138-635-0	01	1	0409-0412			●
398	SWITCH; REV LAMP 4JJ1-TCS ENG<LFB> (A) THA	8-97138-635-0	01	1	0501-0604			●
398	SWITCH; REV LAMP 4JK1 ENG<LKZ> (A) THA	8-97138-635-0	01	1	0501-0604				●
398	SWITCH; REV LAMP 4JJ1-TCS ENG<LFB> (A) THA	8-98035-681-0	01	1	0605-0606			●
398	SWITCH; REV LAMP 4JK1 ENG<LKZ> (A) THA	8-98035-681-0	01	1	0605-0606				●
398	SWITCH; REV LAMP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (A) THA	8-98035-681-0	01	1	0607-1405				●
398	SWITCH; REV LAMP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (A) THA	8-98181-802-0	01	1	1406-				●
398	SWITCH; REV LAMP 4JJ1-TCX ENG<LS0> (B) THA	8-98037-159-0	01	1	0710-1405					●
398	SWITCH; REV LAMP 4JJ1-TCX ENG<LS0> (B) THA	8-98181-801-0	01	1	1406-					●
398	SWITCH; REV LAMP 4JJ1-TCX ENG<LS0> (C) THA	8-98037-160-0	01	1	0710-1405					●
398	SWITCH; REV LAMP 4JJ1-TCX ENG<LS0> (C) IMA	8-98180-973-0	01	1	1406-					●
398	SWITCH; REV LAMP 4JJ1-TCX ENG<LS0> (B) THA	8-98037-159-0	01	1	0609-0708					●
398	SWITCH; REV LAMP 4JJ1-TCX ENG<LS0> (C) THA	8-98037-160-0	01	1	0609-0708					●
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG<LS0> ID=14.2 OD=20.0 THA	9-09571-414-0	03	1	0710-					●
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG<LS0> ID=14.2 OD=20.0 THA	9-09571-414-0	03	1	0609-0708					●
645	DETENT ASM 4JJ1-TCX ENG<LS0> (A) THA	8-97362-469-2	01	1	0710-					●
645	DETENT ASM 4JJ1-TCX ENG<LS0> (B) IMA	8-98019-536-0	02	1	0710-					●
645	DETENT ASM 4JJ1-TCX ENG<LS0> (A) THA	8-97362-469-1	01	1	0609-0708					●
645	DETENT ASM 4JJ1-TCX ENG<LS0> (B) IMA	8-98019-536-0	02	1	0609-0708					●
665	DOWEL 4JJ1-TCX ENG<LS0> OD=11 L=8 IMA	9-11229-058-1	02	1	0710-					●
665	DOWEL 4JJ1-TCX ENG<LS0> OD=11 L=8 IMA	9-11229-058-1	02	1	0609-0708					●

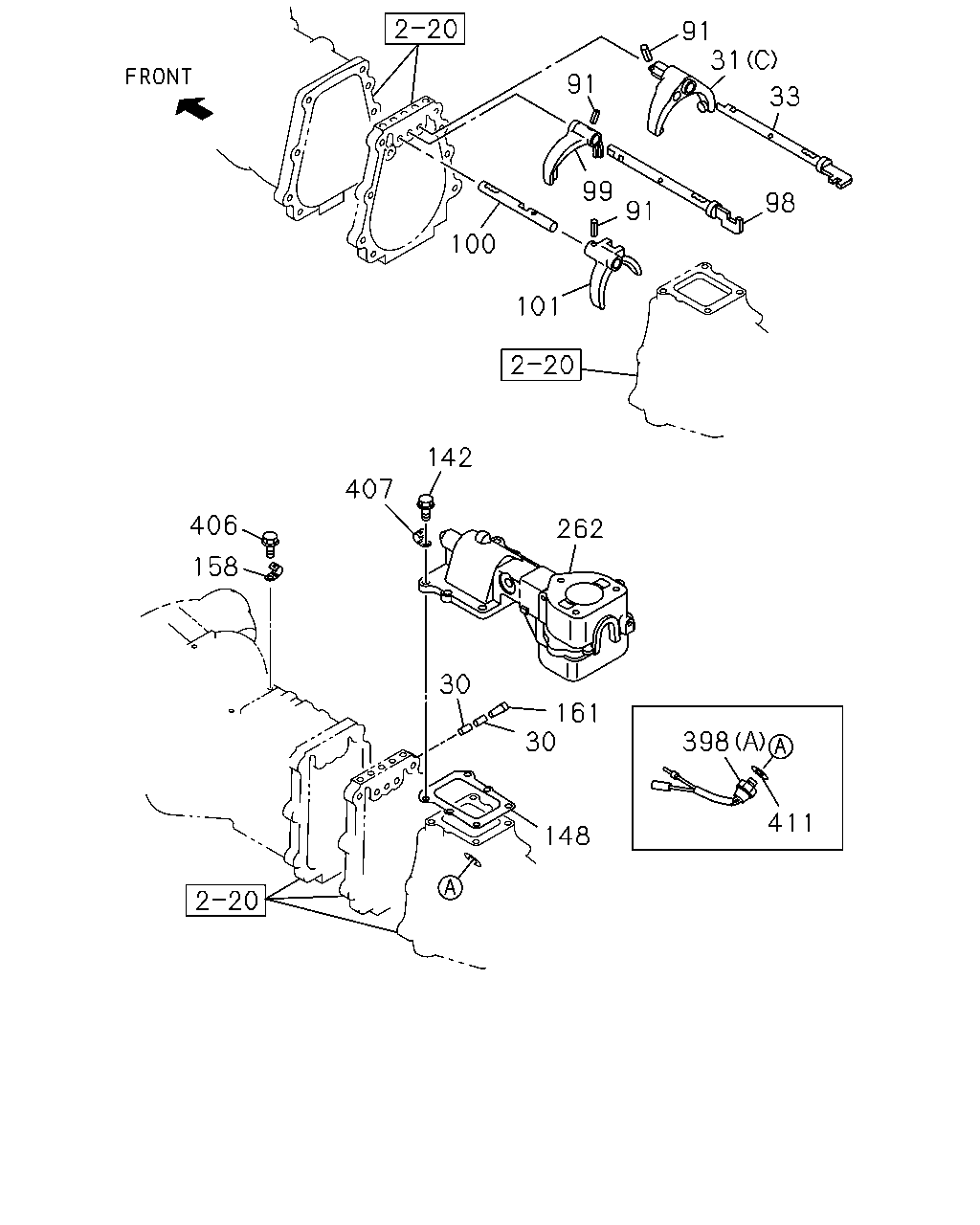

91 31 91 33 99 98 91 100 101 142 407 406 262 158 30 161 30 398 411 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
30	PIN; INTER LK OD=5.5 L=10 IMA	5-33534-002-1	02	1	0204-0408	●	●
30	PIN; INTER LK 4JA1-T ENG<LP0> OD=5.5 L=10 IMA	5-33534-002-1	02	1	0409-0412	●
30	PIN; INTER LK OD=5.5 L=10 IMA	5-33534-002-1	02	1	0409-0412			●
30	PIN; INTER LK 4JJ1-TCS ENG<LFB> OD=5.5 L=10 IMA	5-33534-002-1	02	1	0501-0606			●
30	PIN; INTER LK 4JK1 ENG<LKZ> OD=5.5 L=10 IMA	5-33534-002-1	02	1	0501-0606				●
30	PIN; INTER LK 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> OD=5.5 L=10 IMA	5-33534-002-1	02	1	0607-				●
31	ARM; SHIFT,LOW & 2ND 4JA1 ENG<RLE> (C) THA	8-97238-345-0	01	1	0204-0408	●
31	ARM; SHIFT,LOW & 2ND 4JA1-T ENG<LP0> (C) THA	8-97238-345-0	01	1	0409-0412	●
31	ARM; SHIFT,LOW & 2ND 4JH1 ENG<RJX> (A) IMA	8-94421-912-2	01	1	0204-0408		●
31	ARM; SHIFT,LOW & 2ND 4JJ1-TCS ENG<LFB> (A) IMA	8-94421-912-2	01	1	0409-0412			●
31	ARM; SHIFT,LOW & 2ND 4JJ1-TCS ENG<LFB> (A) IMA	8-94421-912-2	01	1	0501-0606			●
31	ARM; SHIFT,LOW & 2ND 4JK1 ENG<LKZ> (A) IMA	8-94421-912-2	01	1	0501-0606				●
31	ARM; SHIFT,LOW & 2ND 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (A) IMA	8-94421-912-2	01	1	0607-				●
31	ARM; SHIFT,LOW & 2ND 4JJ1-TCX ENG<LS0> (B) IMA	8-97362-435-0	01	1	0710-					●
31	ARM; SHIFT,LOW & 2ND 4JJ1-TCX ENG<LS0> (B) IMA	8-97362-435-0	01	1	0609-0708					●
33	ROD; SHIFT,LOW & 2ND 4JA1 ENG<RLE> THA	8-97213-047-0	01	1	0204-0408	●
33	ROD; SHIFT,LOW & 2ND 4JA1-T ENG<LP0> THA	8-97213-047-0	01	1	0409-0412	●
33	ROD; SHIFT,LOW & 2ND 4JH1 ENG<RJX> IMA	8-97019-061-2	01	1	0204-0408		●
33	ROD; SHIFT,LOW & 2ND 4JJ1-TCS ENG<LFB> IMA	8-97019-061-2	01	1	0409-0412			●
33	ROD; SHIFT,LOW & 2ND 4JJ1-TCS ENG<LFB> IMA	8-97019-061-2	01	1	0501-0606			●
33	ROD; SHIFT,LOW & 2ND 4JK1 ENG<LKZ> IMA	8-97019-061-2	01	1	0501-0606				●
33	ROD; SHIFT,LOW & 2ND 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMA	8-97019-061-2	01	1	0607-				●
33	ROD; SHIFT,LOW & 2ND 4JJ1-TCX ENG<LS0> IMA	8-97362-441-0	01	1	0710-					●
33	ROD; SHIFT,LOW & 2ND 4JJ1-TCX ENG<LS0> IMA	8-97362-441-0	01	1	0609-0708					●
91	PIN; SPR,SHIFT ARM D=4.2 L=25 IMA	8-94171-541-0	03	1	0204-0408	●	●
91	PIN; SPR,SHIFT ARM 4JA1-T ENG<LP0> D=4.2 L=25 IMA	8-94171-541-0	03	1	0409-0412	●
91	PIN; SPR,SHIFT ARM D=4.2 L=25 IMA	8-94171-541-0	03	1	0409-0412			●
91	PIN; SPR,SHIFT ARM 4JJ1-TCS ENG<LFB> D=4.2 L=25 IMA	8-94171-541-0	03	1	0501-0606			●
91	PIN; SPR,SHIFT ARM 4JK1 ENG<LKZ> D=4.2 L=25 IMA	8-94171-541-0	03	1	0501-0606				●
91	PIN; SPR,SHIFT ARM 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> D=4.2 L=25 IMA	8-94171-541-0	03	1	0607-				●
98	ROD; SHIFT,TOP & 3RD 4JA1 ENG<RLE> THA	8-97213-045-0	01	1	0204-0408	●
98	ROD; SHIFT,TOP & 3RD 4JA1-T ENG<LP0> THA	8-97213-045-0	01	1	0409-0412	●
98	ROD; SHIFT,TOP & 3RD 4JH1 ENG<RJX> IMA	8-97019-060-3	01	1	0204-0408		●
98	ROD; SHIFT,TOP & 3RD 4JJ1-TCS ENG<LFB> IMA	8-97019-060-3	01	1	0409-0412			●
98	ROD; SHIFT,TOP & 3RD 4JJ1-TCS ENG<LFB> IMA	8-97019-060-3	01	1	0501-0606			●
98	ROD; SHIFT,TOP & 3RD 4JK1 ENG<LKZ> IMA	8-97019-060-3	01	1	0501-0606				●
98	ROD; SHIFT,TOP & 3RD 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMA	8-97019-060-3	01	1	0607-				●
99	ARM; SHIFT,4TH & 3RD 4JA1 ENG<RLE> THA	8-94435-153-1	01	1	0204-0408	●
99	ARM; SHIFT,4TH & 3RD 4JA1-T ENG<LP0> THA	8-94435-153-1	01	1	0409-0412	●
99	ARM; SHIFT,4TH & 3RD 4JH1 ENG<RJX> IMA	8-94421-911-2	01	1	0204-0408		●
99	ARM; SHIFT,4TH & 3RD 4JJ1-TCS ENG<LFB> IMA	8-94421-911-2	01	1	0409-0412			●
99	ARM; SHIFT,4TH & 3RD 4JJ1-TCS ENG<LFB> IMA	8-94421-911-2	01	1	0501-0606			●
99	ARM; SHIFT,4TH & 3RD 4JK1 ENG<LKZ> IMA	8-94421-911-2	01	1	0501-0606				●
99	ARM; SHIFT,4TH & 3RD 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMA	8-94421-911-2	01	1	0607-				●
99	ARM; SHIFT,4TH & 3RD 4JJ1-TCX ENG<LS0> THA	8-97362-439-2	01	1	0609-0708					●
99	ARM; SHIFT,4TH & 3RD 4JJ1-TCX ENG<LS0> THA	8-97362-439-2	01	1	0710-					●
100	ROD; SHIFT,REV & 5TH 4JA1 ENG<RLE> THA	8-97232-885-0	01	1	0204-0408	●
100	ROD; SHIFT,REV & 5TH 4JA1-T ENG<LP0> THA	8-97232-885-0	01	1	0409-0412	●
101	ARM; SHIFT,REV & 5TH 4JA1 ENG<RLE> THA	8-94455-851-3	01	1	0204-0408	●
101	ARM; SHIFT,REV & 5TH 4JA1-T ENG<LP0> THA	8-94455-851-3	01	1	0409-0412	●
101	ARM; SHIFT,REV & 5TH 4JH1 ENG<RJX> THA	8-97232-894-0	01	1	0204-0408		●
101	ARM; SHIFT,REV & 5TH 4JJ1-TCS ENG<LFB> THA	8-97232-894-0	01	1	0409-0412			●
101	ARM; SHIFT,REV & 5TH 4JJ1-TCS ENG<LFB> THA	8-97232-894-0	01	1	0501-0606			●
101	ARM; SHIFT,REV & 5TH 4JK1 ENG<LKZ> THA	8-97232-894-0	01	1	0501-0606				●
101	ARM; SHIFT,REV & 5TH 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA	8-97232-894-0	01	1	0607-				●
142	BOLT; QUAD BOX M8X22 FLANGE THA	8-94448-815-3	04	1	0204-0408	●	●
142	BOLT; QUAD BOX 4JA1-T ENG<LP0> M8X22 FLANGE THA	8-94448-815-3	04	1	0409-0412	●
142	BOLT; QUAD BOX M8X22 FLANGE THA	8-94448-815-3	04	1	0409-0412			●
142	BOLT; QUAD BOX 4JJ1-TCS ENG<LFB> M8X22 FLANGE THA	8-94448-815-3	04	1	0501-0604			●
142	BOLT; QUAD BOX 4JK1 ENG<LKZ> M8X22 FLANGE THA	8-94448-815-3	04	1	0501-0604				●
142	BOLT; QUAD BOX 4JJ1-TCS ENG<LFB> M8X22 FLANGE IMA	8-97365-376-0	04	1	0605-0606			●
142	BOLT; QUAD BOX 4JK1 ENG<LKZ> M8X22 FLANGE IMA	8-97365-376-0	04	1	0605-0606				●
142	BOLT; QUAD BOX 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M8X22 FLANGE IMA	8-97365-376-0	04	1	0607-				●
142	BOLT; QUAD BOX 4JJ1-TCX ENG<LS0> M8X35 FLANGE THA	0-28650-835-0	04	1	0710-					●
142	BOLT; QUAD BOX 4JJ1-TCX ENG<LS0> M8X35 FLANGE THA	0-28650-835-0	04	1	0609-0708					●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JA1 ENG<RLE> THA	8-97184-922-0	01	1	0204-0408	●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JA1-T ENG<LP0> THA	8-97184-922-0	01	1	0409-0412	●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX> IMA	8-97083-599-0	01	1	0204-0408		●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> IMA	8-97083-599-0	01	1	0409-0412			●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> IMA	8-97083-599-0	01	1	0501-0606			●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JK1 ENG<LKZ> IMA	8-97083-599-0	01	1	0501-0606				●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMA	8-97083-599-0	01	1	0607-				●
158	CLIP; HARNESS 4JA1 ENG<RLE> ID=12 B=14 ID=8.5 THA	5-09700-350-0	02	1	0204-0408	●
158	CLIP; HARNESS 4JA1-T ENG<LP0> ID=12 B=14 ID=8.5 THA	5-09700-350-0	02	1	0409-0412	●
161	PLUG; INTER LK HOLE IMA	8-94239-543-1	01	1	0204-0408	●	●
161	PLUG; INTER LK HOLE 4JA1-T ENG<LP0> IMA	8-94239-543-1	01	1	0409-0412	●
161	PLUG; INTER LK HOLE IMA	8-94239-543-1	01	1	0409-0412			●
161	PLUG; INTER LK HOLE 4JJ1-TCS ENG<LFB> IMA	8-94239-543-1	01	1	0501-0606			●
161	PLUG; INTER LK HOLE 4JK1 ENG<LKZ> IMA	8-94239-543-1	01	1	0501-0606				●
161	PLUG; INTER LK HOLE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMA	8-94239-543-1	01	1	0607-				●
262	BOX ASM; SHIFT CONT 4JA1 ENG<RLE> THA	8-97201-493-1	01	1	0204-0408	●
262	BOX ASM; SHIFT CONT 4JA1-T ENG<LP0> THA	8-97201-493-1	01	1	0409-0412	●
262	BOX ASM; SHIFT CONT 4JH1 ENG<RJX> THA	8-97180-891-2	01	1	0204-0305		●
262	BOX ASM; SHIFT CONT 4JH1 ENG<RJX> THA	8-97357-040-0	01	1	0306-0408		●
262	BOX ASM; SHIFT CONT 4JJ1-TCS ENG<LFB> THA	8-97357-040-0	01	1	0409-0412			●
262	BOX ASM; SHIFT CONT 4JJ1-TCS ENG<LFB> THA	8-97357-040-0	01	1	0501-0603			●
262	BOX ASM; SHIFT CONT 4JK1 ENG<LKZ> THA	8-97357-040-0	01	1	0501-0603				●
262	BOX ASM; SHIFT CONT 4JJ1-TCS ENG<LFB> THA	8-98017-729-0	01	1	0604-0606			●
262	BOX ASM; SHIFT CONT 4JK1 ENG<LKZ> THA	8-98017-729-0	01	1	0604-0606				●
262	BOX ASM; SHIFT CONT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA	8-98017-729-0	01	1	0607-1204				●
262	BOX ASM; SHIFT CONT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA	8-98203-264-0	01	1	1205-				●
398	SWITCH; REV LAMP 4JA1 ENG<RLE> (A) THA	8-94411-366-1	01	1	0204-0408	●
398	SWITCH; REV LAMP 4JA1-T ENG<LP0> (A) THA	8-94411-366-1	01	1	0409-0412	●
398	SWITCH; REV LAMP 4JH1 ENG<RJX> (A) THA	8-97138-635-0	01	1	0204-0408		●
398	SWITCH; REV LAMP 4JJ1-TCS ENG<LFB> (A) THA	8-97138-635-0	01	1	0409-0412			●
398	SWITCH; REV LAMP 4JJ1-TCS ENG<LFB> (A) THA	8-97138-635-0	01	1	0501-0604			●
398	SWITCH; REV LAMP 4JK1 ENG<LKZ> (A) THA	8-97138-635-0	01	1	0501-0604				●
398	SWITCH; REV LAMP 4JJ1-TCS ENG<LFB> (A) THA	8-98035-681-0	01	1	0605-0606			●
398	SWITCH; REV LAMP 4JK1 ENG<LKZ> (A) THA	8-98035-681-0	01	1	0605-0606				●
398	SWITCH; REV LAMP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (A) THA	8-98035-681-0	01	1	0607-1405				●
398	SWITCH; REV LAMP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (A) THA	8-98181-802-0	01	1	1406-				●
398	SWITCH; REV LAMP 4JJ1-TCX ENG<LS0> (B) THA	8-98037-159-0	01	1	0710-1405					●
398	SWITCH; REV LAMP 4JJ1-TCX ENG<LS0> (B) THA	8-98181-801-0	01	1	1406-					●
398	SWITCH; REV LAMP 4JJ1-TCX ENG<LS0> (C) THA	8-98037-160-0	01	1	0710-1405					●
398	SWITCH; REV LAMP 4JJ1-TCX ENG<LS0> (C) IMA	8-98180-973-0	01	1	1406-					●
398	SWITCH; REV LAMP 4JJ1-TCX ENG<LS0> (B) THA	8-98037-159-0	01	1	0609-0708					●
398	SWITCH; REV LAMP 4JJ1-TCX ENG<LS0> (C) THA	8-98037-160-0	01	1	0609-0708					●
406	BOLT; HARNESS CLIP 4JA1 ENG<RLE> M8X16 FLANGE IMA	0-28080-816-0	01	1	0204-0408	●
406	BOLT; HARNESS CLIP 4JA1-T ENG<LP0> M8X16 FLANGE IMA	0-28080-816-0	01	1	0409-0412	●
407	CLIP; SWITCH HARNESS 4JA1 ENG<RLE> ID=12 B=14 ID=8.5 THA	5-09700-350-0	01	1	0204-0408	●
407	CLIP; SWITCH HARNESS 4JA1-T ENG<LP0> ID=12 B=14 ID=8.5 THA	5-09700-350-0	01	1	0409-0412	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 4JA1 ENG<RLE> ID=14.2 THA	8-94462-114-0	01	1	0204-0408	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 4JA1-T ENG<LP0> ID=14.2 THA	8-94462-114-0	01	1	0409-0412	●

262 511 271 268 271 289 172 171 568 22 22 132 248 174 261 248 459 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
22	CAP; RETURN SPR,SHIFT BLOCK IMA	8-97181-326-0	02	1	0204-0408	●	●
22	CAP; RETURN SPR,SHIFT BLOCK IMA	8-97181-326-0	02	1	0409-0412	●		●
22	CAP; RETURN SPR,SHIFT BLOCK 4JJ1-TCS ENG<LFB> IMA	8-97181-326-0	02	1	0501-0606			●
22	CAP; RETURN SPR,SHIFT BLOCK 4JK1 ENG<LKZ> IMA	8-97181-326-0	02	1	0501-0606				●
22	CAP; RETURN SPR,SHIFT BLOCK 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMA	8-97181-326-0	02	1	0607-				●
132	SPRING; SELECT STOP IMA	8-97181-395-0	01	1	0204-0408	●	●
132	SPRING; SELECT STOP IMA	8-97181-395-0	01	1	0409-0412	●		●
132	SPRING; SELECT STOP 4JJ1-TCS ENG<LFB> IMA	8-97181-395-0	01	1	0501-0606			●
132	SPRING; SELECT STOP 4JK1 ENG<LKZ> IMA	8-97181-395-0	01	1	0501-0606				●
132	SPRING; SELECT STOP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMA	8-97181-395-0	01	1	0607-				●
171	SWITCH; NEUTRAL 4JH1 ENG<RJX> THA	8-97138-631-0	01	1	0204-0408		●
171	SWITCH; NEUTRAL THA	8-97138-631-0	01	1	0409-0412			●
171	SWITCH; NEUTRAL 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA	8-97138-631-0	01	1	0501-0606			●	●
171	SWITCH; NEUTRAL 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA	8-97138-631-0	01	1	0607-0612				●
171	SWITCH; NEUTRAL 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA	8-98035-680-0	01	1	0701-				●
171	SWITCH; NEUTRAL 4JJ1-TCX ENG<LS0> THA	8-97358-606-0	01	1	0710-1405					●
171	SWITCH; NEUTRAL 4JJ1-TCX ENG<LS0> IMA	8-98180-974-0	01	1	1406-					●
171	SWITCH; NEUTRAL 4JJ1-TCX ENG<LS0> THA	8-97358-606-0	01	1	0609-0708					●
172	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX> ID=14.2 THA	8-94462-114-0	01	1	0204-0408		●
172	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 THA	8-94462-114-0	01	1	0409-0412			●
172	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 THA	8-94462-114-0	01	1	0501-0606			●	●
172	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 THA	8-94462-114-0	01	1	0607-				●
174	SPRING; REV THA	8-97181-394-0	01	1	0204-0408	●	●
174	SPRING; REV THA	8-97181-394-0	01	1	0409-0412	●		●
174	SPRING; REV 4JJ1-TCS ENG<LFB> THA	8-97181-394-0	01	1	0501-0606			●
174	SPRING; REV 4JK1 ENG<LKZ> THA	8-97181-394-0	01	1	0501-0606				●
174	SPRING; REV 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA	8-97181-394-0	01	1	0607-				●
248	RETAINER; CONT BOX THA	8-97181-325-0	02	1	0204-0408	●	●
248	RETAINER; CONT BOX THA	8-97181-325-0	02	1	0409-0412	●		●
248	RETAINER; CONT BOX 4JJ1-TCS ENG<LFB> THA	8-97181-325-0	02	1	0501-0606			●
248	RETAINER; CONT BOX 4JK1 ENG<LKZ> THA	8-97181-325-0	02	1	0501-0606				●
248	RETAINER; CONT BOX 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA	8-97181-325-0	02	1	0607-1211				●
248	RETAINER; CONT BOX 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMA	8-98210-983-0	02	1	1212-				●
261	ROD; GEAR CONT 4JA1 ENG<RLE> THA	8-97257-825-0	01	1	0204-0408	●
261	ROD; GEAR CONT 4JA1-T ENG<LP0> THA	8-97257-825-0	01	1	0409-0412	●
261	ROD; GEAR CONT 4JH1 ENG<RJX> THA	8-97257-911-0	01	1	0204-0408		●
261	ROD; GEAR CONT 4JJ1-TCS ENG<LFB> THA	8-97257-911-0	01	1	0409-0412			●
261	ROD; GEAR CONT 4JJ1-TCS ENG<LFB> THA	8-97257-911-0	01	1	0501-0606			●
261	ROD; GEAR CONT 4JK1 ENG<LKZ> THA	8-97257-911-0	01	1	0501-0606				●
261	ROD; GEAR CONT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA	8-97257-911-0	01	1	0607-				●
261	ROD; GEAR CONT 4JJ1-TCX ENG<LS0> IMA	8-97362-444-0	01	1	0710-					●
261	ROD; GEAR CONT 4JJ1-TCX ENG<LS0> IMA	8-97362-444-0	01	1	0609-0708					●
262	BOX ASM; SHIFT CONT 4JA1 ENG<RLE> THA	8-97201-493-1	01	1	0204-0408	●
262	BOX ASM; SHIFT CONT 4JA1-T ENG<LP0> THA	8-97201-493-1	01	1	0409-0412	●
262	BOX ASM; SHIFT CONT 4JH1 ENG<RJX> THA	8-97180-891-2	01	1	0204-0305		●
262	BOX ASM; SHIFT CONT 4JH1 ENG<RJX> THA	8-97357-040-0	01	1	0306-0408		●
262	BOX ASM; SHIFT CONT 4JJ1-TCS ENG<LFB> THA	8-97357-040-0	01	1	0409-0412			●
262	BOX ASM; SHIFT CONT 4JJ1-TCS ENG<LFB> THA	8-97357-040-0	01	1	0501-0603			●
262	BOX ASM; SHIFT CONT 4JK1 ENG<LKZ> THA	8-97357-040-0	01	1	0501-0603				●
262	BOX ASM; SHIFT CONT 4JJ1-TCS ENG<LFB> THA	8-98017-729-0	01	1	0604-0606			●
262	BOX ASM; SHIFT CONT 4JK1 ENG<LKZ> THA	8-98017-729-0	01	1	0604-0606				●
262	BOX ASM; SHIFT CONT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA	8-98017-729-0	01	1	0607-1204				●
262	BOX ASM; SHIFT CONT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA	8-98203-264-0	01	1	1205-				●
268	LEVER; CONT,INTERNAL 4JA1 ENG<RLE> THA	8-97184-894-0	01	1	0204-0408	●
268	LEVER; CONT,INTERNAL 4JA1-T ENG<LP0> THA	8-97184-894-0	01	1	0409-0412	●
268	LEVER; CONT,INTERNAL 4JH1 ENG<RJX> IMA	8-97184-895-0	01	1	0204-0408		●
268	LEVER; CONT,INTERNAL 4JJ1-TCS ENG<LFB> IMA	8-97184-895-0	01	1	0409-0412			●
268	LEVER; CONT,INTERNAL 4JJ1-TCS ENG<LFB> IMA	8-97184-895-0	01	1	0501-0606			●
268	LEVER; CONT,INTERNAL 4JK1 ENG<LKZ> IMA	8-97184-895-0	01	1	0501-0606				●
268	LEVER; CONT,INTERNAL 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMA	8-97184-895-0	01	1	0607-				●
271	BUSHING; QUAD BOX ID=14 L=12 THA	8-97203-909-0	02	1	0204-0408	●	●
271	BUSHING; QUAD BOX ID=14 L=12 THA	8-97203-909-0	02	1	0409-0412	●		●
271	BUSHING; QUAD BOX 4JJ1-TCS ENG<LFB> ID=14 L=12 THA	8-97203-909-0	02	1	0501-0603			●
271	BUSHING; QUAD BOX 4JK1 ENG<LKZ> ID=14 L=12 THA	8-97203-909-0	02	1	0501-0603				●
271	BUSHING; QUAD BOX 4JJ1-TCS ENG<LFB> ID=14 L=12 IMA	8-98017-908-0	02	1	0604-0606			●
271	BUSHING; QUAD BOX 4JK1 ENG<LKZ> ID=14 L=12 IMA	8-98017-908-0	02	1	0604-0606				●
271	BUSHING; QUAD BOX 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> ID=14 L=12 IMA	8-98017-908-0	02	1	0607-				●
274	COVER; SHAFT,QUAD BOX IMA	8-97181-324-1	01	1	0204-0408	●	●
274	COVER; SHAFT,QUAD BOX IMA	8-97181-324-1	01	1	0409-0412	●		●
274	COVER; SHAFT,QUAD BOX 4JJ1-TCS ENG<LFB> IMA	8-97181-324-1	01	1	0501-0606			●
274	COVER; SHAFT,QUAD BOX 4JK1 ENG<LKZ> IMA	8-97181-324-1	01	1	0501-0606				●
274	COVER; SHAFT,QUAD BOX 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMA	8-97181-324-1	01	1	0607-				●
289	SEAL; OIL,CONT SHAFT,QUAD BOX THA	8-97181-327-0	01	1	0204-0408	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX THA	8-97181-327-0	01	1	0409-0412	●		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX 4JJ1-TCS ENG<LFB> THA	8-97181-327-0	01	1	0501-0603			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX 4JK1 ENG<LKZ> THA	8-97181-327-0	01	1	0501-0603				●
289	SEAL; OIL,CONT SHAFT,QUAD BOX 4JJ1-TCS ENG<LFB> IMA	8-98017-744-0	01	1	0604-0606			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX 4JK1 ENG<LKZ> IMA	8-98017-744-0	01	1	0604-0606				●
289	SEAL; OIL,CONT SHAFT,QUAD BOX 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMA	8-98017-744-0	01	1	0607-				●
459	PIN; SPR,ROD TO ARM OD=5 IMA	8-97184-905-0	01	1	0204-0408	●	●
459	PIN; SPR,ROD TO ARM OD=5 IMA	8-97184-905-0	01	1	0409-0412	●		●
459	PIN; SPR,ROD TO ARM 4JJ1-TCS ENG<LFB> OD=5 IMA	8-97184-905-0	01	1	0501-0606			●
459	PIN; SPR,ROD TO ARM 4JK1 ENG<LKZ> OD=5 IMA	8-97184-905-0	01	1	0501-0606				●
459	PIN; SPR,ROD TO ARM 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> OD=5 IMA	8-97184-905-0	01	1	0607-				●
511	PIPE; AIR 4JH1 ENG<RJX> THA	8-97173-545-0	01	1	0204-0305		●
568	PIPE; BREATHER 4JH1 ENG<RJX> THA	8-97173-544-0	01	1	0204-0305		●

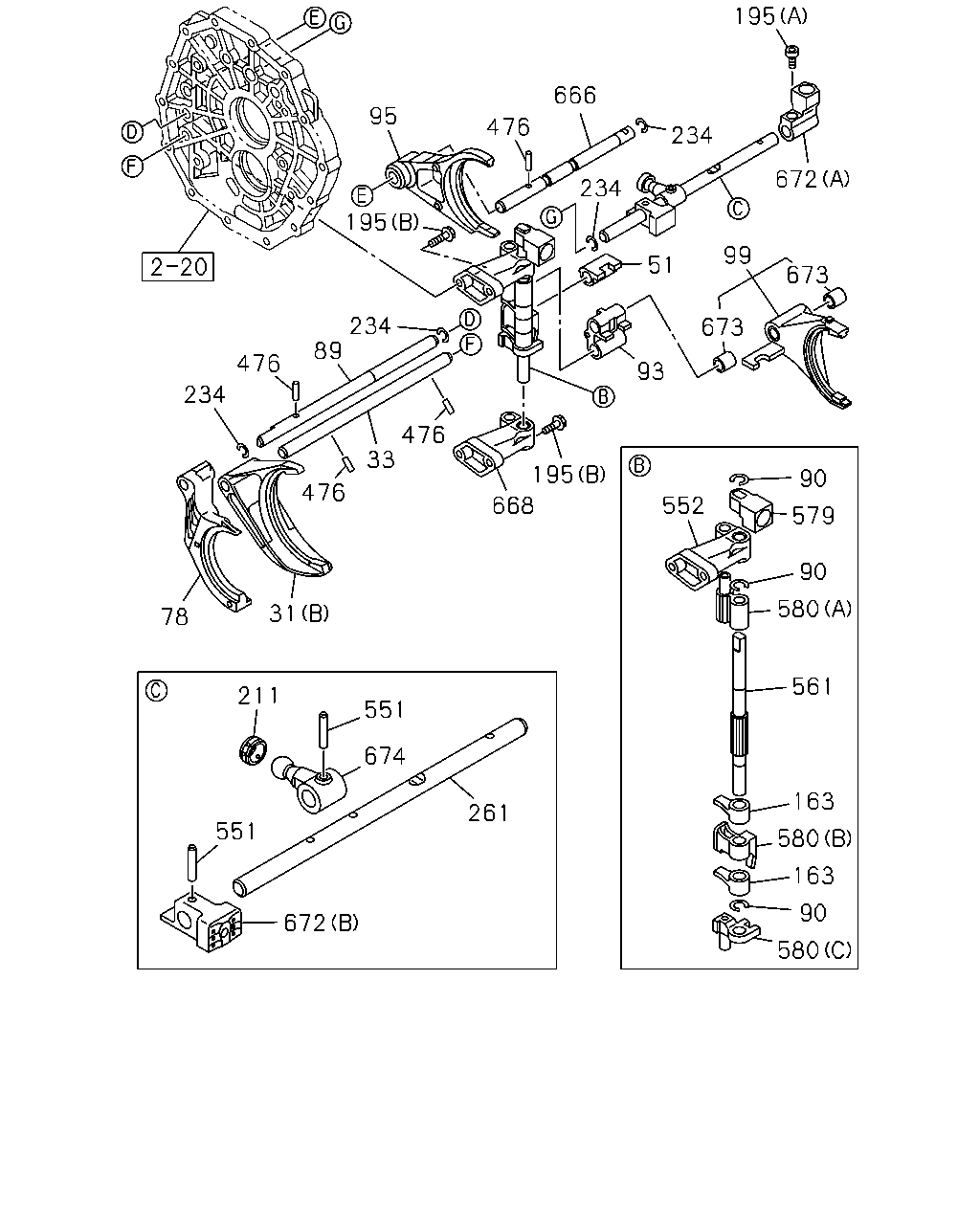

195 666 95 476 234 672 234 195 99 51 673 234 89 673 476 93 234 476 33 195 90 476 552 668 579 90 580 31 78 561 211 551 674 163 261 551 580 163 90 672 580

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
31	ARM; SHIFT,LOW & 2ND 4JA1 ENG<RLE> (C) THA	8-97238-345-0	01	1	0204-0408	●
31	ARM; SHIFT,LOW & 2ND 4JA1-T ENG<LP0> (C) THA	8-97238-345-0	01	1	0409-0412	●
31	ARM; SHIFT,LOW & 2ND 4JH1 ENG<RJX> (A) IMA	8-94421-912-2	01	1	0204-0408		●
31	ARM; SHIFT,LOW & 2ND 4JJ1-TCS ENG<LFB> (A) IMA	8-94421-912-2	01	1	0409-0412			●
31	ARM; SHIFT,LOW & 2ND 4JJ1-TCS ENG<LFB> (A) IMA	8-94421-912-2	01	1	0501-0606			●
31	ARM; SHIFT,LOW & 2ND 4JK1 ENG<LKZ> (A) IMA	8-94421-912-2	01	1	0501-0606				●
31	ARM; SHIFT,LOW & 2ND 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (A) IMA	8-94421-912-2	01	1	0607-				●
31	ARM; SHIFT,LOW & 2ND 4JJ1-TCX ENG<LS0> (B) IMA	8-97362-435-0	01	1	0710-					●
31	ARM; SHIFT,LOW & 2ND 4JJ1-TCX ENG<LS0> (B) IMA	8-97362-435-0	01	1	0609-0708					●
33	ROD; SHIFT,LOW & 2ND 4JA1 ENG<RLE> THA	8-97213-047-0	01	1	0204-0408	●
33	ROD; SHIFT,LOW & 2ND 4JA1-T ENG<LP0> THA	8-97213-047-0	01	1	0409-0412	●
33	ROD; SHIFT,LOW & 2ND 4JH1 ENG<RJX> IMA	8-97019-061-2	01	1	0204-0408		●
33	ROD; SHIFT,LOW & 2ND 4JJ1-TCS ENG<LFB> IMA	8-97019-061-2	01	1	0409-0412			●
33	ROD; SHIFT,LOW & 2ND 4JJ1-TCS ENG<LFB> IMA	8-97019-061-2	01	1	0501-0606			●
33	ROD; SHIFT,LOW & 2ND 4JK1 ENG<LKZ> IMA	8-97019-061-2	01	1	0501-0606				●
33	ROD; SHIFT,LOW & 2ND 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMA	8-97019-061-2	01	1	0607-				●
33	ROD; SHIFT,LOW & 2ND 4JJ1-TCX ENG<LS0> IMA	8-97362-441-0	01	1	0710-					●
33	ROD; SHIFT,LOW & 2ND 4JJ1-TCX ENG<LS0> IMA	8-97362-441-0	01	1	0609-0708					●
51	BLOCK; SHIFT,1ST & 2ND 4JJ1-TCX ENG<LS0> THA	8-97362-445-2	01	1	0609-0708					●
51	BLOCK; SHIFT,1ST & 2ND 4JJ1-TCX ENG<LS0> THA	8-97362-445-2	01	1	0710-1102					●
51	BLOCK; SHIFT,1ST & 2ND 4JJ1-TCX ENG<LS0> IMA	8-98186-703-0	01	1	1103-					●
78	ARM; SHIFT,REV 4JJ1-TCX ENG<LS0> THA	8-97362-434-1	01	1	0710-					●
78	ARM; SHIFT,REV 4JJ1-TCX ENG<LS0> THA	8-97362-434-1	01	1	0609-0708					●
89	ROD; SHIFT,REV 4JJ1-TCX ENG<LS0> THA	8-97362-440-1	01	1	0710-					●
89	ROD; SHIFT,REV 4JJ1-TCX ENG<LS0> THA	8-97362-440-1	01	1	0609-0708					●
90	RING; SNAP,SHIFT ROD 4JJ1-TCX ENG<LS0> ID=12 IMA	8-94460-357-0	03	1	0710-					●
90	RING; SNAP,SHIFT ROD 4JJ1-TCX ENG<LS0> ID=12 IMA	8-94460-357-0	03	1	0609-0708					●
93	BLOCK; SHIFT,REV & 5TH 4JJ1-TCX ENG<LS0> THA	8-98004-541-1	01	1	0609-0708					●
93	BLOCK; SHIFT,REV & 5TH 4JJ1-TCX ENG<LS0> THA	8-98004-541-1	01	1	0710-					●
95	ARM; SHIFT,5TH 4JJ1-TCX ENG<LS0> IMA	8-97362-436-1	01	1	0710-					●
95	ARM; SHIFT,5TH 4JJ1-TCX ENG<LS0> IMA	8-97362-436-1	01	1	0609-0708					●
99	ARM; SHIFT,4TH & 3RD 4JA1 ENG<RLE> THA	8-94435-153-1	01	1	0204-0408	●
99	ARM; SHIFT,4TH & 3RD 4JA1-T ENG<LP0> THA	8-94435-153-1	01	1	0409-0412	●
99	ARM; SHIFT,4TH & 3RD 4JH1 ENG<RJX> IMA	8-94421-911-2	01	1	0204-0408		●
99	ARM; SHIFT,4TH & 3RD 4JJ1-TCS ENG<LFB> IMA	8-94421-911-2	01	1	0409-0412			●
99	ARM; SHIFT,4TH & 3RD 4JJ1-TCS ENG<LFB> IMA	8-94421-911-2	01	1	0501-0606			●
99	ARM; SHIFT,4TH & 3RD 4JK1 ENG<LKZ> IMA	8-94421-911-2	01	1	0501-0606				●
99	ARM; SHIFT,4TH & 3RD 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMA	8-94421-911-2	01	1	0607-				●
99	ARM; SHIFT,4TH & 3RD 4JJ1-TCX ENG<LS0> THA	8-97362-439-2	01	1	0609-0708					●
99	ARM; SHIFT,4TH & 3RD 4JJ1-TCX ENG<LS0> THA	8-97362-439-2	01	1	0710-					●
163	LEVER; SELECT,INTERNAL 4JJ1-TCX ENG<LS0> IMA	8-98052-461-0	02	1	0710-					●
163	LEVER; SELECT,INTERNAL 4JJ1-TCX ENG<LS0> IMA	8-98052-461-0	02	1	0609-0708					●
195	BOLT 4JJ1-TCX ENG<LS0> (A) M8X8.5 TAPER IMA	8-97250-975-0	01	1	0710-					●
195	BOLT 4JJ1-TCX ENG<LS0> (B) M8X30 FLANGE IMA	8-98034-764-0	04	1	0710-					●
195	BOLT 4JJ1-TCX ENG<LS0> (A) M8X8.5 TAPER IMA	8-97250-975-0	01	1	0609-0708					●
195	BOLT 4JJ1-TCX ENG<LS0> (B) M8X30 FLANGE IMA	8-98034-764-0	04	1	0609-0708					●
211	SEAT; BALL 4JJ1-TCX ENG<LS0> IMA	8-98073-812-0	01	1	0710-					●
211	SEAT; BALL 4JJ1-TCX ENG<LS0> THA	8-98042-833-1	01	1	0609-0612					●
211	SEAT; BALL 4JJ1-TCX ENG<LS0> IMA	8-98073-812-0	01	1	0701-0708					●
234	RING; SNAP 4JJ1-TCX ENG<LS0> ID=12 IMA	8-94460-357-0	04	1	0710-					●
234	RING; SNAP 4JJ1-TCX ENG<LS0> ID=12 IMA	8-94460-357-0	04	1	0609-0708					●
261	ROD; GEAR CONT 4JA1 ENG<RLE> THA	8-97257-825-0	01	1	0204-0408	●
261	ROD; GEAR CONT 4JA1-T ENG<LP0> THA	8-97257-825-0	01	1	0409-0412	●
261	ROD; GEAR CONT 4JH1 ENG<RJX> THA	8-97257-911-0	01	1	0204-0408		●
261	ROD; GEAR CONT 4JJ1-TCS ENG<LFB> THA	8-97257-911-0	01	1	0409-0412			●
261	ROD; GEAR CONT 4JJ1-TCS ENG<LFB> THA	8-97257-911-0	01	1	0501-0606			●
261	ROD; GEAR CONT 4JK1 ENG<LKZ> THA	8-97257-911-0	01	1	0501-0606				●
261	ROD; GEAR CONT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA	8-97257-911-0	01	1	0607-				●
261	ROD; GEAR CONT 4JJ1-TCX ENG<LS0> IMA	8-97362-444-0	01	1	0710-					●
261	ROD; GEAR CONT 4JJ1-TCX ENG<LS0> IMA	8-97362-444-0	01	1	0609-0708					●
476	PIN; SHIFT ROD 4JJ1-TCX ENG<LS0> D=4.2 L=25 IMA	8-94171-541-0	04	1	0710-					●
476	PIN; SHIFT ROD 4JJ1-TCX ENG<LS0> D=4.2 L=25 IMA	8-94171-541-0	04	1	0609-0708					●
551	PIN; SPRING 4JJ1-TCX ENG<LS0> D=4.2 L=25 IMA	8-94171-541-0	02	1	0710-					●
551	PIN; SPRING 4JJ1-TCX ENG<LS0> D=4.2 L=25 IMA	8-94171-541-0	02	1	0609-0708					●
552	BRACKET 4JJ1-TCX ENG<LS0> THA	8-97362-465-1	01	1	0710-					●
552	BRACKET 4JJ1-TCX ENG<LS0> THA	8-97362-465-1	01	1	0609-0708					●
561	ROD; SHIFT 4JJ1-TCX ENG<LS0> THA	8-98052-463-0	01	1	0710-					●
561	ROD; SHIFT 4JJ1-TCX ENG<LS0> THA	8-98052-463-0	01	1	0609-0708					●
579	BLOCK; SHIFT,ROD GUIDE 4JJ1-TCX ENG<LS0> THA	8-97362-447-2	01	1	0710-					●
579	BLOCK; SHIFT,ROD GUIDE 4JJ1-TCX ENG<LS0> THA	8-97362-447-2	01	1	0609-0708					●
580	BLOCK; INTERLOCK 4JJ1-TCX ENG<LS0> (A) IMA	8-97362-461-1	01	1	0710-					●
580	BLOCK; INTERLOCK 4JJ1-TCX ENG<LS0> (C) THA	8-97362-463-1	01	1	0710-1102					●
580	BLOCK; INTERLOCK 4JJ1-TCX ENG<LS0> (C) IMA	8-98186-700-0	01	1	1103-					●
580	BLOCK; INTERLOCK 4JJ1-TCX ENG<LS0> (B) IMA	8-98052-462-0	01	1	0710-					●
580	BLOCK; INTERLOCK 4JJ1-TCX ENG<LS0> (A) IMA	8-97362-461-1	01	1	0609-0708					●
580	BLOCK; INTERLOCK 4JJ1-TCX ENG<LS0> (C) THA	8-97362-463-1	01	1	0609-0708					●
580	BLOCK; INTERLOCK 4JJ1-TCX ENG<LS0> (B) IMA	8-98052-462-0	01	1	0609-0708					●
666	ROD; GEAR SHIFT,3RD,4TH & 4TH 4JJ1-TCX ENG<LS0> IMA	8-97362-442-2	01	1	0710-					●
666	ROD; GEAR SHIFT,3RD,4TH & 4TH 4JJ1-TCX ENG<LS0> IMA	8-97362-442-2	01	1	0609-0708					●
668	BRACKET; SHIFT ROD 4JJ1-TCX ENG<LS0> THA	8-97362-465-1	01	1	0710-					●
668	BRACKET; SHIFT ROD 4JJ1-TCX ENG<LS0> THA	8-97362-465-1	01	1	0609-0708					●
672	BLOCK; SHIFT,T/M CONTROL 4JJ1-TCX ENG<LS0> (A) IMA	8-97362-467-0	01	1	0710-					●
672	BLOCK; SHIFT,T/M CONTROL 4JJ1-TCX ENG<LS0> (B) THA	8-98083-873-0	01	1	0710-					●
672	BLOCK; SHIFT,T/M CONTROL 4JJ1-TCX ENG<LS0> (A) IMA	8-97362-467-0	01	1	0609-0708					●
672	BLOCK; SHIFT,T/M CONTROL 4JJ1-TCX ENG<LS0> (B) THA	8-97362-470-1	01	1	0609-0707					●
672	BLOCK; SHIFT,T/M CONTROL 4JJ1-TCX ENG<LS0> (B) THA	8-98083-873-0	01	1	0708-0708					●
673	BEARING; SHIFT ARM 4JJ1-TCX ENG<LS0> THA	8-97362-853-0	02	1	1009-					●
673	BEARING; SHIFT ARM 4JJ1-TCX ENG<LS0> THA	8-97362-853-0	02	1	0710-1008					●
673	BEARING; SHIFT ARM 4JJ1-TCX ENG<LS0> THA	8-97362-853-0	02	1	0609-0708					●
674	LEVER; CONT 4JJ1-TCX ENG<LS0> THA	8-97362-466-0	01	1	0710-					●
674	LEVER; CONT 4JJ1-TCX ENG<LS0> THA	8-97362-466-0	01	1	0609-0708					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
