◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10806 - EXZ RHD FUEL TANK 400L ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#7284) — 32 parça

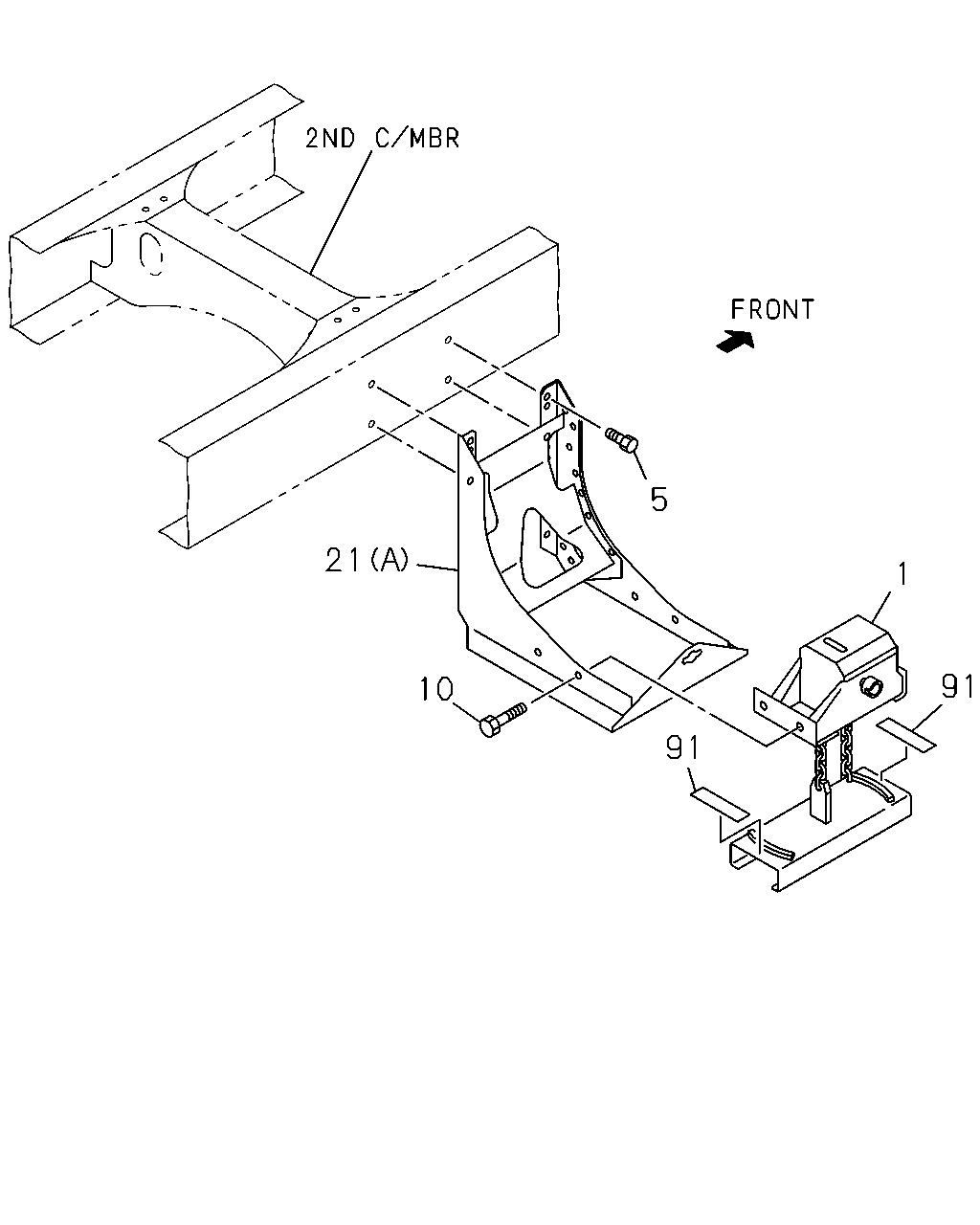

çizim 43275
5 21 1 91 10 91
BalonParca AdiParca NoAdetTipApplied Date
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-53630-210-1 02 1 9906-
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG) 		1-53630-208-1 01 1 9906-
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		1-53630-208-1 01 1 9906-
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISHALCOA(SHG) 		1-53630-210-1 01 1 9906-
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-53630-210-1 01 1 9906-
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> 		1-53630-208-1 02 1 9906-
5 BOLT; BRKT TO FRAME
WHEEL BASE 4500MM(45W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28681-235-0 04 1 9906-
5 BOLT; BRKT TO FRAME
WHEEL BASE 4700MM(47W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE 		0-28681-240-0 06 1 9906-
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28681-230-0 04 1 9906-
21 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4500MM(45W) SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (A) 		1-53631-397-1 01 1 9906-
21 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4500MM(45W) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (A) 		1-53631-396-1 01 1 9906-
21 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4700MM(47W) SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		1-53631-128-1 01 1 9906-
91 PAD; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> 		1-53639-042-0 02 1 9906-0012

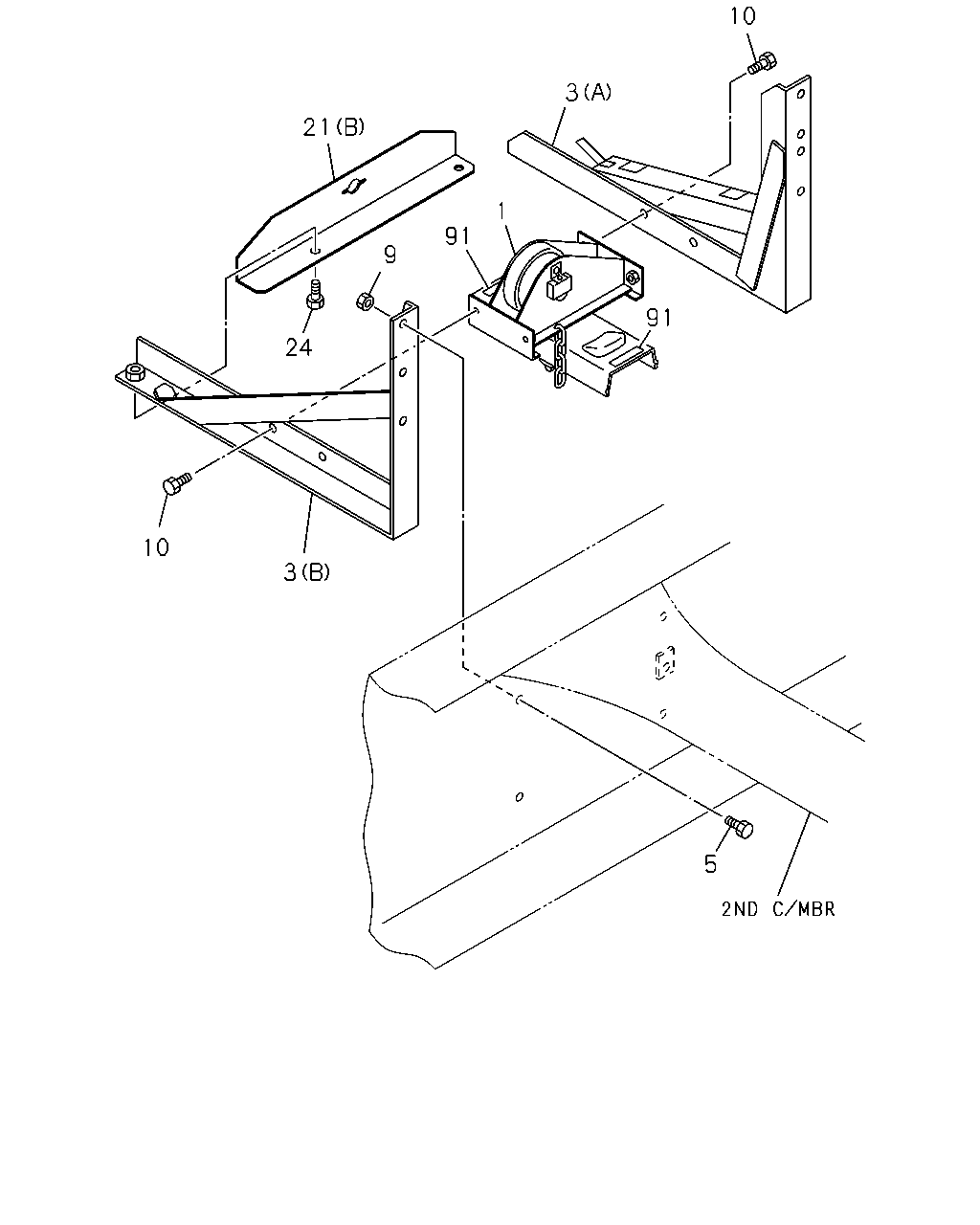

çizim 46567
10 3 21 1 91 9 91 24 10 3 5
BalonParca AdiParca NoAdetTipApplied Date
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-53630-210-1 02 1 9906-
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG) 		1-53630-208-1 01 1 9906-
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		1-53630-208-1 01 1 9906-
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISHALCOA(SHG) 		1-53630-210-1 01 1 9906-
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-53630-210-1 01 1 9906-
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> 		1-53630-208-1 02 1 9906-
3 BRACKET; TIRE CARRIER,FRT
WHEEL BASE 4700MM(47W) SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (A) REAR 		1-53631-388-0 01 1 9906-
3 BRACKET; TIRE CARRIER,FRT
WHEEL BASE 4700MM(47W) SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (B) FRONT 		1-53631-434-0 01 1 9906-
3 BRACKET; TIRE CARRIER,FRT
WHEEL BASE 4700MM(47W) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (A) REAR 		1-53631-389-0 01 1 9906-
3 BRACKET; TIRE CARRIER,FRT
WHEEL BASE 4700MM(47W) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (B) FRONT 		1-53631-393-0 01 1 9906-
5 BOLT; BRKT TO FRAME
WHEEL BASE 4500MM(45W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28681-235-0 04 1 9906-
5 BOLT; BRKT TO FRAME
WHEEL BASE 4700MM(47W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE 		0-28681-240-0 06 1 9906-
9 NUT; BRKT TO FRAME
WHEEL BASE 4700MM(47W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 FLANGE 		0-91150-212-0 03 1 9906-
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28681-230-0 04 1 9906-
21 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4500MM(45W) SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (A) 		1-53631-397-1 01 1 9906-
21 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4500MM(45W) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (A) 		1-53631-396-1 01 1 9906-
21 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4700MM(47W) SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		1-53631-128-1 01 1 9906-
24 BOLT; SPARE TIRE
WHEEL BASE 4700MM(47W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE 		0-28681-225-0 02 1 9906-
91 PAD; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> 		1-53639-042-0 02 1 9906-0012
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
