◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#72838) — 881 parça

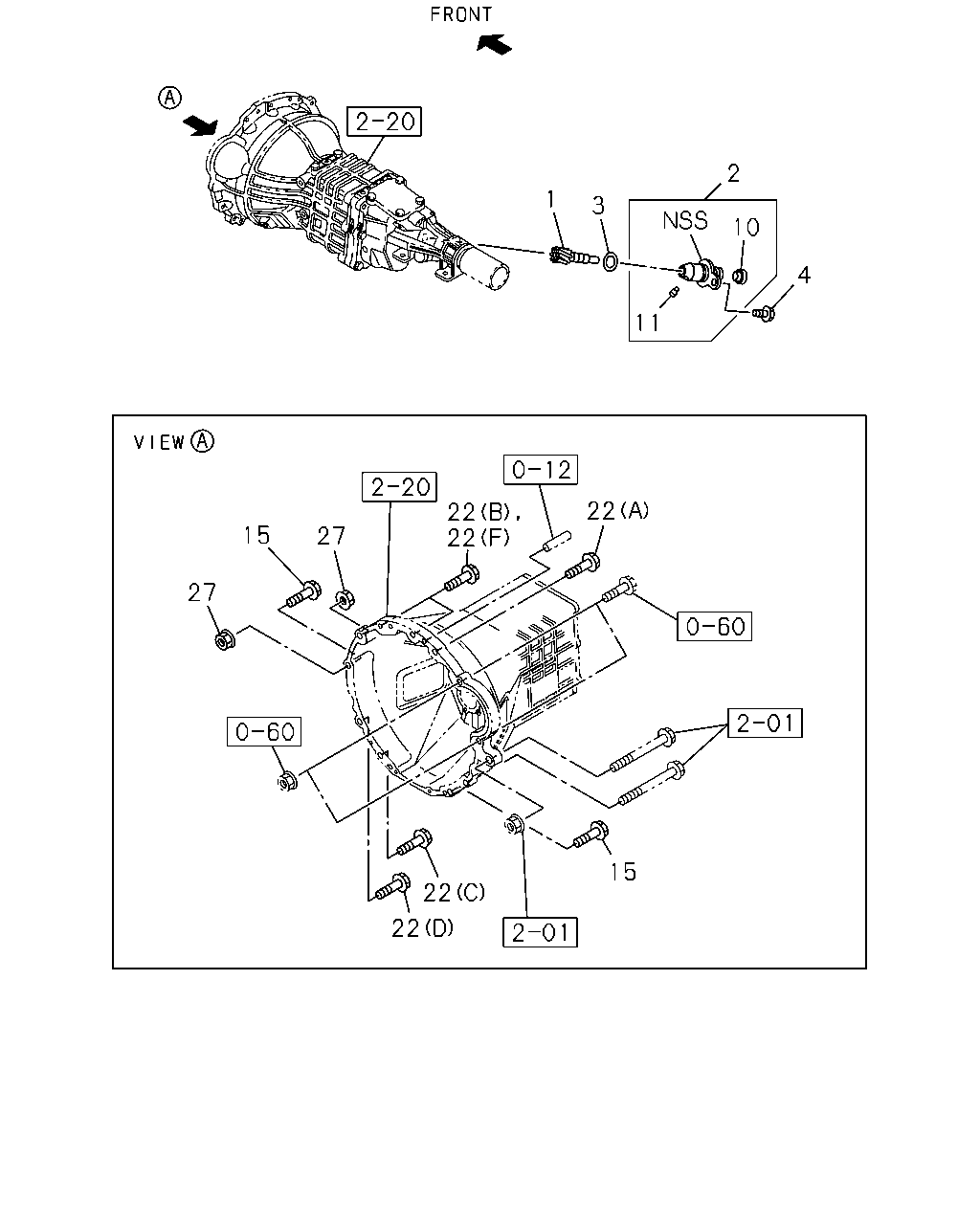

çizim 116412
2 1 3 10 4 11 22 22 22 15 27 27 15 22 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 41/12<GU6> FRT&RR 215/70R15C GOODYEAR TIRE<QFT> Z=17 THA 		8-98004-534-0 01 1 0710-0712 ●
1 GEAR; DRIVEN,SPD
4JA1 ENG<RLE> Z=18 THA 		8-94473-304-2 01 1 0204-0408 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/10<GT5> FRT&RR 195R14C<BSS>,FRT&RR 215/70R15C<QBQ> Z=18 THA 		8-94473-304-2 01 1 0409-0412 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> 4JH1 ENG<RJX> FRT&RR 195R14C<BSS> Z=18 THA 		8-97012-086-2 01 1 0204-0307 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> 4JH1 ENG<RJX> FRT&RR 195R14C<BSS>,FRT&RR 245/70R16<BSW> Z=18 THA 		8-97012-086-2 01 1 0308-0408 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C<QBQ> Z=16 THA 		8-97169-434-1 01 1 0409-0412 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C<QBQ> Z=16 THA 		8-97169-434-1 01 1 0501-0507 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/12<GM0> FRT&RR 215/70R15C<QBQ> Z=16 THA 		8-97169-434-1 01 1 0501-0507 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/12<GM0>,FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C<QBQ> Z=16 THA 		8-97169-434-1 01 1 0508-0606 ● ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/12<GM0> FRT&RR 215/70R15C<QBQ>,FRT&RR 215/70R15C GOODYEAR TIRE<QFT> Z=16 THA 		8-97169-434-1 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/11<GT4> FRT&RR 225/75R15C<BZC> Z=16 THA 		8-97169-434-1 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C GOODYEAR TIRE<QFT> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> Z=16 THA 		8-97169-434-1 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/11<GW1> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>, FRT&RR245/70R16 MICHELIN TIRE<QFE> Z=16 THA 		8-97169-434-1 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> 4JJ1-TCS ENG<LFB> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C GOODYEAR TIRE<QFT> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> Z=16 THA 		8-97169-434-1 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/12<GM0> FRT&RR 215/70R15C<QBQ>,FRT&RR 215/70R15C GOODYEAR TIRE<QFT> Z=16 THA 		8-97169-434-1 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/11<GW1> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>, FRT&RR245/70R16 MICHELIN TIRE<QFE> Z=16 THA 		8-97169-434-1 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/11<GT4>,FINAL GEAR RATIO 43/11<GW1> FRT&RR 225/75R15C<BZC> Z=16 THA 		8-97169-434-1 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> FINAL GEAR RATIO 43/12<GM0> FRT&RR 215/70R15C<QBQ> Z=16 THA 		8-97169-434-1 01 1 0801- ●
1 GEAR; DRIVEN,SPD
SINGLE CAB<TF**S*> Z=16 THA 		8-97169-434-1 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB*C*> FINAL GEAR RATIO 43/11<GW1> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=16 THA 		8-97169-434-1 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 43/11<GW1> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>, FRT&RR245/70R16 MICHELIN TIRE<QFE> Z=16 THA 		8-97169-434-1 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> FINAL GEAR RATIO 41/11<GT4>,FINAL GEAR RATIO 43/11<GW1> FRT&RR 225/75R15C<BZC> Z=16 THA 		8-97169-434-1 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4JH1 ENG<RJX> FRT&RR 215/70R15C<BSU> Z=17 IMA 		8-97012-085-2 01 1 0204-0408 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/10<GY2> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=17 IMA 		8-97012-085-2 01 1 0409-0412 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/10<GY2> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=17 IMA 		8-97012-085-2 01 1 0501-0606 ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C<QBQ> Z=17 IMA 		8-97012-085-2 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> FINAL GEAR RATIO 43/11<GW1> FRT&RR 215/70R15C<QBQ>,FRT&RR 215/70R15C GOODYEAR TIRE<QFT> Z=17 IMA 		8-97012-085-2 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C GOODYEAR TIRE<QFT> SOFT RIDE SUSPENSION SYSTEM<FE1> Z=17 IMA 		8-97012-085-2 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> 4JJ1-TCS ENG<LFB> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C GOODYEAR TIRE<QFT> SOFT RIDE SUSPENSION SYSTEM<FE1> Z=17 IMA 		8-97012-085-2 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C<QBQ> Z=17 IMA 		8-97012-085-2 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC>,FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>,FRT&RR 245/70R16 MICHELIN TIRE<QFE> Z=17 IMA 		8-97012-085-2 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C<QBQ> Z=17 IMA 		8-97012-085-2 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB*C*> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC>,FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=17 IMA 		8-97012-085-2 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC>,FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>,FRT&RR 245/70R16 MICHELIN TIRE<QFE> Z=17 IMA 		8-97012-085-2 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> Z=18 THA 		8-97238-584-2 01 1 0204-0408 ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 43/10<GY2> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=17 IMA 		8-97238-583-0 01 1 0409-0501 ● ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BSV> Z=17 IMA 		8-97238-583-0 01 1 0409-0501 ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 43/10<GY2> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=17 IMA 		8-97238-583-0 01 1 0502-0606 ● ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC> Z=17 IMA 		8-97238-583-0 01 1 0502-0606 ●
1 GEAR; DRIVEN,SPD
4X4 SPACE CAB<TFS*C*> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC> Z=17 IMA 		8-97238-583-0 01 1 0607-0608 ●
1 GEAR; DRIVEN,SPD
4X4 SPACE CAB<TFS*C*> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC> Z=17 IMA 		8-97238-583-0 01 1 0609-0708 ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/10<GT5> Z=17 IMA 		8-97238-583-0 01 1 0609-0708 ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC> Z=17 IMA 		8-97238-583-0 01 1 0709-0709 ● ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC> Z=17 IMA 		8-97238-583-0 01 1 0710- ● ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/10<GT5> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=17 IMA 		8-97238-583-0 01 1 0710- ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> Z=17 THA 		8-97238-587-2 01 1 0204-0408 ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 43/10<GY2> FRT&RR 225/75R15C<BSV> Z=18 THA 		8-97238-584-2 01 1 0409-0501 ● ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 43/10<GY2> FRT&RR 225/75R15C<BZC> Z=18 THA 		8-97238-584-2 01 1 0502-0606 ● ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 43/10<GY2> FRT&RR 225/75R15C<BZC>,FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=18 THA 		8-97238-584-2 01 1 0607-0608 ● ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 43/10<GY2> FRT&RR 225/75R15C<BZC>,FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>,FRT&RR 245/70R16 MICHELIN TIRE<QFE> Z=18 THA 		8-97238-584-2 01 1 0609- ● ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/10<GT5>,FINAL GEAR RATIO 43/10<GY2> Z=18 THA 		8-97012-086-2 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/10<GT5> FRT&RR 215/70R15C<QBQ>,FRT&RR 215/70R15C GOODYEAR TIRE<QFT> Z=18 THA 		8-97012-086-2 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/10<GY2> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>, FRT&RR245/70R16 MICHELIN TIRE<QFE> Z=18 THA 		8-97012-086-2 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> FINAL GEAR RATIO 41/10<GT5> FRT&RR 215/70R15C<QBQ> Z=18 THA 		8-97012-086-2 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB*C*> FINAL GEAR RATIO 43/10<GY2> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=18 THA 		8-97012-086-2 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 43/10<GY2> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>, FRT&RR245/70R16 MICHELIN TIRE<QFE> Z=18 THA 		8-97012-086-2 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X4 SPACE CAB<TFS*C*> 4JK1 ENG<LKZ> FINAL GEAR RATIO 43/11<GW1> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=16 THA 		8-97238-582-0 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> 4JK1 ENG<LKZ> FINAL GEAR RATIO 41/11<GT4> FRT&RR 225/75R15C<BZC> Z=16 THA 		8-97238-582-0 01 1 0709- ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> 4JK1 ENG<LKZ> FINAL GEAR RATIO 43/11<GW1> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>, FRT&RR245/70R16 MICHELIN TIRE<QFE> Z=16 THA 		8-97238-582-0 01 1 0709- ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 43/11<GW1> FRT&RR 225/75R15C<BZC> Z=16 THA 		8-97238-582-0 01 1 0709- ●
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 43/12<GM0> FRT&RR 225/75R15C<BZC> Z=18 THA 		8-98004-535-0 01 1 0710-0802 ●
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 41/11<GT4> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>, FRT&RR245/70R16 MICHELIN TIRE<QFE> Z=18 THA 		8-98004-535-0 01 1 0710-0802 ●
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 41/12<GU6> FRT&RR 215/70R15C<QBQ> Z=18 THA 		8-98004-535-0 01 1 0710-0802 ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> FINAL GEAR RATIO 43/12<GM0> FRT&RR 225/75R15C<BZC> Z=18 THA 		8-98004-535-0 01 1 0803- ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB*C*> FINAL GEAR RATIO 41/11<GT4> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=18 THA 		8-98004-535-0 01 1 0803- ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> FINAL GEAR RATIO 41/12<GU6> FRT&RR 215/70R15C<QBQ> Z=18 THA 		8-98004-535-0 01 1 0803- ●
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 41/11<GT4> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>, FRT&RR245/70R16 MICHELIN TIRE<QFE> Z=18 THA 		8-98004-535-0 01 1 0803- ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 43/12<GM0> FRT&RR 225/75R15C<BZC> Z=18 THA 		8-98008-940-0 01 1 0710- ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/11<GT4> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=18 THA 		8-98008-940-0 01 1 0710- ●
1 GEAR; DRIVEN,SPD
4X4 DOUBLE CAB<TFS*W*> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/11<GT4> Z=18 THA 		8-98008-940-0 01 1 0609-0708 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/10<GT5> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> HIGH RIDE SUSPENSION<7YC> Z=17 THA 		8-98056-402-0 01 1 0710- ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 43/11<GW1> FRT&RR 225/75R15C<BZC> HIGH RIDE SUSPENSION<7YC> Z=16 THA 		8-98056-392-0 01 1 0710- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> IMA 		8-94463-608-4 01 1 0204-0412 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> IMA 		8-97021-133-4 01 1 0204-0408 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> IMA 		8-97021-133-4 01 1 0409-0412 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> IMA 		8-97021-133-4 01 1 0501-0606 ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> IMA 		8-97021-133-4 01 1 0607-0709 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> IMA 		8-97021-133-4 01 1 0710- ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4<TFS***> IMA 		8-97305-454-1 01 1 0204-0408 ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4<TFS***> IMA 		8-97305-454-1 01 1 0409-0606 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4<TFS***> IMA 		8-97305-454-1 01 1 0607-0608 ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4<TFS***> IMA 		8-97305-454-1 01 1 0609-0708 ● ● ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4<TFS***> IMA 		8-97305-454-1 01 1 0709-0709 ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4<TFS***> IMA 		8-97305-454-1 01 1 0710- ● ● ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> 4JJ1-TCX ENG<LS0> THA 		8-97181-543-0 01 1 0710- ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0204-0408 ● ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0204-0408 ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0409-0412 ● ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0409-0412 ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0501-0606 ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0501-0606 ●
3 GASKET; BUSHING
4X2<TFB***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0501-0606 ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0607-0608 ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0607-0608 ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0609-0708 ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0609-0708 ●
3 GASKET; BUSHING
4X4 DOUBLE CAB<TFS*W*> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0609-0708 ● ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0709-0709 ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0709-0709 ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0710- ● ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0710- ● ●
3 GASKET; BUSHING
4X2<TFB***> 4JJ1-TCX ENG<LS0> ID=19 THA 		8-97181-545-0 01 1 0710- ●
4 BOLT; RET,DRIVEN GEAR
4X2<TFB***> M8X16 FLANGE THA 		0-28050-816-0 01 1 0204-0412 ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0204-0408 ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0204-0408 ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0409-0412 ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0409-0412 ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0501-0606 ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0501-0606 ●
4 BOLT; RET,DRIVEN GEAR
4X2<TFB***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0501-0606 ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0607-0608 ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0607-0608 ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0609-0708 ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0609-0708 ●
4 BOLT; RET,DRIVEN GEAR
4X4 DOUBLE CAB<TFS*W*> M8X20 FLANGE THA 		0-28050-820-0 01 1 0609-0708 ● ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0709-0709 ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0709-0709 ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0710- ● ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0710- ● ●
4 BOLT; RET,DRIVEN GEAR
4X2<TFB***> 4JJ1-TCX ENG<LS0> M8X14 W/WASHER THA 		8-94480-043-0 01 1 0710- ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0204-0408 ● ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0204-0408 ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0409-0412 ● ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0409-0412 ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0501-0606 ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0501-0606 ●
10 SEAL; OIL,DRIVE GEAR
4X2<TFB***> NOK IMA 		8-97131-328-1 01 1 0501-0606 ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0607-0608 ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0607-0608 ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0609-0708 ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0609-0708 ●
10 SEAL; OIL,DRIVE GEAR
4X4 DOUBLE CAB<TFS*W*> NOK IMA 		8-97131-328-1 01 1 0609-0708 ● ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0709-0709 ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0709-0709 ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0710- ● ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0710- ● ●
10 SEAL; OIL,DRIVE GEAR
4X2<TFB***> 4JJ1-TCX ENG<LS0> NOK THA 		8-94480-040-0 01 1 0710- ●
10 SEAL; OIL,DRIVE GEAR
4X2<TFB***> 4JJ1-TCX ENG<LS0> JTEKT THA 		8-97181-544-0 01 1 0710- ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0204-0408 ● ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0204-0408 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0409-0412 ● ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0409-0412 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0501-0606 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0501-0606 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X2<TFB***> IMA 		8-94446-571-1 01 1 0501-0606 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0607-0608 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0607-0608 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0609-0708 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0609-0708 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4 DOUBLE CAB<TFS*W*> IMA 		8-94446-571-1 01 1 0609-0708 ● ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0709-0709 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0709-0709 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0710- ● ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0710- ● ●
15 BOLT; UNDER COVER TO TRANS
4JA1 ENG<RLE> TURBOCHARGER<K51> M10X40 FLANGE THA 		0-28051-040-0 01 1 0204-0408 ●
15 BOLT; UNDER COVER TO TRANS
4JA1 ENG<RLE> M10X40 FLANGE THA 		0-28051-040-0 01 1 0204-0408 ●
15 BOLT; UNDER COVER TO TRANS
4JH1 ENG<RJX> M6X16 FLANGE THA 		0-28650-616-0 04 1 0204-0408 ●
15 BOLT; UNDER COVER TO TRANS
4JJ1-TCS ENG<LFB> M6X16 FLANGE THA 		0-28650-616-0 04 1 0409-0608 ●
15 BOLT; UNDER COVER TO TRANS
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> M6X16 FLANGE THA 		0-28650-616-0 04 1 0609-0708 ● ●
15 BOLT; UNDER COVER TO TRANS
4JJ1-TCS ENG<LFB> M6X16 FLANGE THA 		0-28650-616-0 04 1 0709-0709 ●
15 BOLT; UNDER COVER TO TRANS
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> M6X16 FLANGE THA 		0-28650-616-0 04 1 0710- ● ●
15 BOLT; UNDER COVER TO TRANS
4JJ1-TCX ENG<LS0> M6X12 FLANGE THA 		0-28050-612-0 02 1 0609-0708 ●
15 BOLT; UNDER COVER TO TRANS
4JJ1-TCX ENG<LS0> M6X12 FLANGE THA 		0-28050-612-0 02 1 0710- ●
22 BOLT; TRANS CASE TO ENG
4JA1 ENG<RLE> (A) M10X35 FLANGE THA 		0-28051-035-0 01 1 0204-0408 ●
22 BOLT; TRANS CASE TO ENG
4JA1-T ENG<LP0> (A) M10X35 FLANGE THA 		0-28051-035-0 01 1 0409-0412 ●
22 BOLT; TRANS CASE TO ENG
4JA1-T ENG<LP0> (A) M10X35 FLANGE THA 		0-28051-035-0 02 1 0501-0501 ●
22 BOLT; TRANS CASE TO ENG
4JA1 ENG<RLE> (B) M10X40 FLANGE THA 		0-28051-040-0 02 1 0204-0408 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (B) M12X40 FLANGE THA 		0-28051-240-0 01 1 0409-0412 ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (B) M12X40 FLANGE THA 		0-28051-240-0 01 1 0501-0501 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (B) M12X40 FLANGE THA 		0-28051-240-0 01 1 0501-0606 ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (B) M12X40 FLANGE THA 		0-28051-240-0 01 1 0607- ●
22 BOLT; TRANS CASE TO ENG
4JA1 ENG<RLE> (D) M12X40 FLANGE THA 		0-28051-240-0 01 1 0204-0408 ●
22 BOLT; TRANS CASE TO ENG
4JH1 ENG<RJX> (D) M12X40 FLANGE THA 		0-28051-240-0 01 1 0204-0408 ●
22 BOLT; TRANS CASE TO ENG
4JA1 ENG<RLE> TURBOCHARGER<K51> (C) M10X45 FLANGE THA 		0-28051-045-0 01 1 0204-0408 ●
22 BOLT; TRANS CASE TO ENG
4JA1-T ENG<LP0> (C) M10X45 FLANGE THA 		0-28051-045-0 01 1 0409-0412 ●
22 BOLT; TRANS CASE TO ENG
4JA1-T ENG<LP0> (F) M10X40 FLANGE THA 		0-28051-040-0 03 1 0501-0501 ●
22 BOLT; TRANS CASE TO ENG
4JA1-T ENG<LP0> (F) M12X35 FLANGE THA 		0-28051-235-0 01 1 0501-0501 ●
22 BOLT; TRANS CASE TO ENG
4JH1 ENG<RJX> TURBOCHARGER<K51> (E) M10X60 FLANGE THA 		0-28051-060-0 02 1 0204-0408 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (E) M10X60 FLANGE THA 		0-28051-060-0 02 1 0409-0412 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (E) M10X60 FLANGE THA 		0-28051-060-0 02 1 0501-0606 ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (E) M10X60 FLANGE THA 		0-28051-060-0 02 1 0607- ●
22 BOLT; TRANS CASE TO ENG
4JH1 ENG<RJX> (F) M10X40 FLANGE THA 		0-28051-040-0 04 1 0204-0408 ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (F) M10X40 FLANGE THA 		0-28051-040-0 04 1 0409-0412 ● ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (F) M10X40 FLANGE THA 		0-28051-040-0 04 1 0501-0606 ● ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (F) M10X40 FLANGE THA 		0-28051-040-0 04 1 0607- ● ●
22 BOLT; TRANS CASE TO ENG
4JH1 ENG<RJX> (G) M12X45 FLANGE THA 		0-28051-245-0 04 1 0204-0408 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB> (G) M12X45 FLANGE THA 		0-28051-245-0 04 1 0409- ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (J) M12X50 FLANGE THA 		0-28051-250-0 08 1 0609-0708 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (J) M12X50 FLANGE THA 		0-28051-250-0 08 1 0710- ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (F) M10X40 FLANGE THA 		0-28051-040-0 03 1 0609-0708 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (G) M12X45 FLANGE THA 		0-28051-245-0 02 1 0609-0708 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (H) M10X20,M10X40 L=70 THA 		8-98005-380-0 01 1 0609-0708 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (I) M12X176 FLANGE THA 		8-98005-381-0 02 1 0609-0708 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (F) M10X40 FLANGE THA 		0-28051-040-0 03 1 0710- ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (G) M12X45 FLANGE THA 		0-28051-245-0 02 1 0710- ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (H) M10X20,M10X40 L=70 THA 		8-98005-380-0 01 1 0710- ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (I) M12X176 FLANGE THA 		8-98005-381-0 02 1 0710- ●
27 NUT; CLU HSG TO TRANS
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> M10 FLANGE THA 		0-91180-110-0 02 1 0409-0412 ● ● ●
27 NUT; CLU HSG TO TRANS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M10 FLANGE THA 		0-91180-110-0 02 1 0501-0606 ● ● ●
27 NUT; CLU HSG TO TRANS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M10 FLANGE THA 		0-91180-110-0 02 1 0607-0608 ● ●
27 NUT; CLU HSG TO TRANS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M10 FLANGE THA 		0-91180-110-0 02 1 0609-0708 ● ● ●
27 NUT; CLU HSG TO TRANS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M10 FLANGE THA 		0-91180-110-0 02 1 0709-0709 ● ●
27 NUT; CLU HSG TO TRANS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M10 FLANGE THA 		0-91180-110-0 02 1 0710- ● ● ●
27 NUT; CLU HSG TO TRANS
4JJ1-TCX ENG<LS0> M12 FLANGE THA 		0-91180-112-0 02 1 0609-0708 ●
27 NUT; CLU HSG TO TRANS
4JJ1-TCX ENG<LS0> M12 FLANGE THA 		0-91180-112-0 02 1 0710- ●

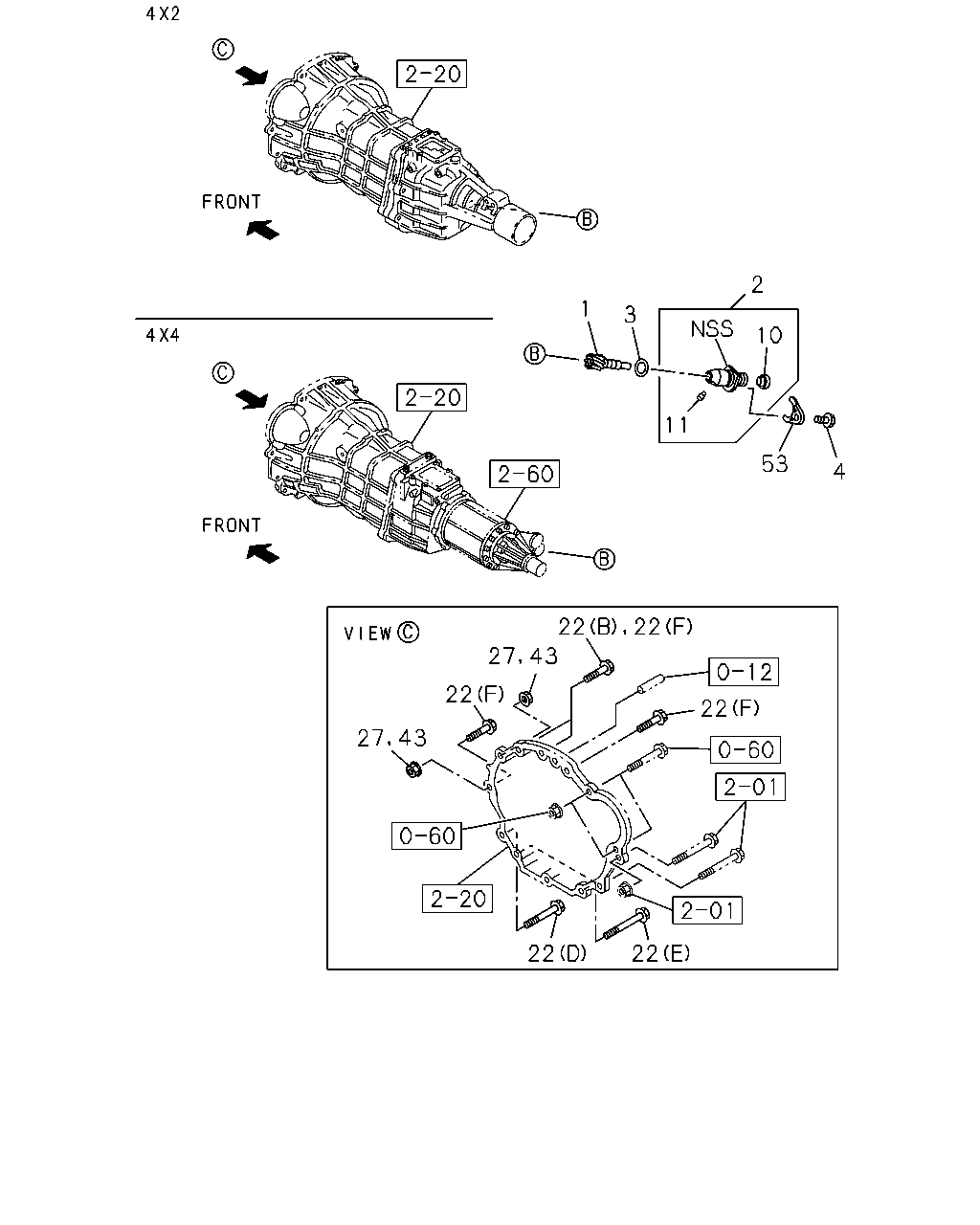

çizim 116414
2 1 3 10 11 53 4 22 22 22 22 22 22 43 27 43 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 41/12<GU6> FRT&RR 215/70R15C GOODYEAR TIRE<QFT> Z=17 THA 		8-98004-534-0 01 1 0710-0712 ●
1 GEAR; DRIVEN,SPD
4JA1 ENG<RLE> Z=18 THA 		8-94473-304-2 01 1 0204-0408 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/10<GT5> FRT&RR 195R14C<BSS>,FRT&RR 215/70R15C<QBQ> Z=18 THA 		8-94473-304-2 01 1 0409-0412 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> 4JH1 ENG<RJX> FRT&RR 195R14C<BSS> Z=18 THA 		8-97012-086-2 01 1 0204-0307 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> 4JH1 ENG<RJX> FRT&RR 195R14C<BSS>,FRT&RR 245/70R16<BSW> Z=18 THA 		8-97012-086-2 01 1 0308-0408 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C<QBQ> Z=16 THA 		8-97169-434-1 01 1 0409-0412 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C<QBQ> Z=16 THA 		8-97169-434-1 01 1 0501-0507 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/12<GM0> FRT&RR 215/70R15C<QBQ> Z=16 THA 		8-97169-434-1 01 1 0501-0507 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/12<GM0>,FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C<QBQ> Z=16 THA 		8-97169-434-1 01 1 0508-0606 ● ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/12<GM0> FRT&RR 215/70R15C<QBQ>,FRT&RR 215/70R15C GOODYEAR TIRE<QFT> Z=16 THA 		8-97169-434-1 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/11<GT4> FRT&RR 225/75R15C<BZC> Z=16 THA 		8-97169-434-1 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C GOODYEAR TIRE<QFT> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> Z=16 THA 		8-97169-434-1 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/11<GW1> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>, FRT&RR245/70R16 MICHELIN TIRE<QFE> Z=16 THA 		8-97169-434-1 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> 4JJ1-TCS ENG<LFB> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C GOODYEAR TIRE<QFT> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> Z=16 THA 		8-97169-434-1 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/12<GM0> FRT&RR 215/70R15C<QBQ>,FRT&RR 215/70R15C GOODYEAR TIRE<QFT> Z=16 THA 		8-97169-434-1 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/11<GW1> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>, FRT&RR245/70R16 MICHELIN TIRE<QFE> Z=16 THA 		8-97169-434-1 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/11<GT4>,FINAL GEAR RATIO 43/11<GW1> FRT&RR 225/75R15C<BZC> Z=16 THA 		8-97169-434-1 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> FINAL GEAR RATIO 43/12<GM0> FRT&RR 215/70R15C<QBQ> Z=16 THA 		8-97169-434-1 01 1 0801- ●
1 GEAR; DRIVEN,SPD
SINGLE CAB<TF**S*> Z=16 THA 		8-97169-434-1 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB*C*> FINAL GEAR RATIO 43/11<GW1> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=16 THA 		8-97169-434-1 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 43/11<GW1> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>, FRT&RR245/70R16 MICHELIN TIRE<QFE> Z=16 THA 		8-97169-434-1 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> FINAL GEAR RATIO 41/11<GT4>,FINAL GEAR RATIO 43/11<GW1> FRT&RR 225/75R15C<BZC> Z=16 THA 		8-97169-434-1 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4JH1 ENG<RJX> FRT&RR 215/70R15C<BSU> Z=17 IMA 		8-97012-085-2 01 1 0204-0408 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/10<GY2> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=17 IMA 		8-97012-085-2 01 1 0409-0412 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/10<GY2> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=17 IMA 		8-97012-085-2 01 1 0501-0606 ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C<QBQ> Z=17 IMA 		8-97012-085-2 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> FINAL GEAR RATIO 43/11<GW1> FRT&RR 215/70R15C<QBQ>,FRT&RR 215/70R15C GOODYEAR TIRE<QFT> Z=17 IMA 		8-97012-085-2 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C GOODYEAR TIRE<QFT> SOFT RIDE SUSPENSION SYSTEM<FE1> Z=17 IMA 		8-97012-085-2 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> 4JJ1-TCS ENG<LFB> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C GOODYEAR TIRE<QFT> SOFT RIDE SUSPENSION SYSTEM<FE1> Z=17 IMA 		8-97012-085-2 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C<QBQ> Z=17 IMA 		8-97012-085-2 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC>,FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>,FRT&RR 245/70R16 MICHELIN TIRE<QFE> Z=17 IMA 		8-97012-085-2 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C<QBQ> Z=17 IMA 		8-97012-085-2 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB*C*> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC>,FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=17 IMA 		8-97012-085-2 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC>,FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>,FRT&RR 245/70R16 MICHELIN TIRE<QFE> Z=17 IMA 		8-97012-085-2 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> Z=18 THA 		8-97238-584-2 01 1 0204-0408 ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 43/10<GY2> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=17 IMA 		8-97238-583-0 01 1 0409-0501 ● ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BSV> Z=17 IMA 		8-97238-583-0 01 1 0409-0501 ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 43/10<GY2> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=17 IMA 		8-97238-583-0 01 1 0502-0606 ● ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC> Z=17 IMA 		8-97238-583-0 01 1 0502-0606 ●
1 GEAR; DRIVEN,SPD
4X4 SPACE CAB<TFS*C*> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC> Z=17 IMA 		8-97238-583-0 01 1 0607-0608 ●
1 GEAR; DRIVEN,SPD
4X4 SPACE CAB<TFS*C*> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC> Z=17 IMA 		8-97238-583-0 01 1 0609-0708 ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/10<GT5> Z=17 IMA 		8-97238-583-0 01 1 0609-0708 ●

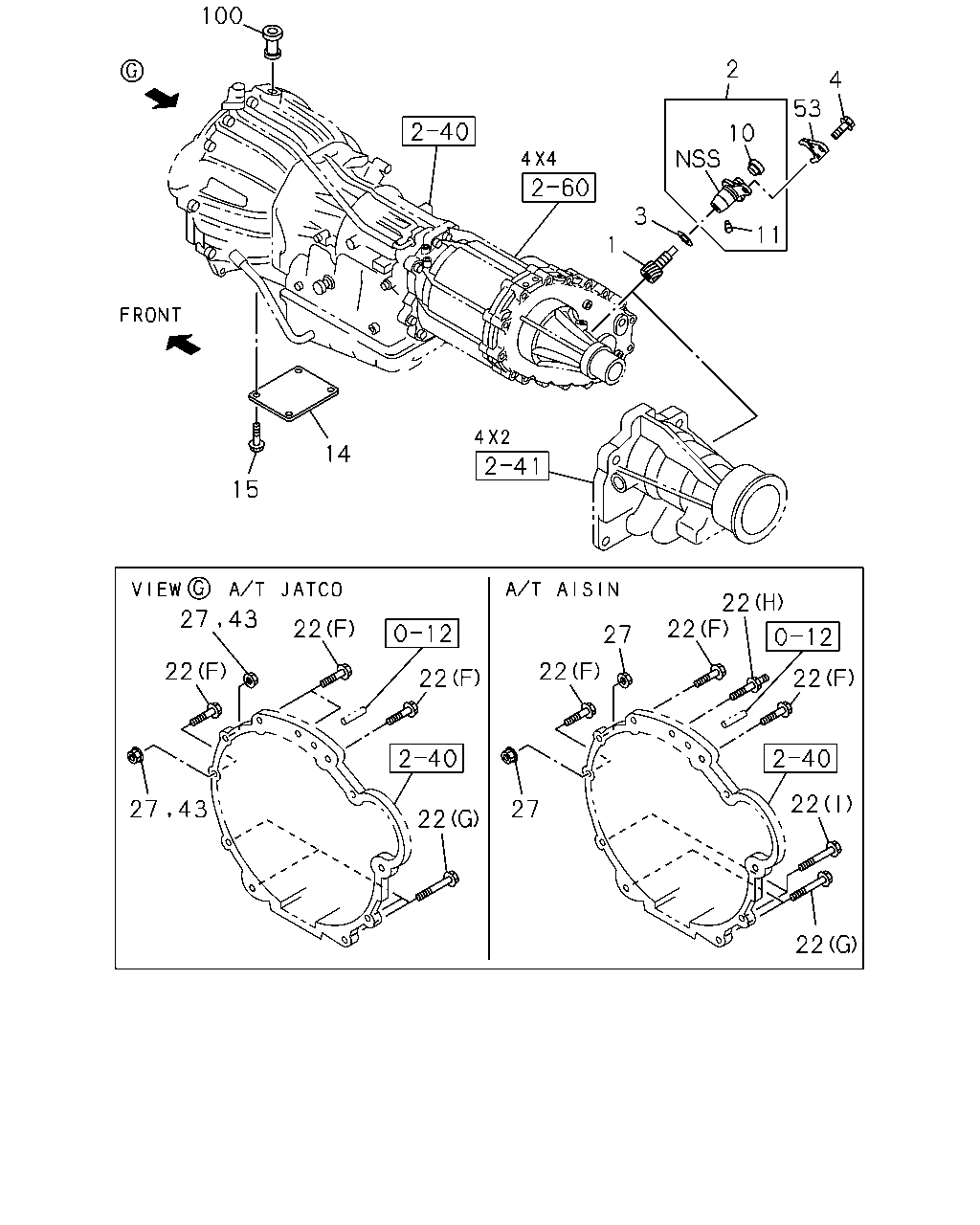

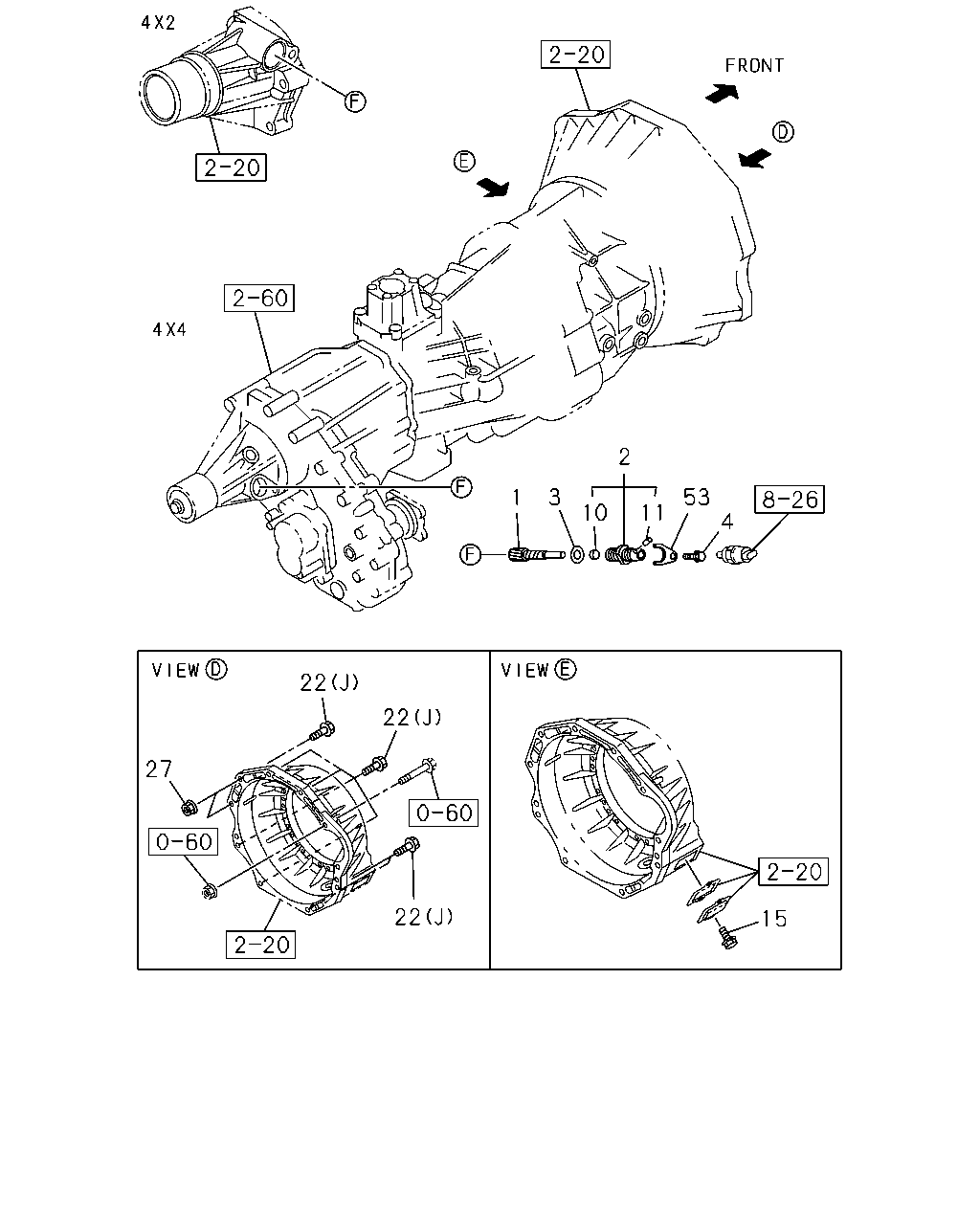

1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC> Z=17 IMA 		8-97238-583-0 01 1 0709-0709 ● ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC> Z=17 IMA 		8-97238-583-0 01 1 0710- ● ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/10<GT5> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=17 IMA 		8-97238-583-0 01 1 0710- ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> Z=17 THA 		8-97238-587-2 01 1 0204-0408 ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 43/10<GY2> FRT&RR 225/75R15C<BSV> Z=18 THA 		8-97238-584-2 01 1 0409-0501 ● ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 43/10<GY2> FRT&RR 225/75R15C<BZC> Z=18 THA 		8-97238-584-2 01 1 0502-0606 ● ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 43/10<GY2> FRT&RR 225/75R15C<BZC>,FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=18 THA 		8-97238-584-2 01 1 0607-0608 ● ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 43/10<GY2> FRT&RR 225/75R15C<BZC>,FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>,FRT&RR 245/70R16 MICHELIN TIRE<QFE> Z=18 THA 		8-97238-584-2 01 1 0609- ● ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/10<GT5>,FINAL GEAR RATIO 43/10<GY2> Z=18 THA 		8-97012-086-2 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/10<GT5> FRT&RR 215/70R15C<QBQ>,FRT&RR 215/70R15C GOODYEAR TIRE<QFT> Z=18 THA 		8-97012-086-2 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/10<GY2> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>, FRT&RR245/70R16 MICHELIN TIRE<QFE> Z=18 THA 		8-97012-086-2 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> FINAL GEAR RATIO 41/10<GT5> FRT&RR 215/70R15C<QBQ> Z=18 THA 		8-97012-086-2 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB*C*> FINAL GEAR RATIO 43/10<GY2> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=18 THA 		8-97012-086-2 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 43/10<GY2> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>, FRT&RR245/70R16 MICHELIN TIRE<QFE> Z=18 THA 		8-97012-086-2 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X4 SPACE CAB<TFS*C*> 4JK1 ENG<LKZ> FINAL GEAR RATIO 43/11<GW1> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=16 THA 		8-97238-582-0 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> 4JK1 ENG<LKZ> FINAL GEAR RATIO 41/11<GT4> FRT&RR 225/75R15C<BZC> Z=16 THA 		8-97238-582-0 01 1 0709- ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> 4JK1 ENG<LKZ> FINAL GEAR RATIO 43/11<GW1> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>, FRT&RR245/70R16 MICHELIN TIRE<QFE> Z=16 THA 		8-97238-582-0 01 1 0709- ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 43/11<GW1> FRT&RR 225/75R15C<BZC> Z=16 THA 		8-97238-582-0 01 1 0709- ●
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 43/12<GM0> FRT&RR 225/75R15C<BZC> Z=18 THA 		8-98004-535-0 01 1 0710-0802 ●
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 41/11<GT4> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>, FRT&RR245/70R16 MICHELIN TIRE<QFE> Z=18 THA 		8-98004-535-0 01 1 0710-0802 ●
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 41/12<GU6> FRT&RR 215/70R15C<QBQ> Z=18 THA 		8-98004-535-0 01 1 0710-0802 ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> FINAL GEAR RATIO 43/12<GM0> FRT&RR 225/75R15C<BZC> Z=18 THA 		8-98004-535-0 01 1 0803- ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB*C*> FINAL GEAR RATIO 41/11<GT4> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=18 THA 		8-98004-535-0 01 1 0803- ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> FINAL GEAR RATIO 41/12<GU6> FRT&RR 215/70R15C<QBQ> Z=18 THA 		8-98004-535-0 01 1 0803- ●
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 41/11<GT4> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>, FRT&RR245/70R16 MICHELIN TIRE<QFE> Z=18 THA 		8-98004-535-0 01 1 0803- ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 43/12<GM0> FRT&RR 225/75R15C<BZC> Z=18 THA 		8-98008-940-0 01 1 0710- ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/11<GT4> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=18 THA 		8-98008-940-0 01 1 0710- ●
1 GEAR; DRIVEN,SPD
4X4 DOUBLE CAB<TFS*W*> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/11<GT4> Z=18 THA 		8-98008-940-0 01 1 0609-0708 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/10<GT5> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> HIGH RIDE SUSPENSION<7YC> Z=17 THA 		8-98056-402-0 01 1 0710- ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 43/11<GW1> FRT&RR 225/75R15C<BZC> HIGH RIDE SUSPENSION<7YC> Z=16 THA 		8-98056-392-0 01 1 0710- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> IMA 		8-94463-608-4 01 1 0204-0412 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> IMA 		8-97021-133-4 01 1 0204-0408 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> IMA 		8-97021-133-4 01 1 0409-0412 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> IMA 		8-97021-133-4 01 1 0501-0606 ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> IMA 		8-97021-133-4 01 1 0607-0709 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> IMA 		8-97021-133-4 01 1 0710- ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4<TFS***> IMA 		8-97305-454-1 01 1 0204-0408 ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4<TFS***> IMA 		8-97305-454-1 01 1 0409-0606 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4<TFS***> IMA 		8-97305-454-1 01 1 0607-0608 ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4<TFS***> IMA 		8-97305-454-1 01 1 0609-0708 ● ● ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4<TFS***> IMA 		8-97305-454-1 01 1 0709-0709 ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4<TFS***> IMA 		8-97305-454-1 01 1 0710- ● ● ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> 4JJ1-TCX ENG<LS0> THA 		8-97181-543-0 01 1 0710- ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0204-0408 ● ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0204-0408 ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0409-0412 ● ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0409-0412 ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0501-0606 ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0501-0606 ●
3 GASKET; BUSHING
4X2<TFB***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0501-0606 ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0607-0608 ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0607-0608 ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0609-0708 ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0609-0708 ●
3 GASKET; BUSHING
4X4 DOUBLE CAB<TFS*W*> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0609-0708 ● ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0709-0709 ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0709-0709 ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0710- ● ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0710- ● ●
3 GASKET; BUSHING
4X2<TFB***> 4JJ1-TCX ENG<LS0> ID=19 THA 		8-97181-545-0 01 1 0710- ●
4 BOLT; RET,DRIVEN GEAR
4X2<TFB***> M8X16 FLANGE THA 		0-28050-816-0 01 1 0204-0412 ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0204-0408 ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0204-0408 ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0409-0412 ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0409-0412 ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0501-0606 ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0501-0606 ●
4 BOLT; RET,DRIVEN GEAR
4X2<TFB***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0501-0606 ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0607-0608 ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0607-0608 ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0609-0708 ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0609-0708 ●
4 BOLT; RET,DRIVEN GEAR
4X4 DOUBLE CAB<TFS*W*> M8X20 FLANGE THA 		0-28050-820-0 01 1 0609-0708 ● ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0709-0709 ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0709-0709 ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0710- ● ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0710- ● ●
4 BOLT; RET,DRIVEN GEAR
4X2<TFB***> 4JJ1-TCX ENG<LS0> M8X14 W/WASHER THA 		8-94480-043-0 01 1 0710- ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0204-0408 ● ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0204-0408 ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0409-0412 ● ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0409-0412 ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0501-0606 ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0501-0606 ●
10 SEAL; OIL,DRIVE GEAR
4X2<TFB***> NOK IMA 		8-97131-328-1 01 1 0501-0606 ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0607-0608 ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0607-0608 ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0609-0708 ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0609-0708 ●
10 SEAL; OIL,DRIVE GEAR
4X4 DOUBLE CAB<TFS*W*> NOK IMA 		8-97131-328-1 01 1 0609-0708 ● ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0709-0709 ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0709-0709 ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0710- ● ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0710- ● ●
10 SEAL; OIL,DRIVE GEAR
4X2<TFB***> 4JJ1-TCX ENG<LS0> NOK THA 		8-94480-040-0 01 1 0710- ●
10 SEAL; OIL,DRIVE GEAR
4X2<TFB***> 4JJ1-TCX ENG<LS0> JTEKT THA 		8-97181-544-0 01 1 0710- ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0204-0408 ● ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0204-0408 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0409-0412 ● ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0409-0412 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0501-0606 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0501-0606 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X2<TFB***> IMA 		8-94446-571-1 01 1 0501-0606 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0607-0608 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0607-0608 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0609-0708 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0609-0708 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4 DOUBLE CAB<TFS*W*> IMA 		8-94446-571-1 01 1 0609-0708 ● ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0709-0709 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0709-0709 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0710- ● ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0710- ● ●
22 BOLT; TRANS CASE TO ENG
4JA1 ENG<RLE> (A) M10X35 FLANGE THA 		0-28051-035-0 01 1 0204-0408 ●
22 BOLT; TRANS CASE TO ENG
4JA1-T ENG<LP0> (A) M10X35 FLANGE THA 		0-28051-035-0 01 1 0409-0412 ●
22 BOLT; TRANS CASE TO ENG
4JA1-T ENG<LP0> (A) M10X35 FLANGE THA 		0-28051-035-0 02 1 0501-0501 ●
22 BOLT; TRANS CASE TO ENG
4JA1 ENG<RLE> (B) M10X40 FLANGE THA 		0-28051-040-0 02 1 0204-0408 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (B) M12X40 FLANGE THA 		0-28051-240-0 01 1 0409-0412 ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (B) M12X40 FLANGE THA 		0-28051-240-0 01 1 0501-0501 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (B) M12X40 FLANGE THA 		0-28051-240-0 01 1 0501-0606 ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (B) M12X40 FLANGE THA 		0-28051-240-0 01 1 0607- ●
22 BOLT; TRANS CASE TO ENG
4JA1 ENG<RLE> (D) M12X40 FLANGE THA 		0-28051-240-0 01 1 0204-0408 ●
22 BOLT; TRANS CASE TO ENG
4JH1 ENG<RJX> (D) M12X40 FLANGE THA 		0-28051-240-0 01 1 0204-0408 ●
22 BOLT; TRANS CASE TO ENG
4JA1 ENG<RLE> TURBOCHARGER<K51> (C) M10X45 FLANGE THA 		0-28051-045-0 01 1 0204-0408 ●
22 BOLT; TRANS CASE TO ENG
4JA1-T ENG<LP0> (C) M10X45 FLANGE THA 		0-28051-045-0 01 1 0409-0412 ●
22 BOLT; TRANS CASE TO ENG
4JA1-T ENG<LP0> (F) M10X40 FLANGE THA 		0-28051-040-0 03 1 0501-0501 ●
22 BOLT; TRANS CASE TO ENG
4JA1-T ENG<LP0> (F) M12X35 FLANGE THA 		0-28051-235-0 01 1 0501-0501 ●
22 BOLT; TRANS CASE TO ENG
4JH1 ENG<RJX> TURBOCHARGER<K51> (E) M10X60 FLANGE THA 		0-28051-060-0 02 1 0204-0408 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (E) M10X60 FLANGE THA 		0-28051-060-0 02 1 0409-0412 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (E) M10X60 FLANGE THA 		0-28051-060-0 02 1 0501-0606 ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (E) M10X60 FLANGE THA 		0-28051-060-0 02 1 0607- ●
22 BOLT; TRANS CASE TO ENG
4JH1 ENG<RJX> (F) M10X40 FLANGE THA 		0-28051-040-0 04 1 0204-0408 ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (F) M10X40 FLANGE THA 		0-28051-040-0 04 1 0409-0412 ● ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (F) M10X40 FLANGE THA 		0-28051-040-0 04 1 0501-0606 ● ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (F) M10X40 FLANGE THA 		0-28051-040-0 04 1 0607- ● ●
22 BOLT; TRANS CASE TO ENG
4JH1 ENG<RJX> (G) M12X45 FLANGE THA 		0-28051-245-0 04 1 0204-0408 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB> (G) M12X45 FLANGE THA 		0-28051-245-0 04 1 0409- ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (J) M12X50 FLANGE THA 		0-28051-250-0 08 1 0609-0708 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (J) M12X50 FLANGE THA 		0-28051-250-0 08 1 0710- ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (F) M10X40 FLANGE THA 		0-28051-040-0 03 1 0609-0708 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (G) M12X45 FLANGE THA 		0-28051-245-0 02 1 0609-0708 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (H) M10X20,M10X40 L=70 THA 		8-98005-380-0 01 1 0609-0708 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (I) M12X176 FLANGE THA 		8-98005-381-0 02 1 0609-0708 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (F) M10X40 FLANGE THA 		0-28051-040-0 03 1 0710- ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (G) M12X45 FLANGE THA 		0-28051-245-0 02 1 0710- ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (H) M10X20,M10X40 L=70 THA 		8-98005-380-0 01 1 0710- ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (I) M12X176 FLANGE THA 		8-98005-381-0 02 1 0710- ●
27 NUT; CLU HSG TO TRANS
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> M10 FLANGE THA 		0-91180-110-0 02 1 0409-0412 ● ● ●
27 NUT; CLU HSG TO TRANS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M10 FLANGE THA 		0-91180-110-0 02 1 0501-0606 ● ● ●
27 NUT; CLU HSG TO TRANS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M10 FLANGE THA 		0-91180-110-0 02 1 0607-0608 ● ●
27 NUT; CLU HSG TO TRANS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M10 FLANGE THA 		0-91180-110-0 02 1 0609-0708 ● ● ●
27 NUT; CLU HSG TO TRANS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M10 FLANGE THA 		0-91180-110-0 02 1 0709-0709 ● ●
27 NUT; CLU HSG TO TRANS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M10 FLANGE THA 		0-91180-110-0 02 1 0710- ● ● ●
27 NUT; CLU HSG TO TRANS
4JJ1-TCX ENG<LS0> M12 FLANGE THA 		0-91180-112-0 02 1 0609-0708 ●
27 NUT; CLU HSG TO TRANS
4JJ1-TCX ENG<LS0> M12 FLANGE THA 		0-91180-112-0 02 1 0710- ●
43 NUT; TRANS CASE
4JH1 ENG<RJX> M10 FLANGE THA 		0-91180-110-0 02 1 0204-0408 ● ●
53 PLATE; LOCK,DRIVEN GEAR
THA 		8-97021-019-0 01 1 0204-0408 ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> THA 		8-97021-019-0 01 1 0204-0408 ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> THA 		8-97021-019-0 01 1 0409-0412 ●
53 PLATE; LOCK,DRIVEN GEAR
THA 		8-97021-019-0 01 1 0409-0412 ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> THA 		8-97021-019-0 01 1 0501-0606 ●
53 PLATE; LOCK,DRIVEN GEAR
THA 		8-97021-019-0 01 1 0501-0606 ●
53 PLATE; LOCK,DRIVEN GEAR
4X2<TFB***> THA 		8-97021-019-0 01 1 0501-0606 ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> THA 		8-97021-019-0 01 1 0607-0608 ●
53 PLATE; LOCK,DRIVEN GEAR
THA 		8-97021-019-0 01 1 0607-0608 ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> THA 		8-97021-019-0 01 1 0609-0703 ●
53 PLATE; LOCK,DRIVEN GEAR
THA 		8-97021-019-0 01 1 0609-0703 ●
53 PLATE; LOCK,DRIVEN GEAR
4X4 DOUBLE CAB<TFS*W*> THA 		8-97021-019-0 01 1 0609-0703 ● ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> IMA 		8-98035-572-0 01 1 0704-0708 ●
53 PLATE; LOCK,DRIVEN GEAR
IMA 		8-98035-572-0 01 1 0704-0708 ●
53 PLATE; LOCK,DRIVEN GEAR
4X4 DOUBLE CAB<TFS*W*> IMA 		8-98035-572-0 01 1 0704-0708 ● ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> IMA 		8-98035-572-0 01 1 0709-0709 ●
53 PLATE; LOCK,DRIVEN GEAR
IMA 		8-98035-572-0 01 1 0709-0709 ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> IMA 		8-98035-572-0 01 1 0710- ● ●
53 PLATE; LOCK,DRIVEN GEAR
IMA 		8-98035-572-0 01 1 0710- ● ●
53 PLATE; LOCK,DRIVEN GEAR
4X2<TFB***> 4JJ1-TCX ENG<LS0> THA 		8-94479-720-0 01 1 0710- ●
çizim 116415
2 3 53 1 10 11 4 22 22 27 22 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 41/12<GU6> FRT&RR 215/70R15C GOODYEAR TIRE<QFT> Z=17 THA 		8-98004-534-0 01 1 0710-0712 ●
1 GEAR; DRIVEN,SPD
4JA1 ENG<RLE> Z=18 THA 		8-94473-304-2 01 1 0204-0408 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/10<GT5> FRT&RR 195R14C<BSS>,FRT&RR 215/70R15C<QBQ> Z=18 THA 		8-94473-304-2 01 1 0409-0412 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> 4JH1 ENG<RJX> FRT&RR 195R14C<BSS> Z=18 THA 		8-97012-086-2 01 1 0204-0307 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> 4JH1 ENG<RJX> FRT&RR 195R14C<BSS>,FRT&RR 245/70R16<BSW> Z=18 THA 		8-97012-086-2 01 1 0308-0408 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C<QBQ> Z=16 THA 		8-97169-434-1 01 1 0409-0412 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C<QBQ> Z=16 THA 		8-97169-434-1 01 1 0501-0507 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/12<GM0> FRT&RR 215/70R15C<QBQ> Z=16 THA 		8-97169-434-1 01 1 0501-0507 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/12<GM0>,FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C<QBQ> Z=16 THA 		8-97169-434-1 01 1 0508-0606 ● ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/12<GM0> FRT&RR 215/70R15C<QBQ>,FRT&RR 215/70R15C GOODYEAR TIRE<QFT> Z=16 THA 		8-97169-434-1 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/11<GT4> FRT&RR 225/75R15C<BZC> Z=16 THA 		8-97169-434-1 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C GOODYEAR TIRE<QFT> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> Z=16 THA 		8-97169-434-1 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/11<GW1> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>, FRT&RR245/70R16 MICHELIN TIRE<QFE> Z=16 THA 		8-97169-434-1 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> 4JJ1-TCS ENG<LFB> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C GOODYEAR TIRE<QFT> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> Z=16 THA 		8-97169-434-1 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/12<GM0> FRT&RR 215/70R15C<QBQ>,FRT&RR 215/70R15C GOODYEAR TIRE<QFT> Z=16 THA 		8-97169-434-1 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/11<GW1> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>, FRT&RR245/70R16 MICHELIN TIRE<QFE> Z=16 THA 		8-97169-434-1 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/11<GT4>,FINAL GEAR RATIO 43/11<GW1> FRT&RR 225/75R15C<BZC> Z=16 THA 		8-97169-434-1 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> FINAL GEAR RATIO 43/12<GM0> FRT&RR 215/70R15C<QBQ> Z=16 THA 		8-97169-434-1 01 1 0801- ●
1 GEAR; DRIVEN,SPD
SINGLE CAB<TF**S*> Z=16 THA 		8-97169-434-1 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB*C*> FINAL GEAR RATIO 43/11<GW1> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=16 THA 		8-97169-434-1 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 43/11<GW1> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>, FRT&RR245/70R16 MICHELIN TIRE<QFE> Z=16 THA 		8-97169-434-1 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> FINAL GEAR RATIO 41/11<GT4>,FINAL GEAR RATIO 43/11<GW1> FRT&RR 225/75R15C<BZC> Z=16 THA 		8-97169-434-1 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4JH1 ENG<RJX> FRT&RR 215/70R15C<BSU> Z=17 IMA 		8-97012-085-2 01 1 0204-0408 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/10<GY2> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=17 IMA 		8-97012-085-2 01 1 0409-0412 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/10<GY2> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=17 IMA 		8-97012-085-2 01 1 0501-0606 ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C<QBQ> Z=17 IMA 		8-97012-085-2 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> FINAL GEAR RATIO 43/11<GW1> FRT&RR 215/70R15C<QBQ>,FRT&RR 215/70R15C GOODYEAR TIRE<QFT> Z=17 IMA 		8-97012-085-2 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C GOODYEAR TIRE<QFT> SOFT RIDE SUSPENSION SYSTEM<FE1> Z=17 IMA 		8-97012-085-2 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> 4JJ1-TCS ENG<LFB> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C GOODYEAR TIRE<QFT> SOFT RIDE SUSPENSION SYSTEM<FE1> Z=17 IMA 		8-97012-085-2 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C<QBQ> Z=17 IMA 		8-97012-085-2 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC>,FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>,FRT&RR 245/70R16 MICHELIN TIRE<QFE> Z=17 IMA 		8-97012-085-2 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C<QBQ> Z=17 IMA 		8-97012-085-2 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB*C*> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC>,FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=17 IMA 		8-97012-085-2 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC>,FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>,FRT&RR 245/70R16 MICHELIN TIRE<QFE> Z=17 IMA 		8-97012-085-2 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> Z=18 THA 		8-97238-584-2 01 1 0204-0408 ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 43/10<GY2> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=17 IMA 		8-97238-583-0 01 1 0409-0501 ● ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BSV> Z=17 IMA 		8-97238-583-0 01 1 0409-0501 ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 43/10<GY2> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=17 IMA 		8-97238-583-0 01 1 0502-0606 ● ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC> Z=17 IMA 		8-97238-583-0 01 1 0502-0606 ●
1 GEAR; DRIVEN,SPD
4X4 SPACE CAB<TFS*C*> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC> Z=17 IMA 		8-97238-583-0 01 1 0607-0608 ●
1 GEAR; DRIVEN,SPD
4X4 SPACE CAB<TFS*C*> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC> Z=17 IMA 		8-97238-583-0 01 1 0609-0708 ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/10<GT5> Z=17 IMA 		8-97238-583-0 01 1 0609-0708 ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC> Z=17 IMA 		8-97238-583-0 01 1 0709-0709 ● ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC> Z=17 IMA 		8-97238-583-0 01 1 0710- ● ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/10<GT5> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=17 IMA 		8-97238-583-0 01 1 0710- ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> Z=17 THA 		8-97238-587-2 01 1 0204-0408 ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 43/10<GY2> FRT&RR 225/75R15C<BSV> Z=18 THA 		8-97238-584-2 01 1 0409-0501 ● ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 43/10<GY2> FRT&RR 225/75R15C<BZC> Z=18 THA 		8-97238-584-2 01 1 0502-0606 ● ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 43/10<GY2> FRT&RR 225/75R15C<BZC>,FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=18 THA 		8-97238-584-2 01 1 0607-0608 ● ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 43/10<GY2> FRT&RR 225/75R15C<BZC>,FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>,FRT&RR 245/70R16 MICHELIN TIRE<QFE> Z=18 THA 		8-97238-584-2 01 1 0609- ● ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/10<GT5>,FINAL GEAR RATIO 43/10<GY2> Z=18 THA 		8-97012-086-2 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/10<GT5> FRT&RR 215/70R15C<QBQ>,FRT&RR 215/70R15C GOODYEAR TIRE<QFT> Z=18 THA 		8-97012-086-2 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/10<GY2> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>, FRT&RR245/70R16 MICHELIN TIRE<QFE> Z=18 THA 		8-97012-086-2 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> FINAL GEAR RATIO 41/10<GT5> FRT&RR 215/70R15C<QBQ> Z=18 THA 		8-97012-086-2 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB*C*> FINAL GEAR RATIO 43/10<GY2> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=18 THA 		8-97012-086-2 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 43/10<GY2> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>, FRT&RR245/70R16 MICHELIN TIRE<QFE> Z=18 THA 		8-97012-086-2 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X4 SPACE CAB<TFS*C*> 4JK1 ENG<LKZ> FINAL GEAR RATIO 43/11<GW1> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=16 THA 		8-97238-582-0 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> 4JK1 ENG<LKZ> FINAL GEAR RATIO 41/11<GT4> FRT&RR 225/75R15C<BZC> Z=16 THA 		8-97238-582-0 01 1 0709- ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> 4JK1 ENG<LKZ> FINAL GEAR RATIO 43/11<GW1> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>, FRT&RR245/70R16 MICHELIN TIRE<QFE> Z=16 THA 		8-97238-582-0 01 1 0709- ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 43/11<GW1> FRT&RR 225/75R15C<BZC> Z=16 THA 		8-97238-582-0 01 1 0709- ●
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 43/12<GM0> FRT&RR 225/75R15C<BZC> Z=18 THA 		8-98004-535-0 01 1 0710-0802 ●
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 41/11<GT4> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>, FRT&RR245/70R16 MICHELIN TIRE<QFE> Z=18 THA 		8-98004-535-0 01 1 0710-0802 ●
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 41/12<GU6> FRT&RR 215/70R15C<QBQ> Z=18 THA 		8-98004-535-0 01 1 0710-0802 ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> FINAL GEAR RATIO 43/12<GM0> FRT&RR 225/75R15C<BZC> Z=18 THA 		8-98004-535-0 01 1 0803- ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB*C*> FINAL GEAR RATIO 41/11<GT4> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=18 THA 		8-98004-535-0 01 1 0803- ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> FINAL GEAR RATIO 41/12<GU6> FRT&RR 215/70R15C<QBQ> Z=18 THA 		8-98004-535-0 01 1 0803- ●
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 41/11<GT4> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>, FRT&RR245/70R16 MICHELIN TIRE<QFE> Z=18 THA 		8-98004-535-0 01 1 0803- ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 43/12<GM0> FRT&RR 225/75R15C<BZC> Z=18 THA 		8-98008-940-0 01 1 0710- ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/11<GT4> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=18 THA 		8-98008-940-0 01 1 0710- ●
1 GEAR; DRIVEN,SPD
4X4 DOUBLE CAB<TFS*W*> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/11<GT4> Z=18 THA 		8-98008-940-0 01 1 0609-0708 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/10<GT5> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> HIGH RIDE SUSPENSION<7YC> Z=17 THA 		8-98056-402-0 01 1 0710- ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 43/11<GW1> FRT&RR 225/75R15C<BZC> HIGH RIDE SUSPENSION<7YC> Z=16 THA 		8-98056-392-0 01 1 0710- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> IMA 		8-94463-608-4 01 1 0204-0412 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> IMA 		8-97021-133-4 01 1 0204-0408 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> IMA 		8-97021-133-4 01 1 0409-0412 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> IMA 		8-97021-133-4 01 1 0501-0606 ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> IMA 		8-97021-133-4 01 1 0607-0709 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> IMA 		8-97021-133-4 01 1 0710- ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4<TFS***> IMA 		8-97305-454-1 01 1 0204-0408 ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4<TFS***> IMA 		8-97305-454-1 01 1 0409-0606 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4<TFS***> IMA 		8-97305-454-1 01 1 0607-0608 ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4<TFS***> IMA 		8-97305-454-1 01 1 0609-0708 ● ● ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4<TFS***> IMA 		8-97305-454-1 01 1 0709-0709 ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4<TFS***> IMA 		8-97305-454-1 01 1 0710- ● ● ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> 4JJ1-TCX ENG<LS0> THA 		8-97181-543-0 01 1 0710- ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0204-0408 ● ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0204-0408 ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0409-0412 ● ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0409-0412 ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0501-0606 ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0501-0606 ●
3 GASKET; BUSHING
4X2<TFB***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0501-0606 ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0607-0608 ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0607-0608 ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0609-0708 ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0609-0708 ●
3 GASKET; BUSHING
4X4 DOUBLE CAB<TFS*W*> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0609-0708 ● ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0709-0709 ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0709-0709 ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0710- ● ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0710- ● ●
3 GASKET; BUSHING
4X2<TFB***> 4JJ1-TCX ENG<LS0> ID=19 THA 		8-97181-545-0 01 1 0710- ●
4 BOLT; RET,DRIVEN GEAR
4X2<TFB***> M8X16 FLANGE THA 		0-28050-816-0 01 1 0204-0412 ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0204-0408 ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0204-0408 ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0409-0412 ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0409-0412 ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0501-0606 ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0501-0606 ●
4 BOLT; RET,DRIVEN GEAR
4X2<TFB***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0501-0606 ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0607-0608 ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0607-0608 ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0609-0708 ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0609-0708 ●
4 BOLT; RET,DRIVEN GEAR
4X4 DOUBLE CAB<TFS*W*> M8X20 FLANGE THA 		0-28050-820-0 01 1 0609-0708 ● ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0709-0709 ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0709-0709 ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0710- ● ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0710- ● ●
4 BOLT; RET,DRIVEN GEAR
4X2<TFB***> 4JJ1-TCX ENG<LS0> M8X14 W/WASHER THA 		8-94480-043-0 01 1 0710- ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0204-0408 ● ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0204-0408 ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0409-0412 ● ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0409-0412 ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0501-0606 ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0501-0606 ●
10 SEAL; OIL,DRIVE GEAR
4X2<TFB***> NOK IMA 		8-97131-328-1 01 1 0501-0606 ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0607-0608 ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0607-0608 ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0609-0708 ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0609-0708 ●
10 SEAL; OIL,DRIVE GEAR
4X4 DOUBLE CAB<TFS*W*> NOK IMA 		8-97131-328-1 01 1 0609-0708 ● ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0709-0709 ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0709-0709 ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0710- ● ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0710- ● ●
10 SEAL; OIL,DRIVE GEAR
4X2<TFB***> 4JJ1-TCX ENG<LS0> NOK THA 		8-94480-040-0 01 1 0710- ●
10 SEAL; OIL,DRIVE GEAR
4X2<TFB***> 4JJ1-TCX ENG<LS0> JTEKT THA 		8-97181-544-0 01 1 0710- ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0204-0408 ● ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0204-0408 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0409-0412 ● ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0409-0412 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0501-0606 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0501-0606 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X2<TFB***> IMA 		8-94446-571-1 01 1 0501-0606 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0607-0608 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0607-0608 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0609-0708 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0609-0708 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4 DOUBLE CAB<TFS*W*> IMA 		8-94446-571-1 01 1 0609-0708 ● ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0709-0709 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0709-0709 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0710- ● ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0710- ● ●
15 BOLT; UNDER COVER TO TRANS
4JA1 ENG<RLE> TURBOCHARGER<K51> M10X40 FLANGE THA 		0-28051-040-0 01 1 0204-0408 ●
15 BOLT; UNDER COVER TO TRANS
4JA1 ENG<RLE> M10X40 FLANGE THA 		0-28051-040-0 01 1 0204-0408 ●
15 BOLT; UNDER COVER TO TRANS
4JH1 ENG<RJX> M6X16 FLANGE THA 		0-28650-616-0 04 1 0204-0408 ●
15 BOLT; UNDER COVER TO TRANS
4JJ1-TCS ENG<LFB> M6X16 FLANGE THA 		0-28650-616-0 04 1 0409-0608 ●
15 BOLT; UNDER COVER TO TRANS
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> M6X16 FLANGE THA 		0-28650-616-0 04 1 0609-0708 ● ●
15 BOLT; UNDER COVER TO TRANS
4JJ1-TCS ENG<LFB> M6X16 FLANGE THA 		0-28650-616-0 04 1 0709-0709 ●
15 BOLT; UNDER COVER TO TRANS
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> M6X16 FLANGE THA 		0-28650-616-0 04 1 0710- ● ●
15 BOLT; UNDER COVER TO TRANS
4JJ1-TCX ENG<LS0> M6X12 FLANGE THA 		0-28050-612-0 02 1 0609-0708 ●
15 BOLT; UNDER COVER TO TRANS
4JJ1-TCX ENG<LS0> M6X12 FLANGE THA 		0-28050-612-0 02 1 0710- ●
22 BOLT; TRANS CASE TO ENG
4JA1 ENG<RLE> (A) M10X35 FLANGE THA 		0-28051-035-0 01 1 0204-0408 ●
22 BOLT; TRANS CASE TO ENG
4JA1-T ENG<LP0> (A) M10X35 FLANGE THA 		0-28051-035-0 01 1 0409-0412 ●
22 BOLT; TRANS CASE TO ENG
4JA1-T ENG<LP0> (A) M10X35 FLANGE THA 		0-28051-035-0 02 1 0501-0501 ●
22 BOLT; TRANS CASE TO ENG
4JA1 ENG<RLE> (B) M10X40 FLANGE THA 		0-28051-040-0 02 1 0204-0408 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (B) M12X40 FLANGE THA 		0-28051-240-0 01 1 0409-0412 ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (B) M12X40 FLANGE THA 		0-28051-240-0 01 1 0501-0501 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (B) M12X40 FLANGE THA 		0-28051-240-0 01 1 0501-0606 ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (B) M12X40 FLANGE THA 		0-28051-240-0 01 1 0607- ●
22 BOLT; TRANS CASE TO ENG
4JA1 ENG<RLE> (D) M12X40 FLANGE THA 		0-28051-240-0 01 1 0204-0408 ●
22 BOLT; TRANS CASE TO ENG
4JH1 ENG<RJX> (D) M12X40 FLANGE THA 		0-28051-240-0 01 1 0204-0408 ●
22 BOLT; TRANS CASE TO ENG
4JA1 ENG<RLE> TURBOCHARGER<K51> (C) M10X45 FLANGE THA 		0-28051-045-0 01 1 0204-0408 ●
22 BOLT; TRANS CASE TO ENG
4JA1-T ENG<LP0> (C) M10X45 FLANGE THA 		0-28051-045-0 01 1 0409-0412 ●
22 BOLT; TRANS CASE TO ENG
4JA1-T ENG<LP0> (F) M10X40 FLANGE THA 		0-28051-040-0 03 1 0501-0501 ●
22 BOLT; TRANS CASE TO ENG
4JA1-T ENG<LP0> (F) M12X35 FLANGE THA 		0-28051-235-0 01 1 0501-0501 ●
22 BOLT; TRANS CASE TO ENG
4JH1 ENG<RJX> TURBOCHARGER<K51> (E) M10X60 FLANGE THA 		0-28051-060-0 02 1 0204-0408 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (E) M10X60 FLANGE THA 		0-28051-060-0 02 1 0409-0412 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (E) M10X60 FLANGE THA 		0-28051-060-0 02 1 0501-0606 ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (E) M10X60 FLANGE THA 		0-28051-060-0 02 1 0607- ●
22 BOLT; TRANS CASE TO ENG
4JH1 ENG<RJX> (F) M10X40 FLANGE THA 		0-28051-040-0 04 1 0204-0408 ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (F) M10X40 FLANGE THA 		0-28051-040-0 04 1 0409-0412 ● ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (F) M10X40 FLANGE THA 		0-28051-040-0 04 1 0501-0606 ● ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (F) M10X40 FLANGE THA 		0-28051-040-0 04 1 0607- ● ●
22 BOLT; TRANS CASE TO ENG
4JH1 ENG<RJX> (G) M12X45 FLANGE THA 		0-28051-245-0 04 1 0204-0408 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB> (G) M12X45 FLANGE THA 		0-28051-245-0 04 1 0409- ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (J) M12X50 FLANGE THA 		0-28051-250-0 08 1 0609-0708 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (J) M12X50 FLANGE THA 		0-28051-250-0 08 1 0710- ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (F) M10X40 FLANGE THA 		0-28051-040-0 03 1 0609-0708 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (G) M12X45 FLANGE THA 		0-28051-245-0 02 1 0609-0708 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (H) M10X20,M10X40 L=70 THA 		8-98005-380-0 01 1 0609-0708 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (I) M12X176 FLANGE THA 		8-98005-381-0 02 1 0609-0708 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (F) M10X40 FLANGE THA 		0-28051-040-0 03 1 0710- ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (G) M12X45 FLANGE THA 		0-28051-245-0 02 1 0710- ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (H) M10X20,M10X40 L=70 THA 		8-98005-380-0 01 1 0710- ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (I) M12X176 FLANGE THA 		8-98005-381-0 02 1 0710- ●
27 NUT; CLU HSG TO TRANS
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> M10 FLANGE THA 		0-91180-110-0 02 1 0409-0412 ● ● ●
27 NUT; CLU HSG TO TRANS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M10 FLANGE THA 		0-91180-110-0 02 1 0501-0606 ● ● ●
27 NUT; CLU HSG TO TRANS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M10 FLANGE THA 		0-91180-110-0 02 1 0607-0608 ● ●
27 NUT; CLU HSG TO TRANS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M10 FLANGE THA 		0-91180-110-0 02 1 0609-0708 ● ● ●
27 NUT; CLU HSG TO TRANS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M10 FLANGE THA 		0-91180-110-0 02 1 0709-0709 ● ●
27 NUT; CLU HSG TO TRANS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M10 FLANGE THA 		0-91180-110-0 02 1 0710- ● ● ●
27 NUT; CLU HSG TO TRANS
4JJ1-TCX ENG<LS0> M12 FLANGE THA 		0-91180-112-0 02 1 0609-0708 ●
27 NUT; CLU HSG TO TRANS
4JJ1-TCX ENG<LS0> M12 FLANGE THA 		0-91180-112-0 02 1 0710- ●
53 PLATE; LOCK,DRIVEN GEAR
THA 		8-97021-019-0 01 1 0204-0408 ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> THA 		8-97021-019-0 01 1 0204-0408 ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> THA 		8-97021-019-0 01 1 0409-0412 ●
53 PLATE; LOCK,DRIVEN GEAR
THA 		8-97021-019-0 01 1 0409-0412 ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> THA 		8-97021-019-0 01 1 0501-0606 ●
53 PLATE; LOCK,DRIVEN GEAR
THA 		8-97021-019-0 01 1 0501-0606 ●
53 PLATE; LOCK,DRIVEN GEAR
4X2<TFB***> THA 		8-97021-019-0 01 1 0501-0606 ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> THA 		8-97021-019-0 01 1 0607-0608 ●
53 PLATE; LOCK,DRIVEN GEAR
THA 		8-97021-019-0 01 1 0607-0608 ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> THA 		8-97021-019-0 01 1 0609-0703 ●
53 PLATE; LOCK,DRIVEN GEAR
THA 		8-97021-019-0 01 1 0609-0703 ●
53 PLATE; LOCK,DRIVEN GEAR
4X4 DOUBLE CAB<TFS*W*> THA 		8-97021-019-0 01 1 0609-0703 ● ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> IMA 		8-98035-572-0 01 1 0704-0708 ●
53 PLATE; LOCK,DRIVEN GEAR
IMA 		8-98035-572-0 01 1 0704-0708 ●
53 PLATE; LOCK,DRIVEN GEAR
4X4 DOUBLE CAB<TFS*W*> IMA 		8-98035-572-0 01 1 0704-0708 ● ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> IMA 		8-98035-572-0 01 1 0709-0709 ●
53 PLATE; LOCK,DRIVEN GEAR
IMA 		8-98035-572-0 01 1 0709-0709 ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> IMA 		8-98035-572-0 01 1 0710- ● ●
53 PLATE; LOCK,DRIVEN GEAR
IMA 		8-98035-572-0 01 1 0710- ● ●
53 PLATE; LOCK,DRIVEN GEAR
4X2<TFB***> 4JJ1-TCX ENG<LS0> THA 		8-94479-720-0 01 1 0710- ●
çizim 116424
100 2 4 53 10 3 11 1 14 15 22 22 22 27 22 22 22 22 22 27 22 22 43 27 43 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 41/12<GU6> FRT&RR 215/70R15C GOODYEAR TIRE<QFT> Z=17 THA 		8-98004-534-0 01 1 0710-0712 ●
1 GEAR; DRIVEN,SPD
4JA1 ENG<RLE> Z=18 THA 		8-94473-304-2 01 1 0204-0408 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/10<GT5> FRT&RR 195R14C<BSS>,FRT&RR 215/70R15C<QBQ> Z=18 THA 		8-94473-304-2 01 1 0409-0412 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> 4JH1 ENG<RJX> FRT&RR 195R14C<BSS> Z=18 THA 		8-97012-086-2 01 1 0204-0307 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> 4JH1 ENG<RJX> FRT&RR 195R14C<BSS>,FRT&RR 245/70R16<BSW> Z=18 THA 		8-97012-086-2 01 1 0308-0408 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C<QBQ> Z=16 THA 		8-97169-434-1 01 1 0409-0412 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C<QBQ> Z=16 THA 		8-97169-434-1 01 1 0501-0507 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/12<GM0> FRT&RR 215/70R15C<QBQ> Z=16 THA 		8-97169-434-1 01 1 0501-0507 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/12<GM0>,FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C<QBQ> Z=16 THA 		8-97169-434-1 01 1 0508-0606 ● ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/12<GM0> FRT&RR 215/70R15C<QBQ>,FRT&RR 215/70R15C GOODYEAR TIRE<QFT> Z=16 THA 		8-97169-434-1 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/11<GT4> FRT&RR 225/75R15C<BZC> Z=16 THA 		8-97169-434-1 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C GOODYEAR TIRE<QFT> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> Z=16 THA 		8-97169-434-1 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/11<GW1> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>, FRT&RR245/70R16 MICHELIN TIRE<QFE> Z=16 THA 		8-97169-434-1 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> 4JJ1-TCS ENG<LFB> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C GOODYEAR TIRE<QFT> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> Z=16 THA 		8-97169-434-1 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/12<GM0> FRT&RR 215/70R15C<QBQ>,FRT&RR 215/70R15C GOODYEAR TIRE<QFT> Z=16 THA 		8-97169-434-1 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/11<GW1> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>, FRT&RR245/70R16 MICHELIN TIRE<QFE> Z=16 THA 		8-97169-434-1 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/11<GT4>,FINAL GEAR RATIO 43/11<GW1> FRT&RR 225/75R15C<BZC> Z=16 THA 		8-97169-434-1 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> FINAL GEAR RATIO 43/12<GM0> FRT&RR 215/70R15C<QBQ> Z=16 THA 		8-97169-434-1 01 1 0801- ●
1 GEAR; DRIVEN,SPD
SINGLE CAB<TF**S*> Z=16 THA 		8-97169-434-1 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB*C*> FINAL GEAR RATIO 43/11<GW1> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=16 THA 		8-97169-434-1 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 43/11<GW1> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>, FRT&RR245/70R16 MICHELIN TIRE<QFE> Z=16 THA 		8-97169-434-1 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> FINAL GEAR RATIO 41/11<GT4>,FINAL GEAR RATIO 43/11<GW1> FRT&RR 225/75R15C<BZC> Z=16 THA 		8-97169-434-1 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4JH1 ENG<RJX> FRT&RR 215/70R15C<BSU> Z=17 IMA 		8-97012-085-2 01 1 0204-0408 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/10<GY2> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=17 IMA 		8-97012-085-2 01 1 0409-0412 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/10<GY2> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=17 IMA 		8-97012-085-2 01 1 0501-0606 ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C<QBQ> Z=17 IMA 		8-97012-085-2 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> FINAL GEAR RATIO 43/11<GW1> FRT&RR 215/70R15C<QBQ>,FRT&RR 215/70R15C GOODYEAR TIRE<QFT> Z=17 IMA 		8-97012-085-2 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C GOODYEAR TIRE<QFT> SOFT RIDE SUSPENSION SYSTEM<FE1> Z=17 IMA 		8-97012-085-2 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> 4JJ1-TCS ENG<LFB> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C GOODYEAR TIRE<QFT> SOFT RIDE SUSPENSION SYSTEM<FE1> Z=17 IMA 		8-97012-085-2 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C<QBQ> Z=17 IMA 		8-97012-085-2 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC>,FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>,FRT&RR 245/70R16 MICHELIN TIRE<QFE> Z=17 IMA 		8-97012-085-2 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C<QBQ> Z=17 IMA 		8-97012-085-2 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB*C*> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC>,FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=17 IMA 		8-97012-085-2 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC>,FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>,FRT&RR 245/70R16 MICHELIN TIRE<QFE> Z=17 IMA 		8-97012-085-2 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> Z=18 THA 		8-97238-584-2 01 1 0204-0408 ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 43/10<GY2> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=17 IMA 		8-97238-583-0 01 1 0409-0501 ● ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BSV> Z=17 IMA 		8-97238-583-0 01 1 0409-0501 ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 43/10<GY2> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=17 IMA 		8-97238-583-0 01 1 0502-0606 ● ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC> Z=17 IMA 		8-97238-583-0 01 1 0502-0606 ●
1 GEAR; DRIVEN,SPD
4X4 SPACE CAB<TFS*C*> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC> Z=17 IMA 		8-97238-583-0 01 1 0607-0608 ●
1 GEAR; DRIVEN,SPD
4X4 SPACE CAB<TFS*C*> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC> Z=17 IMA 		8-97238-583-0 01 1 0609-0708 ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/10<GT5> Z=17 IMA 		8-97238-583-0 01 1 0609-0708 ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC> Z=17 IMA 		8-97238-583-0 01 1 0709-0709 ● ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC> Z=17 IMA 		8-97238-583-0 01 1 0710- ● ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/10<GT5> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=17 IMA 		8-97238-583-0 01 1 0710- ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> Z=17 THA 		8-97238-587-2 01 1 0204-0408 ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 43/10<GY2> FRT&RR 225/75R15C<BSV> Z=18 THA 		8-97238-584-2 01 1 0409-0501 ● ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 43/10<GY2> FRT&RR 225/75R15C<BZC> Z=18 THA 		8-97238-584-2 01 1 0502-0606 ● ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 43/10<GY2> FRT&RR 225/75R15C<BZC>,FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=18 THA 		8-97238-584-2 01 1 0607-0608 ● ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> FINAL GEAR RATIO 43/10<GY2> FRT&RR 225/75R15C<BZC>,FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>,FRT&RR 245/70R16 MICHELIN TIRE<QFE> Z=18 THA 		8-97238-584-2 01 1 0609- ● ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/10<GT5>,FINAL GEAR RATIO 43/10<GY2> Z=18 THA 		8-97012-086-2 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/10<GT5> FRT&RR 215/70R15C<QBQ>,FRT&RR 215/70R15C GOODYEAR TIRE<QFT> Z=18 THA 		8-97012-086-2 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/10<GY2> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>, FRT&RR245/70R16 MICHELIN TIRE<QFE> Z=18 THA 		8-97012-086-2 01 1 0709-0712 ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> FINAL GEAR RATIO 41/10<GT5> FRT&RR 215/70R15C<QBQ> Z=18 THA 		8-97012-086-2 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB*C*> FINAL GEAR RATIO 43/10<GY2> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=18 THA 		8-97012-086-2 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 43/10<GY2> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>, FRT&RR245/70R16 MICHELIN TIRE<QFE> Z=18 THA 		8-97012-086-2 01 1 0801- ●
1 GEAR; DRIVEN,SPD
4X4 SPACE CAB<TFS*C*> 4JK1 ENG<LKZ> FINAL GEAR RATIO 43/11<GW1> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=16 THA 		8-97238-582-0 01 1 0607-0708 ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> 4JK1 ENG<LKZ> FINAL GEAR RATIO 41/11<GT4> FRT&RR 225/75R15C<BZC> Z=16 THA 		8-97238-582-0 01 1 0709- ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> 4JK1 ENG<LKZ> FINAL GEAR RATIO 43/11<GW1> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>, FRT&RR245/70R16 MICHELIN TIRE<QFE> Z=16 THA 		8-97238-582-0 01 1 0709- ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 43/11<GW1> FRT&RR 225/75R15C<BZC> Z=16 THA 		8-97238-582-0 01 1 0709- ●
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 43/12<GM0> FRT&RR 225/75R15C<BZC> Z=18 THA 		8-98004-535-0 01 1 0710-0802 ●
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 41/11<GT4> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>, FRT&RR245/70R16 MICHELIN TIRE<QFE> Z=18 THA 		8-98004-535-0 01 1 0710-0802 ●
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 41/12<GU6> FRT&RR 215/70R15C<QBQ> Z=18 THA 		8-98004-535-0 01 1 0710-0802 ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> FINAL GEAR RATIO 43/12<GM0> FRT&RR 225/75R15C<BZC> Z=18 THA 		8-98004-535-0 01 1 0803- ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB*C*> FINAL GEAR RATIO 41/11<GT4> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=18 THA 		8-98004-535-0 01 1 0803- ●
1 GEAR; DRIVEN,SPD
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> FINAL GEAR RATIO 41/12<GU6> FRT&RR 215/70R15C<QBQ> Z=18 THA 		8-98004-535-0 01 1 0803- ●
1 GEAR; DRIVEN,SPD
4X2 DOUBLE CAB<TFB*W*> FINAL GEAR RATIO 41/11<GT4> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>, FRT&RR245/70R16 MICHELIN TIRE<QFE> Z=18 THA 		8-98004-535-0 01 1 0803- ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 43/12<GM0> FRT&RR 225/75R15C<BZC> Z=18 THA 		8-98008-940-0 01 1 0710- ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/11<GT4> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> Z=18 THA 		8-98008-940-0 01 1 0710- ●
1 GEAR; DRIVEN,SPD
4X4 DOUBLE CAB<TFS*W*> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/11<GT4> Z=18 THA 		8-98008-940-0 01 1 0609-0708 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/10<GT5> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ> HIGH RIDE SUSPENSION<7YC> Z=17 THA 		8-98056-402-0 01 1 0710- ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 43/11<GW1> FRT&RR 225/75R15C<BZC> HIGH RIDE SUSPENSION<7YC> Z=16 THA 		8-98056-392-0 01 1 0710- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> IMA 		8-94463-608-4 01 1 0204-0412 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> IMA 		8-97021-133-4 01 1 0204-0408 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> IMA 		8-97021-133-4 01 1 0409-0412 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> IMA 		8-97021-133-4 01 1 0501-0606 ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> IMA 		8-97021-133-4 01 1 0607-0709 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> IMA 		8-97021-133-4 01 1 0710- ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4<TFS***> IMA 		8-97305-454-1 01 1 0204-0408 ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4<TFS***> IMA 		8-97305-454-1 01 1 0409-0606 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4<TFS***> IMA 		8-97305-454-1 01 1 0607-0608 ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4<TFS***> IMA 		8-97305-454-1 01 1 0609-0708 ● ● ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4<TFS***> IMA 		8-97305-454-1 01 1 0709-0709 ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4<TFS***> IMA 		8-97305-454-1 01 1 0710- ● ● ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> 4JJ1-TCX ENG<LS0> THA 		8-97181-543-0 01 1 0710- ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0204-0408 ● ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0204-0408 ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0409-0412 ● ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0409-0412 ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0501-0606 ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0501-0606 ●
3 GASKET; BUSHING
4X2<TFB***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0501-0606 ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0607-0608 ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0607-0608 ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0609-0708 ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0609-0708 ●
3 GASKET; BUSHING
4X4 DOUBLE CAB<TFS*W*> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0609-0708 ● ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0709-0709 ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0709-0709 ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0710- ● ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0710- ● ●
3 GASKET; BUSHING
4X2<TFB***> 4JJ1-TCX ENG<LS0> ID=19 THA 		8-97181-545-0 01 1 0710- ●
4 BOLT; RET,DRIVEN GEAR
4X2<TFB***> M8X16 FLANGE THA 		0-28050-816-0 01 1 0204-0412 ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0204-0408 ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0204-0408 ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0409-0412 ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0409-0412 ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0501-0606 ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0501-0606 ●
4 BOLT; RET,DRIVEN GEAR
4X2<TFB***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0501-0606 ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0607-0608 ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0607-0608 ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0609-0708 ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0609-0708 ●
4 BOLT; RET,DRIVEN GEAR
4X4 DOUBLE CAB<TFS*W*> M8X20 FLANGE THA 		0-28050-820-0 01 1 0609-0708 ● ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0709-0709 ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0709-0709 ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0710- ● ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0710- ● ●
4 BOLT; RET,DRIVEN GEAR
4X2<TFB***> 4JJ1-TCX ENG<LS0> M8X14 W/WASHER THA 		8-94480-043-0 01 1 0710- ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0204-0408 ● ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0204-0408 ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0409-0412 ● ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0409-0412 ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0501-0606 ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0501-0606 ●
10 SEAL; OIL,DRIVE GEAR
4X2<TFB***> NOK IMA 		8-97131-328-1 01 1 0501-0606 ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0607-0608 ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0607-0608 ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0609-0708 ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0609-0708 ●
10 SEAL; OIL,DRIVE GEAR
4X4 DOUBLE CAB<TFS*W*> NOK IMA 		8-97131-328-1 01 1 0609-0708 ● ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0709-0709 ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0709-0709 ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0710- ● ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0710- ● ●
10 SEAL; OIL,DRIVE GEAR
4X2<TFB***> 4JJ1-TCX ENG<LS0> NOK THA 		8-94480-040-0 01 1 0710- ●
10 SEAL; OIL,DRIVE GEAR
4X2<TFB***> 4JJ1-TCX ENG<LS0> JTEKT THA 		8-97181-544-0 01 1 0710- ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0204-0408 ● ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0204-0408 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0409-0412 ● ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0409-0412 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0501-0606 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0501-0606 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X2<TFB***> IMA 		8-94446-571-1 01 1 0501-0606 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0607-0608 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0607-0608 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0609-0708 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0609-0708 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4 DOUBLE CAB<TFS*W*> IMA 		8-94446-571-1 01 1 0609-0708 ● ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0709-0709 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0709-0709 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0710- ● ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0710- ● ●
14 COVER; UNDER,TRANS
4JH1 ENG<RJX> THA 		8-94375-252-0 01 1 0204-0408 ●
14 COVER; UNDER,TRANS
4JJ1-TCS ENG<LFB> THA 		8-94375-252-0 01 1 0409-0608 ●
14 COVER; UNDER,TRANS
4JJ1-TCS ENG<LFB> THA 		8-98049-857-0 01 1 0609-0609 ●
14 COVER; UNDER,TRANS
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> THA 		8-98049-857-0 01 1 0609-0708 ● ●
14 COVER; UNDER,TRANS
4JJ1-TCS ENG<LFB> THA 		8-98049-857-0 01 1 0709-0709 ●
14 COVER; UNDER,TRANS
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> THA 		8-98049-857-0 01 1 0710- ● ●
15 BOLT; UNDER COVER TO TRANS
4JA1 ENG<RLE> TURBOCHARGER<K51> M10X40 FLANGE THA 		0-28051-040-0 01 1 0204-0408 ●
15 BOLT; UNDER COVER TO TRANS
4JA1 ENG<RLE> M10X40 FLANGE THA 		0-28051-040-0 01 1 0204-0408 ●
15 BOLT; UNDER COVER TO TRANS
4JH1 ENG<RJX> M6X16 FLANGE THA 		0-28650-616-0 04 1 0204-0408 ●
15 BOLT; UNDER COVER TO TRANS
4JJ1-TCS ENG<LFB> M6X16 FLANGE THA 		0-28650-616-0 04 1 0409-0608 ●
15 BOLT; UNDER COVER TO TRANS
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> M6X16 FLANGE THA 		0-28650-616-0 04 1 0609-0708 ● ●
15 BOLT; UNDER COVER TO TRANS
4JJ1-TCS ENG<LFB> M6X16 FLANGE THA 		0-28650-616-0 04 1 0709-0709 ●
15 BOLT; UNDER COVER TO TRANS
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> M6X16 FLANGE THA 		0-28650-616-0 04 1 0710- ● ●
15 BOLT; UNDER COVER TO TRANS
4JJ1-TCX ENG<LS0> M6X12 FLANGE THA 		0-28050-612-0 02 1 0609-0708 ●
15 BOLT; UNDER COVER TO TRANS
4JJ1-TCX ENG<LS0> M6X12 FLANGE THA 		0-28050-612-0 02 1 0710- ●
22 BOLT; TRANS CASE TO ENG
4JA1 ENG<RLE> (A) M10X35 FLANGE THA 		0-28051-035-0 01 1 0204-0408 ●
22 BOLT; TRANS CASE TO ENG
4JA1-T ENG<LP0> (A) M10X35 FLANGE THA 		0-28051-035-0 01 1 0409-0412 ●
22 BOLT; TRANS CASE TO ENG
4JA1-T ENG<LP0> (A) M10X35 FLANGE THA 		0-28051-035-0 02 1 0501-0501 ●
22 BOLT; TRANS CASE TO ENG
4JA1 ENG<RLE> (B) M10X40 FLANGE THA 		0-28051-040-0 02 1 0204-0408 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (B) M12X40 FLANGE THA 		0-28051-240-0 01 1 0409-0412 ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (B) M12X40 FLANGE THA 		0-28051-240-0 01 1 0501-0501 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (B) M12X40 FLANGE THA 		0-28051-240-0 01 1 0501-0606 ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (B) M12X40 FLANGE THA 		0-28051-240-0 01 1 0607- ●
22 BOLT; TRANS CASE TO ENG
4JA1 ENG<RLE> (D) M12X40 FLANGE THA 		0-28051-240-0 01 1 0204-0408 ●
22 BOLT; TRANS CASE TO ENG
4JH1 ENG<RJX> (D) M12X40 FLANGE THA 		0-28051-240-0 01 1 0204-0408 ●
22 BOLT; TRANS CASE TO ENG
4JA1 ENG<RLE> TURBOCHARGER<K51> (C) M10X45 FLANGE THA 		0-28051-045-0 01 1 0204-0408 ●
22 BOLT; TRANS CASE TO ENG
4JA1-T ENG<LP0> (C) M10X45 FLANGE THA 		0-28051-045-0 01 1 0409-0412 ●
22 BOLT; TRANS CASE TO ENG
4JA1-T ENG<LP0> (F) M10X40 FLANGE THA 		0-28051-040-0 03 1 0501-0501 ●
22 BOLT; TRANS CASE TO ENG
4JA1-T ENG<LP0> (F) M12X35 FLANGE THA 		0-28051-235-0 01 1 0501-0501 ●
22 BOLT; TRANS CASE TO ENG
4JH1 ENG<RJX> TURBOCHARGER<K51> (E) M10X60 FLANGE THA 		0-28051-060-0 02 1 0204-0408 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (E) M10X60 FLANGE THA 		0-28051-060-0 02 1 0409-0412 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (E) M10X60 FLANGE THA 		0-28051-060-0 02 1 0501-0606 ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (E) M10X60 FLANGE THA 		0-28051-060-0 02 1 0607- ●
22 BOLT; TRANS CASE TO ENG
4JH1 ENG<RJX> (F) M10X40 FLANGE THA 		0-28051-040-0 04 1 0204-0408 ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (F) M10X40 FLANGE THA 		0-28051-040-0 04 1 0409-0412 ● ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (F) M10X40 FLANGE THA 		0-28051-040-0 04 1 0501-0606 ● ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (F) M10X40 FLANGE THA 		0-28051-040-0 04 1 0607- ● ●
22 BOLT; TRANS CASE TO ENG
4JH1 ENG<RJX> (G) M12X45 FLANGE THA 		0-28051-245-0 04 1 0204-0408 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG<LFB> (G) M12X45 FLANGE THA 		0-28051-245-0 04 1 0409- ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (J) M12X50 FLANGE THA 		0-28051-250-0 08 1 0609-0708 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (J) M12X50 FLANGE THA 		0-28051-250-0 08 1 0710- ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (F) M10X40 FLANGE THA 		0-28051-040-0 03 1 0609-0708 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (G) M12X45 FLANGE THA 		0-28051-245-0 02 1 0609-0708 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (H) M10X20,M10X40 L=70 THA 		8-98005-380-0 01 1 0609-0708 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (I) M12X176 FLANGE THA 		8-98005-381-0 02 1 0609-0708 ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (F) M10X40 FLANGE THA 		0-28051-040-0 03 1 0710- ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (G) M12X45 FLANGE THA 		0-28051-245-0 02 1 0710- ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (H) M10X20,M10X40 L=70 THA 		8-98005-380-0 01 1 0710- ●
22 BOLT; TRANS CASE TO ENG
4JJ1-TCX ENG<LS0> (I) M12X176 FLANGE THA 		8-98005-381-0 02 1 0710- ●
27 NUT; CLU HSG TO TRANS
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> M10 FLANGE THA 		0-91180-110-0 02 1 0409-0412 ● ● ●
27 NUT; CLU HSG TO TRANS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M10 FLANGE THA 		0-91180-110-0 02 1 0501-0606 ● ● ●
27 NUT; CLU HSG TO TRANS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M10 FLANGE THA 		0-91180-110-0 02 1 0607-0608 ● ●
27 NUT; CLU HSG TO TRANS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M10 FLANGE THA 		0-91180-110-0 02 1 0609-0708 ● ● ●
27 NUT; CLU HSG TO TRANS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M10 FLANGE THA 		0-91180-110-0 02 1 0709-0709 ● ●
27 NUT; CLU HSG TO TRANS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M10 FLANGE THA 		0-91180-110-0 02 1 0710- ● ● ●
27 NUT; CLU HSG TO TRANS
4JJ1-TCX ENG<LS0> M12 FLANGE THA 		0-91180-112-0 02 1 0609-0708 ●
27 NUT; CLU HSG TO TRANS
4JJ1-TCX ENG<LS0> M12 FLANGE THA 		0-91180-112-0 02 1 0710- ●
43 NUT; TRANS CASE
4JH1 ENG<RJX> M10 FLANGE THA 		0-91180-110-0 02 1 0204-0408 ● ●
53 PLATE; LOCK,DRIVEN GEAR
THA 		8-97021-019-0 01 1 0204-0408 ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> THA 		8-97021-019-0 01 1 0204-0408 ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> THA 		8-97021-019-0 01 1 0409-0412 ●
53 PLATE; LOCK,DRIVEN GEAR
THA 		8-97021-019-0 01 1 0409-0412 ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> THA 		8-97021-019-0 01 1 0501-0606 ●
53 PLATE; LOCK,DRIVEN GEAR
THA 		8-97021-019-0 01 1 0501-0606 ●
53 PLATE; LOCK,DRIVEN GEAR
4X2<TFB***> THA 		8-97021-019-0 01 1 0501-0606 ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> THA 		8-97021-019-0 01 1 0607-0608 ●
53 PLATE; LOCK,DRIVEN GEAR
THA 		8-97021-019-0 01 1 0607-0608 ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> THA 		8-97021-019-0 01 1 0609-0703 ●
53 PLATE; LOCK,DRIVEN GEAR
THA 		8-97021-019-0 01 1 0609-0703 ●
53 PLATE; LOCK,DRIVEN GEAR
4X4 DOUBLE CAB<TFS*W*> THA 		8-97021-019-0 01 1 0609-0703 ● ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> IMA 		8-98035-572-0 01 1 0704-0708 ●
53 PLATE; LOCK,DRIVEN GEAR
IMA 		8-98035-572-0 01 1 0704-0708 ●
53 PLATE; LOCK,DRIVEN GEAR
4X4 DOUBLE CAB<TFS*W*> IMA 		8-98035-572-0 01 1 0704-0708 ● ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> IMA 		8-98035-572-0 01 1 0709-0709 ●
53 PLATE; LOCK,DRIVEN GEAR
IMA 		8-98035-572-0 01 1 0709-0709 ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> IMA 		8-98035-572-0 01 1 0710- ● ●
53 PLATE; LOCK,DRIVEN GEAR
IMA 		8-98035-572-0 01 1 0710- ● ●
53 PLATE; LOCK,DRIVEN GEAR
4X2<TFB***> 4JJ1-TCX ENG<LS0> THA 		8-94479-720-0 01 1 0710- ●
100 PLUG; HOLE
4JJ1-TCS ENG<LFB> THA 		8-97318-961-0 01 1 0409-0412 ●
100 PLUG; HOLE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97318-961-0 01 1 0501- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
