◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-06 - CLUTCH SLAVE CYLINDER ▶
2-06 — CLUTCH SLAVE CYLINDER (#72834) — 102 parça

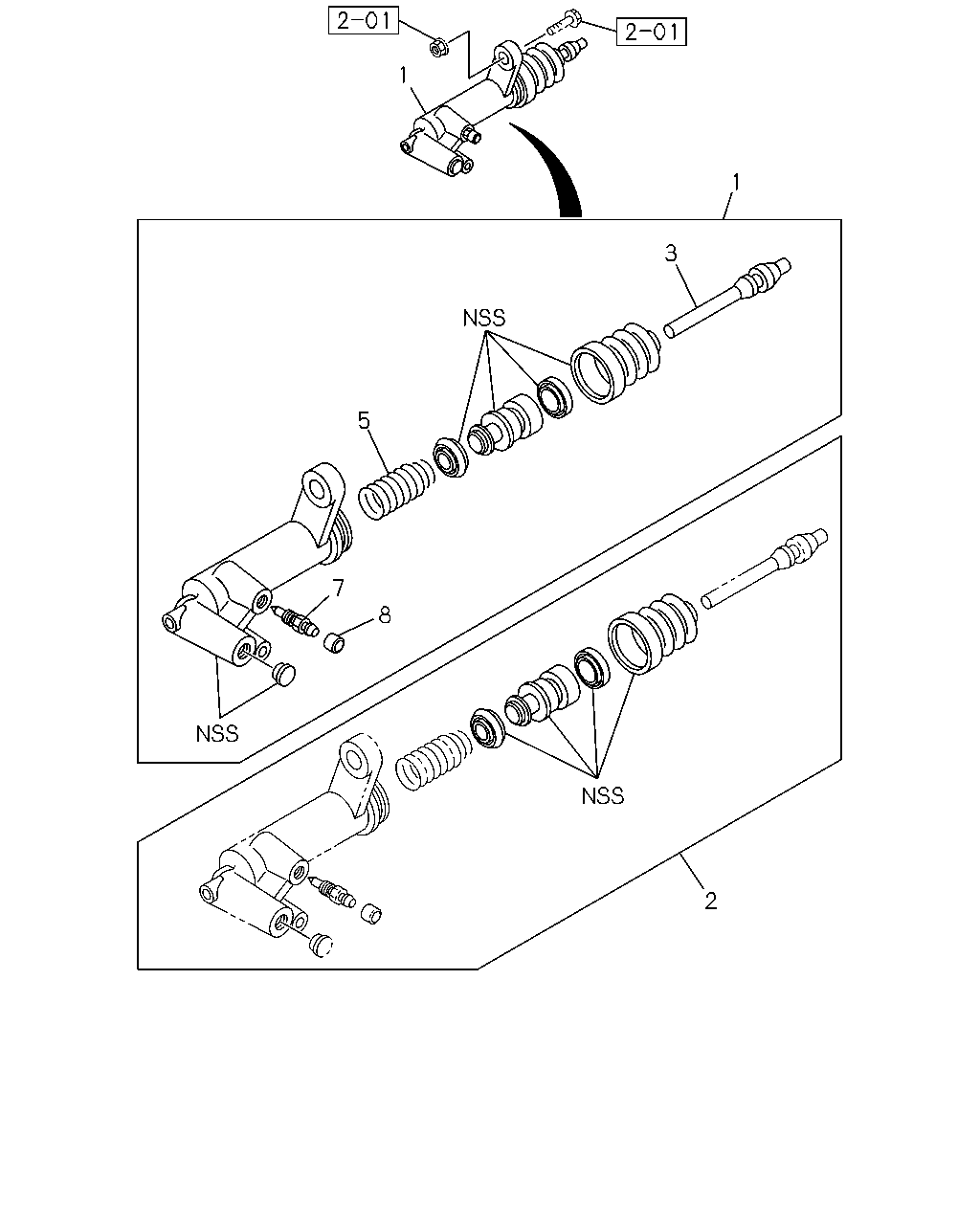

çizim 116411
1 1 3 5 7 8 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CYLINDER; SLAVE,CLU
M/T MSG 5 SPEED<M75> THA 		8-97942-296-0 01 1 0204-0408 ●
1 CYLINDER; SLAVE,CLU
M/T MSG 5 SPEED<M75> THA 		8-97942-296-0 01 1 0409-0412 ●
1 CYLINDER; SLAVE,CLU
M/T MUA 5 SPEED<RMN> THA 		8-97941-515-0 01 1 0204-0408 ●
1 CYLINDER; SLAVE,CLU
M/T MUA 5 SPEED 5G<RSP> THA 		8-97941-515-0 01 1 0409-0412 ●
1 CYLINDER; SLAVE,CLU
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97941-515-0 01 1 0501-0606 ● ●
1 CYLINDER; SLAVE,CLU
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97945-177-0 01 1 0607- ● ●
1 CYLINDER; SLAVE,CLU
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97944-513-3 01 1 0609-0708 ●
1 CYLINDER; SLAVE,CLU
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97944-513-3 01 1 0710-1108 ●
1 CYLINDER; SLAVE,CLU
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97947-765-0 01 1 1109- ●
2 REPAIR KIT; CLU SLAVE CYL
M/T MSG 5 SPEED<M75> THA 		5-87832-049-0 01 1 0204-0408 ●
2 REPAIR KIT; CLU SLAVE CYL
M/T MSG 5 SPEED<M75> THA 		5-87832-049-0 01 1 0409-0412 ●
2 REPAIR KIT; CLU SLAVE CYL
M/T MUA 5 SPEED<RMN> THA 		5-87832-048-0 01 1 0204-0408 ●
2 REPAIR KIT; CLU SLAVE CYL
M/T MUA 5 SPEED 5G<RSP> THA 		5-87832-048-0 01 1 0409-0412 ●
2 REPAIR KIT; CLU SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		5-87832-048-0 01 1 0501-0606 ● ●
2 REPAIR KIT; CLU SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ> THA 		5-87832-048-0 01 1 0607- ● ●
2 REPAIR KIT; CLU SLAVE CYL
M/T MUX 5 SPEED 5S<MZJ> THA 		5-87832-067-0 01 1 0609-0708 ●
2 REPAIR KIT; CLU SLAVE CYL
M/T MUX 5 SPEED 5S<MZJ> THA 		5-87832-067-0 01 1 0710-1102 ●
2 REPAIR KIT; CLU SLAVE CYL
M/T MUX 5 SPEED 5S<MZJ> THA 		5-87832-264-0 01 1 1103- ●
3 ROD; PUSH,SLAVE CYL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97942-803-0 01 1 0204-0408 ● ●
3 ROD; PUSH,SLAVE CYL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97942-803-0 01 1 0409-0412 ● ●
3 ROD; PUSH,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97942-803-0 01 1 0501-0606 ● ●
3 ROD; PUSH,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97945-722-0 01 1 0607- ● ●
3 ROD; PUSH,SLAVE CYL
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97945-721-0 01 1 0609-0708 ●
3 ROD; PUSH,SLAVE CYL
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97945-721-0 01 1 0710-1108 ●
3 ROD; PUSH,SLAVE CYL
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97947-769-0 01 1 1109- ●
5 SPRING ASM; PISTON,SLAVE CYL
M/T MSG 5 SPEED<M75> THA 		8-97942-802-0 01 1 0204-0408 ●
5 SPRING ASM; PISTON,SLAVE CYL
M/T MSG 5 SPEED<M75> THA 		8-97942-802-0 01 1 0409-0412 ●
5 SPRING ASM; PISTON,SLAVE CYL
M/T MUA 5 SPEED<RMN> THA 		8-97942-801-0 01 1 0204-0408 ●
5 SPRING ASM; PISTON,SLAVE CYL
M/T MUA 5 SPEED 5G<RSP> THA 		8-97942-801-0 01 1 0409-0412 ●
5 SPRING ASM; PISTON,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97942-801-0 01 1 0501-0606 ● ●
5 SPRING ASM; PISTON,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97942-801-0 01 1 0607- ● ●
5 SPRING ASM; PISTON,SLAVE CYL
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97028-736-0 01 1 0609-0708 ●
5 SPRING ASM; PISTON,SLAVE CYL
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97028-736-0 01 1 0710- ●
7 SCREW; BLEEDER,SLAVE CYL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> M8X16.5 THA 		8-94115-113-0 01 1 0204-0408 ● ●
7 SCREW; BLEEDER,SLAVE CYL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> M8X16.5 THA 		8-94115-113-0 01 1 0409-0412 ● ●
7 SCREW; BLEEDER,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> M8X16.5 THA 		8-94115-113-0 01 1 0501-0606 ● ●
7 SCREW; BLEEDER,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ> M8X10 IMA 		8-98020-477-0 01 1 0607-0608 ● ●
7 SCREW; BLEEDER,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ> M8X10 IMA 		8-98020-477-0 01 1 0609-0708 ● ●
7 SCREW; BLEEDER,SLAVE CYL
M/T MUX 5 SPEED 5S<MZJ> M8X10 IMA 		8-98020-477-0 01 1 0609-0708 ●
7 SCREW; BLEEDER,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ> M8X10 IMA 		8-98020-477-0 01 1 0709-0709 ● ●
7 SCREW; BLEEDER,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ> M8X10 IMA 		8-98020-477-0 01 1 0710- ● ●
7 SCREW; BLEEDER,SLAVE CYL
M/T MUX 5 SPEED 5S<MZJ> M8X10 IMA 		8-98020-477-0 01 1 0710- ●
8 CAP; BLEEDER,SLAVE CYL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> OD=10 IMA 		8-97940-638-0 01 1 0204-0408 ● ●
8 CAP; BLEEDER,SLAVE CYL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> OD=10 IMA 		8-97940-638-0 01 1 0409-0412 ● ●
8 CAP; BLEEDER,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> OD=10 IMA 		8-97940-638-0 01 1 0501-0606 ● ●
8 CAP; BLEEDER,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ> OD=10 IMA 		8-97940-638-0 01 1 0607-0608 ● ●
8 CAP; BLEEDER,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ> OD=10 IMA 		8-97940-638-0 01 1 0609-0708 ● ●
8 CAP; BLEEDER,SLAVE CYL
M/T MUX 5 SPEED 5S<MZJ> OD=10 IMA 		8-97940-638-0 01 1 0609-0708 ●
8 CAP; BLEEDER,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ> OD=10 IMA 		8-97940-638-0 01 1 0709-0709 ● ●
8 CAP; BLEEDER,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ> OD=10 IMA 		8-97940-638-0 01 1 0710- ● ●
8 CAP; BLEEDER,SLAVE CYL
M/T MUX 5 SPEED 5S<MZJ> OD=10 IMA 		8-97940-638-0 01 1 0710- ●

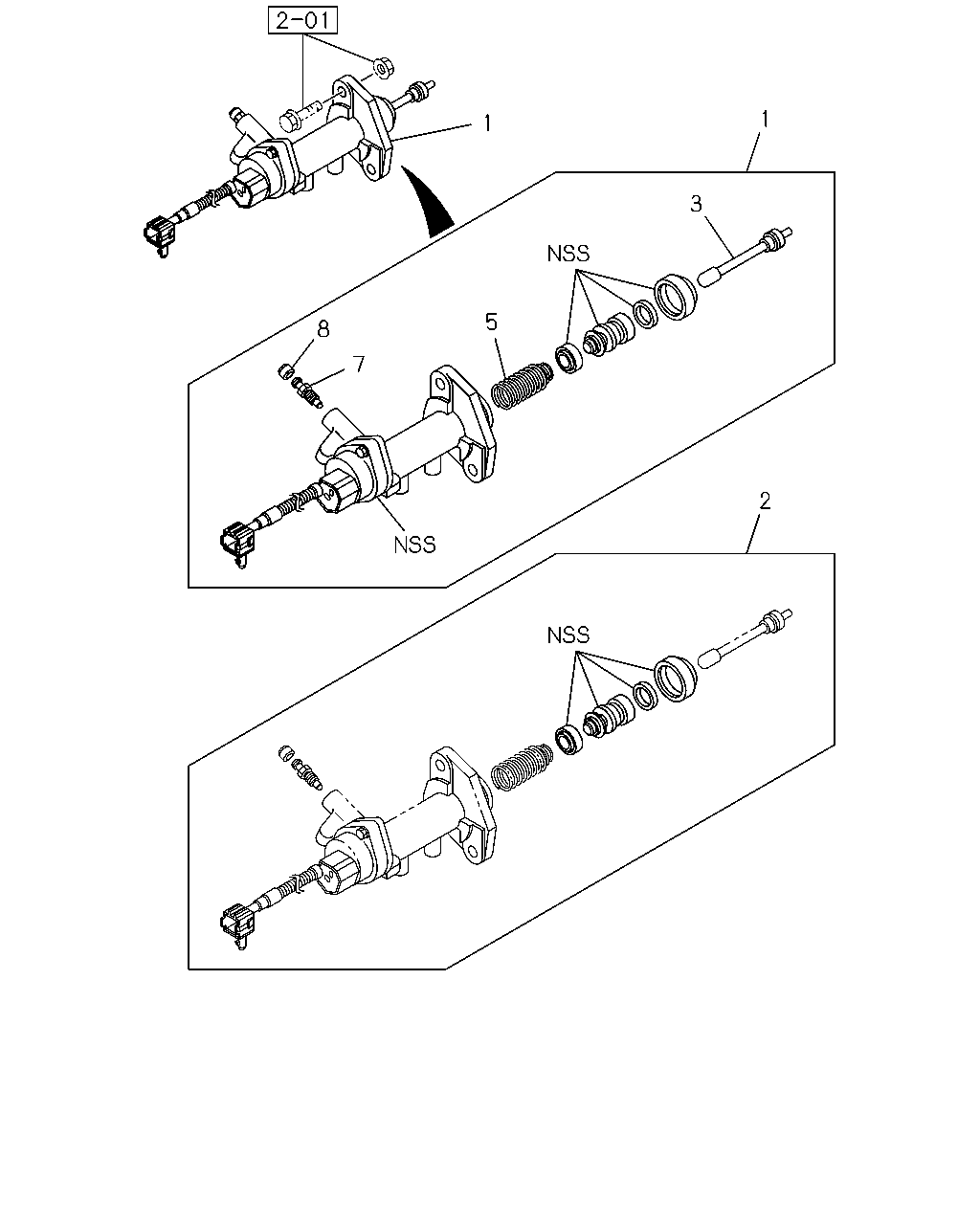

çizim 116426
1 1 3 5 8 7 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CYLINDER; SLAVE,CLU
M/T MSG 5 SPEED<M75> THA 		8-97942-296-0 01 1 0204-0408 ●
1 CYLINDER; SLAVE,CLU
M/T MSG 5 SPEED<M75> THA 		8-97942-296-0 01 1 0409-0412 ●
1 CYLINDER; SLAVE,CLU
M/T MUA 5 SPEED<RMN> THA 		8-97941-515-0 01 1 0204-0408 ●
1 CYLINDER; SLAVE,CLU
M/T MUA 5 SPEED 5G<RSP> THA 		8-97941-515-0 01 1 0409-0412 ●
1 CYLINDER; SLAVE,CLU
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97941-515-0 01 1 0501-0606 ● ●
1 CYLINDER; SLAVE,CLU
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97945-177-0 01 1 0607- ● ●
1 CYLINDER; SLAVE,CLU
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97944-513-3 01 1 0609-0708 ●
1 CYLINDER; SLAVE,CLU
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97944-513-3 01 1 0710-1108 ●
1 CYLINDER; SLAVE,CLU
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97947-765-0 01 1 1109- ●
2 REPAIR KIT; CLU SLAVE CYL
M/T MSG 5 SPEED<M75> THA 		5-87832-049-0 01 1 0204-0408 ●
2 REPAIR KIT; CLU SLAVE CYL
M/T MSG 5 SPEED<M75> THA 		5-87832-049-0 01 1 0409-0412 ●
2 REPAIR KIT; CLU SLAVE CYL
M/T MUA 5 SPEED<RMN> THA 		5-87832-048-0 01 1 0204-0408 ●
2 REPAIR KIT; CLU SLAVE CYL
M/T MUA 5 SPEED 5G<RSP> THA 		5-87832-048-0 01 1 0409-0412 ●
2 REPAIR KIT; CLU SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		5-87832-048-0 01 1 0501-0606 ● ●
2 REPAIR KIT; CLU SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ> THA 		5-87832-048-0 01 1 0607- ● ●
2 REPAIR KIT; CLU SLAVE CYL
M/T MUX 5 SPEED 5S<MZJ> THA 		5-87832-067-0 01 1 0609-0708 ●
2 REPAIR KIT; CLU SLAVE CYL
M/T MUX 5 SPEED 5S<MZJ> THA 		5-87832-067-0 01 1 0710-1102 ●
2 REPAIR KIT; CLU SLAVE CYL
M/T MUX 5 SPEED 5S<MZJ> THA 		5-87832-264-0 01 1 1103- ●
3 ROD; PUSH,SLAVE CYL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97942-803-0 01 1 0204-0408 ● ●
3 ROD; PUSH,SLAVE CYL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97942-803-0 01 1 0409-0412 ● ●
3 ROD; PUSH,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97942-803-0 01 1 0501-0606 ● ●
3 ROD; PUSH,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97945-722-0 01 1 0607- ● ●
3 ROD; PUSH,SLAVE CYL
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97945-721-0 01 1 0609-0708 ●
3 ROD; PUSH,SLAVE CYL
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97945-721-0 01 1 0710-1108 ●
3 ROD; PUSH,SLAVE CYL
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97947-769-0 01 1 1109- ●
5 SPRING ASM; PISTON,SLAVE CYL
M/T MSG 5 SPEED<M75> THA 		8-97942-802-0 01 1 0204-0408 ●
5 SPRING ASM; PISTON,SLAVE CYL
M/T MSG 5 SPEED<M75> THA 		8-97942-802-0 01 1 0409-0412 ●
5 SPRING ASM; PISTON,SLAVE CYL
M/T MUA 5 SPEED<RMN> THA 		8-97942-801-0 01 1 0204-0408 ●
5 SPRING ASM; PISTON,SLAVE CYL
M/T MUA 5 SPEED 5G<RSP> THA 		8-97942-801-0 01 1 0409-0412 ●
5 SPRING ASM; PISTON,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97942-801-0 01 1 0501-0606 ● ●
5 SPRING ASM; PISTON,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97942-801-0 01 1 0607- ● ●
5 SPRING ASM; PISTON,SLAVE CYL
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97028-736-0 01 1 0609-0708 ●
5 SPRING ASM; PISTON,SLAVE CYL
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97028-736-0 01 1 0710- ●
7 SCREW; BLEEDER,SLAVE CYL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> M8X16.5 THA 		8-94115-113-0 01 1 0204-0408 ● ●
7 SCREW; BLEEDER,SLAVE CYL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> M8X16.5 THA 		8-94115-113-0 01 1 0409-0412 ● ●
7 SCREW; BLEEDER,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> M8X16.5 THA 		8-94115-113-0 01 1 0501-0606 ● ●
7 SCREW; BLEEDER,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ> M8X10 IMA 		8-98020-477-0 01 1 0607-0608 ● ●
7 SCREW; BLEEDER,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ> M8X10 IMA 		8-98020-477-0 01 1 0609-0708 ● ●
7 SCREW; BLEEDER,SLAVE CYL
M/T MUX 5 SPEED 5S<MZJ> M8X10 IMA 		8-98020-477-0 01 1 0609-0708 ●
7 SCREW; BLEEDER,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ> M8X10 IMA 		8-98020-477-0 01 1 0709-0709 ● ●
7 SCREW; BLEEDER,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ> M8X10 IMA 		8-98020-477-0 01 1 0710- ● ●
7 SCREW; BLEEDER,SLAVE CYL
M/T MUX 5 SPEED 5S<MZJ> M8X10 IMA 		8-98020-477-0 01 1 0710- ●
8 CAP; BLEEDER,SLAVE CYL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> OD=10 IMA 		8-97940-638-0 01 1 0204-0408 ● ●
8 CAP; BLEEDER,SLAVE CYL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> OD=10 IMA 		8-97940-638-0 01 1 0409-0412 ● ●
8 CAP; BLEEDER,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> OD=10 IMA 		8-97940-638-0 01 1 0501-0606 ● ●
8 CAP; BLEEDER,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ> OD=10 IMA 		8-97940-638-0 01 1 0607-0608 ● ●
8 CAP; BLEEDER,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ> OD=10 IMA 		8-97940-638-0 01 1 0609-0708 ● ●
8 CAP; BLEEDER,SLAVE CYL
M/T MUX 5 SPEED 5S<MZJ> OD=10 IMA 		8-97940-638-0 01 1 0609-0708 ●
8 CAP; BLEEDER,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ> OD=10 IMA 		8-97940-638-0 01 1 0709-0709 ● ●
8 CAP; BLEEDER,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ> OD=10 IMA 		8-97940-638-0 01 1 0710- ● ●
8 CAP; BLEEDER,SLAVE CYL
M/T MUX 5 SPEED 5S<MZJ> OD=10 IMA 		8-97940-638-0 01 1 0710- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
