2-05 — CLUTCH PIPING (#72833) — 66 parça

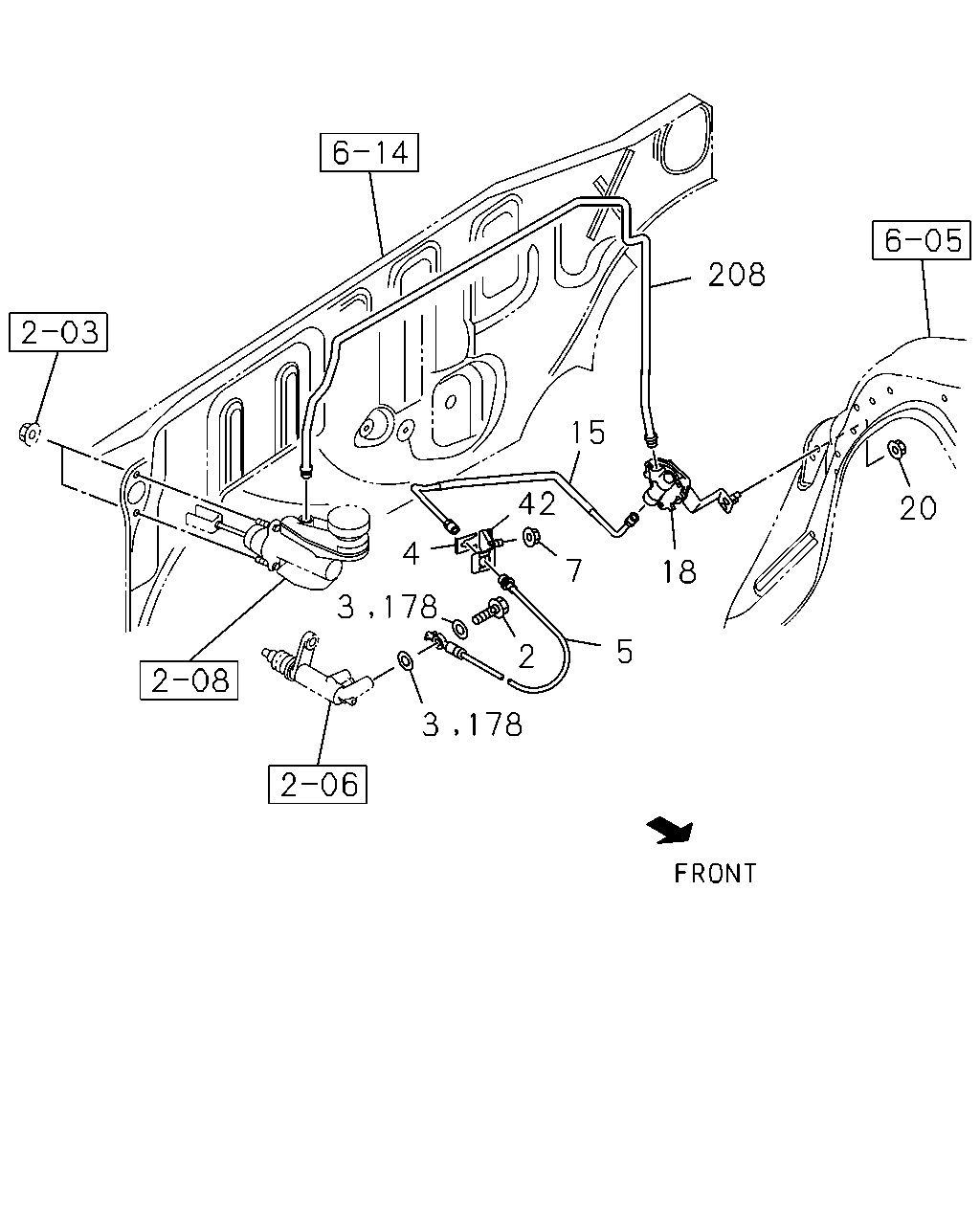

çizim 116409
208 15 42 20 4 7 18 3 178 5 2 3 178
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 BOLT; EYE,SLAVE CYL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> M10X22 THA 		5-09675-017-0 01 1 0204-0408 ● ●
2 BOLT; EYE,SLAVE CYL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> M10X22 THA 		5-09675-017-0 01 1 0409-0412 ● ●
2 BOLT; EYE,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> M10X22 THA 		5-09675-017-0 01 1 0501-0606 ● ●
2 BOLT; EYE,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ> M10X22 THA 		5-09675-017-0 01 1 0607-0608 ● ●
2 BOLT; EYE,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M10X22 THA 		5-09675-017-0 01 1 0609-0708 ● ● ●
2 BOLT; EYE,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ> M10X22 THA 		5-09675-017-0 01 1 0709-0709 ● ●
2 BOLT; EYE,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M10X22 THA 		5-09675-017-0 01 1 0710- ● ● ●
3 GASKET; FLEX HOSE,CLU
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0204-0408 ● ●
4 CLIP; FLEX HOSE,CLU CONT
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-94436-216-0 01 1 0204-0408 ● ●
4 CLIP; FLEX HOSE,CLU CONT
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> THA 		8-94436-216-0 01 1 0409-0412 ● ●
4 CLIP; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-94436-216-0 01 1 0501-0606 ● ●
4 CLIP; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-94436-216-0 01 1 0607-0705 ● ● ●
4 CLIP; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-97946-552-0 01 1 0706- ● ● ●
5 HOSE; FLEX,CLU PIPE
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97942-498-0 01 1 0204-0408 ● ●
5 HOSE; FLEX,CLU PIPE
M/T MSG 5 SPEED<M75> THA 		8-97942-498-0 01 1 0409-0412 ●
5 HOSE; FLEX,CLU PIPE
M/T MUA 5 SPEED 5G<RSP> THA 		8-97943-683-0 01 1 0409-0412 ●
5 HOSE; FLEX,CLU PIPE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97943-683-0 01 1 0501-0606 ● ●
5 HOSE; FLEX,CLU PIPE
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97945-178-0 01 1 0607- ● ●
5 HOSE; FLEX,CLU PIPE
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97944-870-0 01 1 0609-0708 ●
5 HOSE; FLEX,CLU PIPE
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97944-870-0 01 1 0710- ●
7 NUT; FLEX HOSE,CLU CONT
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> M8 FLANGE THA 		0-91180-108-0 01 1 0204-0408 ● ●
7 NUT; FLEX HOSE,CLU CONT
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> M8 FLANGE THA 		0-91180-108-0 01 1 0409-0412 ● ●
7 NUT; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> M8 FLANGE THA 		0-91180-108-0 01 1 0501-0606 ● ●
7 NUT; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M8 FLANGE THA 		0-91180-108-0 01 1 0607-0708 ● ● ●
7 NUT; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA 		0-91180-108-0 01 1 0709-0709 ● ●
7 NUT; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M8 FLANGE THA 		0-91180-108-0 01 1 0710- ● ● ●
15 PIPE; CLU,FLEX HOSE
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97236-466-2 01 1 0204-0408 ● ●
15 PIPE; CLU,FLEX HOSE
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97363-806-1 01 1 0409-0412 ● ●
15 PIPE; CLU,FLEX HOSE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97363-806-1 01 1 0501-0606 ● ●
15 PIPE; CLU,FLEX HOSE
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97944-805-0 01 1 0607- ● ●
15 PIPE; CLU,FLEX HOSE
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97944-806-0 01 1 0710- ●
15 PIPE; CLU,FLEX HOSE
4X4 DOUBLE CAB<TFS*W*> M/T MUX 5 SPEED 5S<MZJ> THA 		8-97944-806-0 01 1 0609-0708 ●
18 DAMPER ASM; CLU OIL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97941-513-0 01 1 0204-0212 ● ●
18 DAMPER ASM; CLU OIL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97943-171-0 01 1 0301-0408 ● ●
18 DAMPER ASM; CLU OIL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97943-171-0 01 1 0409-0412 ● ●
18 DAMPER ASM; CLU OIL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97943-171-0 01 1 0501-0606 ● ●
18 DAMPER ASM; CLU OIL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-97943-171-0 01 1 0607-0708 ● ● ●
18 DAMPER ASM; CLU OIL
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97943-171-0 01 1 0709-0709 ● ●
18 DAMPER ASM; CLU OIL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-97943-171-0 01 1 0710- ● ● ●
20 NUT; CLU OIL DAMPER
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> M6 FLANGE THA 		0-91180-106-0 02 1 0204-0408 ● ●
20 NUT; CLU OIL DAMPER
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> M6 FLANGE THA 		0-91180-106-0 02 1 0409-0412 ● ●
20 NUT; CLU OIL DAMPER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> M6 FLANGE THA 		0-91180-106-0 02 1 0501-0606 ● ●
20 NUT; CLU OIL DAMPER
M/T MUA 5 SPEED 5H<MWQ> M6 FLANGE THA 		0-91180-106-0 02 1 0607-0608 ● ●
20 NUT; CLU OIL DAMPER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M6 FLANGE THA 		0-91180-106-0 02 1 0609-0708 ● ● ●
20 NUT; CLU OIL DAMPER
M/T MUA 5 SPEED 5H<MWQ> M6 FLANGE THA 		0-91180-106-0 02 1 0709-0709 ● ●
20 NUT; CLU OIL DAMPER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M6 FLANGE THA 		0-91180-106-0 02 1 0710- ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97130-249-1 01 1 0204-0305 ● ●
42 BRACKET; FLEX HOSE,CLU CONT
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97943-412-0 01 1 0306-0306 ● ●
42 BRACKET; FLEX HOSE,CLU CONT
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97943-835-0 01 1 0306-0408 ● ●
42 BRACKET; FLEX HOSE,CLU CONT
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97943-835-0 01 1 0409-0412 ● ●
42 BRACKET; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97943-835-0 01 1 0501-0606 ● ●
42 BRACKET; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97943-835-0 01 1 0607- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97944-508-0 01 1 0609-0708 ●
42 BRACKET; FLEX HOSE,CLU CONT
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97944-508-0 01 1 0710- ●
178 GASKET; FLEX HOSE TO M/CYL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0409-0412 ● ●
178 GASKET; FLEX HOSE TO M/CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0501-0606 ● ●
178 GASKET; FLEX HOSE TO M/CYL
M/T MUA 5 SPEED 5H<MWQ> ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0607-0608 ● ●
178 GASKET; FLEX HOSE TO M/CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0609-0708 ● ● ●
178 GASKET; FLEX HOSE TO M/CYL
M/T MUA 5 SPEED 5H<MWQ> ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0709-0709 ● ●
178 GASKET; FLEX HOSE TO M/CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0710- ● ● ●
208 PIPE; OIL,M/CYL TO DAMPER CYL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97236-459-1 01 1 0204-0408 ● ●
208 PIPE; OIL,M/CYL TO DAMPER CYL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97236-459-1 01 1 0409-0412 ● ●
208 PIPE; OIL,M/CYL TO DAMPER CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97236-459-1 01 1 0501-0606 ● ●
208 PIPE; OIL,M/CYL TO DAMPER CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-97944-795-0 01 1 0607-0708 ● ● ●
208 PIPE; OIL,M/CYL TO DAMPER CYL
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97944-795-0 01 1 0709-0709 ● ●
208 PIPE; OIL,M/CYL TO DAMPER CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-97944-795-0 01 1 0710- ● ● ●
