1-50 — EXHAUST PIPE AND SILENCER (#72830) — 964 parça

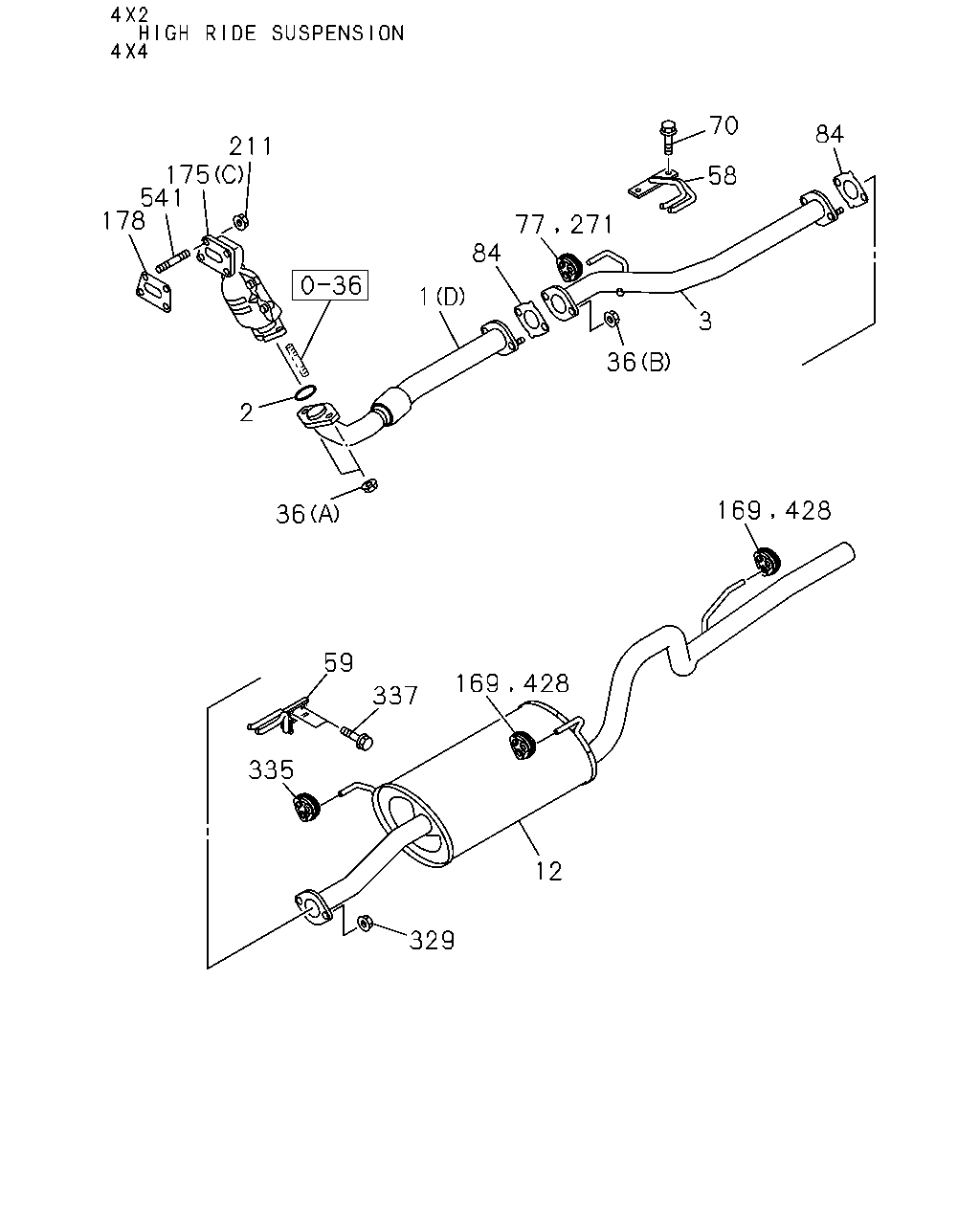

çizim 116386
70 84 211 175 541 178 58 84 1 3 36 2 36 59 337 335 12 329 169 428 169 428 77 271
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PIPE; EXH
4X2<TFB***> (A) THA 		8-97329-644-0 01 1 0204-0307 ● ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-97329-644-0 01 1 0308-0408 ● ●
1 PIPE; EXH
EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-97329-644-0 01 1 0409-0412 ●
1 PIPE; EXH
4X4<TFS***> (B) THA 		8-97329-645-0 01 1 0204-0307 ●
1 PIPE; EXH
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) THA 		8-97329-645-0 01 1 0308-0408 ● ●
1 PIPE; EXH
4X4<TFS***> (B) THA 		8-97329-645-0 01 1 0308-0408 ●
1 PIPE; EXH
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (D) THA 		8-97370-792-0 01 1 0409-0509 ●
1 PIPE; EXH
4X4<TFS***> (D) THA 		8-97370-792-0 01 1 0409-0509 ●
1 PIPE; EXH
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98008-408-0 01 1 0510-0606 ●
1 PIPE; EXH
4X4<TFS***> (D) THA 		8-98008-408-0 01 1 0510-0606 ●
1 PIPE; EXH
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98008-408-0 01 1 0607- ● ●
1 PIPE; EXH
4X4<TFS***> (D) THA 		8-98008-408-0 01 1 0607- ● ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-97377-745-0 01 1 0409-0412 ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-97377-745-0 01 1 0501-0509 ●
1 PIPE; EXH
(C) THA 		8-97377-745-0 01 1 0501-0509 ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98008-407-0 01 1 0510-0606 ●
1 PIPE; EXH
(C) THA 		8-98008-407-0 01 1 0510-0606 ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98008-407-0 01 1 0607- ● ●
1 PIPE; EXH
4X2 DOUBLE CAB<TFB*W*> HIGH RIDE SUSPENSION<7YC> (E) THA 		8-97380-258-1 01 1 0710-0802 ●
1 PIPE; EXH
4X4 DOUBLE CAB<TFS*W*> (E) THA 		8-97380-258-1 01 1 0710-0802 ●
1 PIPE; EXH
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (E) THA 		8-97380-258-1 01 1 0803- ●
1 PIPE; EXH
4X4<TFS***> (E) THA 		8-97380-258-1 01 1 0803- ●
1 PIPE; EXH
4X2 DOUBLE CAB<TFB*W*> EXC. HIGH RIDE SUSPENSION<7YC> (F) THA 		8-97380-257-1 01 1 0710-0802 ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (F) THA 		8-97380-257-1 01 1 0803- ●
1 PIPE; EXH
4X4 DOUBLE CAB<TFS*W*> (E) THA 		8-97380-258-1 01 1 0609-0708 ●
2 GASKET; PIPE TO MANIF
THA 		8-97069-287-0 01 1 0204-0408 ● ●
2 GASKET; PIPE TO MANIF
THA 		8-97069-287-0 01 1 0409-0412 ● ●
2 GASKET; PIPE TO MANIF
THA 		8-97069-287-0 01 1 0501-0509 ● ●
2 GASKET; PIPE TO MANIF
THA 		8-98017-270-0 01 1 0510-0608 ● ●
2 GASKET; PIPE TO MANIF
THA 		8-98017-270-0 01 1 0609-0708 ● ● ●
2 GASKET; PIPE TO MANIF
THA 		8-98017-270-0 01 1 0709-0709 ● ●
2 GASKET; PIPE TO MANIF
THA 		8-98017-270-0 01 1 0710- ● ● ●
3 PIPE; EXH,CENTER
4X4<TFS***> THA 		8-97308-920-3 01 1 0204-0307 ●
3 PIPE; EXH,CENTER
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> THA 		8-97308-920-3 01 1 0308-0408 ● ●
3 PIPE; EXH,CENTER
4X4<TFS***> THA 		8-97308-920-3 01 1 0308-0408 ●
3 PIPE; EXH,CENTER
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> THA 		8-97363-498-0 01 1 0409-0509 ●
3 PIPE; EXH,CENTER
4X4<TFS***> THA 		8-97363-498-0 01 1 0409-0509 ●
3 PIPE; EXH,CENTER
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> THA 		8-98008-409-0 01 1 0510-0606 ●
3 PIPE; EXH,CENTER
4X4<TFS***> THA 		8-98008-409-0 01 1 0510-0606 ●
3 PIPE; EXH,CENTER
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> THA 		8-98008-409-0 01 1 0607- ● ●
3 PIPE; EXH,CENTER
4X4<TFS***> THA 		8-98008-409-0 01 1 0607- ● ●
3 PIPE; EXH,CENTER
4X4 DOUBLE CAB<TFS*W*> THA 		8-98029-203-0 01 1 0609-0708 ●
3 PIPE; EXH,CENTER
4X2 DOUBLE CAB<TFB*W*> HIGH RIDE SUSPENSION<7YC> THA 		8-98029-203-0 01 1 0710-0802 ●
3 PIPE; EXH,CENTER
4X4 DOUBLE CAB<TFS*W*> THA 		8-98029-203-0 01 1 0710-0802 ●
3 PIPE; EXH,CENTER
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> THA 		8-98029-203-0 01 1 0803- ●
3 PIPE; EXH,CENTER
4X4<TFS***> THA 		8-98029-203-0 01 1 0803- ●
12 SILENCER ASM; EXH
THA 		8-97308-922-2 01 1 0204-0408 ● ●
12 SILENCER ASM; EXH
EURO2 SPECIFICATION<NT2> THA 		8-97308-922-2 01 1 0409-0412 ●
12 SILENCER ASM; EXH
THA 		8-97373-422-0 01 1 0409-0412 ●
12 SILENCER ASM; EXH
THA 		8-97373-422-0 01 1 0501-0509 ● ●
12 SILENCER ASM; EXH
THA 		8-98008-410-0 01 1 0510-0708 ● ●
12 SILENCER ASM; EXH
THA 		8-98082-821-0 01 1 0709- ● ●
12 SILENCER ASM; EXH
THA 		8-97380-266-1 01 1 0609-0708 ●
12 SILENCER ASM; EXH
THA 		8-97380-266-1 01 1 0710- ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0204-0408 ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0409-0412 ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0501-0608 ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0609-0708 ● ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0709-0709 ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0710- ● ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0204-0307 ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0308-0408 ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0308-0408 ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0409-0412 ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0409-0412 ● ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0501-0606 ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0501-0606 ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0607-0608 ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0607-0608 ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0609-0708 ● ● ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0609-0708 ● ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0709-0709 ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0709-0709 ● ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0710- ● ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0710- ● ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97249-193-0 01 1 0204-0303 ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0304-0408 ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0409-0412 ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0501-0608 ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0609-0708 ● ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0709-0709 ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0710- ● ● ●
59 BRACKET; EXH SILENCER,FRT
THA 		8-97249-195-0 01 1 0204-0303 ● ●
59 BRACKET; EXH SILENCER,FRT
THA 		8-97365-312-0 01 1 0304-0408 ● ●
59 BRACKET; EXH SILENCER,FRT
THA 		8-97365-312-0 01 1 0409-0606 ● ● ●
59 BRACKET; EXH SILENCER,FRT
THA 		8-97365-312-0 01 1 0607- ● ● ●
70 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 02 1 0204-0303 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-97104-788-1 02 1 0304-0408 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-97104-788-1 02 1 0409-0412 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-97104-788-1 02 1 0501-0605 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0606-0608 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0609-0708 ● ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0709-0709 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0710- ● ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0204-0408 ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0409-0412 ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0501-0608 ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0609-0708 ● ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0709-0709 ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0710-1008 ● ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0204-0307 ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0204-0307 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0308-0408 ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0308-0408 ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0308-0408 ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0409-0412 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0409-0412 ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0409-0412 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0501-0606 ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0501-0606 ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0501-0606 ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0607-0608 ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0607-0608 ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0607-0608 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0609-0708 ● ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0609-0708 ● ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0609-0708 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0709-0709 ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0709-0709 ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0709-0709 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0710- ● ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0710- ● ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0710- ● ● ●
169 RING; DAMPER,EXH PIPE
THA 		8-97289-169-0 01 1 1009- ● ● ●
169 RING; DAMPER,EXH PIPE
THA 		8-97289-169-0 02 1 0204-0408 ● ●
169 RING; DAMPER,EXH PIPE
THA 		8-97289-169-0 02 1 0409-0606 ● ● ●
169 RING; DAMPER,EXH PIPE
THA 		8-97289-169-0 02 1 0607-1008 ● ● ●
175 CONVERTER; CATALYST
SPACE CAB<TF**C*> M/T MUX 5 SPEED 5S<MZJ> POWER STEERING<N40> (D) THA 		8-98038-425-0 01 1 0803-0909 ●
175 CONVERTER; CATALYST
SPACE CAB<TF**C*> M/T MUX 5 SPEED 5S<MZJ> POWER STEERING<N40> (D) THA 		8-98153-895-0 01 1 0910-1008 ●
175 CONVERTER; CATALYST
SPACE CAB<TF**C*> M/T MUX 5 SPEED 5S<MZJ> POWER STEERING<N40> (D) THA 		8-98156-386-0 01 1 1009- ●
175 CONVERTER; CATALYST
(A) THA 		8-97306-532-2 01 1 0204-0408 ●
175 CONVERTER; CATALYST
(A) THA 		8-97306-532-2 01 1 0409-0412 ●
175 CONVERTER; CATALYST
(C) THA 		8-97383-254-0 01 1 0501-0509 ●
175 CONVERTER; CATALYST
(C) THA 		8-98005-183-2 01 1 0510- ●
175 CONVERTER; CATALYST
(B) IMA 		8-97258-201-3 01 1 0204-0408 ●
175 CONVERTER; CATALYST
(C) THA 		8-97374-822-0 01 1 0409-0510 ●
175 CONVERTER; CATALYST
(C) THA 		8-98005-182-2 01 1 0511- ●
175 CONVERTER; CATALYST
(D) THA 		8-98038-426-0 01 1 0609-0708 ●
175 CONVERTER; CATALYST
DOUBLE CAB<TF**W*> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> POWER STEERING<N40> (D) THA 		8-98038-426-0 01 1 0710-0911 ●
175 CONVERTER; CATALYST
DOUBLE CAB<TF**W*> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> POWER STEERING<N40> (D) THA 		8-98153-894-0 01 1 0912-1008 ●
175 CONVERTER; CATALYST
DOUBLE CAB<TF**W*> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> POWER STEERING<N40> (D) THA 		8-98156-387-0 01 1 1009- ●
178 GASKET; CONV TO MANIF
THA 		8-97312-284-1 01 1 0409-0412 ●
178 GASKET; CONV TO MANIF
THA 		8-97312-284-1 01 1 0501- ● ●
178 GASKET; CONV TO MANIF
THA 		8-98011-532-0 01 1 0609-0708 ●
178 GASKET; CONV TO MANIF
THA 		8-98011-532-0 01 1 0710-1008 ●
178 GASKET; CONV TO MANIF
THA 		8-98132-538-0 01 1 1009- ●
211 NUT; CONV
M8 FLANGE THA 		8-97379-384-0 02 1 1009- ●
211 NUT; CONV
M8 FLANGE THA 		8-97379-384-0 04 1 0409-0412 ●
211 NUT; CONV
M8 FLANGE THA 		8-97379-384-0 04 1 0501-0608 ● ●
211 NUT; CONV
M8 FLANGE THA 		8-97379-384-0 04 1 0609-0708 ● ● ●
211 NUT; CONV
M8 FLANGE THA 		8-97379-384-0 04 1 0709-0709 ● ●
211 NUT; CONV
M8 FLANGE THA 		8-97379-384-0 04 1 0710-1008 ● ● ●
211 NUT; CONV
M8 FLANGE THA 		8-97379-384-0 04 1 1009- ● ●
271 RUBBER; HANGER,RR PIPE
THA 		8-97289-169-0 01 1 1009- ● ● ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE THA 		0-91180-110-0 02 1 0204-0408 ● ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE THA 		0-91180-110-0 02 1 0409-0606 ● ● ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE THA 		0-91180-110-0 02 1 0607- ● ● ●
335 RUBBER; SUPPORT,SILENCER
THA 		8-97289-169-0 01 1 0204-0408 ● ●
335 RUBBER; SUPPORT,SILENCER
THA 		8-97289-169-0 01 1 0409-0606 ● ● ●
335 RUBBER; SUPPORT,SILENCER
THA 		8-97289-169-0 01 1 0607- ● ● ●
337 BOLT; RUBBER,SUPPORT
M10X20 FLANGE THA 		0-28651-020-0 02 1 0204-0303 ● ●
337 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER THA 		8-97104-788-1 02 1 0304-0408 ● ●
337 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER THA 		8-97104-788-1 02 1 0409-0605 ● ● ●
337 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0606-0606 ● ● ●
337 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0607- ● ● ●
428 RUBBER; MTG,CLAMP,EXH PIPE
THA 		8-97289-169-0 01 1 1009- ● ● ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-97378-062-0 02 1 1009- ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-94156-470-2 04 1 0409-0409 ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-97378-062-0 04 1 0410-0412 ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-97378-062-0 04 1 0501-0608 ● ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-97378-062-0 04 1 0609-0708 ● ● ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-97378-062-0 04 1 0709-0709 ● ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-97378-062-0 04 1 0710-1008 ● ● ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-97378-062-0 04 1 1009- ● ●

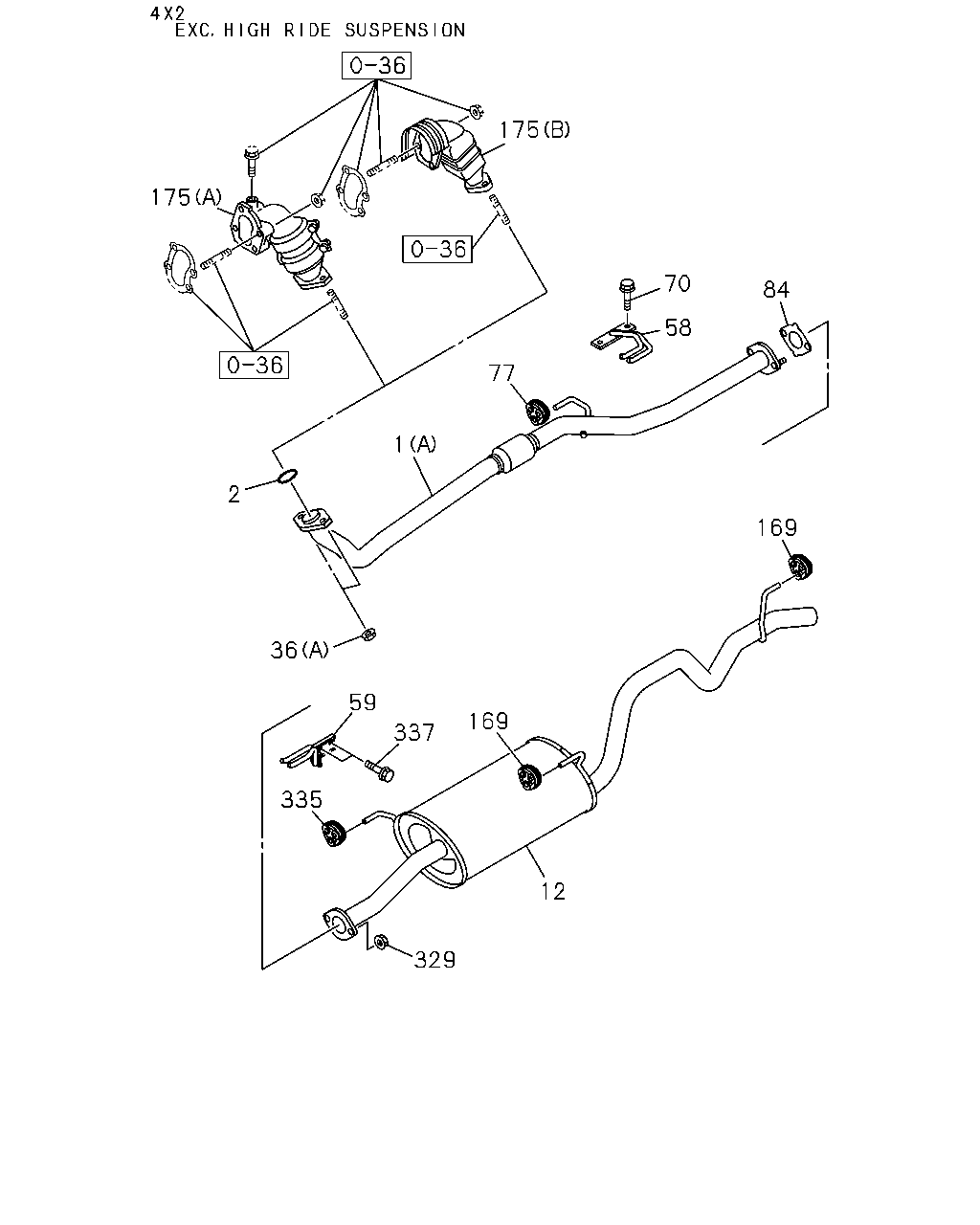

çizim 116388
175 175 70 84 58 77 1 2 169 36 59 169 337 335 12 329
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PIPE; EXH
4X2<TFB***> (A) THA 		8-97329-644-0 01 1 0204-0307 ● ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-97329-644-0 01 1 0308-0408 ● ●
1 PIPE; EXH
EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-97329-644-0 01 1 0409-0412 ●
1 PIPE; EXH
4X4<TFS***> (B) THA 		8-97329-645-0 01 1 0204-0307 ●
1 PIPE; EXH
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) THA 		8-97329-645-0 01 1 0308-0408 ● ●
1 PIPE; EXH
4X4<TFS***> (B) THA 		8-97329-645-0 01 1 0308-0408 ●
1 PIPE; EXH
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (D) THA 		8-97370-792-0 01 1 0409-0509 ●
1 PIPE; EXH
4X4<TFS***> (D) THA 		8-97370-792-0 01 1 0409-0509 ●
1 PIPE; EXH
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98008-408-0 01 1 0510-0606 ●
1 PIPE; EXH
4X4<TFS***> (D) THA 		8-98008-408-0 01 1 0510-0606 ●
1 PIPE; EXH
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98008-408-0 01 1 0607- ● ●
1 PIPE; EXH
4X4<TFS***> (D) THA 		8-98008-408-0 01 1 0607- ● ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-97377-745-0 01 1 0409-0412 ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-97377-745-0 01 1 0501-0509 ●
1 PIPE; EXH
(C) THA 		8-97377-745-0 01 1 0501-0509 ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98008-407-0 01 1 0510-0606 ●
1 PIPE; EXH
(C) THA 		8-98008-407-0 01 1 0510-0606 ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98008-407-0 01 1 0607- ● ●
1 PIPE; EXH
4X2 DOUBLE CAB<TFB*W*> HIGH RIDE SUSPENSION<7YC> (E) THA 		8-97380-258-1 01 1 0710-0802 ●
1 PIPE; EXH
4X4 DOUBLE CAB<TFS*W*> (E) THA 		8-97380-258-1 01 1 0710-0802 ●
1 PIPE; EXH
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (E) THA 		8-97380-258-1 01 1 0803- ●
1 PIPE; EXH
4X4<TFS***> (E) THA 		8-97380-258-1 01 1 0803- ●
1 PIPE; EXH
4X2 DOUBLE CAB<TFB*W*> EXC. HIGH RIDE SUSPENSION<7YC> (F) THA 		8-97380-257-1 01 1 0710-0802 ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (F) THA 		8-97380-257-1 01 1 0803- ●
1 PIPE; EXH
4X4 DOUBLE CAB<TFS*W*> (E) THA 		8-97380-258-1 01 1 0609-0708 ●
2 GASKET; PIPE TO MANIF
THA 		8-97069-287-0 01 1 0204-0408 ● ●
2 GASKET; PIPE TO MANIF
THA 		8-97069-287-0 01 1 0409-0412 ● ●
2 GASKET; PIPE TO MANIF
THA 		8-97069-287-0 01 1 0501-0509 ● ●
2 GASKET; PIPE TO MANIF
THA 		8-98017-270-0 01 1 0510-0608 ● ●
2 GASKET; PIPE TO MANIF
THA 		8-98017-270-0 01 1 0609-0708 ● ● ●
2 GASKET; PIPE TO MANIF
THA 		8-98017-270-0 01 1 0709-0709 ● ●
2 GASKET; PIPE TO MANIF
THA 		8-98017-270-0 01 1 0710- ● ● ●
12 SILENCER ASM; EXH
THA 		8-97308-922-2 01 1 0204-0408 ● ●
12 SILENCER ASM; EXH
EURO2 SPECIFICATION<NT2> THA 		8-97308-922-2 01 1 0409-0412 ●
12 SILENCER ASM; EXH
THA 		8-97373-422-0 01 1 0409-0412 ●
12 SILENCER ASM; EXH
THA 		8-97373-422-0 01 1 0501-0509 ● ●
12 SILENCER ASM; EXH
THA 		8-98008-410-0 01 1 0510-0708 ● ●
12 SILENCER ASM; EXH
THA 		8-98082-821-0 01 1 0709- ● ●
12 SILENCER ASM; EXH
THA 		8-97380-266-1 01 1 0609-0708 ●
12 SILENCER ASM; EXH
THA 		8-97380-266-1 01 1 0710- ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0204-0408 ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0409-0412 ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0501-0608 ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0609-0708 ● ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0709-0709 ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0710- ● ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0204-0307 ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0308-0408 ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0308-0408 ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0409-0412 ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0409-0412 ● ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0501-0606 ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0501-0606 ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0607-0608 ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0607-0608 ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0609-0708 ● ● ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0609-0708 ● ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0709-0709 ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0709-0709 ● ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0710- ● ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0710- ● ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97249-193-0 01 1 0204-0303 ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0304-0408 ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0409-0412 ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0501-0608 ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0609-0708 ● ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0709-0709 ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0710- ● ● ●
59 BRACKET; EXH SILENCER,FRT
THA 		8-97249-195-0 01 1 0204-0303 ● ●
59 BRACKET; EXH SILENCER,FRT
THA 		8-97365-312-0 01 1 0304-0408 ● ●
59 BRACKET; EXH SILENCER,FRT
THA 		8-97365-312-0 01 1 0409-0606 ● ● ●
59 BRACKET; EXH SILENCER,FRT
THA 		8-97365-312-0 01 1 0607- ● ● ●
70 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 02 1 0204-0303 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-97104-788-1 02 1 0304-0408 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-97104-788-1 02 1 0409-0412 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-97104-788-1 02 1 0501-0605 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0606-0608 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0609-0708 ● ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0709-0709 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0710- ● ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0204-0408 ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0409-0412 ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0501-0608 ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0609-0708 ● ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0709-0709 ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0710-1008 ● ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0204-0307 ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0204-0307 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0308-0408 ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0308-0408 ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0308-0408 ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0409-0412 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0409-0412 ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0409-0412 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0501-0606 ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0501-0606 ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0501-0606 ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0607-0608 ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0607-0608 ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0607-0608 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0609-0708 ● ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0609-0708 ● ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0609-0708 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0709-0709 ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0709-0709 ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0709-0709 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0710- ● ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0710- ● ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0710- ● ● ●
169 RING; DAMPER,EXH PIPE
THA 		8-97289-169-0 01 1 1009- ● ● ●
169 RING; DAMPER,EXH PIPE
THA 		8-97289-169-0 02 1 0204-0408 ● ●
169 RING; DAMPER,EXH PIPE
THA 		8-97289-169-0 02 1 0409-0606 ● ● ●
169 RING; DAMPER,EXH PIPE
THA 		8-97289-169-0 02 1 0607-1008 ● ● ●
175 CONVERTER; CATALYST
SPACE CAB<TF**C*> M/T MUX 5 SPEED 5S<MZJ> POWER STEERING<N40> (D) THA 		8-98038-425-0 01 1 0803-0909 ●
175 CONVERTER; CATALYST
SPACE CAB<TF**C*> M/T MUX 5 SPEED 5S<MZJ> POWER STEERING<N40> (D) THA 		8-98153-895-0 01 1 0910-1008 ●
175 CONVERTER; CATALYST
SPACE CAB<TF**C*> M/T MUX 5 SPEED 5S<MZJ> POWER STEERING<N40> (D) THA 		8-98156-386-0 01 1 1009- ●
175 CONVERTER; CATALYST
(A) THA 		8-97306-532-2 01 1 0204-0408 ●
175 CONVERTER; CATALYST
(A) THA 		8-97306-532-2 01 1 0409-0412 ●
175 CONVERTER; CATALYST
(C) THA 		8-97383-254-0 01 1 0501-0509 ●
175 CONVERTER; CATALYST
(C) THA 		8-98005-183-2 01 1 0510- ●
175 CONVERTER; CATALYST
(B) IMA 		8-97258-201-3 01 1 0204-0408 ●
175 CONVERTER; CATALYST
(C) THA 		8-97374-822-0 01 1 0409-0510 ●
175 CONVERTER; CATALYST
(C) THA 		8-98005-182-2 01 1 0511- ●
175 CONVERTER; CATALYST
(D) THA 		8-98038-426-0 01 1 0609-0708 ●
175 CONVERTER; CATALYST
DOUBLE CAB<TF**W*> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> POWER STEERING<N40> (D) THA 		8-98038-426-0 01 1 0710-0911 ●
175 CONVERTER; CATALYST
DOUBLE CAB<TF**W*> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> POWER STEERING<N40> (D) THA 		8-98153-894-0 01 1 0912-1008 ●
175 CONVERTER; CATALYST
DOUBLE CAB<TF**W*> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> POWER STEERING<N40> (D) THA 		8-98156-387-0 01 1 1009- ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE THA 		0-91180-110-0 02 1 0204-0408 ● ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE THA 		0-91180-110-0 02 1 0409-0606 ● ● ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE THA 		0-91180-110-0 02 1 0607- ● ● ●
335 RUBBER; SUPPORT,SILENCER
THA 		8-97289-169-0 01 1 0204-0408 ● ●
335 RUBBER; SUPPORT,SILENCER
THA 		8-97289-169-0 01 1 0409-0606 ● ● ●
335 RUBBER; SUPPORT,SILENCER
THA 		8-97289-169-0 01 1 0607- ● ● ●
337 BOLT; RUBBER,SUPPORT
M10X20 FLANGE THA 		0-28651-020-0 02 1 0204-0303 ● ●
337 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER THA 		8-97104-788-1 02 1 0304-0408 ● ●
337 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER THA 		8-97104-788-1 02 1 0409-0605 ● ● ●
337 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0606-0606 ● ● ●
337 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0607- ● ● ●

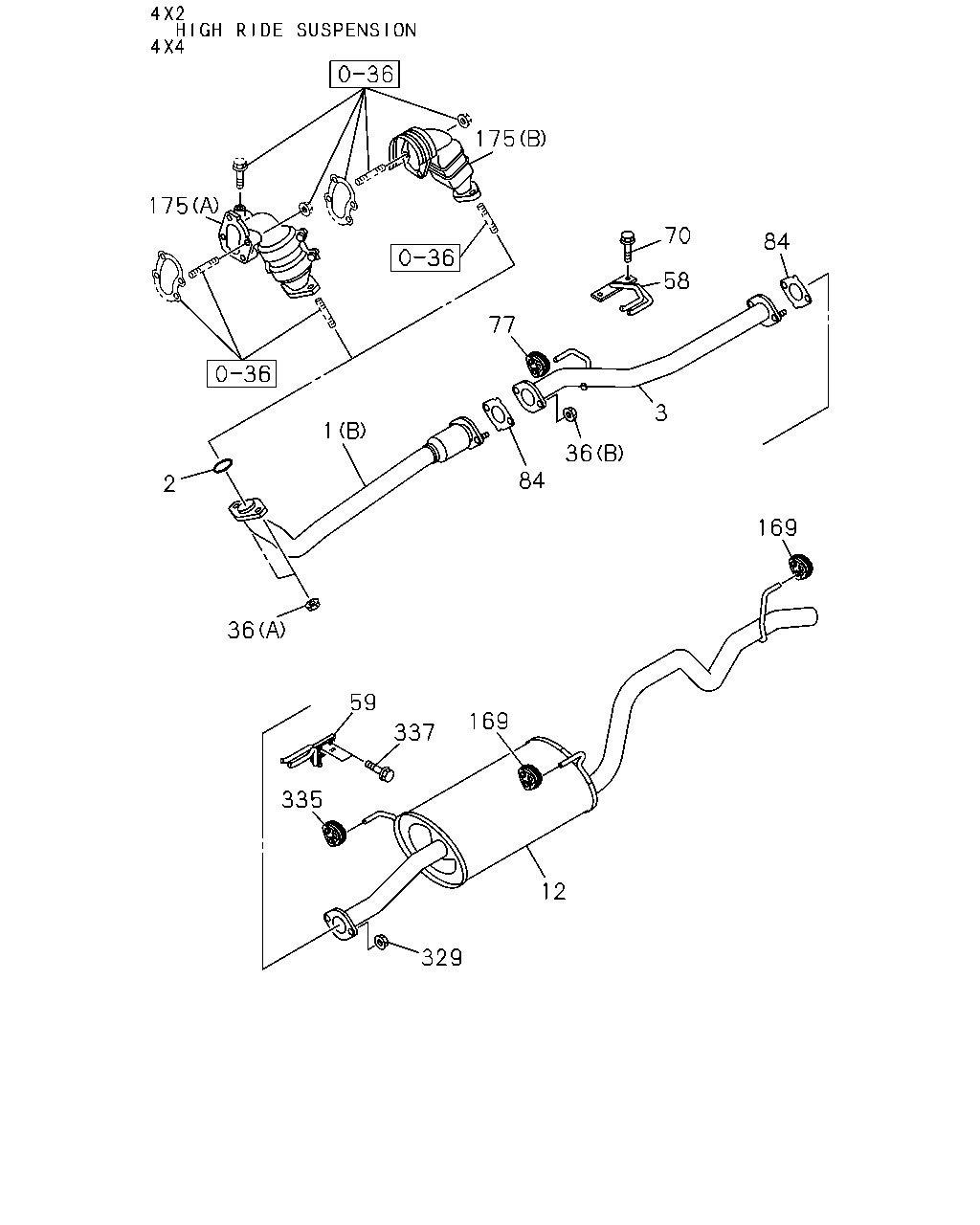

çizim 116390
175 175 70 84 58 77 3 1 36 84 2 169 36 59 169 337 335 12 329
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PIPE; EXH
4X2<TFB***> (A) THA 		8-97329-644-0 01 1 0204-0307 ● ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-97329-644-0 01 1 0308-0408 ● ●
1 PIPE; EXH
EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-97329-644-0 01 1 0409-0412 ●
1 PIPE; EXH
4X4<TFS***> (B) THA 		8-97329-645-0 01 1 0204-0307 ●
1 PIPE; EXH
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) THA 		8-97329-645-0 01 1 0308-0408 ● ●
1 PIPE; EXH
4X4<TFS***> (B) THA 		8-97329-645-0 01 1 0308-0408 ●
1 PIPE; EXH
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (D) THA 		8-97370-792-0 01 1 0409-0509 ●
1 PIPE; EXH
4X4<TFS***> (D) THA 		8-97370-792-0 01 1 0409-0509 ●
1 PIPE; EXH
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98008-408-0 01 1 0510-0606 ●
1 PIPE; EXH
4X4<TFS***> (D) THA 		8-98008-408-0 01 1 0510-0606 ●
1 PIPE; EXH
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98008-408-0 01 1 0607- ● ●
1 PIPE; EXH
4X4<TFS***> (D) THA 		8-98008-408-0 01 1 0607- ● ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-97377-745-0 01 1 0409-0412 ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-97377-745-0 01 1 0501-0509 ●
1 PIPE; EXH
(C) THA 		8-97377-745-0 01 1 0501-0509 ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98008-407-0 01 1 0510-0606 ●
1 PIPE; EXH
(C) THA 		8-98008-407-0 01 1 0510-0606 ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98008-407-0 01 1 0607- ● ●
1 PIPE; EXH
4X2 DOUBLE CAB<TFB*W*> HIGH RIDE SUSPENSION<7YC> (E) THA 		8-97380-258-1 01 1 0710-0802 ●
1 PIPE; EXH
4X4 DOUBLE CAB<TFS*W*> (E) THA 		8-97380-258-1 01 1 0710-0802 ●
1 PIPE; EXH
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (E) THA 		8-97380-258-1 01 1 0803- ●
1 PIPE; EXH
4X4<TFS***> (E) THA 		8-97380-258-1 01 1 0803- ●
1 PIPE; EXH
4X2 DOUBLE CAB<TFB*W*> EXC. HIGH RIDE SUSPENSION<7YC> (F) THA 		8-97380-257-1 01 1 0710-0802 ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (F) THA 		8-97380-257-1 01 1 0803- ●
1 PIPE; EXH
4X4 DOUBLE CAB<TFS*W*> (E) THA 		8-97380-258-1 01 1 0609-0708 ●
2 GASKET; PIPE TO MANIF
THA 		8-97069-287-0 01 1 0204-0408 ● ●
2 GASKET; PIPE TO MANIF
THA 		8-97069-287-0 01 1 0409-0412 ● ●
2 GASKET; PIPE TO MANIF
THA 		8-97069-287-0 01 1 0501-0509 ● ●
2 GASKET; PIPE TO MANIF
THA 		8-98017-270-0 01 1 0510-0608 ● ●
2 GASKET; PIPE TO MANIF
THA 		8-98017-270-0 01 1 0609-0708 ● ● ●
2 GASKET; PIPE TO MANIF
THA 		8-98017-270-0 01 1 0709-0709 ● ●
2 GASKET; PIPE TO MANIF
THA 		8-98017-270-0 01 1 0710- ● ● ●
3 PIPE; EXH,CENTER
4X4<TFS***> THA 		8-97308-920-3 01 1 0204-0307 ●
3 PIPE; EXH,CENTER
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> THA 		8-97308-920-3 01 1 0308-0408 ● ●
3 PIPE; EXH,CENTER
4X4<TFS***> THA 		8-97308-920-3 01 1 0308-0408 ●
3 PIPE; EXH,CENTER
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> THA 		8-97363-498-0 01 1 0409-0509 ●
3 PIPE; EXH,CENTER
4X4<TFS***> THA 		8-97363-498-0 01 1 0409-0509 ●
3 PIPE; EXH,CENTER
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> THA 		8-98008-409-0 01 1 0510-0606 ●
3 PIPE; EXH,CENTER
4X4<TFS***> THA 		8-98008-409-0 01 1 0510-0606 ●
3 PIPE; EXH,CENTER
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> THA 		8-98008-409-0 01 1 0607- ● ●
3 PIPE; EXH,CENTER
4X4<TFS***> THA 		8-98008-409-0 01 1 0607- ● ●
3 PIPE; EXH,CENTER
4X4 DOUBLE CAB<TFS*W*> THA 		8-98029-203-0 01 1 0609-0708 ●
3 PIPE; EXH,CENTER
4X2 DOUBLE CAB<TFB*W*> HIGH RIDE SUSPENSION<7YC> THA 		8-98029-203-0 01 1 0710-0802 ●
3 PIPE; EXH,CENTER
4X4 DOUBLE CAB<TFS*W*> THA 		8-98029-203-0 01 1 0710-0802 ●
3 PIPE; EXH,CENTER
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> THA 		8-98029-203-0 01 1 0803- ●
3 PIPE; EXH,CENTER
4X4<TFS***> THA 		8-98029-203-0 01 1 0803- ●
12 SILENCER ASM; EXH
THA 		8-97308-922-2 01 1 0204-0408 ● ●
12 SILENCER ASM; EXH
EURO2 SPECIFICATION<NT2> THA 		8-97308-922-2 01 1 0409-0412 ●
12 SILENCER ASM; EXH
THA 		8-97373-422-0 01 1 0409-0412 ●
12 SILENCER ASM; EXH
THA 		8-97373-422-0 01 1 0501-0509 ● ●
12 SILENCER ASM; EXH
THA 		8-98008-410-0 01 1 0510-0708 ● ●
12 SILENCER ASM; EXH
THA 		8-98082-821-0 01 1 0709- ● ●
12 SILENCER ASM; EXH
THA 		8-97380-266-1 01 1 0609-0708 ●
12 SILENCER ASM; EXH
THA 		8-97380-266-1 01 1 0710- ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0204-0408 ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0409-0412 ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0501-0608 ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0609-0708 ● ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0709-0709 ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0710- ● ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0204-0307 ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0308-0408 ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0308-0408 ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0409-0412 ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0409-0412 ● ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0501-0606 ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0501-0606 ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0607-0608 ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0607-0608 ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0609-0708 ● ● ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0609-0708 ● ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0709-0709 ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0709-0709 ● ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0710- ● ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0710- ● ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97249-193-0 01 1 0204-0303 ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0304-0408 ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0409-0412 ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0501-0608 ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0609-0708 ● ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0709-0709 ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0710- ● ● ●
59 BRACKET; EXH SILENCER,FRT
THA 		8-97249-195-0 01 1 0204-0303 ● ●
59 BRACKET; EXH SILENCER,FRT
THA 		8-97365-312-0 01 1 0304-0408 ● ●
59 BRACKET; EXH SILENCER,FRT
THA 		8-97365-312-0 01 1 0409-0606 ● ● ●
59 BRACKET; EXH SILENCER,FRT
THA 		8-97365-312-0 01 1 0607- ● ● ●
70 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 02 1 0204-0303 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-97104-788-1 02 1 0304-0408 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-97104-788-1 02 1 0409-0412 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-97104-788-1 02 1 0501-0605 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0606-0608 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0609-0708 ● ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0709-0709 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0710- ● ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0204-0408 ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0409-0412 ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0501-0608 ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0609-0708 ● ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0709-0709 ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0710-1008 ● ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0204-0307 ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0204-0307 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0308-0408 ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0308-0408 ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0308-0408 ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0409-0412 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0409-0412 ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0409-0412 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0501-0606 ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0501-0606 ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0501-0606 ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0607-0608 ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0607-0608 ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0607-0608 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0609-0708 ● ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0609-0708 ● ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0609-0708 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0709-0709 ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0709-0709 ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0709-0709 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0710- ● ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0710- ● ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0710- ● ● ●
169 RING; DAMPER,EXH PIPE
THA 		8-97289-169-0 01 1 1009- ● ● ●
169 RING; DAMPER,EXH PIPE
THA 		8-97289-169-0 02 1 0204-0408 ● ●
169 RING; DAMPER,EXH PIPE
THA 		8-97289-169-0 02 1 0409-0606 ● ● ●
169 RING; DAMPER,EXH PIPE
THA 		8-97289-169-0 02 1 0607-1008 ● ● ●
175 CONVERTER; CATALYST
SPACE CAB<TF**C*> M/T MUX 5 SPEED 5S<MZJ> POWER STEERING<N40> (D) THA 		8-98038-425-0 01 1 0803-0909 ●
175 CONVERTER; CATALYST
SPACE CAB<TF**C*> M/T MUX 5 SPEED 5S<MZJ> POWER STEERING<N40> (D) THA 		8-98153-895-0 01 1 0910-1008 ●
175 CONVERTER; CATALYST
SPACE CAB<TF**C*> M/T MUX 5 SPEED 5S<MZJ> POWER STEERING<N40> (D) THA 		8-98156-386-0 01 1 1009- ●
175 CONVERTER; CATALYST
(A) THA 		8-97306-532-2 01 1 0204-0408 ●
175 CONVERTER; CATALYST
(A) THA 		8-97306-532-2 01 1 0409-0412 ●
175 CONVERTER; CATALYST
(C) THA 		8-97383-254-0 01 1 0501-0509 ●
175 CONVERTER; CATALYST
(C) THA 		8-98005-183-2 01 1 0510- ●
175 CONVERTER; CATALYST
(B) IMA 		8-97258-201-3 01 1 0204-0408 ●
175 CONVERTER; CATALYST
(C) THA 		8-97374-822-0 01 1 0409-0510 ●
175 CONVERTER; CATALYST
(C) THA 		8-98005-182-2 01 1 0511- ●
175 CONVERTER; CATALYST
(D) THA 		8-98038-426-0 01 1 0609-0708 ●
175 CONVERTER; CATALYST
DOUBLE CAB<TF**W*> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> POWER STEERING<N40> (D) THA 		8-98038-426-0 01 1 0710-0911 ●
175 CONVERTER; CATALYST
DOUBLE CAB<TF**W*> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> POWER STEERING<N40> (D) THA 		8-98153-894-0 01 1 0912-1008 ●
175 CONVERTER; CATALYST
DOUBLE CAB<TF**W*> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> POWER STEERING<N40> (D) THA 		8-98156-387-0 01 1 1009- ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE THA 		0-91180-110-0 02 1 0204-0408 ● ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE THA 		0-91180-110-0 02 1 0409-0606 ● ● ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE THA 		0-91180-110-0 02 1 0607- ● ● ●
335 RUBBER; SUPPORT,SILENCER
THA 		8-97289-169-0 01 1 0204-0408 ● ●
335 RUBBER; SUPPORT,SILENCER
THA 		8-97289-169-0 01 1 0409-0606 ● ● ●
335 RUBBER; SUPPORT,SILENCER
THA 		8-97289-169-0 01 1 0607- ● ● ●
337 BOLT; RUBBER,SUPPORT
M10X20 FLANGE THA 		0-28651-020-0 02 1 0204-0303 ● ●
337 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER THA 		8-97104-788-1 02 1 0304-0408 ● ●
337 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER THA 		8-97104-788-1 02 1 0409-0605 ● ● ●
337 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0606-0606 ● ● ●
337 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0607- ● ● ●

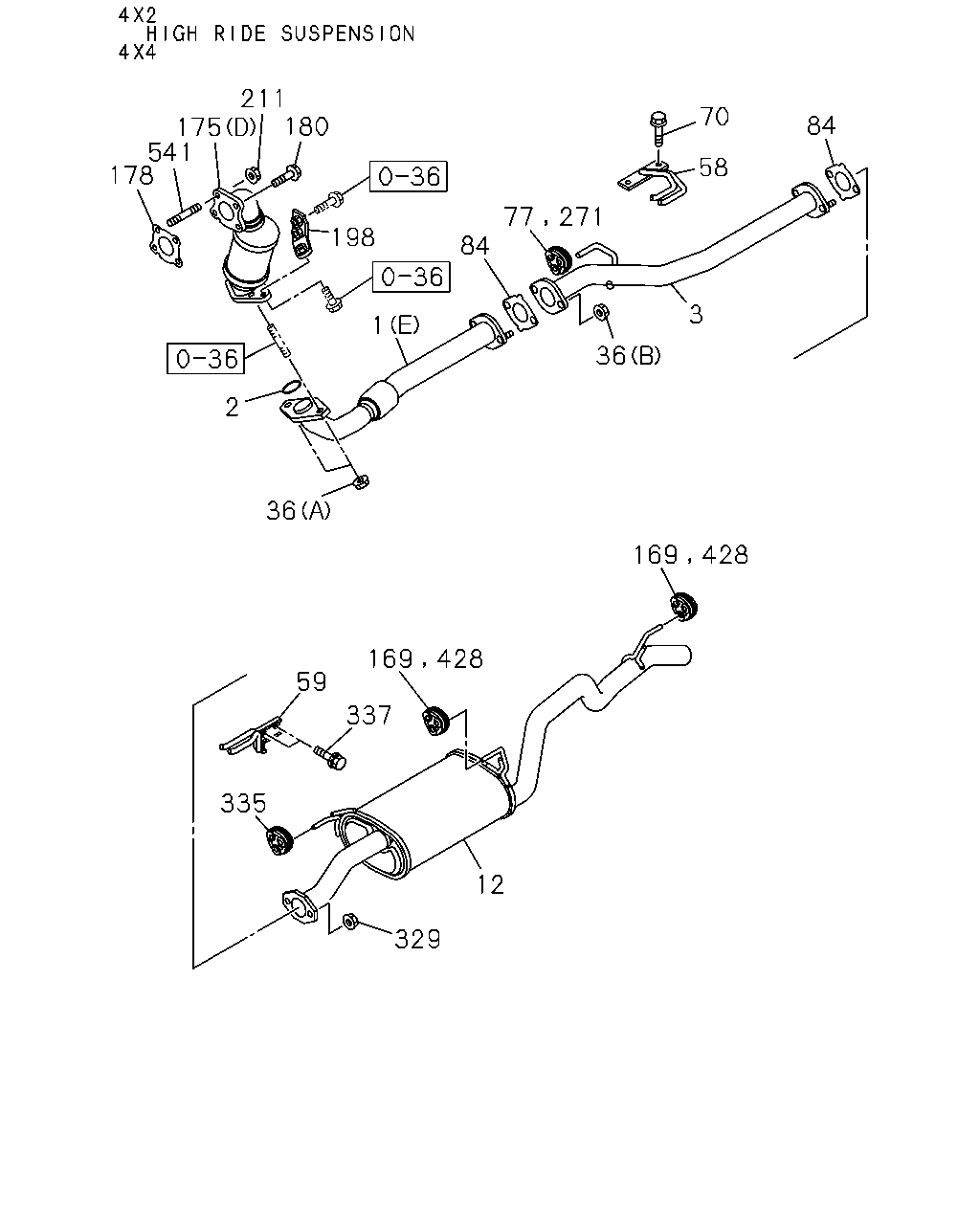

çizim 116393
211 175 180 541 178 70 84 58 198 84 3 1 36 2 36 59 337 335 12 329 77 271 169 428 169 428
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PIPE; EXH
4X2<TFB***> (A) THA 		8-97329-644-0 01 1 0204-0307 ● ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-97329-644-0 01 1 0308-0408 ● ●
1 PIPE; EXH
EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-97329-644-0 01 1 0409-0412 ●
1 PIPE; EXH
4X4<TFS***> (B) THA 		8-97329-645-0 01 1 0204-0307 ●
1 PIPE; EXH
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) THA 		8-97329-645-0 01 1 0308-0408 ● ●
1 PIPE; EXH
4X4<TFS***> (B) THA 		8-97329-645-0 01 1 0308-0408 ●
1 PIPE; EXH
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (D) THA 		8-97370-792-0 01 1 0409-0509 ●
1 PIPE; EXH
4X4<TFS***> (D) THA 		8-97370-792-0 01 1 0409-0509 ●
1 PIPE; EXH
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98008-408-0 01 1 0510-0606 ●
1 PIPE; EXH
4X4<TFS***> (D) THA 		8-98008-408-0 01 1 0510-0606 ●
1 PIPE; EXH
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98008-408-0 01 1 0607- ● ●
1 PIPE; EXH
4X4<TFS***> (D) THA 		8-98008-408-0 01 1 0607- ● ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-97377-745-0 01 1 0409-0412 ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-97377-745-0 01 1 0501-0509 ●
1 PIPE; EXH
(C) THA 		8-97377-745-0 01 1 0501-0509 ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98008-407-0 01 1 0510-0606 ●
1 PIPE; EXH
(C) THA 		8-98008-407-0 01 1 0510-0606 ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98008-407-0 01 1 0607- ● ●
1 PIPE; EXH
4X2 DOUBLE CAB<TFB*W*> HIGH RIDE SUSPENSION<7YC> (E) THA 		8-97380-258-1 01 1 0710-0802 ●
1 PIPE; EXH
4X4 DOUBLE CAB<TFS*W*> (E) THA 		8-97380-258-1 01 1 0710-0802 ●
1 PIPE; EXH
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (E) THA 		8-97380-258-1 01 1 0803- ●
1 PIPE; EXH
4X4<TFS***> (E) THA 		8-97380-258-1 01 1 0803- ●
1 PIPE; EXH
4X2 DOUBLE CAB<TFB*W*> EXC. HIGH RIDE SUSPENSION<7YC> (F) THA 		8-97380-257-1 01 1 0710-0802 ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (F) THA 		8-97380-257-1 01 1 0803- ●
1 PIPE; EXH
4X4 DOUBLE CAB<TFS*W*> (E) THA 		8-97380-258-1 01 1 0609-0708 ●
2 GASKET; PIPE TO MANIF
THA 		8-97069-287-0 01 1 0204-0408 ● ●
2 GASKET; PIPE TO MANIF
THA 		8-97069-287-0 01 1 0409-0412 ● ●
2 GASKET; PIPE TO MANIF
THA 		8-97069-287-0 01 1 0501-0509 ● ●
2 GASKET; PIPE TO MANIF
THA 		8-98017-270-0 01 1 0510-0608 ● ●
2 GASKET; PIPE TO MANIF
THA 		8-98017-270-0 01 1 0609-0708 ● ● ●
2 GASKET; PIPE TO MANIF
THA 		8-98017-270-0 01 1 0709-0709 ● ●
2 GASKET; PIPE TO MANIF
THA 		8-98017-270-0 01 1 0710- ● ● ●
3 PIPE; EXH,CENTER
4X4<TFS***> THA 		8-97308-920-3 01 1 0204-0307 ●
3 PIPE; EXH,CENTER
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> THA 		8-97308-920-3 01 1 0308-0408 ● ●
3 PIPE; EXH,CENTER
4X4<TFS***> THA 		8-97308-920-3 01 1 0308-0408 ●
3 PIPE; EXH,CENTER
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> THA 		8-97363-498-0 01 1 0409-0509 ●
3 PIPE; EXH,CENTER
4X4<TFS***> THA 		8-97363-498-0 01 1 0409-0509 ●
3 PIPE; EXH,CENTER
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> THA 		8-98008-409-0 01 1 0510-0606 ●
3 PIPE; EXH,CENTER
4X4<TFS***> THA 		8-98008-409-0 01 1 0510-0606 ●
3 PIPE; EXH,CENTER
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> THA 		8-98008-409-0 01 1 0607- ● ●
3 PIPE; EXH,CENTER
4X4<TFS***> THA 		8-98008-409-0 01 1 0607- ● ●
3 PIPE; EXH,CENTER
4X4 DOUBLE CAB<TFS*W*> THA 		8-98029-203-0 01 1 0609-0708 ●
3 PIPE; EXH,CENTER
4X2 DOUBLE CAB<TFB*W*> HIGH RIDE SUSPENSION<7YC> THA 		8-98029-203-0 01 1 0710-0802 ●
3 PIPE; EXH,CENTER
4X4 DOUBLE CAB<TFS*W*> THA 		8-98029-203-0 01 1 0710-0802 ●
3 PIPE; EXH,CENTER
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> THA 		8-98029-203-0 01 1 0803- ●
3 PIPE; EXH,CENTER
4X4<TFS***> THA 		8-98029-203-0 01 1 0803- ●
12 SILENCER ASM; EXH
THA 		8-97308-922-2 01 1 0204-0408 ● ●
12 SILENCER ASM; EXH
EURO2 SPECIFICATION<NT2> THA 		8-97308-922-2 01 1 0409-0412 ●
12 SILENCER ASM; EXH
THA 		8-97373-422-0 01 1 0409-0412 ●
12 SILENCER ASM; EXH
THA 		8-97373-422-0 01 1 0501-0509 ● ●
12 SILENCER ASM; EXH
THA 		8-98008-410-0 01 1 0510-0708 ● ●
12 SILENCER ASM; EXH
THA 		8-98082-821-0 01 1 0709- ● ●
12 SILENCER ASM; EXH
THA 		8-97380-266-1 01 1 0609-0708 ●
12 SILENCER ASM; EXH
THA 		8-97380-266-1 01 1 0710- ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0204-0408 ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0409-0412 ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0501-0608 ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0609-0708 ● ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0709-0709 ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0710- ● ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0204-0307 ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0308-0408 ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0308-0408 ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0409-0412 ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0409-0412 ● ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0501-0606 ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0501-0606 ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0607-0608 ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0607-0608 ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0609-0708 ● ● ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0609-0708 ● ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0709-0709 ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0709-0709 ● ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0710- ● ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0710- ● ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97249-193-0 01 1 0204-0303 ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0304-0408 ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0409-0412 ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0501-0608 ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0609-0708 ● ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0709-0709 ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0710- ● ● ●
59 BRACKET; EXH SILENCER,FRT
THA 		8-97249-195-0 01 1 0204-0303 ● ●
59 BRACKET; EXH SILENCER,FRT
THA 		8-97365-312-0 01 1 0304-0408 ● ●
59 BRACKET; EXH SILENCER,FRT
THA 		8-97365-312-0 01 1 0409-0606 ● ● ●
59 BRACKET; EXH SILENCER,FRT
THA 		8-97365-312-0 01 1 0607- ● ● ●
70 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 02 1 0204-0303 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-97104-788-1 02 1 0304-0408 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-97104-788-1 02 1 0409-0412 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-97104-788-1 02 1 0501-0605 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0606-0608 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0609-0708 ● ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0709-0709 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0710- ● ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0204-0408 ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0409-0412 ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0501-0608 ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0609-0708 ● ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0709-0709 ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0710-1008 ● ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0204-0307 ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0204-0307 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0308-0408 ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0308-0408 ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0308-0408 ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0409-0412 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0409-0412 ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0409-0412 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0501-0606 ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0501-0606 ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0501-0606 ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0607-0608 ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0607-0608 ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0607-0608 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0609-0708 ● ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0609-0708 ● ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0609-0708 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0709-0709 ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0709-0709 ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0709-0709 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0710- ● ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0710- ● ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0710- ● ● ●
169 RING; DAMPER,EXH PIPE
THA 		8-97289-169-0 01 1 1009- ● ● ●
169 RING; DAMPER,EXH PIPE
THA 		8-97289-169-0 02 1 0204-0408 ● ●
169 RING; DAMPER,EXH PIPE
THA 		8-97289-169-0 02 1 0409-0606 ● ● ●
169 RING; DAMPER,EXH PIPE
THA 		8-97289-169-0 02 1 0607-1008 ● ● ●
175 CONVERTER; CATALYST
SPACE CAB<TF**C*> M/T MUX 5 SPEED 5S<MZJ> POWER STEERING<N40> (D) THA 		8-98038-425-0 01 1 0803-0909 ●
175 CONVERTER; CATALYST
SPACE CAB<TF**C*> M/T MUX 5 SPEED 5S<MZJ> POWER STEERING<N40> (D) THA 		8-98153-895-0 01 1 0910-1008 ●
175 CONVERTER; CATALYST
SPACE CAB<TF**C*> M/T MUX 5 SPEED 5S<MZJ> POWER STEERING<N40> (D) THA 		8-98156-386-0 01 1 1009- ●
175 CONVERTER; CATALYST
(A) THA 		8-97306-532-2 01 1 0204-0408 ●
175 CONVERTER; CATALYST
(A) THA 		8-97306-532-2 01 1 0409-0412 ●
175 CONVERTER; CATALYST
(C) THA 		8-97383-254-0 01 1 0501-0509 ●
175 CONVERTER; CATALYST
(C) THA 		8-98005-183-2 01 1 0510- ●
175 CONVERTER; CATALYST
(B) IMA 		8-97258-201-3 01 1 0204-0408 ●
175 CONVERTER; CATALYST
(C) THA 		8-97374-822-0 01 1 0409-0510 ●
175 CONVERTER; CATALYST
(C) THA 		8-98005-182-2 01 1 0511- ●
175 CONVERTER; CATALYST
(D) THA 		8-98038-426-0 01 1 0609-0708 ●
175 CONVERTER; CATALYST
DOUBLE CAB<TF**W*> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> POWER STEERING<N40> (D) THA 		8-98038-426-0 01 1 0710-0911 ●
175 CONVERTER; CATALYST
DOUBLE CAB<TF**W*> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> POWER STEERING<N40> (D) THA 		8-98153-894-0 01 1 0912-1008 ●
175 CONVERTER; CATALYST
DOUBLE CAB<TF**W*> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> POWER STEERING<N40> (D) THA 		8-98156-387-0 01 1 1009- ●
178 GASKET; CONV TO MANIF
THA 		8-97312-284-1 01 1 0409-0412 ●
178 GASKET; CONV TO MANIF
THA 		8-97312-284-1 01 1 0501- ● ●
178 GASKET; CONV TO MANIF
THA 		8-98011-532-0 01 1 0609-0708 ●
178 GASKET; CONV TO MANIF
THA 		8-98011-532-0 01 1 0710-1008 ●
178 GASKET; CONV TO MANIF
THA 		8-98132-538-0 01 1 1009- ●
180 BOLT; CONV TO PIPE
M8X23 FLANGE IMA 		8-97378-077-0 02 1 1009- ●
198 BRACKET; CONV MTG
THA 		8-98020-516-1 01 1 0609-0708 ●
198 BRACKET; CONV MTG
THA 		8-98020-516-1 01 1 0710- ●
211 NUT; CONV
M8 FLANGE THA 		8-97379-384-0 02 1 1009- ●
211 NUT; CONV
M8 FLANGE THA 		8-97379-384-0 04 1 0409-0412 ●
211 NUT; CONV
M8 FLANGE THA 		8-97379-384-0 04 1 0501-0608 ● ●
211 NUT; CONV
M8 FLANGE THA 		8-97379-384-0 04 1 0609-0708 ● ● ●
211 NUT; CONV
M8 FLANGE THA 		8-97379-384-0 04 1 0709-0709 ● ●
211 NUT; CONV
M8 FLANGE THA 		8-97379-384-0 04 1 0710-1008 ● ● ●
211 NUT; CONV
M8 FLANGE THA 		8-97379-384-0 04 1 1009- ● ●
271 RUBBER; HANGER,RR PIPE
THA 		8-97289-169-0 01 1 1009- ● ● ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE THA 		0-91180-110-0 02 1 0204-0408 ● ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE THA 		0-91180-110-0 02 1 0409-0606 ● ● ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE THA 		0-91180-110-0 02 1 0607- ● ● ●
335 RUBBER; SUPPORT,SILENCER
THA 		8-97289-169-0 01 1 0204-0408 ● ●
335 RUBBER; SUPPORT,SILENCER
THA 		8-97289-169-0 01 1 0409-0606 ● ● ●
335 RUBBER; SUPPORT,SILENCER
THA 		8-97289-169-0 01 1 0607- ● ● ●
337 BOLT; RUBBER,SUPPORT
M10X20 FLANGE THA 		0-28651-020-0 02 1 0204-0303 ● ●
337 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER THA 		8-97104-788-1 02 1 0304-0408 ● ●
337 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER THA 		8-97104-788-1 02 1 0409-0605 ● ● ●
337 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0606-0606 ● ● ●
337 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0607- ● ● ●
428 RUBBER; MTG,CLAMP,EXH PIPE
THA 		8-97289-169-0 01 1 1009- ● ● ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-97378-062-0 02 1 1009- ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-94156-470-2 04 1 0409-0409 ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-97378-062-0 04 1 0410-0412 ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-97378-062-0 04 1 0501-0608 ● ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-97378-062-0 04 1 0609-0708 ● ● ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-97378-062-0 04 1 0709-0709 ● ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-97378-062-0 04 1 0710-1008 ● ● ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-97378-062-0 04 1 1009- ● ●
çizim 116394
70 211 175 541 178 84 58 1 2 36 59 337 335 12 329 77 271 169 428 169 428
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PIPE; EXH
4X2<TFB***> (A) THA 		8-97329-644-0 01 1 0204-0307 ● ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-97329-644-0 01 1 0308-0408 ● ●
1 PIPE; EXH
EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-97329-644-0 01 1 0409-0412 ●
1 PIPE; EXH
4X4<TFS***> (B) THA 		8-97329-645-0 01 1 0204-0307 ●
1 PIPE; EXH
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) THA 		8-97329-645-0 01 1 0308-0408 ● ●
1 PIPE; EXH
4X4<TFS***> (B) THA 		8-97329-645-0 01 1 0308-0408 ●
1 PIPE; EXH
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (D) THA 		8-97370-792-0 01 1 0409-0509 ●
1 PIPE; EXH
4X4<TFS***> (D) THA 		8-97370-792-0 01 1 0409-0509 ●
1 PIPE; EXH
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98008-408-0 01 1 0510-0606 ●
1 PIPE; EXH
4X4<TFS***> (D) THA 		8-98008-408-0 01 1 0510-0606 ●
1 PIPE; EXH
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98008-408-0 01 1 0607- ● ●
1 PIPE; EXH
4X4<TFS***> (D) THA 		8-98008-408-0 01 1 0607- ● ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-97377-745-0 01 1 0409-0412 ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-97377-745-0 01 1 0501-0509 ●
1 PIPE; EXH
(C) THA 		8-97377-745-0 01 1 0501-0509 ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98008-407-0 01 1 0510-0606 ●
1 PIPE; EXH
(C) THA 		8-98008-407-0 01 1 0510-0606 ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98008-407-0 01 1 0607- ● ●
1 PIPE; EXH
4X2 DOUBLE CAB<TFB*W*> HIGH RIDE SUSPENSION<7YC> (E) THA 		8-97380-258-1 01 1 0710-0802 ●
1 PIPE; EXH
4X4 DOUBLE CAB<TFS*W*> (E) THA 		8-97380-258-1 01 1 0710-0802 ●
1 PIPE; EXH
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (E) THA 		8-97380-258-1 01 1 0803- ●
1 PIPE; EXH
4X4<TFS***> (E) THA 		8-97380-258-1 01 1 0803- ●
1 PIPE; EXH
4X2 DOUBLE CAB<TFB*W*> EXC. HIGH RIDE SUSPENSION<7YC> (F) THA 		8-97380-257-1 01 1 0710-0802 ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (F) THA 		8-97380-257-1 01 1 0803- ●
1 PIPE; EXH
4X4 DOUBLE CAB<TFS*W*> (E) THA 		8-97380-258-1 01 1 0609-0708 ●
2 GASKET; PIPE TO MANIF
THA 		8-97069-287-0 01 1 0204-0408 ● ●
2 GASKET; PIPE TO MANIF
THA 		8-97069-287-0 01 1 0409-0412 ● ●
2 GASKET; PIPE TO MANIF
THA 		8-97069-287-0 01 1 0501-0509 ● ●
2 GASKET; PIPE TO MANIF
THA 		8-98017-270-0 01 1 0510-0608 ● ●
2 GASKET; PIPE TO MANIF
THA 		8-98017-270-0 01 1 0609-0708 ● ● ●
2 GASKET; PIPE TO MANIF
THA 		8-98017-270-0 01 1 0709-0709 ● ●
2 GASKET; PIPE TO MANIF
THA 		8-98017-270-0 01 1 0710- ● ● ●
12 SILENCER ASM; EXH
THA 		8-97308-922-2 01 1 0204-0408 ● ●
12 SILENCER ASM; EXH
EURO2 SPECIFICATION<NT2> THA 		8-97308-922-2 01 1 0409-0412 ●
12 SILENCER ASM; EXH
THA 		8-97373-422-0 01 1 0409-0412 ●
12 SILENCER ASM; EXH
THA 		8-97373-422-0 01 1 0501-0509 ● ●
12 SILENCER ASM; EXH
THA 		8-98008-410-0 01 1 0510-0708 ● ●
12 SILENCER ASM; EXH
THA 		8-98082-821-0 01 1 0709- ● ●
12 SILENCER ASM; EXH
THA 		8-97380-266-1 01 1 0609-0708 ●
12 SILENCER ASM; EXH
THA 		8-97380-266-1 01 1 0710- ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0204-0408 ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0409-0412 ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0501-0608 ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0609-0708 ● ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0709-0709 ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0710- ● ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0204-0307 ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0308-0408 ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0308-0408 ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0409-0412 ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0409-0412 ● ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0501-0606 ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0501-0606 ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0607-0608 ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0607-0608 ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0609-0708 ● ● ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0609-0708 ● ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0709-0709 ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0709-0709 ● ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0710- ● ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0710- ● ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97249-193-0 01 1 0204-0303 ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0304-0408 ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0409-0412 ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0501-0608 ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0609-0708 ● ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0709-0709 ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0710- ● ● ●
59 BRACKET; EXH SILENCER,FRT
THA 		8-97249-195-0 01 1 0204-0303 ● ●
59 BRACKET; EXH SILENCER,FRT
THA 		8-97365-312-0 01 1 0304-0408 ● ●
59 BRACKET; EXH SILENCER,FRT
THA 		8-97365-312-0 01 1 0409-0606 ● ● ●
59 BRACKET; EXH SILENCER,FRT
THA 		8-97365-312-0 01 1 0607- ● ● ●
70 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 02 1 0204-0303 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-97104-788-1 02 1 0304-0408 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-97104-788-1 02 1 0409-0412 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-97104-788-1 02 1 0501-0605 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0606-0608 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0609-0708 ● ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0709-0709 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0710- ● ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0204-0408 ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0409-0412 ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0501-0608 ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0609-0708 ● ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0709-0709 ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0710-1008 ● ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0204-0307 ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0204-0307 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0308-0408 ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0308-0408 ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0308-0408 ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0409-0412 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0409-0412 ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0409-0412 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0501-0606 ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0501-0606 ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0501-0606 ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0607-0608 ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0607-0608 ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0607-0608 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0609-0708 ● ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0609-0708 ● ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0609-0708 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0709-0709 ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0709-0709 ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0709-0709 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0710- ● ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0710- ● ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0710- ● ● ●
169 RING; DAMPER,EXH PIPE
THA 		8-97289-169-0 01 1 1009- ● ● ●
169 RING; DAMPER,EXH PIPE
THA 		8-97289-169-0 02 1 0204-0408 ● ●
169 RING; DAMPER,EXH PIPE
THA 		8-97289-169-0 02 1 0409-0606 ● ● ●
169 RING; DAMPER,EXH PIPE
THA 		8-97289-169-0 02 1 0607-1008 ● ● ●
175 CONVERTER; CATALYST
SPACE CAB<TF**C*> M/T MUX 5 SPEED 5S<MZJ> POWER STEERING<N40> (D) THA 		8-98038-425-0 01 1 0803-0909 ●
175 CONVERTER; CATALYST
SPACE CAB<TF**C*> M/T MUX 5 SPEED 5S<MZJ> POWER STEERING<N40> (D) THA 		8-98153-895-0 01 1 0910-1008 ●
175 CONVERTER; CATALYST
SPACE CAB<TF**C*> M/T MUX 5 SPEED 5S<MZJ> POWER STEERING<N40> (D) THA 		8-98156-386-0 01 1 1009- ●
175 CONVERTER; CATALYST
(A) THA 		8-97306-532-2 01 1 0204-0408 ●
175 CONVERTER; CATALYST
(A) THA 		8-97306-532-2 01 1 0409-0412 ●
175 CONVERTER; CATALYST
(C) THA 		8-97383-254-0 01 1 0501-0509 ●
175 CONVERTER; CATALYST
(C) THA 		8-98005-183-2 01 1 0510- ●
175 CONVERTER; CATALYST
(B) IMA 		8-97258-201-3 01 1 0204-0408 ●
175 CONVERTER; CATALYST
(C) THA 		8-97374-822-0 01 1 0409-0510 ●
175 CONVERTER; CATALYST
(C) THA 		8-98005-182-2 01 1 0511- ●
175 CONVERTER; CATALYST
(D) THA 		8-98038-426-0 01 1 0609-0708 ●
175 CONVERTER; CATALYST
DOUBLE CAB<TF**W*> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> POWER STEERING<N40> (D) THA 		8-98038-426-0 01 1 0710-0911 ●
175 CONVERTER; CATALYST
DOUBLE CAB<TF**W*> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> POWER STEERING<N40> (D) THA 		8-98153-894-0 01 1 0912-1008 ●
175 CONVERTER; CATALYST
DOUBLE CAB<TF**W*> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> POWER STEERING<N40> (D) THA 		8-98156-387-0 01 1 1009- ●
178 GASKET; CONV TO MANIF
THA 		8-97312-284-1 01 1 0409-0412 ●
178 GASKET; CONV TO MANIF
THA 		8-97312-284-1 01 1 0501- ● ●
178 GASKET; CONV TO MANIF
THA 		8-98011-532-0 01 1 0609-0708 ●
178 GASKET; CONV TO MANIF
THA 		8-98011-532-0 01 1 0710-1008 ●
178 GASKET; CONV TO MANIF
THA 		8-98132-538-0 01 1 1009- ●
211 NUT; CONV
M8 FLANGE THA 		8-97379-384-0 02 1 1009- ●
211 NUT; CONV
M8 FLANGE THA 		8-97379-384-0 04 1 0409-0412 ●
211 NUT; CONV
M8 FLANGE THA 		8-97379-384-0 04 1 0501-0608 ● ●
211 NUT; CONV
M8 FLANGE THA 		8-97379-384-0 04 1 0609-0708 ● ● ●
211 NUT; CONV
M8 FLANGE THA 		8-97379-384-0 04 1 0709-0709 ● ●
211 NUT; CONV
M8 FLANGE THA 		8-97379-384-0 04 1 0710-1008 ● ● ●
211 NUT; CONV
M8 FLANGE THA 		8-97379-384-0 04 1 1009- ● ●
271 RUBBER; HANGER,RR PIPE
THA 		8-97289-169-0 01 1 1009- ● ● ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE THA 		0-91180-110-0 02 1 0204-0408 ● ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE THA 		0-91180-110-0 02 1 0409-0606 ● ● ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE THA 		0-91180-110-0 02 1 0607- ● ● ●
335 RUBBER; SUPPORT,SILENCER
THA 		8-97289-169-0 01 1 0204-0408 ● ●
335 RUBBER; SUPPORT,SILENCER
THA 		8-97289-169-0 01 1 0409-0606 ● ● ●
335 RUBBER; SUPPORT,SILENCER
THA 		8-97289-169-0 01 1 0607- ● ● ●
337 BOLT; RUBBER,SUPPORT
M10X20 FLANGE THA 		0-28651-020-0 02 1 0204-0303 ● ●
337 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER THA 		8-97104-788-1 02 1 0304-0408 ● ●
337 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER THA 		8-97104-788-1 02 1 0409-0605 ● ● ●
337 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0606-0606 ● ● ●
337 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0607- ● ● ●
428 RUBBER; MTG,CLAMP,EXH PIPE
THA 		8-97289-169-0 01 1 1009- ● ● ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-97378-062-0 02 1 1009- ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-94156-470-2 04 1 0409-0409 ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-97378-062-0 04 1 0410-0412 ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-97378-062-0 04 1 0501-0608 ● ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-97378-062-0 04 1 0609-0708 ● ● ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-97378-062-0 04 1 0709-0709 ● ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-97378-062-0 04 1 0710-1008 ● ● ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-97378-062-0 04 1 1009- ● ●
çizim 116408
211 175 180 541 178 70 84 58 198 1 2 36 59 337 335 12 329 169 428 169 428 77 271
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PIPE; EXH
4X2<TFB***> (A) THA 		8-97329-644-0 01 1 0204-0307 ● ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-97329-644-0 01 1 0308-0408 ● ●
1 PIPE; EXH
EURO2 SPECIFICATION<NT2> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-97329-644-0 01 1 0409-0412 ●
1 PIPE; EXH
4X4<TFS***> (B) THA 		8-97329-645-0 01 1 0204-0307 ●
1 PIPE; EXH
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) THA 		8-97329-645-0 01 1 0308-0408 ● ●
1 PIPE; EXH
4X4<TFS***> (B) THA 		8-97329-645-0 01 1 0308-0408 ●
1 PIPE; EXH
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (D) THA 		8-97370-792-0 01 1 0409-0509 ●
1 PIPE; EXH
4X4<TFS***> (D) THA 		8-97370-792-0 01 1 0409-0509 ●
1 PIPE; EXH
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98008-408-0 01 1 0510-0606 ●
1 PIPE; EXH
4X4<TFS***> (D) THA 		8-98008-408-0 01 1 0510-0606 ●
1 PIPE; EXH
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98008-408-0 01 1 0607- ● ●
1 PIPE; EXH
4X4<TFS***> (D) THA 		8-98008-408-0 01 1 0607- ● ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-97377-745-0 01 1 0409-0412 ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-97377-745-0 01 1 0501-0509 ●
1 PIPE; EXH
(C) THA 		8-97377-745-0 01 1 0501-0509 ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98008-407-0 01 1 0510-0606 ●
1 PIPE; EXH
(C) THA 		8-98008-407-0 01 1 0510-0606 ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98008-407-0 01 1 0607- ● ●
1 PIPE; EXH
4X2 DOUBLE CAB<TFB*W*> HIGH RIDE SUSPENSION<7YC> (E) THA 		8-97380-258-1 01 1 0710-0802 ●
1 PIPE; EXH
4X4 DOUBLE CAB<TFS*W*> (E) THA 		8-97380-258-1 01 1 0710-0802 ●
1 PIPE; EXH
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (E) THA 		8-97380-258-1 01 1 0803- ●
1 PIPE; EXH
4X4<TFS***> (E) THA 		8-97380-258-1 01 1 0803- ●
1 PIPE; EXH
4X2 DOUBLE CAB<TFB*W*> EXC. HIGH RIDE SUSPENSION<7YC> (F) THA 		8-97380-257-1 01 1 0710-0802 ●
1 PIPE; EXH
4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> (F) THA 		8-97380-257-1 01 1 0803- ●
1 PIPE; EXH
4X4 DOUBLE CAB<TFS*W*> (E) THA 		8-97380-258-1 01 1 0609-0708 ●
2 GASKET; PIPE TO MANIF
THA 		8-97069-287-0 01 1 0204-0408 ● ●
2 GASKET; PIPE TO MANIF
THA 		8-97069-287-0 01 1 0409-0412 ● ●
2 GASKET; PIPE TO MANIF
THA 		8-97069-287-0 01 1 0501-0509 ● ●
2 GASKET; PIPE TO MANIF
THA 		8-98017-270-0 01 1 0510-0608 ● ●
2 GASKET; PIPE TO MANIF
THA 		8-98017-270-0 01 1 0609-0708 ● ● ●
2 GASKET; PIPE TO MANIF
THA 		8-98017-270-0 01 1 0709-0709 ● ●
2 GASKET; PIPE TO MANIF
THA 		8-98017-270-0 01 1 0710- ● ● ●
12 SILENCER ASM; EXH
THA 		8-97308-922-2 01 1 0204-0408 ● ●
12 SILENCER ASM; EXH
EURO2 SPECIFICATION<NT2> THA 		8-97308-922-2 01 1 0409-0412 ●
12 SILENCER ASM; EXH
THA 		8-97373-422-0 01 1 0409-0412 ●
12 SILENCER ASM; EXH
THA 		8-97373-422-0 01 1 0501-0509 ● ●
12 SILENCER ASM; EXH
THA 		8-98008-410-0 01 1 0510-0708 ● ●
12 SILENCER ASM; EXH
THA 		8-98082-821-0 01 1 0709- ● ●
12 SILENCER ASM; EXH
THA 		8-97380-266-1 01 1 0609-0708 ●
12 SILENCER ASM; EXH
THA 		8-97380-266-1 01 1 0710- ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0204-0408 ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0409-0412 ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0501-0608 ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0609-0708 ● ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0709-0709 ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 0710- ● ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0204-0307 ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0308-0408 ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0308-0408 ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0409-0412 ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0409-0412 ● ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0501-0606 ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0501-0606 ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0607-0608 ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0607-0608 ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0609-0708 ● ● ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0609-0708 ● ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0709-0709 ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0709-0709 ● ●
36 NUT; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0710- ● ● ●
36 NUT; EXH PIPE
4X4<TFS***> (B) M10 FLANGE THA 		0-91180-110-0 02 1 0710- ● ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97249-193-0 01 1 0204-0303 ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0304-0408 ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0409-0412 ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0501-0608 ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0609-0708 ● ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0709-0709 ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 0710- ● ● ●
59 BRACKET; EXH SILENCER,FRT
THA 		8-97249-195-0 01 1 0204-0303 ● ●
59 BRACKET; EXH SILENCER,FRT
THA 		8-97365-312-0 01 1 0304-0408 ● ●
59 BRACKET; EXH SILENCER,FRT
THA 		8-97365-312-0 01 1 0409-0606 ● ● ●
59 BRACKET; EXH SILENCER,FRT
THA 		8-97365-312-0 01 1 0607- ● ● ●
70 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 02 1 0204-0303 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-97104-788-1 02 1 0304-0408 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-97104-788-1 02 1 0409-0412 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-97104-788-1 02 1 0501-0605 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0606-0608 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0609-0708 ● ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0709-0709 ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0710- ● ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0204-0408 ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0409-0412 ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0501-0608 ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0609-0708 ● ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0709-0709 ● ●
77 RUBBER; CUSHION,BRKT
THA 		8-97289-169-0 01 1 0710-1008 ● ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0204-0307 ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0204-0307 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0308-0408 ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0308-0408 ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0308-0408 ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0409-0412 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0409-0412 ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0409-0412 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0501-0606 ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0501-0606 ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0501-0606 ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0607-0608 ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0607-0608 ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0607-0608 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0609-0708 ● ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0609-0708 ● ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0609-0708 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0709-0709 ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0709-0709 ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0709-0709 ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 0710- ● ● ●
84 GASKET; EXH PIPE
4X2<TFB***> HIGH RIDE SUSPENSION<7YC> ID=65 THA 		8-97263-052-0 01 1 0710- ● ● ●
84 GASKET; EXH PIPE
4X4<TFS***> ID=65 THA 		8-97263-052-0 01 1 0710- ● ● ●
169 RING; DAMPER,EXH PIPE
THA 		8-97289-169-0 01 1 1009- ● ● ●
169 RING; DAMPER,EXH PIPE
THA 		8-97289-169-0 02 1 0204-0408 ● ●
169 RING; DAMPER,EXH PIPE
THA 		8-97289-169-0 02 1 0409-0606 ● ● ●
169 RING; DAMPER,EXH PIPE
THA 		8-97289-169-0 02 1 0607-1008 ● ● ●
175 CONVERTER; CATALYST
SPACE CAB<TF**C*> M/T MUX 5 SPEED 5S<MZJ> POWER STEERING<N40> (D) THA 		8-98038-425-0 01 1 0803-0909 ●
175 CONVERTER; CATALYST
SPACE CAB<TF**C*> M/T MUX 5 SPEED 5S<MZJ> POWER STEERING<N40> (D) THA 		8-98153-895-0 01 1 0910-1008 ●
175 CONVERTER; CATALYST
SPACE CAB<TF**C*> M/T MUX 5 SPEED 5S<MZJ> POWER STEERING<N40> (D) THA 		8-98156-386-0 01 1 1009- ●
175 CONVERTER; CATALYST
(A) THA 		8-97306-532-2 01 1 0204-0408 ●
175 CONVERTER; CATALYST
(A) THA 		8-97306-532-2 01 1 0409-0412 ●
175 CONVERTER; CATALYST
(C) THA 		8-97383-254-0 01 1 0501-0509 ●
175 CONVERTER; CATALYST
(C) THA 		8-98005-183-2 01 1 0510- ●
175 CONVERTER; CATALYST
(B) IMA 		8-97258-201-3 01 1 0204-0408 ●
175 CONVERTER; CATALYST
(C) THA 		8-97374-822-0 01 1 0409-0510 ●
175 CONVERTER; CATALYST
(C) THA 		8-98005-182-2 01 1 0511- ●
175 CONVERTER; CATALYST
(D) THA 		8-98038-426-0 01 1 0609-0708 ●
175 CONVERTER; CATALYST
DOUBLE CAB<TF**W*> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> POWER STEERING<N40> (D) THA 		8-98038-426-0 01 1 0710-0911 ●
175 CONVERTER; CATALYST
DOUBLE CAB<TF**W*> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> POWER STEERING<N40> (D) THA 		8-98153-894-0 01 1 0912-1008 ●
175 CONVERTER; CATALYST
DOUBLE CAB<TF**W*> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> POWER STEERING<N40> (D) THA 		8-98156-387-0 01 1 1009- ●
178 GASKET; CONV TO MANIF
THA 		8-97312-284-1 01 1 0409-0412 ●
178 GASKET; CONV TO MANIF
THA 		8-97312-284-1 01 1 0501- ● ●
178 GASKET; CONV TO MANIF
THA 		8-98011-532-0 01 1 0609-0708 ●
178 GASKET; CONV TO MANIF
THA 		8-98011-532-0 01 1 0710-1008 ●
178 GASKET; CONV TO MANIF
THA 		8-98132-538-0 01 1 1009- ●
180 BOLT; CONV TO PIPE
M8X23 FLANGE IMA 		8-97378-077-0 02 1 1009- ●
198 BRACKET; CONV MTG
THA 		8-98020-516-1 01 1 0609-0708 ●
198 BRACKET; CONV MTG
THA 		8-98020-516-1 01 1 0710- ●
211 NUT; CONV
M8 FLANGE THA 		8-97379-384-0 02 1 1009- ●
211 NUT; CONV
M8 FLANGE THA 		8-97379-384-0 04 1 0409-0412 ●
211 NUT; CONV
M8 FLANGE THA 		8-97379-384-0 04 1 0501-0608 ● ●
211 NUT; CONV
M8 FLANGE THA 		8-97379-384-0 04 1 0609-0708 ● ● ●
211 NUT; CONV
M8 FLANGE THA 		8-97379-384-0 04 1 0709-0709 ● ●
211 NUT; CONV
M8 FLANGE THA 		8-97379-384-0 04 1 0710-1008 ● ● ●
211 NUT; CONV
M8 FLANGE THA 		8-97379-384-0 04 1 1009- ● ●
271 RUBBER; HANGER,RR PIPE
THA 		8-97289-169-0 01 1 1009- ● ● ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE THA 		0-91180-110-0 02 1 0204-0408 ● ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE THA 		0-91180-110-0 02 1 0409-0606 ● ● ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE THA 		0-91180-110-0 02 1 0607- ● ● ●
335 RUBBER; SUPPORT,SILENCER
THA 		8-97289-169-0 01 1 0204-0408 ● ●
335 RUBBER; SUPPORT,SILENCER
THA 		8-97289-169-0 01 1 0409-0606 ● ● ●
335 RUBBER; SUPPORT,SILENCER
THA 		8-97289-169-0 01 1 0607- ● ● ●
337 BOLT; RUBBER,SUPPORT
M10X20 FLANGE THA 		0-28651-020-0 02 1 0204-0303 ● ●
337 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER THA 		8-97104-788-1 02 1 0304-0408 ● ●
337 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER THA 		8-97104-788-1 02 1 0409-0605 ● ● ●
337 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0606-0606 ● ● ●
337 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER THA 		8-98050-928-0 02 1 0607- ● ● ●
428 RUBBER; MTG,CLAMP,EXH PIPE
THA 		8-97289-169-0 01 1 1009- ● ● ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-97378-062-0 02 1 1009- ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-94156-470-2 04 1 0409-0409 ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-97378-062-0 04 1 0410-0412 ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-97378-062-0 04 1 0501-0608 ● ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-97378-062-0 04 1 0609-0708 ● ● ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-97378-062-0 04 1 0709-0709 ● ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-97378-062-0 04 1 0710-1008 ● ● ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-97378-062-0 04 1 1009- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
