Sayfa 1-35 - Isuzu EPC

1-35 — CHARGE AIR COOLER (#72826) — 197 parça

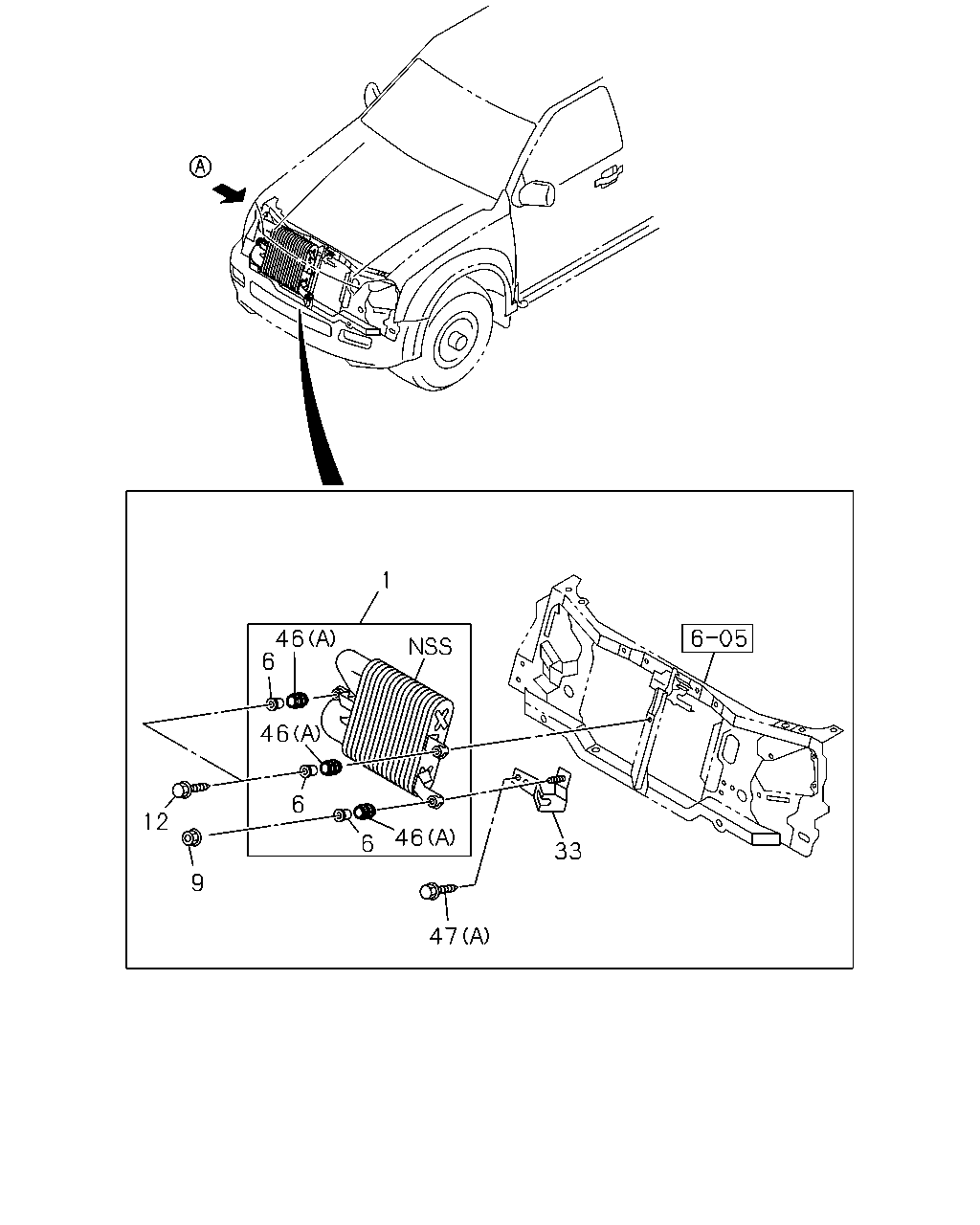

1 46 6 46 6 12 46 6 33 9 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COOLER; CHARGE AIR THA	8-97376-147-1	01	1	0409-0412	●
1	COOLER; CHARGE AIR THA	8-98000-270-0	01	1	0501-0606	●	●
1	COOLER; CHARGE AIR 4X2<TFB***> HIGH RIDE SUSPENSION<7YC> THA	8-98000-270-1	01	1	0607-0801	●	●
1	COOLER; CHARGE AIR 4X4<TFS***> THA	8-98000-270-1	01	1	0607-0801	●	●
1	COOLER; CHARGE AIR 4X2<TFB***> HIGH RIDE SUSPENSION<7YC> THA	8-98088-685-0	01	1	0802-0808	●	●
1	COOLER; CHARGE AIR 4X4<TFS***> THA	8-98088-685-0	01	1	0802-0808	●	●
1	COOLER; CHARGE AIR 4X2<TFB***> GRADE SX<RBB>,GRADE SLX/LS<RBD> THA	8-98088-685-0	01	1	0809-	●	●
1	COOLER; CHARGE AIR 4X4<TFS***> THA	8-98088-685-0	01	1	0809-	●	●
1	COOLER; CHARGE AIR 4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98000-192-0	01	1	0607-0801	●	●
1	COOLER; CHARGE AIR 4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98088-684-0	01	1	0802-0808	●	●
1	COOLER; CHARGE AIR 4X2<TFB***> GRADE EXL/EX/SL/S<RBA> THA	8-98088-684-0	01	1	0809-	●	●
1	COOLER; CHARGE AIR THA	8-97389-185-3	01	1	0609-0708			●
1	COOLER; CHARGE AIR THA	8-97389-185-4	01	1	0710-0802			●
1	COOLER; CHARGE AIR THA	8-98114-815-0	01	1	0803-			●
6	COLLAR; MTG,CHARGE AIR COOLER THA	8-97386-100-0	03	1	0409-0412	●
6	COLLAR; MTG,CHARGE AIR COOLER THA	8-97386-100-0	03	1	0501-0606	●	●
6	COLLAR; MTG,CHARGE AIR COOLER 4X2<TFB***> HIGH RIDE SUSPENSION<7YC> THA	8-97386-100-0	03	1	0607-0808	●	●
6	COLLAR; MTG,CHARGE AIR COOLER 4X4<TFS***> THA	8-97386-100-0	03	1	0607-0808	●	●
6	COLLAR; MTG,CHARGE AIR COOLER 4X2<TFB***> GRADE SX<RBB>,GRADE SLX/LS<RBD> THA	8-97386-100-0	03	1	0809-	●	●
6	COLLAR; MTG,CHARGE AIR COOLER 4X4<TFS***> THA	8-97386-100-0	03	1	0809-	●	●
6	COLLAR; MTG,CHARGE AIR COOLER 4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97942-932-0	03	1	0607-0808	●	●
6	COLLAR; MTG,CHARGE AIR COOLER 4X2<TFB***> GRADE EXL/EX/SL/S<RBA> THA	8-97942-932-0	03	1	0809-	●	●
6	COLLAR; MTG,CHARGE AIR COOLER THA	8-97107-898-0	04	1	0609-0708			●
6	COLLAR; MTG,CHARGE AIR COOLER THA	8-97107-898-0	04	1	0710-			●
9	NUT; CHARGE AIR COOLER M8 FLANGE IMA	0-91150-108-0	01	1	0409-0412	●
9	NUT; CHARGE AIR COOLER M8 FLANGE IMA	0-91150-108-0	01	1	0501-0603	●	●
9	NUT; CHARGE AIR COOLER M8 FLANGE THA	0-91180-108-0	01	1	0604-	●	●
9	NUT; CHARGE AIR COOLER M8 FLANGE THA	0-91180-108-0	02	1	0609-0708			●
9	NUT; CHARGE AIR COOLER M8 FLANGE THA	0-91180-108-0	02	1	0710-			●
12	BOLT; CHARGE AIR COOLER THA	8-97943-079-0	02	1	0409-0412	●
12	BOLT; CHARGE AIR COOLER THA	8-97943-079-0	02	1	0501-0812	●	●
12	BOLT; CHARGE AIR COOLER M8X32.5 W/PL WASHER THA	8-98136-077-0	02	1	0901-	●	●
12	BOLT; CHARGE AIR COOLER THA	8-98044-006-0	02	1	0609-0708			●
12	BOLT; CHARGE AIR COOLER THA	8-98044-006-0	02	1	0710-			●
33	BRACKET; CHARGE AIR COOLER,FRT THA	8-97326-994-0	01	1	0409-0412	●
33	BRACKET; CHARGE AIR COOLER,FRT THA	8-97326-994-0	01	1	0501-	●	●
33	BRACKET; CHARGE AIR COOLER,FRT THA	8-97389-214-2	01	1	0609-0708			●
33	BRACKET; CHARGE AIR COOLER,FRT THA	8-97389-214-2	01	1	0710-			●
46	RUBBER; MTG,CHARGE AIR COOLER (A) THA	8-97942-930-0	03	1	0409-0412	●
46	RUBBER; MTG,CHARGE AIR COOLER (A) THA	8-97942-930-0	03	1	0501-	●	●
46	RUBBER; MTG,CHARGE AIR COOLER (B) THA	8-97181-886-0	04	1	0609-0708			●
46	RUBBER; MTG,CHARGE AIR COOLER (C) THA	8-97232-774-0	04	1	0609-0708			●
46	RUBBER; MTG,CHARGE AIR COOLER (B) THA	8-97181-886-0	04	1	0710-			●
46	RUBBER; MTG,CHARGE AIR COOLER (C) THA	8-97232-774-0	04	1	0710-			●
47	BOLT; CHARGE AIR COOLER BRKT (A) M8X20 FLANGE THA	0-28680-820-0	02	1	0409-0412	●
47	BOLT; CHARGE AIR COOLER BRKT (A) M8X20 FLANGE THA	0-28680-820-0	02	1	0501-0601	●	●
47	BOLT; CHARGE AIR COOLER BRKT (A) M8X20 FLANGE THA	0-28650-820-0	02	1	0602-	●	●
47	BOLT; CHARGE AIR COOLER BRKT (B) M8X16 FLANGE THA	0-28050-816-0	02	1	0609-0708			●
47	BOLT; CHARGE AIR COOLER BRKT (C) M6X16 FLANGE THA	0-28650-616-0	01	1	0609-0708			●
47	BOLT; CHARGE AIR COOLER BRKT (B) M8X16 FLANGE THA	0-28050-816-0	02	1	0710-			●
47	BOLT; CHARGE AIR COOLER BRKT (C) M6X16 FLANGE THA	0-28650-616-0	01	1	0710-			●

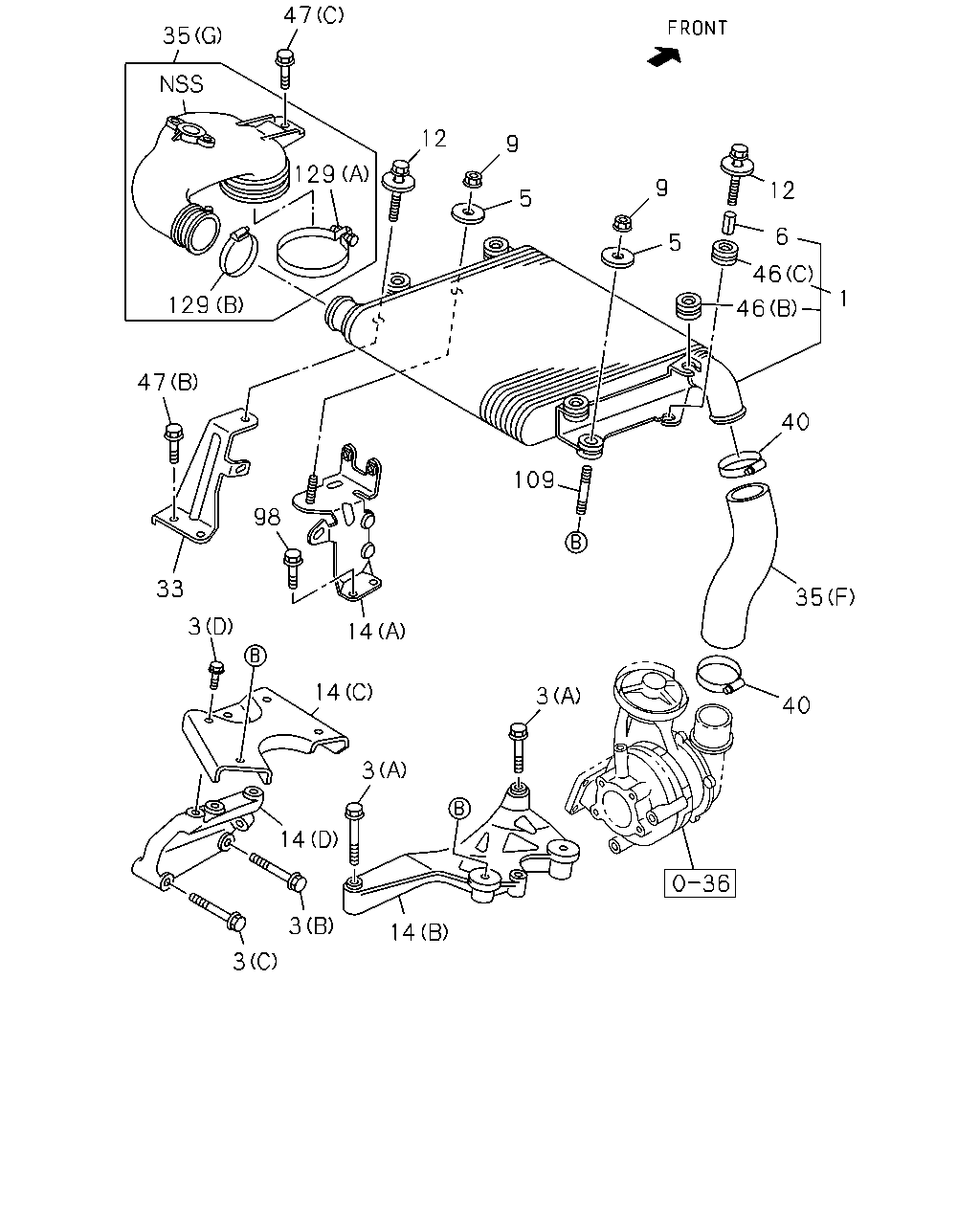

47 35 12 9 129 9 12 5 6 5 46 1 129 46 47 40 109 98 33 35 3 14 14 3 40 3 14 3 14 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COOLER; CHARGE AIR THA	8-97376-147-1	01	1	0409-0412	●
1	COOLER; CHARGE AIR THA	8-98000-270-0	01	1	0501-0606	●	●
1	COOLER; CHARGE AIR 4X2<TFB***> HIGH RIDE SUSPENSION<7YC> THA	8-98000-270-1	01	1	0607-0801	●	●
1	COOLER; CHARGE AIR 4X4<TFS***> THA	8-98000-270-1	01	1	0607-0801	●	●
1	COOLER; CHARGE AIR 4X2<TFB***> HIGH RIDE SUSPENSION<7YC> THA	8-98088-685-0	01	1	0802-0808	●	●
1	COOLER; CHARGE AIR 4X4<TFS***> THA	8-98088-685-0	01	1	0802-0808	●	●
1	COOLER; CHARGE AIR 4X2<TFB***> GRADE SX<RBB>,GRADE SLX/LS<RBD> THA	8-98088-685-0	01	1	0809-	●	●
1	COOLER; CHARGE AIR 4X4<TFS***> THA	8-98088-685-0	01	1	0809-	●	●
1	COOLER; CHARGE AIR 4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98000-192-0	01	1	0607-0801	●	●
1	COOLER; CHARGE AIR 4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98088-684-0	01	1	0802-0808	●	●
1	COOLER; CHARGE AIR 4X2<TFB***> GRADE EXL/EX/SL/S<RBA> THA	8-98088-684-0	01	1	0809-	●	●
1	COOLER; CHARGE AIR THA	8-97389-185-3	01	1	0609-0708			●
1	COOLER; CHARGE AIR THA	8-97389-185-4	01	1	0710-0802			●
1	COOLER; CHARGE AIR THA	8-98114-815-0	01	1	0803-			●
3	BOLT; CHARGE AIR COOLER (B) M10X45 FLANGE THA	0-28151-045-0	01	1	1009-			●
3	BOLT; CHARGE AIR COOLER (A) M8X50 FLANGE THA	0-28050-850-0	01	1	0609-0708			●
3	BOLT; CHARGE AIR COOLER (A) M8X60 FLANGE THA	0-28050-860-0	01	1	0609-0708			●
3	BOLT; CHARGE AIR COOLER (A) M8X50 FLANGE THA	0-28050-850-0	01	1	0710-1008			●
3	BOLT; CHARGE AIR COOLER (C) M6X45 FLANGE THA	0-28050-645-0	01	1	1009-			●
3	BOLT; CHARGE AIR COOLER (A) M8X60 FLANGE THA	0-28050-860-0	01	1	0710-1008			●
3	BOLT; CHARGE AIR COOLER (D) M8X20 FLANGE THA	0-28050-820-0	03	1	1009-			●
5	WASHER; PL,CHARGE AIR COOLER ID=8.5 OD=36 THA	8-94221-082-0	02	1	0609-0708			●
5	WASHER; PL,CHARGE AIR COOLER ID=8.5 OD=36 THA	8-94221-082-0	02	1	0710-			●
6	COLLAR; MTG,CHARGE AIR COOLER THA	8-97386-100-0	03	1	0409-0412	●
6	COLLAR; MTG,CHARGE AIR COOLER THA	8-97386-100-0	03	1	0501-0606	●	●
6	COLLAR; MTG,CHARGE AIR COOLER 4X2<TFB***> HIGH RIDE SUSPENSION<7YC> THA	8-97386-100-0	03	1	0607-0808	●	●
6	COLLAR; MTG,CHARGE AIR COOLER 4X4<TFS***> THA	8-97386-100-0	03	1	0607-0808	●	●
6	COLLAR; MTG,CHARGE AIR COOLER 4X2<TFB***> GRADE SX<RBB>,GRADE SLX/LS<RBD> THA	8-97386-100-0	03	1	0809-	●	●
6	COLLAR; MTG,CHARGE AIR COOLER 4X4<TFS***> THA	8-97386-100-0	03	1	0809-	●	●
6	COLLAR; MTG,CHARGE AIR COOLER 4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97942-932-0	03	1	0607-0808	●	●
6	COLLAR; MTG,CHARGE AIR COOLER 4X2<TFB***> GRADE EXL/EX/SL/S<RBA> THA	8-97942-932-0	03	1	0809-	●	●
6	COLLAR; MTG,CHARGE AIR COOLER THA	8-97107-898-0	04	1	0609-0708			●
6	COLLAR; MTG,CHARGE AIR COOLER THA	8-97107-898-0	04	1	0710-			●
9	NUT; CHARGE AIR COOLER M8 FLANGE IMA	0-91150-108-0	01	1	0409-0412	●
9	NUT; CHARGE AIR COOLER M8 FLANGE IMA	0-91150-108-0	01	1	0501-0603	●	●
9	NUT; CHARGE AIR COOLER M8 FLANGE THA	0-91180-108-0	01	1	0604-	●	●
9	NUT; CHARGE AIR COOLER M8 FLANGE THA	0-91180-108-0	02	1	0609-0708			●
9	NUT; CHARGE AIR COOLER M8 FLANGE THA	0-91180-108-0	02	1	0710-			●
12	BOLT; CHARGE AIR COOLER THA	8-97943-079-0	02	1	0409-0412	●
12	BOLT; CHARGE AIR COOLER THA	8-97943-079-0	02	1	0501-0812	●	●
12	BOLT; CHARGE AIR COOLER M8X32.5 W/PL WASHER THA	8-98136-077-0	02	1	0901-	●	●
12	BOLT; CHARGE AIR COOLER THA	8-98044-006-0	02	1	0609-0708			●
12	BOLT; CHARGE AIR COOLER THA	8-98044-006-0	02	1	0710-			●
14	BRACKET; CHARGE AIR COOLER (D) THA	8-98156-391-1	01	1	1009-			●
14	BRACKET; CHARGE AIR COOLER (A) THA	8-98012-016-3	01	1	0609-0708			●
14	BRACKET; CHARGE AIR COOLER (B) THA	8-98039-405-0	01	1	0609-0708			●
14	BRACKET; CHARGE AIR COOLER (A) THA	8-98012-016-3	01	1	0710-			●
14	BRACKET; CHARGE AIR COOLER (B) THA	8-98039-405-0	01	1	0710-1008			●
14	BRACKET; CHARGE AIR COOLER (C) THA	8-98156-390-1	01	1	1009-			●
33	BRACKET; CHARGE AIR COOLER,FRT THA	8-97326-994-0	01	1	0409-0412	●
33	BRACKET; CHARGE AIR COOLER,FRT THA	8-97326-994-0	01	1	0501-	●	●
33	BRACKET; CHARGE AIR COOLER,FRT THA	8-97389-214-2	01	1	0609-0708			●
33	BRACKET; CHARGE AIR COOLER,FRT THA	8-97389-214-2	01	1	0710-			●
35	HOSE; CONNECTING (A) THA	8-97320-881-2	01	1	0409-0412	●
35	HOSE; CONNECTING (A) THA	8-97320-881-2	01	1	0501-	●	●
35	HOSE; CONNECTING (B) THA	8-97370-538-1	01	1	0409-0412	●
35	HOSE; CONNECTING (B) THA	8-97370-538-1	01	1	0501-0707	●	●
35	HOSE; CONNECTING (B) THA	8-98092-322-0	01	1	0708-	●	●
35	HOSE; CONNECTING (D) THA	8-97370-563-1	01	1	0409-0412	●
35	HOSE; CONNECTING (D) THA	8-97370-563-1	01	1	0501-	●	●
35	HOSE; CONNECTING (E) THA	8-97370-564-2	01	1	0409-0410	●
35	HOSE; CONNECTING (E) THA	8-98002-516-0	01	1	0411-0412	●
35	HOSE; CONNECTING (E) THA	8-98002-516-0	01	1	0501-	●	●
35	HOSE; CONNECTING (C) THA	8-97385-978-0	01	1	0409-0412	●
35	HOSE; CONNECTING (C) THA	8-97385-978-0	01	1	0501-	●	●
35	HOSE; CONNECTING (F) THA	8-98003-588-2	01	1	0609-0708			●
35	HOSE; CONNECTING (G) THA	8-98031-469-0	01	1	0609-0706			●
35	HOSE; CONNECTING (G) THA	8-98076-084-0	01	1	0707-0708			●
35	HOSE; CONNECTING (F) THA	8-98003-588-2	01	1	0710-0807			●
35	HOSE; CONNECTING (F) THA	8-98099-947-0	01	1	0808-1008			●
35	HOSE; CONNECTING (F) THA	8-98160-197-0	01	1	1009-			●
35	HOSE; CONNECTING (G) THA	8-98076-084-0	01	1	0710-			●
40	CLIP; RUBBER HOSE ID=55-75 THA	8-98141-459-0	01	1	0903-0911	●	●
40	CLIP; RUBBER HOSE ID=50-70 THA	8-98141-460-0	06	1	0912-	●	●
40	CLIP; RUBBER HOSE ID=50-65 THA	8-98000-117-0	02	1	0710-0803			●
40	CLIP; RUBBER HOSE ID=60-65 IMA	8-98096-418-0	02	1	0804-			●
40	CLIP; RUBBER HOSE ID=50-69 THA	1-09707-135-0	07	1	0409-0412	●
40	CLIP; RUBBER HOSE ID=50-69 THA	1-09707-135-0	07	1	0501-0501	●	●
40	CLIP; RUBBER HOSE ID=50-65 THA	8-98000-117-0	07	1	0502-0902	●	●
40	CLIP; RUBBER HOSE ID=45-65 THA	8-98133-396-0	06	1	0903-0911	●	●
40	CLIP; RUBBER HOSE ID=45-65 THA	8-98133-396-0	01	1	0912-	●	●
40	CLIP; RUBBER HOSE ID=50-69 THA	1-09707-135-0	02	1	0609-0708			●
46	RUBBER; MTG,CHARGE AIR COOLER (A) THA	8-97942-930-0	03	1	0409-0412	●
46	RUBBER; MTG,CHARGE AIR COOLER (A) THA	8-97942-930-0	03	1	0501-	●	●
46	RUBBER; MTG,CHARGE AIR COOLER (B) THA	8-97181-886-0	04	1	0609-0708			●
46	RUBBER; MTG,CHARGE AIR COOLER (C) THA	8-97232-774-0	04	1	0609-0708			●
46	RUBBER; MTG,CHARGE AIR COOLER (B) THA	8-97181-886-0	04	1	0710-			●
46	RUBBER; MTG,CHARGE AIR COOLER (C) THA	8-97232-774-0	04	1	0710-			●
47	BOLT; CHARGE AIR COOLER BRKT (A) M8X20 FLANGE THA	0-28680-820-0	02	1	0409-0412	●
47	BOLT; CHARGE AIR COOLER BRKT (A) M8X20 FLANGE THA	0-28680-820-0	02	1	0501-0601	●	●
47	BOLT; CHARGE AIR COOLER BRKT (A) M8X20 FLANGE THA	0-28650-820-0	02	1	0602-	●	●
47	BOLT; CHARGE AIR COOLER BRKT (B) M8X16 FLANGE THA	0-28050-816-0	02	1	0609-0708			●
47	BOLT; CHARGE AIR COOLER BRKT (C) M6X16 FLANGE THA	0-28650-616-0	01	1	0609-0708			●
47	BOLT; CHARGE AIR COOLER BRKT (B) M8X16 FLANGE THA	0-28050-816-0	02	1	0710-			●
47	BOLT; CHARGE AIR COOLER BRKT (C) M6X16 FLANGE THA	0-28650-616-0	01	1	0710-			●
98	BOLT; BRKT TO CHARGE AIR COOLER M8X16 FLANGE THA	0-28050-816-0	02	1	0609-0708			●
98	BOLT; BRKT TO CHARGE AIR COOLER M8X16 FLANGE THA	0-28050-816-0	02	1	0710-			●
109	STUD; BRKT M8X40 L=52 IMA	0-41010-840-0	01	1	0609-0708			●
109	STUD; BRKT M8X40 L=52 IMA	0-41010-840-0	01	1	0710-			●
129	CLAMP; HOSE (A) THA	8-98080-783-0	01	1	0707-0708			●
129	CLAMP; HOSE (B) THA	8-98080-785-0	01	1	0707-0708			●
129	CLAMP; HOSE (A) THA	8-98080-783-0	01	1	0710-			●
129	CLAMP; HOSE (B) THA	8-98080-785-0	01	1	0710-			●

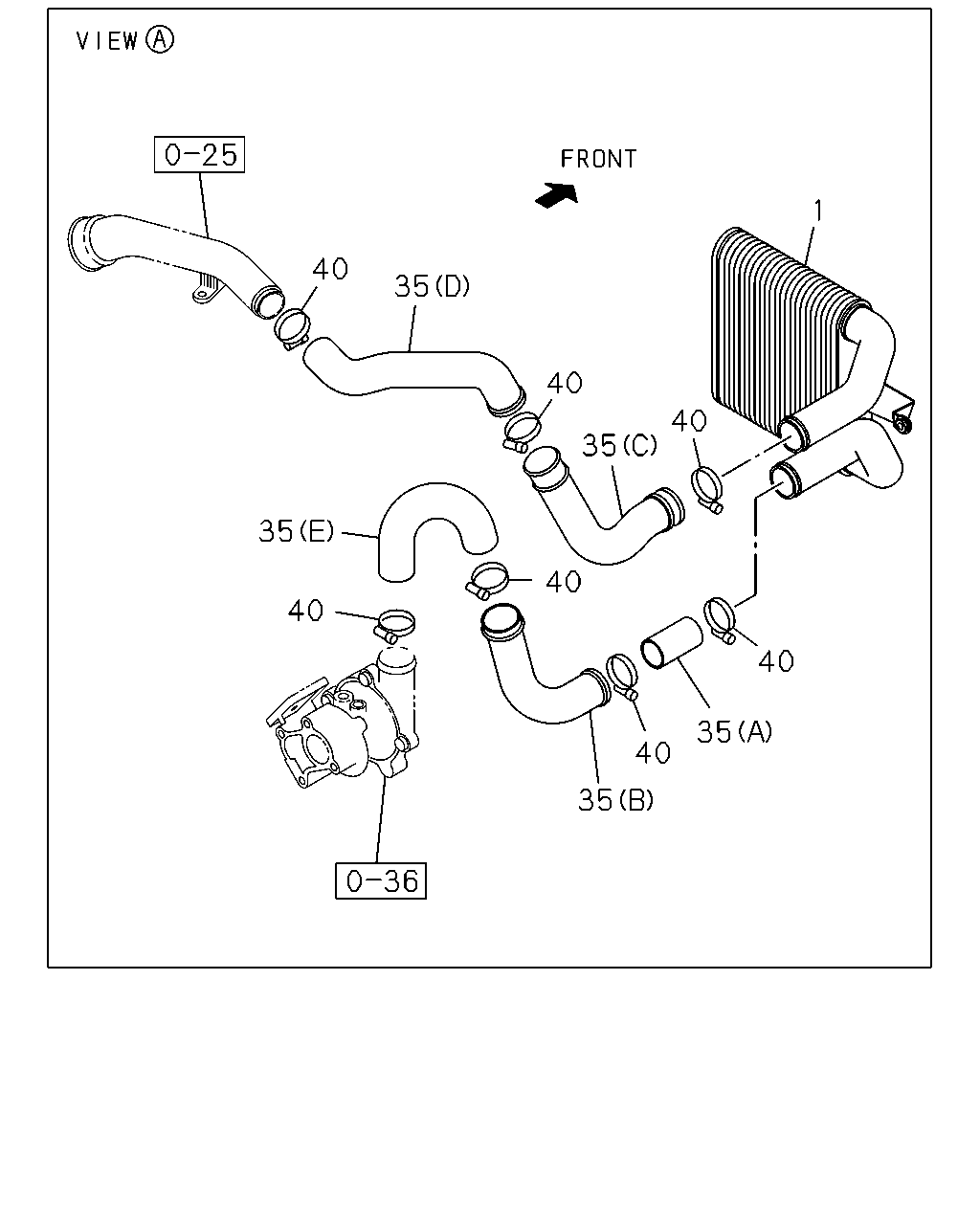

1 40 35 40 40 35 35 40 40 40 35 40 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COOLER; CHARGE AIR THA	8-97376-147-1	01	1	0409-0412	●
1	COOLER; CHARGE AIR THA	8-98000-270-0	01	1	0501-0606	●	●
1	COOLER; CHARGE AIR 4X2<TFB***> HIGH RIDE SUSPENSION<7YC> THA	8-98000-270-1	01	1	0607-0801	●	●
1	COOLER; CHARGE AIR 4X4<TFS***> THA	8-98000-270-1	01	1	0607-0801	●	●
1	COOLER; CHARGE AIR 4X2<TFB***> HIGH RIDE SUSPENSION<7YC> THA	8-98088-685-0	01	1	0802-0808	●	●
1	COOLER; CHARGE AIR 4X4<TFS***> THA	8-98088-685-0	01	1	0802-0808	●	●
1	COOLER; CHARGE AIR 4X2<TFB***> GRADE SX<RBB>,GRADE SLX/LS<RBD> THA	8-98088-685-0	01	1	0809-	●	●
1	COOLER; CHARGE AIR 4X4<TFS***> THA	8-98088-685-0	01	1	0809-	●	●
1	COOLER; CHARGE AIR 4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98000-192-0	01	1	0607-0801	●	●
1	COOLER; CHARGE AIR 4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98088-684-0	01	1	0802-0808	●	●
1	COOLER; CHARGE AIR 4X2<TFB***> GRADE EXL/EX/SL/S<RBA> THA	8-98088-684-0	01	1	0809-	●	●
1	COOLER; CHARGE AIR THA	8-97389-185-3	01	1	0609-0708			●
1	COOLER; CHARGE AIR THA	8-97389-185-4	01	1	0710-0802			●
1	COOLER; CHARGE AIR THA	8-98114-815-0	01	1	0803-			●
35	HOSE; CONNECTING (A) THA	8-97320-881-2	01	1	0409-0412	●
35	HOSE; CONNECTING (A) THA	8-97320-881-2	01	1	0501-	●	●
35	HOSE; CONNECTING (B) THA	8-97370-538-1	01	1	0409-0412	●
35	HOSE; CONNECTING (B) THA	8-97370-538-1	01	1	0501-0707	●	●
35	HOSE; CONNECTING (B) THA	8-98092-322-0	01	1	0708-	●	●
35	HOSE; CONNECTING (D) THA	8-97370-563-1	01	1	0409-0412	●
35	HOSE; CONNECTING (D) THA	8-97370-563-1	01	1	0501-	●	●
35	HOSE; CONNECTING (E) THA	8-97370-564-2	01	1	0409-0410	●
35	HOSE; CONNECTING (E) THA	8-98002-516-0	01	1	0411-0412	●
35	HOSE; CONNECTING (E) THA	8-98002-516-0	01	1	0501-	●	●
35	HOSE; CONNECTING (C) THA	8-97385-978-0	01	1	0409-0412	●
35	HOSE; CONNECTING (C) THA	8-97385-978-0	01	1	0501-	●	●
35	HOSE; CONNECTING (F) THA	8-98003-588-2	01	1	0609-0708			●
35	HOSE; CONNECTING (G) THA	8-98031-469-0	01	1	0609-0706			●
35	HOSE; CONNECTING (G) THA	8-98076-084-0	01	1	0707-0708			●
35	HOSE; CONNECTING (F) THA	8-98003-588-2	01	1	0710-0807			●
35	HOSE; CONNECTING (F) THA	8-98099-947-0	01	1	0808-1008			●
35	HOSE; CONNECTING (F) THA	8-98160-197-0	01	1	1009-			●
35	HOSE; CONNECTING (G) THA	8-98076-084-0	01	1	0710-			●
40	CLIP; RUBBER HOSE ID=55-75 THA	8-98141-459-0	01	1	0903-0911	●	●
40	CLIP; RUBBER HOSE ID=50-70 THA	8-98141-460-0	06	1	0912-	●	●
40	CLIP; RUBBER HOSE ID=50-65 THA	8-98000-117-0	02	1	0710-0803			●
40	CLIP; RUBBER HOSE ID=60-65 IMA	8-98096-418-0	02	1	0804-			●
40	CLIP; RUBBER HOSE ID=50-69 THA	1-09707-135-0	07	1	0409-0412	●
40	CLIP; RUBBER HOSE ID=50-69 THA	1-09707-135-0	07	1	0501-0501	●	●
40	CLIP; RUBBER HOSE ID=50-65 THA	8-98000-117-0	07	1	0502-0902	●	●
40	CLIP; RUBBER HOSE ID=45-65 THA	8-98133-396-0	06	1	0903-0911	●	●
40	CLIP; RUBBER HOSE ID=45-65 THA	8-98133-396-0	01	1	0912-	●	●
40	CLIP; RUBBER HOSE ID=50-69 THA	1-09707-135-0	02	1	0609-0708			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
