1-11 — RADIATOR HOSE AND SUB TANK (#72823) — 114 parça

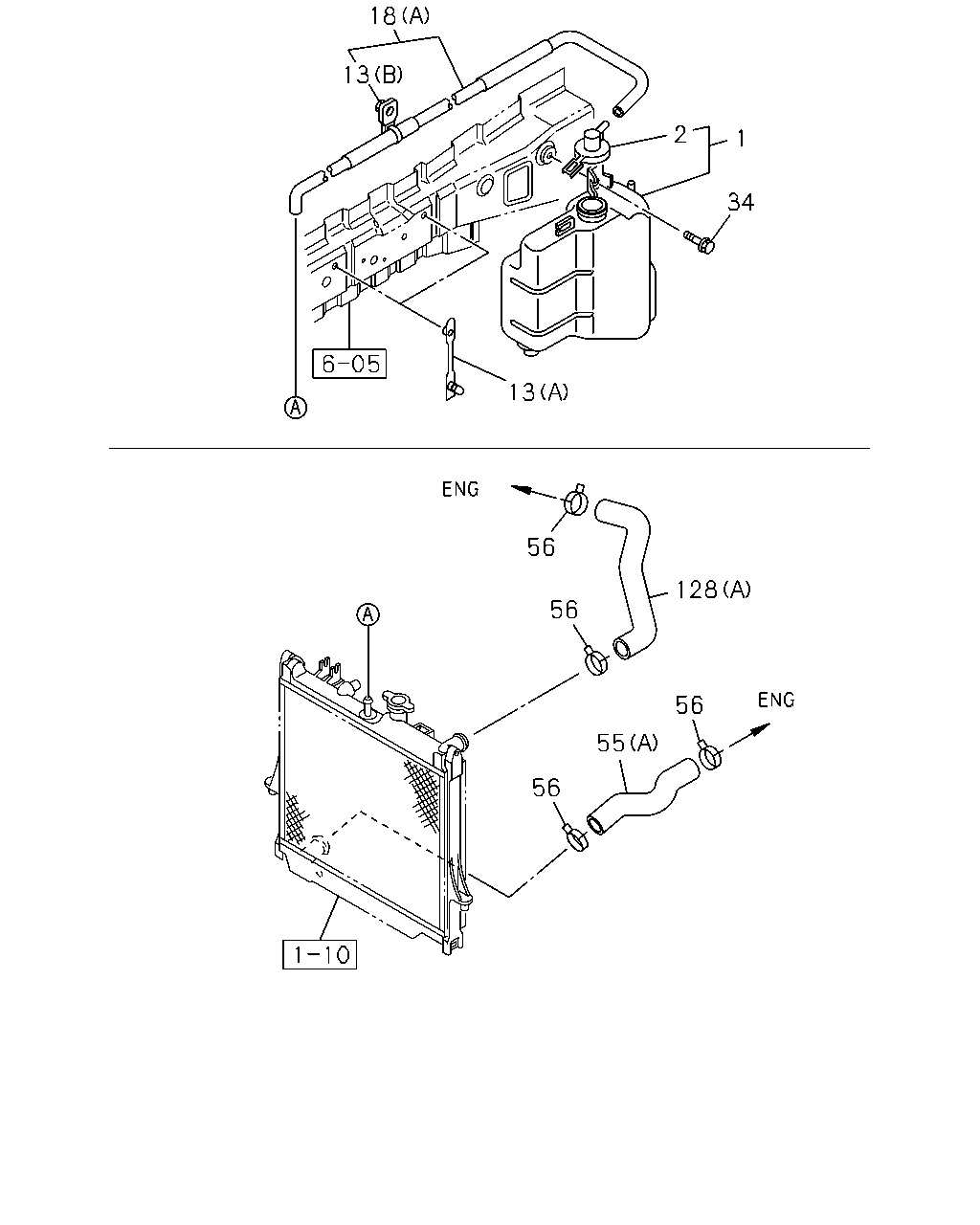

çizim 116351
18 13 2 1 34 13 56 128 56 56 55 56
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 TANK; SURGE,RAD
THA 		8-97941-501-3 01 1 0204-0408 ● ●
1 TANK; SURGE,RAD
THA 		8-97941-501-3 01 1 0409-0606 ● ● ●
1 TANK; SURGE,RAD
THA 		8-97941-501-3 01 1 0607- ● ● ●
2 CAP; SURGE TANK
THA 		8-97333-354-0 01 1 0204-0408 ● ●
2 CAP; SURGE TANK
THA 		8-97333-354-0 01 1 0409-0606 ● ● ●
2 CAP; SURGE TANK
THA 		8-97333-354-0 01 1 0607- ● ● ●
13 CLIP; HOSE,SURGE TANK
(A) L=88 THA 		8-94239-338-0 02 1 0204-0408 ● ●
13 CLIP; HOSE,SURGE TANK
(A) L=88 THA 		8-94239-338-0 02 1 0409-0606 ● ● ●
13 CLIP; HOSE,SURGE TANK
(A) L=88 THA 		8-94239-338-0 02 1 0607-0708 ● ● ●
13 CLIP; HOSE,SURGE TANK
(A) L=88 THA 		8-94239-338-0 02 1 0709-0709 ● ●
13 CLIP; HOSE,SURGE TANK
(A) L=88 THA 		8-94239-338-0 02 1 0710- ● ● ●
13 CLIP; HOSE,SURGE TANK
(B) THA 		8-94373-241-0 01 1 0204-0408 ● ●
13 CLIP; HOSE,SURGE TANK
(B) THA 		8-94373-241-0 01 1 0409-0412 ●
13 CLIP; HOSE,SURGE TANK
(C) ID=25 & 11 IMA 		8-97068-799-0 01 1 0409-0412 ●
13 CLIP; HOSE,SURGE TANK
(C) ID=25 & 11 IMA 		8-97068-799-0 01 1 0501-0608 ● ●
13 CLIP; HOSE,SURGE TANK
(C) ID=25 & 11 IMA 		8-97068-799-0 01 1 0609-0708 ● ● ●
13 CLIP; HOSE,SURGE TANK
(C) ID=25 & 11 IMA 		8-97068-799-0 01 1 0709-0709 ● ●
13 CLIP; HOSE,SURGE TANK
(C) ID=25 & 11 IMA 		8-97068-799-0 01 1 0710- ● ● ●
18 HOSE; RAD TO SURGE TANK
(A) THA 		8-97941-508-3 01 1 0204-0211 ● ●
18 HOSE; RAD TO SURGE TANK
(A) THA 		8-97362-955-0 01 1 0212-0408 ● ●
18 HOSE; RAD TO SURGE TANK
(A) THA 		8-97362-955-0 01 1 0409-0412 ●
18 HOSE; RAD TO SURGE TANK
(B) THA 		8-97373-405-0 01 1 0409-0412 ●
18 HOSE; RAD TO SURGE TANK
(B) THA 		8-97373-405-0 01 1 0501-0608 ● ●
18 HOSE; RAD TO SURGE TANK
(B) THA 		8-97373-405-0 01 1 0609-0708 ● ● ●
18 HOSE; RAD TO SURGE TANK
(B) THA 		8-97373-405-0 01 1 0709-0709 ● ●
18 HOSE; RAD TO SURGE TANK
(B) THA 		8-97373-405-0 01 1 0710- ● ● ●
34 BOLT; RESERVE TANK
M6X20 W/WASHER THA 		8-94112-987-1 01 1 0204-0408 ● ●
34 BOLT; RESERVE TANK
M6X20 W/WASHER THA 		8-94112-987-1 01 1 0409-0606 ● ● ●
34 BOLT; RESERVE TANK
M6X20 W/WASHER THA 		8-94112-987-1 01 1 0607-0612 ● ● ●
34 BOLT; RESERVE TANK
M6X20 W/WASHER THA 		8-98056-282-0 01 1 0701- ● ● ●
55 HOSE; WATER,RAD OUTLET
(A) THA 		8-97248-432-2 01 1 0204-0408 ● ●
55 HOSE; WATER,RAD OUTLET
(A) THA 		8-97248-432-2 01 1 0409-0412 ●
55 HOSE; WATER,RAD OUTLET
(A) THA 		8-98003-995-0 01 1 0501-0501 ●
55 HOSE; WATER,RAD OUTLET
(B) THA 		8-97363-605-0 01 1 0409-0412 ●
55 HOSE; WATER,RAD OUTLET
(B) THA 		8-97363-605-0 01 1 0501-0608 ● ●
55 HOSE; WATER,RAD OUTLET
(B) THA 		8-97363-605-0 01 1 0609-0708 ● ● ●
55 HOSE; WATER,RAD OUTLET
(B) THA 		8-97363-605-0 01 1 0709-0709 ● ●
55 HOSE; WATER,RAD OUTLET
(B) THA 		8-97363-605-1 01 1 0710- ● ● ●
56 CLIP; WATER HOSE,RAD
ID=40.5 IMA 		8-97313-472-0 02 1 0204-0408 ● ●
56 CLIP; WATER HOSE,RAD
ID=40.5 IMA 		8-97313-472-0 02 1 0204-0408 ● ●
56 CLIP; WATER HOSE,RAD
ID=40.5 IMA 		8-97313-472-0 02 1 0409-0412 ● ●
56 CLIP; WATER HOSE,RAD
ID=40.5 IMA 		8-97313-472-0 02 1 0409-0412 ● ●
56 CLIP; WATER HOSE,RAD
ID=40.5 IMA 		8-97313-472-0 02 1 0501-0608 ● ●
56 CLIP; WATER HOSE,RAD
ID=40.5 IMA 		8-97313-472-0 02 1 0501-0608 ● ●
56 CLIP; WATER HOSE,RAD
ID=40.5 IMA 		8-97313-472-0 02 1 0609-0708 ● ● ●
56 CLIP; WATER HOSE,RAD
ID=40.5 IMA 		8-97313-472-0 02 1 0609-0708 ● ● ●
56 CLIP; WATER HOSE,RAD
ID=40.5 IMA 		8-97313-472-0 04 1 0709-0709 ● ●
56 CLIP; WATER HOSE,RAD
ID=40.5 IMA 		8-97313-472-0 04 1 0710- ● ● ●
128 HOSE; WATER,RAD INL
(A) THA 		8-97941-505-2 01 1 0204-0408 ●
128 HOSE; WATER,RAD INL
(A) THA 		8-97941-505-2 01 1 0409-0412 ●
128 HOSE; WATER,RAD INL
(A) THA 		8-98003-996-0 01 1 0501-0501 ●
128 HOSE; WATER,RAD INL
(A) THA 		8-97248-429-2 01 1 0204-0408 ●
128 HOSE; WATER,RAD INL
(B) THA 		8-97363-604-0 01 1 0409-0412 ●
128 HOSE; WATER,RAD INL
(B) THA 		8-97363-604-0 01 1 0501-0608 ● ●
128 HOSE; WATER,RAD INL
(B) THA 		8-97363-604-0 01 1 0609-0708 ● ● ●
128 HOSE; WATER,RAD INL
(B) THA 		8-97363-604-0 01 1 0709-0709 ● ●
128 HOSE; WATER,RAD INL
(B) THA 		8-97363-604-1 01 1 0710- ● ● ●

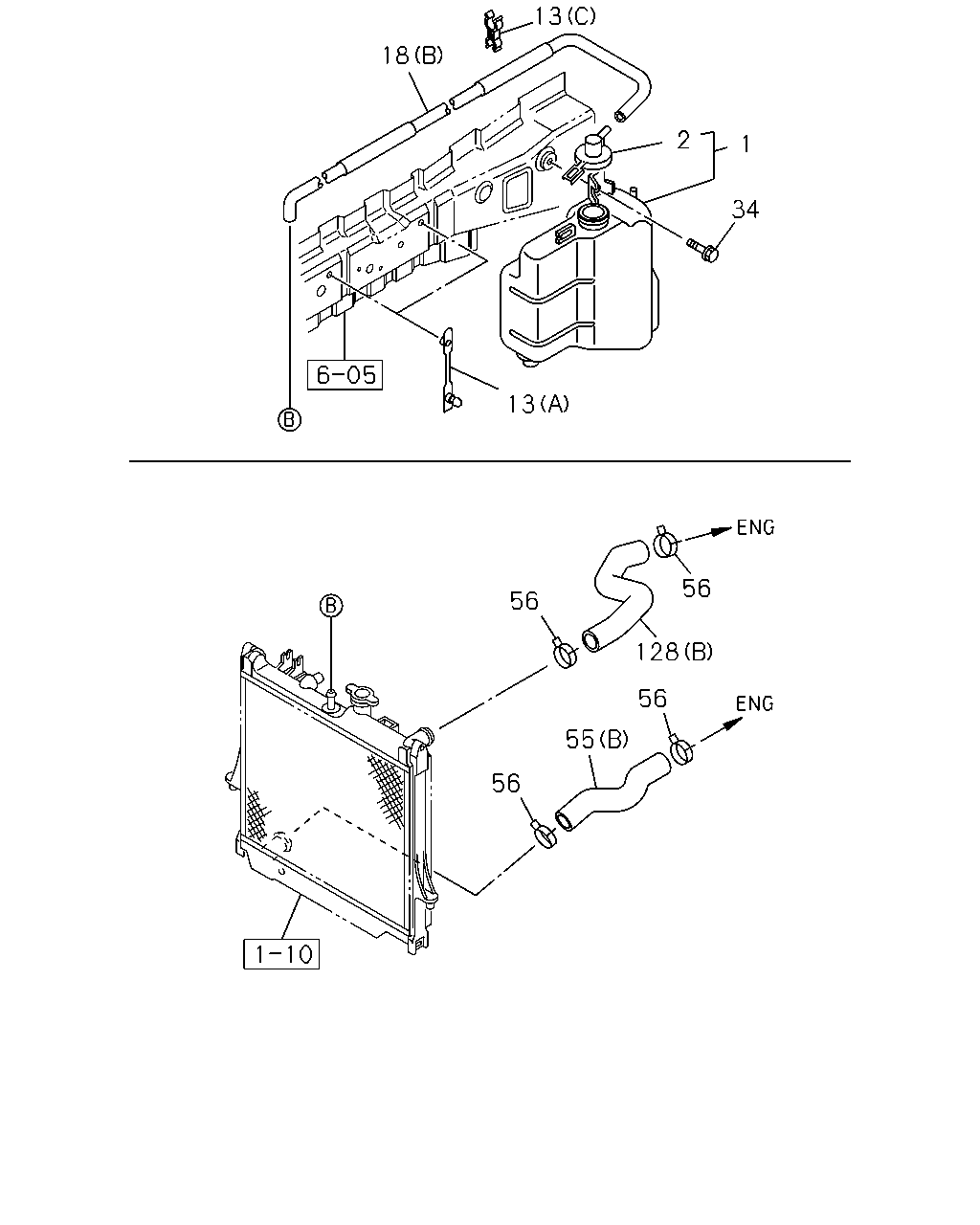

çizim 116361
13 18 2 1 34 13 56 56 128 56 55 56
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 TANK; SURGE,RAD
THA 		8-97941-501-3 01 1 0204-0408 ● ●
1 TANK; SURGE,RAD
THA 		8-97941-501-3 01 1 0409-0606 ● ● ●
1 TANK; SURGE,RAD
THA 		8-97941-501-3 01 1 0607- ● ● ●
2 CAP; SURGE TANK
THA 		8-97333-354-0 01 1 0204-0408 ● ●
2 CAP; SURGE TANK
THA 		8-97333-354-0 01 1 0409-0606 ● ● ●
2 CAP; SURGE TANK
THA 		8-97333-354-0 01 1 0607- ● ● ●
13 CLIP; HOSE,SURGE TANK
(A) L=88 THA 		8-94239-338-0 02 1 0204-0408 ● ●
13 CLIP; HOSE,SURGE TANK
(A) L=88 THA 		8-94239-338-0 02 1 0409-0606 ● ● ●
13 CLIP; HOSE,SURGE TANK
(A) L=88 THA 		8-94239-338-0 02 1 0607-0708 ● ● ●
13 CLIP; HOSE,SURGE TANK
(A) L=88 THA 		8-94239-338-0 02 1 0709-0709 ● ●
13 CLIP; HOSE,SURGE TANK
(A) L=88 THA 		8-94239-338-0 02 1 0710- ● ● ●
13 CLIP; HOSE,SURGE TANK
(B) THA 		8-94373-241-0 01 1 0204-0408 ● ●
13 CLIP; HOSE,SURGE TANK
(B) THA 		8-94373-241-0 01 1 0409-0412 ●
13 CLIP; HOSE,SURGE TANK
(C) ID=25 & 11 IMA 		8-97068-799-0 01 1 0409-0412 ●
13 CLIP; HOSE,SURGE TANK
(C) ID=25 & 11 IMA 		8-97068-799-0 01 1 0501-0608 ● ●
13 CLIP; HOSE,SURGE TANK
(C) ID=25 & 11 IMA 		8-97068-799-0 01 1 0609-0708 ● ● ●
13 CLIP; HOSE,SURGE TANK
(C) ID=25 & 11 IMA 		8-97068-799-0 01 1 0709-0709 ● ●
13 CLIP; HOSE,SURGE TANK
(C) ID=25 & 11 IMA 		8-97068-799-0 01 1 0710- ● ● ●
18 HOSE; RAD TO SURGE TANK
(A) THA 		8-97941-508-3 01 1 0204-0211 ● ●
18 HOSE; RAD TO SURGE TANK
(A) THA 		8-97362-955-0 01 1 0212-0408 ● ●
18 HOSE; RAD TO SURGE TANK
(A) THA 		8-97362-955-0 01 1 0409-0412 ●
18 HOSE; RAD TO SURGE TANK
(B) THA 		8-97373-405-0 01 1 0409-0412 ●
18 HOSE; RAD TO SURGE TANK
(B) THA 		8-97373-405-0 01 1 0501-0608 ● ●
18 HOSE; RAD TO SURGE TANK
(B) THA 		8-97373-405-0 01 1 0609-0708 ● ● ●
18 HOSE; RAD TO SURGE TANK
(B) THA 		8-97373-405-0 01 1 0709-0709 ● ●
18 HOSE; RAD TO SURGE TANK
(B) THA 		8-97373-405-0 01 1 0710- ● ● ●
34 BOLT; RESERVE TANK
M6X20 W/WASHER THA 		8-94112-987-1 01 1 0204-0408 ● ●
34 BOLT; RESERVE TANK
M6X20 W/WASHER THA 		8-94112-987-1 01 1 0409-0606 ● ● ●
34 BOLT; RESERVE TANK
M6X20 W/WASHER THA 		8-94112-987-1 01 1 0607-0612 ● ● ●
34 BOLT; RESERVE TANK
M6X20 W/WASHER THA 		8-98056-282-0 01 1 0701- ● ● ●
55 HOSE; WATER,RAD OUTLET
(A) THA 		8-97248-432-2 01 1 0204-0408 ● ●
55 HOSE; WATER,RAD OUTLET
(A) THA 		8-97248-432-2 01 1 0409-0412 ●
55 HOSE; WATER,RAD OUTLET
(A) THA 		8-98003-995-0 01 1 0501-0501 ●
55 HOSE; WATER,RAD OUTLET
(B) THA 		8-97363-605-0 01 1 0409-0412 ●
55 HOSE; WATER,RAD OUTLET
(B) THA 		8-97363-605-0 01 1 0501-0608 ● ●
55 HOSE; WATER,RAD OUTLET
(B) THA 		8-97363-605-0 01 1 0609-0708 ● ● ●
55 HOSE; WATER,RAD OUTLET
(B) THA 		8-97363-605-0 01 1 0709-0709 ● ●
55 HOSE; WATER,RAD OUTLET
(B) THA 		8-97363-605-1 01 1 0710- ● ● ●
56 CLIP; WATER HOSE,RAD
ID=40.5 IMA 		8-97313-472-0 02 1 0204-0408 ● ●
56 CLIP; WATER HOSE,RAD
ID=40.5 IMA 		8-97313-472-0 02 1 0204-0408 ● ●
56 CLIP; WATER HOSE,RAD
ID=40.5 IMA 		8-97313-472-0 02 1 0409-0412 ● ●
56 CLIP; WATER HOSE,RAD
ID=40.5 IMA 		8-97313-472-0 02 1 0409-0412 ● ●
56 CLIP; WATER HOSE,RAD
ID=40.5 IMA 		8-97313-472-0 02 1 0501-0608 ● ●
56 CLIP; WATER HOSE,RAD
ID=40.5 IMA 		8-97313-472-0 02 1 0501-0608 ● ●
56 CLIP; WATER HOSE,RAD
ID=40.5 IMA 		8-97313-472-0 02 1 0609-0708 ● ● ●
56 CLIP; WATER HOSE,RAD
ID=40.5 IMA 		8-97313-472-0 02 1 0609-0708 ● ● ●
56 CLIP; WATER HOSE,RAD
ID=40.5 IMA 		8-97313-472-0 04 1 0709-0709 ● ●
56 CLIP; WATER HOSE,RAD
ID=40.5 IMA 		8-97313-472-0 04 1 0710- ● ● ●
128 HOSE; WATER,RAD INL
(A) THA 		8-97941-505-2 01 1 0204-0408 ●
128 HOSE; WATER,RAD INL
(A) THA 		8-97941-505-2 01 1 0409-0412 ●
128 HOSE; WATER,RAD INL
(A) THA 		8-98003-996-0 01 1 0501-0501 ●
128 HOSE; WATER,RAD INL
(A) THA 		8-97248-429-2 01 1 0204-0408 ●
128 HOSE; WATER,RAD INL
(B) THA 		8-97363-604-0 01 1 0409-0412 ●
128 HOSE; WATER,RAD INL
(B) THA 		8-97363-604-0 01 1 0501-0608 ● ●
128 HOSE; WATER,RAD INL
(B) THA 		8-97363-604-0 01 1 0609-0708 ● ● ●
128 HOSE; WATER,RAD INL
(B) THA 		8-97363-604-0 01 1 0709-0709 ● ●
128 HOSE; WATER,RAD INL
(B) THA 		8-97363-604-1 01 1 0710- ● ● ●
