◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#72822) — 74 parça

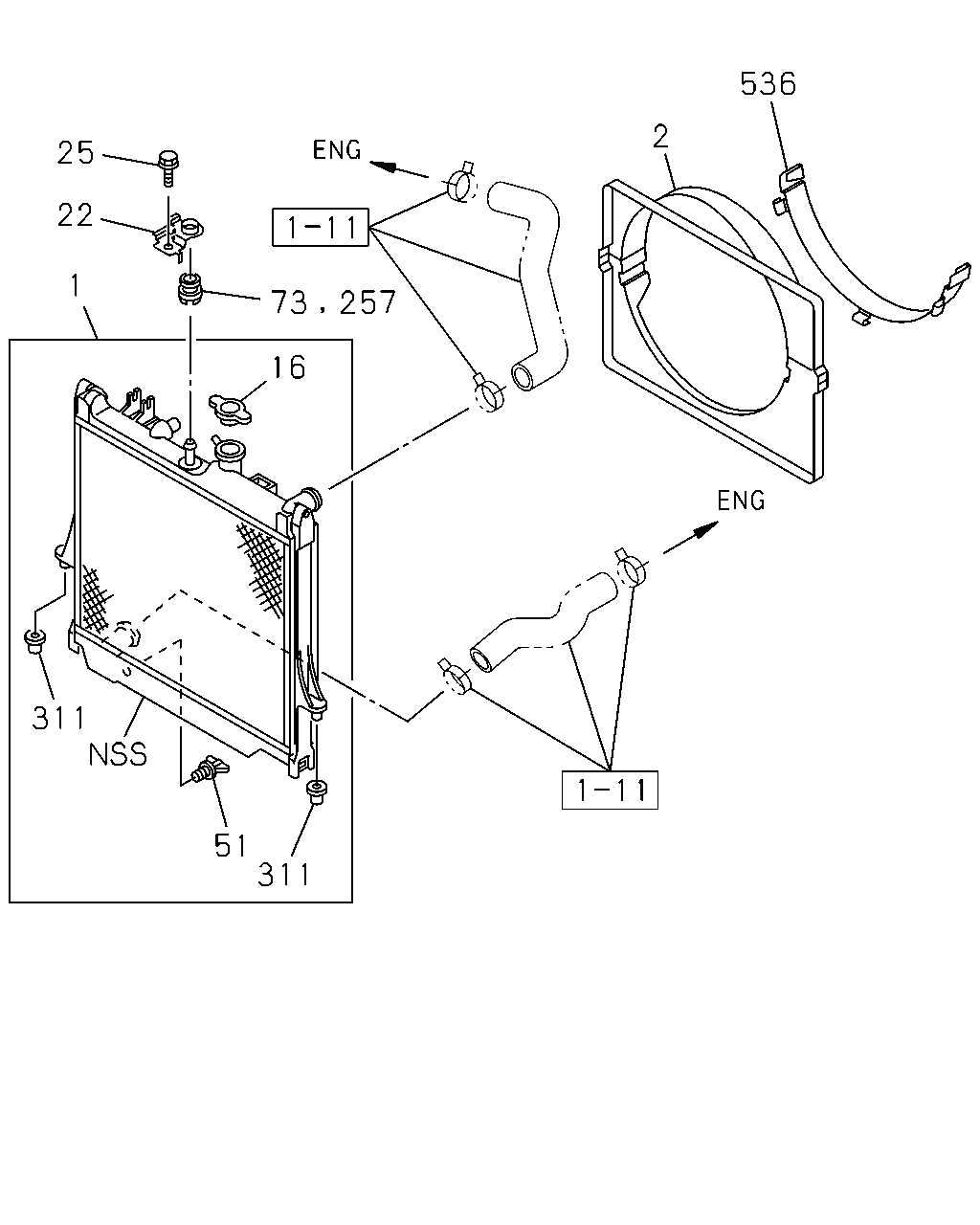

çizim 116359
536 2 25 22 1 16 311 51 311 73 257
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 RADIATOR ASM
THA 		8-97333-351-2 01 1 0204-0209 ●
1 RADIATOR ASM
THA 		8-97943-161-0 01 1 0210-0308 ●
1 RADIATOR ASM
THA 		8-97363-307-0 01 1 0309-0408 ●
1 RADIATOR ASM
THA 		8-97363-307-0 01 1 0409-0412 ●
1 RADIATOR ASM
A/T 4 SPEED-JATCO<RMK> THA 		8-97333-349-3 01 1 0204-0408 ●
1 RADIATOR ASM
A/T 4 SPEED-JATCO<RMK> THA 		8-97371-440-1 01 1 0409-0608 ●
1 RADIATOR ASM
A/T 4 SPEED-JATCO<RMK> THA 		8-97371-440-1 01 1 0609-0708 ●
1 RADIATOR ASM
A/T AISIN<RMD> THA 		8-97371-440-1 01 1 0609-0708 ●
1 RADIATOR ASM
A/T 4 SPEED-JATCO<RMK> THA 		8-97371-440-1 01 1 0709-0709 ●
1 RADIATOR ASM
A/T 4 SPEED-JATCO<RMK> THA 		8-97371-440-1 01 1 0710-1002 ●
1 RADIATOR ASM
A/T AISIN<RMD> THA 		8-97371-440-1 01 1 0710-1002 ●
1 RADIATOR ASM
A/T 4 SPEED-JATCO<RMK> THA 		8-98164-741-0 01 1 1003- ●
1 RADIATOR ASM
A/T AISIN<RMD> THA 		8-98164-741-0 01 1 1003- ●
1 RADIATOR ASM
M/T MUA 5 SPEED<RMN> THA 		8-97333-350-3 01 1 0204-0408 ●
1 RADIATOR ASM
M/T MUA 5 SPEED 5G<RSP> THA 		8-97333-350-3 01 1 0409-0412 ●
1 RADIATOR ASM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97333-350-3 01 1 0501-0606 ● ●
1 RADIATOR ASM
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97333-350-3 01 1 0607-0608 ● ●
1 RADIATOR ASM
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97333-350-3 01 1 0609-0708 ● ●
1 RADIATOR ASM
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97333-350-3 01 1 0609-0708 ●
1 RADIATOR ASM
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97333-350-3 01 1 0709-0709 ● ●
1 RADIATOR ASM
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97333-350-3 01 1 0710-1002 ● ●
1 RADIATOR ASM
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97333-350-3 01 1 0710-1002 ●
1 RADIATOR ASM
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98164-742-0 01 1 1003- ● ●
1 RADIATOR ASM
M/T MUX 5 SPEED 5S<MZJ> THA 		8-98164-742-0 01 1 1003- ●
2 GUIDE; FAN
THA 		8-97333-348-0 01 1 0204-0408 ● ●
2 GUIDE; FAN
THA 		8-97333-348-0 01 1 0409-0412 ●
2 GUIDE; FAN
THA 		8-97371-447-2 01 1 0409-0412 ●
2 GUIDE; FAN
THA 		8-97371-447-2 01 1 0501-0608 ● ●
2 GUIDE; FAN
THA 		8-97371-447-2 01 1 0609-0708 ● ● ●
2 GUIDE; FAN
THA 		8-97371-447-2 01 1 0709-0709 ● ●
2 GUIDE; FAN
THA 		8-97371-447-2 01 1 0710- ● ● ●
16 CAP; RAD
THA 		8-97942-268-1 01 1 0204-0408 ● ●
16 CAP; RAD
THA 		8-97942-268-1 01 1 0409-0412 ● ●
16 CAP; RAD
THA 		8-97942-268-1 01 1 0501-0608 ● ●
16 CAP; RAD
THA 		8-97942-268-1 01 1 0609-0708 ● ● ●
16 CAP; RAD
THA 		8-97942-268-1 01 1 0709-0709 ● ●
16 CAP; RAD
THA 		8-97942-268-1 01 1 0710- ● ● ●
22 BRACKET; RAD MTG
THA 		8-97941-547-0 01 1 0204-0408 ● ●
22 BRACKET; RAD MTG
THA 		8-97941-547-0 01 1 0409-0507 ● ● ●
22 BRACKET; RAD MTG
THA 		8-97941-547-0 01 1 0508-0608 ● ●
22 BRACKET; RAD MTG
THA 		8-97941-547-0 01 1 0609-0708 ● ● ●
22 BRACKET; RAD MTG
THA 		8-97941-547-0 01 1 0709-0709 ● ●
22 BRACKET; RAD MTG
THA 		8-97941-547-0 01 1 0710- ● ● ●
25 BOLT; BRKT
M8X12 FLANGE THA 		0-28080-812-0 01 1 0204-0408 ● ●
25 BOLT; BRKT
M8X12 FLANGE THA 		0-28080-812-0 01 1 0409-0601 ● ● ●
25 BOLT; BRKT
M8X12 FLANGE THA 		0-28050-812-0 01 1 0602-0606 ● ● ●
25 BOLT; BRKT
M8X12 FLANGE THA 		0-28050-812-0 01 1 0607-0708 ● ● ●
25 BOLT; BRKT
M8X12 FLANGE THA 		0-28050-812-0 01 1 0709-0709 ● ●
25 BOLT; BRKT
M8X12 FLANGE THA 		0-28050-812-0 01 1 0710- ● ● ●
51 PLUG; DRAIN
W/GASKET THA 		8-97171-437-0 01 1 0204-0408 ● ●
51 PLUG; DRAIN
W/GASKET THA 		8-97171-437-0 01 1 0409-0412 ● ●
51 PLUG; DRAIN
W/GASKET THA 		8-97171-437-0 01 1 0501-0608 ● ●
51 PLUG; DRAIN
W/GASKET THA 		8-97171-437-0 01 1 0609-0708 ● ● ●
51 PLUG; DRAIN
W/GASKET THA 		8-97171-437-0 01 1 0709-0709 ● ●
51 PLUG; DRAIN
W/GASKET THA 		8-97171-437-0 01 1 0710- ● ● ●
73 RUBBER; CUSHION,RAD MTG
THA 		8-97249-541-1 01 1 0204-0408 ● ●
73 RUBBER; CUSHION,RAD MTG
THA 		8-97249-541-1 01 1 0409-0504 ● ● ●
257 MOUNTING; RAD STAY
THA 		8-97249-541-1 01 1 0505-0606 ● ● ●
257 MOUNTING; RAD STAY
THA 		8-97249-541-1 01 1 0607-0708 ● ● ●
257 MOUNTING; RAD STAY
THA 		8-97249-541-1 01 1 0709-0709 ● ●
257 MOUNTING; RAD STAY
THA 		8-97249-541-1 01 1 0710- ● ● ●
311 RUBBER; MTG,RAD
THA 		8-97942-297-0 02 1 0204-0408 ● ●
311 RUBBER; MTG,RAD
THA 		8-97942-297-0 02 1 0409-0412 ● ●
311 RUBBER; MTG,RAD
THA 		8-97942-297-0 02 1 0501-0608 ● ●
311 RUBBER; MTG,RAD
THA 		8-97942-297-0 02 1 0609-0708 ● ● ●
311 RUBBER; MTG,RAD
THA 		8-97942-297-0 02 1 0709-0709 ● ●
311 RUBBER; MTG,RAD
THA 		8-97942-297-0 02 1 0710- ● ● ●
536 SHROUD; FAN
THA 		8-97941-533-0 01 1 0204-0408 ● ●
536 SHROUD; FAN
THA 		8-97941-533-0 01 1 0409-0412 ●
536 SHROUD; FAN
THA 		8-97372-866-1 01 1 0409-0412 ●
536 SHROUD; FAN
THA 		8-97372-866-1 01 1 0501-0608 ● ●
536 SHROUD; FAN
THA 		8-97372-866-1 01 1 0609-0708 ● ● ●
536 SHROUD; FAN
THA 		8-97372-866-1 01 1 0709-0709 ● ●
536 SHROUD; FAN
THA 		8-97372-866-1 01 1 0710- ● ● ●
