0-85A — AUTO TIMER; INJECTION PUMP (#72820) — 21 parça

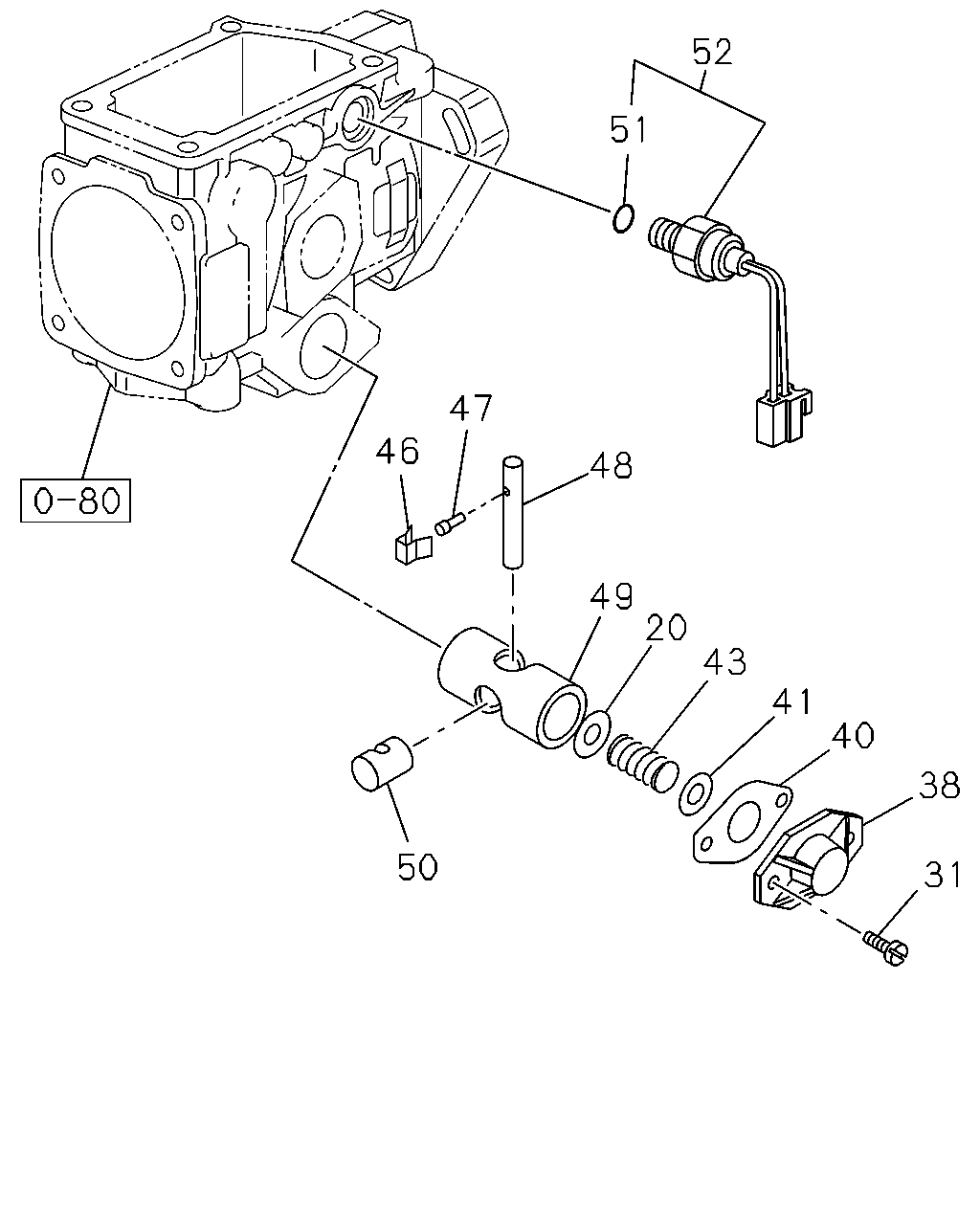

çizim 116353
52 51 47 46 48 49 20 43 41 40 38 50 31
BalonParca AdiParca NoAdetTipApplied Date
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.60, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-495-0 01 1 -
31 SCREW; TIMER COVER,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97231-933-0 02 1 -
38 COVER; TIMER,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-500-0 01 1 -
40 GASKET; TIMER COVER,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97224-532-0 01 1 -0404
40 GASKET; TIMER COVER,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97383-765-0 01 1 0405-
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=2.40, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94121-620-0 AR 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.60, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-495-0 AR 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.70, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-496-0 AR 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.90, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-497-0 AR 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=1.00, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-498-0 AR 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=1.20, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-499-0 AR 1 -
43 SPRING; PISTON,TIMER,INJ PUMP
L=43, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94313-671-0 01 1 -
43 SPRING; PISTON,TIMER,INJ PUMP
L=44.5, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97328-701-0 01 1 -
43 SPRING; PISTON,TIMER,INJ PUMP
L=47, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97328-702-0 01 1 -
46 CLIP; HOLDER PIN,TIMER,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-488-0 01 1 -
47 PIN; HOLDER PIN,TIMER,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-487-0 01 1 -
48 PIN; ROLLER HOLDER,TIMER,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97214-493-0 01 1 -
49 PISTON; TIMER,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97231-928-0 01 1 -
50 SLIDER; TIMER PISTON,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97218-961-0 01 1 -
51 GASKET; TIMING SENSOR,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-671-0 01 1 -
52 SENSOR; TIMING,TACHOMETER,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94403-289-1 01 1 -
