◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-84A - FEED PUMP; INJECTION PUMP ▶
0-84A — FEED PUMP; INJECTION PUMP (#72819) — 8 parça

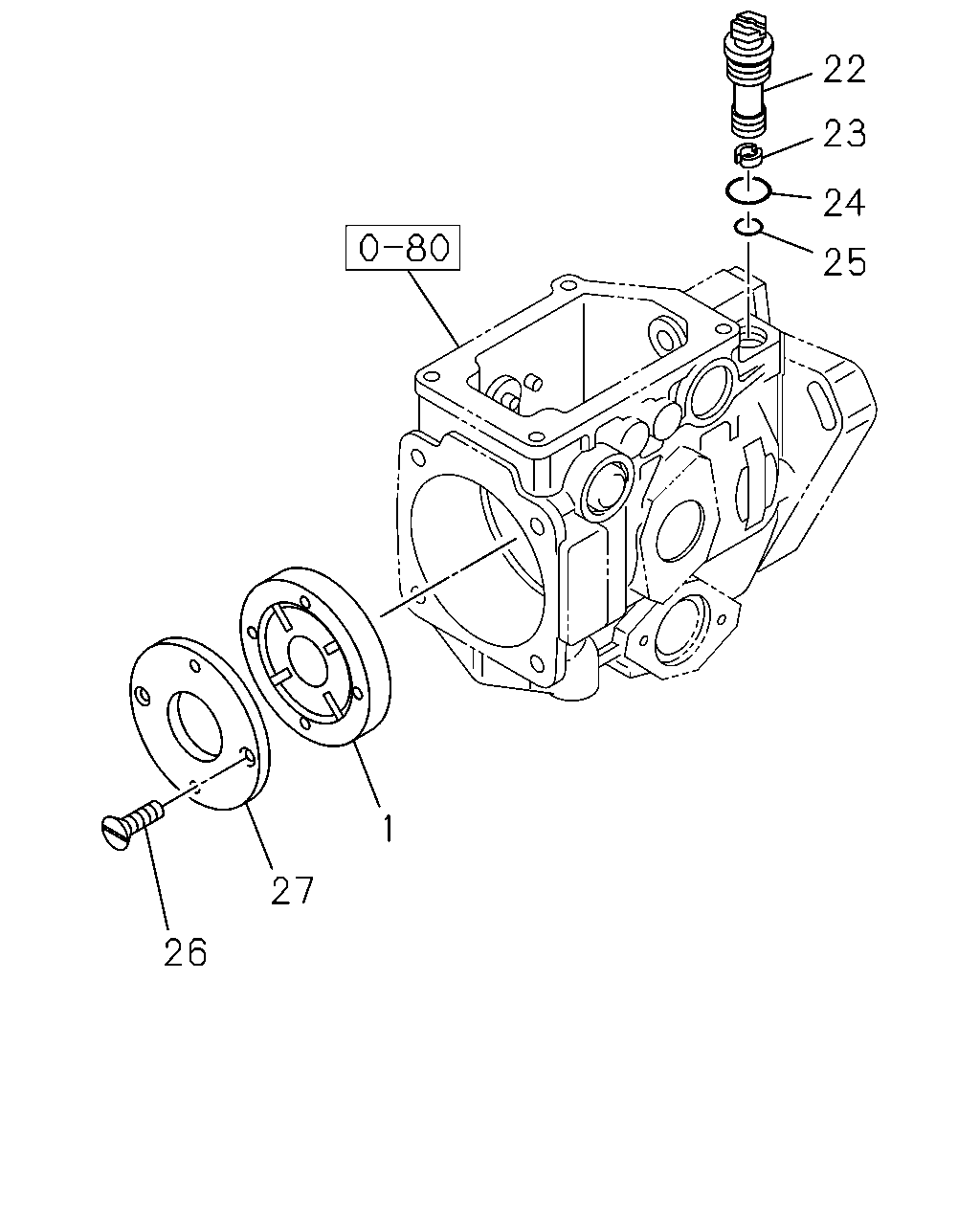

çizim 116349
22 23 24 25 1 27 26
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; FUEL FEED,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-477-0 01 1 -
22 VALVE; REGULATING,INJ PUMP
STAMP 06, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94174-819-0 01 1 -
23 RING; SPRING,REGULATING VLV,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-643-0 01 1 -
24 GASKET; REGULATING VLV,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-641-0 01 1 -
25 GASKET; REGULATING VLV,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-640-0 01 1 -
26 SCREW; COVER FIX,FUEL FEED PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-479-0 02 1 -
27 COVER; FUEL FEED PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97218-959-0 01 1 -0407
27 COVER; FUEL FEED PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97386-241-0 01 1 0408-
