◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-80A - INJECTION PUMP ▶
0-80A — INJECTION PUMP (#72815) — 141 parça

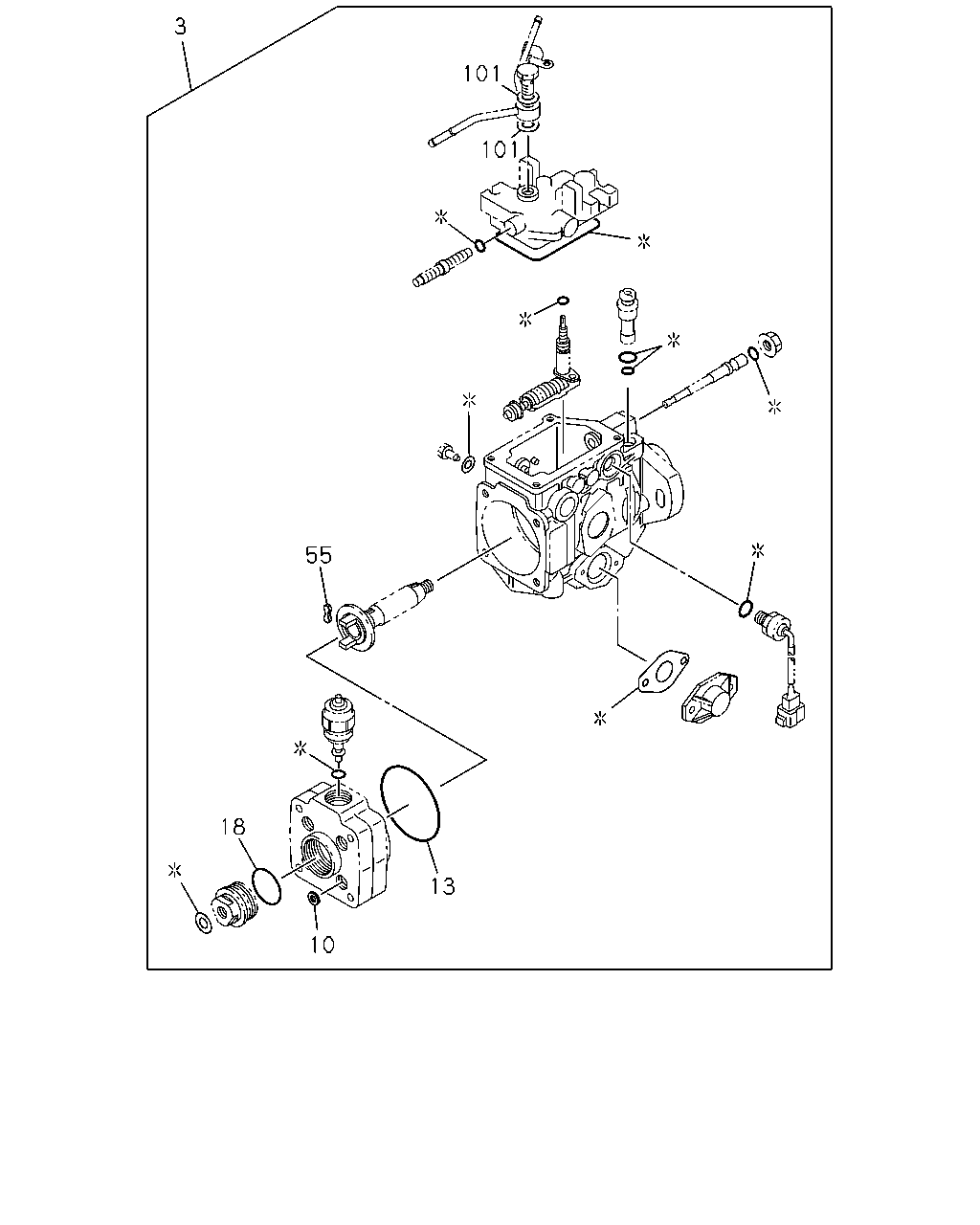

çizim 116341
3 101 101 55 18 13 10
BalonParca AdiParca NoAdetTipApplied Date
3 REPAIR KIT; FUEL INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97231-941-0 01 1 -0404
3 REPAIR KIT; FUEL INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97383-766-0 01 1 0405-
10 GASKET; DELIVERY VLV,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94247-716-0 04 1 -
13 GASKET; DISTR HD,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-527-0 01 1 -
18 GASKET; DISTR PLUG,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-637-0 01 1 -
55 DAMPER; CAM DRIVE,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94169-528-0 02 1 -
101 GASKET; OVERFLOW VLV,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97249-545-0 02 1 -

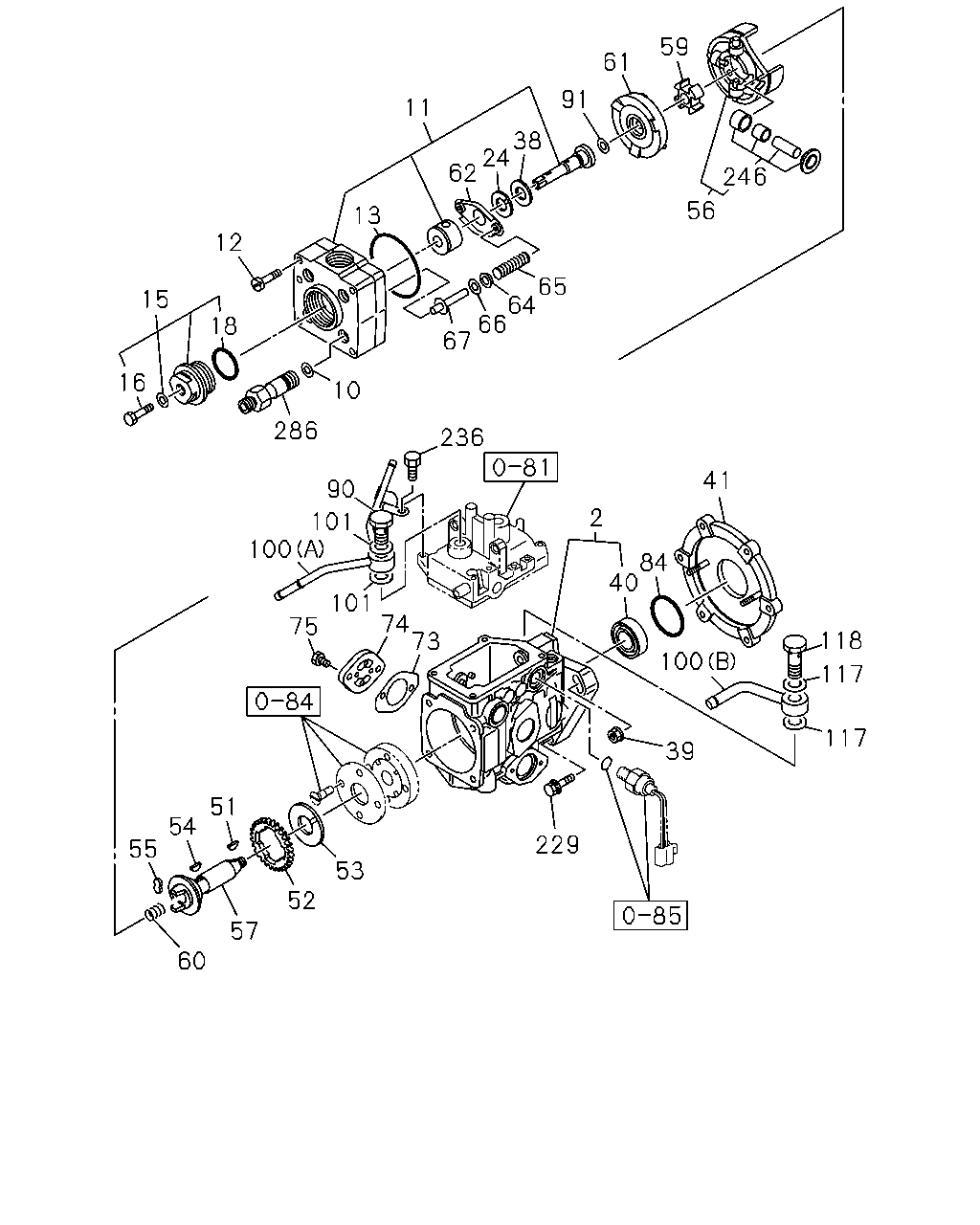

çizim 116356
59 61 91 11 38 24 62 246 56 13 12 65 64 66 67 15 18 16 10 286 236 41 90 2 101 100 84 40 101 74 73 75 118 100 117 117 39 51 54 229 55 53 52 57 60
BalonParca AdiParca NoAdetTipApplied Date
2 HOUSING ASM; PUMP,FUEL INJ
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97322-859-0 01 1 -
10 GASKET; DELIVERY VLV,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94247-716-0 04 1 -
11 HEAD ASM; DISTR,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97322-852-0 01 1 -
12 SCREW; DISTR HD,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94257-670-0 04 1 -
13 GASKET; DISTR HD,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-527-0 01 1 -
15 PLUG ASM; DISTR,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97231-942-0 01 1 -
16 BOLT; DISTR PLUG,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97224-536-0 01 1 -
18 GASKET; DISTR PLUG,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-637-0 01 1 -
24 WASHER; PLUNGER,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-515-0 01 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-514-0 01 1 -
39 NUT; MTG BRKT FIX
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97119-344-0 02 1 -
40 SEAL; OIL,CM/SHF FRT,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97147-034-0 01 1 -
41 BRACKET; INJ PUMP HSG
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97214-512-1 01 1 -
51 KEY; DRIVE GEAR,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		5-83539-024-0 01 1 -0404
51 KEY; DRIVE GEAR,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94239-370-0 01 1 0405-
52 GEAR; GOV DRIVE,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-483-0 01 1 -
53 WASHER; GOV DRIVE GEAR,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94317-488-0 01 1 -
54 KEY; FEED PUMP,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-481-0 01 1 -
55 DAMPER; CAM DRIVE,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94169-528-0 02 1 -
56 ROLLER ASM; TIMER,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97224-529-0 01 1 -
57 SHAFT; DRIVE,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97217-211-0 01 1 -
59 DISC; DRIVE,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97144-349-1 01 1 -
60 SPRING; DRIVE DISC,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97214-524-0 01 1 -
61 CAM; DISC,PLUNGER,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97322-847-0 01 1 -
62 SEAT; PLUNGER SPRING,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-516-1 01 1 -
64 SEAT; PLUNGER SPRING LWR,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-517-0 02 1 -
65 SPRING KIT; PLUNGER,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97214-522-0 01 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.50, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-518-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.80, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-519-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.00, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-520-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.20, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-521-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.50, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-522-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.80, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-523-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.00, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-524-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.90, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94433-204-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.10, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94433-205-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.30, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94433-206-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.40, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94433-207-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.60, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94433-208-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.70, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94433-209-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.40, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97146-139-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.60, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97146-140-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.70, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97146-141-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.90, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97146-142-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.10, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97189-360-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.20, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97189-361-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.30, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97189-362-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.40, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97189-363-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.50, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97189-364-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.60, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97189-365-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.70, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97189-366-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.80, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97189-367-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.90, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97189-368-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=3.00, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97189-369-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=3.10, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97189-370-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=3.20, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97189-371-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=3.30, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97189-372-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=3.40, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97189-373-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.20, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97189-374-0 AR 1 -
67 PIN; GUIDE,PLUNGER SPRING
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97328-703-0 02 1 -
73 GASKET; COVER TO HSG
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97224-532-0 01 1 -0404
73 GASKET; COVER TO HSG
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97383-765-0 01 1 0405-
74 COVER; HSG,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97231-934-0 01 1 -
75 SCREW; COVER TO HSG
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97231-933-0 02 1 -
84 GASKET; BRKT TO HSG
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94247-722-0 01 1 -
90 VALVE; OVERFLOW,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97214-509-0 01 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.74, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94111-658-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.76, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94111-659-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.78, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94111-660-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.80, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94111-661-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.82, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94111-662-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.84, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94111-663-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.86, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94111-664-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.88, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94111-665-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.90, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-528-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.92, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-529-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.94, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-530-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.96, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-531-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.98, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-532-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.00, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-533-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.02, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-534-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.04, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-535-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.06, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-536-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.08, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-537-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.10, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-538-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.12, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-539-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.14, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-540-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.16, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-541-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.18, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-542-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.20, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-543-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.22, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-544-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.24, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-545-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.26, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-546-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.28, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-547-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.30, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-548-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.32, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-549-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.34, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-550-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.36, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-551-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.38, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-552-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.40, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-553-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.42, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-554-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.44, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-555-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.46, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-556-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.48, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-557-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.50, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-558-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.52, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-559-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.54, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-560-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.56, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-561-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.58, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-562-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.60, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-563-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.62, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-564-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.64, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-565-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.66, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-566-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.68, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-567-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.70, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-568-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.72, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-569-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.74, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-570-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.76, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-571-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.78, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-572-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.80, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-573-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.82, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-574-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.84, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-575-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.86, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-576-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.88, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-577-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.90, THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94227-578-0 AR 1 -
100 PIPE; FUEL INJ PUMP
(B), THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97119-194-0 01 1 -
100 PIPE; FUEL INJ PUMP
(A), THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97328-708-0 01 1 -
101 GASKET; OVERFLOW VLV,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97249-545-0 02 1 -
117 GASKET; EYE BOLT,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97249-545-0 02 1 -
118 BOLT; EYE,FUEL INL,INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-94379-688-0 01 1 -
229 BOLT; BRKT
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97049-904-0 01 1 -
236 BOLT; PIPE
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97094-111-0 01 1 -
246 ROLLER KIT; INJ PUMP
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97218-980-0 01 1 -
286 VALVE; PRESSURE,CONT
THA ASM PART: A = 8-97287-505-4, B = 8-97288-268-4 		8-97227-581-1 04 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
